Miele S6730 User manual

Operating instructions
Vacuum cleaners
To avoid the risk of accidents or damage
to the appliance, it is essential to read these
instructions before using it for the first time.
These operating instructions apply to
standard models S 6710 - S 6790 as well as
to Special Edition models which are
distinguished by names rather than numbers. M.-Nr. 09 236 130
en-AU

Caring for the environment
Description of the appliance
Warning and Safety instructions
Preparing for use
Using the accessories supplied
Use
Mains connection cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting the suction power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interrupting operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting down, transportation and storage
ParkSystem for pauses in vacuuming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
ParkSystem for storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Maintenance and care
Purchasing new dustbags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Ordering the correct dustbags and filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
When to change the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Replacing the dustbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
When to change the exhaust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Correctly replacing the Air Clean filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Replacing the Active Air Clean or Active HEPA filter . . . . . . . . . . . . . . . . . . . . . . 28
Replacing one type of exhaust filter with another . . . . . . . . . . . . . . . . . . . . . . . . . 29
When to change the dust compartment filter (for motor protection) . . . . . . . . . . . 30
Correctly changing the dust compartment filter . . . . . . . . . . . . . . . . . . . . . . . . . . 30
When to change the battery in the radio frequency operated handle. . . . . . . . . . 31
How to change the battery in the radio frequency operated handle. . . . . . . . . . . 31
When to change the thread lifters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Correctly replacing the thread lifters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning and care
Problem solving guide
After sales service / Electrical connection
Optional accessories
Contents
2

Disposal of packing material
The packing material protects the
vacuum cleaner from transport
damage. The transport and protective
packing has been selected from
materials which are environmentally
friendly for disposal and can normally
be recycled.
Rather than just throwing these
materials away, please ensure they are
offered for recycling. Sort packing
materials for disposal according to the
type of material (e.g. plastics or
cardboard).
Disposing of the dustbag and
filters
These are made from environmentally
friendly materials, and can be disposed
of with the normal household waste, as
long as they have been used
exclusively for general household dust.
Disposing of your old
appliance
Before disposing of your old appliance,
remove the dustbag and filter and
dispose of them with the normal
household waste.
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre, or contact your Miele Vacuum
Cleaner Specialist for advice.
Ensure that your old appliance presents
no danger to children while being
stored for disposal.
Caring for the environment
3

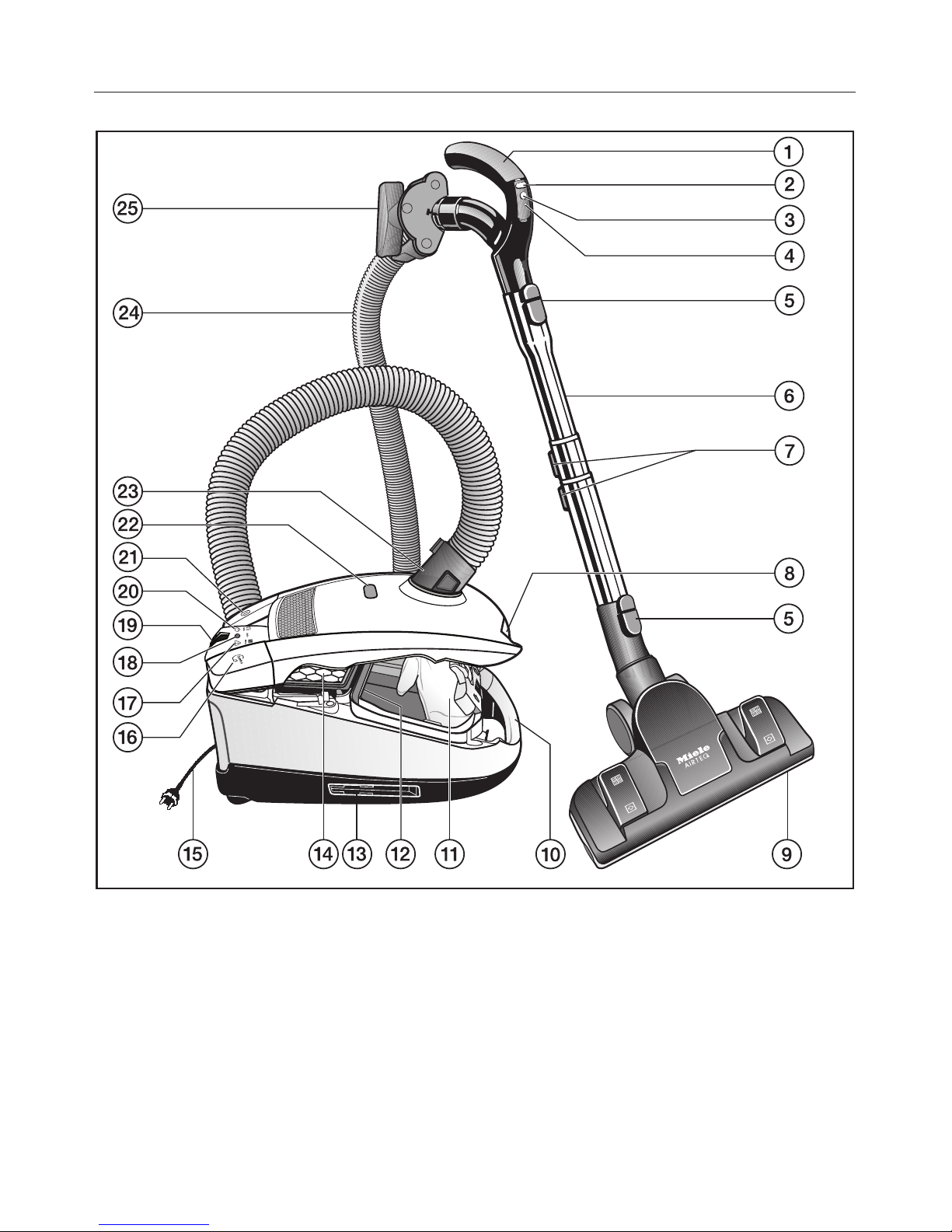

The illustration shows the maximum number of features available on these Miele
vacuum cleaners.
Certain models are supplied as standard with the following accessories which are
not illustrated on this page.
–Classic Allergotec floorhead
–TurboBrush
These floorheads and brushes are supplied with their own operating instructions.
Description of the appliance
4

aHandle
bSuction power selector +/-
cStand-by button for pauses in vacuuming -
dLED
eRelease button
fTelescopic wand *
gSlide controls for the telescopic wand *
hDust compartment release button
iFloorhead *
jCarrying handle
kDustbag
lDust compartment filter (for motor protection)
mParkSystem for storage (on either side of vacuum cleaner)
nExhaust filter *
oMains connection cable
pFoot switch for automatic cable rewind !
qOverheating warning light §
rExhaust filter change indicator (Reset button) [
sParkSystem for pauses in vacuuming
tStand-by indicator -
uOn/Off foot control s
vDustbag change indicator
wHose connector
xSuction hose
yVarioClip
Those features marked *depend on the model, and may vary or not be available
on your model.
Description of the appliance
5

This appliance conforms to current safety
requirements. Improper use of the appliance can,
however, present a risk of both personal injury and
material damage.
To avoid the risk of accidents and damage to the
appliance, please read these instructions carefully
before installation and before using it for the first time.
They contain important notes on installation, safety,
use and maintenance.
Keep these instructions in a safe place and ensure
new users are familiar with the content. Pass them on
to any future owner.
Correct application
~This vacuum cleaner is designed for domestic use
and for use in similar environments by guests in hotel
or motel rooms, bed & breakfasts and other typical
living quarters. This does not include common/shared
facilities or commercial facilities within hotels, motels or
bed & breakfasts.
~This appliance is not suitable for outdoor use.
~This vacuum cleaner must only be used to vacuum
dry floor surfaces. Do not use on people or animals. Any
other usage, modification or alteration is at the owner's
risk and could be dangerous.
Warning and Safety instructions
6

~This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.
Safety with children
~Supervise children whilst you are using the vacuum
cleaner. This vacuum cleaner is not a toy! To avoid the
risk of injury, keep children well away and do not allow
them to play with it or to use the controls.
~Older children may only use the appliance when its
operation has been clearly explained to them and they
are able to use it safely, recognising the dangers of
misuse.
~Cleaning and maintenance work may only be carried
out by older children under the supervision of an adult.
~The batteries for the radio controls in the handle
must be kept out of the reach of children.
Technical safety
~Ensure that the connection data on the data plate
(voltage and frequency) match the mains electricity
supply. This data must correspond in order to avoid the
risk of damage to the appliance.
Warning and Safety instructions
7

~The wall socket must be protected against short
circuit by a delay fuse 16 A or 10 A.
~Before installation, check the appliance for visible
signs of damage. Do not use a damaged appliance.
~Repairs should only be carried out by a Miele
authorised service technician. Repairs and other work
by unqualified persons could be dangerous and will
invalidate the warranty. The manufacturer cannot be
held liable for unauthorised work.
~Do not use the vacuum cleaner if the mains cable is
damaged. If the cable is damaged, it must be replaced
together with a complete cable rewind. For safety
reasons, this must only be done by the Miele Service
Department or by a Miele authorised service technician.
~Do not pull or carry the vacuum cleaner by the cable
and be careful not to damage the cable when
withdrawing the plug from the socket.
Keep the cable away from sharp edges and do not let it
be squashed, for example, under a door.
Avoid running the vacuum cleaner over the cable.
This could damage the cable, plug or socket and pose a
safety hazard.
~There is a metal inlay underneath the handle which is
designed to avoid the unpleasant effects of electrostatic
discharges. Please make sure that you keep your hand in
constant contact with this metal strip during vacuuming.
Warning and Safety instructions
8

~It is important to switch off the vacuum cleaner after
use, before changing any accessories and before any
cleaning or maintenance. Switch off at the wall socket
and remove the plug.
~Do not let the vacuum cleaner get wet. Clean only with
a dry cloth, slightly damp cloth or suitable proprietary
cleaner when disconnected from the mains supply.
~While the vacuum cleaner is under warranty, repairs
should only be undertaken by a service technician
authorised by Miele. Repairs and other work by
unqualified persons could be dangerous. The
manufacturer cannot be held liable for unauthorised
work.
Correct use
~To avoid the risk of damage, do not use the vacuum
cleaner without the dustbag, dust compartment filter
and exhaust filter in place.
~If a dustbag is not inserted, the dust compartment
cover cannot be closed. Do not force it.
~Do not vacuum up any liquids or damp dirt. Wait until
any freshly cleaned or shampooed carpets or floor
coverings are completely dry before attempting to
vacuum.
~Do not vacuum toner dust. Toner, such as that used
in printers and photocopiers, can conduct electricity.
Warning and Safety instructions
9

~Do not vacuum up anything which has been burning
or is still glowing e.g. cigarettes, ashes or coal, even if
apparently extinguished.
~Do not vacuum up any inflammable or combustible
liquids or gases and do not vacuum in areas where
such substances are stored.
~Floor attachments, accessories and tubes must not
be used at head level to avoid the risk of injury, e.g. to
eyes and ears.
~Important information on handling the batteries from
the radio controls in the handle:
– Do not short circuit or recharge batteries, or throw
them into a fire. Danger of explosion!
– Disposing of batteries: Remove the batteries from the
handle and dispose of them at a local battery
recycling bin. Do not dispose of them with the normal
household waste.
Warning and Safety instructions
10

Accessories
~To avoid the risk of injury when vacuuming with a
Miele TurboBrush, do not touch the rotating roller
brush.
~It is not advisable to vacuum directly with the handle,
i.e. without an accessory attached as the rim could get
damaged and you could hurt yourself on sharp edges.
~Only use genuine Miele approved dustbags and
filters. This will ensure optimum performance of the
appliance throughout its life and will guarantee the
safety of the vacuum cleaner.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety
instructions.
Warning and Safety instructions
11

Attaching the suction hose
^Insert the hose connector into the
suction socket until it clicks into
position. To do this, line up the
guides on the two pieces.
To remove the suction hose
from the vacuum cleaner
^Press the release buttons at the side
of the hose connector, and lift the
hose from the socket.
Fitting together the suction
hose and the handle
^Insert the other end of the suction
hose into the handle until it clicks into
position.
Preparing for use
12

Connecting the handle to the
telescopic wand
^Insert the handle into the telescopic
wand until it clicks into position. To
do this, line up the guides on the two
pieces.
^Press the release button (arrow) if
you want to separate the parts and
pull the handle out of the telescopic
wand with a slight twist.
Adjusting the 2-piece
telescopic wand (depending
on model)
One part of this telescopic wand is
packed inside the other and can be
adjusted to suit your height for
comfortable vacuum cleaning.
^Press the telescopic wand release
button to release the tubes and
adjust to the required height.
Adjusting the 3-piece
telescopic wand (depending
on model)
This telescopic wand has three
sections. Two sections of the tubes are
packed together inside a third outer
tube.
^Press the release button ato release
the lower tube and pull it right out
until it clicks. Press the button again
when you want to retract the tube
again. The tube will click into place.
^Press the telescopic wand release
button bto release the tubes and
adjust to the required height.
Preparing for use
13

Fitting the standard floorhead
^Push the telescopic wand into the
floorhead and turn it clockwise or
anti-clockwise until it clicks into
position.
^To release the floorhead from the
telescopic wand, press the locking
button (see arrow) and pull the
telescopic wand away from the
floorhead.
The floorhead can be used for all
normal cleaning of carpets, rugs and
robust hard flooring. For hard flooring,
such as stone and floors which are
susceptible to scratching, e.g. parquet,
we recommend using the special Miele
Hard Floor Brush (see "Optional
accessories").
Preparing for use
14

Adjusting the standard
floorhead
It is important to observe the flooring
manufacturer’s cleaning and care
instructions.
The following symbols are found on
your vacuum cleaner's floorhead
depending on the model.
–öand ä
–%and )
Vacuum carpets and rugs with the
brushes retracted:
^Press either the öor %foot control.
Clean hard flooring which is not
susceptible to scratching with the
brushes protruding:
^Press either the äor )foot control.
Clean hard flooring with deep cracks
or spacing between floorboards with
the brushes protruding.
AirTeQ floorhead
This aerodynamic and powerful
floorhead is specially designed to
achieve good cleaning results while at
the same time being very energy
efficient.
,If you find that a great amount of
effort is required to manoeuvre the
AirTeQ floorhead, reduce the
suction power to a suitable level
(see "Adjusting the suction power").
Preparing for use
15

The following accessories are supplied:
aDusting brush
For cleaning skirting boards, ornate,
carved or delicate articles, etc.
The head of the dusting brush can
be swivelled to attain the best
cleaning position.
bUpholstery nozzle
For cleaning upholstery, mattresses,
cushions, curtains, covers etc.
cCrevice nozzle
For cleaning in folds, crevices and
corners.
dVarioClip for the above
accessories
Symbols on the holder show where
to attach the different accessories.
^Attach the VarioClip, if required, to
the handle or the hose connector.
Floorhead
For general use and also for vacuuming
stairs.
,For safety reasons when
vacuuming stairs, it is best to start at
the bottom of the stairs and move
upwards.
Using the accessories supplied
16

Mains connection cable
Unwinding the cable
^Pull out the connection cable to the
required length (max. cable length
approx. 6.5 m).
,If vacuuming for longer than 30
minutes, the connection cable must
be pulled out to its fullest extent.
Otherwise there is a danger of
overheating.
Rewinding the cable
^Switch off at the wall socket and
remove the plug.
^Press the rewind foot switch. The
cable will rewind automatically.
Use
17

Switching on and off
^Step on the On/Off foot control s.
The Stand-by indicator -illuminates.
There are three ways of switching on
your vacuum cleaner.
The Stand-by indicator will go out when
the vacuum cleaner is switched on. An
LED will indicate each time a button is
pressed on the handle.
– Press the Stand-by button -on the
handle.
When the vacuum cleaner is used for
the first time, it will switch to the "Auto"
power setting.
After this, the vacuum cleaner will
switch on at the last selected power
setting.
–Press the +button on the handle.
The vacuum cleaner switches on at the
"max." power setting.
–Press the -button on the handle.
The vacuum cleaner switches on at the
"min." power setting.
Use
18

Selecting the suction power
You can regulate the suction to suit the
type of flooring.
The higher the wattage, the more
powerful the suction. Reducing the
suction power reduces the amount of
effort required to manoeuvre the
floorhead.
min. = reduced suction power
Auto = automatic adjustment of the
suction power according to
the flooring
Do not vacuum any light materials or
curtains with the "Auto" power
setting. These may be drawn into
the vacuum cleaner and become
damaged.
max.= Maximum suction power
^Press the +or -button on the handle
to select the required suction power.
The suction power selected lights up
yellow on the vacuum cleaner.
If you find that a great amount of
effort is required to manoeuvre the
AirTeQ floorhead, reduce the
suction power to a suitable level.
Use
19

Vacuuming
^When vacuuming, pull the vacuum
cleaner behind you on its wheels.
You can stand it upright for
vacuuming stairs and curtains etc.
,When vacuuming especially fine
dust, e.g. sawdust, sand, flour,
talcum powder etc., electrostatic
charges build up naturally. Under
certain conditions these charges will
be released. To avoid the
unpleasant effects of these
discharges, a metal inlay has been
incorporated into the underside of
the handle. Please make sure that
you keep your hand in constant
contact with this metal strip during
vacuuming.
Use
20
