Miele DA 199-2 Specification sheet

Operating and installation instructions
Cooker hoods
DA 196-2
DA 199-2
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed or used for the first time.
GiWO
M.-Nr. 05 609 480

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching the lighting on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Brief description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fitting / replacing the active charcoal filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Defective lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appliance dimensions
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Retaining plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Motor unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Extension piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fitting the tower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Condensate trap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Technische Daten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Contents
2

Disposal of the pac ing mate-
rial
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these materi-
als away, please ensure that they are
recycled.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate sec-
tion in the Warning and Safety instruc-
tions.
Caring for the environment
3

This appliance complies with all rele-
vant legal safety requirements. Inap-
propriate use can, however, lead to
personal injury and damage to prop-
erty.
Before installation and before using
for the first time, read the operating
instructions carefully. They contain
important information on safety, in-
stallation, use and maintenance of
the appliance. This way you will
avoid the risk of accidents and dam-
age to the appliance.
Keep these operating instructions in
a safe place and ensure that all us-
ers are familiar with the contents.
Pass them on to any future owner of
the appliance.
Correct usage
This appliance is intended for do-
mestic use only.
It is not a toy! To avoid the risk of injury
do not let children play with it or use the
controls. Supervise its use by the el-
derly or infirm.
The manufacturer cannot be held liable
for damage caused by improper or in-
correct use of the appliance.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the appli-
ance and its surroundings in a clean
condition at all times.
Any damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency details given
on the data plate correspond with the
on-site electricity supply; otherwise the
appliance could get damaged. Consult
a qualified electrician if in any doubt.
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the ap-
pliance and an effective earthing sys-
tem which complies with local and na-
tional regulations. It is most important
that this basic safety requirement is
present and regularly tested. If in any
doubt, the electrical wiring in the home
should be checked by a qualified elec-
trician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety. Repairs and other work by
unqualified persons could be danger-
ous, and the manufacturer will not be
held liable.
Ensure power is not supplied to the ap-
pliance until after any maintenance or
repair work has been completed.
Warning and Safety instructions
4

This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However it may be suitable for
such usage subject to a risk assess-
ment of the installation being carried
out by a suitably qualified engineer.
The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug removed (pull on the
plug, not the cable),
–the fuse from the fused spur connec-
tion unit is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use
Never use an open flame beneath
the cooker hood. To avoid the dan-
ger of fire, do not flambé or grill over an
open flame under the cooker hood.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
When using the cooker hood over
a gas hob, ensure that any burners
in use are always covered by a pan;
otherwise flames could be drawn up by
the suction of the cooker hood, parts of
which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use, oth-
erwise condensation may collect in the
hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can ig-
nite and could set the cooker hood on
fire.
Do not use the cooker hood without
the grease filters in place. This way
you will avoid the risk of grease and dirt
getting into the appliance and hinder-
ing its smooth operation.
The filters should be regularly
cleaned or changed as appropri-
ate. Saturated filters are a fire hazard.
(See Cleaning and care).
Do not use a steam-cleaner to
clean this appliance. Pressurised
steam could reach the electrical com-
ponents and cause a short circuit.
Warning and Safety instructions
5

Installation
The minimum safety distance be-
tween the top of the cooker/hob
and the bottom of the cooker hood
should be at least:
– 450 mm above electric hobs and
cookers,
– 650 mm above gas hobs and cookers,
– 650 mm above an open grill
from our range
For non-Miele cooking appliances,
maintain the safety distance as recom-
mended by the manufacturer in their In-
stallation and Operating instructions.
If more than one appliance is fitted be-
neath the cooker hood, and they have
different minimum safety distances to
the cooker hood, select the greater dis-
tance.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from build-
ers’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, seek
professional advice.
Using at the same time as other heat-
ing appliances that depend on the air
from the room
Warning - danger of toxic fumes
Great care should be taken when
using the cooker hood at the same
time and in the same room or area of
the house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters, con-
tinuous flow or other water heaters, gas
hobs, cookers or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or extrac-
tion ducting. When used in extraction
mode, the appliance draws air in from
the room in which it is installed and
from neighbouring rooms. If there is in-
sufficient air an underpressure will oc-
cur. The heating appliance may be
starved of oxygen, impairing combus-
tion.
Harmful gases such as carbon mon-
oxide could be drawn out of the
chimney or extraction ducting back
into the room with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the heat-
ing appliances from being drawn back
into the room when the extractor and
the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating appli-
ance is switched off or vice-versa. A
ventilation brick alone is not generally
sufficient to ensure safe ventilation.
The overall ventilation condition of
the dwelling must be taken into ac-
count. If in any doubt, the advice of
a competent builder or, for gas, a
"Corgi" installer, must be sought.
If adequate ventilation can only be
achieved through an open window, a
window contact switch must be fitted.
This ensures that the hood can only be
operated when the window is opened
wide enough.
The advice of a competent builder must
be sought. The cooker hood is then
ready for use. A window contact switch
kit is available from good builders mer-
chants.
Take care when ventilating the room
through an open window that ventilation
is not impaired by a closed blind or cur-
tain.
If the hood is being operated in
recirculation mode, the above restric-
tions do not apply.
Disposal of your old appliance
Before discarding an old appli-
ance, switch off and disconnect it
from the power supply. Cut off and ren-
der any plug useless. Cut off the cable
directly behind the appliance to prevent
misuse.
This should be done by a competent
person.
The manufacturer cannot be held lia-
ble for damage caused by non-com-
pliance with these Warning and
Safety instructions.
Warning and Safety instructions
7

aExtension piece
bTower
cCanopy
dSliding switches
eSliding switches
fLighting for hob
gGrease filters
hSliding switch for the lighting
iSliding switch for the fan
jSliding switch for the power setting
Description of the appliance
8

Switching on
^Set the sliding switch for the fan i
to "1".
The cooker hood will run at the
powersetting most recently selected.
Selecting the power level
You can select one of four power levels
with the sliding switch jdepending on
how much the air needs to be filtered.
Levels "1" to "3" are suitable for normal
use.
When frying or cooking food with a
strong aroma you can set the sliding
switch jto the Intensive "IS" setting for
a short period.
After coo ing
If the air still needs to be cleared after
cooking, we recommend letting the
cooker hood continue to run for a fur-
ther ten minutes.
Then switch the appliance off:
Switching off
^Set the sliding switch for the fan i
to "0".
Switching the lighting on and off
The hob lighting hcan be switched on
and off independently of the fan.
"0" – lighting off
"1" – lighting off
Operation
9

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, the non-re-
turn flap supplied must be fitted.
The non-return flap is designed to pre-
vent the exchange of room and outside
air taking place.
This flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the cook-
ing vapours to be blown directly out-
side.
. . . air recirculation:
The air is drawn in and cleaned first by
the grease filters and then by a char-
coal filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the cooker
hood extension piece.
Charcoal filters are available to order
through your Dealer or the Miele Spare
Parts Dept (see back cover for contact
details and "Technical data" for model
number).
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place, see
"Cleaning and care".
Brief description
10

Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on the
plug), or
– the fuse has been withdrawn from
the fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).
Housing
Warning: The surfaces are suscepti-
ble to scratches and abrasion.
Please observe the following clean-
ing instructions:
^All external surfaces and controls can
be cleaned using warm water with a
little washing up liquid applied with a
soft sponge.
^Wipe dry using a soft cloth.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents, e.g. pow-
der cleaners and cream cleaners,
–abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents.
These would damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a proprietary non-abrasive clean-
ing agent designed specifically for use
on stainless steel.
To help prevent re-soiling, proprietary
conditioning agents for stainless steel
can also be used.
Apply sparingly with an even pressure.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part Number 98013530, which is suit-
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome.
If you are unsure about a particular
product or need further advice please
contact your nearest Miele Sales of-
fice. See back page for address.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the cooker hood.
Clean the grease filters when they look
dirty, and avoid letting them become so
dirty that the filtering effect is inefficient.
The grease filters should be cleaned
regularly, at least every 3 or 4 weeks. to
avoid a build-up of fat.
An over saturated filter is a fire haz-
ard.
Cleaning and care
11

^To remove a grease filter, press the
locking clips towards the middle of
the filter.
^Remove the filters.
^Clean the filters:
by hand: with a nylon brush in warm
water with a little washing up liquid.
in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray arm
is not obstructed.
Depending on the cleaning agent
used, cleaning the grease filters in a
dishwasher can cause permanent
discolouration to the surface of the
filters. However, this will not affect
the functioning of the grease filters in
any way.
^After cleaning leave the filters to dry
for a while on an absorbent surface
before putting them back in place.
^When removing the filters for clean-
ing also clean off any residues of oil
or fat from the now accessible hous-
ing to prevent the risk of these catch-
ing fire.
^When replacing the grease filters
make sure the locking clips are visi-
ble facing down towards the hob.
Should the grease filters be put back
upside down:
insert a small screwdriver into the
slits to disengage them. Do not let
them drop on to the hob below.
Fitting / replacing the active
charcoal filters
If the cooker hood is connected for
recirculation two active charcoal filters
must be inserted in addition to the
grease filters. These filters absorb nor-
mal kitchen odours.
They are fitted in the canopy above the
grease filters.
Active charcoal filters can be ob-
tained from your dealer or the Miele
Spare Parts Department.
Refer to the section "Technical data"
for type and reference number.
The filters are supplied with fitting instruc-
tions. Ensure these are carefully followed.
Replace the filters when they no longer
absorb kitchen odours effectively.
They should, however, be replaced at
least every 6 months.
Cleaning and care
12

Defective lighting
If the lighting is not working the light
tube and/or starter may need changing.
Disconnect the cooker hood from
the mains supply. Ensure that:
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on the
plug), or
– the fuse has been withdrawn from
the fused spur connection unit, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed (in
countries where this is applicable).

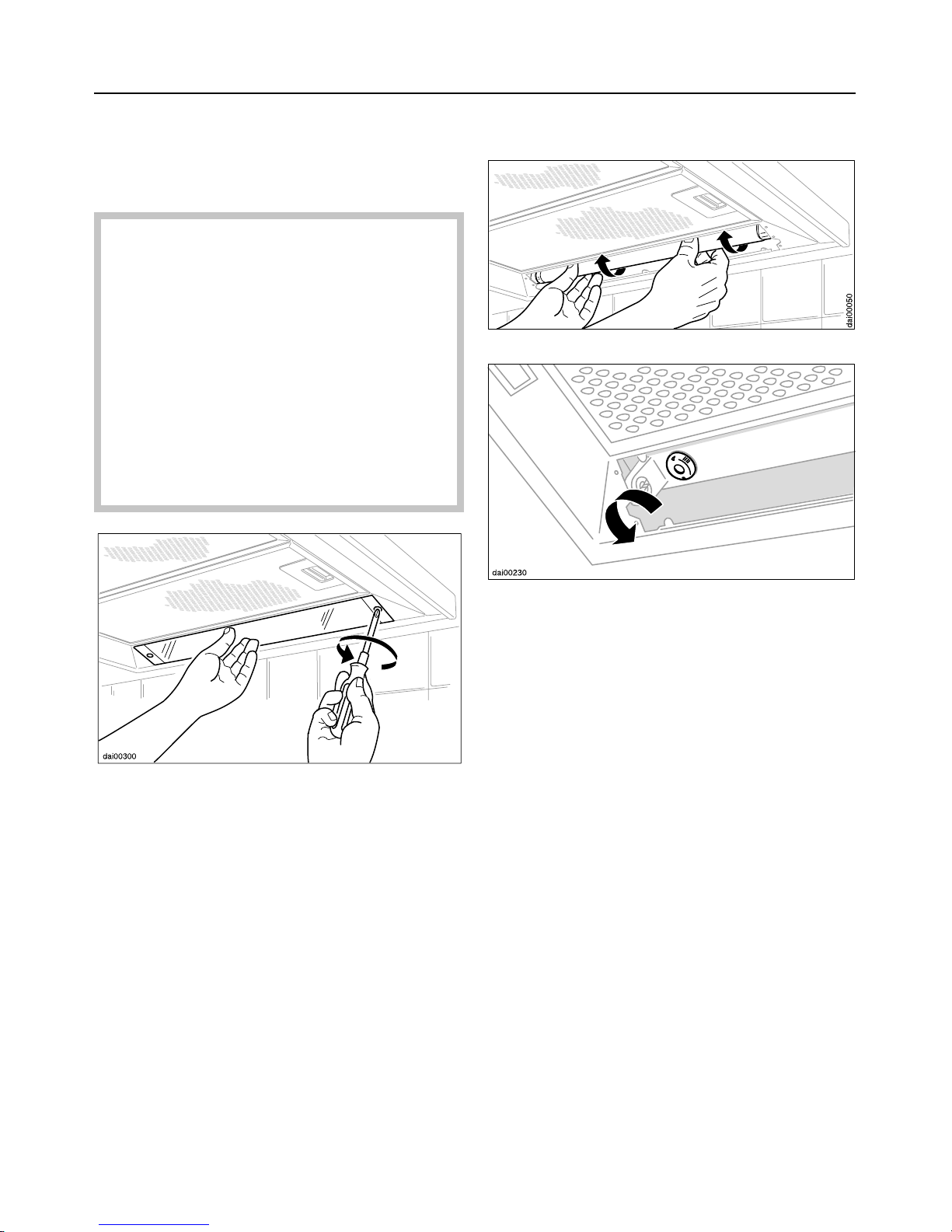

^Unscrew the fixing screw of either the
right or left hand holder for the glass
cover. When doing this, push the
glass cover upwards so that it does
not fall on the hob surface.
^Take off the glass cover holder.
^Take out the glass cover, guiding it
downwards at an angle.
^When changing the light tube also
unscrew the second glass cover
holder.
^Replace the light tube or the starter.
^Put the glass cover back into place
and secure with the glass cover hold-
ers.
Cleaning and care
13

Safety regulations prohibit the fitting
of this cooker hood over a solid fuel
stove.
For safety reasons a minimum safe
distance must be maintained be-
tween the top of the hob / cooker
and the bottom of the cooker hood:
– 450 mm above electric hobs /
cookers
– 650 mm above gas hobs / cookers
– 650 mm above an open grill
from our range.
See "Warning and Safety instruc-
tions" for further information.
A distance of 650 mm may be pref-
erable above electric hobs / cookers
to give more working space.

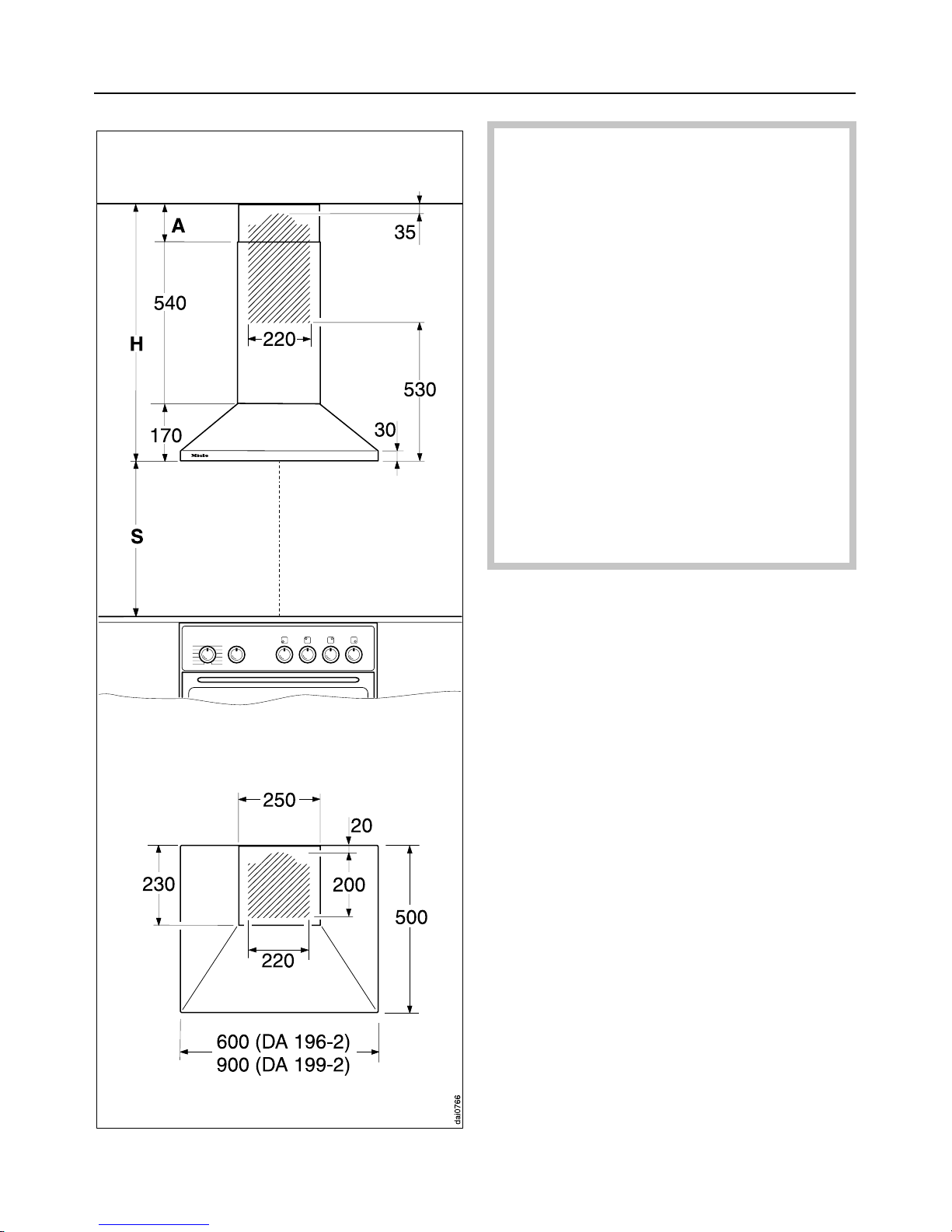

When deciding dimension Sensure
that the minimum specified safety dis-
tance between the hob / cooker and the
cooker hood is maintained. If the hood
is fitted flush to the ceiling make sure
that the remaining distance to the ceil-
ing is not greater or less than appliance
height H.
Recirculation
H= 820 – 1110 mm
Extraction
H= 800 – 1020 mm with extraction
through the wall.
H= 730 – 1020 mm with extraction
through the ceiling.
To fit the tower, distance Abetween the
top of the tower and the ceiling must be
at least 20 mm.
Appliance dimensions
14

The shaded area represents the
wall or ceiling area for the vent
cut-out, and for fitting the connection
socket.
(For recirculation mode the connection
socket may only be fitted in a wall area).
Connection for extraction C125 mm
Appliance dimensions
15

Assembly parts
Installation
16

a2 recirculation grilles
(for recirculation mode only)
b2 protective sheets
for use when fitting the tower.
c1 directional unit
(for recirculation mode only)
d1 flexible aluminium hose for con-
necting the directional unit to the ex-
haust socket on the motor unit.
e2 hose clips for securing the ex-
haust ducting.
f1 non-return valve for fitting into the
exhaust connection on the motor unit
(for extraction mode only).
gUpper retaining plate B for secur-
ing the extension piece.
hMiddle retaining plate C for addi-
tional stability for the tower.
iLower retaining plate A for secur-
ing the canopy and the motor unit.
12 large headed screws 5 x 40 mm
and
12, S 8 plugs for securing the retaining
plates and the canopy.
2, M 6 loc ing nuts for securing the
motor unit.
4 screws 3.9 x 7.5 mm for securing the
tower and the extension piece.
Installation
17

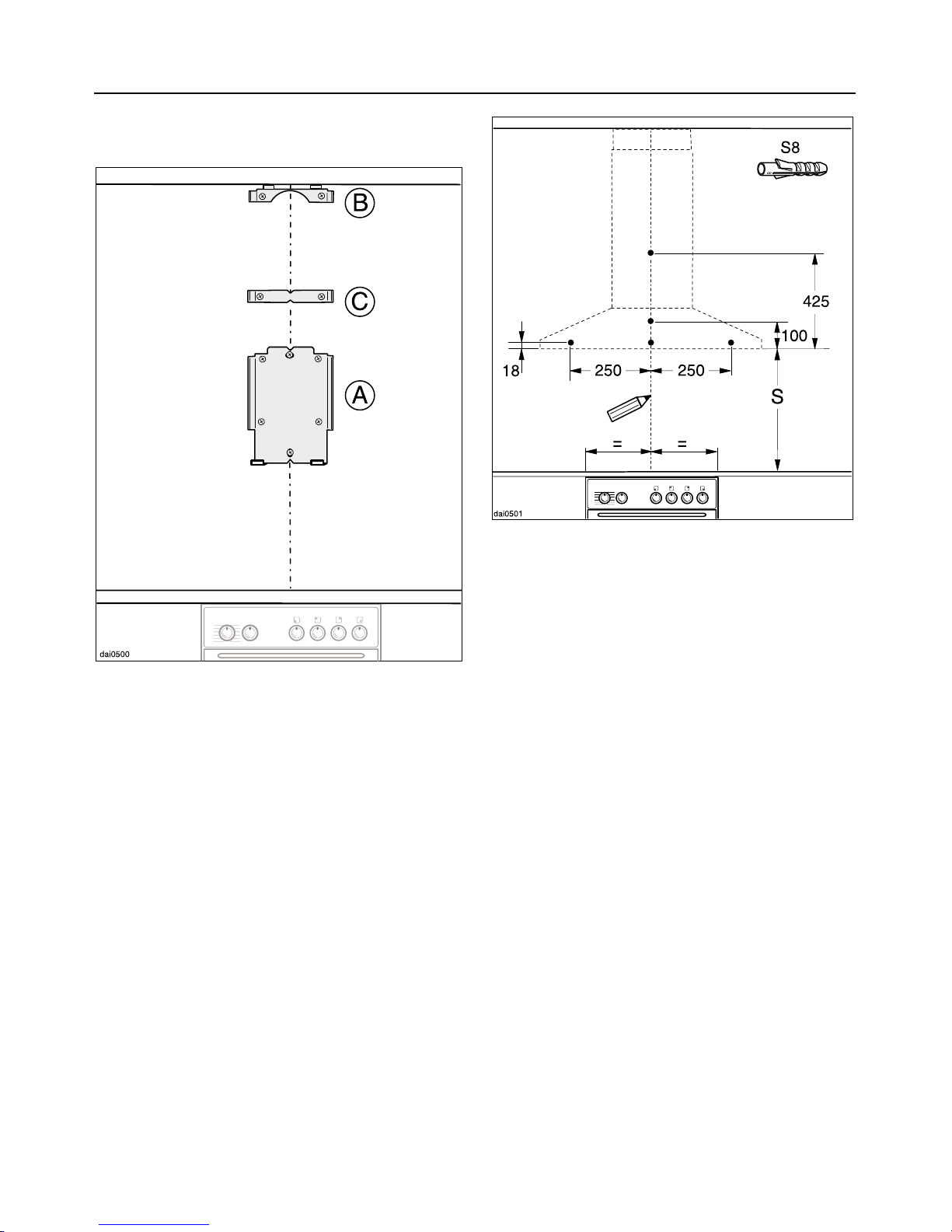

Retaining plates
There are three retaining plates A, B and
C for fixing the cooker hood to the wall.
First of all drill the holes for attaching the
canopy and for fitting retaining plate A.
^Before fitting the retaining plate draw
a vertical line centrally above the hob
on the back wall.
^Mark measurement Sfrom the hob
surface upwards (see "Appliance di-
mensions"). This marks the height of
the lower rim of the cooker hood.
^DA 196-2:
Drill an 8 mm Chole on the middle
line, 18 mm above the height marked
S. Insert an S8 plug into the hole.
^DA 199-2:
Drill two 8 mm Choles, 18 mm above
the height marked Sand 250 mm right
and left of centre. Insert S8 plugs.

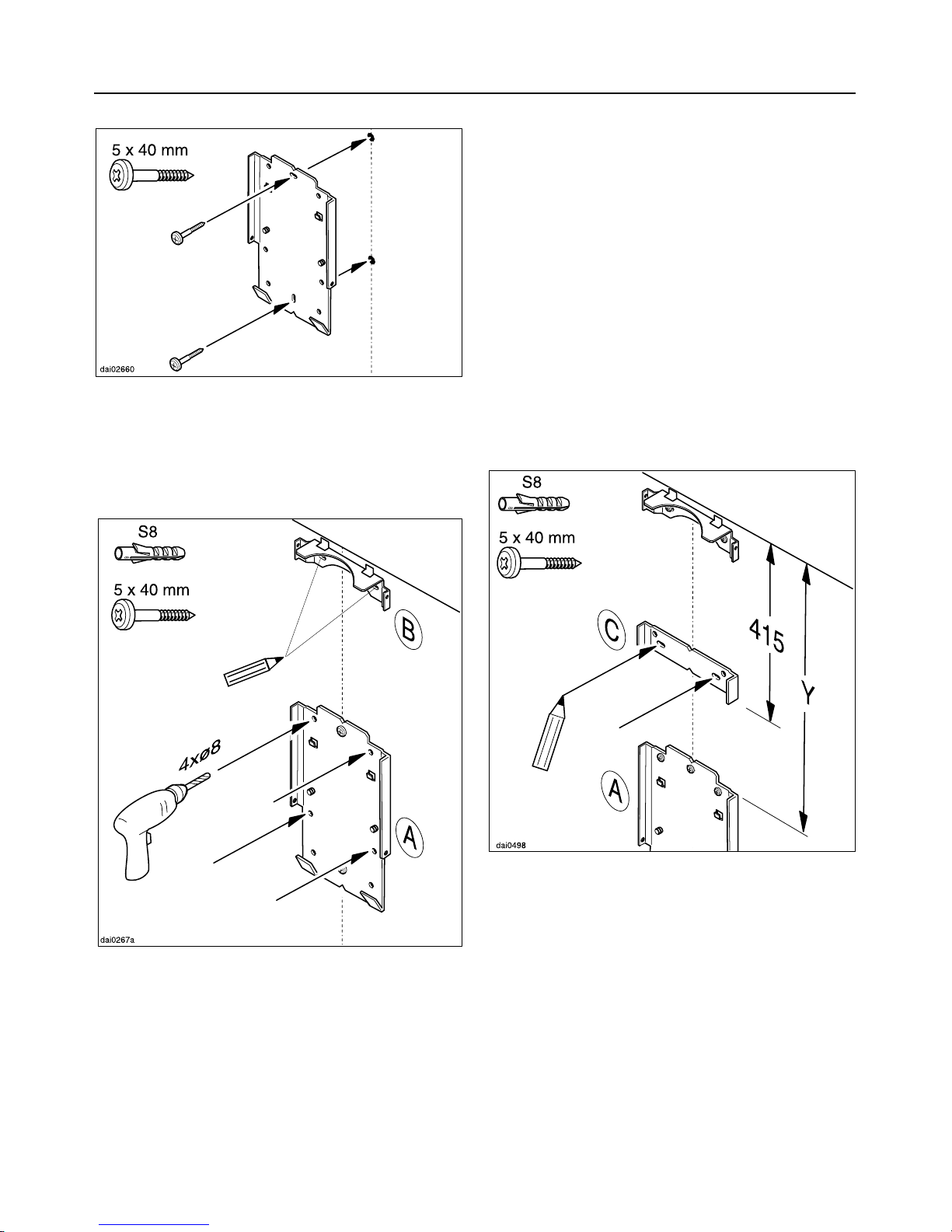

Retaining plate A
^Drill two 8 mm Choles, one at
S+ 100 mm and one at S+ 425 mm
on the centre line for the retaining
plate (see "Appliance dimensions").
Insert S8 plugs.
Installation
18

^Lightly secure retaining plate A into
position using 5 x 40 mm screws
through the two holes and use the
notches to align with the middle line.
^Drill 4 more 8 mm Choles through
the now fitted retaining plate and
press S8 plugs into the holes.
^Screw two 5 x 40 mm screws into the
upper two holes.
Retaining plate B
^Hold retaining plate B to the wall and
push up until it is directly below the
ceiling. Use the notches and the mid-
dle line to align it horizontally. Mark
the 4 drill holes on the wall.
^Drill two C8 mm holes into the wall,
and push the S8 plugs into the holes.
^Screw on the retaining plate with two
5 x 40 mm screws.
Retaining plate C
Retaining plate C only needs to be fit-
ted if dimension Y is greater than
415 mm. It provides additional stability
for the extension piece.
Installation
19

^At a maximum distance of 415 mm
from the ceiling hold retaining plate C
against the wall and use the notches
to align it with the middle line. Mark
the two drill holes.
^Drill two C8 mm holes into the wall,
and press the S8 plugs into the holes.
^Screw on retaining plate C with two
5 x 40 mm screws.
Canopy
^Before fitting the canopy the glass
cover of the lighting tube must first
be removed (see relevant section in
"Cleaning and care").
^Hang the canopy on the angle brack-
ets on retaining plate A.
^Secure the canopy with 5 x 40 mm
screws into each drilled hole.
^DA 196-2:
Secure the canopy with a 5 x 40 mm
screw.
^DA 199-2:
Secure the canopy with two5x40mm
screws.
^Replace the glass cover.
Installation
20
