Miele DA 6690 D User manual

Installation Instructions
DA6690 D en - CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.

Installation
31
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the "IM‐
PORTANT SAFETY INSTRUCTIONS"
section.
Installation parts
4 screws, ¹/₄" x 4 ⁵/₁₆"
(7 x 110 mm) and
4 plugs, ³/₈" x 3 ¹/₈" (10 x 80 mm)
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in solid ceilings only.
Use different fasteners for other ceil‐
ing construction types. Make sure
that the ceiling can support the load.
4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws M³/₁₆" x ⁵/₁₆"
(M4 x 8.5 mm)
for securing the extension piece hold‐
ers.
14 screws M³/₁₆" x ⁵/₁₆"
(M4 x 8 mm)
for securing the spacer frame and se‐
curing the hood to the installation
frame.
1 screw M³/₁₆" x ⁵/₈" (M4 x 16 mm)
for securing the chimney.
DUI 32 recirculation kit for recircula‐
tion mode
(not supplied, available as an optional
accessory). The kit includes a direc‐
tional unit, aluminum hose, and hose
clips.

Installation
32

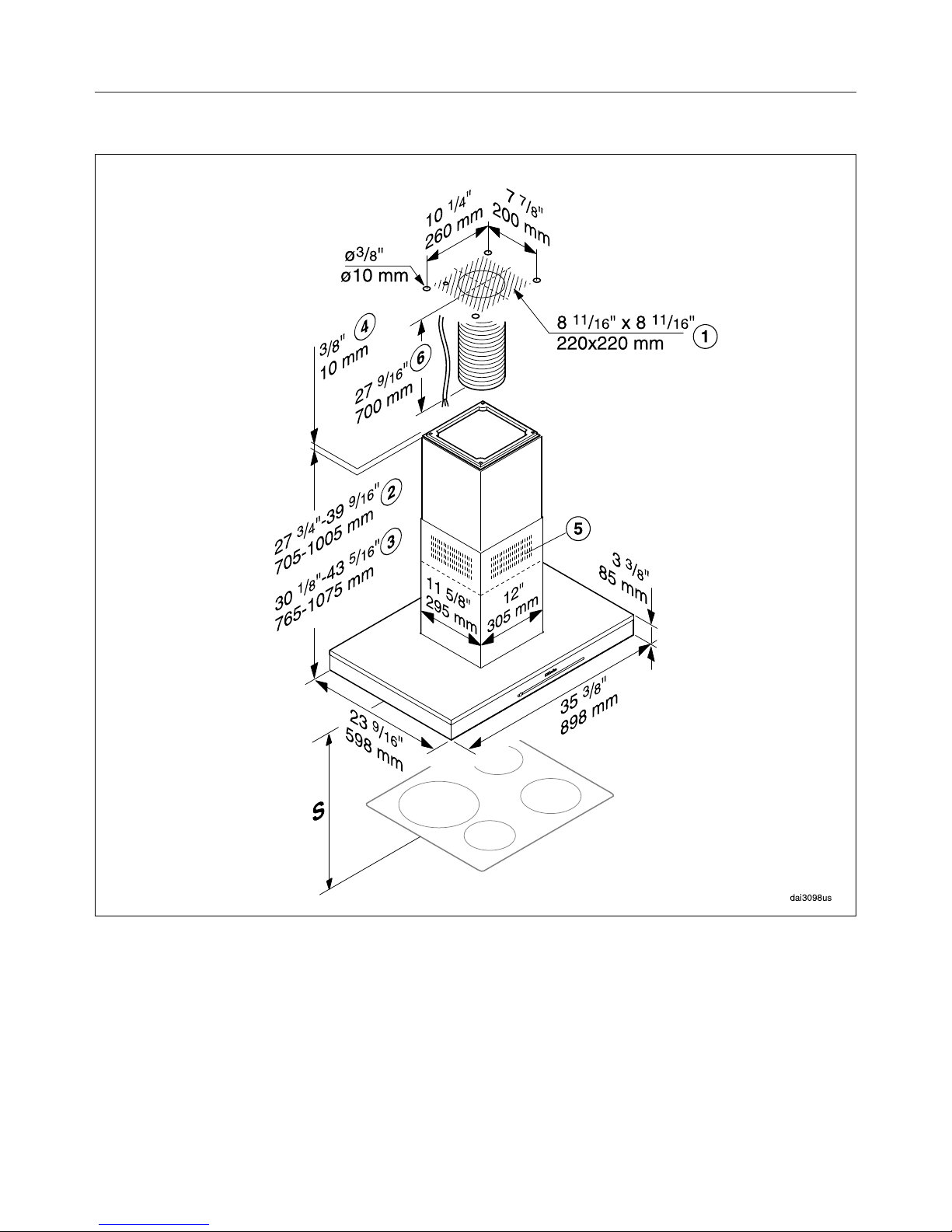

Appliance dimensions
aMounting area for the exhaust ducting and power cable. In recirculation mode,
only the power cord is required.
bPossible height range for appliance in vented mode
cPossible height range for appliance in recirculation mode
dAlternative installation with spacer frame
eAir vent positioned at the top for recirculation

Installation
33
fA power cord is required to connect the hood to the socket in the ceiling. With
extraction mode flexible ducting is also required.
Exhaust connection 6" (150 mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop, fol‐
low the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the "IMPORTANT SAFETY IN‐
STRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance Non-Miele appliance
Electric/Induction cooktop 24" (610 mm)
Electric grill, deep fat fryer (electric) 26" (660 mm)
Multi-burner gas cooktop
≤43,000 BTU/hr (12.6 W),
no burner >15,000 BTU/hr (4.5 kW).
26" (660 mm) 30" (760 mm)
Multi-burner gas cooktop
≤73,800 BTU/hr (21.6 W),
no burner >16,500 BTU/hr (4.8 kW)
30" (760 mm)
Multi-burner gas cooktop
>73,800 BTU/hr (21.6 W),
or one of the burners >16,500 BTU/hr (4.8 kW)
Not possible
Single-burner gas cooktop
≤20,500 BTU/hr (6 kW) 26" (660 mm) 30" (760 mm)
Single-burner gas cooktop
>20,500 BTU/hr (6 kW)
≤27,600 BTU/hr (8.1 kW)
30" (760 mm)
Single-burner gas cooktop
>27,600 BTU/hr (8.1 kW) Not possible

Installation
34
Installation recommendations
– We also recommend a distance of at
least 25 ¹/₂" (650 mm) above electric
cooktops to provide more workspace
and easier cooking under the hood.
– When selecting an installation height,
always take the user height into con‐
sideration. Users should have ample
space to work comfortably on the
cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the dis‐
tance from the cooktop, the less ef‐
fective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
make sure that the hood covers the
cooktop. The hood should be posi‐
tioned centrally over the cooktop, not
to the side or rear.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and disas‐
semble in case a service call is nec‐
essary. This should be taken into
consideration when planning the po‐
sition of cupboards, shelves, ceilings
or decorative elements in the vicinity
of the ventilation hood.
Structural support
The hood must be attached to rigid
structural framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from becoming damaged during trans‐
port.
Please remove this film before instal‐
ling the housing components. It can
be peeled off easily without any addi‐
tional tools.

Installation
35
8 5/8"
220 mm
8 5/8"
220 mm
dai3435aus

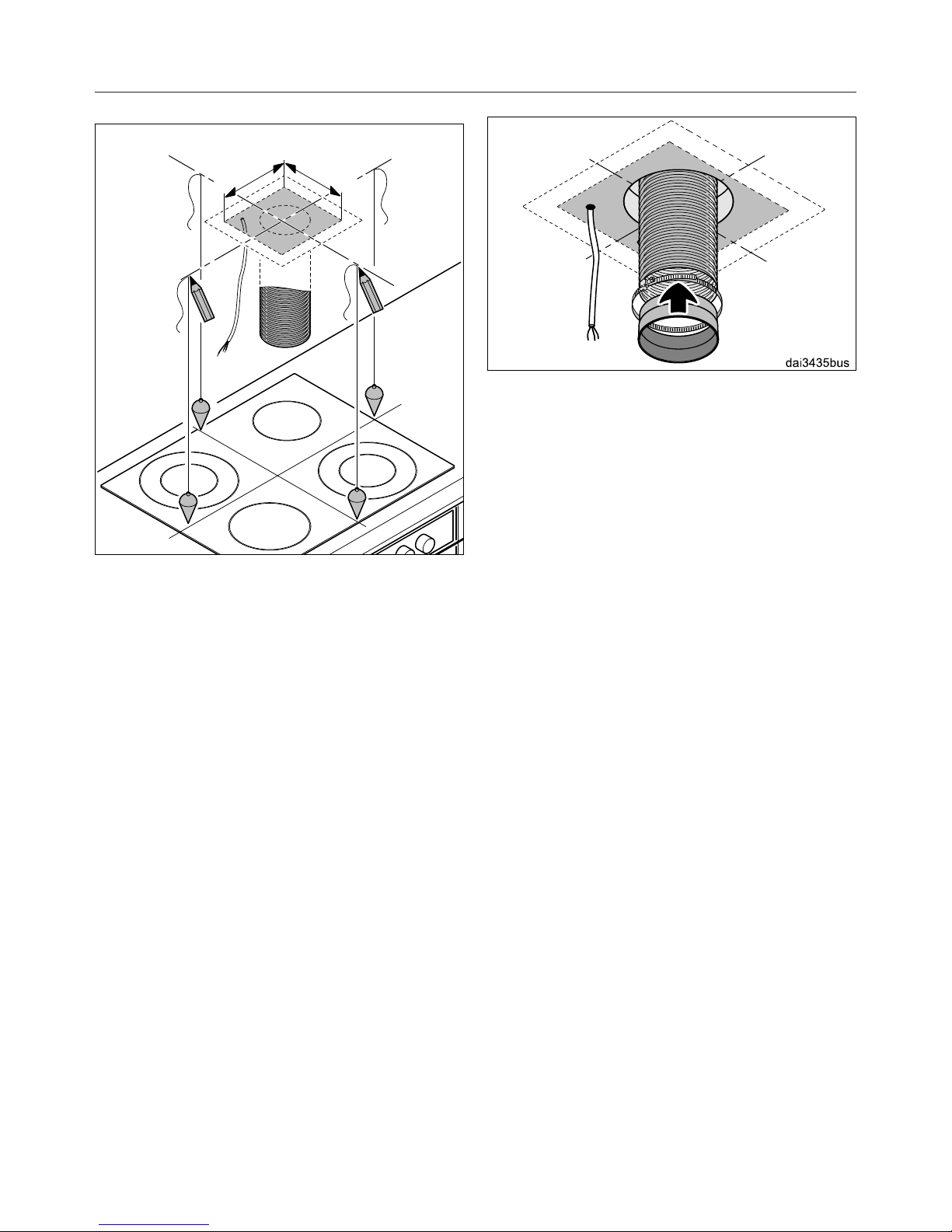

Draw two intersecting lines on the
ceiling.
For vented mode:
– Place a section of the exhaust duct‐
ing in the ceiling and feed it down
through the cross-sectional area as
illustrated. Exhaust ducting of ap‐
prox. 27 ⁹/₁₆" (700 mm) length is re‐
quired between the ceiling and the
hood exhaust socket.
– Secure the exhaust ducting to the ex‐
haust socket, e.g. with a hose clip
(available as an optional accessory)
on flexible ducting.
Place the power cord and guide it
through the ceiling in the area shown.
A power cord approx. 27 ⁹/₁₆"
(700 mm) in length is required be‐
tween the ceiling and the hood con‐
nectors.

Installation
36

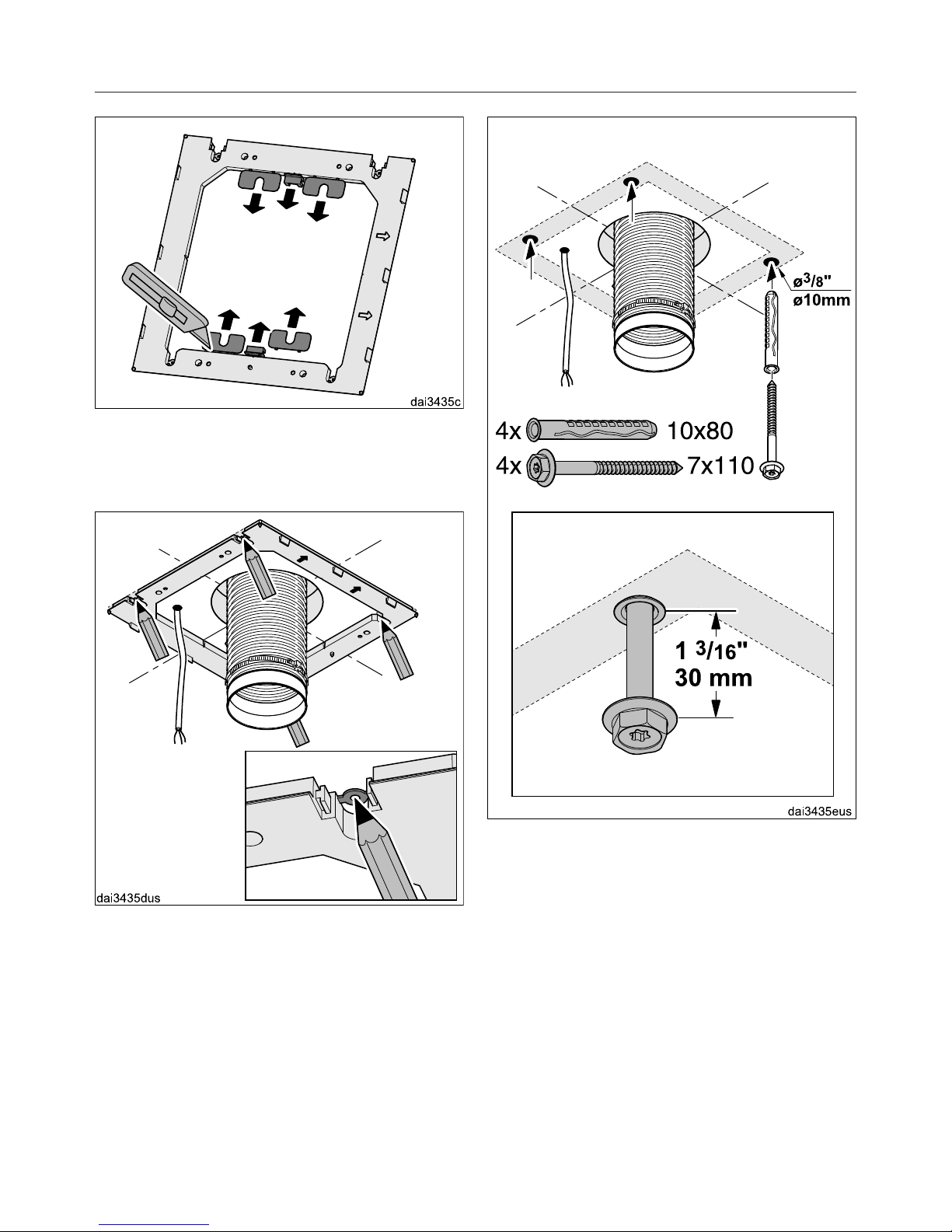

Use a knife to release the four
spacers and the two covers from the
spacer frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Drill four holes ³/₈" (10 mm), ap‐
prox. 4 ¹/₂" (115 mm) deep for the
plugs supplied.
Place the four plugs in the holes and
screw in the four screws so that they
protrude by approx. 1 ³/₁₆" (30 mm).

Installation
37
The spacer frame can be installed be‐
tween the chimney and the ceiling. This
creates a shadow which gives the illu‐
sion of a gap between the ceiling and
the chimney. This is useful if the ceiling
is not level or is uneven. The hood is
aligned vertically with the spacers sup‐
plied. Visual irregularities between the
chimney and the ceiling are then con‐
cealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
Mount the spacer frame onto the in‐
stallation frame.

Installation
38

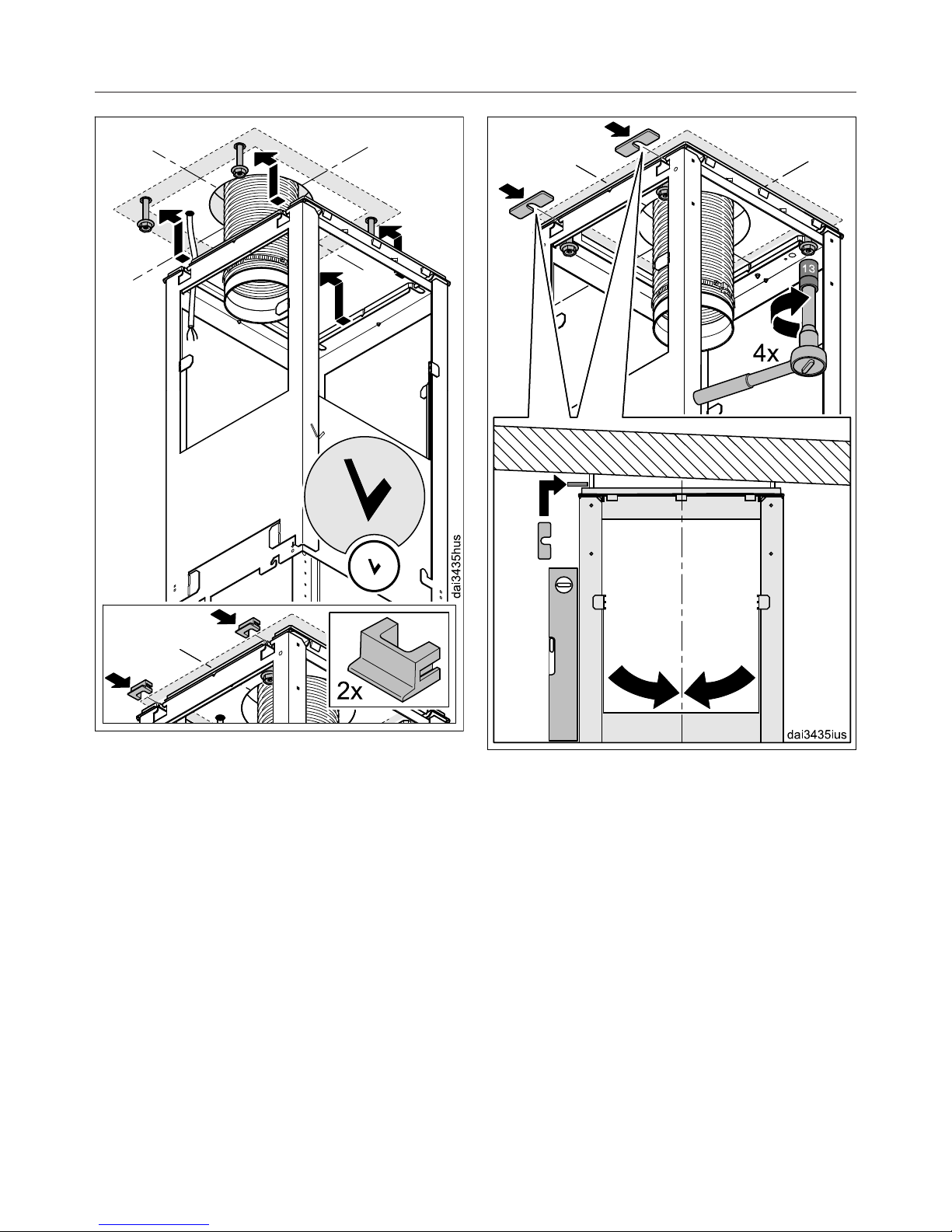

Hang the installation frame on the
four screws. The front of the frame is
marked with a "V".
If using the spacer frame, place the
two covers into the fixing holes.
Align the installation frame and se‐
cure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood verti‐
cally.

Installation
39
Holding the installation frame secure‐
ly, remove the two fixing screws and
extend the installation frame to its
maximum length.
Replace the screws.
The directional unit from recirculation
kit DUI 32 (optional accessory) is instal‐
led for recirculation mode (RM):
Bend the four retaining tabs on the
installation frame outwards.
Place the power cord inside the in‐
stallation frame.
Fit the directional unit as shown, not‐
ing the marking on the front.
Bend the retaining tabs back and ap‐
prox. 45° inwards to hold the direc‐
tional unit in place.

Installation
40

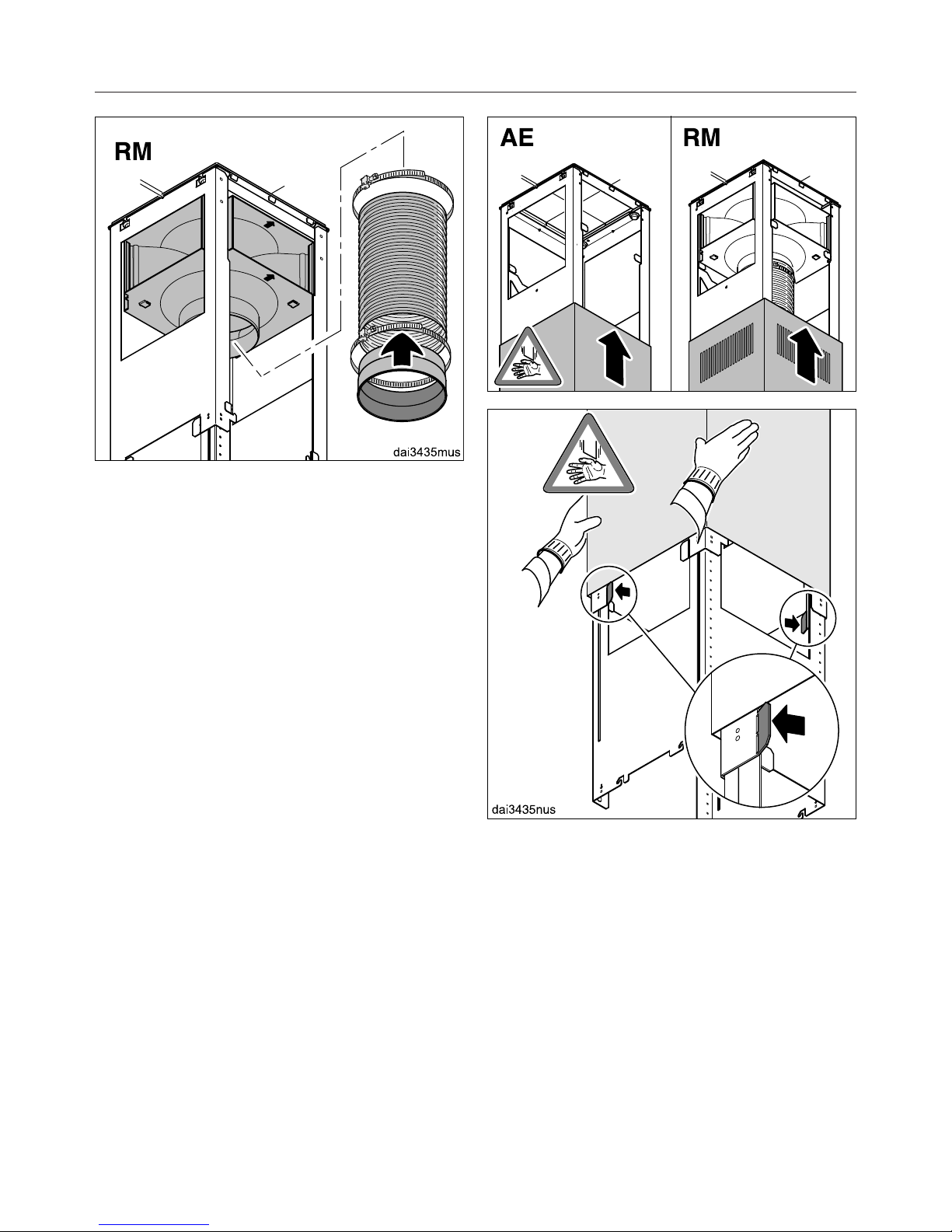

Secure the exhaust socket to the
hose using a hose clip.
Secure the hose to the directional
unit socket using a hose clip.
Check that the hose is held securely.
Push the telescopic chimney over the
installation frame:
– with the recirculation grilles at the
bottom for vented mode (AE),
– with the recirculation grilles at the top
for recirculation mode (RM).
Bend the two retaining tabs outwards
to prevent the telescopic chimney
from slipping down again.

Installation
41
Fit the four telescopic chimney
clamps. When the screws are tight‐
ened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the telescopic chimney is
evenly aligned with the ceiling or the
spacer frame.
Bend back the two retaining tabs.
Push the chimney over the telescopic
chimney and bend the retaining tabs
outwards again to prevent the chim‐
ney from slipping down again.

Installation
42

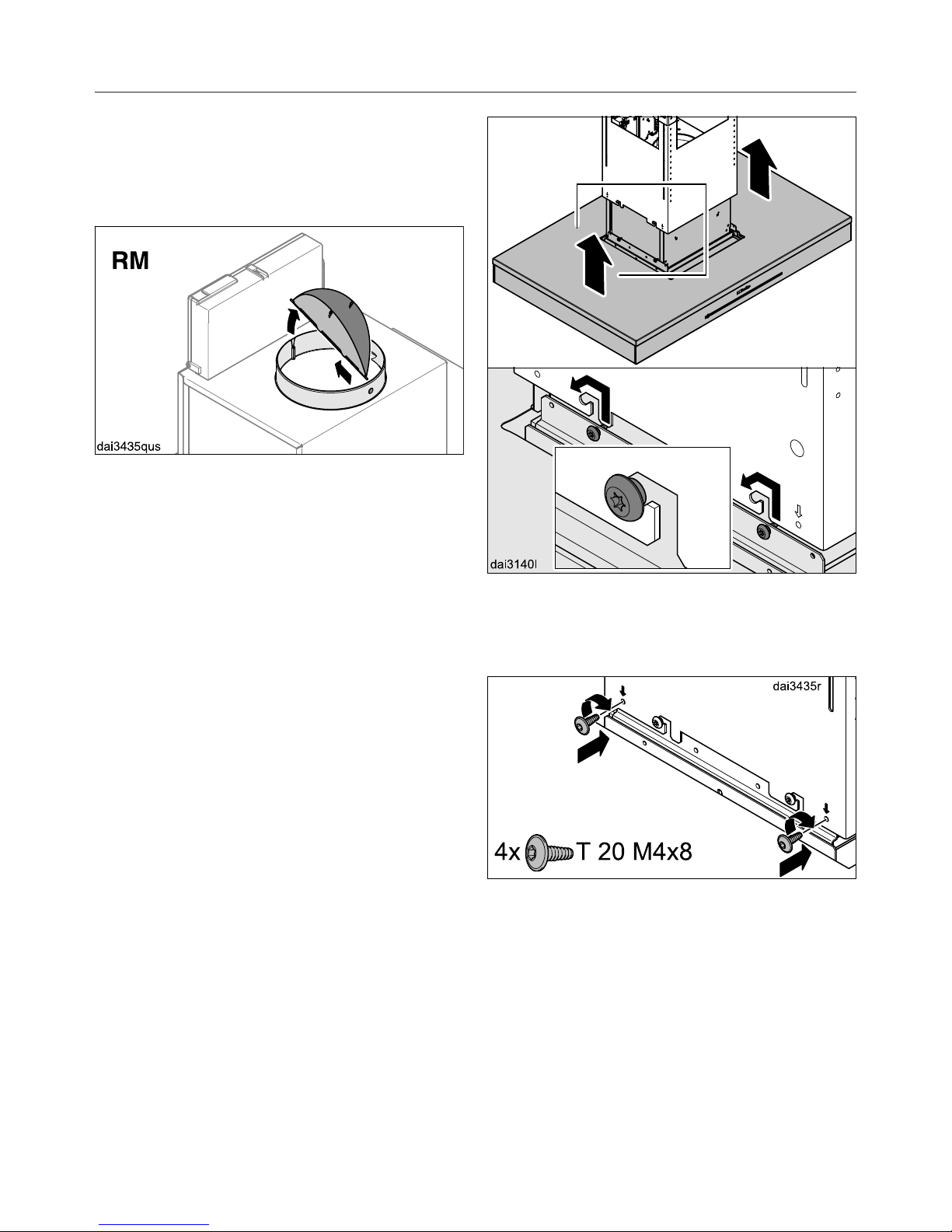

A non-return flap is supplied with the
hood or is already fitted in the exhaust
socket of the motor unit (depending on
model).
With vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not equip‐
ped with one.
Recirculation mode (RM) does not re‐
quire the non-return flap to be insert‐
ed. If there is one present, it should
be removed.
Hang the hood on the brackets, mak‐
ing sure that the controls are at the
front.
Secure the hood with the screws
supplied.

Installation
43

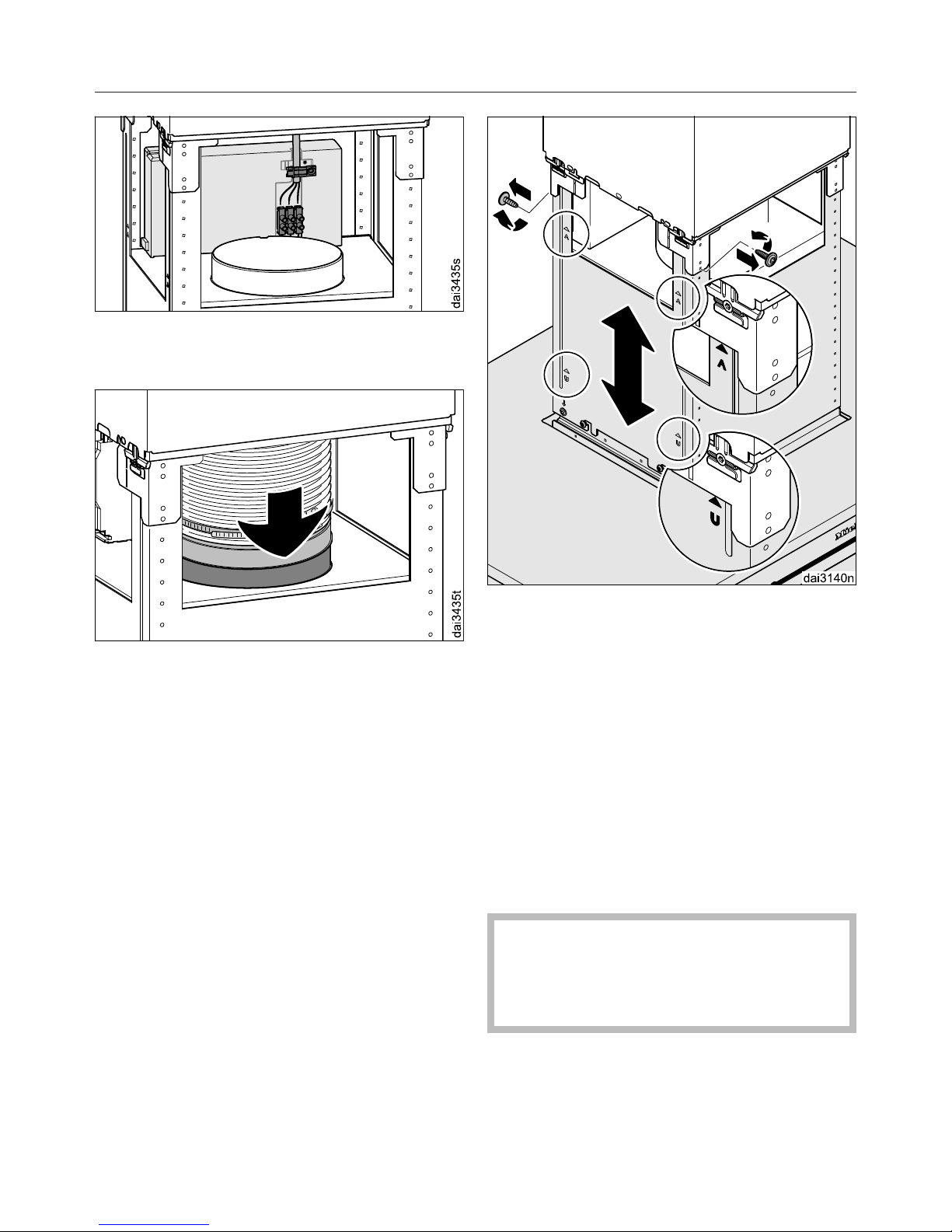

Connect the power cord. See "Elec‐
trical connection."
Place the exhaust ducting onto the
exhaust socket.
Unscrew both screws from the instal‐
lation frame again.
The canopy can now be adjusted to the
desired height, observing the permissi‐
ble height ranges:
– With vented mode: upwards as far as
it will go, downwards only to the "A"
marking.
– With recirculation mode: upwards as
far as the "U", downwards as far as it
will go.
Follow the instructions in "Appliance
dimensions." Safety distances be‐
tween the cooktop and ventilation
hood must be observed.

Installation
44
Raise the canopy to the desired
height and secure it with the screws.
Hold the chimney securely, bend
back the retaining tabs and carefully
lower it.
The chimney will locate in the cut-out in
the canopy.

Installation
45
Remove the grease filters from the
hood.
Insert the safety screw on the inside.
With recirculation mode (RM) ventila‐
tion hoods, insert the OdorFree Char‐
coal Filter.
Carefully remove the protective foil
from the grease filters.
Reinsert the grease filters.

Exhaust duct
46

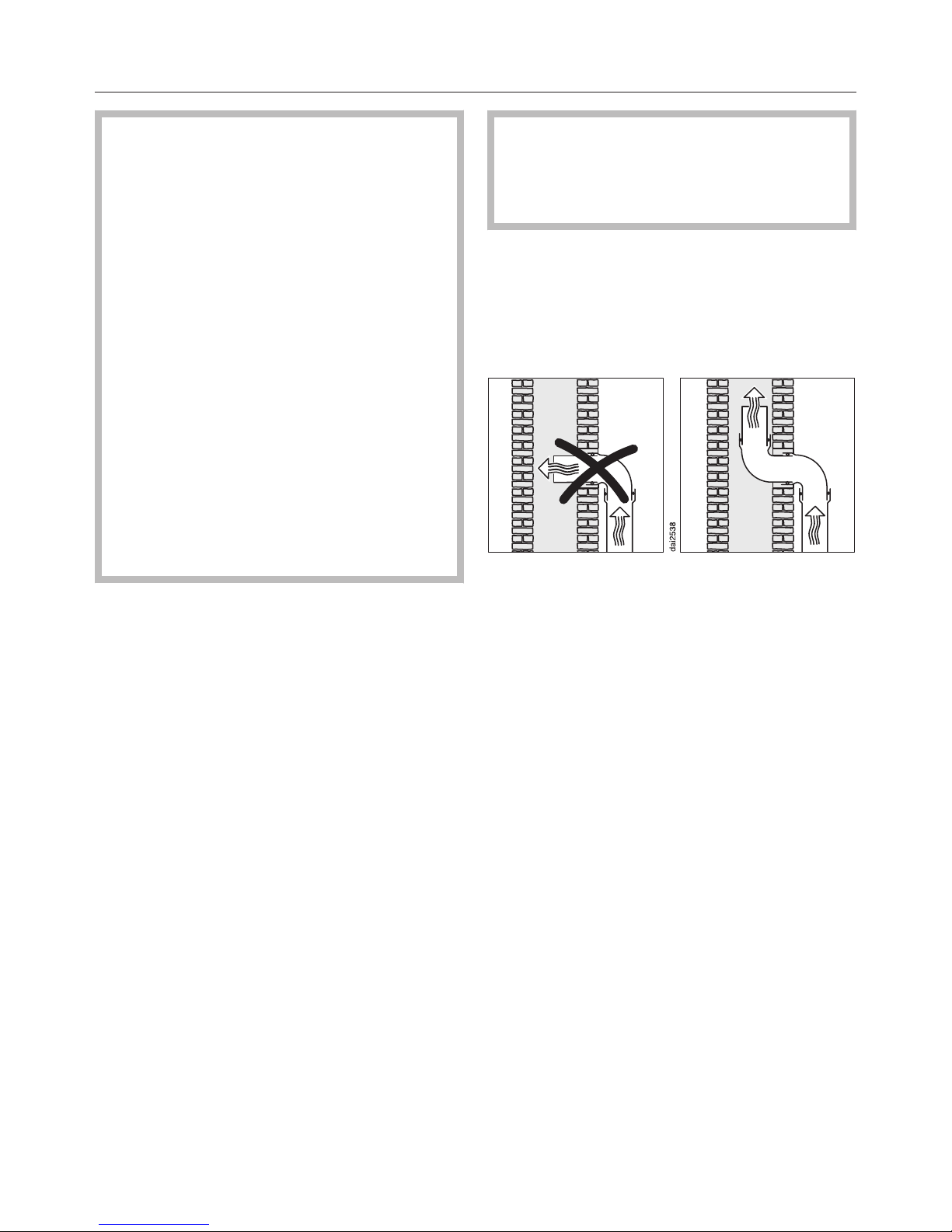

WARNING: Danger of toxic fumes.
Gas cooking appliances release car‐
bon monoxide that can be harmful or
fatal if inhaled.
To reduce the risk of fire and to prop‐
erly exhaust air, the exhaust gases
extracted by the hood should be
vented outside of the building only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the "IMPOR‐
TANT SAFETY INSTRUCTIONS" to
reduce the risk of personal injury.
Follow all local building codes when
installing the hood.
Only use smooth pipes or flexible
duct hoses made from non-flamma‐
ble materials for exhaust ductwork.
To achieve the greatest possible air
extraction with the lowest noise lev‐
els, please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150 mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction per‐
formance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we recom‐
mend installing a telescopic wall vent
or a rooftop vent (available as an op‐
tional accessory).
If the exhaust air is to be conducted
into a vent flue, the intake piece must
be aligned with the flow direction of
the flue.
When installing the exhaust duct hor‐
izontally, you must slope it away from
the source by at least 1 cm per meter
(³/₈" per 3 ¹/₄"). This ensures that
condensate cannot drain back into
the ventilation hood.
If the exhaust duct is to be routed
through rooms, ceiling space etc., the
temperatures in these different areas
may differ greatly, which means that
the problem of condensation will
need to be addressed. The exhaust
duct will need to be insulated.

Exhaust duct
47
Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a con‐
densate trap to collect and evaporate
any condensate which might accumu‐
late.
Condensate traps are available for ex‐
haust ducts with a diameter of 5"
(125 mm) or 6" (150 mm).
When installing a condensate trap,
make sure that it is positioned verti‐
cally and, if possible, directly above
the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.

Electrical connection
48
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR IN‐
JURY TO PERSONS, OBSERVE THE
FOLLOWING:
All electrical work should be per‐
formed by a qualified electrician in
strict accordance with national regu‐
lations (for USA: ANSI-NFPA 70) and
local safety regulations. Installation,
repairs and other work by unqualified
persons could be dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and cir‐
cuit rating information found on the
data plate (located behind the baffle
filters), match the household electri‐
cal supply before installing the hood.
Use only with ventilation hood cord-
connection kits that have been in‐
vestigated and found acceptable for
use with this model hood.
If there is any question concerning
the electrical connection of this ap‐
pliance to your power supply, please
consult a licensed electrician or call
Miele’s Technical Service Depart‐
ment.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short cir‐
cuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the elec‐
trical system of the house checked
by a qualified electrician.
To increase security before the ma‐
chine is installed, it is recommended
to install a protective switch (30 mA).
The hood must be hard wired ac‐
cordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)

Activating Con@ctivity 2.0
49
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cooktop
must be equipped with a Con@ctivity
2.0 stick.
See the relevant installation instruc‐
tions of the Con@ctivity 2.0 stick.
Activating the Con@ctivity 2.0
function
To use the Con@ctivity 2.0 function, the
radio link between the cooktop and the
ventilation hood must be activated.
Both appliances must be installed and
operational.
Wireless connection must be activated
on the ventilation hood and the cooktop
at the same time. Activation on the ven‐
tilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the operat‐
ing instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
The cooktop and hood must be
turned off.
Press the delayed shut down button
for approx. 10 seconds until 1
lights up in the fan setting display.
Next, tap the following buttons in
succession:
– The 1button,
– Then the IS button,
– And then the lighting button .
The hood is in log on / log off mode.
If the wireless connection is already ac‐
tivated, 2and 3will light up at the same
time.
If there is no wireless connection, 2and
3will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).
To activate Con@ctivity 2.0, tap the
IS button.
The search for a wireless connection
will start.
As this is happening, begin activation
on the cooktop.
