Miele DA 292 i User manual

DA 262 i , DA 272 i, DA 292 i
Q@ä} Operating instructions
SIstruzione d’uso
M.-Nr. 05 128 470

Q@ä} Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wall unit dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Removing the transit strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fitting the cover caps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Preparing the lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fitting the front facia panel / lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Building in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Depth alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connection for extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
S. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Q@ä} Contents

Caring for the environment
Disposal of packing material
The transport and protective packing
has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old machine /
appliance
Old machines / appliances contain ma-
terials which can be reclaimed or re-
cycled. Please contact your dealer,
your waste collection centre or scrap
merchant about potential recycling
schemes.
Ensure that the machine / appliance
presents no danger to children while
being stored for disposal.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
3

Description of the appliance
DA 262 i
DA 272 i / DA 292 i
45 6 7 8
4 5 6 7 8
123
Description of the appliance
4

Description of the appliance
The cooker hood is suitable for . . .
. . . Air extraction:
Air is drawn in through the grease
filter fcleaned and directed outside.
. . . Air recirculation:
Air is drawn in through the grease
filter fand then through the active
charcoal filters for cleaning. It is
passed back into the kitchen through
the top of the kitchen cabinet.
Before using for the first time check
to see whether the active charcoal
filter is in place (see ”Cleaning and
Care“).
b- Slide switch for hob
illumination n
This is used to switch the hob illumina-
tion gon and off, regardless of
whether the cooker hood is in operation
or not. The deflector plate must be
pulled out a few centimetres for the
lighting to work.
0 - Lighting off
l- Lighting on
c- Slide switch for the fan m
This is used to switch the fan on and off.
0 - Fan off
l- Fan on
d- Slide switch for ”Power selec-
tion“
The power of the cooker hood can be
suited to the intensity of the kitchen va-
pours, and has four settings.
The fourth setting (Intensive setting)
should be selected for removing very
strong kitchen vapours.
low power.......strong power
e- Deflector plate
The deflector plate can be pulled out to
any extent up to its limit.
The action of pulling the deflector plate
out and pushing it in switches the
cooker hood on and off respectively.
The slide switch for the fan must be set
to setting ”l“.
h- Grease filter retainer
This is used for securing or releasing
the grease filter ffor removal from the
cooker hood.
iThe control panel can either
- be fitted with an aluminium front
facia panel, available from Miele,
- be fitted with a lightshield from the
kitchen furniture programme, or
- be installed without either of the
above, but with cover caps (supplied
for fitting at each end).
Description of the appliance
5

Warning and Safety instructions
This appliance meets statutory
safety requirements. Inappropriate
use could however lead to risk of ac-
cidents to the user and damage to
the appliance.
Read the operating instructions be-
fore using this machine for the first
time. They contain important infor-
mation about the safety, use and
maintenance of the machine. This
will avoid the risk of accidents and
damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Appropriate use of the cooker
hood
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
Technical safety
Before connecting the cooker
hood to the mains supply make
sure that the voltage and frequency de-
tails given on the data plate corre-
spond with the on-site electricity sup-
ply. If in doubt consult a qualified
electrician.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system. (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety.
Repairs and other work by unqualified
persons could be dangerous.
The appliance is only completely
isolated from the electricity supply
when:
– it is switched off at the wall socket
and the plug removed, (do not pull on
the cable, only on the plug)
– the mains fuse is withdrawn;
– or the screw-out fuse is removed, (in
countries where this is applicable). En-
sure current is not restored to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance.(e.g.
danger of overheating)
Warning and Safety instructions
6

Use of the appliance
Never use an open flame beneath
the cooker hood - to avoid the
danger of fire do not flambé or grill
dishes. When switched on the cooker
hood could draw flames into the filter.
Fat particles drawn into the cooker
hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
The filters should be regularly
cleaned, or changed, as appropri-
ate.
Saturated filters are a fire hazard.
Under no circumstances use a
steam cleaner to clean this ap-
pliance.
Pressurised steam could give rise to a
short circuit, or cause permanent dam-
age to the surface and to components,
for which the manufacturer of the
cooker hood cannot accept any respon-
sibility.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its surround-
ings in a clean condition at all times.
Any damage which might be caused
by cockroaches or other vermin will not
be covered by the appliance guarantee.
Warning and Safety instructions
7

Installation
The distance between the top of
the hob and the bottom of the
cooker hood (when the vapour guide is
completely retracted) must measure at
least:
– 45 cm above electric hobs
– 65 cm above gas hobs.
(Australia: 60 cm for electric and gas
hobs)
Only for U.K.: The distance of
65 cm between the cooker hood
and a gas hob is a minimum, which is
only permissible if the nominal heat
ratings given in the table below are not
exceeded:
Gas cooker maximum
nominal rating
one burner 2.7 kW
all burners 7.5 kW
oven 3.5 kW
Gas hob maximum
nominal rating
one burner 3.5 kW
all burners 10.3 kW
Gas hob with ceramic cover plate
The data given for maximum nominal (heat)
ratings do not aply to a gas hob with a ceramic
cover plate. In this case it is essential to refer to
the hob manufacturer’s data.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable ma-
terial. These can be obtained from the
Miele Spare Parts department or from
builders’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
Warning and Safety instructions
8

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other techical measures, such as en-
suring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi” instal-
ler must be sought.
If the cooker hood is operated in recir-
culation mode (with active charcoal fil-
ter) then this is not a factor.
Disposal of an old machine /
appliance
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these instruc-
tions.
Warning and Safety instructions
9

Operation
Pull out the deflector plate.
Drop down the front facia panel or
lightshield.
Set the slide switch for the fan to
position ”l“.
The cooker hood will operate at the set-
ting the power selector is set to.
Select a power setting strong
enough to clear the air:
1 2 3 IS
Setting 1/2 =
for normal operation
Setting 3/Intensive setting (IS) =
for removing heavy cooking odours
Switch on the hob illumination if re-
quired.
After cooking
If, after finishing cooking, there are still
cooking vapours in the kitchen, it is rec-
ommended that the cooker hood be left
on for some minutes longer.
Then switch the cooker hood off by:
moving the slide switch for the fan
and the hob illumination to the ”0“ po-
sition.
or
push the deflector plate in.
Operation
10

Cleaning and care
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply
by
– switching it off at the wall socket
and removing the plug (do not pull
on the cable, only on the plug), or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed, (in
countries where this is applicable).
Housing
The cooker hood housing may be
cleaned using hot water to which a little
mild detergent has been added. Dry
with a soft cloth.
Never use a cleaner which scours
or contains chlorine, acids or soda.
These would damage the surface of
the cooker hood.
A mild, non-abrasive proprietary
stainless steel cleaner is suitable.
Grease filters
Re-usable metal grease filters are built-
in which remove solid particles (oil,
dust, etc.) from the kitchen vapours,
preventing soiling of the cooker hood.
The grease filters can be cleaned in a
dishwasher or by hand.
The grease filters should be cleaned
regularly to ensure a trouble free oper-
ation of the extractor fan, at least every
1 or 2 months, or when they are visibly
saturated or no longer effective.
An over-greasy filter can lead to
danger or fire.

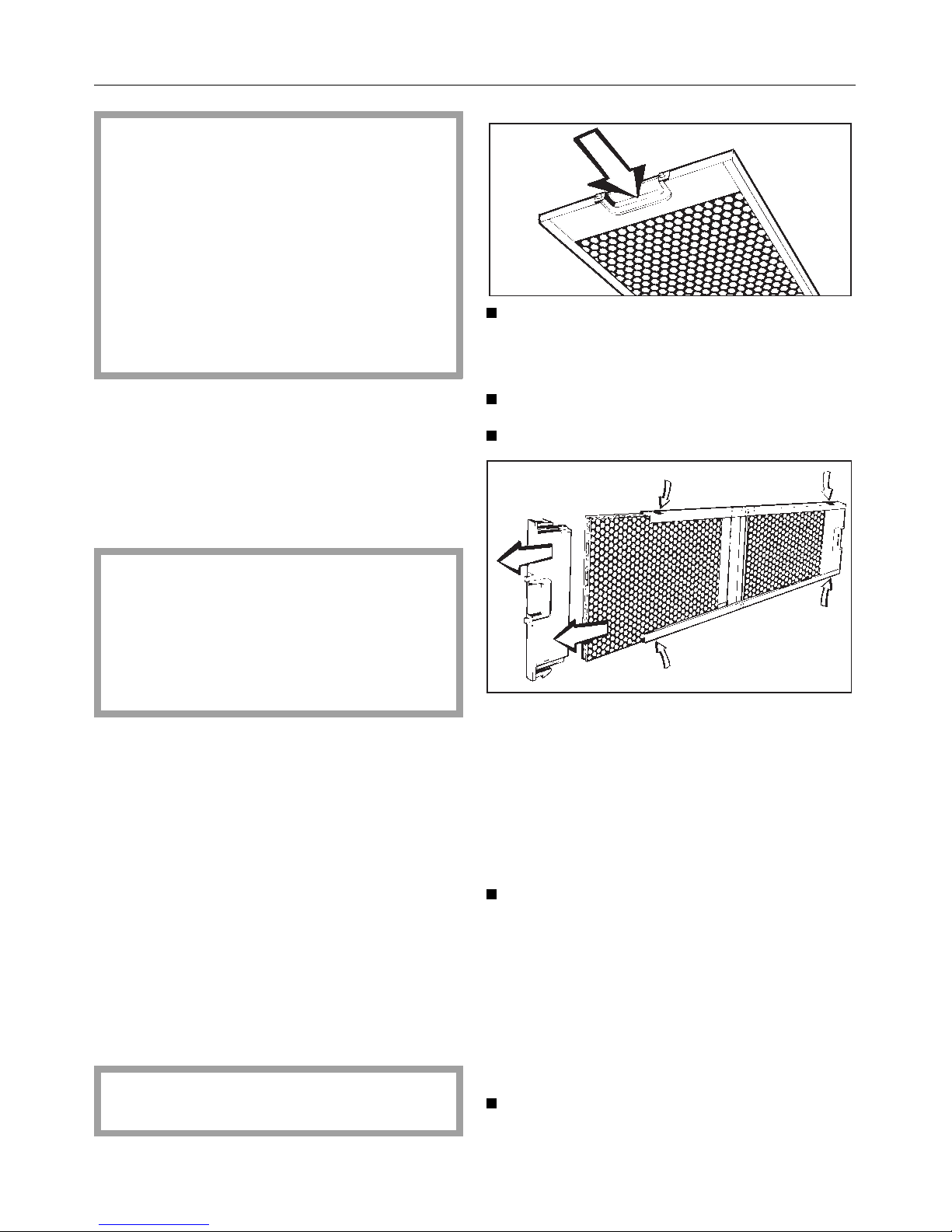

To remove the grease filters push the
filter holder retainers towards the
middle.
Take out the grease filters.
DA 272 i, DA 292 i only:
Press the clips at the side in using a
blunt instrument and remove the re-
tainers. Pull the filter cassettes and
link pieces out for cleaning. Clean
the edges of the frame by hand. The
other parts can be cleaned in the
dishwasher.
Clean the grease filters
–by hand: with a scrubbing brush in
hot water with detergent.
–in a dishwasher: place the filters
with the short side upright in the
lower basket, ensuring the spray
arm is not obstructed.
After cleaning leave the filters to dry
for a while on an absorbent surface
before putting back in place.
Cleaning and care
11

Cleaning and care
When removing the filters for clean-
ing also clean off any residues of oil
or fat from the filter housing to pre-
vent the risk of these catching fire.
DA 272 i, DA 292 i only:
Put the filters back together.
When re-inserting the filters ensure
that the locking device faces down
towards the hob.
If a filter is inadvertently replaced the
wrong way round, use a small screw-
driver blade to unlock the filter
through the slots.
Changing the light tube and/or starter
Before any cleaning or maintenance
work the cooker hood must be dis-
connected from the mains supply
by
– switching it off at the wall socket
and removing the plug (do not pull
on the cable, only on the plug), or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed, (in
countries where this is applicable).

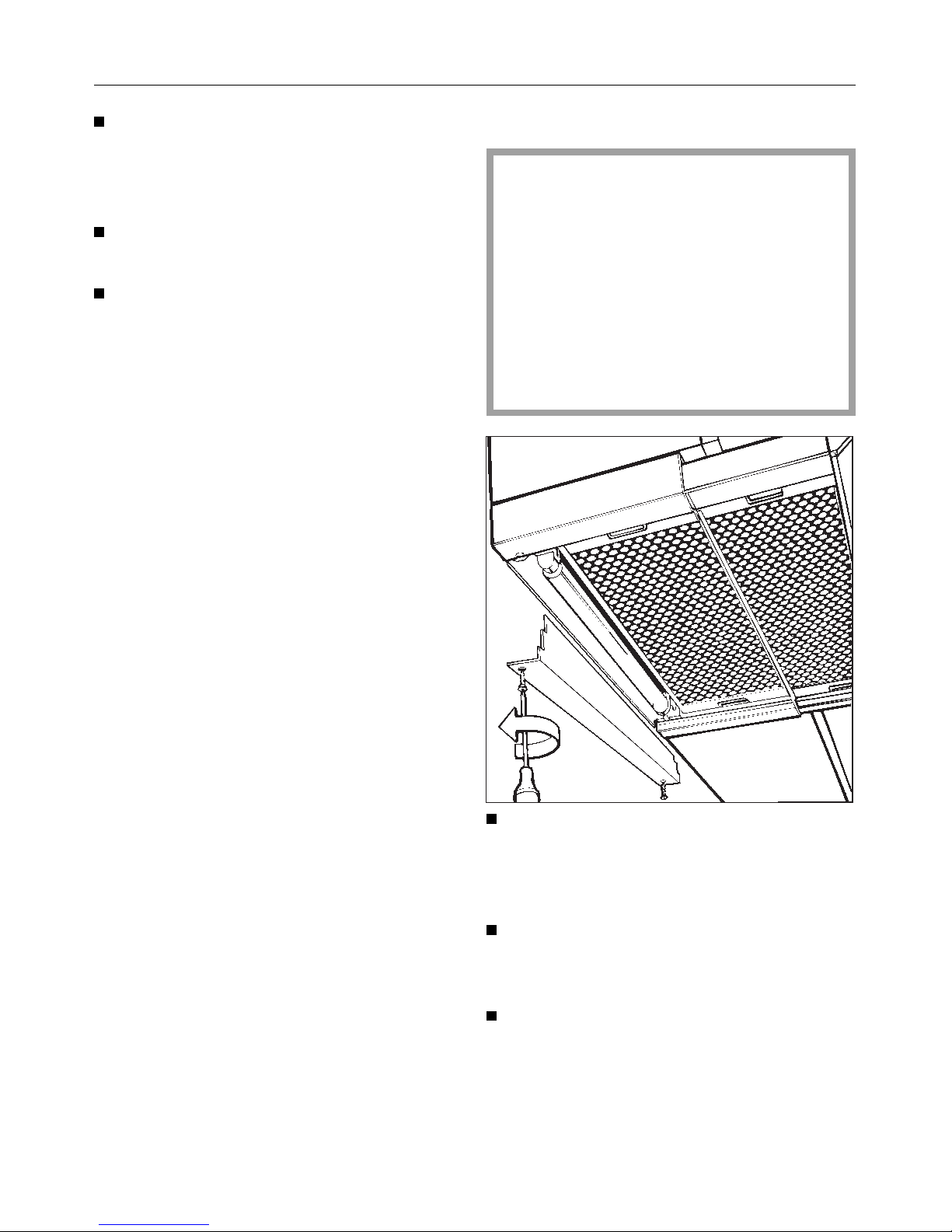

Unscrew the fixing screws at the left
and right hand side. Whilst doing so
hold the light cover securely and
then take it out.
Release the light tube and the starter
by turning them and then lifting them
out of their holders.
Replace the fluorescent tube or star-
ter.
Cleaning and care
12

Inserting or changing the active char-
coal filter.
If the cooker hood is connected for re-
circulation, active charcoal filters must
be inserted, in addition to the grease fil-
ters. These filters absorb normal kit-
chen odours.
Pull out the deflector plate and
remove the rear grease filter.
When removing or changing the
active charcoal filter push the filter
holder retainers towards the middle.
When inserting the active charcoal fil-
ters ensure that the locking device
faces down towards the hob.
The active charcoal filter should be
replaced when kitchen odours are
not being absorbed, at least every
3-4 months.
Cleaning and care
13

After sales service
In the event of any faults which you can-
not easily remedy, please contact:
– Your Miele Dealer
or
– Your nearest Miele Service Dept,
(see address on the back page).
When contacting the Service Depart-
ment, please quote the Model and Ser-
ial number of your machine / appliance,
both of which are given on the data
plate which is visible on removing the
grease filter(s).
After sales service
14

Electrical connection
General notes
All electrical work should only be under-
taken by a suitably competent person
in strict accordance with national and
local safety regulations.
For extra safety it is advisable to install
a residual current device (RCD) with a
trip current of 30 mA.
The Technical data table (next page)
gives details for each appliance.
The data plate gives the necessary
data for connection. This is visible
when the grease filter has been
removed.
Only for U.K.: Connection should be
made either by a fused connection
unit, or a fused plug and switched
socket. The On-Off switch should be
easily accessible after the appliance
has been built in.
Electrical connection U.K., AUS, NZ
The cooker hood is supplied for con-
nection to an a.c. single phase 230 -
240 V, 50 Hz supply.
Important
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live.
If the appliance is to be connected via
a plug and socket, please note the fol-
lowing:
As the colours of the wires in the mains
lead of this appliance may not corre-
spond with the coloured markings ident-
ifying the terminals in your plug, pro-
ceed as follows:
The wire which is coloured green and
yellow must be connected to the termi-
nal in the plug which is marked with the
letter E or by the earth symbol zor col-
oured green or green and yellow.
The wire which is coloured blue must
be connected to the terminal which is
marked with the letter N or coloured
black.
For U.K.: The wire which is coloured
brown must be connected to the termi-
nal which is marked with the letter L or
coloured red.
For Australia / New Zealand: The wire
which is coloured brown must be con-
nected to the terminal which is marked
with the letter A or coloured red.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
Electrical connection
15

Non-rewireable plugs BS 1363
(Only for U.K.)
If this machine or appliance is fitted
with a non-rewireable plug, the follow-
ing information applies:
If the socket outlets are not suitable for
the plug supplied with this product, it
must be cut off and an appropriate
plug fitted. The plug cut from the flex-
ible cord should be disposed of, and
on no account be inserted into any
socket elsewhere in the house (electric
shock hazard).
The fuse cover must be re-fitted when
changing the fuse and if the fuse cover
is lost the plug must not be used until a
suitable replacement is obtained.
The colour of the correct replacement
cover is that of the coloured insert in
the base of the plug (as applicable to
the design of plug fitted).
The correct fuse rating of the replace-
ment fuses that are ASTA approved to
BS 1362 should be fitted.
Replacement fuse covers may be pur-
chased from your local electrical sup-
pliers or Service agent.
Electrical connection
16

Technical data
DA 262 i DA 272 i DA 292 i
Total rated load 205 W 203 W 206 W
Light 15 W 13 W 16 W
Voltage - U.K., AUS 240 V 240 V 240 V
Voltage - IRL, NZ, ZA 230 V 230 V 230 V
Frequency 50 Hz 50 Hz 50 Hz
Fuse rating - U.K. 13 A 13 A 13 A
Fuse rating - IRL, ZA 10 A 10 A 10 A
Plug rating - AUS, NZ 10 A 10 A 10 A
Connection cable with plug 1.50 m 1.50 m 1.50 m
Air extraction
– according to DIN 44971 150 - 550 m3/h 150 - 550 m3/h 150 - 550 m3/h
– unimpeded air flow 720 m3/h 720 m3/h 720 m3/h
Air recirculation 80 - 350 m3/h 80 - 350 m3/h 80 - 350 m3/h
AUS, NZ
Test marks. . . . . . . . . . . . . . . . . . . . . . . . Electrical safety, C-Tick Mark
Electrically suppressed according to . . . AS/NZS 1044
Technical data
17

Installation
For installing the cooker hood a wall
unit is required. The minimum wall unit
width required for each model is given
below:
DA 262 i = 600 mm
DA 272 i = 700 mm
DA 292 i = 900 mm
The exhaust connection must be
made by a suitably qualified and
competent person.
The distance between the top of the
hob and the bottom of the cooker
hood should be at least:
45 cm above electric hobs
65 cm above gas hobs
(Australia: 60 cm for electric and
gas hobs)
Safety regulations prohibit the fitting
of a cooker hood over solid fuel
stoves.
Appliance dimensions
* plus depth of facia panel
A: DA 262 i = 560; DA 272 i = 660; DA 292 i = 860
B: DA 262 i = 595; DA 272 i = 695; DA 292 i = 895
Installation
18

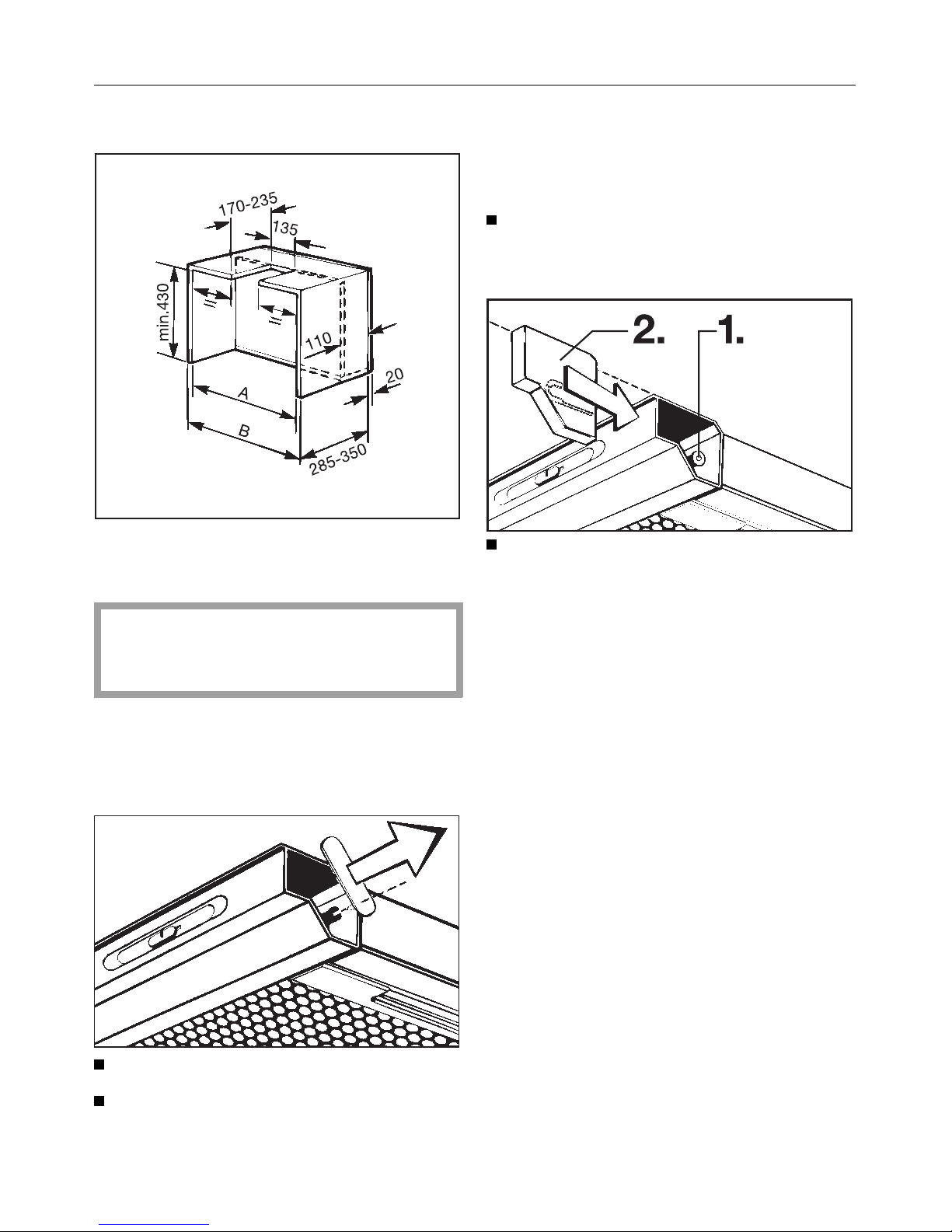

Wall unit dimensions
The dividing wall must be remov-
able to enable the cooker hood to
be adjusted for height and depth.
Removing the transit strips
Pull the deflector plate out to its limit.
Pull off the transit strips on each side.
Fitting the cover caps
For cooker hoods without a front panel
or lightshield:
On each side screw in the allen
screws, which are supplied in the
accessories pack.
Push the straight edge of the cover
caps on the screws.
Preparing the lightshield
The weight of the lightshield must not
exceed 900 g.
A heavier lightshield must be planed or
trimmed to reduce the weight.
Lightshields –
– weighing up to 600 g can be fitted
normally.
– Those weighing over 600 g need to
have the springs in the snap fittings
pre-tensioned:
A: DA 262 i = 562-568; DA 272 i = 662-668;
DA 292 i = 862-868
B: DA 262 i = 600; DA 272 i = 700; DA 292 i = 900
Installation
19

Installation

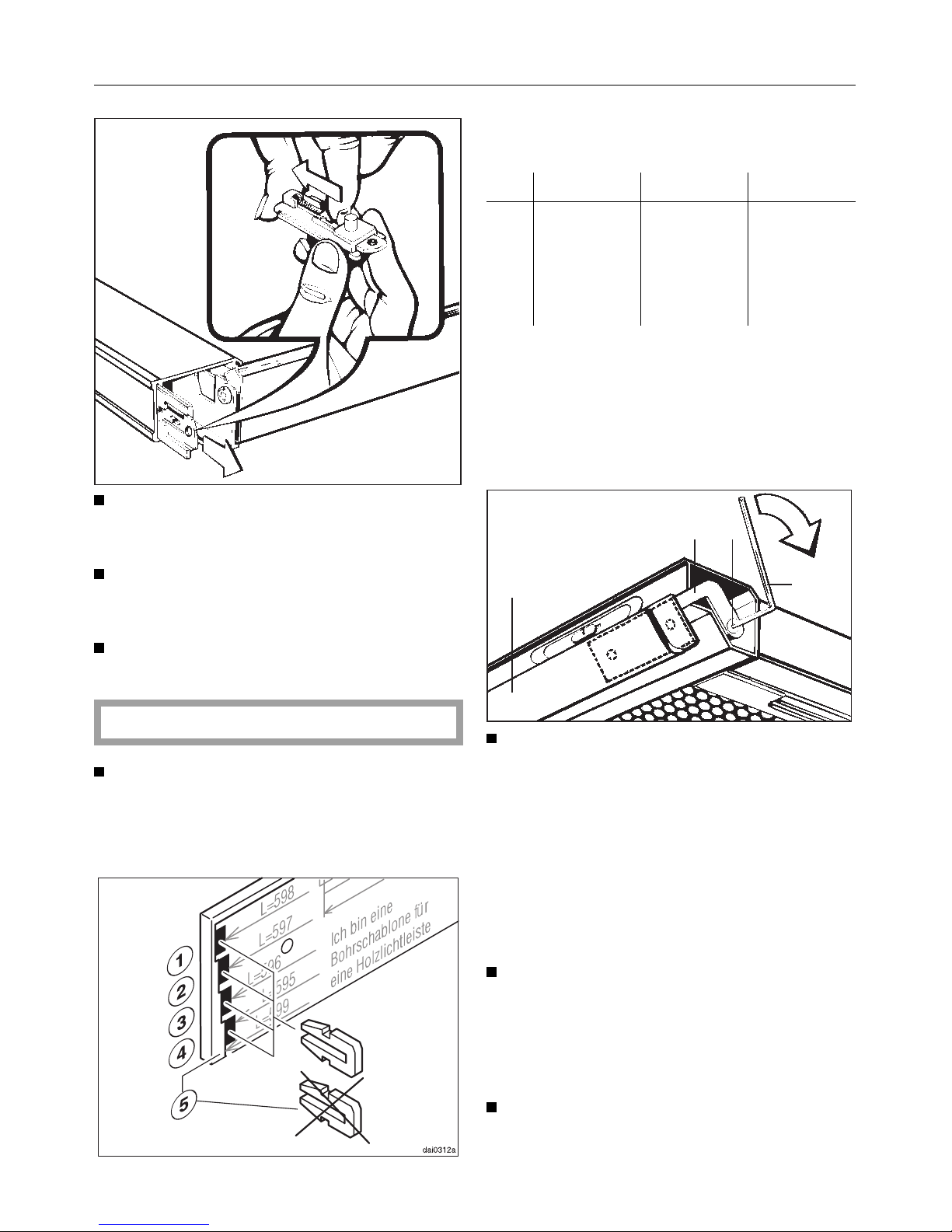

Pull out the snap fittings from the
slots on the left and right hand sides
of the deflector plate (1).
Press the baffle (2) into the engaging
point. Put the snap fittings back in
place.
The snap fitting with the hole must
be inserted on the right.
Do not wipe off any lubricant.
Hold the template supplied against
the back of the lightshield and mark
the drill hole positions for fixing the
hinges.
Only use the template for lightshields
with the following lengths:
DA 262 i DA 272 i DA 292 i
b598 mm 698 mm 898 mm
c597 mm 697 mm 897 mm
d596 mm 696 mm 896 mm
e595 mm 695 mm 895 mm
f599 mm 699 mm 899 mm
With other lengths adjust the measure-
ments accordingly.
Fitting the front facia panel /
lightshield
Screw the hinges (2) supplied to the
left and right hand sides of the front
facia panel / lightshield (1).
With the Miele aluminium lightshield the
screws are supplied.
For lightshields with a Miele kitchen fur-
niture programme use 3.5x16mm
screws supplied.
Hold the front facia panel / light-
shield against the deflector plate:
the holes in the hinges must lie over
the holes visible in the deflector
plate (3).
Use an allen key to screw in the (4)
screws from accessory kit on each
side.
1
23
4
1
2
Installation
20
