Miele DA 6590 D User manual

Operating and Installation
Instructions
Ventilation System
DA 6590 D
To prevent accidents
and appliance damage,
read these instructions
before
installation or use. M.-Nr. 09 523 580
en-US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the ventilation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning the fan on K...............................................10
Selecting the power level -/+.......................................10
Intensive setting "IS" .............................................10
Delayed shut down 5 ¢15...........................................11
Overhead lighting I...............................................11
Filter timer [....................................................12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the casing................................................14
Panels and grease filters ............................................15
Resetting the grease filter timer ....................................17
Changing the light bulbs ............................................18
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Structural support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Installation instructions .............................................27
Installation materials ...............................................27
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents
2

READ AND SAVE THESE
INSTRUCTIONS
Keep these instructions in a safe
place and pass them on to any future
user.
Read these instructions carefully
before installing or using the
Ventilation System.
~This appliance is intended for
residential use only. Use the appliance
only for its intended purpose.
~This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
,CAUTION
For General Ventilating Use
Only. Do Not Use To Exhaust
Hazardous Or Explosive
Materials And Vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~This appliance is suitable for
installation above gas or electric
cooking surfaces.
~This appliance is not intended for
outdoor use.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Use this appliance only in the
manner intended by the manufacturer.
If you have questions, contact Miele.
~b) Before servicing or cleaning the
appliance, switch power off at the
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
~c) Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~d) Before connecting the appliance
to the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply.
This data must correspond to prevent
appliance damage. If in doubt consult a
qualified electrician.
~e) Installation work and repairs
should only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous.
~f) Only open the housing as
described in the enclosed "Installation
diagram" and in the "Cleaning and care"
section of this manual. Under no
circumstances should any other parts
of the housing be opened. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operation faults.
~g) Before discarding an old
appliance, disconnect it from the power
supply and remove the power cord to
prevent hazards.
Use
,WARNING
TO REDUCE THE RISK OF A
COOKTOP GREASE FIRE:
~a) Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~b) Always turn the hood on when
cooking at a high heat.
~c) Clean the ventilation hood
frequently. Grease should not be
allowed to accumulate on the fan or
filter.
~d) Use the proper pan size. Always
use cookware appropriate for the size
of the cooking area.
~e) Do not flambé or grill with an
open flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING
TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE
EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE
FOLLOWING*:
~a) SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~b) NEVER PICK UP A FLAMING
PAN - You may be burned.
~c) DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~d) Use a fire extinguisher ONLY if:
1) You have a class ABC
extinguisher, and you know how to
operate it.
2) The fire is small and contained in
the area where it started.
3) The fire department is being
called.
4)You can fight the fire with your
back to an exit.
*Based on "Kitchen Firesafety Tips"
published by NAFTA
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
~b) Sufficient air is needed for
combustion and exhausting of gases
through the flue (chimney of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by
the National Fire Protection Association
(NFPA) and the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and
the local code authorities.
~c) When cutting or drilling into the
wall or ceiling, do not damage electrical
wiring and other hidden utilities.
~d) Ducted hoods must always be
vented to the outdoors.
~e) Do not use this hood with any
solid-state speed control device.
~f) Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~g) Do not install this hood over
cooktops that burn solid fuel.
~h) Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood given in the
"Appliance dimensions" section of this
manual.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~i) Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork.
~j) Seek professional advice before
connecting an exhaust hood vent to an
existing, inactive chimney or vent flue.
~k) Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
,WARNING
TO REDUCE THE RISK OF
FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
6

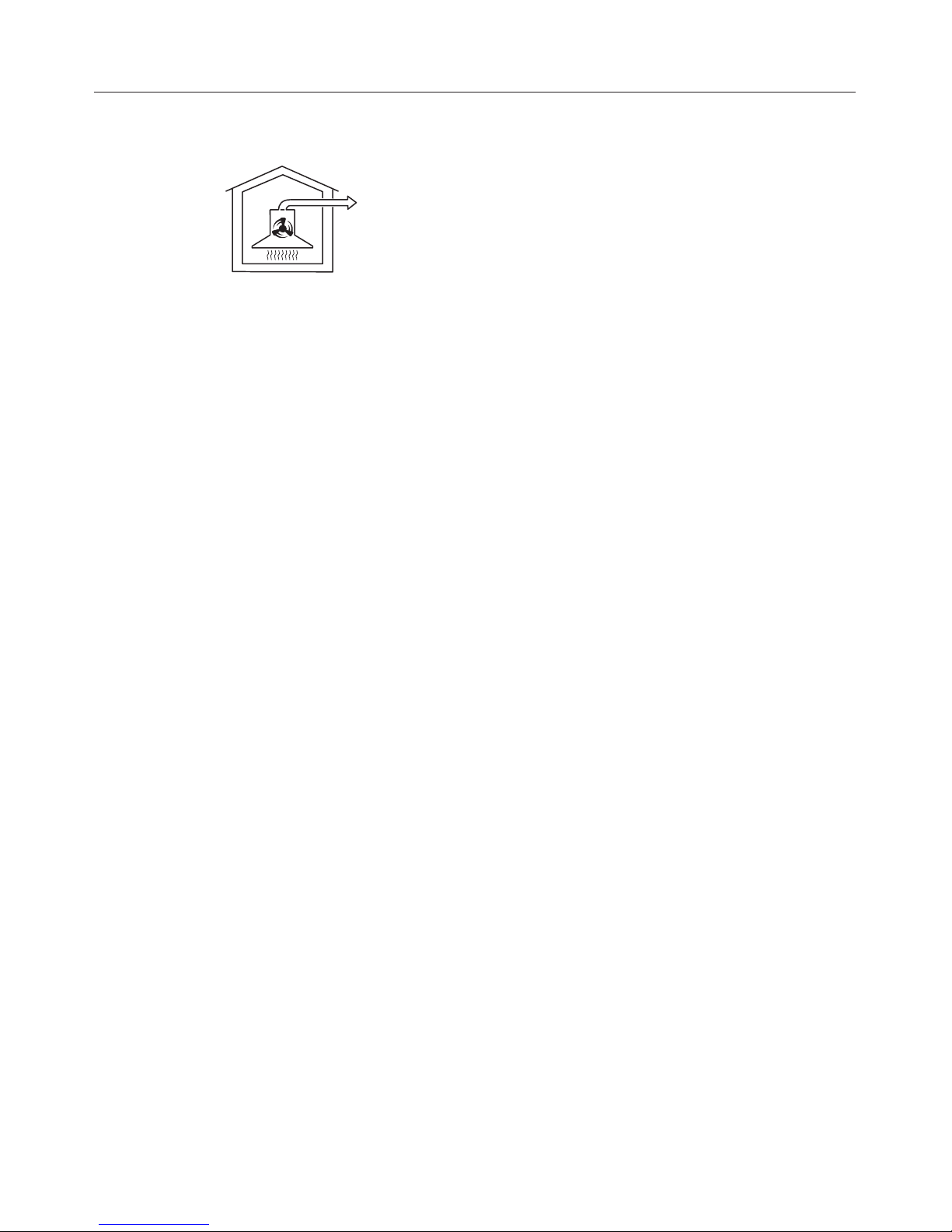

Air extraction
The air is drawn in via the glass or
stainless steel panels and cleaned by
the grease filters. Then the air is
released outdoors.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Description of functions
7

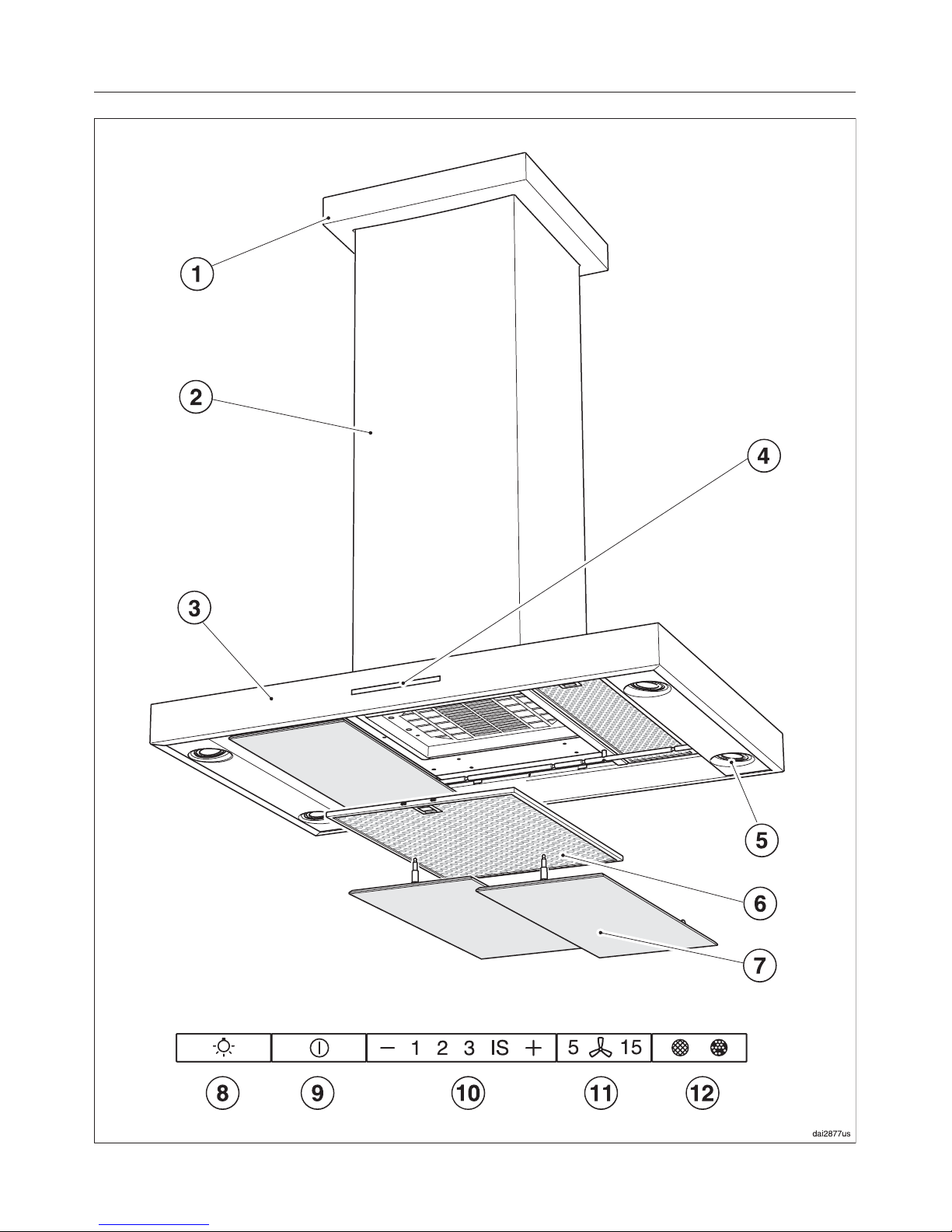

Guide to the ventilation system
8

aChimney extension
bChimney
cCanopy
dControl panel
eOverhead lighting
fGrease filter
gGlass or stainless steel panels
Optional accessories
DRP 6590 D glass (3 elements)
DRP 6590 D stainless steel
(3 elements)
hOverhead lighting button
This button turns the light on and off
and also dims it.
iFan On/Off button
jFan power selection
kDelayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
lFilter button
The grease filter symbol lof the filter
button comes on when the grease
filters need to be cleaned.
The symbol has no function with this
model.
Use this button to reset the grease filter
timer after cleaning the grease filters
(see "Cleaning and care").
You can also check or change the
number of hours.
Guide to the ventilation system
9

Turning the fan on K
^Press the On/Off button K.
The fan turns on to Level 2
and the Ksymbol and the 2of the
power level indicator lights up.
Selecting the power level -/+
^Press the "–" symbol to select a lower
power level or the "+" symbol for a
higher power level.
Depending on the amount of cooking
odors, levels 1to 3are usually sufficient
for normal cooking.
Intensive setting "IS"
To remove strong aromas or odors, for
example when frying, select power
level IS temporarily.
Automatically switching back the
intensive power level
The intensive level can be programmed
to automatically switch back to level 3
after 10 minutes.
^To do so, turn the fan and the
overhead lighting off.
^Press and hold the "Delayed shut
down" button 5¢15 for approx. 10
seconds until power level indicator 1
lights up.
^Then press the following buttons one
after another:
– overhead lighting I,
– the –button and
– the overhead light button Iagain.
If the indicators 1and IS flash,
automatic switch back is not activated.
^To activate automatic switch back,
press the +button.
Power level indicators 1and IS come
on.
To deactivate, press the –button.
^To save the setting, press the
delayed shut down button 5¢15.
If the procedure is not stored within 4
minutes, the hood will automatically
default to the "old" data.
Operation
10

Delayed shut down 5 ¢15
For both air extraction and recirculation
it is recommended to run the fan for
several minutes after cooking is
completed.
This helps clear the kitchen air of any
remaining vapors and odors.
The delayed shut down feature can be
selected to turn the fan off automatically
after a preselected length of time.
^After cooking, and with the fan on,
press the delayed shut down button
5¢15:
– once: The fan automatically turns off
after 5 minutes (5¢comes on).
– twice: The fan automatically turns off
after 15 minutes (¢15 comes on).
If you press the delayed shut down
button 5¢15 again, the fan will not turn
off automatically (5¢15 goes out).
Turning the fan off K
^Press the On/Off button Kto turn the
fan off
The Kindicator goes out.
Overhead lighting I
Turning the overhead lighting on
The overhead lighting can be turned on
and off independently of the fan.
^Press the light button Ibriefly to
turn the light on.
The Iindicator comes on.
The overhead light comes on at
maximum brightness.
Dimming the overhead light
The brightness of the light can be
adjusted.
^While the light is turned on, press
and hold the light button I.
The light dims until the button is
released.
^If the button Iis pressed and held
down again, the light brightens until
the button is released.
If the Ibutton is pressed continuously,
the light cycles between light and dark.
Turning the overhead light off
^Briefly press the light button Ito
turn the light off.
The Iindicator goes out.
Operation
11

Automatic safety shut-off
The fan will turn automatically off 10
hours of use. The lighting however will
remain on.
^Press the On/Off button Kto turn the
fan back on again.
Filter timer [
A timer counts the hours of fan
operation.
The filter button signals that the grease
filter needs to be cleaned by turning on
the grease filter symbol [.
See "Cleaning and care" for information
on cleaning and replacing filters and
resetting the timers.
Reprogramming the filter timer [
The timer may be set to suit your
cooking habits.
– If you often roast and fry foods,
choose a shorter operating time.
–If you tend to cook fat-free, choose a
longer operating time.
–If you cook only occasionally, it is
better to choose a shorter operating
time. This is because grease
deposits harden over time, making
cleaning difficult.
The factory setting for the grease filter
timer is 30 hours. You can adjust the
time to 20, 30, 40 or 50 hours.
^Press the On/Off button Kto turn the
fan off.
^Press the delayed shut down button
5¢15 and the timer button [at
the same time.
The grease filter symbol [of the timer
button and one of the power level
indicators flash.
The 1to IS indicators show the
programmed time:
Indicator 1................20hours
Indicator 2................30hours
Indicator 3................40hours
Indicator IS ...............50hours.
^Press –to select a shorter operating
time or +for a longer one.
^Save the setting by pressing the
timer button [.
All the lights go out.
If the procedure is not stored within 4
minutes, the hood will automatically
default to the "old" data.
Operation
12

Checking the elapsed operating time
Even before the maximum operating
time has been reached, you can check
what percentage of the time has
elapsed.
^Press the On/Off button Kto turn the
fan on.
^Press the timer button [–
–once, to check the grease filter
operating time. The grease filter
symbol [comes on.
At the same time one or more power
level indicators start flashing.
The number of flashing indicators
shows the elapsed operating time:
Indicator 1...................25%
Indicators 1and 2.............50%
Indicators 1to 3...............75%
Indicators 1to IS .............100%
The number of operating hours remains
stored when the ventilation system is
turned off or if the electric power supply
is interrupted.
Operation
13

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "Important Safety
Instructions".
,The halogen bulbs are very hot
when in use. They stay hot for some
time after turned off. Use caution,
danger of burns.
Wet cleaning the hot bulbs will
cause damage.
Wait a few minutes after turning
them off before cleaning.
Cleaning the casing
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with a mild solution of
warm water and liquid dish soap
applied with a soft sponge.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
^Wipe dry using a soft cloth.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
–sharp metal scrapers,
–oven spray.
The following instructions for cleaning
"Stainless steel" surfaces and "Stainless
steel colored controls" should be
followed in addition to the general
"Cleaning the casing" instructions.
Special instructions for appliances
with stainless steel surfaces
(not applicable to the controls)
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Cleaning and care
14

Special instructions for glass
surfaces
^The glass edge can be cleaned
using a household glass cleaner.
Special instructions for appliances
with colored casings
(Special order)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colors and if there is halogen lighting in
the kitchen.
Special instructions for control
buttons
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Panels and grease filters
The glass or stainless steel panels and
the reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc.) and
prevent soiling of the ventilation hood.
Clean the panels and grease filters at
the latest when the grease filter symbol
[of the timer button comes on.
The grease filters should be cleaned
every3-4weeks, as the collected
grease hardens over time and makes
cleaning more difficult.
,A dirty filter is a fire hazard!
Support the grease filters and
panels so that they do not fall and
damage the cooktop.
Cleaning and care
15

^Pull the front edge of the panels
down slightly, unhook them at the
back, and take them out.
^Open the grease filter lock, lower the
grease filter slightly, unhook it at the
back, and remove.
Cleaning the panels by hand
^Follow the instructions under
"Cleaning the casing".
Cleaning the grease filters
^By hand: use a scrub brush with a
solution of warm water and mild dish
soap.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could damage the filter.
^In a dishwasher: place the filter
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a wash program with a max.
temperature of 150°F (65°C). In a
Miele dishwasher use the "Normal"
program.
Use the recommended amount of
dishwasher detergent. Overuse could
destroy the filter.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Filter performance will not be
affected by this discoloration.
^After cleaning, place the filters on a
towel to air dry.
^While the panels and the filters are
removed, clean any dirt or grease
from the casing. This reduces the risk
of fire.
^When reinstalling the grease filters,
make sure that the locking clips are
facing down.
Cleaning and care
16

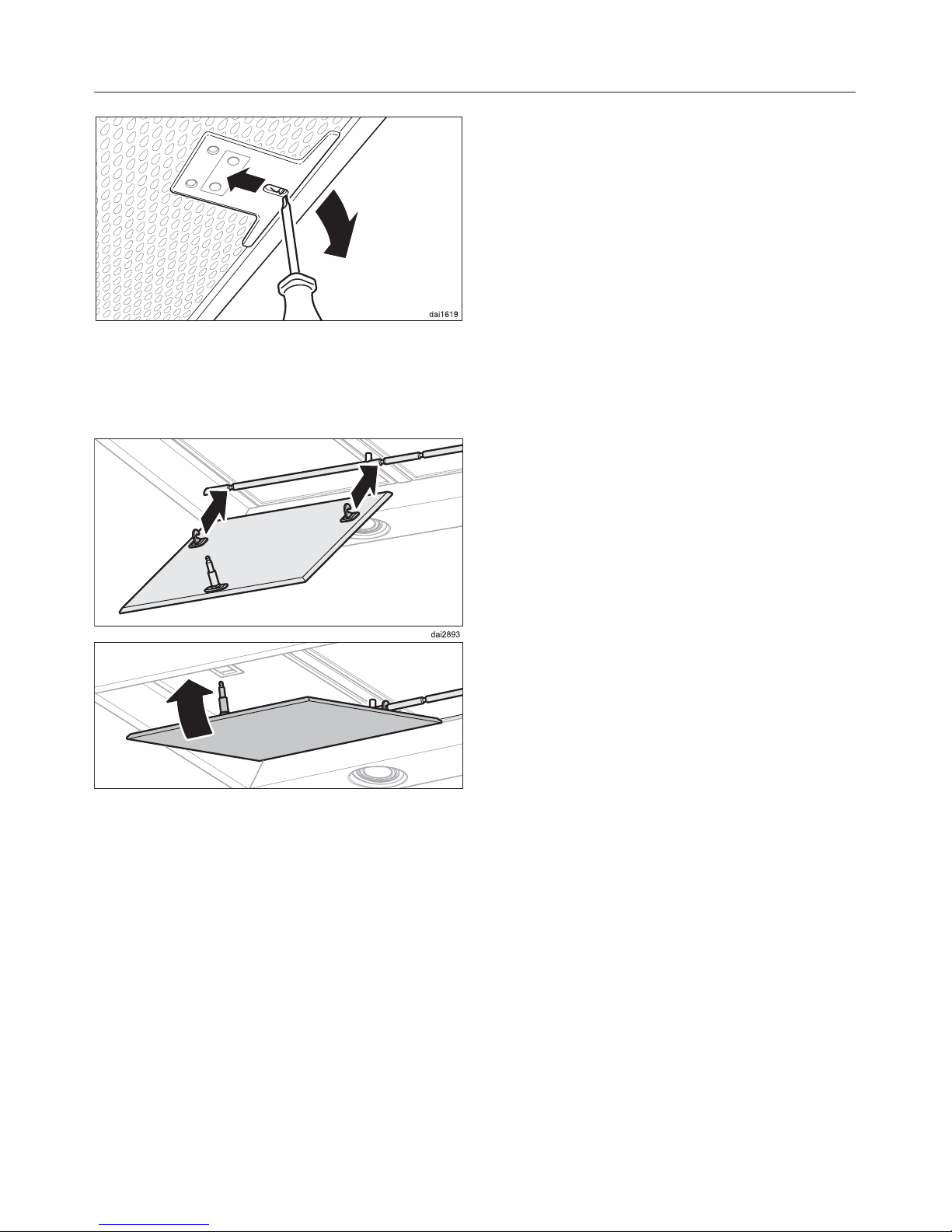

^If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage them
from the casing.
^Hook the panels onto the support
ledge, lift up the front and push them
into the lock until they engage.
Resetting the grease filter timer
Reset the timer each time you clean the
grease filters.
^With the fan running, press and hold
the timer button [for
about 3 seconds, until only the 1is
flashing.
The grease filter symbol [goes out.
If you clean the grease filters before
the operating time elapses:
^Press and hold the timer button [
for about 6 seconds, until only the 1
is flashing.
Cleaning and care
17

Changing the light bulbs
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before changing the light bulbs,
disconnect the hood from the power
supply, see "Important Safety
Instructions".
When in use halogen bulbs become
extremely hot, and can burn your
hands. Do not attempt to change the
bulbs until they have had sufficient
time to cool.

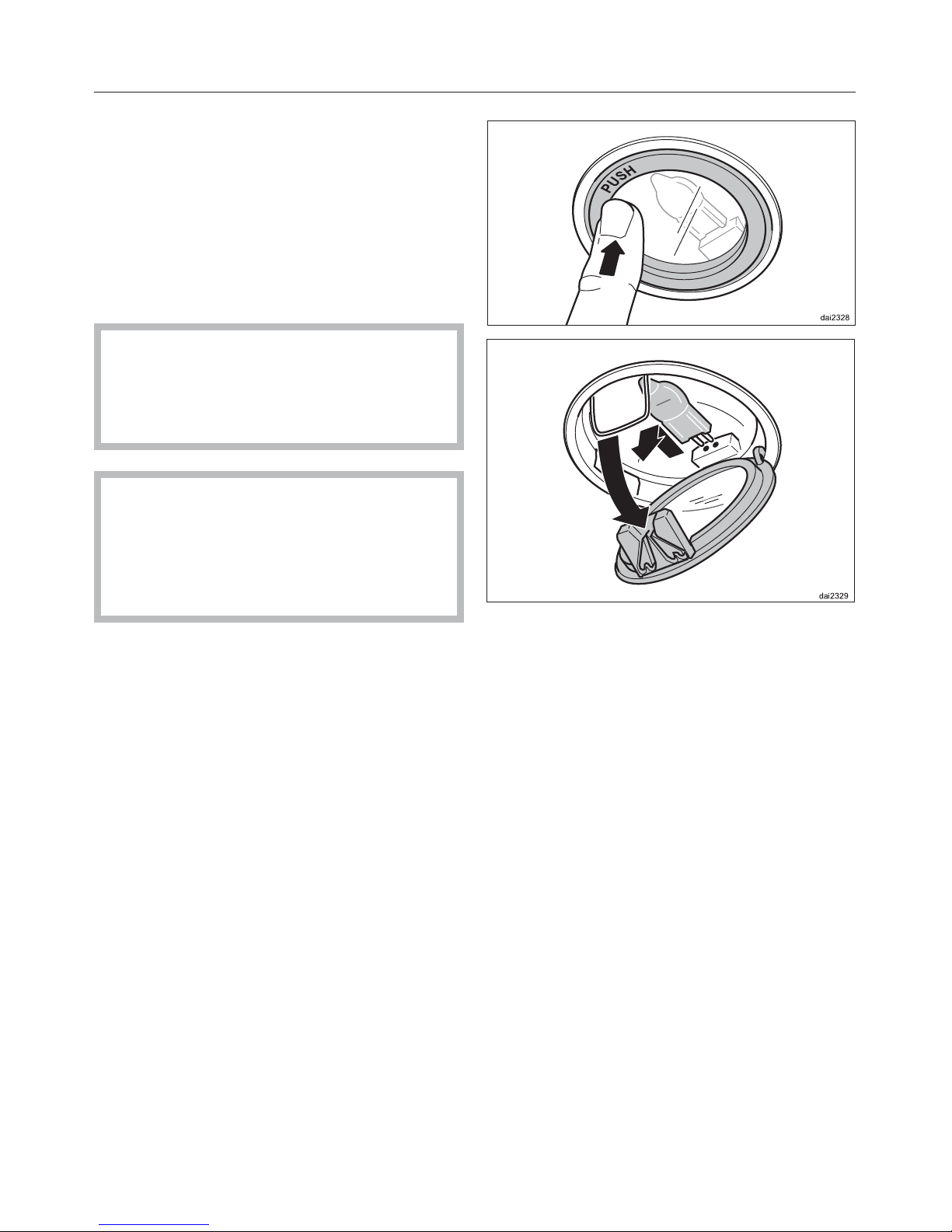

^To change the halogen bulb, first
gently press the light cover. The
cover will open and can now be
flipped down.
^Pull the halogen bulb from its socket.
^Using a cloth or glove, insert the new
halogen bulb (type 12 V, 20 W, G4).
Please follow the manufacturer's
instructions.
^Flip the light cover back up, making
sure it clicks into place.
Cleaning and care
18

Repairs
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department.
^When contacting the Technical
Service Department, please quote
the model and serial number of your
appliance.
These are shown on the data plate
which is visible when the grease filters
are removed.
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5 years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
After Sales Service
19

20
