Miele DA 5100 D User manual

Operating and Installation
Instructions
Ventilation System
DA 5100 D
To prevent accidents
and machine damage,
read these instructions
before
installation or use. M.-Nr. 06 878 360
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on the fan .................................................10
Selecting the power level............................................10
Delayed Shut Down ................................................12
Turning off the fan .................................................12
Turning the lighting on/off ...........................................13
Dimming the lighting ...............................................13
Grease filter timer .................................................14
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning the casing................................................17

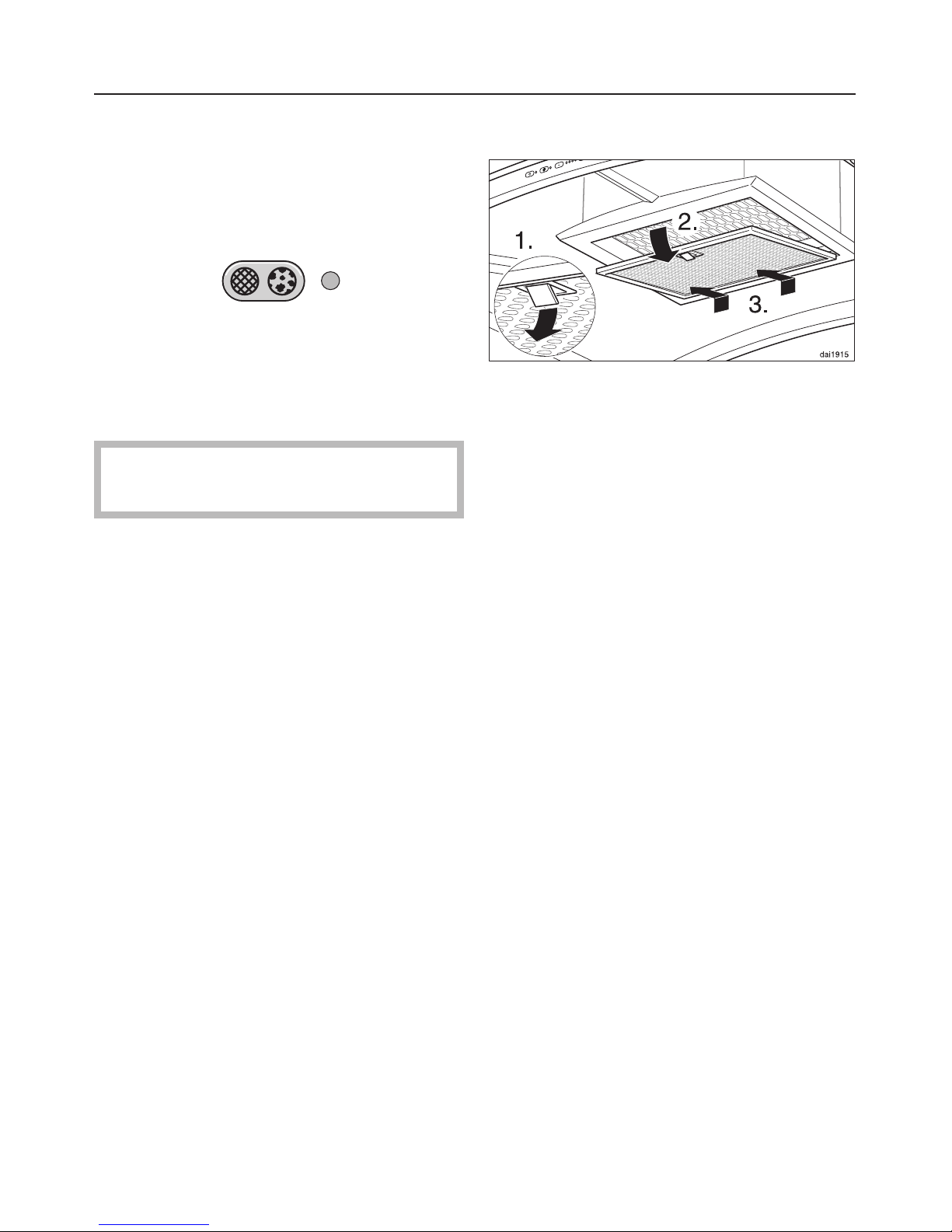

Grease filter ......................................................18

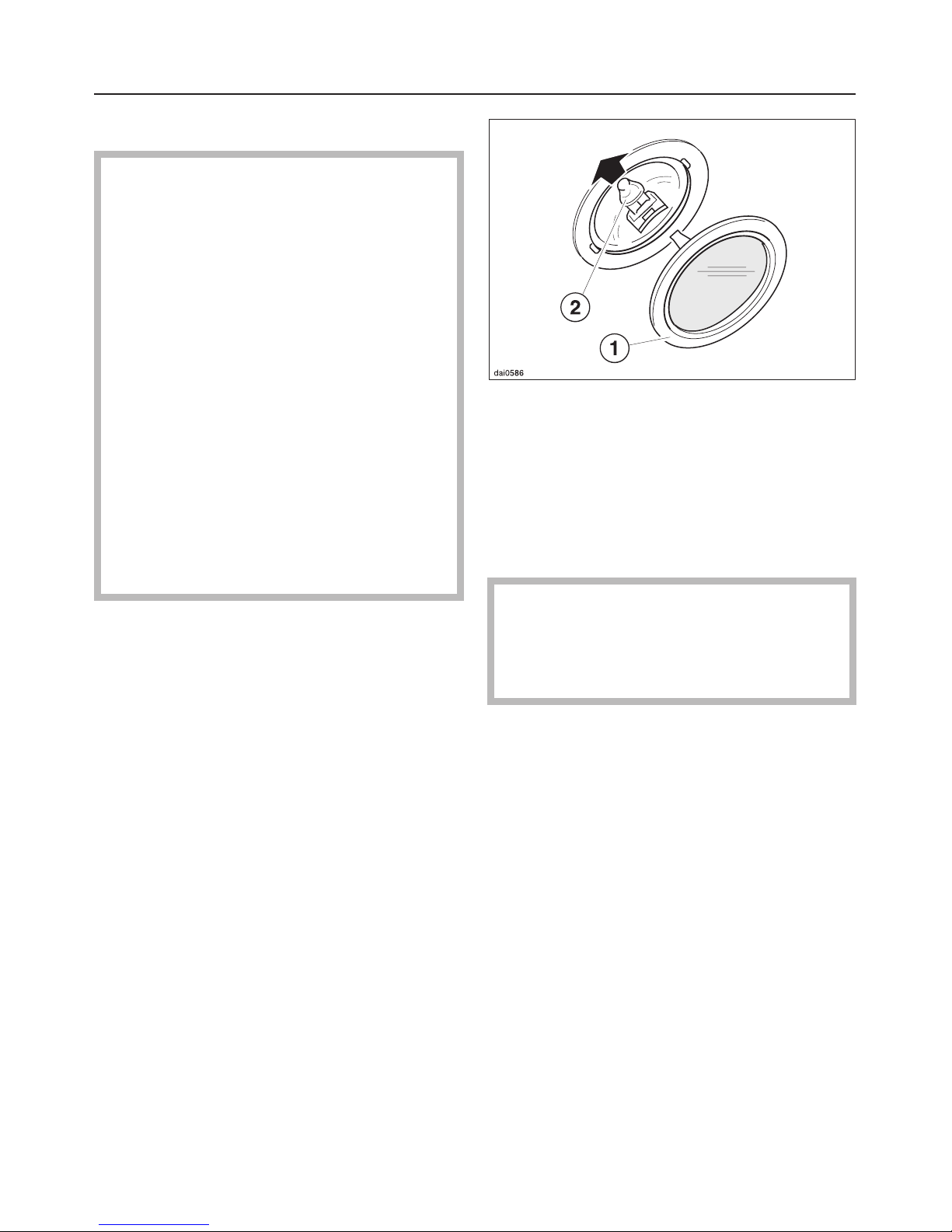

Changing the light bulb .............................................20
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Structural support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation instructions .............................................30
Installation accessories .............................................30
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents
2

Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use
of the appliance can lead to
personal injury and material
damage.
READ AND SAVE THESE
INSTRUCTIONS
,CAUTION
For General Ventilation Use Only.
Do not use to exhaust hazardous or
explosive materials and vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
cannot be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Before connecting the appliance to
the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. If in doubt consult a qualified
electrician.
~Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
3

~This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
installation in these applications. Please
contact the nearest Miele dealer or the
Technical Service Department with
specific requirements.
~Before servicing or cleaning the unit,
switch power off at the service panel
and lock the service disconnecting
means to prevent power from being
switched on accidentally. If the service
disconnecting means cannot be
locked, securely fasten a prominent
warning, such as a tag, to the service
panel.
~Before discarding an old appliance,
unplug it from the power supply and
remove the power cord and any doors
to prevent hazards.
Use
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Do not flambé or grill with an open
flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Clean the grease filters regularly.
Dirty filters are a fire hazard.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate the
electrical components and cause a
short circuit.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING - TO REDUCE
THE RISK OF A COOKTOP
GREASE FIRE:
~Never leave surface units
unattended at high settings. Boil-overs
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~Always turn the hood on when
cooking at a high heat.
~Clean ventilation fans frequently.
Grease should not be allowed to
accumulate on the fan or filter.
~Use the proper pan size. Always use
cookware appropriate for the size of the
surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
COOKTOP GREASE FIRE, OBSERVE
THE FOLLOWING:
~SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~NEVER PICK UP A FLAMING PAN
-You may be burned.
~DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion may result.
~Use a fire extinguisher
ONLY if:
– You have a Class ABC extinguisher
and know how to operate it.
– The fire is small and contained in the
area where it started.
–The fire department has been called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
~,WARNING
To reduce the risk of fire only use
metal ductwork.
~Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood:
–22" (550 mm) above electric
cooktops,
–30" (762 mm) above gas cooktops,
– 26" (650 mm) above an open electric
grill or an open electric boiler/fryer.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
~Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~Do not install this hood over
cooktops burning solid fuel.
~Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
~Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
~Ducted fans must always be vented
outdoors.
~Make sure that the airflow in the
room is sufficient for combustion and
exhausting of all non-electric heating
appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
back drafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA) or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
6

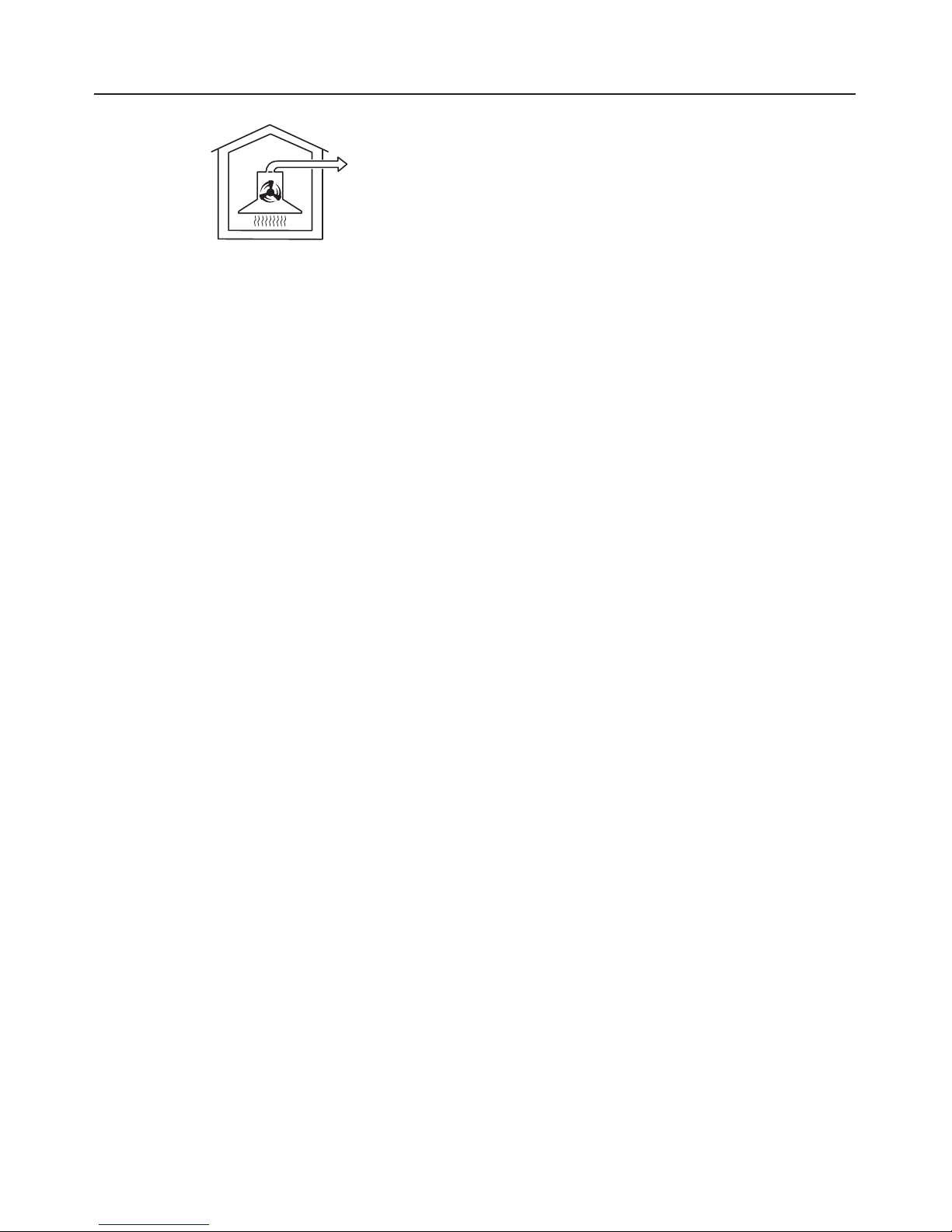

The ventilation hood works by air
extraction. The air is drawn in and
cleaned by the grease filter and
directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Functional description
7

Guide to the hood
8

aCover frame
bChimney
cControl panel
dOverhead lighting
eCanopy
fGrease filter
gLight button
This button turns the light on and off
and also dims the light.
The lighting can be used independently
of the fan.
hOn/Off button
iFan power level buttons
Four fan speed selection.
jDelayed Shut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or
15 minutes.
kGrease filter button
The indicator next to the grease filter
button lights red when the grease filter
needs to be cleaned.
This button is also used:
–to reset the grease filter timer after
cleaning the grease filter (see
"Cleaning and Care").
–to show how long the grease filter
has been in use (see "Operation /
Grease filter timer").
–to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
grease filter timer").
Guide to the hood
9

Turning on the fan
^Press the On/Off button.

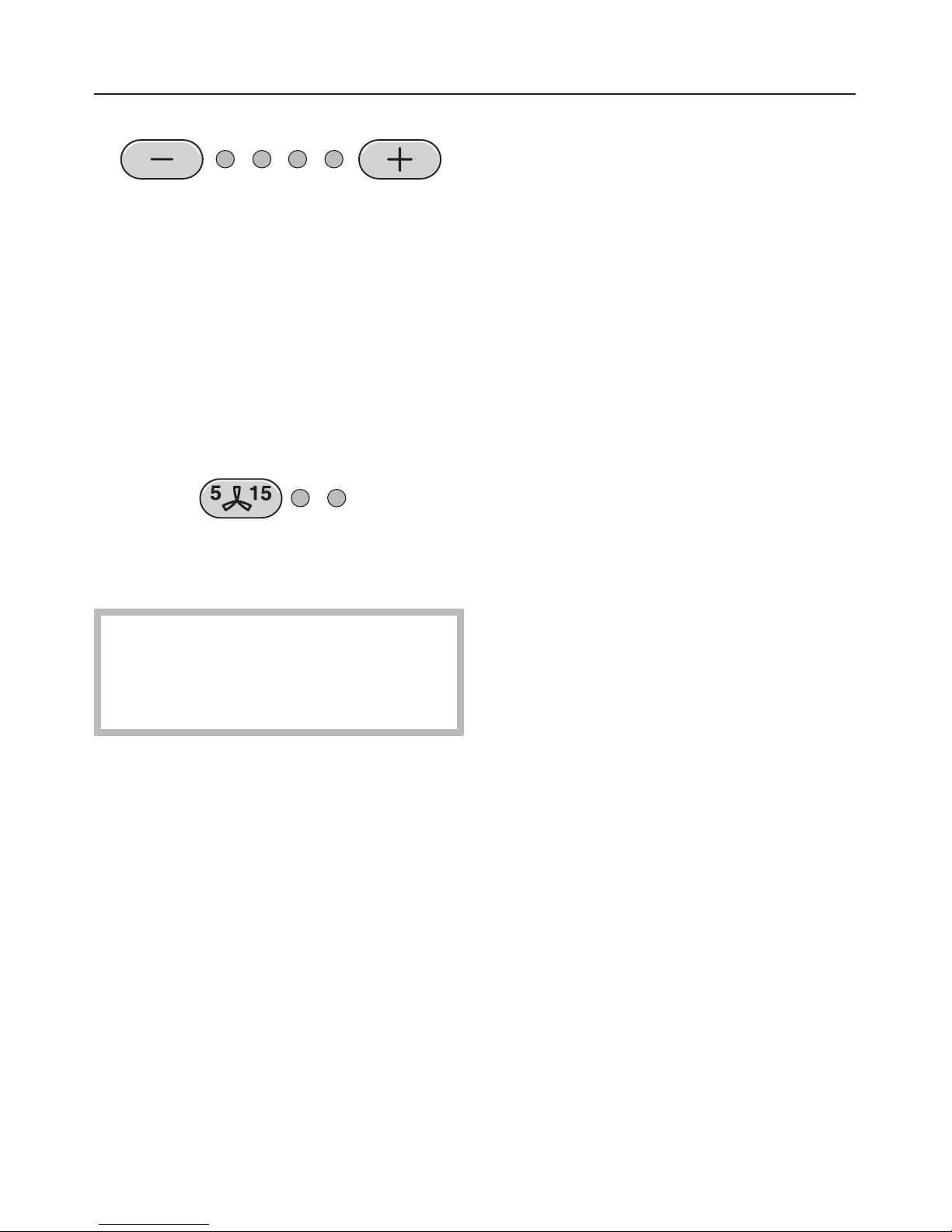

Selecting the power level
^Use the "–/+" controls to select the
desired power level.
+= increases the fan speed
–= decreases the fan speed
Levels "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Automatically switching back the
intensive power level
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
^Turn the fan and the lights off.
^Press and hold the "Delay Shut down"
button for 10 secs. The first indicator
lights.
^Press the following buttons one after
another,
– light
–the "–" button, and
–the light button again.
Operation
10

If the power level indicators "1" and "4"
flash, the automatic switch back is not
activated.
^To activate the automatic switch back
press the "+" button.
The power level indicators "1" and "4"
light continuously.
^To deactivate press the "–" button.
^To save the setting press the "Delay
Shut Down" button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Operation
11

Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes. After
that period of time the fan turns off
automatically.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the feature press the
Delayed Shut Down button again. The
fan will not turn off automatically.
Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator goes out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last button was
activated. The lighting however will
remain on.
^Press the On/Off button to turn the
fan back on again.
Operation
12

Turning the lighting on/off
The overhead lighting can be turned on
and off independently of the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
and hold the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Operation
13

Grease filter timer
A timer monitors the hours of fan
operation. The indicator for the grease
filter will light red after 30 hours of
operation or the preselected time. The
grease filter must then be cleaned.
See "Cleaning and care / Grease Filter".
After the grease filter has been cleaned
and put back in place, the grease filter
timer must be reset.
^To do this, press the grease filter
button for about 3 seconds while the
fan is running.
The indicator will go out.
Checking the grease filter timer
To check the percentage of time
already used:
^Press the On/Off button to turn the
fan on.
^Press the grease filter button.
The indicator lights red.
The number of flashing "–/+" indicators
show the percentage of programmed
hours that have been used.
1 indicator = 25 %
2 indicators = 50 %
3 indicators = 75 %
4 indicators = 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
14

Reprogramming the grease filter
timer
The grease filter timer is preset to
30 hours. This time can be lengthened
or shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally to prevent grease
which has accumulated over a long
period of time from hardening on the
filter, making cleaning more difficult.
^Press the On/Off button to turn off the
fan.
^Press the Delayed Shut Down and
grease filter button at the same time.
The red indicator for the grease filter
timer and one of the "–/+" indicators will
flash.
The lit "–/+" indicator shows the
programmed time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the "–/+" button to select the
desired time.
^Store the selection by pressing the
grease filter button.
If the procedure is not stored within
4 minutes of programming the hood
will automatically default to the "old"
data.
Operation
15

If the grease filter timer lights blue, a
different timer was activated which is
not needed.
Deactivating the blue indicator
The fan must be off.
^Press the "+" and the grease filter
button at the same time.
The grease filter indicator lights blue
and one "–/+" indicator flashes.
^Press "+" until the fourth "–/+"
indicator lights.
^Confirm the selection with the grease
filter button.
All indicators will go out.
Operation
16

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet or
manually "tripping" the circuit
breaker.
Cleaning the casing
,Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^The exterior surfaces and controls
can be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Only use a slightly damp sponge
when cleaning the controls. Water
could penetrate into the electronics
and cause damage.
^Glass surfaces can be cleaned using
glass cleaner.
Avoid:
–cleaning agents containing soda,
acids, chlorides or thinners,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–limescale removers.
These will damage the surface.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainless steel colored controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and care
17

Grease filter
The reusable metal grease filter
removes solid particles from the vented
kitchen air (grease, dust, etc).
The grease filter and the air intake
panel should be cleaned every3-4
weeks or whenever the grease filter
indicator lights red.
Keep the grease filter clean to
prevent a fire hazard.
Removing the grease filter
^To remove the grease filter pull the
locking clip forward. Lower the filter
45° unhook it at the rear and take it
out. Support the grease filter so that it
does not fall onto the cooktop.
Cleaning and care
18

Cleaning the grease filter
^By hand: use a scrub brush with a
solution of warm water and mild
detergent.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could destroy the filter.
^In a dishwasher: place the filter
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a hot temperature program,
e.g. "Heavy Soil" or "Pots and pans".
Use the recommended amount of
dishwasher detergent. Overuse could
destroy the filter.
Depending on the detergent,
cleaning the grease filter in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, the filter can be
placed on a towel to air dry.
^While the filter is removed, clean any
dirt or grease from the interior casing
to prevent the risk of fire.
^When putting the grease filter back
make sure that the locking clip is
facing the cooking surface.
^If the filter is incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage it from
the casing.
^After returning the grease filter, press
the grease filter button for 3 seconds
to reset the timer.
The indicator light will go out.
^If the grease filter is cleaned before
the grease filter timer has reached its
maximum, the grease filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and care
19

Changing the light bulb
Before changing the light bulbs,
disconnect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, and can burn your
hands. Do not attempt to change the
bulbs until they have had sufficient
time to cool.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease its life.
Please follow the manufacturer’s
instructions.
^To change the halogen bulb first pull
off the lamp cover, a.
^Pull the bulb, b, out of its socket and
replace it with a new one.
^Return the lamp cover, a, making
sure it clicks into place.
Never use the lighting without the
lamp cover, a, in place. The glass
is specially made to filter harmful
light rays.
Cleaning and care
20
