Miele DA 409 User manual

Operating and Installation
Instructions
Ventilation System
DA 408
DA 409
To prevent accidents
and appliance damage,
read these instructions
before
installation or use. M.-Nr. 06 241 951
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS
Functional description
Guide to the Ventilation System
Operation
Turning on the fan .................................................10
Selecting the power level............................................10
Delayed Shut Down ................................................12
Turning off the fan .................................................12
Turning the lighting On/Off ..........................................13
Dimming the lighting ...............................................13
Filter timers ......................................................14
Checking the filter timers ............................................14
Reprogramming the timers ..........................................15
Cleaning and Care
Cleaning the casing................................................17
Grease filters .....................................................18
Active charcoal filter ...............................................19
Changing the light bulb .............................................20
After Sales Service
Installation instructions
Caring for the environment
Installation accessories
Plywood backing
Electrical connection
Appliance dimensions
Distance between cooktop and hood (S) ...............................31
Installation
Dismantling ......................................................33
Air extraction
Contents
2

READ AND SAVE THESE
INSTRUCTIONS
Keep these operating instructions in
a safe place and pass them on to any
future user.
Read these Instructions carefully
before installing or using the
Ventilation System.
~This appliance is intended for
residential use only. Use the appliance
only for its intended purpose.
~This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
,CAUTION
For General Ventilating Use
Only. Do Not Use To Exhaust
Hazardous Or Explosive
Materials And Vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~This appliance is suitable for
installation above gas or electric
cooking surfaces.
~This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions installation in these
applications may be possible. Please
contact your Miele dealer or the Miele
Technical Service Department with
specific requirements.
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Use this appliance only in the
manner intended by the manufacturer.
If you have questions, contact Miele.
~b) Before servicing or cleaning the
appliance, switch power off at the
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
~c) Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~d) Before connecting the appliance
to the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply.
This data must correspond to prevent
appliance damage. If in doubt consult a
qualified electrician.
~e) Installation work and repairs
should only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous.
~f) Only open the housing as
described in the enclosed "Installation
diagram" and in the "Cleaning and care"
section of this manual. Under no
circumstances should any other parts
of the housing be opened. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operation faults.
~g) Before discarding an old
appliance, disconnect it from the power
supply and remove the power cord to
prevent hazards.
Use
,WARNING
TO REDUCE THE RISK OF A
COOKTOP GREASE FIRE:
~a) Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~b) Always turn the hood on when
cooking at a high heat.
~c) Clean the ventilation hood
frequently. Grease should not be
allowed to accumulate on the fan or
filter.
~d) Use the proper pan size. Always
use cookware appropriate for the size
of the cooking area.
~e) Do not flambé or grill with an
open flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING
TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE
EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE
FOLLOWING*:
~a) SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~b) NEVER PICK UP A FLAMING
PAN - You may be burned.
~c) DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~d) Use a fire extinguisher ONLY if:
1) You have a class ABC
extinguisher, and you know how to
operate it.
2) The fire is small and contained in
the area where it started.
3) The fire department is being
called.
4)You can fight the fire with your
back to an exit.
*Based on "Kitchen Firesafety Tips"
published by NAFTA
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
~b) Sufficient air is needed for
combustion and exhausting of gases
through the flue (chimney of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by
the National Fire Protection Association
(NFPA) and the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and
the local code authorities.
~c) When cutting or drilling into the
wall or ceiling, do not damage electrical
wiring and other hidden utilities.
~d) Ducted hoods must always be
vented to the outdoors.
~e) Do not use this hood with any
solid-state speed control device.
~f) Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~g) Do not install this hood over
cooktops that burn solid fuel.
~h) Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood given in the
"Appliance dimensions" section of this
manual.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~i) Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork.
~j) Seek professional advice before
connecting an exhaust hood vent to an
existing, inactive chimney or vent flue.
~k) Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
,WARNING
TO REDUCE THE RISK OF
FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
6

The hood offers two modes of
operation:
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Recirculation mode
Air is drawn through the grease filters
and an active charcoal filter. The
filtered air is then recirculated back into
the kitchen through a vent at the top of
the hood’s chimney.
The recirculation mode requires an
install kit and charcoal filter which are
optional accessories.
Before using the hood in
recirculation mode, ensure that the
active charcoal filter is in place, see
"Cleaning and care".
Functional description
7

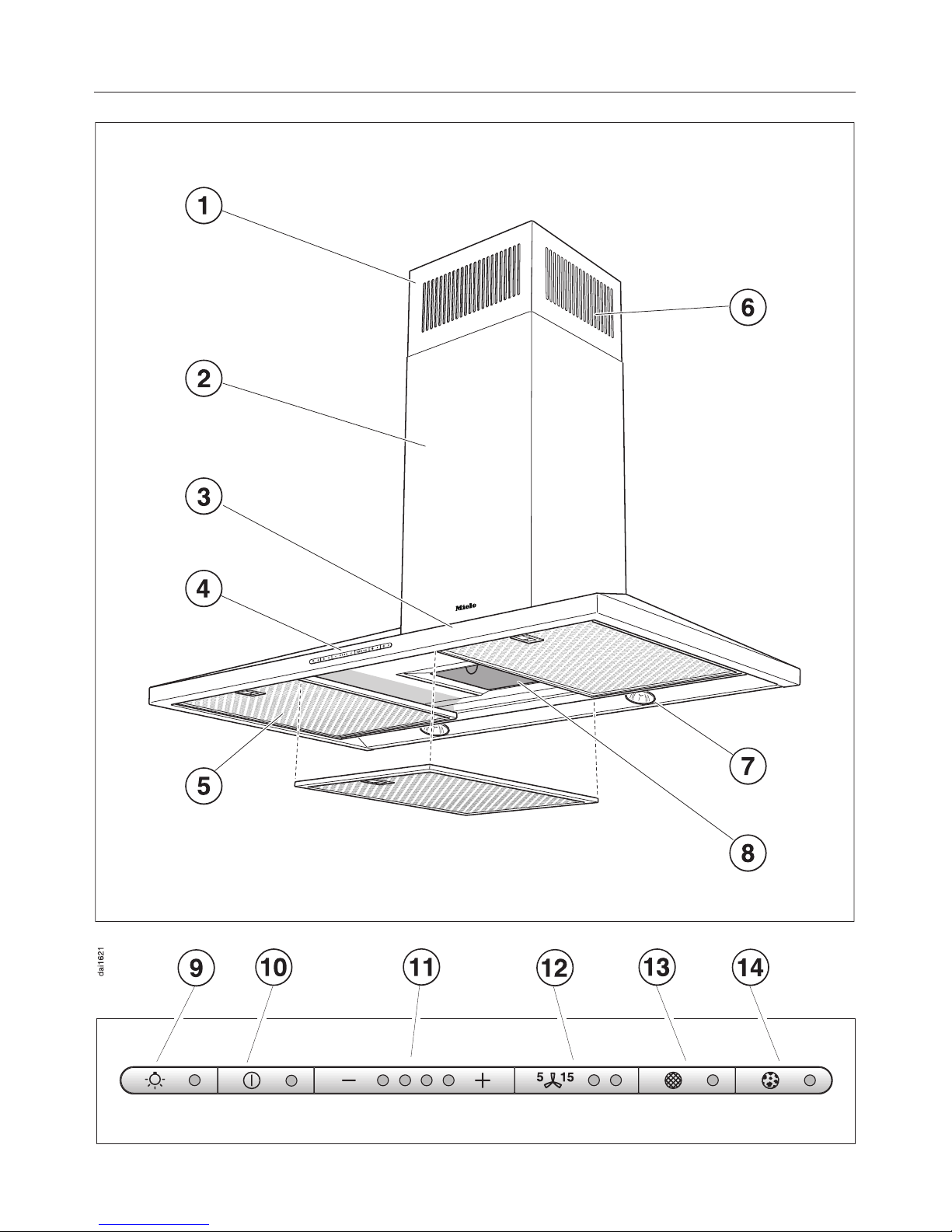

Guide to the Ventilation System
8

aChimney extension
bChimney
cCanopy
dControl panel
eGrease filter
fRecirculation vent
gOverhead lighting
hCharcoal filter
optional accessory
iLight button
This button turns the light on and off
and also dims the light.
The lighting can be used independently
from the fan.
jOn/Off button
kFan power selection
Four fan speed selection
lDelayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
mGrease filter button
The indicator next to the grease filter
button lights when the grease filters
need to be cleaned.
This button is also used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation -
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation - Reprogramming
the timers").
nCharcoal filter button
The indicator next to the charcoal filter
button lights when the charcoal filter
needs to be replaced.
This button is also used:
–to reset the charcoal filter timer after
changing the filter (see "Cleaning
and care").
–to show how long the charcoal filter
has been in use (see "Operation -
Filter timers")
–to change the number of hours
counted by the charcoal filter timer
(see "Operation - Reprogramming
the timers").
Guide to the Ventilation System
9

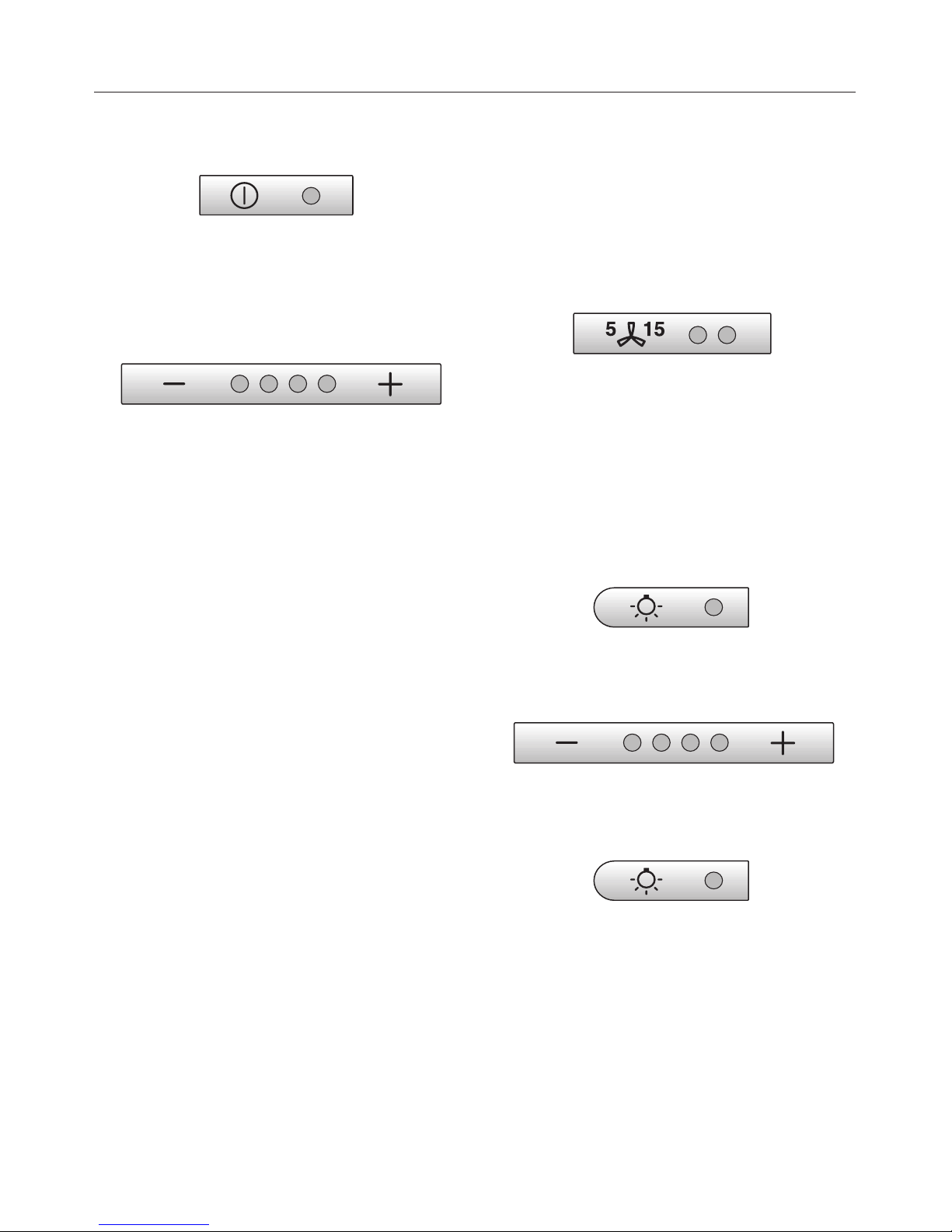

Turning on the fan
^Press the On/Off button.
Selecting the power level
^Use the "–/+" controls to select the
desired power level.
+= increases the fan speed
–= decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should only
be used for short periods of time when
frying or cooking food with a strong
aroma.
Automatically switching back the
Intensive power level
The intensive level "4" can be
programmed to automatically switch
back to level "3" after 10 minutes.
^Turn the fan and the lights off.
^Press and hold the Delayed Shut
down button for 10 secs. The first
indicator of the fan power levels
lights.
^Press the following buttons one after
another,
– light,
–the "-" button, and
–the light button again.
Operation
10

If the power level indicators flash the
automatic switch back is not activated.
^To activate the automatic switch back
press the "+" button.
The power level indicators light.
^To deactivate the automatic switch
back press the "–" button.
^To save the setting press the
Delayed Shut down button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filter.
Operation
11

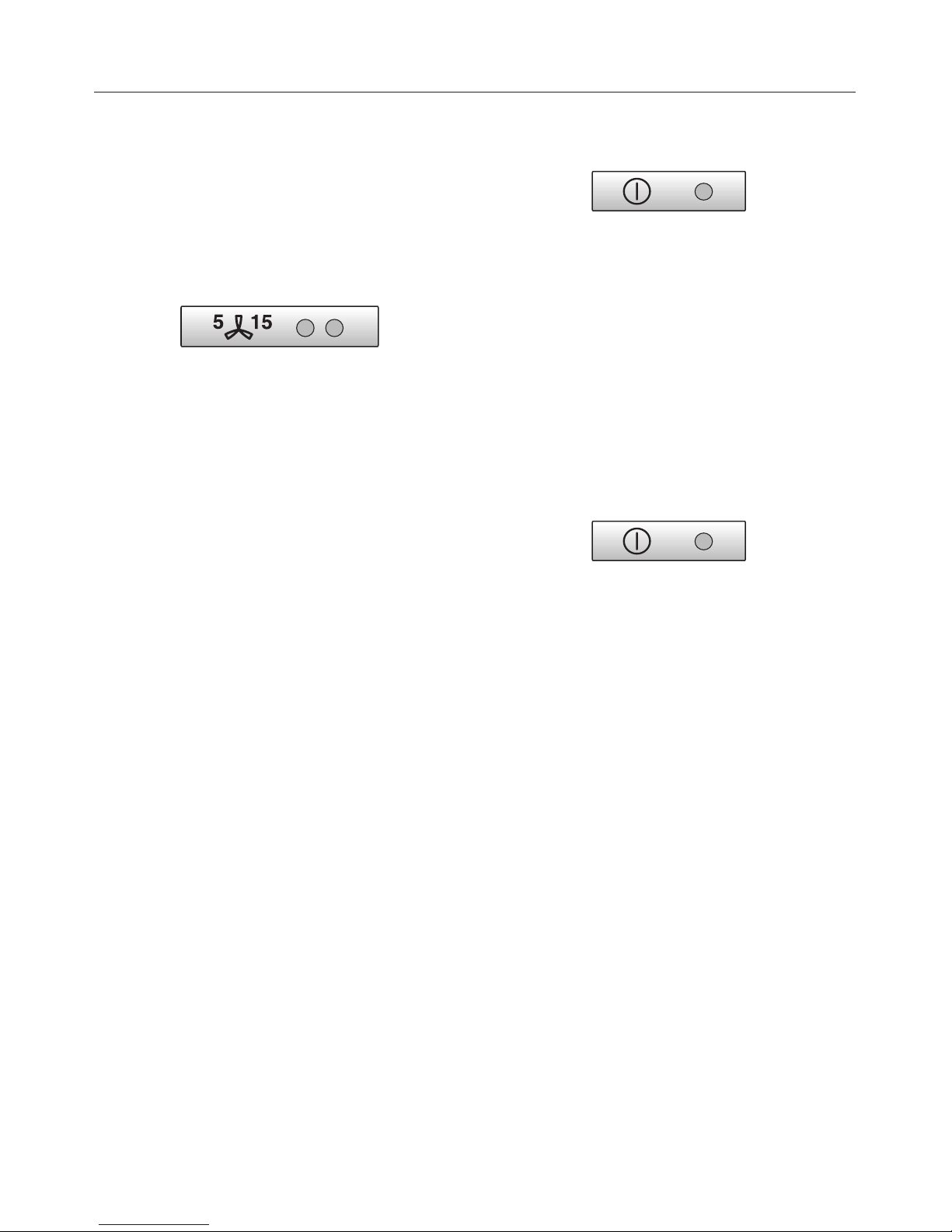

Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down
feature press the button again.
Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator will go out.
Automatic Safety Shut Off
The fan will turn off automatically
10 hours after the last button was
pressed. The lighting however will
remain on.
^Press the On/Off button to turn the
fan back on again.
Operation
12

Turning the lighting On/Off
The overhead lighting can be turned on
and off independently from the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Operation
13

Filter timers
Grease filters
A timer monitors the hours of fan
operation. The indicator for the grease
filter will light after 30 hours of
operation. The grease filters must then
be cleaned.
After the grease filters have been
cleaned and put back in place, the
grease filter timer must be reset.
^To do this, press the grease filter
button for approx. 3 seconds.
The indicator will go out.
Charcoal filter
Recirculation mode only
The timer for the charcoal filter is not
preset. Please program this timer, see
"Operation - Reprogramming the
charcoal filter timer".
The charcoal filter indicator will light
once the selected time has elapsed.
The charcoal filter must then be
replaced and the charcoal filter timer
reset.
^To do this, press the charcoal filter
button for approx. 3 seconds.
The indicator will go out.

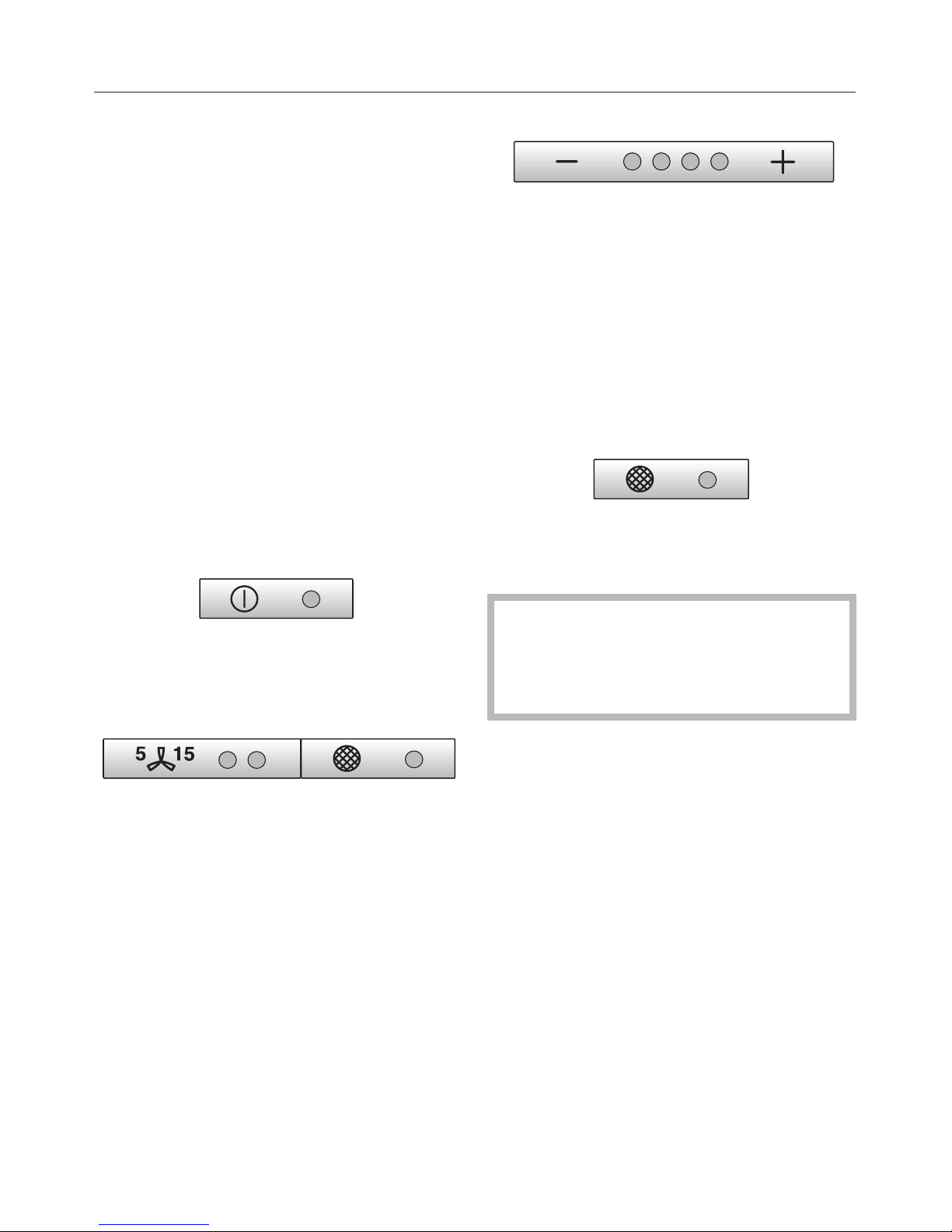

Checking the filter timers
^Press the On/Off button to turn the
fan on.
^Press and hold the grease or
charcoal filter button.
The number of flashing "–/+" indicators
show the percentage of programmed
hours that have been used.
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
14

Reprogramming the timers
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40, or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally to prevent grease
which has accumulated over a long
period of time from hardening on the
filters making cleaning more difficult.
Reprogramming the grease filter
timer
^Press the On/Off button to turn off the
fan.
^Press the Delayed Shut Down and
grease filter buttons at the same time.
The indicator for the grease filter and
one of the "–/+" indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the "–/+" button to select the
desired time.
^Save the selection by pressing the
grease filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
15

Reprogramming the charcoal filter
timer
The active charcoal filter can only be
used in recirculation mode and cannot
be used to exhaust fumes.
The charcoal filter timer is not preset.
Before using the hood in recirculation
mode, the charcoal filter timer must be
programmed.
^Turn off the fan using the On/Off
button.
^Press the Delayed Shut Down and
charcoal filter buttons at the same
time.
The indicator for the charcoal filter and
one of the "–/+" indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the "–/+" button to select the
desired time.
^Save the selection by pressing the
charcoal filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
16

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "Important Safety
Instructions".
Cleaning the casing
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with a mild solution of
warm water and liquid dish soap
applied with a soft sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
^Glass surfaces can be cleaned using
a glass cleaner.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
These will damage the surface.
The following instructions for cleaning
"Stainless steel" surfaces and "Stainless
steel colored controls" should be
followed in addition to the general
"Cleaning the casing" instructions.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and Care
17

Grease filters
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every3-4weeks, when the grease
filter indicator lights, or when they are
visibly dirty, whichever comes first.
,A dirty filter is a fire hazard.
^To remove the grease filters pull the
locking clips, 1, forward. Lower the
filter 45°, 2, unhook it at the rear, 3,
and take it out. Support the grease
filter so that it does not fall onto the
cooktop.
Cleaning the grease filter
^By hand: use a scrub brush with a
solution of warm water and mild
detergent.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could damage the filter.
^In a dishwasher: place the filter
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Use a hot temperature program,
e.g. "Heavy Soil" or "Pots and Pans".
Use the recommended amount of
dishwasher detergent. Overuse could
damage the filter.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter is not
affected by this discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
When putting the grease filters back
make sure that the locking clips are
visibly facing the cooking surface.
If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press and hold the grease filter
button for 3 seconds to reset the
timer. The indicator light will go out.
^If the grease filters are cleaned
before the grease filter timer has
reached its maximum, press the
grease filter button for approx.
6 seconds to reset the counter to
zero.
Cleaning and Care
18

Active charcoal filter
In recirculation mode an active
charcoal filter must be used in addition
to the grease filters. It is designed to
absorb cooking odors.
The active charcoal filter is replaced in
the canopy above the grease filters.
Replacement active charcoal filters
can be ordered from Miele.
^Remove the grease filters to access
the charcoal filter. See "Cleaning and
Care".
^Insert the charcoal filter with the flap
facing the front.
Before using:
^Program the charcoal filter timer, see
"Operation - Reprogramming the
charcoal filter timer".
Replace the active charcoal filter when
the charcoal filter indicator lights, at
least every 6 months or when it no
longer absorbs odors efficiently.
^After replacing the charcoal filter,
press and hold the charcoal filter
button for approx. 3 seconds to reset
the charcoal filter timer.
The indicator light will go out.
^If the charcoal filter is replaced
before the timer has reached its
maximum, the charcoal filter button
should be pressed for approx. 6
seconds to reset the counter to zero.
Cleaning and Care
19

Changing the light bulb
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before changing the light bulbs,
disconnect the hood from the power
supply, see "Important Safety
Instructions".
When in use halogen bulbs become
extremely hot, use caution. Do not
attempt to change the bulbs until
they have had sufficient time to cool.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease its life.
Follow the bulb manufacturer’s
instructions.
^Remove the grease filters.
^Turn the knurled screw to the left. The
halogen lamp will swivel down.
^Turn the bulb counterclockwise and
pull it out of its socket.
^Replace the bulb with a new one in
the reverse order.
^Return the grease filters.
Cleaning and Care
20
