Miele DA 5330 D Specification sheet

Operating and installation instructions
Cooker hood
DA 5330 W
To avoid the risk of accidents
or damage to this appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 203 290
en-GB

Caring for the environment..........................................4
Warning and Safety instructions .....................................5
Modes of operation ...............................................11

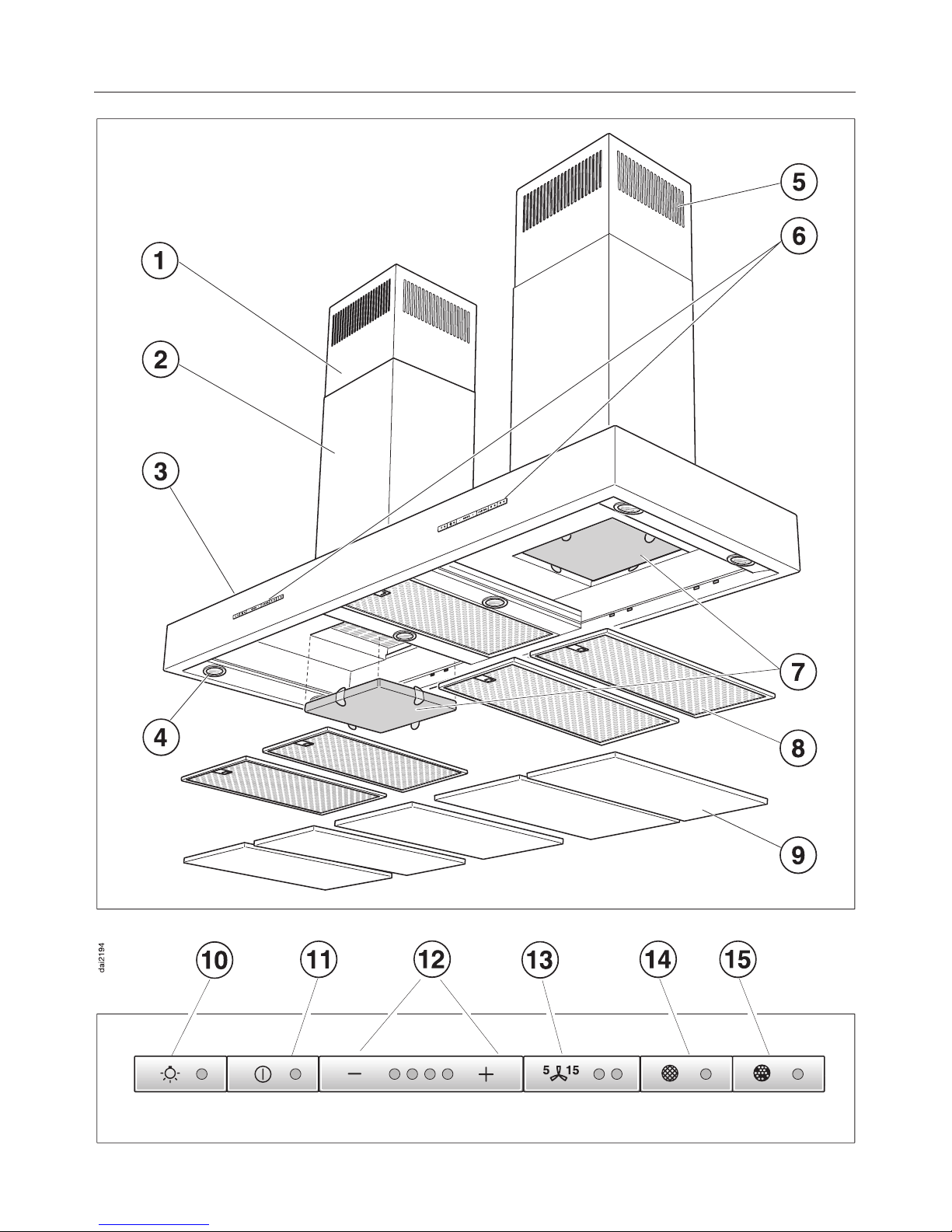

Guide to the appliance ............................................12
Miele|home .....................................................14
Con|ctivity ......................................................14
Operation .......................................................15
To switch a fan on .................................................15
To select a power level .............................................15
Intensive setting ................................................15
Run-on option ....................................................16
To switch the fan off................................................16
To switch the hob lighting on.........................................17
To dim the hob lighting .............................................17
To switch the hob lighting off.........................................17
Filter operating hours counters .......................................17
Cleaning and care ................................................21
Housing .........................................................21
Grease filters .....................................................22
Fitting and replacing the charcoal filters ................................24
Changing a halogen lamp ...........................................25
Appliance dimensions.............................................26
Safety distance between hob and cooker hood (S) .....................27
Installation ......................................................28
Installation accessories .............................................28
Installation instructions .............................................30
Protective foil .....................................................30
Dismantling ......................................................30
Connection for air extraction .......................................31
Condensate trap ..................................................32
Silencer .........................................................33
Electrical connection .............................................34
Contents
2

Operation with Control module DSM 400 .............................35
Potential free connection .........................................35
Connection to a light switch .......................................35
After Sales Service ...............................................36
Technical data ...................................................37
Contents
3

Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
4

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and for use in
similar working and residential
environments such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as
–Hostels and guesthouses
~It must only be used as a domestic
appliance to extract vapours and
remove odours from cooking.
~The cooker hood is not intended for
outdoor use.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience or knowledge, unless
they are supervised whilst using it or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To
prevent the risk of injury do not let
children play with the appliance or its
controls.
~Children under 8 years of age must
be kept away from the cooker hood
unless they are constantly supervised.
~Children 8 years and older may use
the cooker hood only if they have been
shown how to use it in a safe way and
understand the hazards involved.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
5

Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. A damaged
appliance is dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet. Under no
circumstances should any other parts
of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply.
Warning and Safety instructions
6

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
7

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
"Corgi" installer, must be sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
8

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame under the cooker hood.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The cooker hood can get very hot
during cooking due to heat rising from
the hob.
Do not touch the housing or the grease
filters until the cooker hood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Warning and Safety instructions
9

Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one appliance is fitted
beneath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the greater
distance.
~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

The cooker hood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filters and directed outside.
If the on-site ventilation system is not
already fitted with non-return flaps,
then the two non-return flaps supplied
with the appliance must be fitted in the
exhaust sockets in the motor units.
The flaps are closed when the cooker
hood is switched off. No exchange of
room and outside air can take place.
When the cooker hood is switched on,
the non-return flaps open for the
cooking vapours to be blown directly
outside.
. . . air recirculation:
(requires a conversion kit and charcoal
filters: see "Technical data")
The air is drawn in and cleaned first by
the grease filters and then by
charcoal filters . The cleaned air is
then recirculated back into the kitchen
through grilles in the top of the cooker
hood extension pieces.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filters are in place. See
"Cleaning and care"
Modes of operation
11

Guide to the appliance
12

aTelescopic extension piece
bTower
cCanopy
dHob lighting
eRecirculation grille
(only for recirculation mode)
fControls
The two sides of the cooker hood can
be operated independently of one
another.
gCharcoal filter
(special accessory for recirculation
mode)
hGrease filters
iCover panels Miele DDW 53x0
(optional accessory)
Five cover panels are required in order
to conceal all of the grease filters.
jTouch control for the hob lighting
This control switches the lighting on
and off, and is also a dimmer switch.
kOn/Off touch control for the fan
lTouch controls to select fan power
level
mTouch control for the run-on
option
To activate the run-on option. The fan
can be set to continue running, and to
switch off automatically after either 5 or
15 minutes.
nTouch control for the grease filters
The indicator lamp on the grease filter
touch control lights up when the grease
filters need to be cleaned.
The touch control is used to reset the
operating hours counter every time the
grease filters are cleaned (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
oTouch control for the charcoal
filters
The indicator lamps on the charcoal
filter touch control lights up when the
charcoal filters used in recirculation
mode need to be replaced. For this to
happen, the operating hours counter
needs to be activated before the
appliance is used for the first time.
The touch control is used to reset the
operating hours counter every time the
charcoal filters are replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
13

Con|ctivity
This cooker hood is communication
enabled.

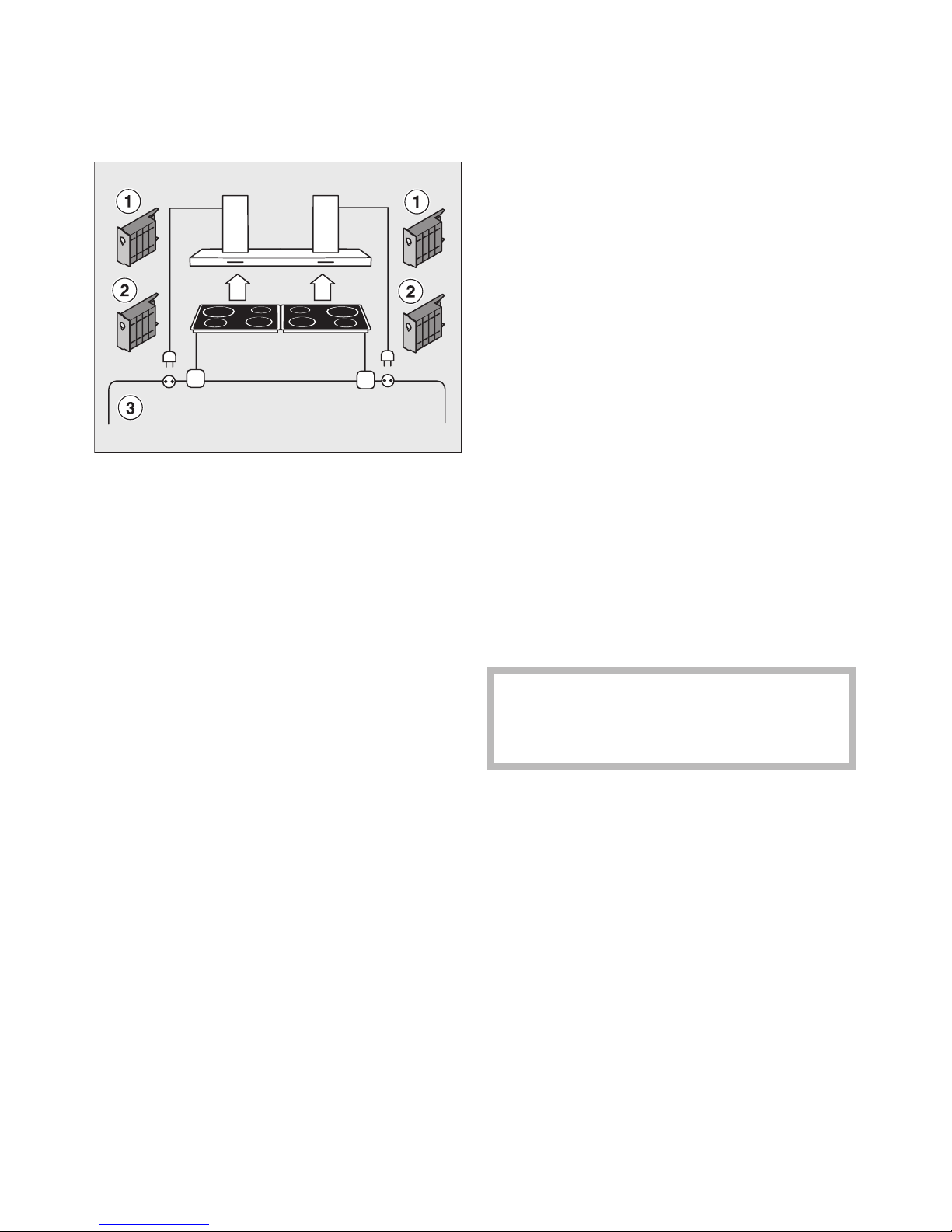

The communication modules
XKM 2000 DA a, available as an
optional extra, enable the operation of
the cooker hood to be automatically
controlled by the operating status of a
Miele electric hob with onset controls.
This cooker hood operates with two
fans. Each side has its own controls.
Each side can communicate with a
separate hob.
For communication to take place, both
hobs must be fitted with an appropriate
communication module b.
The hobs transmit information about
their operating status to the cooker
hood via the household power supply
(Powerline) c.
–When a hob is switched on, the
applicable side of the cooker hood
will light up and the fan will come on.
–During cooking, the cooker hood
automatically sets its power level
according to the number of cooking
zones in operation and their power
levels.
–After the hob has been switched off,
the fan and the lighting on the cooker
hood will switch off automatically
after a period of time.
For detailed information about this
function please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication modules are fitted
to the cooker hood in the area of the
motor and are connected to the
controls of the cooker hood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Miele|home
14

The two sides of the cooker hood can
be operated independently of one
another.
To switch a fan on
^Press the On/Off control.
The fan selected will come on at power
level lI. The indicator lamp will come on.

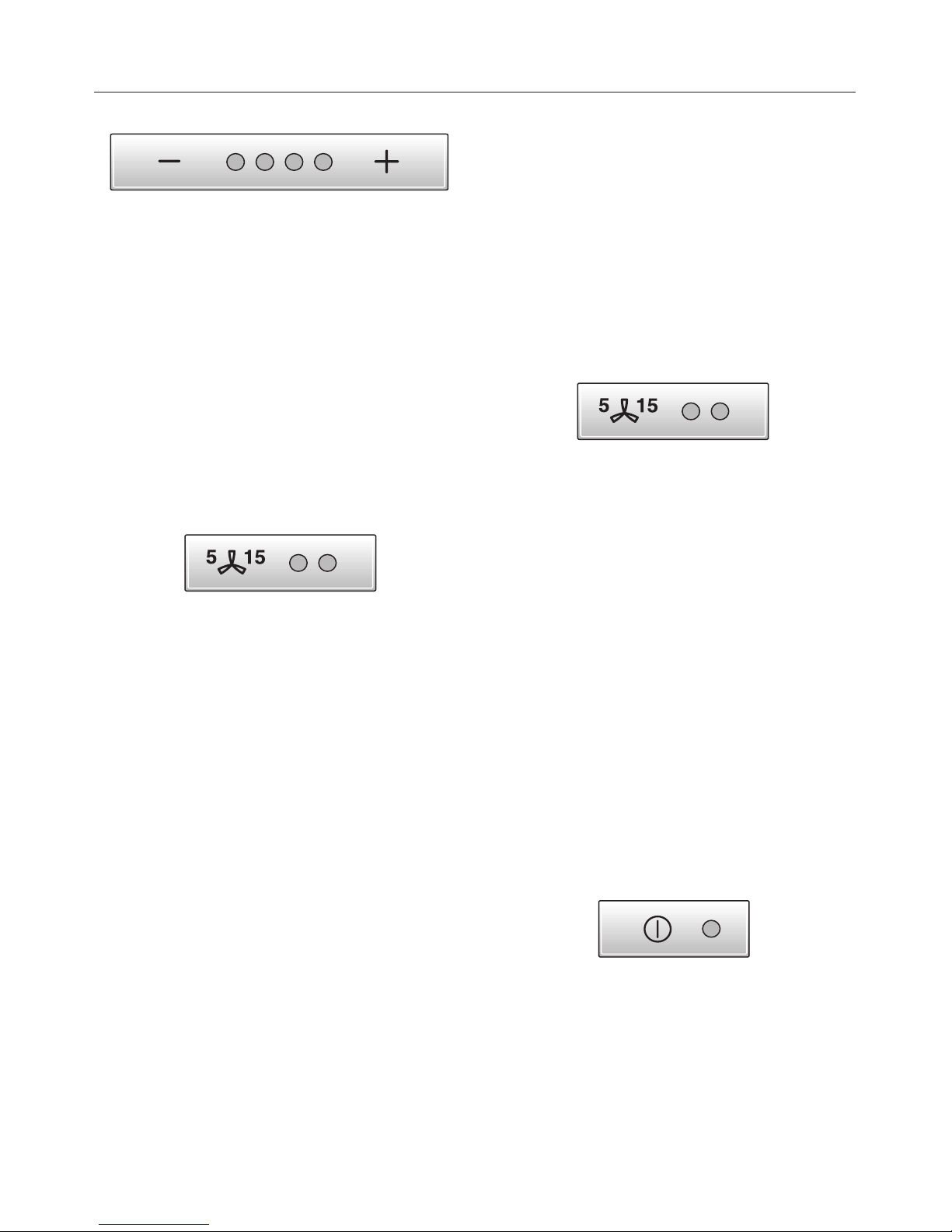

To select a power level
^Use the –/+controls to select the
power level required.
+control = higher setting
–control = lower setting
Depending on the intensity of the
cooking vapours, levels I to III are
usually sufficient for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting, level IV, for a short
period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off.
^Press the run-on option control for
approx. 10 seconds. The first power
level indicator lamp will light up in the
display.
^Then press in turn,
–the hob lighting control,
–the –control, and
–finally the hob lighting control again.
Operation
15

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate auto-
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the run-on option control to
confirm your selection.
If you do not confirm your selection
within 4 minutes, the cooker hood will
automatically revert to the "old" setting.
Run-on option
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, press the
run-on option control whilst the fan is
still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To switch off the run-on option, press
the run-on option control again. The
appliance will then not switch off
automatically.
To switch the fan off
^Press the On/Off control to switch the
fan off.
The indicator lamp will go out.
Operation
16

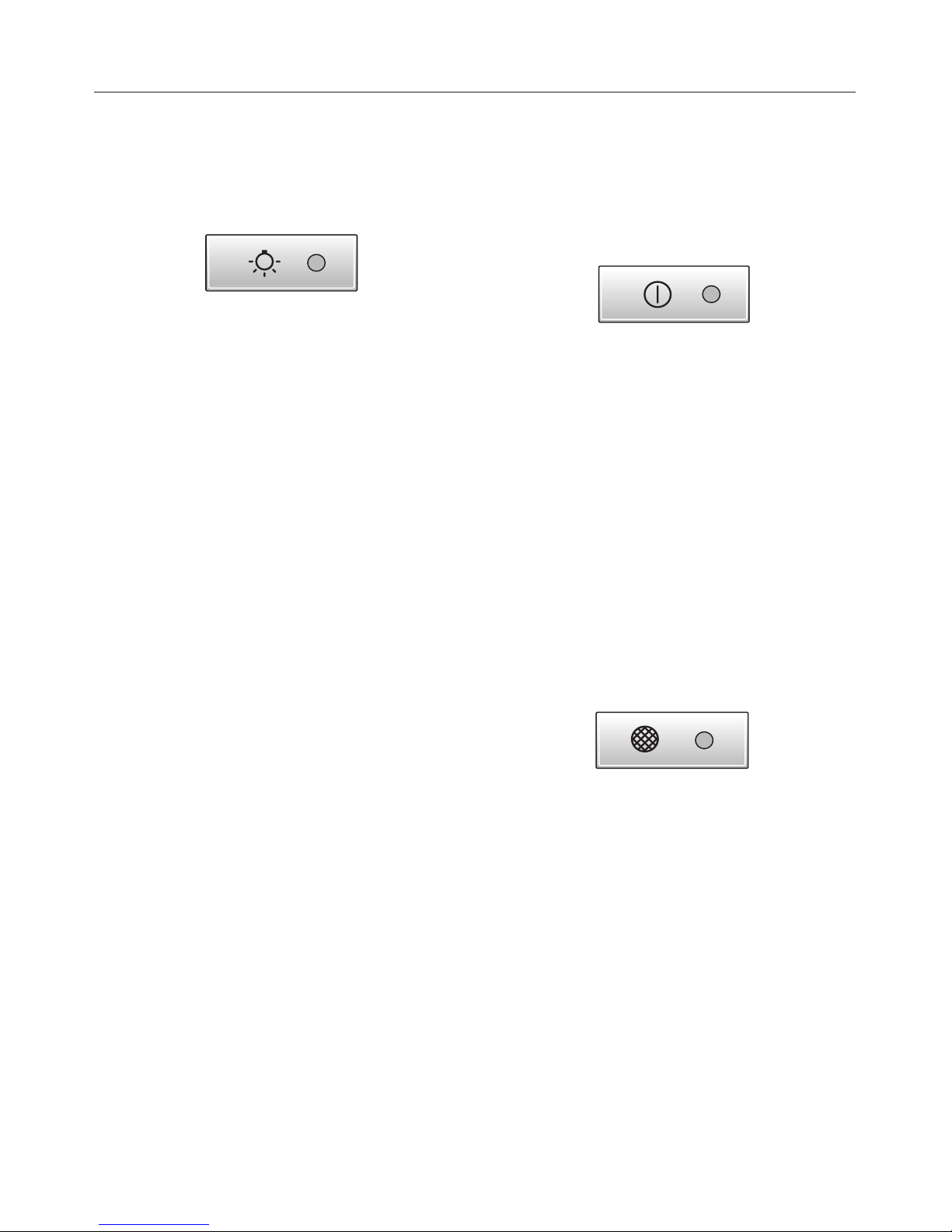

To switch the hob lighting on
The hob lighting can be switched on
and off independently of the fan.
^Briefly press the lighting control to
switch on the hob lighting.
The indicator lamp will come on.
The hob lighting will switch on at
maximum brightness.
To dim the hob lighting
The brightness of the lighting can be
adjusted.
^With the lighting switched on, press
and hold the hob lighting control in.
The brightness will gradually dim until
you release the control.
^Press the control in again to increase
the brightness to the level required,
and then release it.
If you keep the control pressed in, the
light will continually change between
bright and dim.
To switch the hob lighting off
^Press the hob lighting control briefly
to switch the lighting off.
Safety cut-out
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Filter operating hours counters
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counters tell you
when the grease filters or charcoal
filters need to be cleaned or replaced.
Resetting the grease filter operating
hours counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), one of the two grease
filter indicator lamps will light up.
All the grease filters must then be
cleaned.
After cleaning and replacing the grease
filters, the grease filter operating
counter must be reset.
Operation
17

^To do this, while the fan is switched
on, press and hold the grease filter
control until only the first of the –/+
indicator lamps is flashing.
^The grease filter counter on the other
set of controls must also be reset in
the same way, even if this operating
hours counter has not yet reached its
maximum.
Reading the grease filter operating
hours counter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the grease filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Altering the grease filter operating
hours counter
The grease filter operating hours
counter is set at the factory for 30
hours. This can be lengthened or
shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
– Select a short time if you roast or fry
a lot.
– If you use very little fat for cooking,
select a longer time.
– If you only cook occasionally we
recommend that you still select a
short time because grease which has
built up gradually over a long period
of time will harden on the filter and
make cleaning more difficult.
^Press the On/Off control to switch the
fan off.
Operation
18

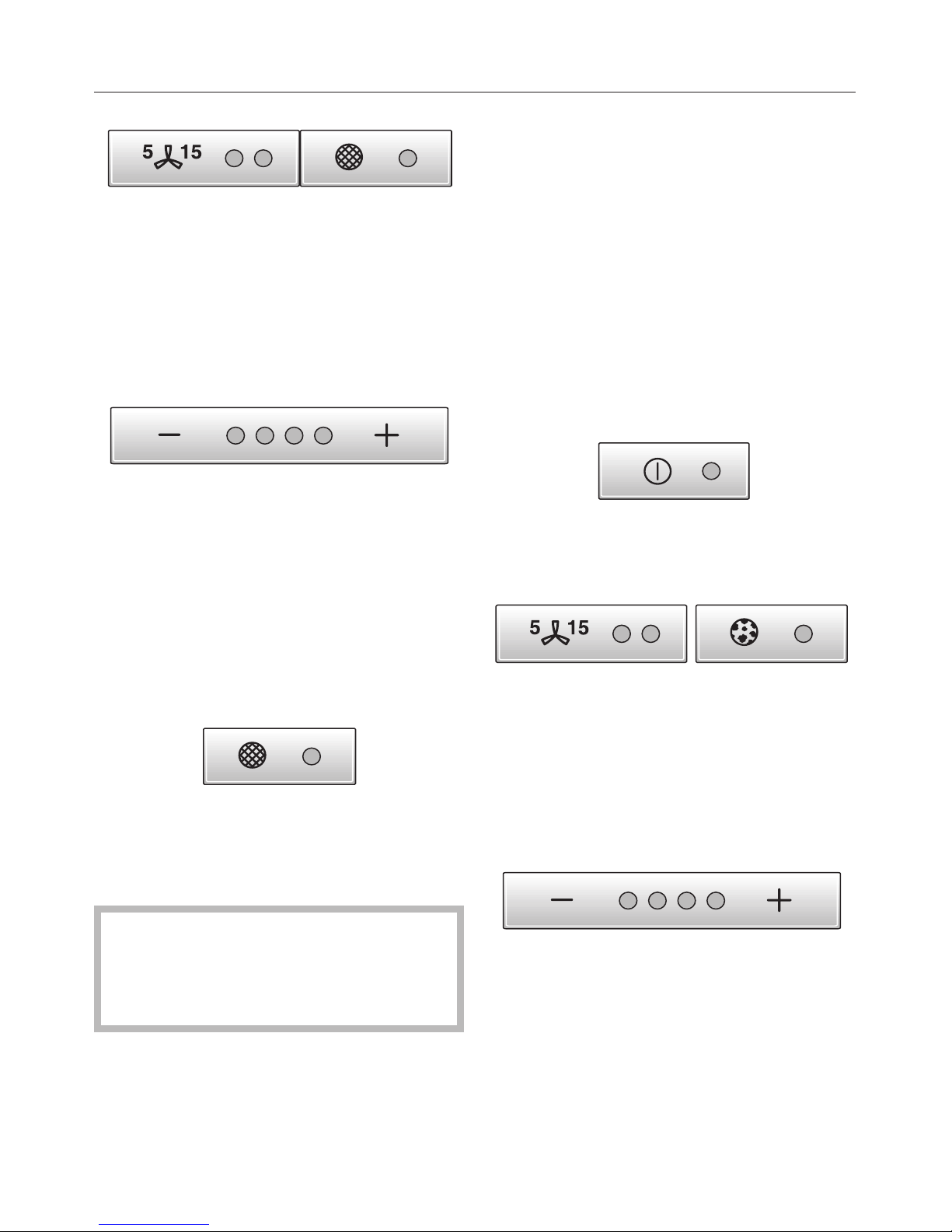

^Press the run-on option control and
the grease filter control at the same
time.
The indicator lamp for the grease filter
control and one of the –/+indicator
lamps will flash.
The –/+indicator lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
grease filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
Activating and altering the charcoal
filter operating hours counter
(in recirculation mode)
The charcoal filter is needed for
recirculation mode.
On delivery, the operating hours counter
for the charcoal filter is deactivated.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do:
^Press the On/Off control to switch the
fan off.
^Press the run-on option and the
charcoal filter controls at the same
time.
The indicator lamp for the charcoal filter
control and one of the –/+control
indicator lamps will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = deactivated
Operation
19

^Use the –/+controls to select the
desired time.
^Confirm the selection by pressing the
charcoal filter control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the cooker hood
will automatically revert to the "old"
data.
Resetting the charcoal filter
operating hours counter
The indicator lamp for the charcoal filter
control will light up after the cooker
hood has operated for the number of
hours set. The charcoal filter must then
be replaced with a new one (see
"Cleaning and care").
Afterwards, the charcoal filter operating
hours counter must be reset.
^Press and hold the charcoal filter
control for about 3 seconds while the
fan is switched on.
The indicator lamp for the charcoal filter
control will go out.
Reading the charcoal filter operating
hours counter
To check the percentage of time set
already used:
^Press the On/Off control to switch the
fan on.
^Press and hold the charcoal filter
control.
One or more of the indicator lamps for
the –/+controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
20
