Miele DA 292 i User manual

Operating instructions
Cooker hoods
DA 262 i
DA 272 i
DA 292 i
In order to protect yourself and
avoid damage to your machine, ]ö
it is absolutely necessary to read
the operating instructions prior
to installation and operation. M.-Nr. 04 076 101

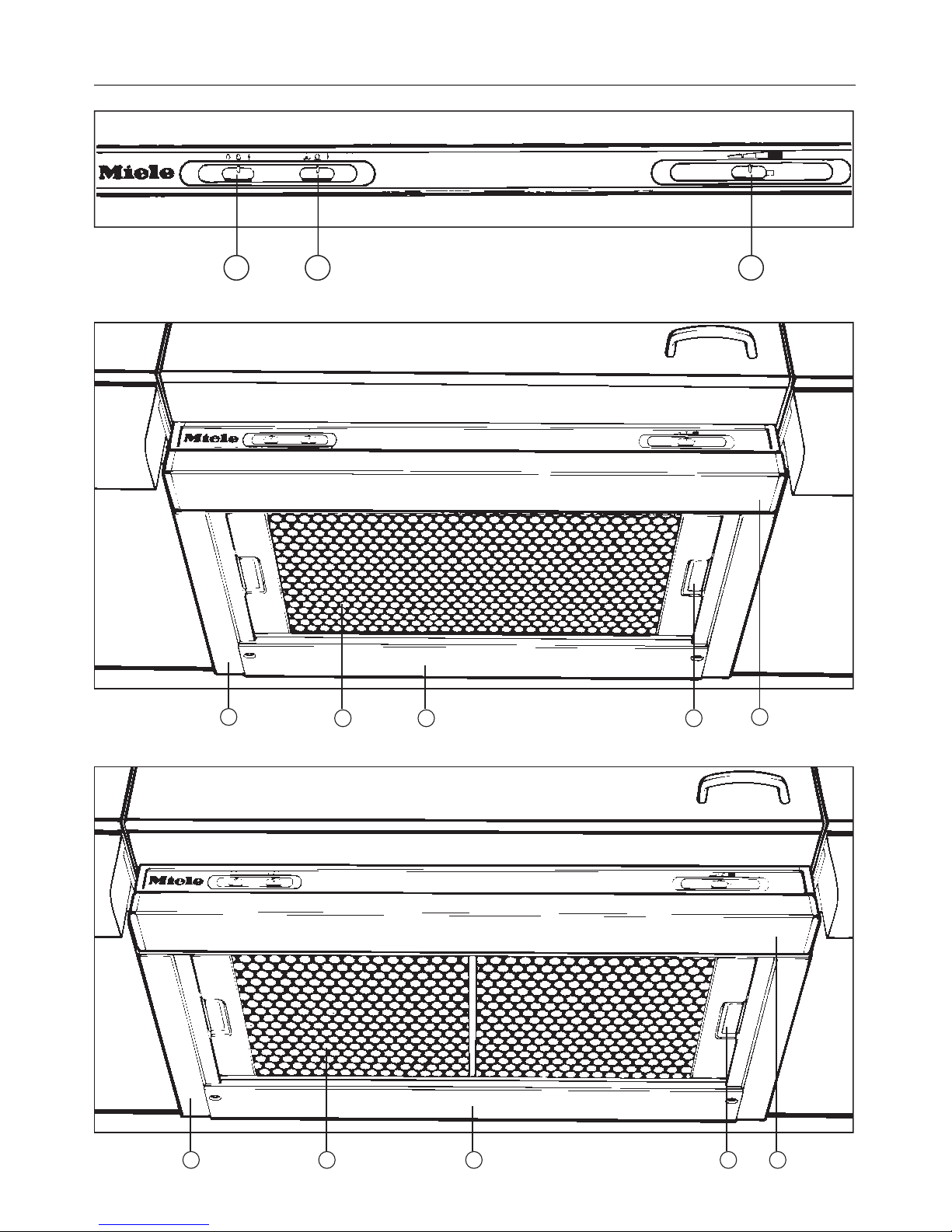

Description of the appliance
45 6 7 8
4 5 6 7 8
DA 272 i / DA 292 i
DA 262 i
1 2 3
Description of the appliance
2

Description of the appliance
The cooker hood is suitable for . . .
. . . Air extraction:
Air is drawn in through the grease
filter f, cleaned and directed outside.
. . . Air recirculation:
Air is drawn in through the grease
filter fand then through the active
charcoal filters for cleaning. It is
passed back into the kitchen through
the top of the kitchen cabinet.
Before using for the first time, check
to see whether the active charcoal
filter is in place (see ”Cleaning and
Care“).
b- Slide switch for cooktop
illumination n
This is used to switch the cooktop illumi-
nation gon and off, regardless of
whether the cooker hood is in operation
or not. The deflector plate must be
pulled out about one inch for the light
to work.
0 - Light off
l - Light on
c- Slide switch for the fan m
This is used to switch the fan on and off.
0 - Fan off
l - Fan on
d- Slide switch for ,,Power selec-
tion“
The power of the cooker hood can be
adjusted to the intensity of the kitchen
vapors and has four settings.
The fourth setting (Intensive setting)
should be selected for removing very
strong kitchen vapors.
low power.......strong power
e- Deflector plate
The deflector plate can be pulled out to
any extent up to its limit.
The action of pulling the deflector plate
out and pushing it in switches the
cooker hood on and off respectively.
The slide switch for the fan must be set
to setting ,, l “.
h- Grease filter retainer
This is used for securing or releasing
the grease filter ffrom the cooker
hood.
iThe control panel can either
- be fitted with an aluminium front
facia panel, available from Miele,
- be fitted with a lightshield from the
kitchen furniture programme, or
- be installed without either of the
above, but with cover caps (supplied
for fitting at each end).
Description of the appliance
3

Contents
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Help to protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation

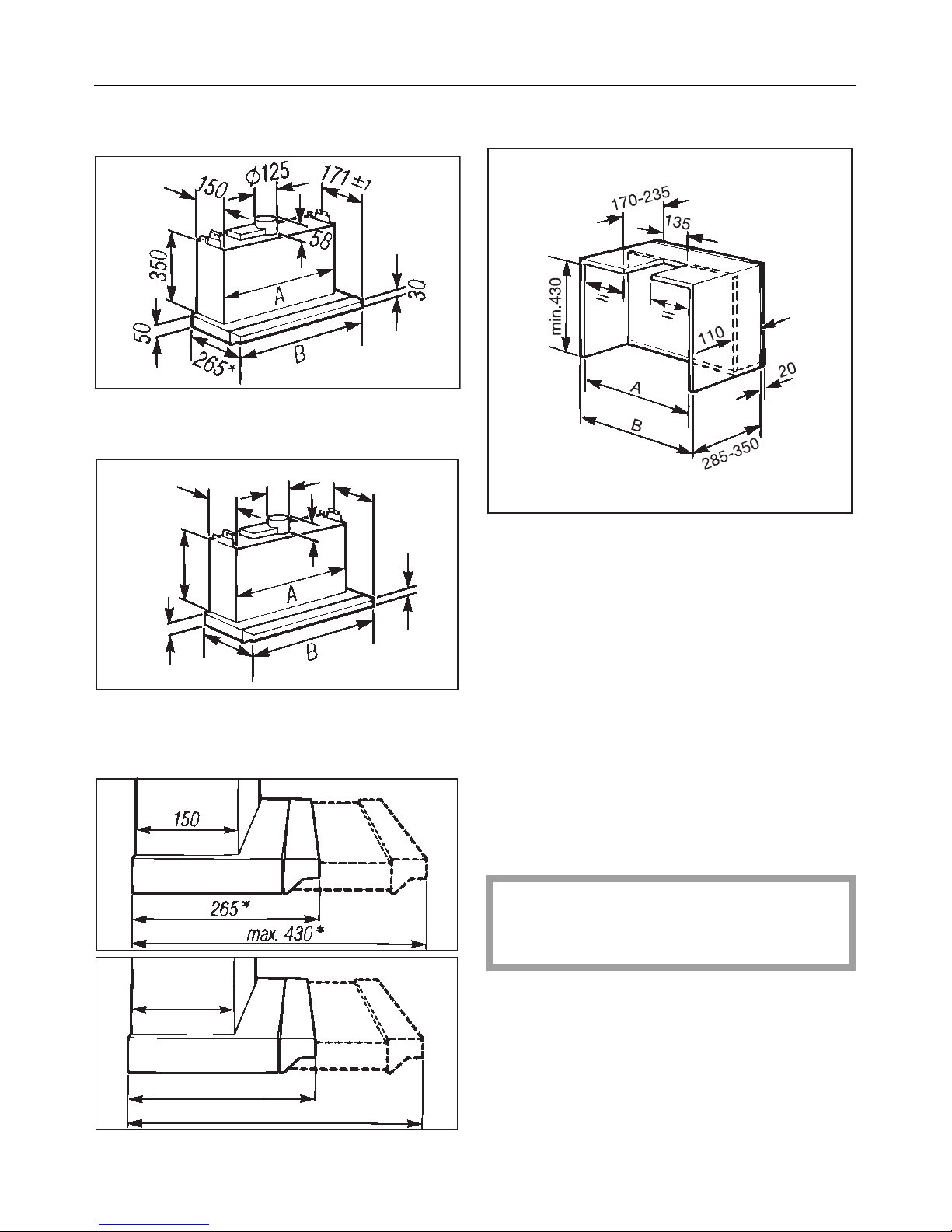

Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Wall unit dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Building in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

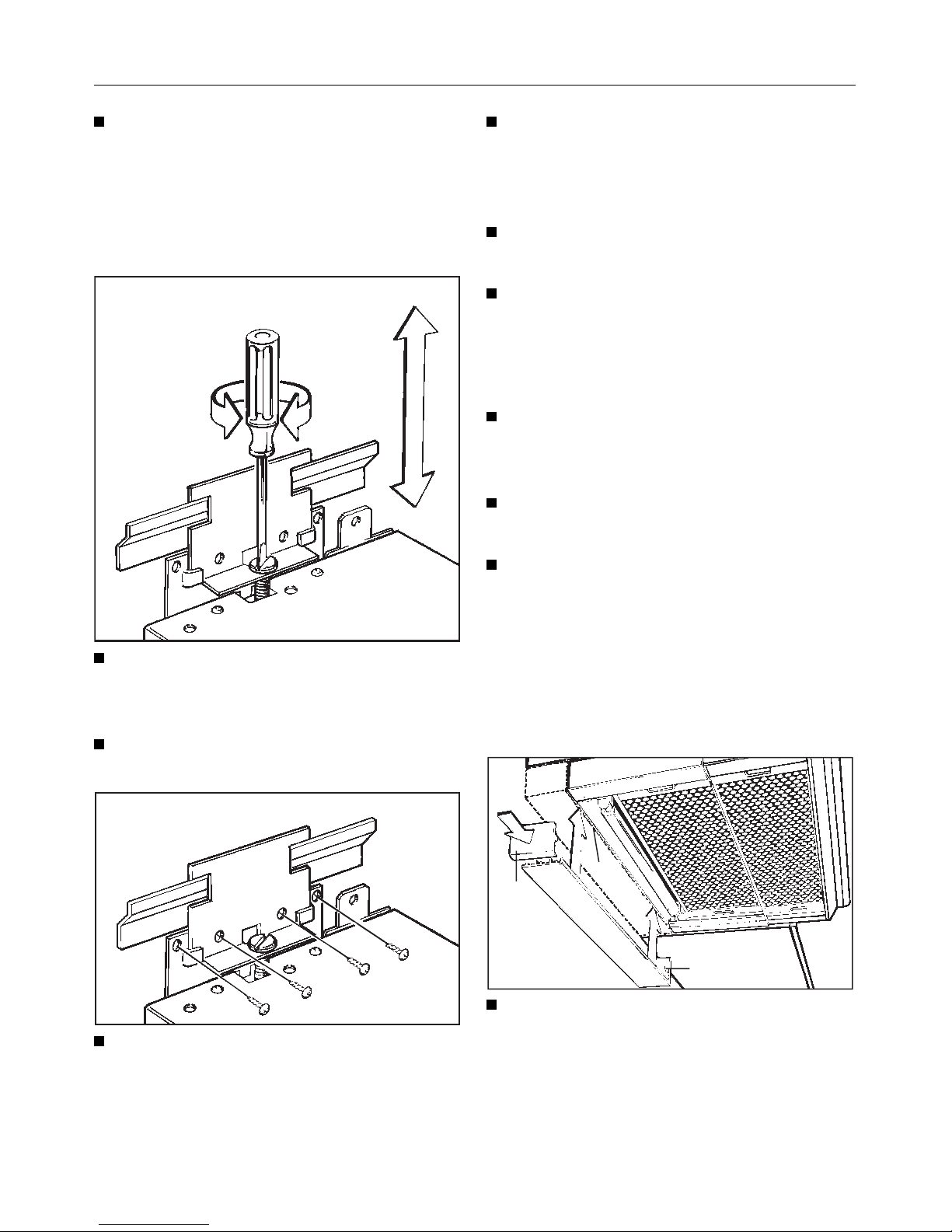

Depth alignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Fitting the light tube cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Removing the transit strips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fitting the cover caps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Preparing the lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Fitting the front facia panel / lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dismantling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents
4

Help to protect our environment
Disposal of packaging
The transport and protective packing is
mostly manufactured from the following
re-usable materials:
. . . Corrugated paper / cardboard -
mostly from recycled materials.
. . . CFC-free molded polystyrene.
. . . Polyethylene foil (PE) -
partly from secondary raw materials.
Rather than just throwing these ma-
terials away, please take them to the
nearest local authority collection point
for specific waste.
Disposal of your old machine
Old machines contain materials which
can be recycled. Please contact your
local authorities or scrap merchant
about potential recycling schemes, be-
fore disposing of the appliance.
Read the notes on page 6 before dis-
posing of the appliance.
Help to protect our environment
5

Warning and Safety instructions
Read these Operating Instructions carefully before installing or
using the Exhaust Hood.
This appliance is intended for
residential use only. Use the ap-
pliance only for its’intended pur-
pose. The manufacturer cannot be
held responsible for damages
caused by improper use of the
hood.
Read all the instructions before in-
stalling or using for the first time.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
This appliance is to be used for
ventilating cooking smoke / odors
only. Do not use it to vent hazardous or
flammable furnes or materials.
Be certain your appliance is
properly installed and grounded
by a qualified technician.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is impera-
tive that this basic safety requirement
be met. If there is any doubt, have the
electrical system of the house checked
by a qualified electrician. The manufac-
turer cannot be held responsible for
damages caused by the lack, or inade-
quacy of, an effective grounding sys-
tem.
Do not allow children to play with
the hood or its controls.
Repairs on electrical appliances
should only be performed by quali-
fied personnel. Do not repair or replace
any part of the appliance unless specifi-
cally recommended in this manual.
Before servicing, disconnect the
power supply by either removing
the fuse or manually “tripping”the cir-
cuit breaker.
Do not turn on the hood until it has
been proberly installed.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this ap-
pliance.
Do not cook on an open flame be-
neath the exhaust hood. Flames
could be drawn up into the hood by the
suction or the grease filters may ignite.
Do not leave the cooktop unat-
tended while in use. Overheated
food can ignite.
When installing the hood, make
sure that the minimum safety
distances between the cooktop and
hood are maintained.
–For electric cooktops: 18" (45 cm)
–For gas cooktops: 26" (65 cm)
Only metal ductwork should be
connected to the exhaust hood.
Any fittings, sealant, or materials used
to install the ductwork must be made of
non-flammable materials.
Warning and Safety instructions
6

Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing, in-
active chimney or vent flue.
Do not place this exhaust hood
over cooktops burning solid fuel.
Never operate gas burners without
pots. Heat generated by pro-
longed operation of gas burners with-
out pots could damage the hood.
Do not use the exhaust hood with-
out the grease filters in place.
Clean the grease filters regularly.
Saturated filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. The steam could
penetrate to electrical components and
cause a short circuit.
To reduce the risk of cooking fires:
–Keep the fan, filters and cooking
area clean and free of grease.
–Turn on the hood when cooking at
high temperatures.
–Heat oils slowly. Only use the high
settings of the range or cooktop
when necessary.
–Never leave a turned on range or
cooktop unattended.
–Always use cookware and utensils
that are appropriate for the type and
amount of food being prepared.
Do not use water on grease fires.
Smother any fire or flame, or use a
dry chemical or foam-type extinguisher.
When connecting the hood to an ex-
ternal vent, make sure that there is
adequate ventilation in the room
where the exhaust hood is to be
used.
When using the hood in the same area
as other appliances requiring room air
(e.g. non-electric water heaters, gas
cooktops, gas ovens, etc.) make cer-
tain that the air extracted by the hood
does not hinder their operation. These
appliances need air for combustion.
Adequate ventilation can be main-
tained by installing air vents in windows
or walls or by ensuring that the hood
can only be turned on when the other
appliances are off, or vice versa.
To prevent combustion gases being
drawn back into the room by the ex-
haust hood, the underpressure in the
room must be no greater than 6 psi
(0,04 mbar) when the hood and these
appliances are running simultaneously.
If there are any doubts as to whether
there is adequate ventilation, consult
an experienced professional.
The above ventilation restrictions
and warnings do not apply if the ex-
haust hood is retrofitted with an air
recirculation kit.
Warning and Safety instructions
7

Warning and safety instructions
Disposal of discarded appliances
Before discarding an old appliance, dis-
connect its power cord to prevent it
from becoming a hazard.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
Throughout the manual, important
safety items will be highlighted in
boxes and should be read in con-
junction with these “Warning and
Safety instructions”.
Warning and Safety instructions
8

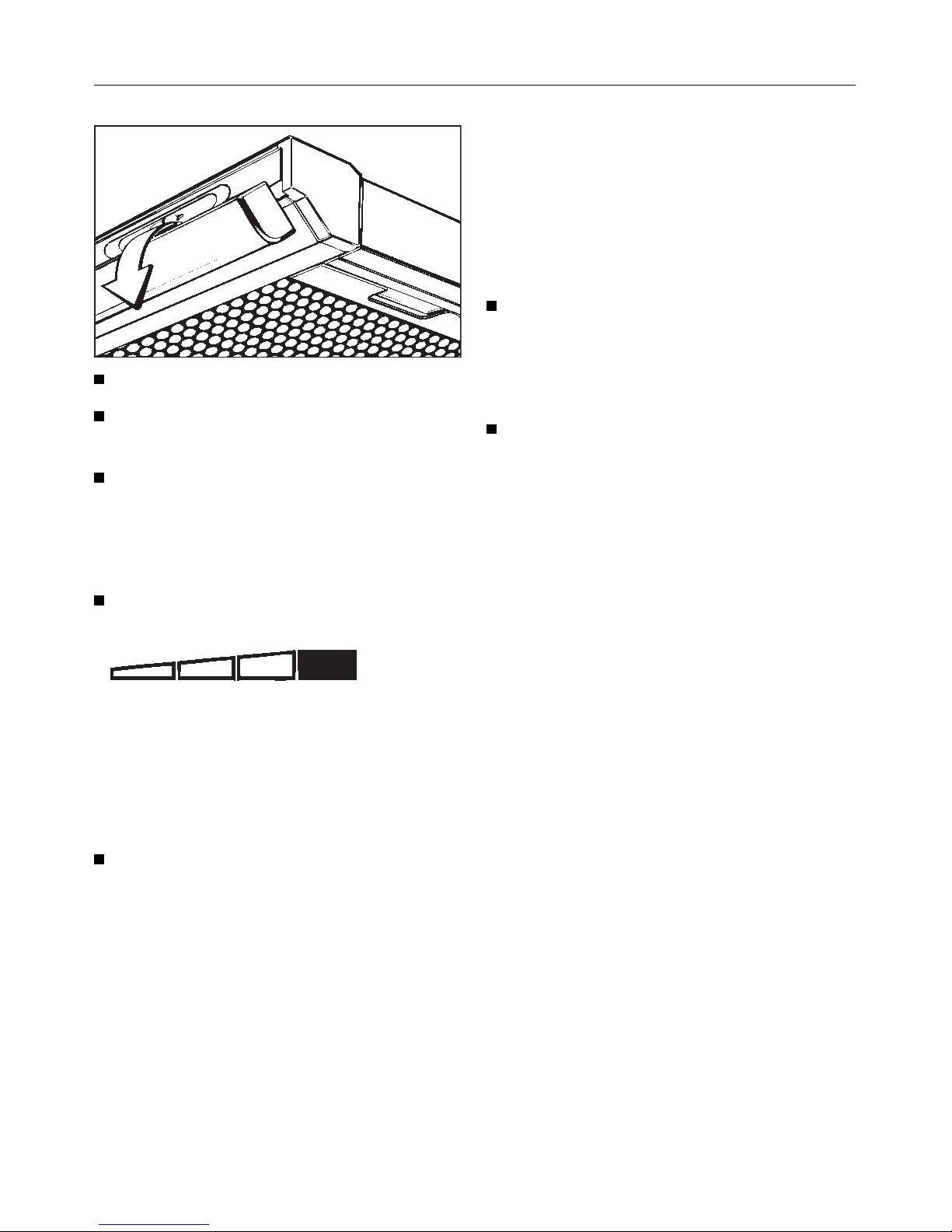

Operation
Pull out the deflector plate.
Drop down the front control panel or
lightshield.
Set the slide switch for the fan to po-
sition ”l“.
The cooker hood will operate at the
setting the power selector is set to.
Select a power setting strong
enough to clear the air:
Setting 1-2 =
for normal operation
Setting 3-Intensive setting (IS) =
for removing heavy cooking odors
Switch on the cooktop illumination
switch if required.
After cooking
If, after finishing cooking, there are still
cooking vapors in the kitchen, it is rec-
ommended that the cooker hood be left
on for some minutes longer.
Then switch the cooker hood off by:
moving the slide switch for the fan
and the cooktop illumination switch
to the ”0“position.
or
push the deflector plate in.
1 2 3 IS
Operation
9

Cleaning and care
Before any cleaning or maintenance
work, the extractor must be discon-
nected from the mains supply
(switch off at the wall socket and
remove plug or the fuse).
Cleaning
The cooker hood housing may be
cleaned using hot water to which a little
mild detergent has been added.
Dry with a soft cloth.
Never use a cleaner which scours
or contains chlorine, acids or soda.
These would damage the surface of
the cooker hood.
Grease filters
Re-usable metal grease filters are built-
in which remove solid particles (oil,
dust, etc.) from the kitchen vapors, pre-
venting soiling of the cooker hood.
The grease filters can be cleaned in a
dishwasher or by hand.
The grease filters should be cleaned
regularly to ensure a trouble free oper-
ation of the extractor fan, at least every
1 or 2 months, or when they are visibly
saturated or no longer effective.
An over-greasy filter can lead to
danger or fire.
To remove the grease filters push the
filter holder retainers towards the
middle.
Take out the grease filters.
DA 272 i, DA 292 i only:
Press the clips at the side in using a
blunt instrument and remove the re-
tainers. Pull the filter cassettes and
link pieces out for cleaning. Clean
the edges of the frame by hand. The
other parts can be cleaned in the
dishwasher.
Clean the grease filters . . .
. . . by hand: with a scrubbing brush
in hot water with detergent.
. . . in a dishwasher: place the fil-
ters with the short side upright in the
lower basket, ensuring the spray
arm is not obstructed.
After cleaning, leave the filters to dry
for a while on an absorbent surface
before putting back in place.
Cleaning and care
10

Cleaning and care
When removing the filters for clean-
ing, also clean off any residues of oil
or fat from the filter housing to pre-
vent the risk of these catching fire.
DA 272 i, DA 292 i only: Put the filters
back together.
When re-inserting the filters ensure
that the locking device faces down
towards the cooktop.
If a filter is inadvertently replaced the
wrong way a round, use a small
screwdriver blade to unlock the filter
through the slots.
Changing the light tube and/or starter
Disconnect the cooker hood from
the mains supply (switch off at the
wall socket and remove plug or the
fuse).
Unscrew the fixing screws at the left
and right hand side.
While doing so, hold the light cover
securely and then take it out.
Release the light tube and the starter
by turning them and then lifting them
out of their holders.
Replace the fluorescent tube or star-
ter.
Inserting or changing the active
charcoal filters.
If the cooker hood is connected for re-
circulation, active charcoal filters must
be inserted, in addition to the grease fil-
ters. These filters absorb normal kit-
chen odors.
Pull out the deflector plate and
remove the rear grease filter.
When removing or changing the ac-
tive charcoal filters, push the filter
holder retainers towards the middle.
When inserting the active charcoal fil-
ters, ensure that the locking device
faces down towards the cooktop.
The active charcoal filters should be
replaced when kitchen odors are not
being absorbed, at least every 3-4
months.
Cleaning and care
11

After Sales Service
In the event of any fault which you can-
not correct yourself please contact
Your Miele Dealer
or
The Miele Service Department
The address of the nearest Service De-
partment is given on the back page.
When contacting the Service Depart-
ment, please quote the Model and Ser-
ial No. of the appliance, both of which
are shown on the data plate. This is
visible after removing the rear grease fil-
ter.
After Sales Service
12

Electrical connection
For CDN only:
The cooker hoods are supplied with a
1.50 m power supply cable ready for
connection to an a.c. single phase
120 V / 60 Hz supply.
Caution:
Ensure that power supply is OFF
during installation.
Important
The wires in the power supply cable
are colored in accordance with the fol-
lowing code:
Green = ground
Black = live
White = neutral
WARNING
THIS APPLIANCE MUST BE
GROUNDED
For USA only:
The cooker hoods are supplied with a
5 ft power supply cable ready for con-
nection to an a.c., single phase,
120 V / 60 Hz supply. Connection
should be made in the junction box.
Important
The wires in the power supply cord are
colored in accordance with the follow-
ing code:
Green/yellow = ground
Blue = neutral
Brown = live
As the colors of the wires in the power
supply cord of this appliance may not
correspond with the colored markings
identifying the terminals in your junction
box, proceed as follows:
The wire which is colored green and
yellow must be connected to the termi-
nal junction box which is marked by the
letter E, or by the earth symbol z
or colored green or green and yellow.
The wire which is colored blue must be
connected to the terminal which is
marked with the letter N or colored
white.
The wire which is marked brown must
be connected to the terminal which is
marked with the letter L or colored
black.
WARNING
THIS APPLIANCE MUST BE
GROUNDED
Electrical connection
13

Technical data DA 262 i DA 272 i DA 292 i
Total rated load
Light
Voltage
Frequency
Fuse rating
Connection cable with plug
Maximum air throughput:
Air extraction
Air recirculation
225 W
15 W
120 V
60 Hz
15 A
5 ft (1,5 m)
90-325 CFM
(150-550 m3/h)
50-240 CFM
(80-350 m3/h)
223 W
13 W
120 V
60 Hz
15 A
5 ft (1,5 m)
90-325 CFM
( 150-550 m3/h)
50-240 CFM
(80-350 m3/h)
235 W
16 W
120 V
60 Hz
15 A
5 ft (1,5 m)
90-325 CFM
(150-550 m3/h)
50-240 CFM
(80-350 m3/h)
Technical data
14

Installation
For installing the cooker hood, a
cabinet is required. The minimum
cabinet width required for each model
is given below:
–DA 262 i = 600 mm (23 5/8")
–DA 272 i = 700 mm (21 9/16")
–DA 292 i = 900 mm (35 7/16")
The exhaust connection must be
made by a suitably qualified and
competent person.
The distance between the top of the
cooktop and the bottom of the
cooker hood should be at least:
45 cm (18") above electric cooktops
65cm (26") above gas cooktops.
Safety regulations prohibit the fitting
of a cooker hood over solid fuel
stoves.
Installation
15

Installation
Appliance dimensions
*plus depth of control panel
Wall unit dimensions
The dividing wall must be remov-
able to enable the cooker hood to
be adjusted for height and depth.
5
15
/ 16 ˝
10
7
/ 16 ˝
max. 16
15
/ 16 ˝
2˝1313/16˝
5
15
/
16
˝
4
15
/
16
˝
6
5
/
8
˝
2
5
/
16
˝
13/16˝
10
7
/
16
˝
A: DA 262 i = 560; DA 272 i = 660; DA 292 i =860
B: DA 262 i = 595; DA 272 i = 695; DA 292 i =895
A: DA 262 i = 562-568 = 22 1/8" - 22 3/8"
DA 272 i = 662-668 = 26 1/16" - 26 5/16"
DA 292 i = 862-868 = 33 15/16" - 34 3/16"
B: DA 262 i = 600 = 23 5/8"
DA 272 i = 700 = 27 5/8"
DA 292 i = 900 = 35 1/2"
170-235 = 6 3/4" - 9 1/4"
135 = 5 3/8"
430 = 17"
110 = 4 11/16"
20 = 3/4"
285-350 = 11 1/4" - 13 7/8"
A: DA 262 i = 22 1/16’’; DA 272 i = 26’’;
DA 292 i =33 7/8’’
B: DA 262 i = 23 5/8’’; DA 272 i =27 9/16’’;
DA 292 i=35 7/16’’
Installation
16

Installation
Building in
Take the dividing wall out of the wall
unit.
Secure the support tracks to both
interior walls of the unit using two
3,5 x 16 mm ( 5/8 ") screws, position
as illustrated.
Push the brackets into the slots on
the sides of the cooker hood.
19 mm ( 3/4 ") thick side walls:
16 mm ( 5/8 ") thick side walls:
Fasten the brackets in place on the
cooker hood using the M 6 x 10 mm
hexagonal bolts and washers.
The thickness of the side walls must
be taken into account.
Installation
17

Installation
Lift the cooker hood into the unit
from below until the lugs of the
brackets lie above the support
tracks. Then carefully lower the
cooker hood. The lugs engage with
the support track.
To align the height, turn the
M 6 x 19 mm adjuster screws clock-
wise or anti-clockwise.
Move the cooker hood into its
correct position.
Secure the cooker hood on both
sides using four 3 x 16 mm
( 5/8 ")screws for each side.
Feed the air extraction or air re-circu-
lation connector through as applic-
able, (see chapter ”Air extraction“/
”Air re-circulation“).
Replace the dividing wall in the wall
unit.
Pull the deflector plate out to its limit
and remove the grease filters.
4 holes (DA 262 i / DA 272 i) or
6 holes (DA 292 i) are now visible.
Use a sharp pointed instrument
through these holes to gouge out the
fixing holes.
Then screw the cooker hood se-
curely to underside of wall unit.
Replace the grease filters.
Depth alignment
Units deeper than 285 mm require the
fitting of a spacer bar to prevent va-
pours collecting between the rear of
the cooker hood and the wall.
To achieve the correct depth shorten
the . . .
. . . spacer bar at the required break-
ing points.
. . . End caps.
Fit the end caps (1) to both ends of
the spacer bar.
1
1
2
Installation
18

Installation
Attach the spacer bar to the guide
rail (2) located behind the light tube.
Fitting the light tube cover
–DA 262 i
Position the light tube cover and
screw into place (see diagram).
–DA 272 i, DA 292 i
Attach the extension pieces supplied
to the light tube cover, then position
the now extended light tube cover
and screw into place.
Removing the transit strips
Pull the deflector plate out to its limit.
Pull off the transit strips on each side.
Fitting the cover caps
For cooker hoods without a front panel
or lightshield:
Push the Allen screws from the
accessory kit onto the cover caps
until the screw heads lie directly
under the holes in the cover caps.
Secure the cover caps on both sides
of the deflector plate using the Allen
screws.
Preparing the lightshield
Lightshields . . .
. . . weighing up to 600 g can be fitted
normally.
. . . Those weighing over 600 g need to
have the springs in the snap fittings pre-
tensioned:
Installation
19

Installation
Pull out the snap fittings from the
slots on the left and right hand sides
of the deflector plate (1).
Press the baffle (2) into the engaging
point. Put the snap fittings back in
place.
The snap fitting with the hole must
be inserted on the right.
Do not wipe off any lubricant.
Hold the template supplied against
the back of the lightshield and mark
the drill hole positions for fixing the
hinges.
Only use the template for lightshields
with the following lengths:
DA 262 i DA 272 i Da 292 i
b598 mm 698 mm 898 mm
c597 mm 697 mm 897 mm
d596 mm 696 mm 896 mm
e595 mm 695 mm 895 mm
f599 mm 699 mm 899 mm
DA 262 i DA 272 i Da 292 i
b23 9/16" 27 1/2" 35 3/8"
c23 1/2" 27 7/16" 35 5/16"
d23 1/2" 27 7/16" 35 5/16"
e23 7/16" 27 3/8" 35 1/4"
f23 9/16" 27 1/2" 35 3/8"
With other lengths adjust the measure-
ments accordingly.
Installation
20
