Miele DA 6290 W User manual

Operating and Installation instructions
Rangehood
DA 6290 W,
DA 6290 W EXT
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 205 270
en-AU

Caring for the environment..........................................4
Warning and Safety instructions .....................................5
Description of the functions ........................................11
Description of the appliance........................................12
Miele|home .....................................................14
Con|ctivity ......................................................14
Operation .......................................................15
To switch the fan on s.............................................15
To select a power level -/+.........................................15
Intensive setting ................................................15
Run-on function "5 ¢15".............................................16
Cooktop lighting I................................................16
Glass edge feature lighting ].......................................17
To change the colour of the glass edge feature lighting £.................17
Operating hours counter l........................................18
Cleaning and care ................................................20
Housing .........................................................20
Grease filters .....................................................21
Resetting the operating hours counter for the grease filters ..............22
Fitting and replacing the charcoal filter .................................23
Resetting the operating hours counter for the charcoal filter .............23
Changing a halogen lamp ...........................................24
After sales service ................................................25
Appliance dimensions.............................................26
Safety distance between cooktop and rangehood (S) ...................27
Installation ......................................................29
Installation instructions .............................................29
Protective foil .....................................................29
Dismantling ......................................................29
Assembly parts ...................................................30
Connection for air extraction .......................................32
Condensate trap ..................................................33
Silencer .........................................................34
Electrical connection..............................................35
Contents
2

Operation with Control module DSM 400 .............................36
Potential free connection .........................................36
Connection to a light switch .......................................36
Technical data ...................................................37
Contents
3

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
4

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
5

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly and, where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the mains fuse,
– the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
If the appliance is connected via a
plug: Do not pull the mains
connection cable but the mains plug
to disconnect your appliance from
the mains electricity supply.
Warning and Safety instructions
6

~Do not connect the appliance to the
mains electricity supply via a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models), the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
7

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder must be
sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
8

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Warning and Safety instructions
9

Correct installation
~Refer to the rangehood or cooktop
manufacturer's instructions as to
whether a rangehood may be operated
above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from Miele or
from builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this rangehood. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

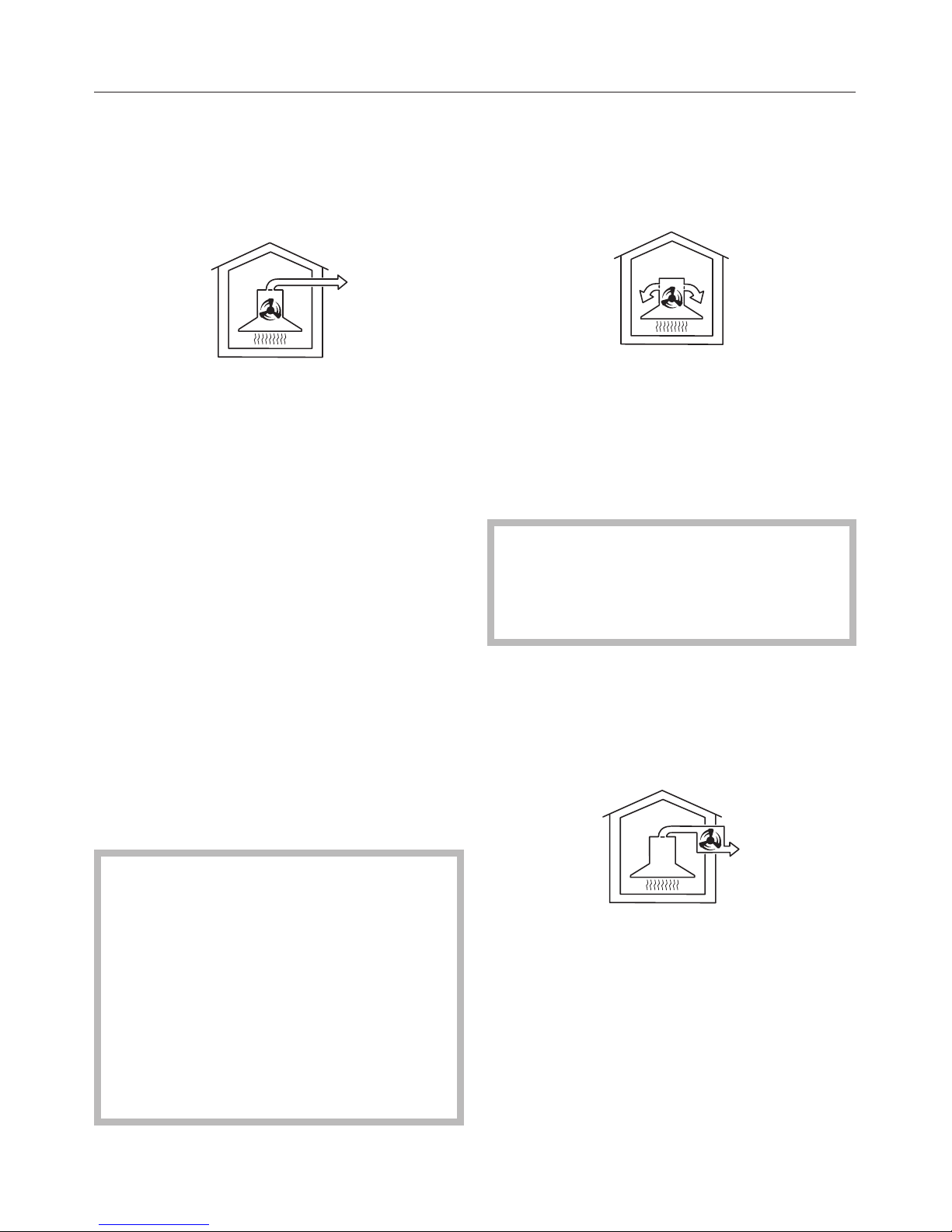

The rangehood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact a
specialised installer.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the
rangehood extension piece.
Before using the rangehood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
...anexternal motor:
(Models ...EXT)
The EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
rangehood by means of a control cable,
and is operated by the controls on the
rangehood.
Description of the functions
11

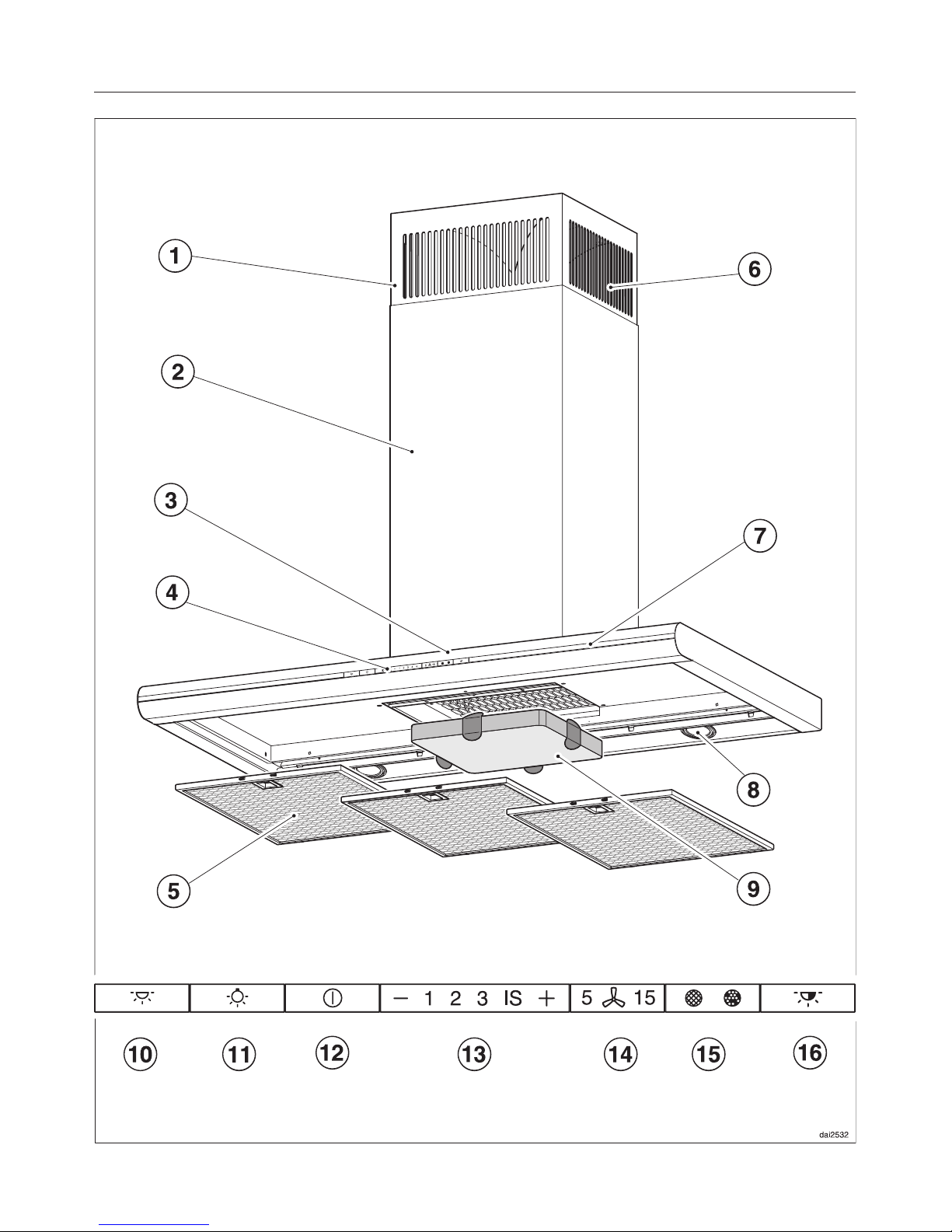

Description of the appliance
12

aTelescopic extension piece
bTower
cCanopy
dControl panel
eGrease filters
fRecirculation grilles
(only for recirculation mode)
gGlass edge feature lighting
hCooktop lighting
iCharcoal filter
(special accessory for recirculation
mode)
jOn/Off touch control for glass
edge feature lighting
kTouch control for the
cooktop lighting
This control switches the cooktop
lighting on and off, and is also a
dimmer switch.
lOn/Off touch control for the fan
mTouch controls to
select the fan power level
nTouch control for the run-on
option
This control activates the run-on option.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
oOperating hours touch control
The grease filter symbol lfor the
operating controls lights up when the
grease filters need to be cleaned.
The charcoal filter symbol lights up
when the charcoal filter used in
recirculation mode needs to be
replaced. For this to happen, the
operating hours counter needs to be
activated before the appliance is used
for the first time.
The control is used to reset the
appropriate operating hours counter
each time the grease filter is cleaned or
the charcoal filter has been changed
(see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
pColour change touch control
This control is used to change the
colour of the glass edge lighting.
For information about using the
appliance, see "Operation".
Description of the appliance
13

Con|ctivity
This rangehood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the rangehood
to be automatically controlled by the
operating status of a Miele electric
cooktop with onset controls.
For communication to take place, the
cooktop must be fitted with
communication module b.
The cooktop transmits information
about its operating status to the
rangehood via the household power
supply (Powerline) c.
–When the cooktop is switched on,
the cooktop lighting and the
rangehood fan also switch on.
–During cooking the rangehood
automatically sets the fan's power
level according to the number of
cooking zones in operation and their
power levels.
–After switching the cooktop off, the
fan and the cooktop lighting will
switch off automatically after a period
of time.
For detailed information about this
function, please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication module is fitted to
the rangehood in the area of the fan
and is connected to the controls of the
rangehood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Miele|home
14

To switch the fan on s
^Press the On/Off touch control s.
The fan will come on at power level 2.
The ssymbol and the 2will light up.
To select a power level -/+
^To select a lower power level, press
the "–" symbol, or to select a higher
power level, press the "+" symbol.
Depending on the intensity of the
cooking vapours,
levels 1to 3are usually sufficient for
normal cooking.
Intensive setting
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, you may wish
to select level IS, the Intensive setting.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it always only runs for 10 minutes
before reverting automatically to level 3.
^To set this option, both the fan and
the cooktop lighting must be
switched off.
^Press the run-on control 5¢15 for
approx. 10 seconds, until the 1lights
up.
^Then press in turn,
– the cooktop lighting sensor I,
– then the –touch control, and
– the cooktop lighting sensor Iagain.
If Automatic switch-off is not activated,
the 1and IS sensors will flash.
^Press the +touch control to activate
the Automatic switch-off.
The indicator lamps for fan power
levels 1and IS will now light up
constantly.
Press the –control to deactivate the
Automatic switch-off function.
^Confirm the selection by pressing the
run-on control 5¢15.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Operation
15

Run-on function "5 ¢15"
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, touch the
run-on option sensor 5¢15 whilst the
fan is still running –
–Once: The fan will switch off
after 5 minutes (5¢lights up).
– Twice: The fan will switch off
after 15 minutes (¢15 lights up).
If you press the run-on control 5¢15
again, the fan remains on (5¢15 goes
out).
To switch the fan off s
^Press the On/Off sensor sto switch
the fan off.
The ssymbol will flash.
Cooktop lighting I
To switch the cooktop lighting on
The cooktop lighting can be switched
on and off independently of the fan.
^Touch the cooktop lighting sensor I
briefly.
The Isymbol lights up.
The cooktop lighting will switch on at
maximum brightness.
To dim the cooktop lighting
The brightness of the lighting can be
adjusted.
^With the cooktop lighting switched
on, touch and hold the cooktop
lighting sensor n.
The brightness will gradually dim until
you release the sensor.
^To increase the brightness, touch
and hold the cooktop lighting sensor
nagain to the level required, then
release it.
If you keep your finger on the cooktop
lighting sensor n, the lighting will
continue to change between bright and
dim.
To switch the cooktop lighting off
^Touch the cooktop lighting sensor I
briefly.
The Isymbol will go out.
Operation
16

Glass edge feature lighting ]
^Press the control for the glass edge
feature lighting ]to switch it on.
This can be switched on and off
independently of the fan or the
cooktop lighting.
To change the colour of the
glass edge feature lighting £
You can change the colour of the glass
edge feature lighting to any colour you
like.
The lighting is pre-set to be white.
^Switch on the glass edge feature
lighting ].
^By repeatedly pressing the colour
change control £, you can scroll
through the six pre-set standard
colour settings as follows:
awhite
bgreen
cred
dblue
eRapid colour change
The colour of the lighting changes
continuously. The lighting rotates
through all colours once every
minute. Initially, the colour change
symbol flashes rapidly.
fSlow colour change
As with e, but the colours rotate
once every 15 minutes. Initially, the
colour change symbol flashes slowly.
You have the option of saving one
favourite colour to memory.
To select the colour:
^Select the rapid or slow colour
change (colour setting eor f).
The colours start to rotate.
^When the colour required appears,
press and hold the colour change
control £until the glass edge
feature lighting flashes three times.
This colour is then saved in an
additional colour setting g.
^It can be selected at any time until
you decide to save a different colour
in the same way.
^To switch off the glass edge feature
lighting, press the control ]. The
lighting will switch off shortly
afterwards.
When the glass edge feature lighting is
switched on again, the most recently
selected colour setting ato gwill
come on again.
Safety cut-out
If the rangehood hasn't been operated
for 10 hours, the fan will switch off
automatically. The lighting will remain
switched on.
Pressing the On/Off touch control swill
switch the fan back on again.
Operation
17

Operating hours counter l
The number of hours the appliance has
been in operation is stored in memory.
When the grease filter symbol lor the
charcoal filter symbol lights up, the
operating hours counters are signalling
that the filters need to be cleaned or
changed.
Further information about cleaning and
changing the filters and resetting the
operating hours counter can be found
under "Cleaning and care".
Altering the operating hours counter
for the grease filters l
You can set the operating hours
counter for the grease filters to suit the
type of cooking you do.
– Select a short time if you roast or fry
frequently.
– If you use very little fat for cooking,
select a longer time.
–If you only cook occasionally, we
recommend that you still select a
short time because grease which has
built up gradually over a long period
of time will harden on the grease
filters and make cleaning more
difficult.
The grease filter operating hours
counter is set at the factory for 30
hours. This can be lengthened or
shortened to suit the type of cooking
you do. You can choose 20, 30, 40 or
50 hours.
^Press the On/Off sensor sto switch
the fan off.
^Press the run-on control 5¢15 and
the operating hours control lat
the same time.
The grease filter symbol lof the
operating hours control and one of the
fan levels will flash.
The 1to IS sensors indicate the time
set:
1= 20 hours
2= 30 hours
3= 40 hours
IS = 50 hours
^Press the –symbol to select a shorter
operating time, or the +symbol to
select a longer operating time.
^Confirm the selection by pressing the
operating hours control l.
All the lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Operation
18

Activating and altering the operating
hours counter for the charcoal filter 
(in recirculation mode)
The charcoal filter is needed for the
recirculation mode.
On delivery, the operating hours counter
for the charcoal filter is switched off.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do:
^Press the On/Off sensor sto switch
the fan off.
^Press the +symbol and the operating
hours control lat the same time.
The charcoal filter symbol of the
operating hours control and one of the
fan levels will flash.
The 1to IS sensors indicate the time
set:
1= 120 hours
2= 180 hours
3= 240 hours
IS = deactivated
^Press the –symbol to select a shorter
operating time, or the +symbol to
select a longer operating time.
^Confirm the selection by pressing the
operating hours control l.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Reading the filter operating hours
counter
To check the percentage of time set
already used:
^Press the On/Off sensor sto switch
the fan on.
^Press and hold the operating hours
control l:
–Once, to read the grease filter
operating hours. The grease filter
symbol llights up.
–Twice, to read the charcoal filter
operating hours. The charcoal filter
symbol lights up.
One or more of the fan power level
indicators will flash.
The number of flashing sensors
indicates the percentage of the
operating time which has already been
used up.
Indicator 1=25%
Indicators 1and 2=50%
Indicators 1to 3=75%
Indicators 1to IS = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
19

,Before any cleaning or
maintenance work is carried out,
disconnect the rangehood from the
mains supply. Ensure that
– it is switched off at the wall
socket and the plug removed, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease particles
from your fingers will adhere to the
surface and damage it.
The halogen lamps can also be
damaged if water is used to clean
them.
Wait several minutes after switching
off before beginning cleaning.
Housing
General notes
The surfaces and controls are
susceptible to scratches and
abrasion. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
^Wipe the surfaces dry using a soft
cloth.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel surfaces
(This infomation does not apply to the
controls)
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive
cleaning agent designed specifically
for use on stainless steel.
A specially designed stainless steel
detergent which prevents resoiling can
be purchased from Miele. Apply
sparingly with a soft cloth following the
instructions on the packaging.
Cleaning and care
20
