Miele DA 6520 W Assembly instructions

Operating and Installation
Instructions
Ventilation System
DA 6590 W
DA 6520 W
To prevent accidents
and appliance damage,
read these instructions
before
installation or use. M.-Nr. 09 523 600
en-US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Guide to the ventilation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning the fan on K...............................................10
Selecting the power level............................................10
Intensive setting IS ..............................................10
Delayed shut down 5 ¢15...........................................11
Overhead lighting I...............................................11
Filter timer [....................................................12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning the casing................................................14
Glass or stainless steel panels and grease filters .........................15
Resetting the grease filter timer ....................................17
Installing / replacing the odor-free filter.................................18
Resetting the odor-free filter timer ..................................18
Changing the light bulbs ............................................19
After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Plywood backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation instructions .............................................29
Protective film ....................................................29
Dismantling ......................................................29
Installation material ................................................30
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Reducing Collar ...................................................34
Condensate trap ..................................................34
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Contents
2

READ AND SAVE THESE
INSTRUCTIONS
Keep these instructions in a safe
place and pass them on to any future
user.
Read these instructions carefully
before installing or using the
Ventilation System.
~This appliance is intended for
residential use only. Use the appliance
only for its intended purpose.
~This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
,CAUTION
For General Ventilating Use
Only. Do Not Use To Exhaust
Hazardous Or Explosive
Materials And Vapors.
~This appliance is designed to vent
cooking smoke and odors only.
~This appliance is suitable for
installation above gas or electric
cooking surfaces.
~This appliance is not intended for
outdoor use.
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Use this appliance only in the
manner intended by the manufacturer.
If you have questions, contact Miele.
~b) Before servicing or cleaning the
appliance, switch power off at the
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally. If
the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
~c) Be certain your appliance is
properly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~d) Before connecting the appliance
to the power supply make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply.
This data must correspond to prevent
appliance damage. If in doubt consult a
qualified electrician.
~e) Installation work and repairs
should only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous.
~f) Only open the housing as
described in the enclosed "Installation
diagram" and in the "Cleaning and care"
section of this manual. Under no
circumstances should any other parts
of the housing be opened. Tampering
with electrical connections or
components and mechanical parts is
highly dangerous to the user and can
cause operation faults.
~g) Before discarding an old
appliance, disconnect it from the power
supply and remove the power cord to
prevent hazards.
Use
,WARNING
TO REDUCE THE RISK OF A
COOKTOP GREASE FIRE:
~a) Never leave surface units
unattended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
~b) Always turn the hood on when
cooking at a high heat.
~c) Clean the ventilation hood
frequently. Grease should not be
allowed to accumulate on the fan or
filter.
~d) Use the proper pan size. Always
use cookware appropriate for the size
of the cooking area.
~e) Do not flambé or grill with an
open flame beneath the hood.
Flames could be drawn up into the
hood by the suction and the grease
filters may catch fire.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING
TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE
EVENT OF A COOKTOP
GREASE FIRE, OBSERVE THE
FOLLOWING*:
~a) SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal tray
then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
~b) NEVER PICK UP A FLAMING
PAN - You may be burned.
~c) DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
~d) Use a fire extinguisher ONLY if:
1) You have a class ABC
extinguisher, and you know how to
operate it.
2) The fire is small and contained in
the area where it started.
3) The fire department is being
called.
4)You can fight the fire with your
back to an exit.
*Based on "Kitchen Firesafety Tips"
published by NAFTA
~Do not allow children to play with or
operate the appliance or its controls.
Supervise its use by the elderly or
infirm.
~Always turn on the hood when using
the cooktop to prevent damage from
condensation.
~Never operate gas burners without
cookware. Turn the burner off when not
in use. Adjust the burner so that the
flames do not extend beneath the
cookware. Do not overheat the
cookware, e.g. when using a wok. The
hood can be damaged due to
excessive heat from the burners and
the cookware.
~Do not use the hood without the
grease filters in place.
~Do not use a steam cleaner to clean
the hood. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
~a) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
~b) Sufficient air is needed for
combustion and exhausting of gases
through the flue (chimney of fuel
burning equipment to prevent back
drafting. Follow the heating equipment
manufacturer’s guideline and safety
standards such as those published by
the National Fire Protection Association
(NFPA) and the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and
the local code authorities.
~c) When cutting or drilling into the
wall or ceiling, do not damage electrical
wiring and other hidden utilities.
~d) Ducted hoods must always be
vented to the outdoors.
~e) Do not use this hood with any
solid-state speed control device.
~f) Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance,
(e.g. danger of overheating).
~g) Do not install this hood over
cooktops that burn solid fuel.
~h) Provided a larger distance is not
given by the manufacturer of the
cooktop, follow the minimum safety
distances between a cooktop and the
bottom of the hood given in the
"Appliance dimensions" section of this
manual.
If local building codes require a greater
safety distance, follow their
requirement.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
~i) Never connect an exhaust hood to
an active chimney, dryer vent, vent flue,
or room ventilating ductwork.
~j) Seek professional advice before
connecting an exhaust hood vent to an
existing, inactive chimney or vent flue.
~k) Any fittings, sealant, or materials
used to install the ductwork must be
made of approved non-flammable
materials.
,WARNING
TO REDUCE THE RISK OF
FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
6

The ventilation system can be operated
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the
exhaust fan automatically opens the
flap blowing the inside air and cooking
odors outside.
Recirculation mode
The recirculation mode requires a
conversion kit and odor-free filter
(optional accessories for the
DA 6590 W only, see "Technical data")
Air is drawn in and cleaned by the
glass or stainless steel panels, grease
filters as well as an odor-free filter. The
filtered air is then recirculated back into
the kitchen through a vent at the top of
the hood’s chimney.
In air recirculation mode, please
ensure that the odor-free filter is in
place, see "Cleaning and care".
Description of functions
7

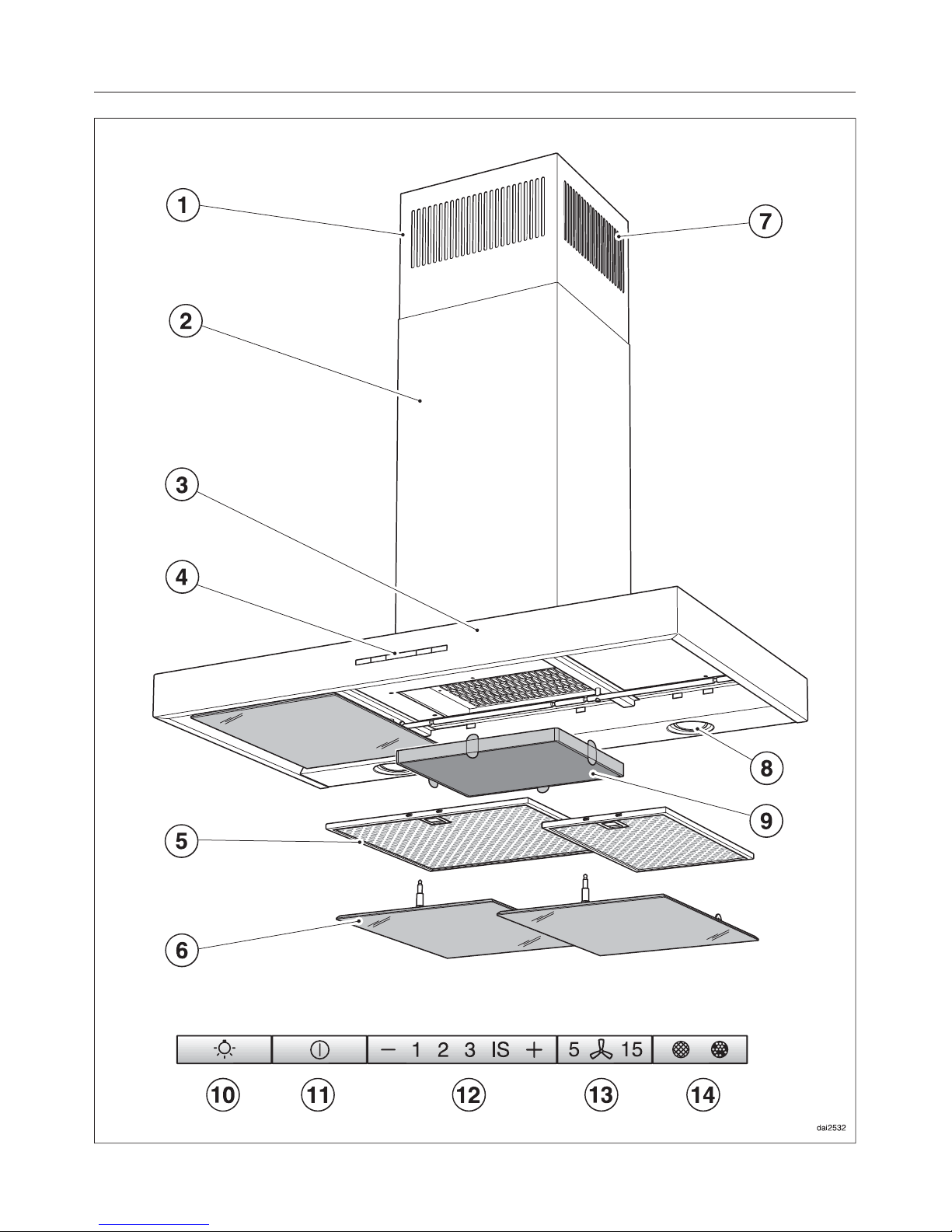

Guide to the ventilation system
8

aChimney extension
bChimney
cCanopy
dControl panel
eGrease filter
fGlass or stainless steel panels
Optional accessories
DRP 6590 W glass (3 elements)
DRP 6590 W stainless steel
(3 elements)
gRecirculation vent
(only for the DA 6590 W in recirculation
mode)
hOverhead lighting
iOdor-free filter
Optional accessory for recirculation
mode (DA 6590 W only)
jOn/Off button for the overhead
lighting
This button turns the light on and off
and also dims it.
kOn/Off button
lFan power selection
mDelayed shut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
nFilter button
The indicator lof the grease filter
button lights when the grease filters
need to be cleaned.
The odor-free filter symbol comes
on when the odor-free filter (for
recirculation mode) needs to be
replaced. When first using the system,
the operating hours timer must be
activated.
This button can be used at any time to
reset the respective timer after cleaning
the grease filter or changing the
odor-free filter (see "Cleaning and
care").
You can also check the operating hours
and change the setting.
Guide to the ventilation system
9

Turning the fan on K
^Press the On/Off button K.
The fan turns on at level 2. The K
symbol and power level 2indicators
light up.
Selecting the power level
^Use the "–/+" controls to select the
desired power level.
+= increases the fan speed
–= decreases the fan speed
Levels "1" to "3" are usually sufficient for
normal cooking.
Intensive setting IS
The IS level should be used
temporarilyf or a short period of time
when frying or cooking food with a
strong aroma.
Automatically switching back from
the IS setting
The intensive level can be programmed
to automatically switch back to level 3
after 10 minutes.
^Turn the fan and the lights off.
^Press and hold the delayed shut
down button 5¢15 for approx.
10 seconds until power level 1lights
up.
^Then press the following buttons one
after another:
– overhead lighting I,
– the –button, and
– the overhead lighingt button I
again.
If the indicators 1and IS flash,
automatic switch-back is not activated.
^To activate automatic switch-back,
press the +button.
Power level indicators 1and IS come
on.
To deactivate, press the –button.
^To save the setting, press the
delayed shut-off button 5¢15.
If the procedure is not stored within 4
minutes of programming, the hood will
automatically default to the "old" data.
Operation
10

Delayed shut down 5 ¢15
For both air extraction and recirculation,
it is recommended that run the fan for
several minutes after cooking is
completed.
This helps clear the kitchen air of any
remaining vapors and odors.
The Delayed Shut Down feature can be
selected to turn the fan off automatically
after a preselected length of time.
^After cooking, and with the fan on,
press the Delayed Shut Down button
5¢15 :
– once: the fan automatically turns off
after 5 minutes (5¢lights up).
– twice: the fan automatically turns off
after 15 minutes (¢15 lights up).
If you press the Delayed Shut Down
button 5¢15 again, the fan will not turn
off automatically (5¢15 goes out).
Turning off the fan K
^Press the On/Off button to turn the
fan off K.
The Kindicator goes out.
Overhead lighting I
Turning the overhead lighting on
The overhead lighting and the fan can
be turned on and off separately.
^Press the light button Ibriefly to
turn the light on.
The Iindicator comes on.
The overhead light comes on at
maximum brightness.
Dimming the overhead lighting
The brightness of the light can be
adjusted.
^While the light is turned on, press
and hold the light button I.
The light dims until the button is
released.
^If the button Iis pressed and held
down again, the light brightens until
the button is released.
If the Ibutton is pressed continuously,
the light cycles between light and dark.
Turning the overhead light off
^Briefly press the light button Ito
turn the light off.
The Iindicator goes out.
Operation
11

Automatic safety shut-off
The fan will turn automatically off 10
hours of use. The lighting however will
remain on.
^Press the On/Off button Kto turn the
fan back on again.
Filter timer [
A timer counts the hours of fan
operation.
The timer signals that the filters need to
be cleaned or replaced by turning on
the grease filter symbol [or the
odor-free filter symbol .
See "Cleaning and care" for information
on cleaning and replacing filters and
resetting the timers.
Reprogramming the grease filter
timer [
The timer may be set to suit your
cooking habits.
–If you often roast and fry foods,
choose a shorter operating time.
–If you tend to cook fat-free, choose a
longer operating time.
–If you cook only occasionally, it is
better to choose a shorter operating
time. This is because accumulated
grease will harden over time, making
cleaning difficult.
The factory setting for the grease filter
timer is 30 hours. You can adjust the
time to 20, 30, 40 or 50 hours.
^Press the On/Off button Kto turn the
fan off
^Press the delayed shut down button
5¢15 and the filter button [at
the same time.
The grease filter symbol [of the filter
button and one of the power level
indicators flash.
The 1to IS indicators show the
programmed time:
Indicator 1................20hours
Indicator 2................30hours
Indicator 3................40hours
Indicator IS ...............50hours.
^Press –to select a shorter operating
time or + for a longer one.
^Save the setting by pressing the filter
button [.
All the lights will go out.
If the procedure is not stored within 4
minutes, the hood will automatically
default to the original setting.
Operation
12

Activating/changing the odor-free filter
timer 
(in recirculation mode)
The odor-free filter is necessary for
recirculation mode.
The odor-free filter timer is not pre-set.
The timer may be set to suit your
cooking habits.
^Press the On/Off button Kto turn the
fan off
^Press + and the filter button — at
the same time.
The odor-free filter symbol of the
timer button and one of the power level
indicators flash.
The 1to IS indicators show the
programmed time:
Indicator1................120hours
Indicator 2...............180hours
Indicator 3...............240hours
Indicator IS ............deactivated.
^Press –to select a shorter operating
time or +for a longer one.
^Save the setting by pressing the filter
button [.
All the indicator lights go out.
If the procedure is not stored within 4
minutes, the hood will automatically
default to the original setting.
Checking the filter operating hours
counter
Even before the maximum operating
time has been reached, you can check
what percentage of the time has
elapsed.
^Press the On/Off button Kto turn the
fan on.
^Press the filter button [–
–once, to check the grease filter
operating time. The grease filter
symbol [comes on.
– twice, to check the odor-free filter
operating time. The odor-free filter
symbol comes on.
At the same time one or more power
level indicators start flashing.
The number of flashing indicators
shows the elapsed operating time:
Indicator 1...................25%
Indicators 1and 2.............50%
Indicators 1to 3...............75%
Indicators 1to IS .............100%
This information will remain stored in
memory in the event of a power failure.
Operation
13

,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "Important Safety
Instructions".
,The halogen bulbs are very hot
when in use. They stay hot for some
time after turned off. Use caution,
danger of burns.
Wet cleaning the hot bulbs will
cause damage.
Wait a few minutes after turning
them off before cleaning.
Cleaning the casing
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
^All external surfaces and controls can
be cleaned with a mild solution of
warm water and liquid dish soap
applied with a soft sponge.
Do not use too much water when
cleaning the controls. Water could
penetrate the electronics and cause
damage.
^Wipe dry using a soft cloth.
Avoid:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents
e.g. powder or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
–sharp metal scrapers,
–oven spray.
Special instructions for stainless
steel surfaces
(not applicable to the controls)
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can be applied.
Special instructions for colored
casings (RAL)
(Special order)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colors and if there is halogen lighting in
the kitchen.
Cleaning and care
14

Special instructions for glass
surfaces
^Glass surfaces should be cleaned
with a normal glass cleaner.
Stainless steel colored controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Glass or stainless steel panels
and grease filters
The glass or stainless steel panels and
the reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc.) and
prevent soiling of the hood.
Clean the panels and grease filters at
the latest when the grease filter symbol
[of the timer button comes on.
The grease filters should be cleaned
every3-4weeks, as the collected
grease hardens over time and makes
cleaning more difficult.
,A dirty filter is a fire hazard!

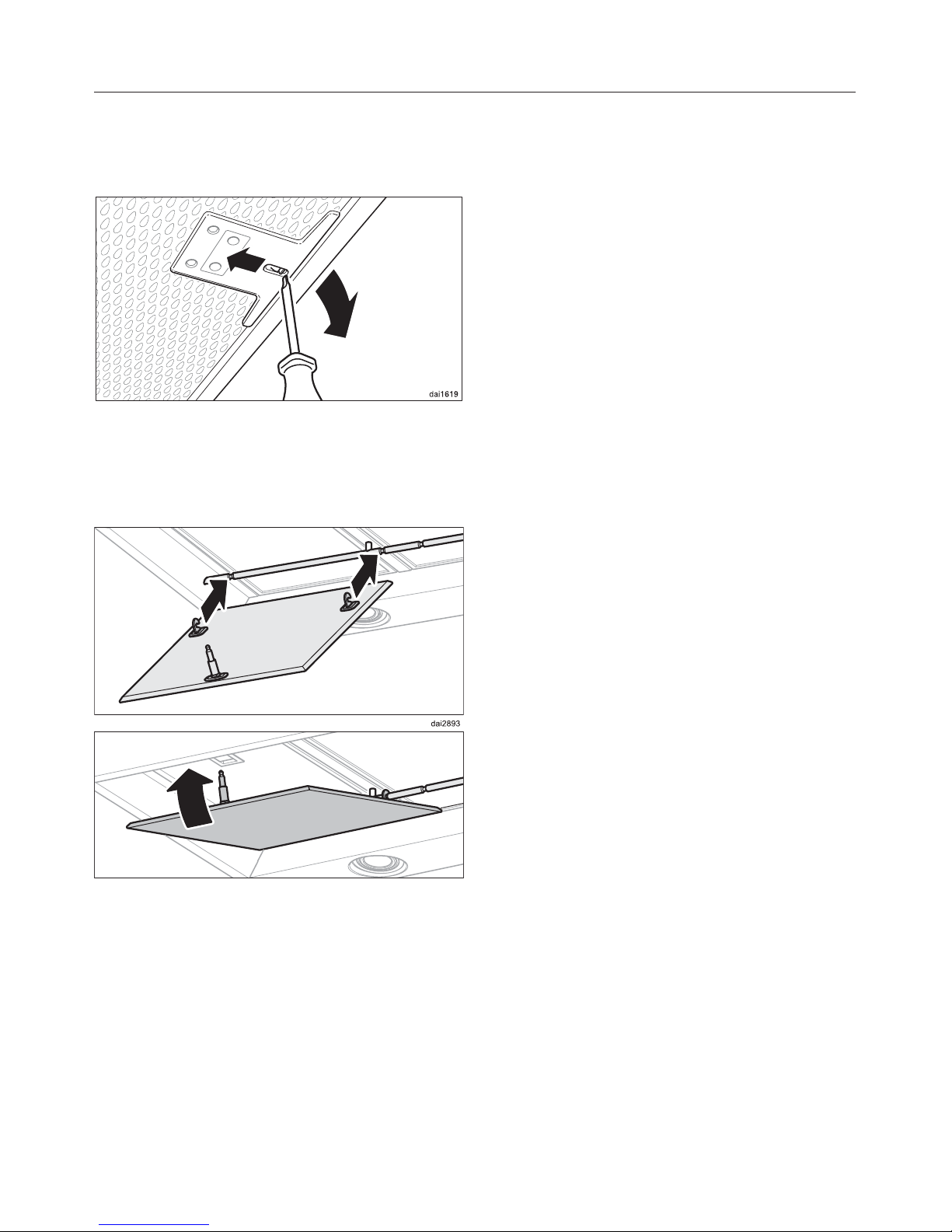

^Pull the front edge of the panels
down out of the lock, lower them
slightly, unhook them at the back,
and take them out.
Support the panel so that it does not
fall and damage the cooktop.
Cleaning and care
15

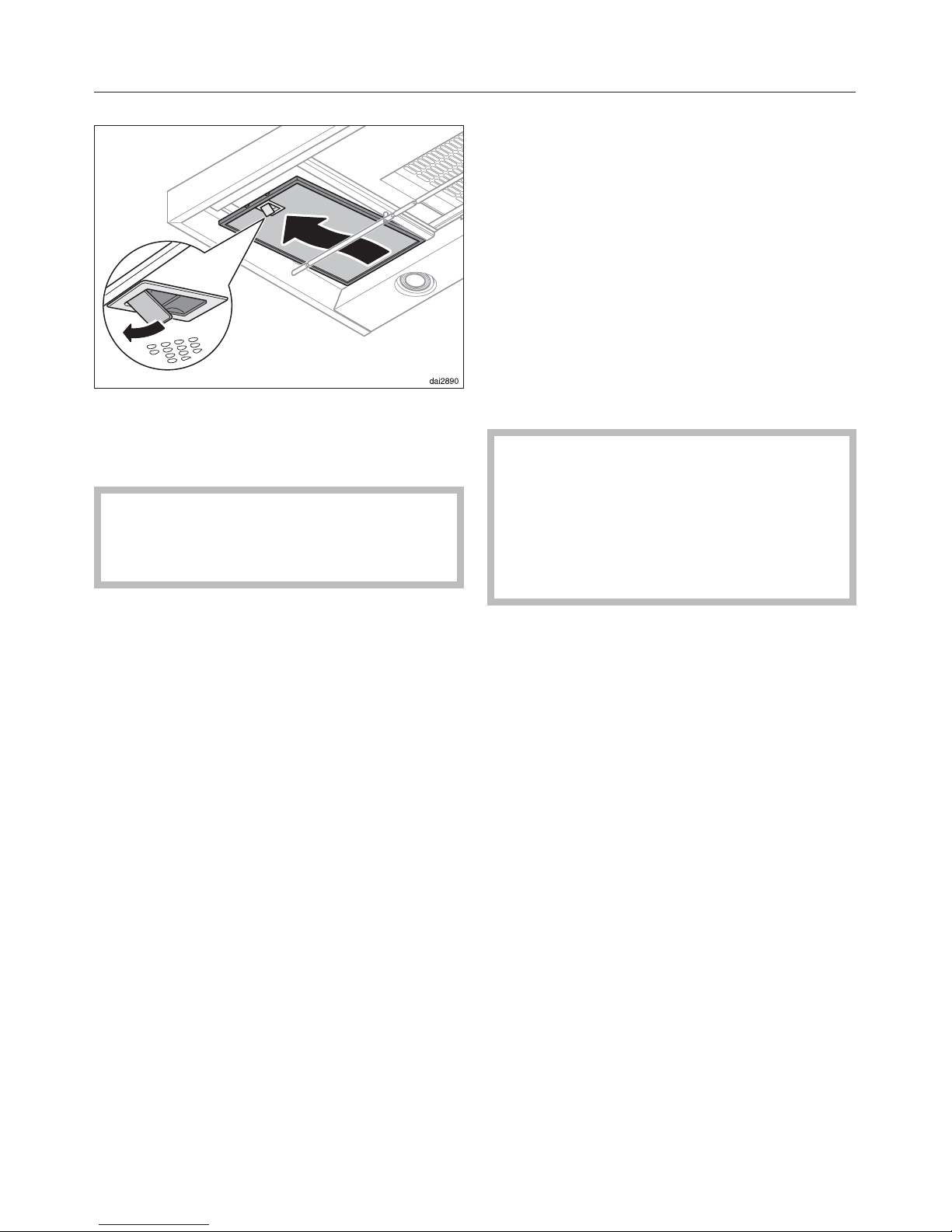

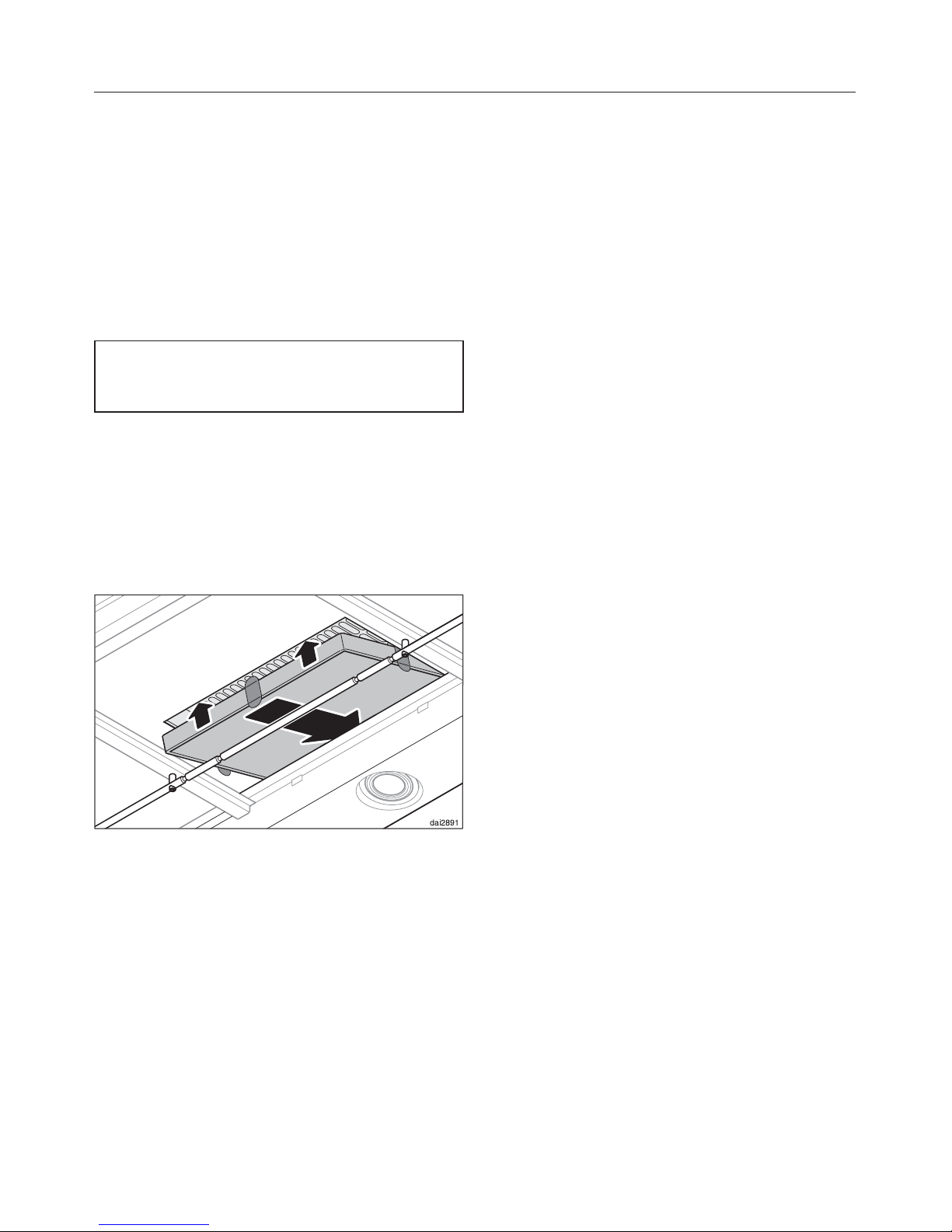

^Open the grease filter lock, lower the
grease filter slightly, unhook it at the
back, and take it out.
Support the grease filter so that it
does not fall and damage the
cooktop.
Cleaning the panels by hand
^Follow the instructions under
"Cleaning the casing".
Cleaning the grease filters by hand
^Use a scrub brush with a solution of
warm water and mild dish soap.
Do not use the pure detergent,
aggressive all purpose cleaners,
oven sprays, abrasive cleaning
agents or limescale removers. They
could damage the filter.
Cleaning the grease filters and
panels in the dishwasher

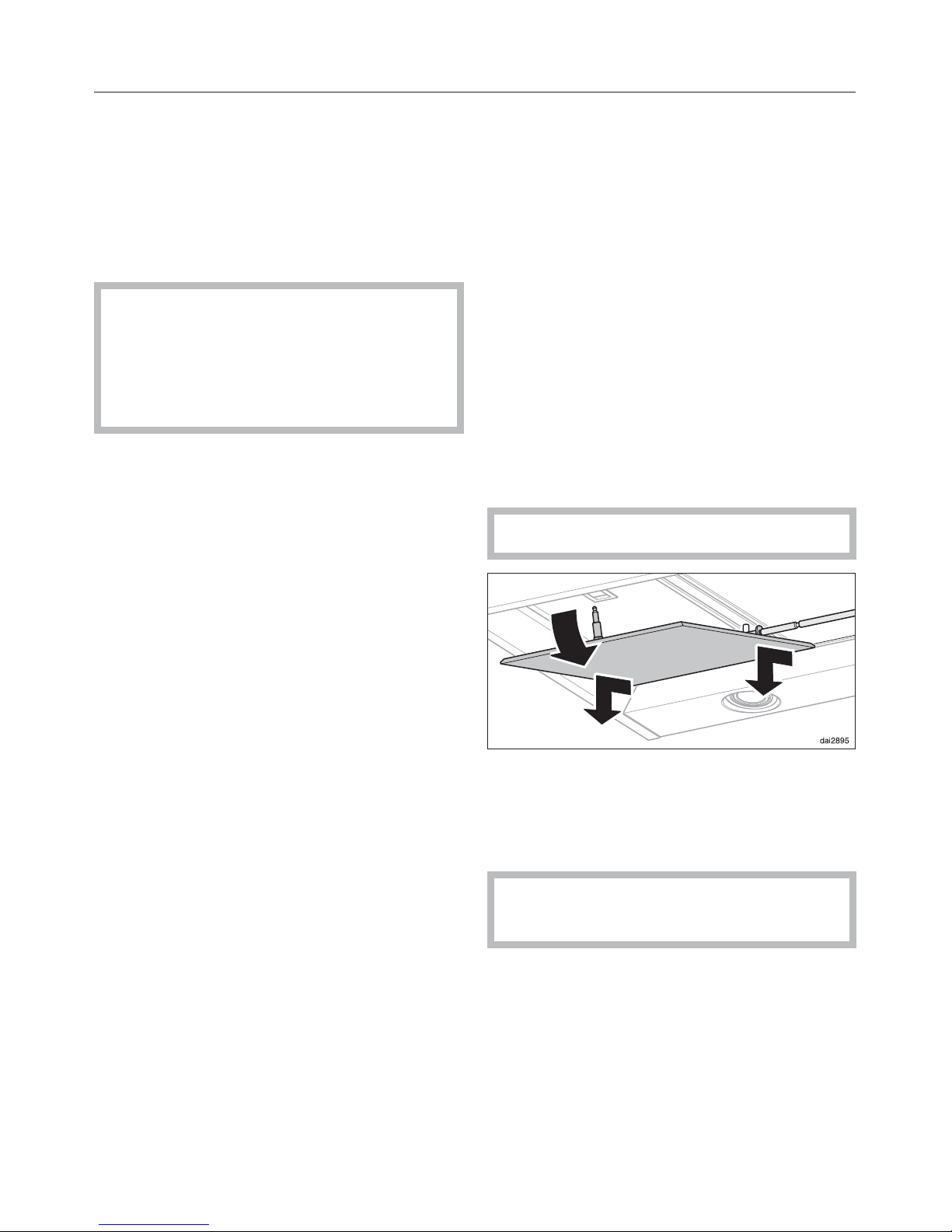

^Place the filters vertically in the lower
basket, making sure that the spray
arm is not blocked.
Use a wash program with a max.
temperature of 150°F (65°C). In a
Miele dishwasher use the "Normal"
program.
Use the recommended amount of
dishwasher detergent. Overuse could
destroy the filter.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Filter performance will not be
affected by this discoloration.
^After cleaning, place the filters on a
towel to dry.
^While the panels and the filters are
removed, clean any dirt or grease
from the casing parts that are
accessible. This reduces the risk of
fire.
Cleaning and care
16

^When reinstalling the grease filters,
make sure that the locking clips are
facing down.
^If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage them
from the casing.
^Hook the panels onto the support
ledge.
^Lift up the front of the panels and
push them into the lock until they
engage.
Resetting the grease filter timer
After cleaning, reset the grease filter
timer.
^With the fan running, press and hold
the grease filter button lfor
approx. 3 seconds, until only the 1is
flashing.
The indicator light will lgo out.
If the grease filters are cleaned before
the timer has reached its maximum:
^Press and hold the grease filter
button for lfor
approx. 6 seconds, until only the 1is
flashing.
Cleaning and care
17

Installing / replacing the
odor-free filter
In recirculation mode, an odor-free filter
must be used in addition to the grease
filters. It is designed to absorb cooking
odors.
It is installed in the canopy above the
grease filters.
Replacement active charcoal filters
can be ordered from Miele.
^To install or replace the odo-freer
filter, the grease filters must first be
removed as described in the
previous pages.
^Remove the odor-free filter from the
packaging.
^Slide the odor-free filter into the rear
of the filter frame, then raise the front
and push it into the frame.
^Reinsert the grease filters and the
panels.
Before first use:
^Program the filter timer (see
"Operation").
Replace the odor-free filter when:
–the odor-free filter symbol of the
filter button comes on,
or
–when the filter no longer absorbs
odors efficiently.
However, it should be changed at least
every 6 months.
Used odor filters may be discarded
with the household garbage.
Resetting the odor-free filter timer
After replacing the filter, reset the
odor-free filter operating hours counter.
^With the fan running, press the filter
button [twice and hold it for
about 3 seconds, until only the 1
flashes.
The odor-free filter symbol goes
out.
If you clean the odor-free filter before
the operating time elapses:
^Press the filter button [twice and
hold it for about 6 seconds, until only
the 1flashes.
Cleaning and care
18

Changing the light bulbs
,WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
Before changing the light bulbs,
disconnect the hood from the power
supply, see "Important Safety
Instructions".
When in use halogen bulbs become
extremely hot, and can burn your
hands. Do not attempt to change the
bulbs until they have had sufficient
time to cool.
^To change the halogen bulb, first
gently press the light cover. The
cover will open and can now be
flipped down.
^Pull the halogen bulb from its socket.
^Using a cloth or glove, insert the new
halogen bulb (type 12 V, 20 W, G4).
Please follow the manufacturer's
instructions.
^Flip the light cover back up, making
sure it clicks into place.
Cleaning and care
19

Repairs
In the event of a fault which you cannot
easily fix yourself, please contact the
Miele Technical Service Department.
^When contacting the Technical
Service Department, please quote
the model and serial number of your
appliance.
These are shown on the data plate
which is visible when the grease filters
are removed.
MieleCare
(USA only)
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5 years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit
us online at:
http://mieleusa.com/mielecare
After Sales Service
20
