Miele SmartLine CSDA 7000 User manual

Operating and installation instructions
SmartLine downdraft extractor
To avoid the risk of accidents or damage to the appliance it is essential
to read these instructions before it is installed and used for the first time.
en-GB M.-Nr. 10 746 530

Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 14

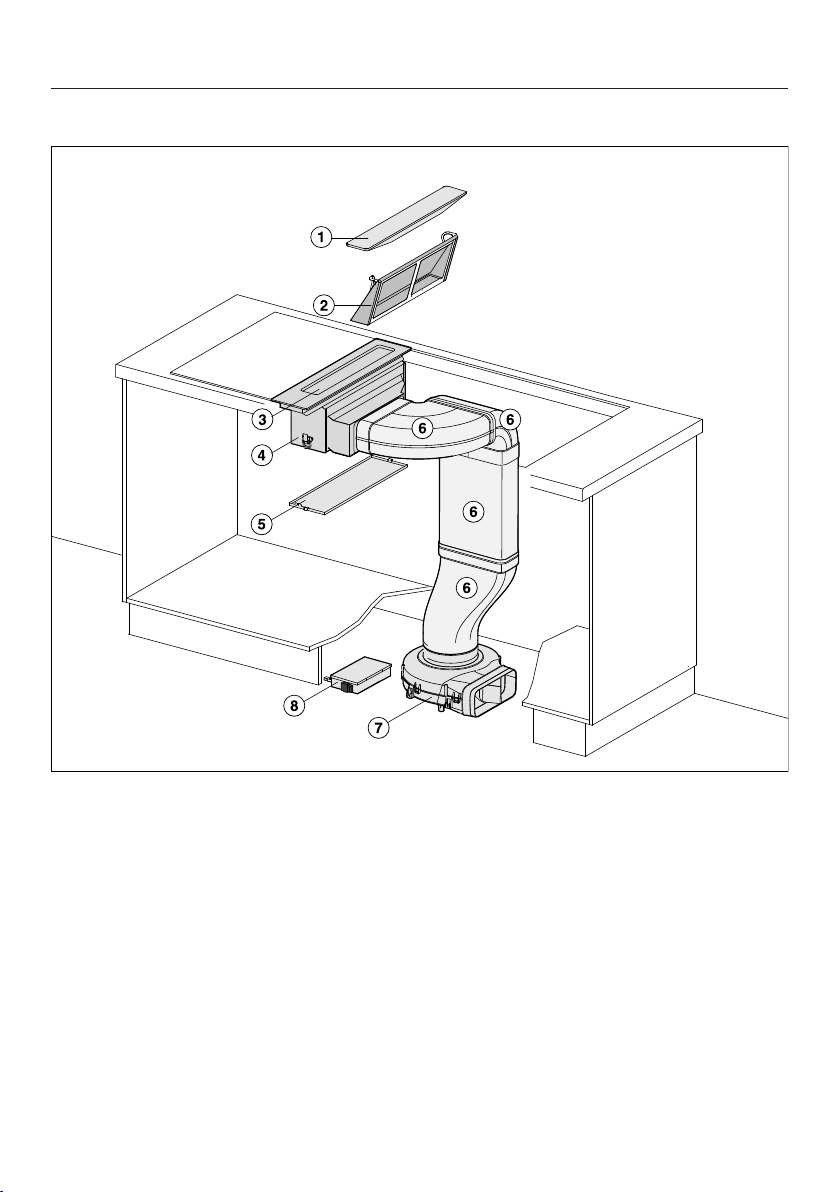

Guide to the appliance........................................................................................ 15
Downdraft extractor............................................................................................... 15

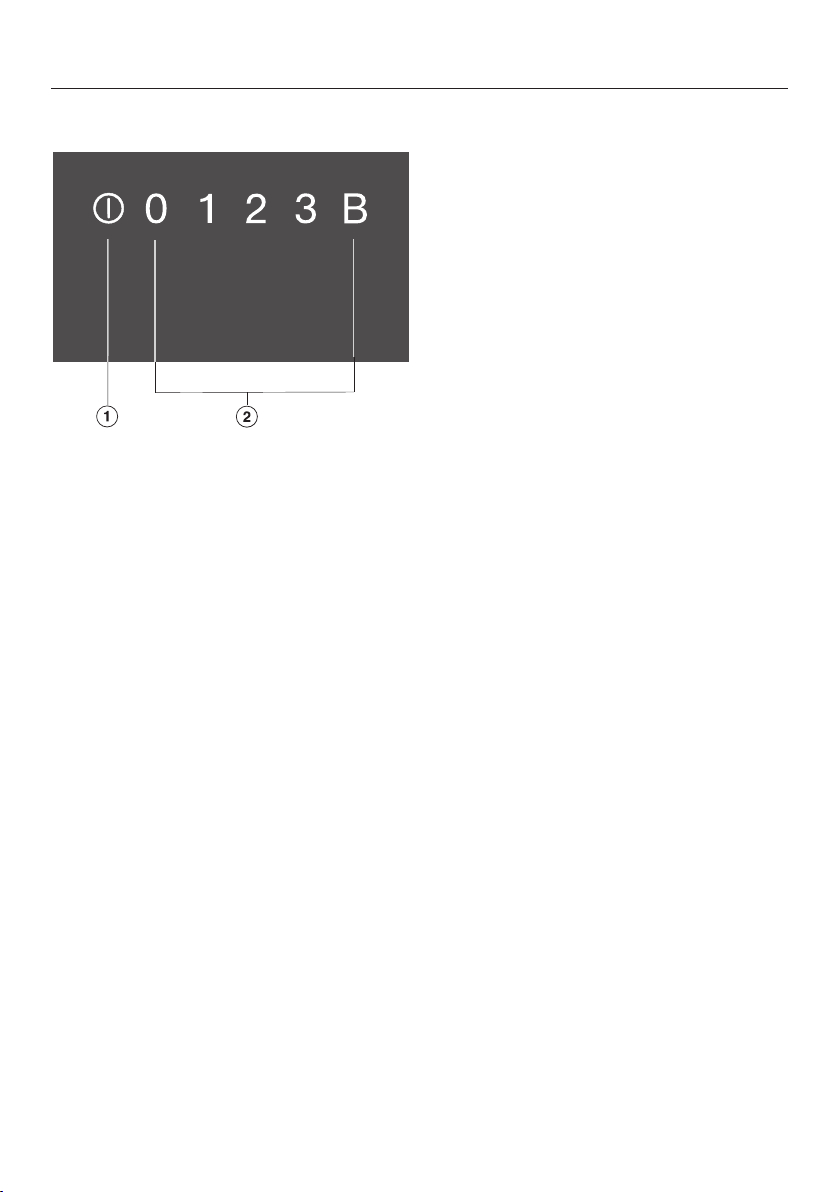

Controls / Indicators.............................................................................................. 16
Accessories supplied ............................................................................................ 17
Cleaning the SmartLine element for the first time ........................................... 18
Modes of operation ............................................................................................. 19
Tips on saving energy ........................................................................................ 20
Operation.............................................................................................................. 21
FlameGuard........................................................................................................... 21
Switching the downdraft extractor on ................................................................... 21
Setting/changing the power level.......................................................................... 21
Switching the downdraft extractor off ................................................................... 21
Run-on time........................................................................................................... 22
Cleaning and care ............................................................................................... 23
Ceramic surface .................................................................................................... 24
Drip tray................................................................................................................. 24
Grease filter ........................................................................................................... 25
Problem solving guide ........................................................................................ 26
Optional accessories .......................................................................................... 27
After sales service............................................................................................... 28
Contact in case of malfunction ............................................................................. 28
Data plate .............................................................................................................. 28
Warranty ................................................................................................................ 28
Installation............................................................................................................ 29
Safety instructions for installation ......................................................................... 29
Installation examples............................................................................................. 30
Surface-mounted .................................................................................................. 31
Installation notes – surface-mounted.................................................................... 31
Worktop cutout – surface-mounted ...................................................................... 33
Spacer bars – surface-mounted............................................................................ 36
Installation dimensions–Surface-mounted.......................................................... 37
Air duct dimensions – surface-mounted – worktop depth 600mm...................... 38
Air duct dimensions – surface-mounted – worktop depth greater than 600mm . 40

Contents
3
Installation – surface-mounted.............................................................................. 43
Flush-fit ................................................................................................................. 48
Installation notes – flush-fit ................................................................................... 48
Worktop cutout – flush-fit...................................................................................... 50
Spacer bars – flush-fit ........................................................................................... 53
Installation dimensions–Flush ............................................................................. 54
Air duct dimensions – flush-fit – worktop depth 600mm ..................................... 55
Air duct dimensions – flush-fit – worktop depth greater than 600mm ................. 57
Installation – flush-fit ............................................................................................. 60
Ducting .................................................................................................................. 65
Electrical connection ............................................................................................. 66
Product data sheets ........................................................................................... 68

Warning and Safety instructions
4
This downdraft extractor complies with all relevant safety require-
ments. Inappropriate use can, however, lead to personal injury and
material damage.
Please read these operating and installation instructions carefully
before using the downdraft extractor for the first time. They con-
tain important information on safety, installation, use and mainten-
ance. This prevents both personal injury and damage to the
downdraft extractor.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the downdraft extractor as well as the safety
instructions and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
For safe operation, please also refer to the operating and installa-
tion instructions for the SmartLine elements and hob units installed
adjacent to the downdraft extractor.

Warning and Safety instructions
5
Correct application
 This downdraft extractor is intended for use in domestic house-
holds and similar working and residential environments.
 The downdraft extractor is not suitable for outdoor use.
 It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
All other types of use are not permitted.
 This downdraft extractor can only be used by people with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge if they are supervised whilst using it.
They may only use the downdraft extractor unsupervised if they have
been shown how to use it in a safe manner. They must be able to re-
cognise and understand the consequences of incorrect operation.

Warning and Safety instructions
6
Safety with children
 Children under 8 years of age must be kept away from the coun-
tertop extractor unless they are constantly supervised.
 Children aged 8 and older may only use the countertop extractor
without supervision if they have been shown how to use it in a safe
manner. Children must be able to understand and recognise the pos-
sible dangers caused by incorrect operation.
 Children must not be allowed to clean or maintain the downdraft
extractor unsupervised.
 Children should be supervised in the vicinity of the downdraft ex-
tractor. Do not allow them to play with the downdraft extractor.
 Danger of suffocation! Whilst playing, children may become en-
tangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.

Warning and Safety instructions
7
Technical safety
 Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and re-
pairs must only be carried out by a Miele authorised technician.
 The downdraft extractor must only be installed and operated in
combination with those SmartLine elements and hob units specified
by Miele.
 Damage to the downdraft extractor can compromise your safety.
Check it for visible signs of damage. Do not use a damaged
downdraft extractor.
 Reliable and safe operation of this downdraft extractor can only
be assured if it has been connected to the mains electricity supply.
 The countertop extractor must not be connected to the inverter of
an autonomous power supply, e.g. a solar power system. When the
countertop extractor is switched on, power surges could result in a
safety switch-off. This could damage the electronic module.
 The electrical safety of the downdraft extractor can only be guar-
anteed when continuity is complete between it and an effective
earthing system. It is most important that this basic safety require-
ment is present and tested regularly. If in doubt, the electrical install-
ation should be checked by a qualified electrician.
 Before connecting the downdraft extractor to the mains supply,
ensure that the connection data on the data plate (voltage and fre-
quency) match the mains electricity supply. This data must corres-
pond in order to avoid the risk of damage to the downdraft extractor.
Compare this data before connecting the appliance to the mains.
Consult a qualified electrician if in any doubt.
 Multi-socket adapters and extension leads do not guarantee the
required safety of the appliance (fire hazard). Do not use these to
connect the downdraft extractor to the mains electricity supply.

Warning and Safety instructions
8
 For safety reasons, this downdraft extractor may only be used
after it has been built in.
 This downdraft extractor must not be installed and operated in
mobile installations (e.g. on a ship).
 Any contact with live connections or tampering with the electrical
or mechanical components of the downdraft extractor will endanger
your safety and may lead to appliance malfunctions.
Only open the casing as described in the installation instructions and
in the “Cleaning and care” section of this booklet. Under no circum-
stances should any other parts of the casing be opened.
 The manufacturer's warranty will be invalidated if the downdraft
extractor is not repaired by a Miele approved service technician.
 Miele can only guarantee the safety of the appliance when genu-
ine original Miele replacement parts are used. Faulty components
must only be replaced by Miele spare parts.
 The downdraft extractor is not intended for use with an external
timer switch or a remote control system.
 If the plug is removed from the connection cable or if the cable is
supplied without a plug, the downdraft extractor must be connected
to the electrical supply by a suitably qualified electrician.
 If the mains connection cable is damaged, it must be replaced
with a special mains connection cable by a qualified electrician (see
“Electrical connection” in the “Installation” chapter).

Warning and Safety instructions
9
 During installation, maintenance and repair work, the downdraft
extractor must be completely disconnected from the mains electri-
city supply. It is only completely isolated from the electricity supply
when:
– the mains fuse has been disconnected or
– the screw-out fuses have been fully unscrewed or
– the plug (if present) is removed from the socket. To do this, pull
the plug not the mains connection cable.

Warning and Safety instructions
10

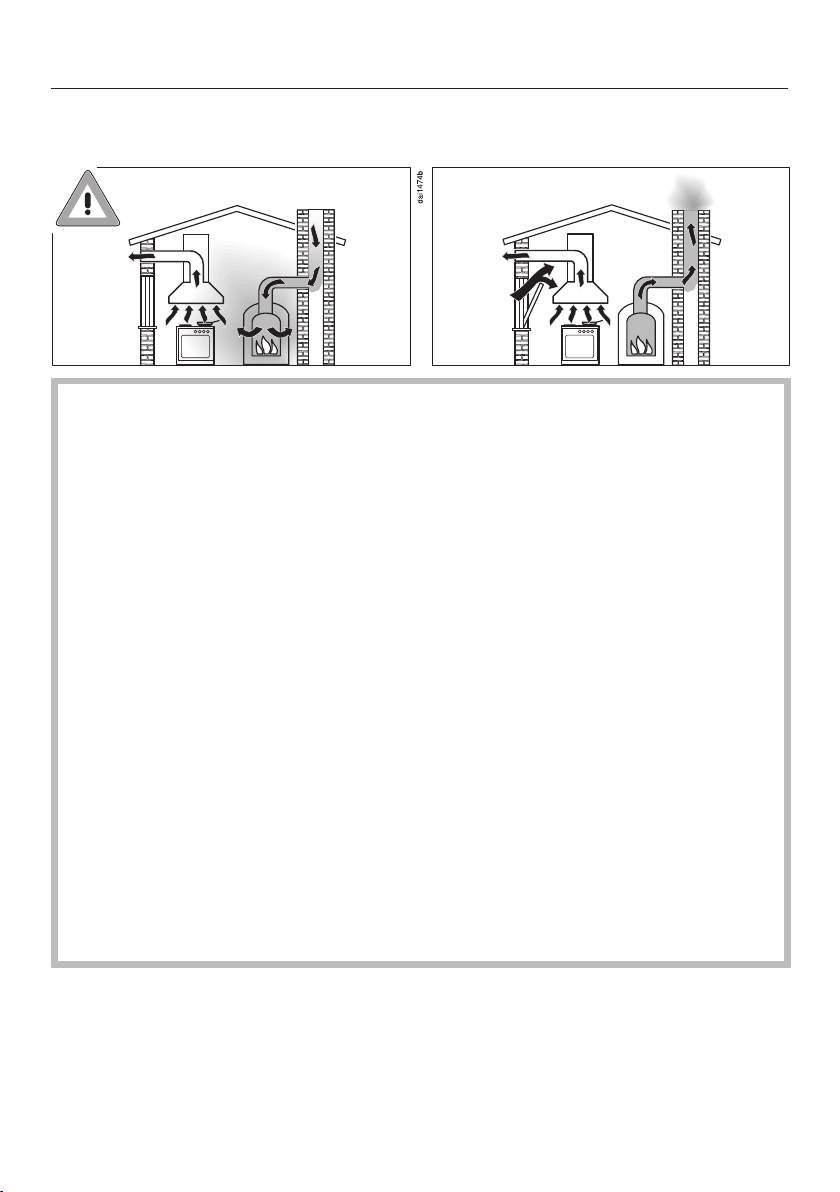

Using at the same time as other heating appliances that depend on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the downdraft extractor in
the same room or the same area of the house as another heating
appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct ex-
haust gases out through a chimney or extraction ducting. They in-
clude gas, oil, wood and coal-fired boilers and heaters, continuous
flow or other water heaters, gas hobs and ovens.
The downdraft extractor draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of opera-
tion:
- extraction mode,
- recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
This could have potentially fatal consequences!

Warning and Safety instructions
11
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the downdraft extractor and the heater are both operated simultan-
eously, an underpressure in the room of 0.04mbar (4Pa) is the
maximum permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
diameter of the inlet openings must enable sufficient ventilation. A
ventilation brick alone is not generally sufficient to ensure safe
ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.
If the downdraft extractor is being operated in recirculation mode,
where the air is directed back into the room in which it is located,
operating a heating appliance which depends on the room air at
the same time is not hazardous.

Warning and Safety instructions
12
Correct use
 Open flames are a fire hazard.
Never use an open flame beside the downdraft extractor. To avoid
the danger of fire, do not flambé or grill over an open flame. When
switched on, the downdraft extractor could draw flames into the fil-
ter. Fat deposits could ignite, presenting a fire hazard.
 Overheated oil and fat can ignite, causing fire damage to the
downdraft extractor.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pots and pans unattended. Similarly, never leave an
open grill unattended when grilling.
 Deposits of grease and dirt will prevent the downdraft extractor
from working properly.
Do not use the downdraft extractor without the grease filters in
place. Otherwise cooking vapours will not be cleaned.
 Hot cooking vapours during cooking can cause the downdraft ex-
tractor to get hot.
Do not touch the casing or the grease filters until the downdraft ex-
tractor has cooled down.
 Do not use the downdraft extractor for resting objects on.
 Liquids can damage the downdraft extractor if they get into it.
Keep liquids away from the downdraft extractor.
 Light objects can be drawn into the downdraft extractor and im-
pair its operation.
Do not place any light objects (e.g. paper towels) within close prox-
imity of the downdraft extractor.
 If you are operating a gas cooking element directly next to the
downdraft extractor, the FlameGuard must be placed between the
downdraft extractor and the element.

Warning and Safety instructions
13
Cleaning and care
 The steam from a steam cleaning appliance could reach live elec-
trical components and cause a short circuit.
Do not use a steam cleaner to clean the downdraft extractor.
 There is a risk of fire if the cooker hood is not cleaned as de-
scribed in these operating instructions.
Accessories
 Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other manu-
facturers will invalidate the warranty and Miele cannot accept liabil-
ity.

Caring for the environment
14
Disposal of the packing mater-
ial
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the manufactur-
ing process and also reduces the
amount of waste in landfill sites.
Disposing of your old appli-
ance
Electrical and electronic appliances of-
ten contain valuable materials. They
also contain specific materials, com-
pounds and components, which were
essential for their correct function and
safety. These could be hazardous to hu-
man health and to the environment if
disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local com-
munity waste collection / recycling
centre for electrical and electronic ap-
pliances, or contact your dealer or
Miele for advice. You are also respons-
ible for deleting any personal data that
may be stored on the appliance being
disposed of. Please ensure that your
old appliance poses no risk to children
while being stored prior to disposal.

Guide to the appliance
15
Downdraft extractor
aFlameGuard
bGrease filter
cCover with control unit
dCasing
eGrease trap
fAir duct
gFan
hE-box

Guide to the appliance
16
Controls / Indicators
aSwitching the downdraft extractor on/off
bNumerical keybank for setting the power level

Guide to the appliance
17
Accessories supplied
The accessories supplied with your ap-
pliance as well as a range of optional
ones are available to order from Miele
(see “Optional accessories”).
FlameGuard
For installing between the downdraft
extractor and a gas cooking element

Cleaning the SmartLine element for the first time
18
Please stick the extra data plate for
the appliance supplied with this doc-
umentation in the space provided in
the “After sales service” section of
this booklet.
Remove any protective wrapping and
stickers.
Clean the ceramic surface with a
damp cloth, and then wipe dry.

Modes of operation
19
Depending on the model of the
downdraft extractor, the following op-
tions are available:
Extraction mode
The air is drawn in and cleaned by the
grease filter and directed outside.
Recirculation mode
(DUU 1000(-1) conversion kit required)
The air is drawn in and cleaned by the
grease filter. The air is then directed into
the recirculation box where it is also
cleaned by the charcoal filters. The
cleaned air is then recirculated back
into the kitchen.

Tips on saving energy
20
This downdraft extractor operates very
efficiently and economically. The follow-
ing will help you to save even more en-
ergy when using it:
– It is important to ensure that the kit-
chen is well ventilated during opera-
tion. In extraction mode if there is in-
sufficient air flow, the downdraft ex-
tractor cannot operate efficiently and
this causes increased operating noise
levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
power level and therefore benefit
from reduced energy consumption.
– Check the selected power level on
the downdraft extractor. A low power
level is usually sufficient. Only use the
Booster setting when necessary.
– When a large volume of cooking va-
pours are being produced, switch to
a high power level in good time. This
is more efficient than operating the
downdraft extractor for longer to try
to capture cooking vapours which
have already been distributed
throughout the kitchen.
– Switch the downdraft extractor off
after cooking.
– Clean or replace the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
