Miele DA 3160 User manual

Operating and Installation instructions
Rangehood
DA 3160
DA 3190
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 777 880
en - AU, NZ

Caring for the environment..........................................3
Warning and Safety instructions .....................................4
Guide to the appliance ............................................10
Description of the functions ........................................12
Operation .......................................................13
Cleaning and care ................................................15
Housing .........................................................15
Grease filter ......................................................16
Fitting and replacing the charcoal filter .................................18
Changing a halogen lamp ...........................................19
Appliance dimensions.............................................20
Installation ......................................................22
Installation accessories .............................................22
Positioning the appliance in the wall housing unit.........................25
Attaching the lightshield ............................................29
Weight of a lightshield matching existing furniture......................29
Aligning the deflector plate ..........................................29
Replacing the grease filter...........................................30
Set up for extraction mode ..........................................30
Set up for recirculation mode ........................................31
Electrical connection ...............................................31
Connection for air extraction .......................................32
Condensate trap ..................................................33
Silencer .........................................................34
Electrical connection..............................................35
Operation with DSM 400 control module..............................36
Connection to a window contact switch ..............................36
Potential free connection .........................................36
Connection to a light switch .......................................37
After sales service ................................................38
Technical data ...................................................39
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or
motel rooms, bed & breakfasts and
other typical living quarters. This does
not include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used as a domestic
appliance to extract vapours and
remove odours from cooking.
~This appliance is not suitable for
outdoor use.
~Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it or have
been shown how to use it correctly by a
person responsible for their safety.
~This appliance may only be used in
mobile installations such as ships,
caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To avoid
the risk of injury, keep children well
away and do not allow them to play with
it or to use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
Warning and Safety instructions
4

~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. It could be
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–it is switched off at the isolator, or
–the screw-out fuse is removed (in
countries where this is applicable), or
–the mains fuse is disconnected, or
–it is switched off at the wall socket
and the plug withdrawn.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models) the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops, cookers or ovens which
draw air in from the room and duct
exhaust gases out through a chimney
or extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the rangehood
and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the rangehood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter must be sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the rangehood, which could cause
corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Steam could reach the
electrical components and cause a
short circuit.
Warning and Safety instructions
8

Correct installation
~Refer to the cooktop manufacturer's
instructions as to whether a rangehood
may be operated above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Follow the cooktop manufacturer's
instructions on the use of flammable
materials over the cooktop when
installing a wood or laminate lightshield
onto the rangehood.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this appliance. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Guide to the appliance
10

aExhaust socket ø 150 mm
bControl panel
cGrease filter
dPull-out deflector plate
eCooktop lighting
fCharcoal filter
(extra accessory available to order
for recirculation mode)
gDrop-down lightshield to conceal
control panel
The front of the deflector plate can
be fitted with a lightshield to match
your kitchen furniture.
The DA 3160 and DA 3190 can be
fitted with a DFB 61 or DFB 91
lightshield, available as an optional
accessory.
hOn/Off control for the fan
iControls to select fan power level
jLighting control
Guide to the appliance
11

The rangehood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filter and then directed outside.
If the on-site ventilation system does
not have a non-return flap, then the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the rangehood
is switched off.
When the rangehood is switched on,
the non-return flap opens for the
cooking vapours to be blown directly
outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact a
specialised installer.
. . . air recirculation:
(air recirculation conversion kit required)
The air is drawn in and cleaned first by
the grease filter and then by a charcoal
filter. The cleaned air is then recirculated
back into the kitchen.
Charcoal filters are available to order
through your Chartered Agent or from
Miele or via the internet at
www.miele-shop.com (check availability).
See back cover for contact details and
"Technical Data" for model number.
Before using the rangehood in
recirculation mode, ensure that the
charcoal filter is in place; see
"Cleaning and care".
Description of the functions
12

The rangehood is operated by pulling
out and pushing in the deflector plate.
To switch the fan on
^Pull out the deflector plate.
The fan will begin to operate at setting II.
The On/Off indicator lamp and the 2nd
–/+power level indicator lamp will
light up.
To select a power level
^Use the –/+controls to select the
power level required.
The indicator lamps show which power
level has been chosen.
Depending on the intensity of the
cooking vapours, levels "I" to "III" are
usually sufficient for normal cooking.
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, you may wish
to select the Intensive Setting "IV".
Pull the deflector plate right out to
achieve optimum extraction and to
prevent unnecessary noise levels.
To switch the fan off
^Push the deflector plate back in. The
next time the deflector plate is pulled
out, the rangehood will operate at
power level II again.
or
^Press the On/Off touch control for the
fan
All the indicator lamps will go out.
To switch the lighting on
^Pull out the deflector plate.
or
^Press the touch control for the
lighting again.
When the lighting is switched on, the
indicator lamp lights up.
To switch the lighting off
^Push the deflector plate back in.
or
^Press the touch control for the
lighting.
The indicator lamp will go out.
Operation
13

Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the cooktop lighting must be
switched off and the deflector plate
pushed in.
^Press the –and +touch controls at
the same time for approx. 10
seconds until the first power level
indicator lamp lights up in the
display.
^Then press, one after the other,
–the cooktop lighting touch control,
–then the –touch control, and
–the cooktop lighting touch control
again.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off of the Intensive setting is not
activated.
^Press the +touch control to activate
automatic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –touch control to
deactivate the automatic switch-off
function.
^Press the On/Off touch control to
confirm.
Safety cut-out
Should the rangehood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off control will
switch the fan back on again.
Operation
14

,Before any cleaning or
maintenance work is carried out,
disconnect the rangehood from the
mains supply.
Ensure that:
– it is switched off at the wall socket
and the plug is withdrawn, or
– the mains fuse is disconnected ,or
– the screw-out fuse is removed
(in countries where this is
applicable).

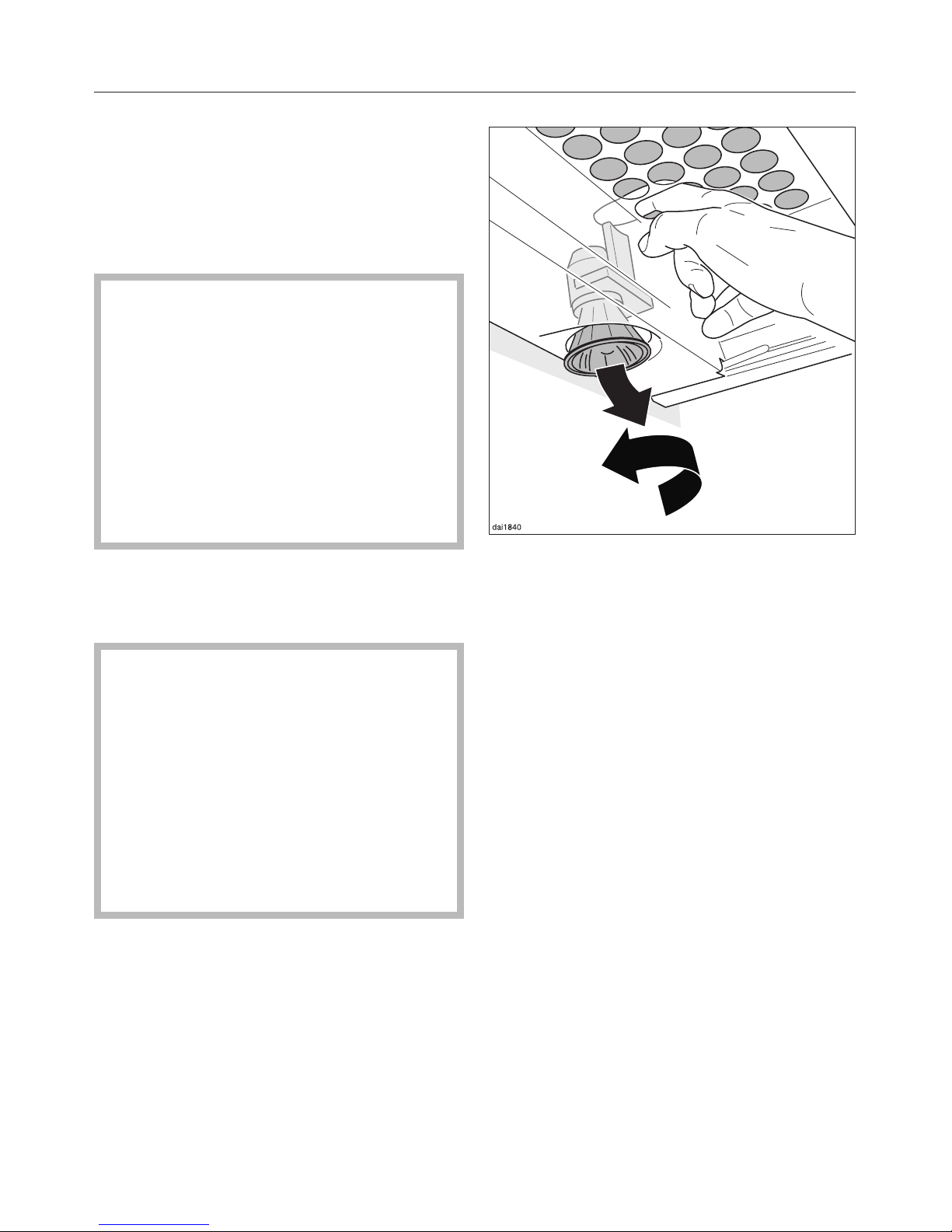

,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease particles
from your fingers will adhere to the
surface and damage it.
The halogen lamps can also be
damaged if water is used to clean
them.
Wait several minutes after switching
off before beginning cleaning.
A range of Miele branded cleaning and
conditioning agents are available to order
through your Miele Chartered Agent, from
Miele or via the internet at
www.miele-shop.com (check availability).
Housing
General notes
Warning: The surfaces and controls
are susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using the Original Miele
all purpose microfibre cloth or warm
water with a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls)
Stainless steel surfaces can be cleaned
with a proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel.
To help prevent re-soiling, a
conditioning agent for stainless steel
can also be used. Follow the
instructions on the label, and apply
sparingly with an even pressure in the
direction of the "grain".
Cleaning and care
15

Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long. Remove
soiling straight away.
Observe the "General notes" on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Important for DFB aluminium
lightshields
(optional accessory)
Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.
Aluminium surfaces may suffer
discolouration or damage if soiling is
left on them for too long. Remove
any soiling straight away.
Observe the "General notes" on
cleaning earlier in this section.
Do not use:
–stainless steel cleaners,
–cleaning agents containing
descaling agents,
–dishwasher detergent,
–oven sprays.
Grease filter
The re-usable metal grease filter in the
appliance removes solid particles from
the kitchen vapours (grease, dust, etc)
preventing soiling of the rangehood.
To avoid a build-up of fat, it should be
cleaned every 3-4 weeks on average,
but sooner if necessary.
,An oversaturated filter is a fire
hazard.

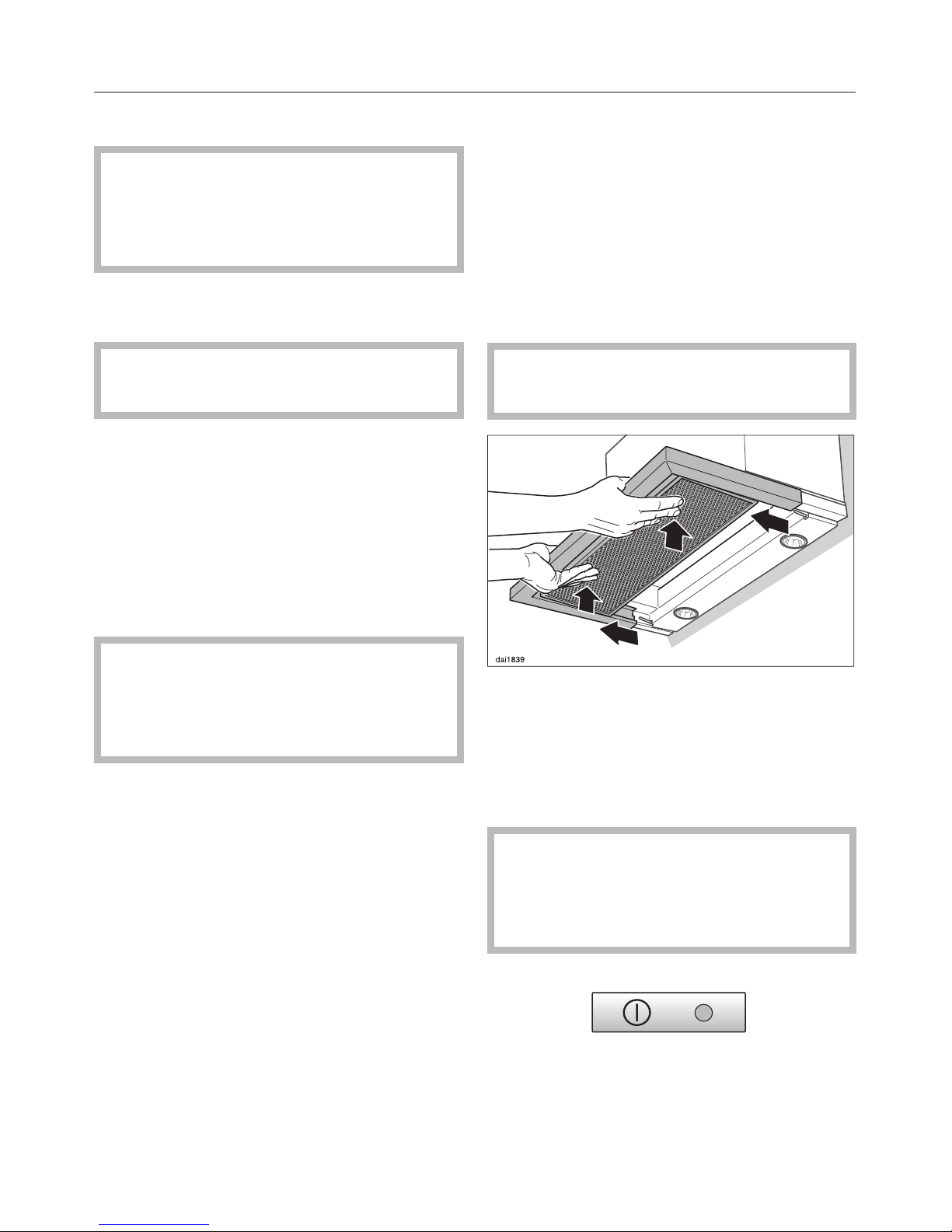

^Grip the front of the deflector plate
together with the grease filter, and
pull outwards as shown.
^Then pull the filter downwards to
remove.
To avoid damaging the filter or the
cooktop below, make sure you hold
the filter securely at all times when
handling it.
^Press the On/Off control to switch the
fan off.
Cleaning and care
16

Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid.
Do not use undiluted washing-up
liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaning
agents,
– oven sprays.
Cleaning the grease filters in the
dishwasher
^Place the filters as upright as
possible in the lower basket. Ensure
the spray arm is not obstructed.
^Do not wash at more than 65 °C. If a
Miele dishwasher is being used,
select the Sensor wash programme.
^Use a mild dishwasher detergent.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^After cleaning, leave the filter to dry
for a while on an absorbent surface
before putting it back in place.
^When removing the filter for cleaning,
also clean off any residues of oil or
fat from the now accessible housing
to prevent the risk of these catching
fire.

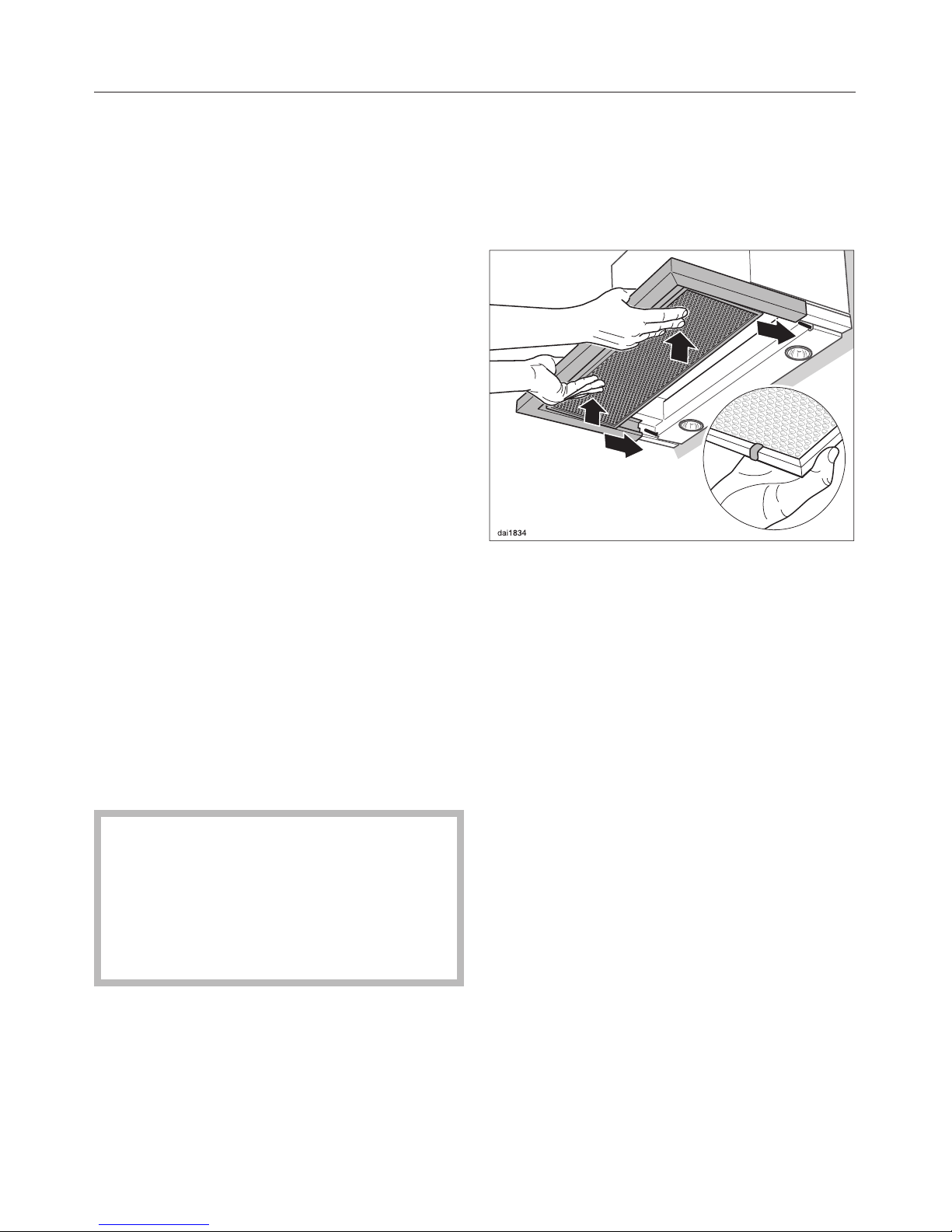

^When putting it back, make sure that
the red plastic guides are at the
front and facing upwards.
^Replace the grease filter in the front
of the deflector plate, press it
upwards and push it in together with
the deflector plate. It will slide onto
the fixing pins at the back. Finally,
push the grease filter back a little
more.
Cleaning and care
17

Fitting and replacing the
charcoal filter
If the rangehood is connected for
recirculation, a charcoal filter (optional
accessory) must be inserted in addition
to the grease filter.
This is designed to absorb cooking
smells.
It is fitted in the canopy above the
grease filter.
Replacement charcoal filters can be
obtained from your Chartered Agent,
from Miele or via the internet at
www.miele-shop.com. See back
cover for contact details, and
"Technical data" for type and
reference number.
Follow the instructions supplied with the
charcoal filter when fitting it.
Replace the charcoal filter at least
every six months or more frequently if
necessary.
Used charcoal filters can be disposed
of with the normal domestic waste.
Cleaning and care
18

Changing a halogen lamp
^Pull out the deflector plate, and
remove the grease filter as described
earlier.
^Switch off the fan and the lighting.
,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease
particles from your fingers will
adhere to the surface and damage
it. Please follow the manufacturer’s
instructions.
^Remove the charcoal filter if the
rangehood is being used in
recirculation mode.
,Before any cleaning or
maintenance work, disconnect the
rangehood from the mains supply.
Ensure that
– it is switched off at the wall socket
and the plug is withdrawn, or
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
^Push down the lighting unit slightly
via the opening in the safety panel.
^The halogen lamp is now accessible
to be unscrewed anti-clockwise.
^Replace it with a new halogen lamp
(specification: GU/GZ 10, 230 V,
50 W). Screw the lamp into the
socket and push it upwards.
Please follow the manufacturer's
instructions.
^Replace the grease filter and, if being
used in recirculation mode, the
charcoal filter.
Cleaning and care
19

DA 3160 DA 3190*
1) In extraction mode: when measuring
for the height of the wall housing unit
and the cut-out, account must be taken
of any accessories fitted, e.g. a
condensate barrier.
2) Recirculation mode requires
installation kit DUU 151.
3) Accessory DSM 400.
* Installation is also possible in a
600 mm wide unit.
Appliance dimensions
20
