Miele DA 362-110 User manual

Operating and Installation
Instructions
Ventilation System
DA 362-110
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 05 810 900

IMPORTANT SAFETY INSTRUCTIONS
Functional description
Guide to t e ood
Operation
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

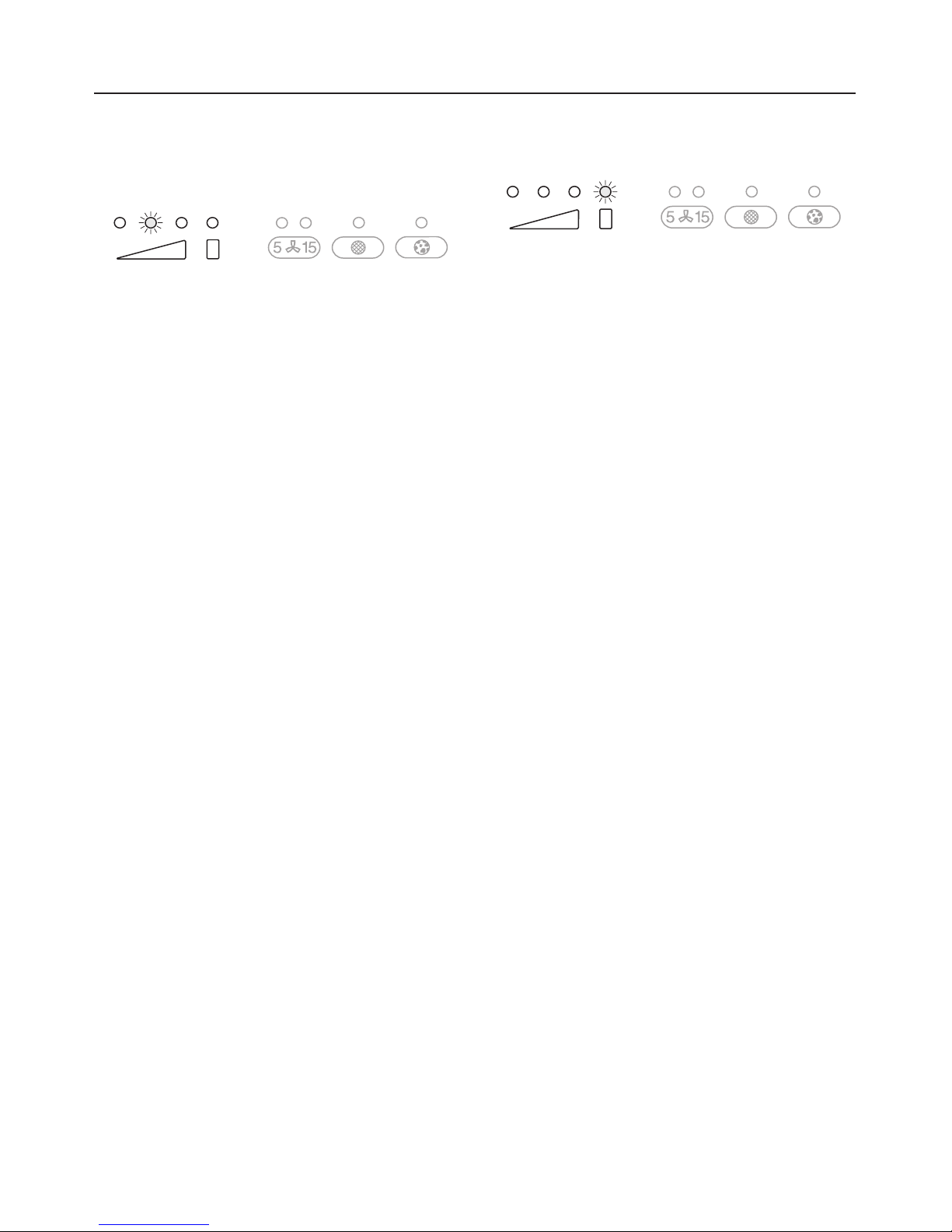

Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Overhead lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Checking the filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Reprogramming the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Active charcoal filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After Sales Service
Installation instructions
Caring for t e environment
Electrical data
Appliance dimensions
Installation
Air extraction mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Recirculation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installing the joystick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Joystick extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Air extraction
Contents
2

Read t ese Operating Instructions carefully before installing or
using t e Ventilation System.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
READ AND SAVE THESE
INSTRUCTIONS
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke and odors only.
Be certain your appliance is
properly installed and grounded by
a qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
can not be held responsible for
damages caused by the lack, or
inadequacy of, an effective grounding
system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent machine
damage. Consult a qualified electrician
if in doubt.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
3

This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or
aircraft. However, under certain
conditions it may be possible for an
installation in these applications. Please
contact the nearest Miele dealer or the
Technical Service Department with
specific requirements.
Before servicing or cleaning the
unit, switch power off at the service
panel and lock the service
disconnecting means to prevent power
from being switched on accidentally.
When the service disconnecting means
can not be locked, securely fasten a
prominent warning device, such as a
tag, to the service panel.
Before discarding an old
appliance, unplug it from the
power supply and remove the power
cord and any doors to prevent hazards.
Use
Do not allow children to play with
or operate the appliance or its
controls. Supervise its use by the
elderly or infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction or grease filters may
catch fire.
Never operate gas burners without
pots.
Do not leave cooking surfaces
unattended while in use.
Overheated food, oil and grease can
catch fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could
penetrate electrical components and
cause a short circuit.
In areas subject to infestation by
cockroaches or other pest, keep
the appliance and its surroundings
clean at all times. Any damage caused
by cockroaches or other pest will not
be covered under warranty.
Always turn on the hood when
using the cooktop to prevent
damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
4

,WARNING - TO REDUCE
THE RISK OF A RANGE TOP
GREASE FIRE:
Never leave surface units
unattended at high settings.
Boilovers cause smoking and greasy
spillovers may ignite. Heat oils slowly
on low or medium settings.
Always turn the hood “ON” when
cooking at high heat or when
cooking flaming foods.
Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on the fan or filter.
Use proper pan size. Always use
cookware appropriate for the size
of the surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN - You may be burned.
DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
ONLY if:
– You know you have a Class ABC
extinguisher, and you already know
how to operate it.
–The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
5

Installation
,WARNING
To reduce t e risk of fire only
use metal ductwork.
When installing the hood, follow the
recommended minimum safety
distances between a Miele cooktop and
the hood:
–22" (55 cm) above electric cooktops,
–26" (65 cm) above gas cooktops,
–26" (65 cm) above an open grill.
If local building codes require a greater
safety distance, follow their
requirement.
For non-Miele cooking appliances
maintain the safety distances
recommended by the appliance
manufacturer in their instructions.
If there is more than one appliance
beneath the hood and they have
different minimum safety distances
always select the greater distance.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be
vented outdoors.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric
heating appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the
heating manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
6

The ventilation hood offers two modes
of operation:
. . . Air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur.
When the hood is turned on, the air
pressure of the exhaust fan auto-
matically opens the flap blowing the
inside air and cooking odors outside.
. . . Recirculation mode:
Air is drawn through the grease filters
and active c arcoal filters. The filtered
air is then recirculated back into the
kitchen through a vent at the top of the
hood’s chimney.
The active charcoal filters may be
purchased from your Miele dealer or
Miele’s Technical Service Department.
Before using the hood in
recirculation mode, ensure that the
active charcoal filters are in place,
see "Cleaning and Care".
Functional description
7

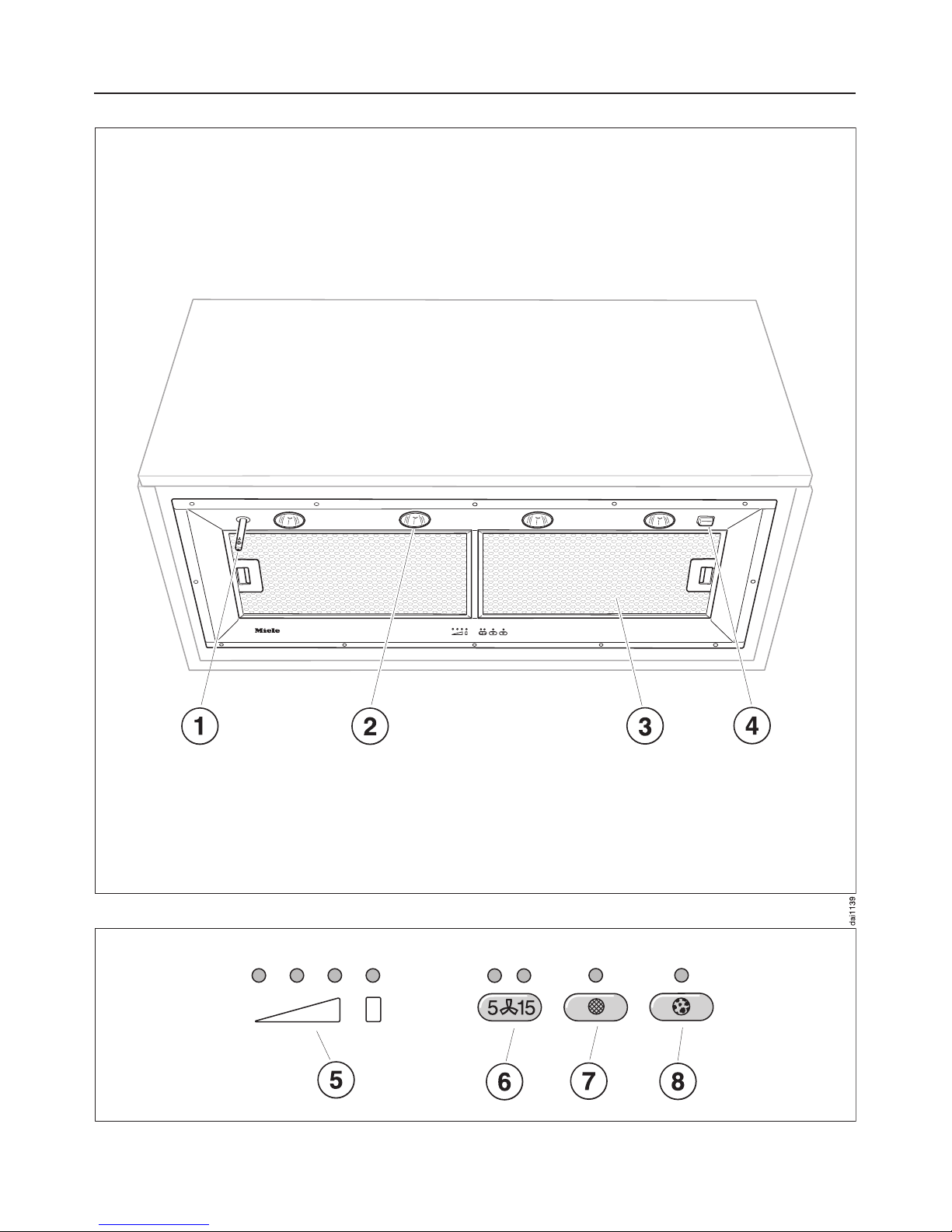

Guide to t e ood
8

aJoystick
The fan and light can be operated with
the joystick.
bOver ead lig ting
cGrease filter
dMain power switc
eFan power scale
fDelay S ut Down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.

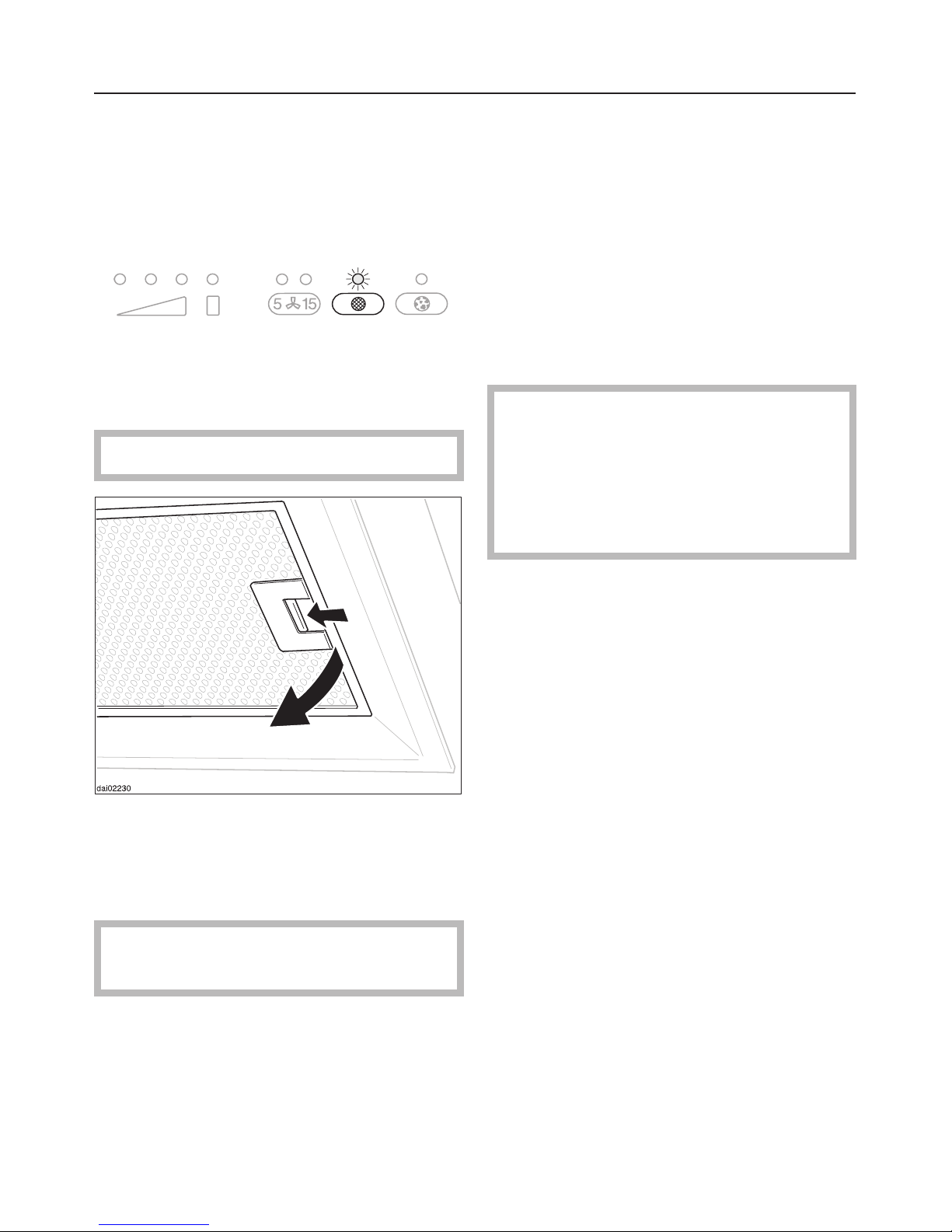

Grease filter button
The indicator above the grease filter
button lights when the grease filters
need to be cleaned.
The button is also used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation /
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
filter timers").
hC arcoal filter button
The indicator above the charcoal filter
button lights up when the charcoal
filters need to be replaced.
The button is also used:
–to reset the charcoal filter timer after
changing the filters (see "Cleaning
and Care").
–to show how long the charcoal filters
have been in use (see "Operation /
Filter timers").
–to change the number of hours
counted by the charcoal filter timer
(see "Operation / Reprogramming the
filter timers").
Guide to t e ood
9

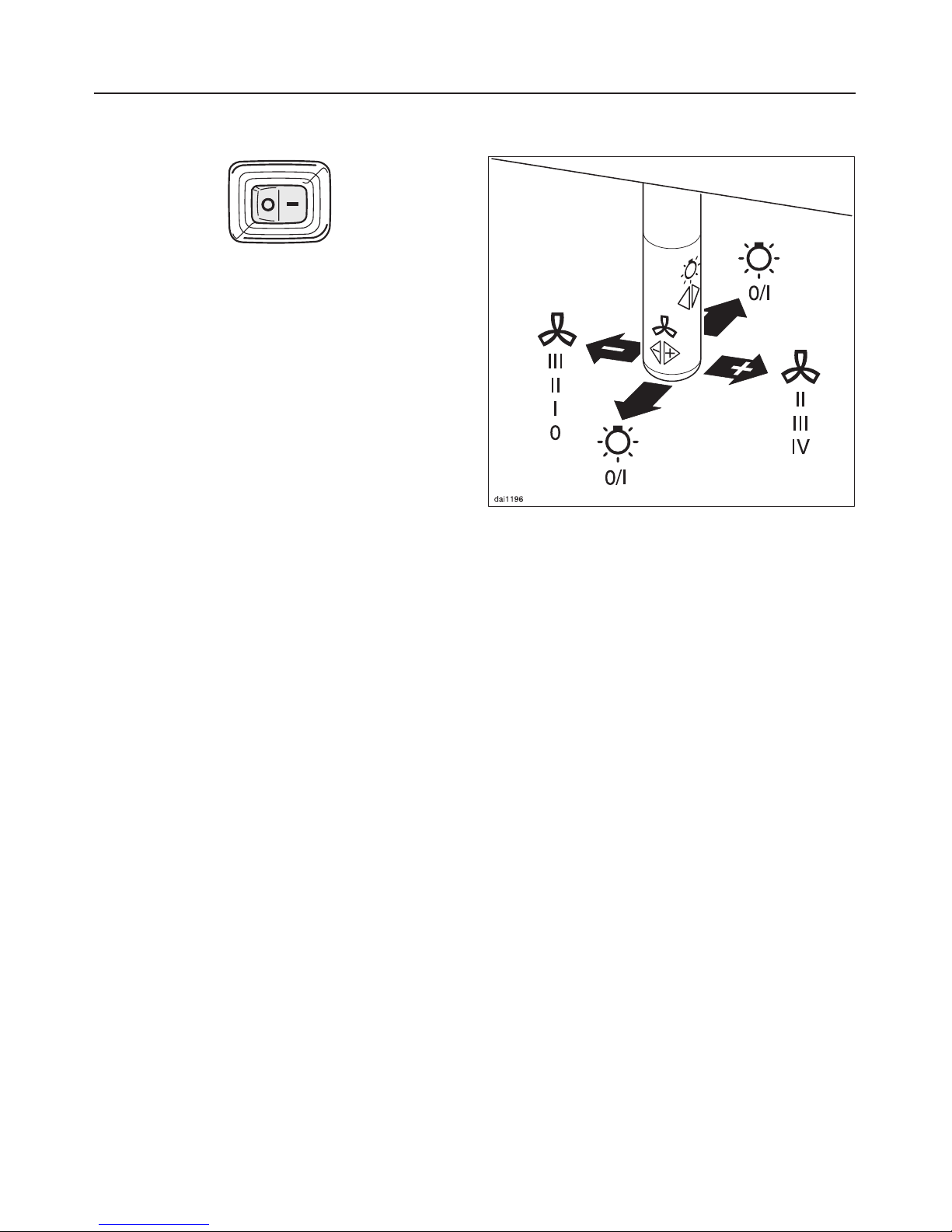

Main power switc
Press the main power switch to "I" to
use the fan and lighting.
If the appliance is not going to be used
for a long period of time (e.g. while
vacationing) it should be turned off ("0")
at the main power switch.
The next time it is turned on, the hood
will operate at the level previously used.
Joystick
The joystick controls the fan power and
overhead lighting.
Operation
10

Turning on t e fan
^Press the joystick once to the right.
The fan runs at power level “lI” and the
second indicator of the fan power scale
lights.
Selecting t e power level
^Press the joystick to the right, to
increase the fan speed.
The corresponding indicator of the fan
power scale lights.
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Intensive setting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Fan performance
The maximum air flow capacity is
850 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filter.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Operation
11

Delayed S ut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be
selected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running:
Press once = 5 minutes delay
(left indicator lights)
Press twice = 15 minutes delay
(right indicator lights)
To cancel the Delayed Shut Down
feature press the button again.
Turning off t e fan
^Hold the joystick to the left until the
fan shuts off and the fan power scale
indicators go out.
Automatic Safety S ut Off
The fan will turn off automatically 10
hours after the last movement of the
joystick. The lighting remains on.
^Press the joystick once to the right to
turn the fan back on again.
Over ead lig ting
The overhead lighting can be turned on
and off independently of the fan.
^To turn the light on or off, press the
joystick either once backwards or
once forwards.
Operation
12

Filter timers
Grease filter timer
A timer monitors the hours of operation.
The indicator for the grease filter will
light after 30 hours of fan operation. The
grease filters must then be cleaned.
After the grease filter has been cleaned
and put back in place, the grease filter
timer must be reset.
^To do this press the grease filter
button for about 3 seconds.
The indicator will go out.
To change the hours of operation, see
"Reprogramming the timers".
C arcoal filters
The timer for the charcoal filter is not
preset. Please program this timer, see
"Operation / Reprogramming the
charcoal filter timer". The charcoal filter
indicator will light once the selected
time has elapsed. The c arcoal filters
must then be replaced and the
charcoal filter timer must be reset.
^To do this, press the charcoal filter
button for about 3 seconds.
The indicator will go out.
C ecking t e filter timers
To check the percentage of time set
already used:
^Press the joystick to the left to turn
the fan on.
^Press the grease filter or charcoal
filter button.
The number of flashing indicators show
the percentage of programmed hours
that have been used.
1 indicator = 25 %
2 indicators = 50 %
3 indicators = 75 %
4 indicators = 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
13

Reprogramming t e timers
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be
programmed in kitchens with
frequent pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally. Otherwise grease
which has accumulated over a long
period of time will harden on the
filters making cleaning more difficult.
Reprogramming t e grease filter
timer
^Press the joystick to the left to turn
the fan off.
^Press the Delayed Shut Down and
the grease filter buttons at the same
time.
The indicator for the grease filter and
one of the fan power scale indicators
will flash.
The indicators of the fan power scale
show the programmed time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the joystick to select the desired
time. Press it to the left for a shorter
operating time, to the right for a
longer operating time.
^Store the selection by pressing the
grease filter button.
All indicators will go out.
If the procedure is not stored within 4
minutes of programming the hood will
automatically default to the “old” data.
Operation
14

Reprogramming t e c arcoal filter
timer
The active charcoal filter can only be
used in recirculation mode and can not
be used to exhaust fumes.
The charcoal filter timer is not preset.
Before using the hood in recirculation
mode, the charcoal filter timer must be
programmed.
^Press the joystick to the left to turn
the fan off.
^Press the Delayed Shut Down and
charcoal filter buttons at the same
time.
The indicator for the charcoal filter and
one of the fan power scale indicators
will flash.
The indicators of the fan power scale
show the programmed time:
1st indicator from the left = 120 hours
2nd indicator from the left= 180 hours
3rd indicator from the left= 240 hours
4th indicator from the left = infinite
^Use the joystick to select the desired
time. Press it to the left for a shorter
operating time, to the right for a
longer operating time.
^Store the selection by pressing the
charcoal filter button.
All indicators will go out.
If the procedure is not stored within 4
minutes of programming, the hood will
automatically default to the “old” data.
Operation
15

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet or
manually "tripping" the circuit
breaker.
Cleaning t e casing
Warning: Never use abrasive
cleansers, scouring pads, steel wool
or caustic (oven) cleaners on the
hood. They will damage the surface.
^All external surfces and controls can
be cleaned with warm water and
liquid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainless steel colored controls
These controls may become dis-
colored or damaged if not cleaned
regularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and care
16

Grease filters
The reusable metal grease filters
remove solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every 3-4 weeks or whenever the
grease filter indicator lights.
A dirty filter is a fire hazard.
^To remove the grease filters press the
locking clips in towards the middle of
the filter. Holding carefully, lower and
remove the filter.
Be careful not to drop the filter onto
the cooktop while removing.
Cleaning t e grease filters
^Clean the filters:
–by and: use a scrub brush in warm
water with a mild detergent.
–in a dis was er: place the filters
vertically and diagonally in the lower
basket. If necessary adjust the upper
basket. Make sure that the spray arm
can rotate freely.
Depending on the detergent,
cleaning the grease filters in a
dishwasher may cause permanent
discoloration of the filter surface.
Performance of the filter will not be
affected by this discoloration.
^After cleaning, leave the filters on a
towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter
casing to prevent the risk of fire.
Cleaning and care
17

Inserting t e grease filters
When putting the grease filters back
make sure that the locking clips are
visible facing down towards the
cooking surface.
If the filters are incorrectly installed,
insert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press the grease filter button for 3
seconds to reset the timer. The
indicator light will go out.
^If the grease filters are cleaned
before the grease filter timer has
reached its maximum, the grease
filter button should be pressed for 6
seconds to reset the counter to zero
Cleaning and care
18

Active c arcoal filters
In recirculation mode four active
charcoal filters must be used in
addition to the grease filters. The
charcoal filters are designed to absorb
cooking odors. The are placed in the
canopy above the grease filters.
Active charcoal filters can be ordered
from Technical Service.
USA 1-800-999-1360
CDN 1-800-565-6435
Please quote part # 03 174 713
^The grease filters must be removed
to acces the active charcoal filters
(see "Cleaning and Care / Grease
filters").
^Insert the charcoal filters and fasten
with the enclosed screws.
^Return the grease filters.
Before using:
^Program the charcoal filter timer, see
"Operation/Reprogramming the
charcoal filter timer".
Replace the active charcoal filters when
the charcoal filter indicator lights. These
filters should be replaced at least every
6 months or when they no longer
absorb odors efficiently.
^After replacing the charcoal filters,
press and hold the charcoal filter
button for 3 seconds to reset the
timer. The indicator light will go out.
^If the charcoal filters are replaced
before the timer has reached its
maximum, the charcoal filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and care
19

C anging t e lig t bulb
Before changing the light bulb,
disconnect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, and they can burn
your hands. Do not attempt to
change the bulbs until they have
had sufficient time to cool down.
Do not touch the bulb surface.
Fingerprints or body oils deposited
on the bulb will decrease the life of
the bulb.
Follow the bulb manufacturer’s
instructions.
^Remove the grease filter.
^Loosen the bulb’s fixing screw and
slide it downwards.
^Tighten the screw.
^Turn the bulb to the left and pull it
downwards.
^Install the new bulb in reverse order.
^Return the grease filters.
Cleaning and care
20
