Miele AWG 102 User manual

Installation instructions
External motor
Roof installation
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 10 695 710

Contents
2
Warning and Safety instructions.......................................................................... 3
Caring for the environment .................................................................................. 9
Installation............................................................................................................ 10
Before installation.................................................................................................. 10
Installation recommendations ............................................................................... 10
AWG 102 ............................................................................................................... 11
DDG 102................................................................................................................ 14
ABLG 202 .............................................................................................................. 17
DDF 125/150 ......................................................................................................... 19
Connection for air extraction ............................................................................. 20
Silencer.................................................................................................................. 21
After Sales / Warranty ......................................................................................... 22
Position of the data plate ...................................................................................... 22
Electrical connection .......................................................................................... 23
Technical data...................................................................................................... 24
AWG 102 ............................................................................................................... 24
ABLG 202 .............................................................................................................. 25
DDG 102................................................................................................................ 26

Warning and Safety instructions
3
This external motor complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and damage to property.
Please read these operating and installation instructions carefully
before using the external motor for the first time. They contain
important information on the safety, installation, use and
maintenance of the appliance. This prevents both personal injury
and damage to the external motor. Miele cannot be held liable for
damage caused by non-compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
This external motor is intended for use in domestic households
and similar working and residential environments.
This external motor must only be used in conjunction with a Miele
"... EXT" model cooker hood.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
All other types of use are not permitted.

Warning and Safety instructions
4
Technical safety
Unauthorised installation, maintenance and repairs can cause
considerable danger for the user. Installation, maintenance and
repairs must only be carried out by a Miele authorised technician.
A damaged external motor could be dangerous. Check the
appliance for visible signs of damage. Do not use the external motor
if it is damaged.
The electrical safety of this external motor can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is most important that this basic safety requirement is
present and tested regularly. If in doubt, consult a suitably qualified
electrician.
Reliable and safe operation of this external motor can only be
assured if it has been connected to the mains electricity supply.
The connection data (voltage and frequency) on the data plate of
the external motor must match the mains electricity supply in order
to avoid the risk of damage to the motor.
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Multi-socket adapters and extension leads do not guarantee the
required safety of the appliance (fire hazard). Do not use them to
connect your appliance to the mains.

Warning and Safety instructions
5
For safety reasons, the external motor may only be used when it
has been fully installed.
This external motor must not be installed and operated in mobile
installations (e.g. on a ship).
Any contact with live connections or tampering with the electrical
or mechanical components of the external motor will endanger your
safety and may lead to appliance malfunctions.
Only open the housing as described in these installation instructions.
Under no circumstances should any other parts of the housing be
opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
Miele can only guarantee the safety of the appliance when
genuine original Miele replacement parts are used. Faulty
components must only be replaced by Miele spare parts.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised service technician to protect the user from
danger.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– the screw-out fuse is removed (in countries where this is
applicable), or
– it has been switched off at the isolator, or switched off at the wall
socket and the plug withdrawn. Do not pull on the cable, but pull
the plug instead in order to do this.

Warning and Safety instructions
6
Using at the same time as other heating appliances that depend on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the external motor in the
same room or the same area of the house as another heating
appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The external motor draws in air from the kitchen and from
neighbouring rooms.
If there is insufficient air, an underpressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room, with potentially fatal consequences.
Risk of death!

Warning and Safety instructions
7
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room, when
the external motor and the heater are both operated
simultaneously, an underpressure in the room of 0.04mbar (4Pa)
is the maximum permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
diameter of the inlet openings must enable sufficient ventilation. A
ventilation brick alone is not generally sufficient to ensure safe
ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, the advice of a competent builder, or for
gas, a qualified gas fitter should be sought.

Warning and Safety instructions
8
Correct installation
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which
is in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.

Caring for the environment
9
Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances, or contact your dealer or
Miele for advice. You are also
responsible (by law, depending on
country) for deleting any personal data
that may be stored on the appliance
being disposed of. Please ensure that
your old appliance poses no risk to
children while being stored prior to
disposal.

Installation
10
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
"Warning and Safety instructions" at
the beginning of this booklet.
Installation recommendations
– Make sure that the installation
location is easily accessible.
Installation work must be able to be
carried out without danger. This is
also important if the appliance needs
to be serviced.

Installation
11
AWG 102
The AWG 102 external motor is
designed to be installed on an outside
wall.
The external motor must be installed
on the outside wall in a vertical
position only. The extraction outlet
must face downwards.
The external motor is connected to the
cooker hood by means of a control
cable and is operated by the controls
on the cooker hood.
Please refer to the operating and
installation instructions for the
cooker hood before installing the
external motor and ducting.
Unscrew the 2 fixing screws on the
underside of the external motor and
take the motor unit off of its fixing
bracket.
The ducting collar on the motor unit has
a diameter of 125 mm when the
appliance is supplied.
If a diameter of 150mm is required,
the front ring of the collar must be cut
at the join with a sharp knife.

Installation
12
Make a 185 mm hole in the wall.
Push the telescopic wall pipe into the
hole so that it is sitting flush.
The telescopic wall pipe will make it
easier to feed the control cable and
the flexible ducting through later on.
Position the motor unit bracket on the
outside wall. The control cable
connection must be at the bottom.
Mark the position of the 3 holes to be
drilled.
Drill three 8 mm holes and insert
S8 plugs in the holes.
Connect the 3mountings through the
fixing holes in the motor unit bracket
as illustrated.
Position the bracket onto the outside
wall again and feed the control cable
with the six-pole connectors through
the telescopic wall pipe into the
house.
If equipotential bonding is required,
pull the earth cable through the hole
provided in the motor unit bracket.
Equipotential bonding is required if
the control cable is to be extended
by more than the length of the
extension cable supplied (see
"Electrical connection").

Installation
13
Feed the flexible ducting through the
telescopic wall pipe and secure it to
the collar on the motor unit fixing
bracket with a hose clip.
Secure the bracket to the external
wall with 3screws.
Extend the flexible ducting from the
inside of the wall along the wall pipe
and seal the gap between the ducting
and the wall pipe with jointing
compound.
Refit the motor unit and secure with
the 2screws on the underside of the
external motor.
Connect the control cable plug
connectors.
Use the extension cable supplied to
lengthen the connection cable if
necessary.

Installation
14
DDG 102

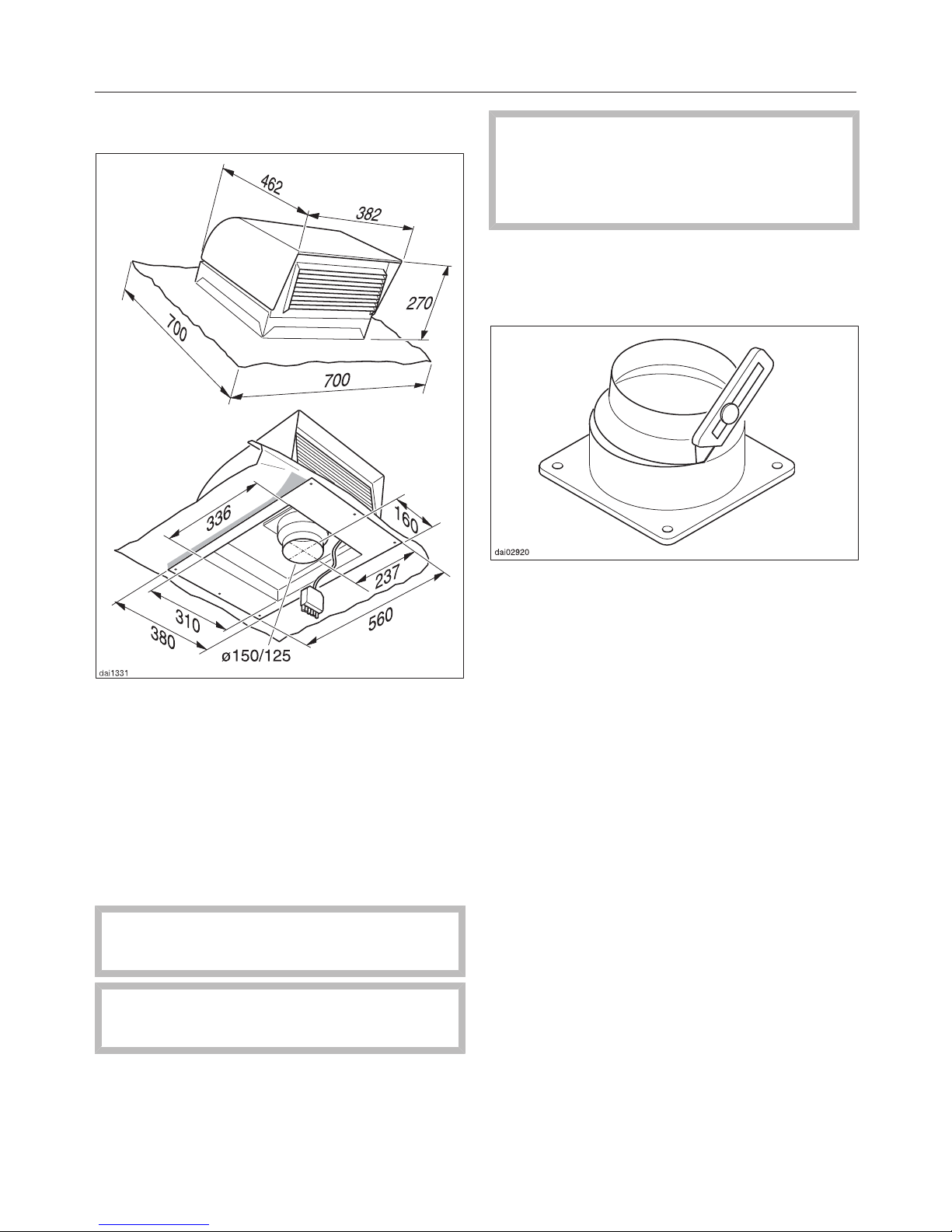

The DDG102 is designed for
installation on angled tiled, pantiled,
slate or shingle roofs. The slope of the
roof must be at least 22° to prevent the
ingress of the elements, such as rain or
snow.
Consult a roofing expert for advice
regarding other types of roofing.
This motor unit is not suitable for
installation on a flat roof.
Installation must only be carried out
by a qualified and competent person.
The external motor is connected to the
cooker hood by means of a control
cable and is operated by the controls
on the cooker hood.
Please refer to the operating and
installation instructions for the
cooker hood before installing the
external motor and ducting.
The ducting collar on the motor unit has
a diameter of 125 mm when the
appliance is supplied.
If a diameter of 150mm is required,
the front ring of the collar must be cut
at the join with a sharp knife.

Installation
15

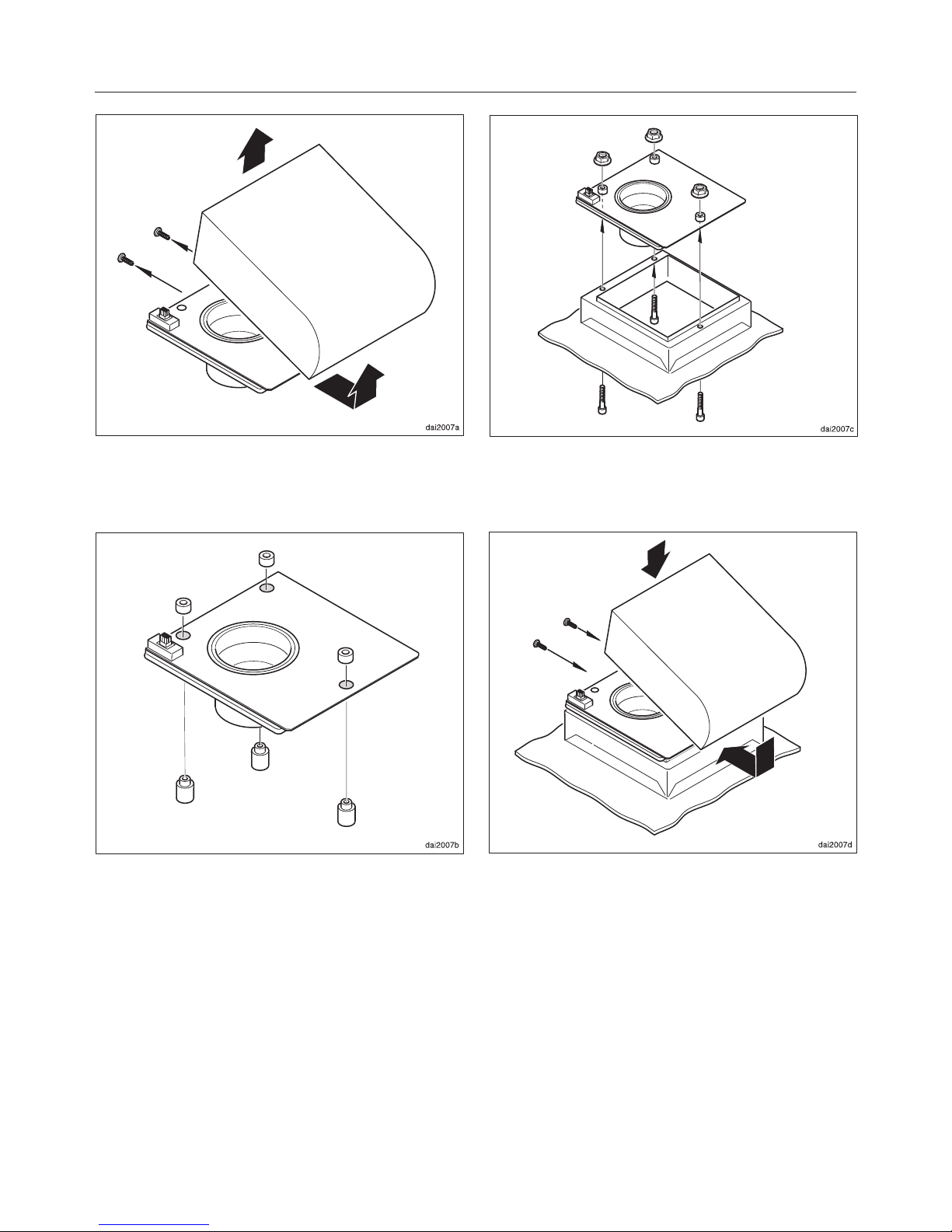

Unscrew the two fixing screws and
remove the motor unit from the base
plate.
Fit the three bushes supplied to the
base plate.
Secure the base plate to the
mounting frame with the screws and
nuts supplied.
Refit the motor unit.

Installation
16
Remove the roofing around the
installation area.
Bend the flashing upwards.
Position the motor unit on the roof
with the air outlet directed down the
roof.
Secure the motor unit to the roof
substructure with the fixing plate .
Replace the roofing. Press down on
the flashing to ensure that it creates a
proper seal.
The flashing should be fitted under
the roofing at the top of the motor
unit and above the roofing at the
sides and bottom of the motor unit.
If equipotential bonding is required,
connect the earth cable to the
connection point provided on the
casing.
Equipotential bonding is required if
the control cable is to be extended
by more than the length of the
extension cable supplied (see
"Electrical connection").
Push the flexible ducting onto the
connection on the motor unit and
secure it with a hose clip.
Connect the control cable plug
connectors.
Use the extension cable supplied to
lengthen the connection cable if
necessary.
When feeding the cable and the
exhaust ducting through the
substructure of the roof, be careful to
ensure that any gaps are sealed up
properly afterwards.

Installation
17
ABLG 202
1)Suction side

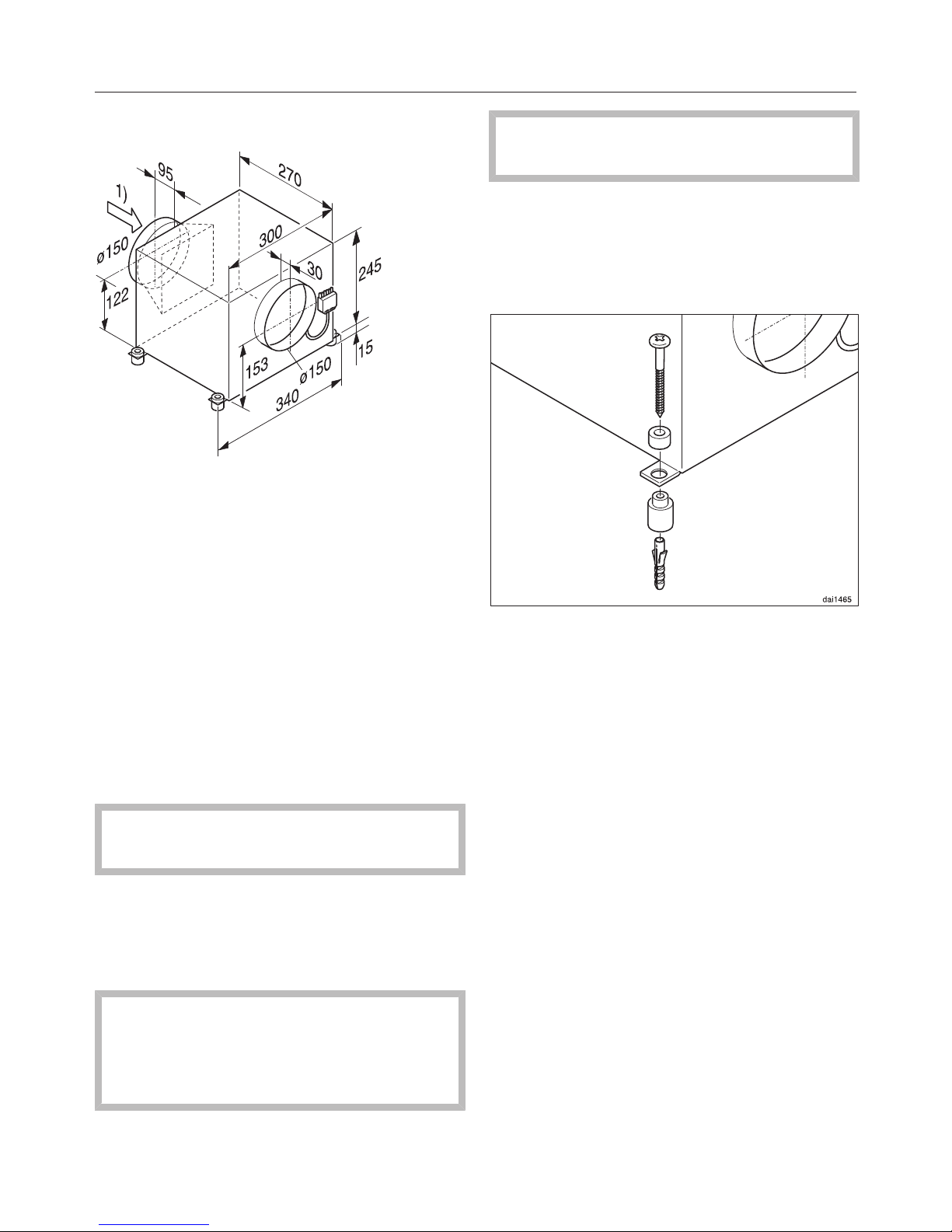

The ABLG 202 external motor is
designed for installation inside the
house. Possible locations:
– In the attic or ceiling space
– In an adjoining room, e.g. a pantry or
garage
– In the kitchen, if sufficient insulation
is used
It can be installed horizontally or
vertically.
If installing vertically please observe
the instructions on the next page.
The external motor is connected to the
cooker hood by means of a control
cable and is operated by the controls
on the cooker hood.
Please refer to the operating and
installation instructions for the
cooker hood before installing the
external motor and ducting.
Position the external motor in a
suitable location.
Pay particular attention to the
direction of the ducting
Mark the positions for the four motor
base plate holes on the installation
surface.
Place the motor to one side.
Drill 48mm holes in the positions
marked to a depth of 40mm for
securing the external motor.
Press S 8 plugs into the drill holes so
that they are flush.
Connect the 3mountings through the
fixing holes in the motor unit base
plate as illustrated.
Secure the motor with the screws
supplied.

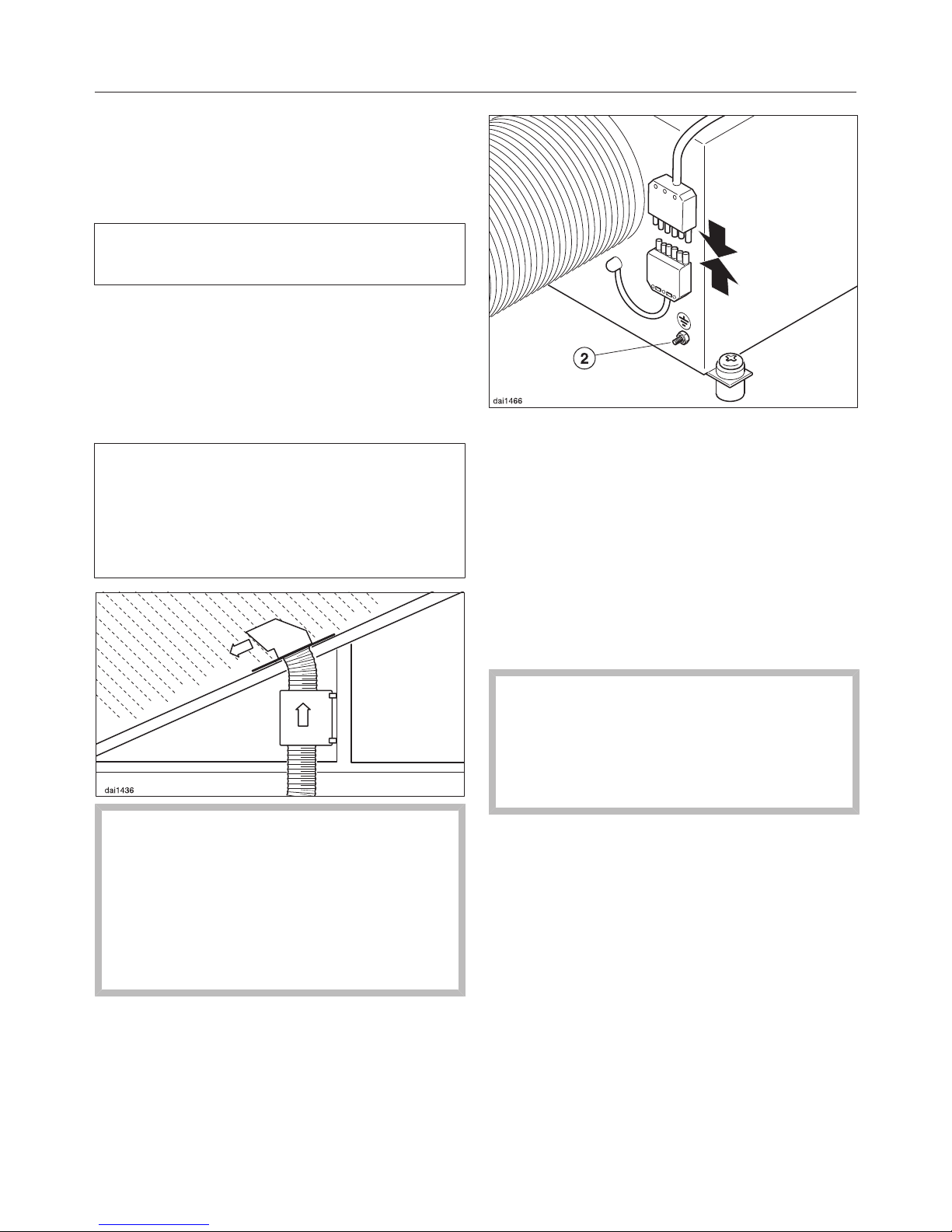

Installation
18
The ducting collar on the motor unit has
a diameter of 150mm as standard.
If a diameter of 125mm is required a
reducing collar must be used.
A reducing collar is available to order
from Miele or from your Miele supplier.
Push the flexible ducting onto the
connection on the motor unit and
secure it with a hose clip.
Ducting with a diameter of 150mm is
then connected to the exhaust side.
If the exhaust air is to be ducted into
the open air, a telescopic wall vent kit
can be used. A telescopic wall vent kit
is available to order from Miele or from
your Miele supplier.
If the motor is installed vertically with
the exhaust ducting venting over a
roof, a roof vent kit DDF 125/150 or
similar measures must be used to
prevent the elements such as
rainwater or snow penetrating the
exhaust opening.
Connect the control cable plug
connectors.
Use the extension cable supplied to
lengthen the connection cable if
necessary.
If equipotential bonding is required,
connect the earth cable to the
connection point provided on the
casing.
Equipotential bonding is required if
the control cable is to be extended
by more than the length of the
extension cable supplied (see
"Electrical connection").

Installation
19

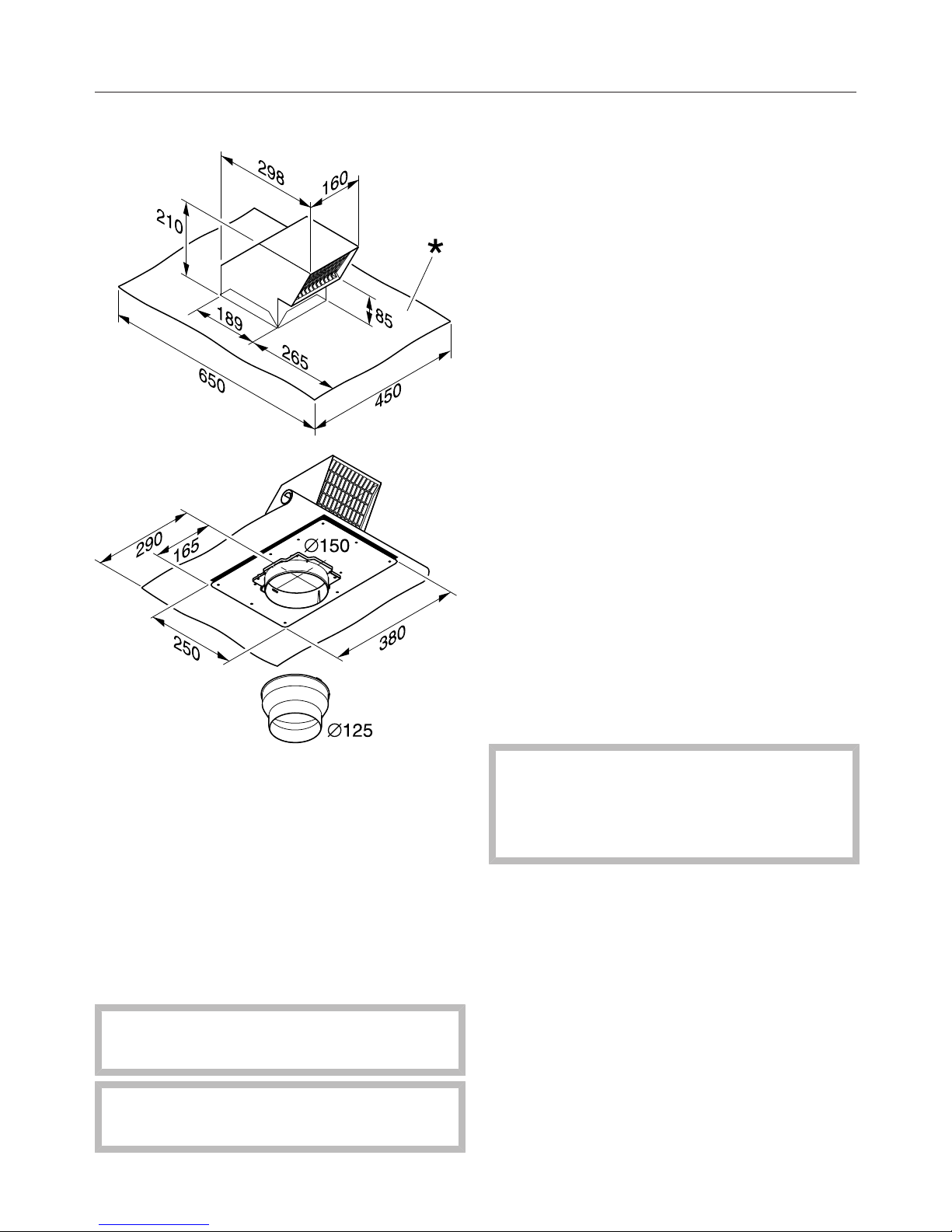

DDF 125/150
*Flashing
The DDF 125/150 roof vent is designed
for installing ducting through pitched
tiles, pantiled, slate or shingle roofs.
The slope of the roof must be at least
22° to prevent the ingress of the
elements, such as rain or snow.
Consult a roofing expert for advice
regarding other types of roofing.
This motor unit is not suitable for
installation on a flat roof.
Installation must only be carried out
by a qualified and competent person.
Remove the roofing around the
installation area.
Bend the flashing* upwards.
Position the roof vent on the roof with
the air outlet directed down the roof.
Secure the roof vent to the roof
substructure with the fixing plate.
Replace the roofing. Press down on
the flashing to ensure that it creates a
proper seal.
The flashing should be fitted under
the roofing at the top of the roof vent
and above the roofing at the sides
and bottom of the roof vent.
The ducting collar on the roof vent has
a diameter of 150mm as standard.
If a diameter of 125mm is required the
reducing collar supplied must be used.
Push the flexible ducting onto the
connection on the roof vent and
secure it with a hose clip.
It has an integrated non-return flap.
When feeding the exhaust ducting
through the substructure of the roof,
be careful to ensure that any gaps
are sealed up properly afterwards.

Connection for air extraction
20
Use smooth pipes or flexible ducting
made from approved non-flammable
materials for exhaust ducting.
To achieve the most efficient air
extraction with the lowest noise
levels, please note the following:
– The cross-section of the exhaust
ducting must not be smaller than the
cross-section of the exhaust
connection (see "Appliance
dimensions").
– The exhaust ducting should be as
short and straight as possible.
– Only use wide radius bends.
– The exhaust ducting must not be
kinked or compressed.
– Ensure that all connections are
strong and airtight.
Remember that any constriction of
the air flow will reduce extraction
performance and increase operating
noise.
If the exhaust air is to be ducted into
a flue, the ducting must be directed in
the flow direction of the flue.
Where ducting is horizontal, it must
be laid to slope away at at least 1 cm
per metre. This is to ensure that
condensate cannot drain back into
the cooker hood.
If the exhaust ducting is to run
through rooms, ceiling space etc.
where there may be great variations
in temperature between the different
areas. The problem of condensation
will need to be addressed. The
exhaust ducting will need to be
suitably insulated.
Other manuals for AWG 102
1
This manual suits for next models
4
Table of contents
