Miele EGW 602-14 User manual

Operating and installation instructions
Built-in plate warmer
EGW 602 - 14
To prevent accidents and
machine damage, read UV
these instructions
before
installation or use. M.-Nr. 05 478 600

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Guide to the plate warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Warming dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Loading the drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting a temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Warming times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mat with non-slip surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
lectrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Steam oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Coffee machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Aligning the front of the plate warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contents
2

This appliance is intended for resi-
dential use only. Only use the appli-
ance for its intended purpose.
Improper use of the appliance can
lead to personal injury and material
damage. The manufacturer cannot
be held responsible for damages
caused by improper use of the plate
warmer.
This appliance complies with current
safety requirements.
Read all instructions before installing
or using for the first time.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Read all operating and installation
instructions for any other appliance
installed in combination with the
plate warmer.
R AD ALL INSTRUCTIONS!
Technical safety
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
The electrical safety of this appli-
ance can only be guaranteed when
continuity exists between the appliance
and an effective grounding system,
which complies with local and national
safety regulations. It is imperative that
this basic safety requirement is tested
by a qualified electrician. The manufac-
turer cannot be held responsible for the
consequences of an inadequate
grounding system (e.g. electric shock).
This appliance must only be used
once it has been installed in
cabinetry to ensure that all electrical
components are shielded.
Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
dangerous and can cause machine
damage.
Warning and Safety instructions
3

Do not operate any appliance with
a damaged cord or plug or after
the appliance malfunctions or has been
damaged in any manner. Return the ap-
pliance to the nearest authorized servi-
ce facility for service.
Installation, repair and mainte-
nance work should be by a Miele
authorized service technician. Work by
unqualified persons could be danger-
ous and may void the warranty.
Before installation or service, dis-
connect the power supply to the
work area by removing the fuse, “trip-
ping” the circuit breaker, or unplugging
the unit.
Do not connect the appliance to
the electricity supply by an exten-
sion cord. Extension cords do not guar-
antee the required safety of the appli-
ance, e.g danger of overheating.
Use
The temperature in the drawer can
reach up to approx. 176 °F (80 °C)
depending on the temperature selected
and how long the appliance has been
on.
Do not touch hot surfaces. Use handles
or knobs.
Use heat-resistant oven mitts when re-
moving dishes.
Keep children away from the appli-
ance and its controls. Supervise its
use by the elderly or infirm. The appli-
ance can get very hot during use. Dan-
ger of burns!
Ensure that adults understand how
the appliance works before allow-
ing them to use it.
Do not use the plate warmer to
re-heat, cook or keep food or
drinks warm. The condensation from
food or drinks could lead to moisture
damage in the appliance.
Do not lean or sit on the warming
drawer. This will damage the
drawer which can only hold a maximum
of 55 lbs. (25 kg).
Do not store anything in the warm-
ing drawer. Forgotten items could
melt or catch fire when the appliance is
turned on. Flammable liquids and mate-
rials should never be stored in, above
or under the plate warmer.
To prevent injuries, do not use ac-
cessories not recommended by
Miele.
Before cleaning the appliance, trip
the circuit breaker and allow the
appliance to cool.
Warning and Safety instructions
4

General notes
Children should not be left alone or
unattended in an area where an
appliance is in use. They should never
be allowed to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above or in the
plate warmer. Children climbing on the
appliance to reach these items could
be seriously injured.
Wear proper clothing. Loose-fitting
or hanging garments should never
be worn while using the plate warmer.
Use only dry, heat resistant pot
holders. Moist or damp pot holders
used on hot surfaces may result in
steam burns. Do not substitute towels
or other bulky items for pot holders.
Do not use the appliance to heat
the room. Due to the high tempera-
tures radiated, objects left near the ap-
pliance could catch fire.
Under no circumstances use a
steam cleaner to clean this appli-
ance. The steam could penetrate elec-
trical components and cause a short
circuit.
In areas subject to infestation by
cockroaches or other vermin, keep
the appliance and its surroundings
clean at all times. Any damage caused
by pests will not be covered by the ap-
pliance warranty.
Do not use outdoors.
Disposal of an old appliance
Before discarding an old appli-
ance, disconnect the power cord
and remove any doors to prevent haz-
ards.
Warning and Safety instructions
5

Disposal of the packing
material
The transport and protective packing
materials are environmentally friendly
for disposal and may be recyclable.
Ensure that any plastic wrap is dis-
posed of safely and kept out of the
reach of babies and young children.
Danger of suffocation!
Please recycle.
Disposal of an old appliance
Old appliances contain materials which
can be recycled. Please contact your
local recycling center about potential
recycling.
Ensure that the appliance presents no
danger to children while waiting for dis-
posal. See the instructions in the “Warn-
ing and Safety instructions”.
Caring for our environment
6

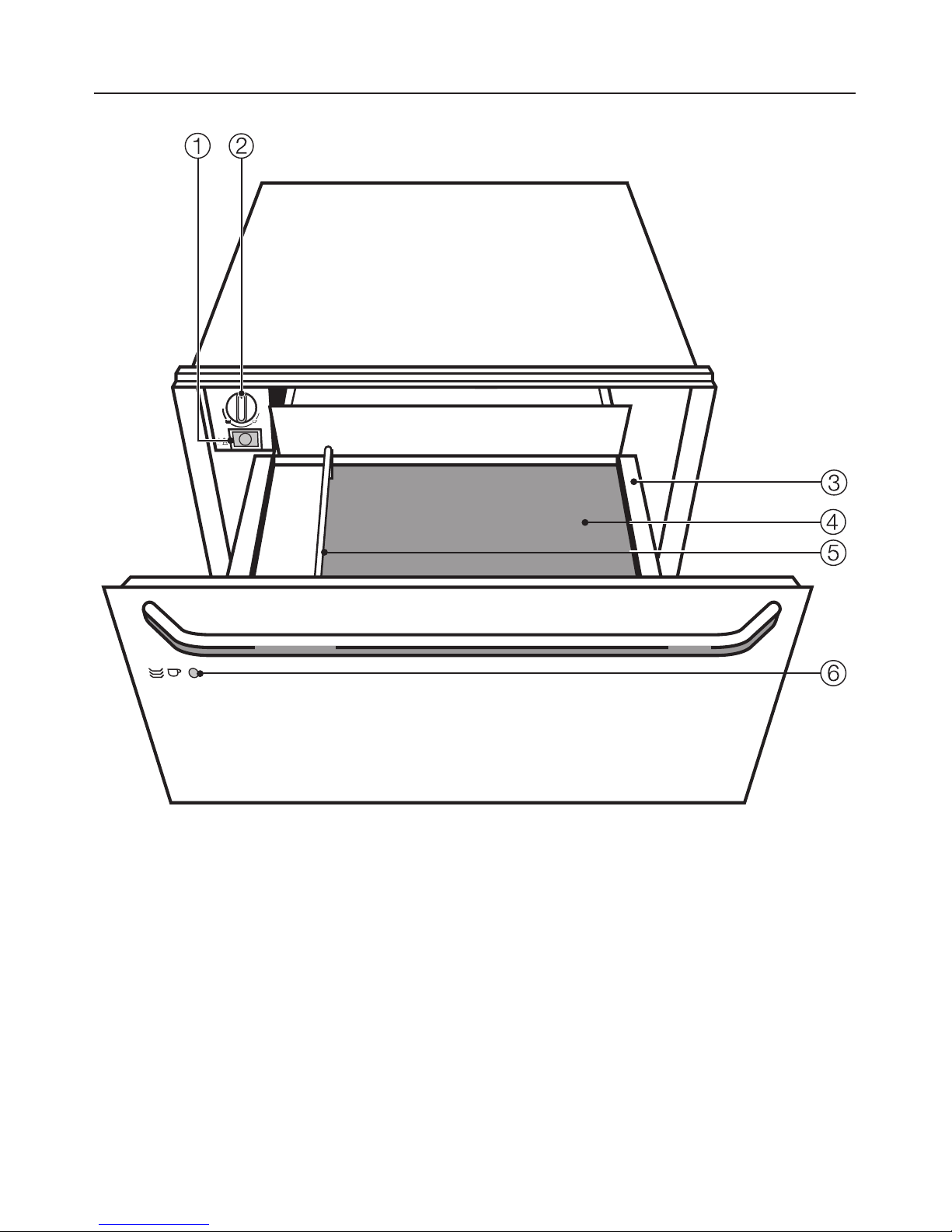

aOn/Off button
bTemperature control
cWarming drawer
dNon-slip mat
eRail
fOn/Off indicator light
Guide to the plate warmer
7

The plate warmer is only intended for
warming dishes.
Do not use the plate warmer to
re-heat, cook or keep food or drinks
warm. Condensation from food or
drinks could cause moisture dam-
age to the appliance.
The appliance operates with a hot air
system. A fan distributes hot air to heat
plates quickly and evenly.
A protective grill prevents any contact
with the heating element and fan.
The rail in the drawer separates the
control panel, heating element and fan
from the rest of the drawer. This pre-
vents plates from being placed too
close to the control panel and being
damaged when the drawer is pushed
in.
The floor of the warming drawer has a
non-slip mat to prevent plates and
dishes sliding when the drawer is
opened and closed.
Controls
The controls consist of the temperature
selector knob and the On/Off button.
These are only visible when the drawer
is open.
Using the plate warmer
8

Warming dishes
Procedure in brief:
^Place the dishes in the warming
drawer.
^Select the desired temperature set-
ting.
^Turn on the appliance (j).
^Close the drawer.
The indicator on the front of the appli-
ance lights up to show that the appli-
ance is on.
^Turn the appliance off (k), before re-
moving warmed dishes.
Loading the drawer
The quantity which can be loaded will
depend on the type and size of your
dishes.
The maximum load is 55 lbs.
(25 kg.)
Do not stand plates up directly in front
of the rail. When the drawer is closed,
these will block the vents for the heated
air and prevent the dishes from warm-
ing evenly.
The following loading examples are
given as a guide only.
6 place settings:
6 dinner plates (11"/28 cm)
6 dessert bowl
3 serving bowls
2 plates (14 “/ 36 cm)
or one of the following:
–20 dinner plates (11"/28 cm)
–36 soup bowls (8"/22 cm)
–30 dessert bowls
–10 dinner plates (11"/28 cm)
10 soup bowls (8"/22 cm)
–80 espresso cups
–40 cappuccino cups
–30 punch glasses
–18 soup bowls (8"/22 cm)
2 soup tureens(8" x 7"/
21 cm x 18 cm)
Using the plate warmer
9

Selecting a temperature
The temperature control is used to ad-
just the temperature setting.
Only turn the temperature control
clockwise and then back again.
Stop when you feel a resistance.
Forcing the control past this point
will damage it.
The heat will shut off automatically
when the selected temperature is
reached. It will turn back on again as
soon as the temperature drops below
the selected temperature.
Atemperature range between approxi-
mately 86 °F and 176°F (30 °C and
80 °C) can be set.
Recommended temperatures for
pre-heating:
– approximately 104 °F (40 °C)
bfor cups and glasses. A hot drink
placed in a cup warmed to this tem-
perature will not cool as fast, while
the cup itself can be touched easily.
–approximately 140 °F (60 °C)
rfor serving dishes, bowls and
plates
Food will stay hot longer if placed on
plates heated to this temperature
while the plates will not be too hot to
handle.
Warming times
Various factors will affect the warming
times:
–material and thickness of dishes,
–quantity,
–how dishes are arranged,
–temperature setting.
As you use the plate warmer you will
learn which settings suit your needs
best.
However, the following information can
be used as a guide:
At temperature setting rof approxi-
mately 140 °F (60 °C) heating:
– 6 place settings:
30 - 35 minutes.
– 12 place settings:
40 - 45 minutes.
Using the plate warmer
10

Never use abrasive cleaners, scour-
ing pads, steel wool or caustic
(oven) cleaners on the plate warmer.
They will damage the surface.
Cleaning the exterior
The exterior of the plate warmer can be
cleaned with warm water and liquid
dish soap applied with a soft sponge.
Wipe dry using a soft cloth.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply with even pressure.
Mat with non-slip surface
The mat can be removed to clean the
bottom of the drawer.
Clean the mat by hand with some hot
water and liquid dish soap. Dry thor-
oughly. Do not return the mat until it is
completely dry.
Cleaning and care
11

Installation, maintenance and repairs
to the electrical components of this
appliance should only be by a quali-
fied technician in accordance with
national and local safety regulations.
Repairs and other work by unquali-
fied persons could be dangerous
and may void the warranty.
Some minor problems can be fixed with
out a service call:
What if . . .
. . . dishes are not warm enough?
Check whether,
– the appliance is on.
– the correct temperature setting has
been selected.
– the vents have been blocked by
large plates or dishes.
–the dishes have had enough time to
warm up.
Various factors can affect how long the
dishes take to heat up, for example:
–material and thickness of dishes,
–quantity,
–how the dishes are arranged,
–temperature setting.
The times stated are only given as a
guide. As you use the plate warmer you
will learn which setting suits your needs
best.
If any of the following problems occur,
please contact your Miele dealer or the
nearest Miele Technical Service Depart-
ment.
. . . dishes are not warm?
Check
–whether the noise of the fan can be
heard.
If the fan is running:
the heating element is faulty.
If the fan is not running:
the fan is faulty.
– whether the circuit breaker has trip-
ped, the fuse has blown or the appli-
ance is unplugged.
. . . dishes are too hot?
The temperature control is faulty.
. . . the On / Off indicator does not
light up when the appliance is turned
on?
The indicator light for the On/Off button
is bad.
Frequently asked questions
12

In the event of a fault which you cannot
correct yourself please contact:
–Your Miele Dealer
or
–The Miele Technical Service
Department
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance
both of which are shown on the data
plate which is next to the control panel.
After sales service
13

The electrical installation instructions
for any appliance installed in combi-
nation with the plate warmer must be
observed.
When another appliance is installed
in combination with the plate warmer
to the same circuit breaker, operat-
ing both appliances at the same
time could cause an overload. If in
doubt consult a qualified electrician.
All electrical work should be done
by a qualified technician, in strict ac-
cordance with national and local
safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous and may void the war-
ranty.
Make sure power is not supplied to
the appliance while installation or re-
pair work is being performed.
WARNING:
THIS APPLIANC MUST B
GROUND D
Note to the installer
Please leave these instructions with
the consumer.
Power supply
This appliance is equipped with an
approx. 6 ft (approx. 1.8 m) long power
cord with plug ready for connection to a
120 V, 15 A, 60 Hz power supply.
lectrical connection
14

The plate warmer may only be installed
beneath one of the following Miele ap-
pliances:
–Steam oven (DG 155)
–Coffee machine (CVA 610)
Read all the operating and installa-
tion instructions for any other appli-
ance installed in combination with
the plate warmer.
The cabinet dimensions required will
depend on which appliance the
plate warmer is installed with.
When installed in combination with
another appliance, the plate warmer
must always be installed beneath
the other appliance. A shelf between
the appliances is not necesary.
Do not operate the appliances until
they have been completely installed.
Steam oven
Coffee machine
Installation options
15

The plate warmer must be installed
above a fixed interim shelf within the
cabinet to ensure that the cabinetry
can support the weight of it and of
any other appliance installed in
combination with it.
When installed in combination with
another appliance, the plate warmer
must always be installed beneath
the other appliance. A shelf between
the appliances is not necesary.
^Trip the circuit breaker to the outlet.
^Plug the plate warmer into the outlet.
^Push the appliance into the cabinetry
and align it.
^Open the plate warmer drawer and
use two screws to secure the plate
warmer to the side walls of the
cabinetry.
Installing the plate warmer
16

Adhering the insulation strips
^Remove the protective foil from the
adhesive strips.
^Align the metal strips flush against
the side and rear walls of the cabinet
aand stick them on to the plate
warmer b(see illustration).
The third metal strip is not needed if the
cabinetry does not have a rear panel.
^Install the combination appliance in
accordance with its own specific op-
erating/installation instructions and
then connect the electrical supplies.
Aligning the front of the plate warmer
After installing the combination appli-
ance, it may be necessary under cer-
tain circumstances to
–align the front of the plate warmer.
–align the gap between the plate
warmer and the combination appli-
ance.
To help you do this, there are adjusting
points underneath the nuts which se-
cure the drawer to the telescopic run-
ners.
^Loosen the nuts and take the plate
warmer drawer out.
Use the adjusters to align the drawer
correctly.
Installing the plate warmer
17

18

19

Alteration rights reserved / 22 / 001 USA / CDN - 3401
M.-Nr. 05 478 600 (EGW 602 - 14)
This paper consists of cellulose which has been bleached without the use of chlorine.
