Miele EGW 5060-14 Specification sheet

Operating and installation instructions
Plate warming drawer
EGW 5050-14
EGW 5060-14
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 517 010
en - GB, ZA

Guide to the appliance .............................................3
Warning and Safety instructions .....................................4
Caring for the environment.........................................11
Before using for the first time.......................................12
Operation .......................................................13
Controls .........................................................13
Brief operating instructions ..........................................14
Selecting a temperature ............................................14
Heating up times ..................................................15
Capacity.........................................................16
Cleaning and care ................................................17
Appliance front and interior ..........................................17
Anti-slip mat ......................................................18
Problem solving guide ............................................19
Optional accessories..............................................21
Safety instructions for installation...................................22
Building-in dimensions ...........................................23
Installing the appliance ............................................27
Aligning the front of the plate warming drawer ........................28
Electrical connection..............................................29
After sales service, data plate ......................................31
Contents
2

aOn/Off switch (lights up)
bTemperature control
cWarming drawer
dAnti-slip mat
eIn-operation indicator
Guide to the appliance
3

This appliance complies with all relevant safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before installation and
before using it for the first time. They contain important notes on
installation, safety, use and maintenance.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Warning and Safety instructions
4

Correct application
~The appliance is not designed for commercial use. It is intended
for use in domestic households and similar working and residential
environments.
~The appliance is not intended for outdoor use.
~It is intended for domestic use only as described in these
operating and installation instructions.
Any other usage is not supported by the manufacturer and could be
dangerous.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and understand the hazards
involved.
Warning and Safety instructions
5

Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the appliance if they
have been shown how to use it in a safe way and understand the
hazards involved.
~Children must not be allowed to clean the appliance
unsupervised.
~This appliance is not a toy! To avoid the risk of injury, do not let
children play with the appliance or its controls.
~The appliance gets hot when in use and remains hot for quite a
while after being switched off. Keep children well away from the
appliance until it has cooled down and there is no danger of
burning.
~Packaging, e.g. cling film, polystyrene and plastic wrappings,
must be kept out of the reach of babies and children. Danger of
suffocation. Dispose of or recycle all packaging safely as soon as
possible.
Warning and Safety instructions
6

Technical safety
~Installation, maintenance and repair work may only be carried out
by a suitably qualified and competent person in strict accordance
with national and local safety regulations. Installation, maintenance
and repairs by unqualified persons could be dangerous. Miele
cannot be held liable for unauthorised work.
~A damaged appliance can be dangerous. Before installation,
check the appliance for visible signs of damage. Do not use a
damaged appliance.
~The electrical safety of this appliance can only be guaranteed
when correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested, and where there is
any doubt, the household wiring system should be inspected by a
qualified electrician.
~To avoid the risk of damage to the appliance, make sure that the
connection data (frequency and voltage) on the data plate
corresponds to the household supply, before connecting the
appliance to the mains supply.
Consult a qualified electrician if in any doubt.
~Do not connect the appliance to the mains electricity supply by a
multi-socket adapter or an extension lead. These do not guarantee
the required safety of the appliance (e.g. danger of overheating).
~For safety reasons, this appliance may only be used when it has
been built in.
~This appliance must not be used in a non-stationary location (e.g.
on a ship).
Warning and Safety instructions
7

~Do not open the casing of the appliance.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
~While the appliance is under guarantee, repairs should only be
undertaken by a service technician authorised by Miele. Otherwise
the guarantee is invalidated.
~The manufacturer can only guarantee the safety of the appliance
when Miele replacement parts are used. Faulty components must
only be replaced by genuine Miele original spare parts.
~If the plug is removed from the connection cable or if the
appliance is supplied without a plug, the appliance must connected
to the electrical supply by a suitably qualified electrician.
~If the connection cable is damaged, it must be replaced by a
suitably qualified electrician with a specialist connection cable of
type H 05 VV-F (pvc insulated), available from Miele.
~The appliance must be disconnected from the mains electricity
supply during installation, maintenance and repair work. Ensure that
power is not supplied to the appliance until after it has been
installed or until any maintenance or repair work has been carried
out.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
Warning and Safety instructions
8

Correct use
~You could burn yourself on the hot drawer or crockery. Protect
your hands with heat-resistant pot holders or gloves when handling
hot dishes. Do not let them get wet or damp, as this causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself.
~Do not store any plastic containers or inflammable objects in the
warming drawer. They could melt or catch fire when the appliance is
switched on, causing a fire hazard.
~Due to the high temperatures radiated, objects left near the
appliance when it is in use could catch fire. Do not use the
appliance to heat up the room.
~Never replace the anti-slip mat supplied with the appliance with
paper kitchen towel or similar.
~If you overload the drawer, or sit or lean on it, the telescopic
runners will be damaged. The telescopic runners can support a
maximum load of 25 kg.
~If the appliance is installed behind a kitchen furniture door, it may
only be used with the furniture door open.
Only close the door if the appliance is switched off.
~Moisture in food or drinks could cause corrosion damage to the
drawer. Do not use the warming drawer to re-heat, cook or keep
food or drinks warm.
Warning and Safety instructions
9

Cleaning and care
~Danger of injury.
Do not use a steam cleaning appliance to clean this appliance. The
steam could reach electrical components and cause a short circuit.
Warning and Safety instructions
10

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Please ensure that it presents
no danger to children while being
stored for disposal.
Caring for the environment
11

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service, data plate" section of this booklet.
Cleaning and heating up for the first time
^Remove any protective foil and sticky labels.
^Remove the anti-slip mat from the drawer, and clean it with
warm water and a little washing-up liquid. Dry using a soft
cloth.
^Wipe the appliance inside and out with a damp cloth only,
and then dry with a soft cloth.
^Replace the anti-slip mat in the drawer.
^Then heat the empty drawer for at least two hours. Set the
temperature control to maximum (see "Selecting a
temperature").
Metal components have a protective coating which may give
off a slight smell when heated up for the first time.
The smell and any vapours will dissipate after a short time,
and do not indicate a faulty connection or appliance.
Ensure that the kitchen is well ventilated whilst the appliance
is being heated up for the first time.
Before using for the first time
12

This appliance uses a hot air warming system. Heat given off
by a heating element is distributed evenly throughout the
drawer by a fan. The circulating air ensures that crockery is
heated evenly and quickly.
A protective grille protects you from touching either the fan or
the heating element.
The base of the drawer is fitted with an anti-slip mat which
stops crockery sliding about when the drawer is opened and
closed.
Do not use the appliance to re-heat, cook or keep food or
drinks warm. Condensation from the food or drinks could
lead to corrosion in the appliance.
Always use heat-resistant gloves or oven gloves to remove
heated crockery from the drawer.
The maximum load capacity of the appliance is 25 kg .

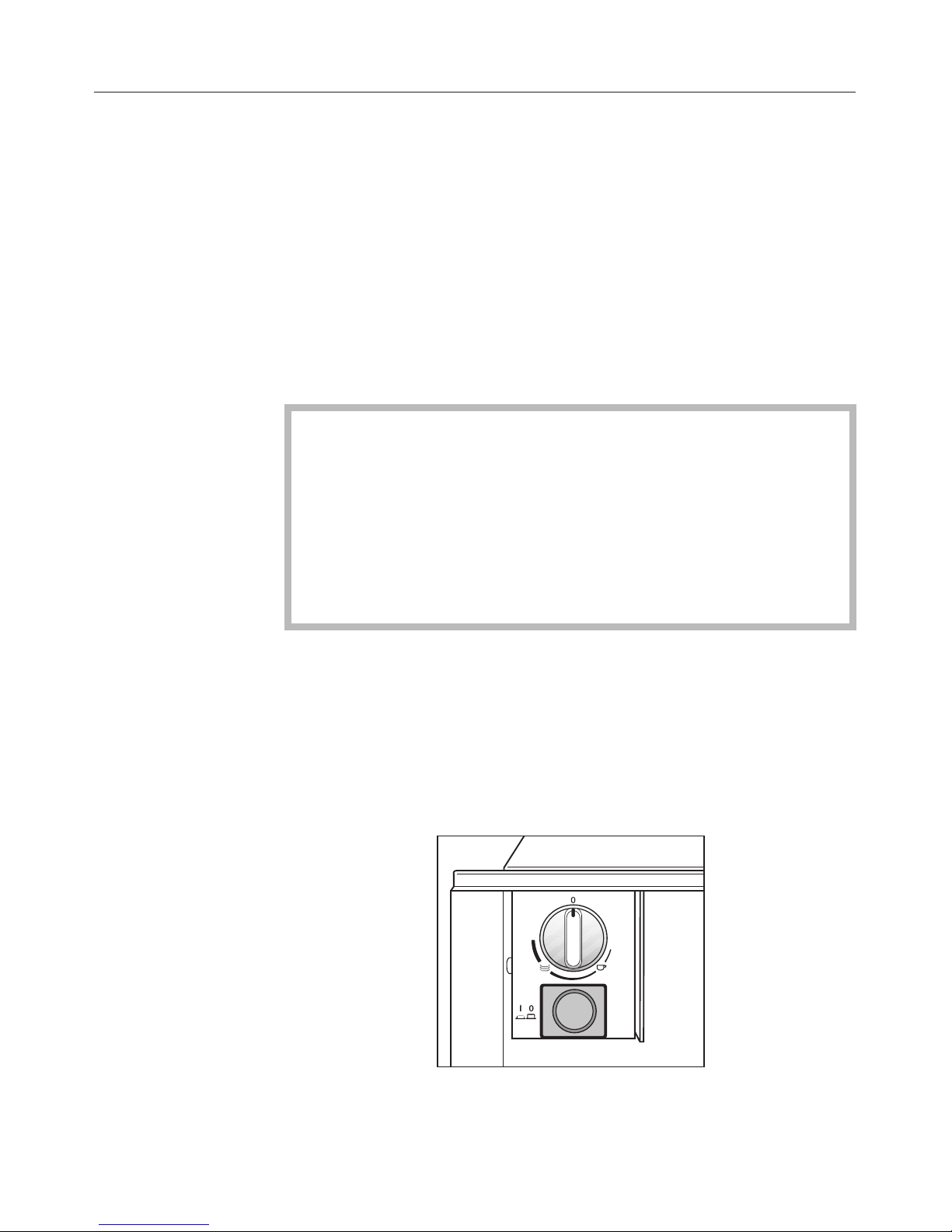

Controls
The controls consist of a temperature dial and an On/Off
switch. They are only visible when the drawer is open.
When the drawer is shut, you can see from the in-operation
indicator on the front of the drawer if the drawer is switched
on.
Operation
13

Brief operating instructions
^Place the crockery inside the drawer.
^Select the temperature required.
^Switch on the appliance (j).
The switch lights up.
^Close the drawer.
If you use too much force, it can spring open again.
^Switch the appliance off (k) before removing the heated
crockery.
Selecting a temperature
The temperature dial allows you to select any temperature
between approx. 30 and 80 °C.
The temperature dial must only be turned in a clockwise
direction as far as it will go and then back again.
Do not turn it too far as this will damage it.
When the selected temperature is reached, the heating
element switches itself off. When the temperature falls below
that selected, the heating element switches on again
automatically.
The temperature scale around the dial is shown in symbols
rather than in °C. The symbols represent the most suitable
temperature for the type of crockery depicted:
–bapprox. 40 °C
for cups or glasses.
Drinks poured into warmed cups do not cool down so
quickly. At the same time, the cups will not get too hot to
handle.
–rapprox. 60 °C
for serving dishes and plates.
Food stays warm for longer if served in pre-heated dishes.
The dishes will not get too hot to handle.
Operation
14

Heating up times
Various factors will affect the heating up times:
–The material and thickness of the crockery
–The amount of crockery
–How the crockery is arranged
–The temperature setting.
It is therefore not possible to state precise times.
However, the following information can be used as a guide:
Temperature setting ris approx. 60 °C. Evenly heated
crockery will take about:
– 30 - 35 minutes
for 6 place settings.
– 40 - 45 minutes
for 12 place settings.
As you use the plate warming drawer, you will get to know
which setting suits your own needs best.
Operation
15

Capacity
The capacity of the drawer depends on the size and weight
of your crockery.
Do not overload the drawer. The maximum load bearing
capacity of the drawer is 25 kg.
The loading examples shown here are suggestions only.
– 6 place settings:
6 dinner plates C26 cm
6 soup bowls C23 cm
6 dessert plates C19 cm
1 oval serving dish 32 cm
1 serving dish C16 cm
1 serving dish C13 cm
or alternatively:
–20 dinner plates C26 cm
–36 soup bowls C23 cm
–30 soup cups C10 cm
–10 dinner plates C26 cm
10 soup bowls C23 cm
–8 pizza plates C36 cm
–120 espresso cups C5.9 cm
–54 cappuccino cups C8.8 cm
–30 punch glasses C6.7 cm / 8.5 cm high
Operation
16

Always allow the appliance to cool down before cleaning.
Do not use a steam cleaning appliance to clean this
appliance. The steam could reach electrical components
and cause a short circuit.
Only use domestic washing-up liquid to clean this
appliance; commercial cleaning products are not suitable,
and may damage the appliance.
Appliance front and interior
Remove any soiling immediately.
If not, it might become impossible to remove and could
cause the outer surfaces to alter or discolour.
Clean the front using a Miele microfibre E-cloth or with a
clean sponge and a solution of hot water and washing-up
liquid. Then dry with a soft cloth.
The outer surfaces of this appliance are all susceptible to
scratching. Scratches on glass surfaces could even cause
a breakage.
Contact with unsuitable cleaning agents can alter or
discolour the outer surfaces.
Cleaning and care
17

To avoid damaging the surface of your appliance, do not
use:
–cleaning agents containing soda, ammonia, acids or
chlorides,
–cleaning agents containing descaling agents,
–abrasive cleaning agents, e.g. powder cleaners and cream
cleaners,
–solvent-based cleaning agents,
–stainless steel cleaning agents,
–dishwasher cleaner,
–oven sprays,
– glass cleaning agents,
– hard, abrasive sponges and brushes, e.g. pot scourers,
– sharp metal scrapers.
Anti-slip mat
The anti-slip mat can be removed for cleaning.
^Clean the anti-slip mat by hand using warm water and a
little washing-up liquid, and then dry with a cloth.
Do not put the anti-slip mat back into the drawer until it is
completely dry.
Do not wash the anti-slip mat in a dishwasher or washing
machine.
Never place the anti-slip mat in the oven to dry.
Cleaning and care
18

,Installation work and repairs to electrical appliances
must only be carried out by a suitably qualified and
competent person in strict accordance with current local
and national safety regulations (BS 7671 in the UK).
Repairs and other work by unqualified persons could be
dangerous. The manufacturer cannot be held liable for
unauthorised work.
What to do if...
. . . the crockery is not warm enough.
Check whether
– the appliance has been switched on.
– the correct temperature setting has been selected.
– the vents have been blocked by large plates or bowls.
– the crockery has been allowed to heat up for a sufficiently
long time.
Various factors will affect how long the crockery will take to
heat up, for example:
–The material and thickness of the crockery
–The amount of crockery
–How the crockery is arranged
–The temperature setting.
The times quoted are only guidelines. As you use the plate
warmer, you will get to know which setting suits your own
needs best.
Problem solving guide
19

If any of the following problems occur, please contact the
Miele Service Department.
. . . the crockery does not heat up.
Check whether
–you can hear the fan.
If you can hear the fan:
There is a problem with the heater element.
If you cannot hear the fan:
There is a problem with the fan.
–check whether the mains fuse has tripped.
. . . the crockery is too hot.
Check that the correct temperature has been set. If it has the
temperature control is faulty.
. . . the On/Off switch does not light up when the
appliance is switched on.
The indicator light for the switch is defective.
Problem solving guide
20
