Miele ESW 5088-14 User manual

Operating and installation instructions
Built-in food warming drawer
ESW 5088-14
ESW 50x0-14
ESW 50x0-29
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 241 640
en-GB

Guide to the appliance .............................................3
ESW 50x0-14 / ESW 5088-14..........................................3
ESW 50x0-29 ......................................................4
Control panel ......................................................5
Accessories supplied ...............................................6
Warning and Safety instructions .....................................7
Caring for the environment.........................................11
Before using for the first time.......................................12
Operation .......................................................14
Functions ........................................................14
Temperature settings...............................................15
Duration .........................................................15
Capacity ........................................................17
Keeping food warm ...............................................19
Settings .........................................................20
Warming crockery ................................................21
Heating up times ..................................................21
Other usages ....................................................22
Cleaning and care ................................................25
General notes ....................................................25
Appliance front and interior ..........................................25
Anti-slip mat ......................................................26
Problem solving guide ............................................27
Optional accessories..............................................29
Safety instructions for installation...................................30
Building-in dimensions ...........................................31
ESW 50x0-14 / ESW 5088-14.........................................31
ESW 50x0-29 .....................................................35
Installing the appliance ............................................39
Aligning the front of the food warming drawer.........................40
Electrical connection..............................................41
After sales service, data plate ......................................43
Contents
2

ESW 50x0-14 / ESW 5088-14
aControl panel
bAnti-slip mat
Guide to the appliance
3

ESW 50x0-29
aControl panel
bAnti-slip mat
cAir vents
dRack
Guide to the appliance
4

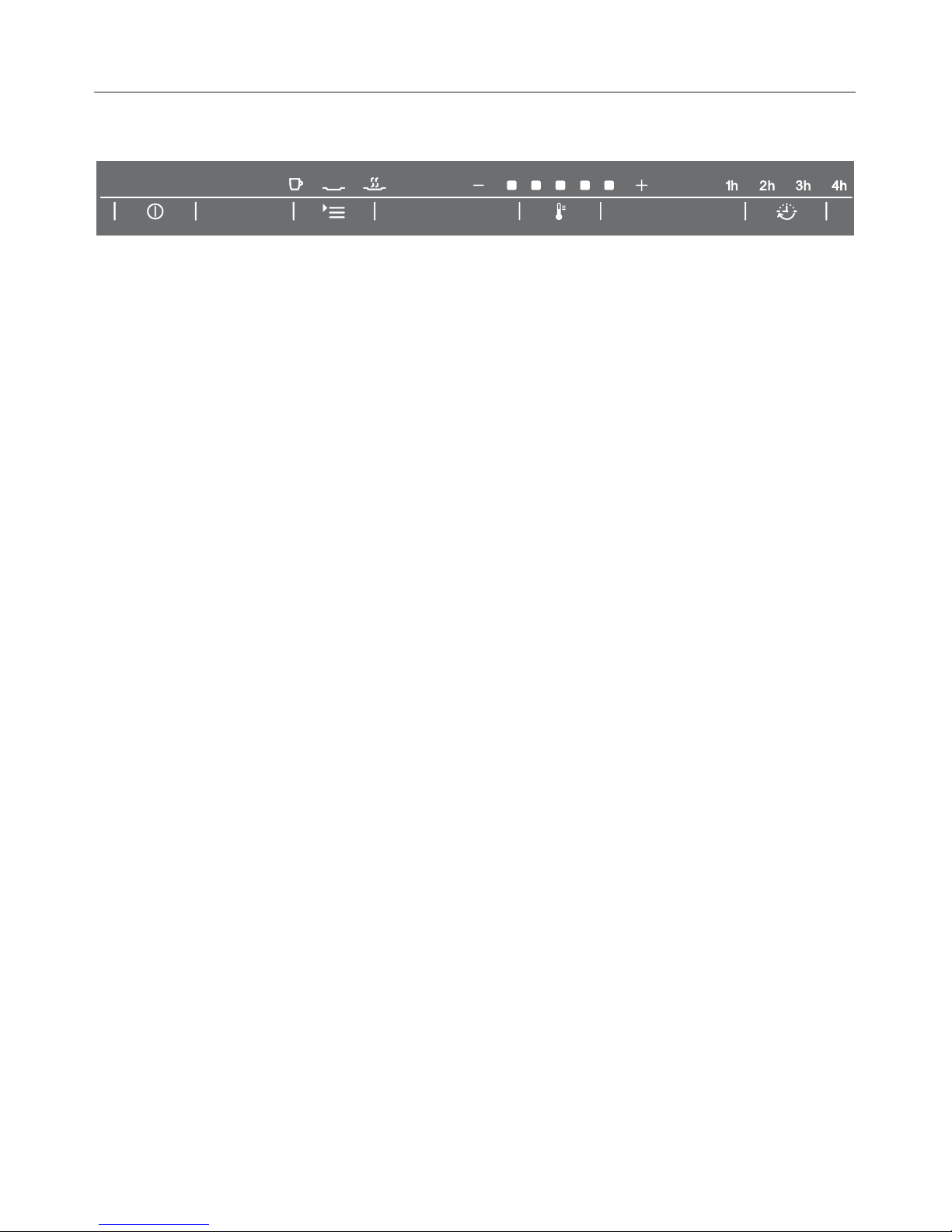

Control panel
Sensor switches
sOn/Off switch for the appliance
XFor selecting the function
6For setting the temperature
TFor setting the duration
Displays
Functions:
/For warming cups and glasses
HFor warming plates and dishes
sFor keeping food warm
Temperature:
]^^^^
Duration:
1h 1 hour
2h 2 hours
3h 3 hours
4h 4 hours
Guide to the appliance
5

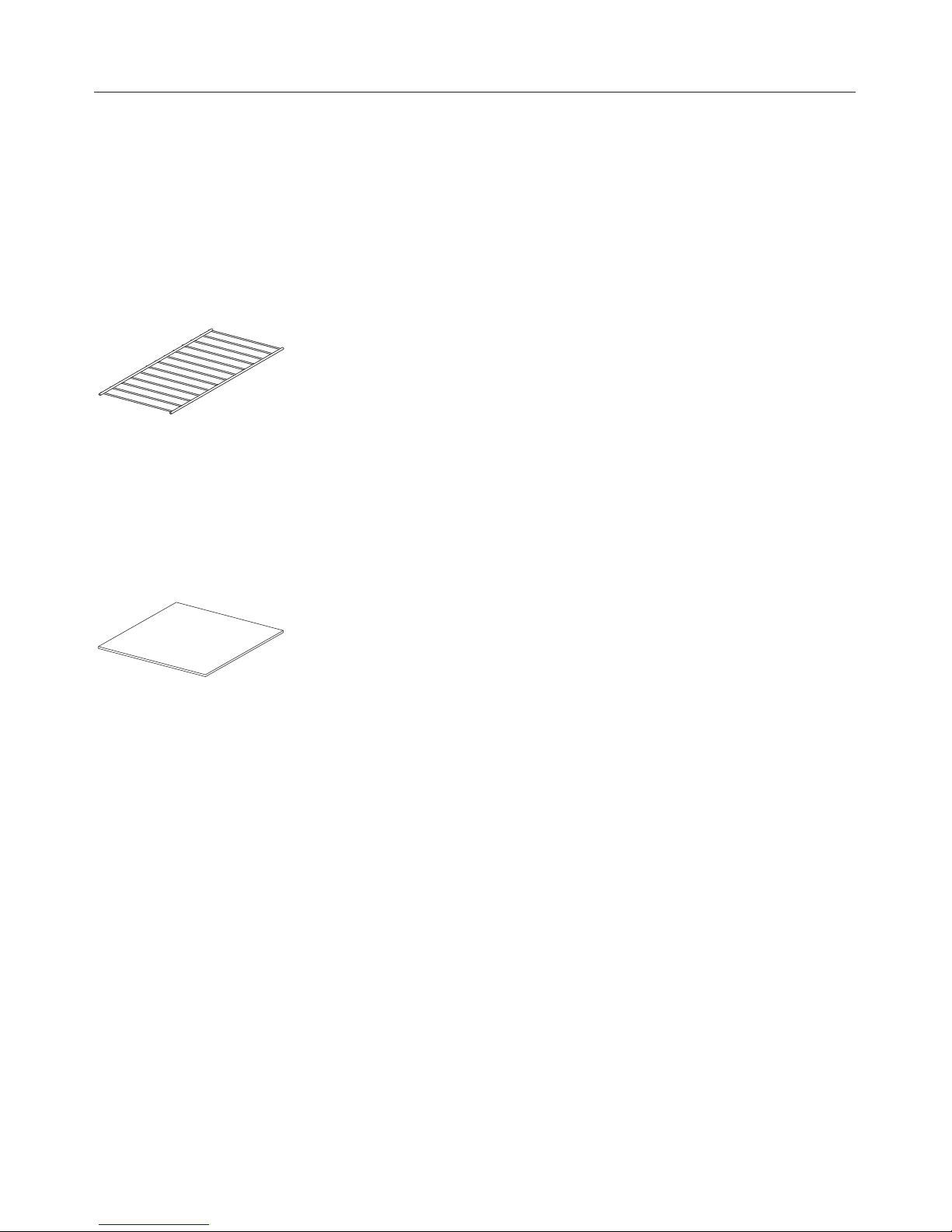

Accessories supplied
The accessories supplied with your drawer as well as a range
of optional ones are available to order (see "Optional
accessories").
Rack
For increasing the loading area (ESW 50x0-29)
Anti-slip mat
For keeping crockery secure
Cookery book
SousChef
Guide to the appliance
6

This appliance complies with all
relevant safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and damage to
property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time.
They contain important notes on its
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses.
~The food warming drawer is
intended for domestic use only as
described in these operating and
installation instructions. Any other use is
not supported by the manufacturer and
could be dangerous. Miele cannot be
held liable for damage resulting from
incorrect or improper use or operation.
~The food warming drawer is not
intended for outdoor use.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience or knowledge, unless
they are supervised whilst using it, or
have been shown how to use it by a
person responsible for their safety.
Warning and Safety instructions
7

Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not let them play with
it or use the controls. They will not
understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may only use the
appliance after its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Technical safety
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. It could be dangerous.
~The electrical safety of this
appliance can only be guaranteed
when correctly earthed. It is most
important that this basic safety
requirement is observed and regularly
tested, and where there is any doubt,
the electrical system in the house
should be inspected by a qualified
electrician. Miele cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Before connecting the appliance to
the mains supply, make sure that the
connection data on the data plate
(voltage and frequency) correspond
with the mains electricity supply,
otherwise the appliance could be
damaged. Consult a qualified
electrician if in any doubt.
~For safety reasons, this appliance
may only be used when it has been
built in.
~This appliance must be installed
and connected by a suitably qualified
and competent person in strict
accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
Warning and Safety instructions
8

~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. Miele
cannot be held liable for unauthorised
work.
~If the connection cable is damaged,
it must be replaced by a suitably
qualified electrician with a special
connection cable of type H 05 V V-F
(pvc insulated), available from the Miele
Spare Parts Department.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by Miele. Otherwise the
guarantee is invalidated.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance in a clean
condition at all times. Any damage
caused by cockroaches or other vermin
will not be covered by the guarantee.
Warning and Safety instructions
9

Correct use
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.
~The underside of the drawer gets
hot when switched on. Be careful not to
touch it when the drawer is open.
~Do not store any plastic containers
or inflammable objects in the warming
drawer. They could melt or catch fire
when the appliance is switched on,
causing a fire hazard.
~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.
~Take care when opening and
closing the loaded drawer, that liquids
do not spill over and get through the
vents. This can cause lingering odours
and the appliance to short circuit.
~Do not heat up unopened tins or jars
of food in the drawer, as pressure will
build up in the tin or jar, causing it to
explode. This could result in injury and
scalding or damage.
~Ensure food is really hot when
placed inside the warming drawer. The
drawer is designed to keep hot food
warm, and not to warm food up.
~Make sure that the vents inside the
drawer are not covered. Otherwise,
food and crockery will not heat up
evenly.
~Never replace the anti-slip mat
supplied with the appliance with paper
kitchen towel or similar.
~Do not overload the drawer. The
maximum load bearing capacity of the
drawer is 25 kg.
~Only place heat-resistant crockery in
the drawer. Never place plastic or
aluminium foil items in the drawer. as
these melt at high temperatures and
could catch fire.
~Do not sit or lean on the opened
drawer. This will damage the telescopic
runners.
~Make sure that you select a high
enough temperature setting to keep
food warm. Bacteria can develop on
the food if the temperature is too low.
~If the appliance is installed behind a
kitchen furniture door, it may only be
used with the furniture door open.
Only close the door if the appliance is
switched off.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
Warning and Safety instructions
10

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Please ensure that it presents
no danger to children while being
stored for disposal.
Caring for the environment
11

A display test is carried out for 10 seconds after the
appliance has been installed and after a power cut. The fan
comes on at the same time. The appliance cannot be used
during this time.
Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning and heating up for the first time
^Remove any protective foil and sticky labels.
^Remove the anti-slip mat and, if applicable, the rack from
the drawer, and sponge both with warm water and a little
washing-up liquid. Dry using a soft cloth.
^Wipe the appliance inside and out with a damp cloth only,
and then dry with a soft cloth.
^Replace the anti-slip mat and the rack (if applicable) in the
drawer.
Then heat the empty drawer for at least two hours.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor repeatedly until the ssymbol lights
up in the display.
^Touch the 6sensor repeatedly until the LED on the far right
lights up.
^Touch the Tsensor repeatedly until 2h lights up.
^Close the drawer.
The warming drawer is fitted with a softclose self-closing
mechanism.
The drawer is fitted with a contact switch, which ensures
that the heating element and fan in the appliance only work
when the drawer is closed.
Before using for the first time
12

The appliance switches itself off automatically after 2 hours.
Metal components have a protective coating which may give
off a slight smell when heated up for the first time.
The smell and any vapours will dissipate after a short time,
and do not indicate a faulty connection or appliance.
Ensure that the kitchen is well ventilated whilst the appliance
is being heated up for the first time.
Before using for the first time
13

Functions
Use the Xsensor to select the function you want. The
applicable symbol lights up as follows:
–/
For warming cups and glasses.
–H
For warming plates and dishes
–s
For keeping food warm
The last function selected is automatically activated the next
time the drawer is switched on, and this is shown in the
display.
The appliance has a fan which distributes the warm air evenly
through the drawer. The fan runs continuously when the
drawer is operating on the cups/glasses or plates/dishes
functions. It runs at intervals on the "keep food warm"
function.
The appliance can be used to keep food warm at the same
time as warming plates and dishes.
Use the "keep food warm" function for this.
Take care. The plates and dishes will take longer to warm
up, but can get very hot on this function.
Operation
14

Temperature settings
Each function has its own temperature range. The factory-set
recommended temperatures are printed in bold. The
temperature can be altered in 5° steps by touching the 6
sensor. The last temperature selected is automatically
activated the next time the drawer is switched on, and this is
shown in the display.
Temperature
display
Temperature °C*
/Hs
] ^ ^ ^ ^ 40 60 65
^ ] ^ ^ ^ 45 65 70
^ ^ ] ^ ^ 50 70 75
^ ^ ^ ] ^ 55 75 80
^ ^ ^ ^ ] 60 80 85
* Approximate temperature values, measured in the middle
of the drawer when empty
Duration
The appliance is set for continuous operation mode. A limited
duration can be selected by touching the Tsensor. One
touch for 1 hour (1h), two touches for 2 hours (2h) etc, up to a
maximum of 4 hours. Continuous operation is restored by
touching the sensor a fifth time.
Do not leave the drawer unattended for too long in
continuous operation mode. Keeping food warm for a long
time can result in it drying out or even self-igniting.
Your appliance is fitted with a safety switch-off mechanism
which switches the appliance off after a maximum of
12 hours' continuous operation.
Operation
15

Switching on
^Open the drawer.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor until the function required lights up in
the display.
^If you wish to alter the temperature, touch the 6sensor until
the LED for the temperature required lights up.
The appliance is set in continuous operation mode.
^If you wish to limit the duration, touch the Tsensor until
the duration (in hours) required lights up.
^Close the drawer.
The drawer can be loaded once the necessary pre-heating
time has elapsed. If crockery has been warmed during the
pre-heating phase, use oven gloves to remove it.
Take care when opening and shutting the loaded drawer
that liquids do not spill over.
Switch the appliance off before removing food from the
drawer.
Operation
16

The quantity that can be loaded will depend to a great
extent on the size and weight of your own crockery.
Do not overload the drawer. The maximum load bearing
capacity of the drawer is 25 kg.
ESW 5070 - 14 / ESW 5080 - 14 / ESW 5088-14
The loading examples shown here are suggestions only.
– 6 place settings:
6 dinner plates C26 cm
6 soup bowls C23 cm
6 dessert plates C19 cm
1 oval serving dish 32 cm
1 serving dish C16 cm
1 serving dish C13 cm
or alternatively:
–12 dinner plates C26 cm
–18 soup bowls C23 cm
–16 soup cups C10 cm
–6 dinner plates C26 cm
6 soup bowls C23 cm
–6 pizza plates C36 cm
–72 espresso cups C5.9 cm
–30 cappuccino cups C8.8 cm
–30 punch glasses C6.7 cm / 8.5 cm high
Capacity
17

ESW 5070 -29 / ESW 5080 -29
The loading examples shown here are suggestions only.
–12 place settings:
12 dinner plates C26 cm
12 soup bowls C23cm
12 dessert plates C19 cm
1 oval serving dish 32 cm
1 serving dish C19 cm
1 serving dish C16 cm
1 serving dish C13 cm
or alternatively:
– 40 dinner plates C26 cm
–60 soup bowls C23 cm
–45 soup cups C10 cm
–20 dinner plates C26 cm
20 soup bowls C23 cm
–20 pizza plates C36 cm
–142 espresso cups C5.9 cm
–90 cappuccino cups C8.8 cm
–30 punch glasses C6.7 cm / 8.5 cm high
You can increase the load area by using the rack supplied
with the appliance. Position the rack to suit.
With two racks you can increase the load area even more by
placing one rack on the left and the other on the right.
Another rack can be obtained from Miele or from your Miele
dealer (see "Optional accessories").
Capacity
18

This function is for keeping food warm that has just been
cooked, i.e. food that is still hot. It is not for reheating food
that has gone cold.
–In order to ensure that the temperature does not drop
below the minimum required for keeping food warm
(65°C), select the sfunction only.
–Pre-heat the drawer thoroughly for 15 minutes to ensure
that it has reached the required temperature.
–Whilst the appliance is heating up, place the empty dishes
in it to warm them up. Then place the hot food into the
pre-heated dishes.
–Do not cover roast or fried foods which you want to keep
crisp. These types of food need to be kept warm at a
higher temperature.
– Cover food with a high moisture content, liquids and foods
which can develop a skin, with aluminium foil or a plate.
– To avoid spillages, do not overfill dishes.
– Freshly cooked food is hotter than food which is being kept
warm. Serve food which is being kept warm on pre-heated
plates.
– Nutrients are lost when food is cooked, and continue to
diminish when food is kept warm. The longer food is kept
warm for, the greater the loss of nutrients.
–We do not recommend food being kept warm for too long,
as it will continue to cook.
–Do not slam the drawer open or shut. Liquids could spill
over and get into the vents.
–Food may cool down if the drawer is opened and shut too
often.
Keeping food warm
19

Settings
Food Container Container cover? Temperature
for ssetting
Position in drawer
Floor Rack*
To warm bread - No ] ^ ^ ^ ^ xx
To warm rolls - No ] ^ ^ ^ ^ xx
Steak (rare) Plate No ] ^ ^ ^ ^ xx
New potatoes Plate/dish Yes ^ ^ ] ^ ^ x
Mashed potato Dish Yes ^ ^ ] ^ ^ x
Roast meat Plate Yes ^ ^ ] ^ ^ x
Meat in a sauce Dish Yes ^ ^ ^ ] ^ x
Stew Dish Yes ^ ^ ^ ] ^ x
Casserole Dish Yes ^ ^ ^ ] ^ x
Vegetables in a
sauce
Dish Yes ^ ^ ^ ] ^ x
Plated meal Plate Yes ^ ^ ^ ] ^ x
Boiled potatoes Dish Yes ^ ^ ^ ] ^ x
Gravy Dish Yes ^ ^ ^ ] ^ x
Strudel Plate No ^ ^ ^ ] ^ x
Bake/gratin Shallow dish Yes ^ ^ ^ ] ^ x
Fish fingers Pan No ^ ^ ^ ^ ] x
Breaded escalope Pan No ^ ^ ^ ^ ] x
Pizza Plate No ^ ^ ^ ^ ] x
Pancakes/
potato pancakes
Plate No ^ ^ ^ ^ ] xx
* Depending on model
Keeping food warm
20
