Miele ESW 5088-14 User manual

Operating and installation instructions
Built-in food warming drawer
ESW 5088-14
ESW 50x0-14
ESW 50x0-29
To avoid the risk of accidents or
damage to the appliance it is
essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 07 241 640
en-GB

Guide to the appliance .............................................4
ESW 50x0-14 / ESW 5088-14..........................................4
ESW 50x0-29 ......................................................5
Control panel ......................................................6
Accessories supplied ...............................................7
Warning and Safety instructions .....................................8
Caring for the environment.........................................12
Before using for the first time.......................................13
Operation .......................................................15
Functions ........................................................15
Temperature settings...............................................16
Duration .........................................................16
Capacity ........................................................18
Keeping food warm ...............................................20
Settings .........................................................21
Warming crockery ................................................22
Heating up times ..................................................22
Other usages ....................................................23
Cleaning and care ................................................26
General notes ....................................................26
Appliance front and interior ..........................................26
Anti-slip mat ......................................................27
Problem solving guide ............................................28
Optional accessories..............................................30
Contents
2

Safety instructions for installation...................................31
Building-in dimensions ...........................................32
ESW 50x0-14 / ESW 5088-14.........................................32
ESW 50x0-29 .....................................................35
Installing the appliance ............................................38
Aligning the front of the food warming drawer.........................39
Electrical connection..............................................40
After sales service, data plate ......................................43
Contents
3

ESW 50x0-14 / ESW 5088-14
aControl panel
bAnti-slip mat
Guide to the appliance
4

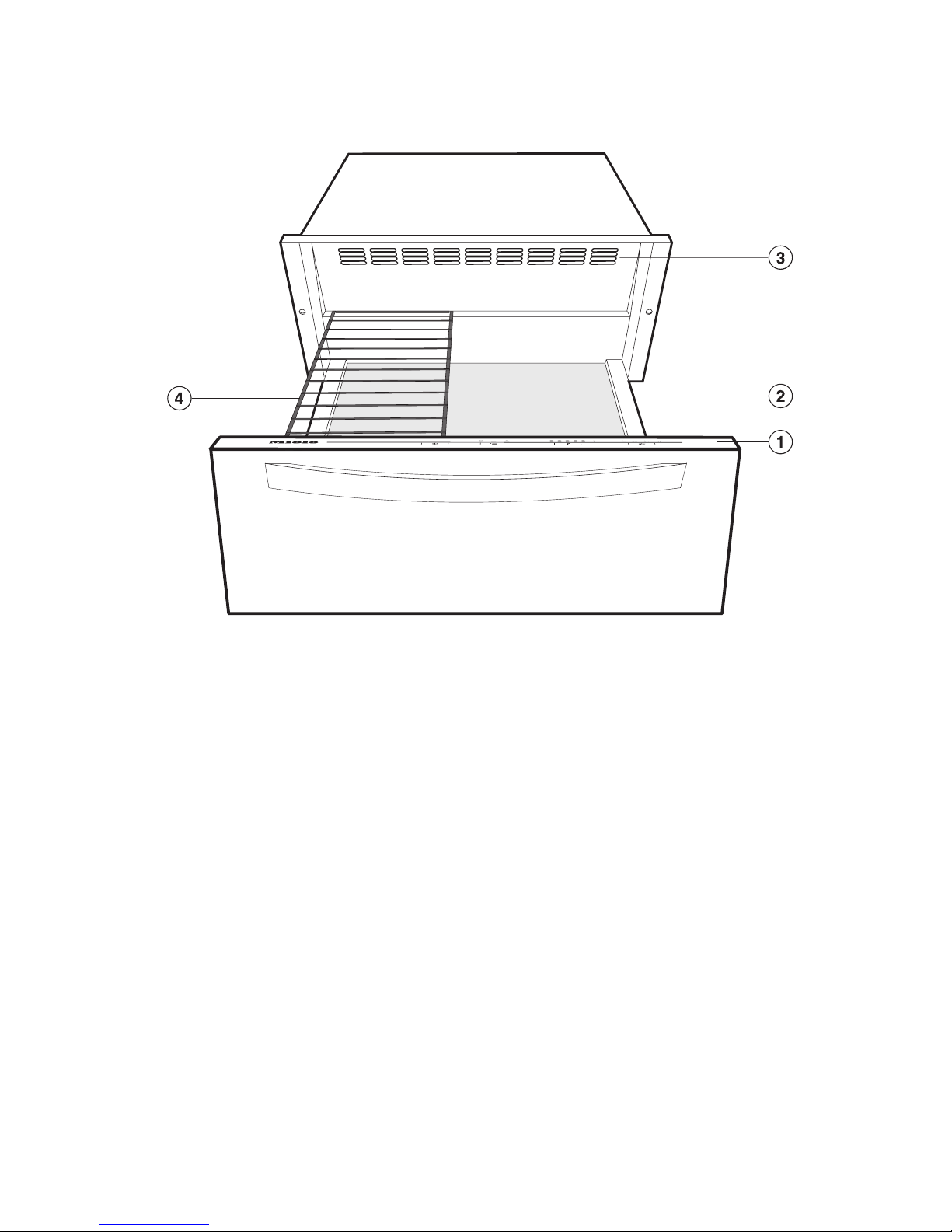

ESW 50x0-29
aControl panel
bAnti-slip mat
cAir vents
dRack
Guide to the appliance
5

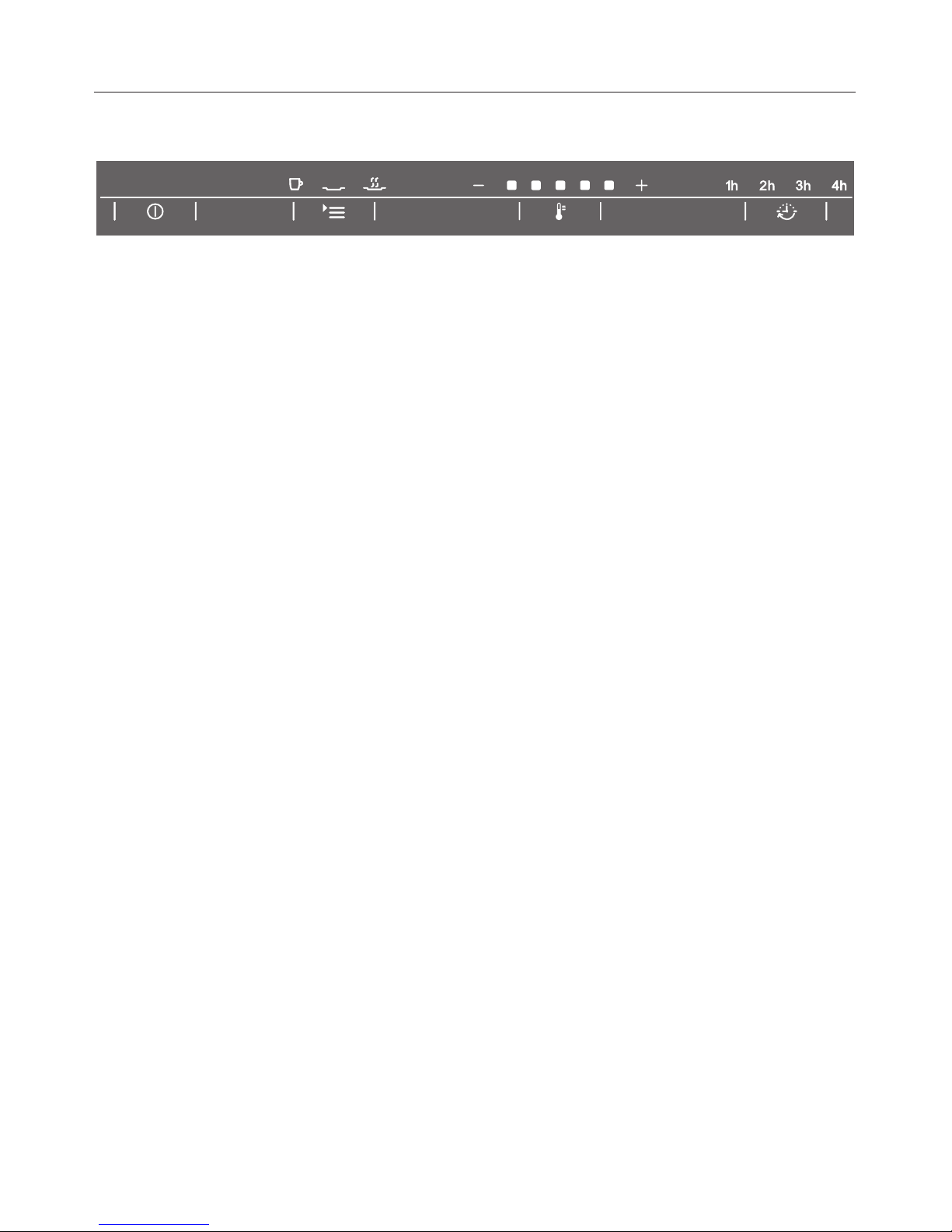

Control panel
Sensor switches
sOn/Off switch for the appliance
XFor selecting the function
6For setting the temperature
TFor setting the duration
Displays
Functions:
/For warming cups and glasses
HFor warming plates and dishes
sFor keeping food warm
Temperature:
]^^^^
Duration:
1h 1 hour
2h 2 hours
3h 3 hours
4h 4 hours
Guide to the appliance
6

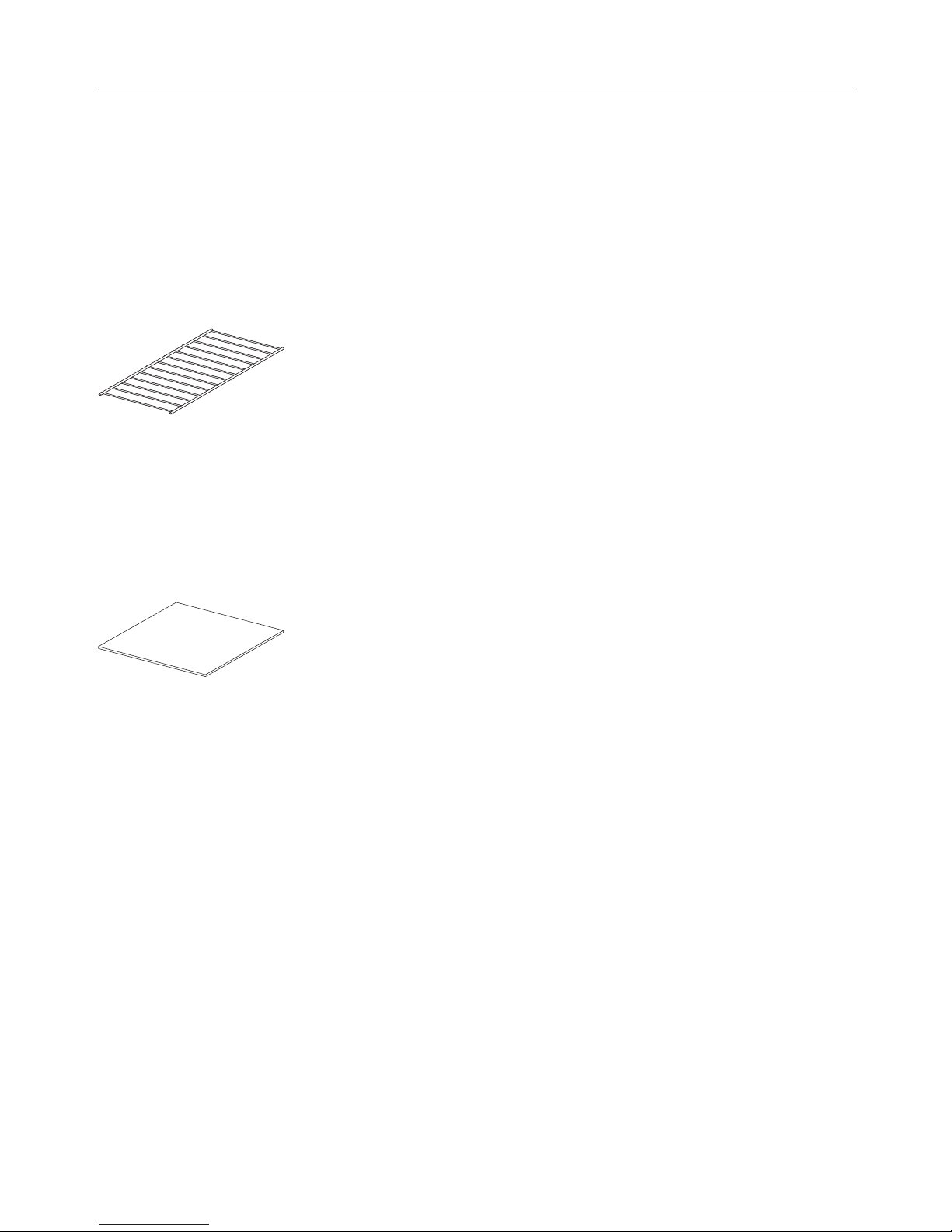

Accessories supplied
The accessories supplied with your drawer as well as a range
of optional ones are available to order (see "Optional
accessories").
Rack
For increasing the loading area
Anti-slip mat
For keeping crockery secure
Guide to the appliance
7

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important notes on the
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is intended for
domestic use only, and must only be
used as described in these instructions.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. The appliance is not a toy!
To avoid the risk of injury, keep children
away from it at all times, and do not let
them play with it or use the controls.
They will not understand the potential
dangers posed by it. They should be
supervised whenever you are working
in the kitchen.
~Older children may only use the
appliance after its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Warning and Safety instructions
8

Technical safety
~Before installation, check the
appliance for visible signs of damage.
Under no circumstances should you
use it if it has been damaged. A
damaged appliance is dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
connection data on the data plate
(voltage and connected load)
correspond with the mains electricity
supply, otherwise the appliance could
be damaged. If in any doubt, consult a
qualified electrician.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system. It is
most important that this basic safety
requirement is present and regularly
tested, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~This appliance may be connected
via a fused plug and switched socket. If
you wish to connect it to a fused spur
connection unit, or if the appliance is
supplied without a plug, it must be
installed and connected by a suitably
qualified and competent person in strict
accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
~For safety reasons, this appliance
may only be used when it has been
built in.
~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~If the connection cable is damaged,
it must be replaced by a suitably
qualified electrician with a specialist
connection cable of type H 05 V V-F
(pvc insulated), available from the Miele
Service Department.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
Warning and Safety instructions
9

~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or
–it is switched off at the fused spur
connection unit.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~In countries where there are areas
which may be subject to infestation by
cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage caused by cockroaches or
other vermin will not be covered by the
guarantee.
Correct use
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance. Do
not let them get damp or wet, as this
causes heat to transfer through the
material more quickly with the risk of
scalding or burning yourself.
~The underside of the drawer gets
hot when switched on. Be careful not to
touch it when the drawer is open.
~Do not store any plastic containers
or inflammable objects in the warming
drawer. They could melt or catch fire
when the appliance is switched on,
causing a fire hazard.
~Take care when opening and
closing the loaded drawer, that liquids
do not spill over and get into the
appliance through the vents. This can
cause lingering odours and the
appliance to short circuit.
~Do not heat up unopened tins or jars
of food in the drawer, as pressure will
build up in the tin or jar, causing it to
explode. This could result in injury and
scalding or damage.
~Ensure food is really hot when
placed inside the warming drawer. The
drawer is designed to keep hot food
warm, and not to warm food up.
~Make sure that the vents inside the
drawer are not covered. Otherwise,
food and crockery will not heat up
evenly.
Warning and Safety instructions
10

~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.
~Never replace the anti-slip mat
supplied with the appliance with paper
kitchen towel or similar.
~Do not overload the drawer. The
maximum load bearing capacity of the
drawer is 25 kg.
~Only place heat-resistant crockery in
the drawer. Never place plastic or
aluminium foil items in the drawer.
These melt at high temperatures, and
could catch fire.
~Do not sit or lean on the opened
drawer. This can damage the
telescopic runners.
~Make sure that you select a high
enough temperature setting to keep
food warm. Bacteria can develop in the
food if the temperature is too low.
~Never use a steam cleaner to clean
the appliance. The steam could reach
electrical components and cause a
short circuit.
~While the appliance is under
guarantee, repairs should only be
undertaken by a service technician
authorised by the manufacturer.
Otherwise the guarantee is invalidated.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
11

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre, and ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
12

A display test is carried out for 10 seconds after the
appliance has been installed and after a power cut. The fan
comes on at the same time. The appliance cannot be used
during this time.
Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning and heating up for the first time
^Remove any protective foil and sticky labels.
^Remove the anti-slip mat and, if applicable, the rack from
the drawer, and sponge both with warm water and a little
washing-up liquid. Dry using a soft cloth.
^Wipe the appliance inside and out with a damp cloth only,
and then dry with a soft cloth.
^Replace the anti-slip mat and the rack (if applicable) in the
drawer.
Then heat the empty drawer for at least two hours.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor repeatedly until the ssymbol lights
up in the display.
^Touch the 6sensor repeatedly until the LED on the far right
lights up.
^Touch the Tsensor repeatedly until 2h lights up.
^Close the drawer.
The warming drawer is fitted with a softclose self-closing
mechanism.
The drawer is fitted with a contact switch, which ensures
that the heating element and fan in the appliance only work
when the drawer is closed.
Before using for the first time
13

The appliance switches itself off automatically after 2 hours.
Metal components have a protective coating which may give
off a slight smell when heated up for the first time.
The smell and any vapours will dissipate after a short time,
and do not indicate a faulty connection or appliance.
Ensure that the kitchen is well ventilated whilst the appliance
is being heated up for the first time.
Before using for the first time
14

Functions
Use the Xsensor to select the function you want. The
applicable symbol lights up as follows:
–/
For warming cups and glasses.
–H
For warming plates and dishes
–s
For keeping food warm
The last function selected is automatically activated the next
time the drawer is switched on, and this is shown in the
display.
The appliance has a fan which distributes the warm air evenly
through the drawer. The fan runs continuously when the
drawer is operating on the cups/glasses or plates/dishes
functions. It runs at intervals on the "keep food warm"
function.
The appliance can be used to keep food warm at the same
time as warming plates and dishes.
Use the "keep food warm" function for this.
Take care. The plates and dishes will take longer to warm
up, but can get very hot on this function.
Operation
15

Temperature settings
Each function has its own temperature range. The factory-set
recommended temperatures are printed in bold. The
temperature can be altered in 5° steps by touching the 6
sensor. The last temperature selected is automatically
activated the next time the drawer is switched on, and this is
shown in the display.
Temperature
display
Temperature °C*
/Hs
]^^^^ 40 60 65
^]^^^ 45 65 70
^^]^^ 50 70 75
^^^]^ 55 75 80
^^^^] 60 80 85
* Approximate temperature values, measured in the middle
of the drawer when empty
Duration
The appliance is set for continuous operation mode. A limited
duration can be selected by touching the Tsensor. One
touch for 1 hour (1h), two touches for 2 hours (2h) etc, up to a
maximum of 4 hours. Continuous operation is restored by
touching the sensor a fifth time.
Do not leave the drawer unattended for too long in
continuous operation mode. Keeping food warm for a long
time can result in it drying out or even self-igniting.
Your appliance is fitted with a safety switch-off mechanism
which switches the appliance off after a maximum of
12 hours' continuous operation.
Operation
16

Switching on
^Open the drawer.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor until the function required lights up in
the display.
^If you wish to alter the temperature, touch the 6sensor until
the LED for the temperature required lights up.
The appliance is set in continuous operation mode.
^If you wish to limit the duration, touch the Tsensor until
the duration (in hours) required lights up.
^Close the drawer.
The drawer can be loaded once the necessary pre-heating
time has elapsed. If crockery has been warmed during the
pre-heating phase, use oven gloves to remove it.
Take care when opening and shutting the loaded drawer
that liquids do not spill over.
Switch the appliance off before removing food from the
drawer.
Operation
17

The quantity that can be loaded will depend to a great
extent on the size and weight of your own crockery.
Do not overload the drawer. The maximum load bearing
capacity of the drawer is 25 kg.
ESW 5070 - 14 / ESW 5080 - 14 / ESW 5088-14
The loading examples shown here are suggestions only.
– 6 place settings:
6 dinner plates C26 cm
6 soup bowls C23 cm
6 dessert plates C19 cm
1 oval serving dish 32 cm
1 serving dish C16 cm
1 serving dish C13 cm
or alternatively:
–12 dinner plates C26 cm
–18 soup bowls C23 cm
–16 soup cups C10 cm
–6 dinner plates C26 cm
6 soup bowls C23 cm
–6 pizza plates C36 cm
–72 espresso cups C5.9 cm
–30 cappuccino cups C8.8 cm
–30 punch glasses C6.7 cm / 8.5 cm high
Capacity
18

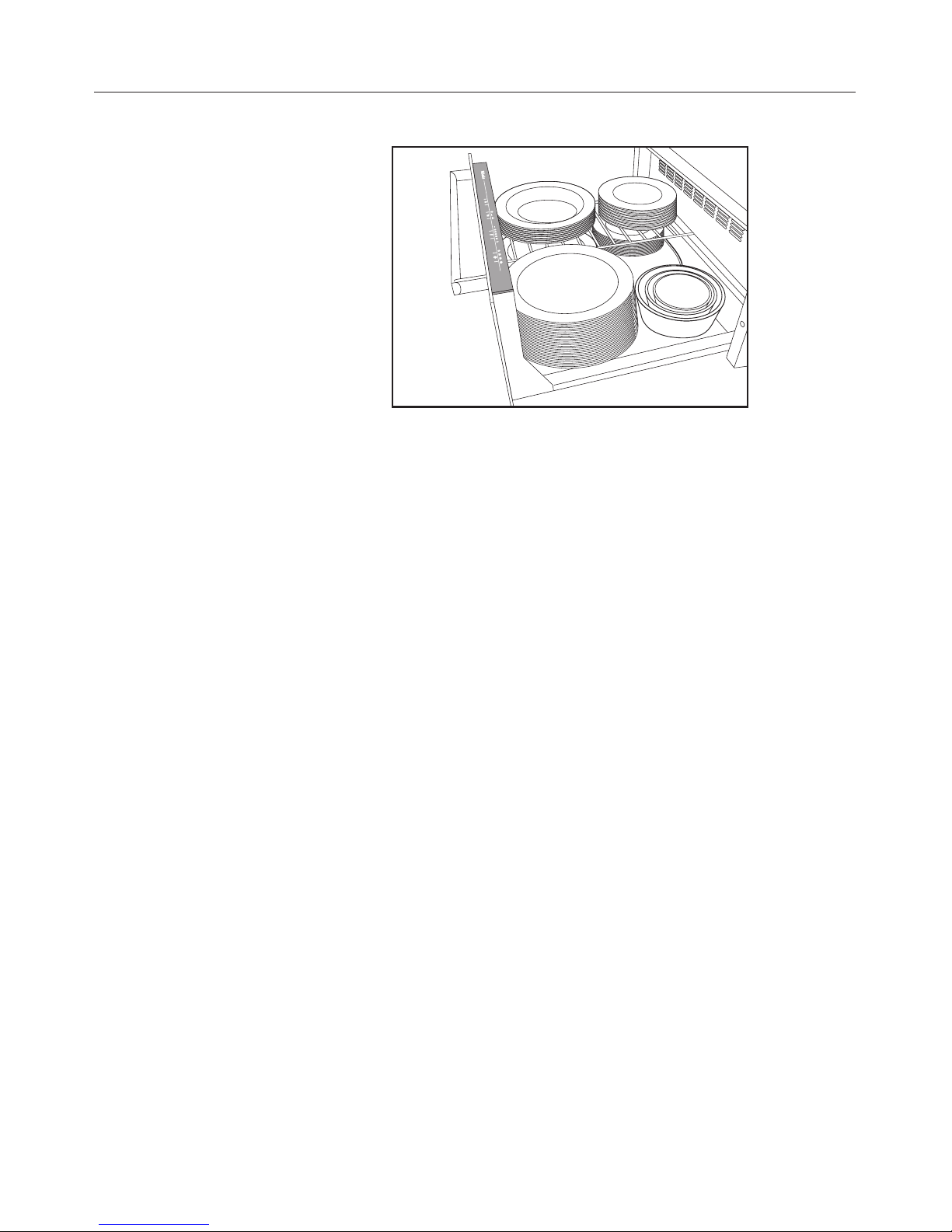

ESW 5070 -29 / ESW 5080 -29
The loading examples shown here are suggestions only.
–12 place settings:
12 dinner plates C26 cm
12 soup bowls C23cm
12 dessert plates C19 cm
1 oval serving dish 32 cm
1 serving dish C19 cm
1 serving dish C16 cm
1 serving dish C13 cm
or alternatively:
– 40 dinner plates C26 cm
–60 soup bowls C23 cm
–45 soup cups C10 cm
–20 dinner plates C26 cm
20 soup bowls C23 cm
–20 pizza plates C36 cm
–142 espresso cups C5.9 cm
–90 cappuccino cups C8.8 cm
–30 punch glasses C6.7 cm / 8.5 cm high
You can increase the load area by using the rack supplied
with the appliance. Position the rack to suit.
With two racks you can increase the load area even more by
placing one rack on the left and the other on the right.
Another rack can be obtained from Miele or from your Miele
dealer (see "Optional accessories").
Capacity
19

This function is for keeping food warm that has just been
cooked, i.e. food that is still hot. It is not for reheating food
that has gone cold.
–In order to ensure that the temperature does not drop
below the minimum required for keeping food warm
(65°C), select the sfunction only.
–Pre-heat the drawer thoroughly for 15 minutes to ensure
that it has reached the required temperature.
–Whilst the appliance is heating up, place the empty dishes
in it to warm them up. Then place the hot food into the
pre-heated dishes.
–Do not cover roast or fried foods which you want to keep
crisp. These types of food need to be kept warm at a
higher temperature.
– Cover food with a high moisture content, liquids and foods
which can develop a skin, with aluminium foil or a plate.
– To avoid spillages, do not overfill dishes.
– Freshly cooked food is hotter than food which is being kept
warm. Serve food which is being kept warm on pre-heated
plates.
– Nutrients are lost when food is cooked, and continue to
diminish when food is kept warm. The longer food is kept
warm for, the greater the loss of nutrients.
–We do not recommend food being kept warm for too long,
as it will continue to cook.
–Do not slam the drawer open or shut. Liquids could spill
over and get into the vents.
–Food may cool down if the drawer is opened and shut too
often.
Keeping food warm
20
