Miele ESW 7010 AM User manual

Operating and Installation
Instructions
Gourmet Drawer
It is essential to read the operating and installation instructions be-
fore setup, installation, and commissioning. This prevents both per-
sonal injury and damage to the appliance.
en-US M.-Nr. 11 924 070

Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 4
Caring for the environment .............................................................................. 11
Overview............................................................................................................. 12
ESW 7010, ESW 7110......................................................................................... 12
ESW 7570, ESW 7580, ESW 7670, ESW 7680 ................................................... 13

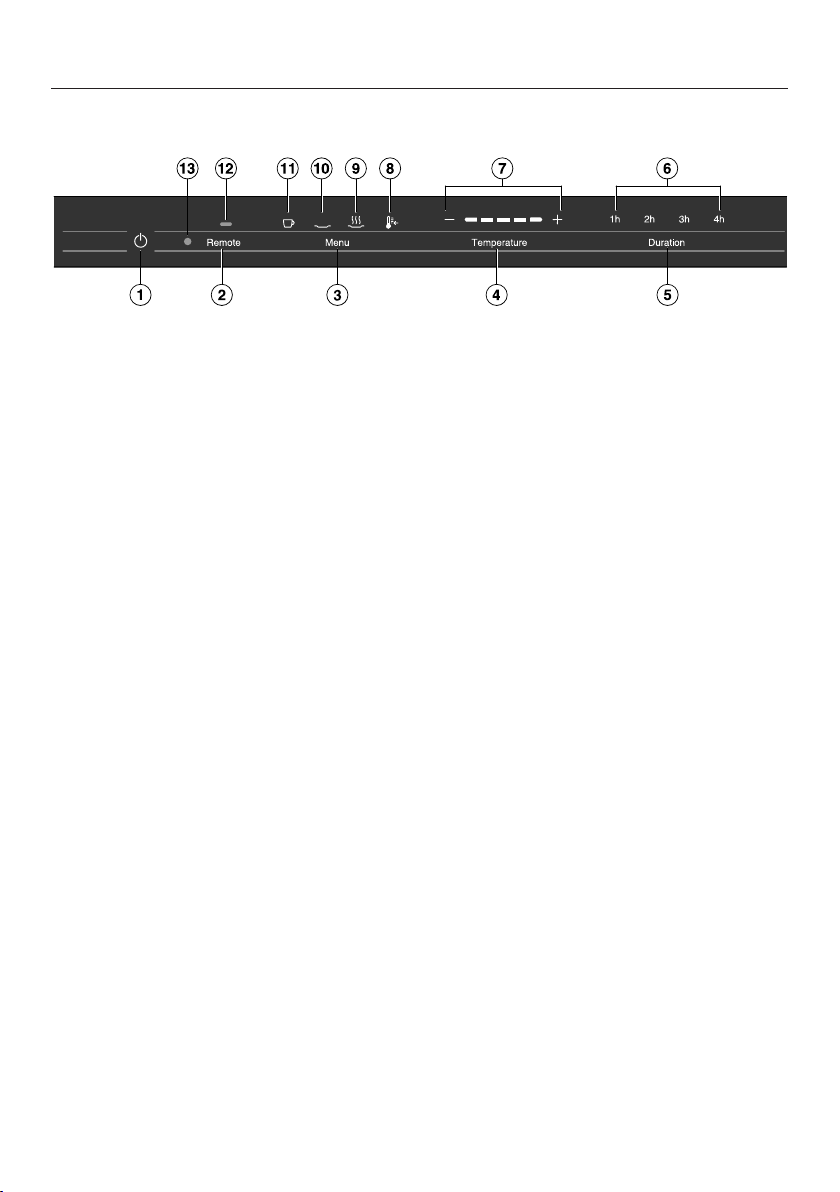

Controls and indicators ....................................................................................... 14

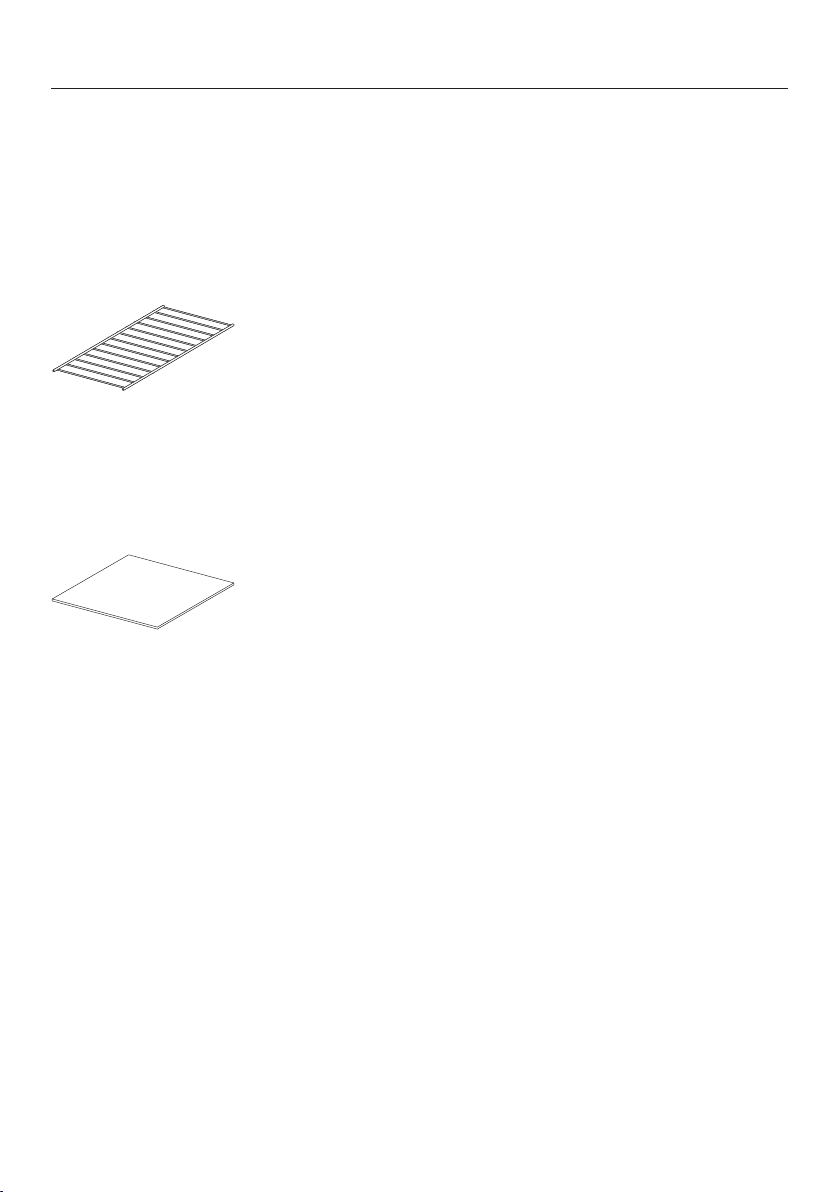

Included accessories........................................................................................... 15
Before first use .................................................................................................. 16
Cleaning the drawer for the first time.................................................................. 16
Heating up the drawer for the first time .............................................................. 16
Miele@home........................................................................................................ 17
Operation............................................................................................................ 20
Using the appliance............................................................................................. 20
Using MobileStart................................................................................................ 21
Operating modes................................................................................................. 21
Duration............................................................................................................... 21
Temperature settings........................................................................................... 22
Keeping food warm........................................................................................... 23
Warming dishes ................................................................................................. 26
Warming times .................................................................................................... 26
Capacity .............................................................................................................. 26
ESW 7010, ESW 7110.................................................................................... 27
ESW 7570, ESW 7580, ESW 7670, ESW 7680.............................................. 28
Low temperature cooking ................................................................................ 29
Other uses.......................................................................................................... 34
Networking with Miele Built-in Appliances..................................................... 35
Sabbath mode.................................................................................................... 36
Cleaning and care ............................................................................................. 37
Frequently asked questions ............................................................................. 39
Optional accessories ........................................................................................ 41
Customer Service.............................................................................................. 42
Contact in the event of a fault ............................................................................. 42
Data plate ............................................................................................................ 42

Contents
3
Appliance warranty and product registration ...................................................... 42
Installation.......................................................................................................... 43
IMPORTANT SAFETY INSTRUCTIONS - INSTALLATION ................................... 43
Installation notes ................................................................................................. 44
Installation dimensions ESW 7010, ESW 7110 ................................................... 45
Combination with an H2840 or CVA/DGC/H7x4x........................................ 45
Combination with a DGC/H7x6x................................................................... 46
Side view........................................................................................................ 47
Connections and ventilation........................................................................... 48
Installation dimensions ESW 7570, ESW 7670 ................................................... 49
Combination with a CVA/DGC7x7x or H7x7x BM ....................................... 49
Combination with a DGC7x8x....................................................................... 50
Side view........................................................................................................ 51
Connections and ventilation........................................................................... 52
Installation dimensions ESW 7580, ESW 7680 ................................................... 53
Installation in a tall or base cabinet................................................................ 53
Side view........................................................................................................ 54
Connections and ventilation........................................................................... 55
Installation ........................................................................................................... 56
Electrical connection ........................................................................................... 57
Declaration of conformity................................................................................. 58

IMPORTANT SAFETY INSTRUCTIONS
4
Please note that the Gourmet Drawer is referred to in these operating instructions
as the drawer.
This drawer complies with all current local and national safety re-
quirements. Inappropriate use can, however, lead to personal in-
jury and material damage.
Read the operating and installation instructions carefully before
using the drawer. They contain important information on safety, in-
stallation, use, and maintenance. This prevents both personal in-
jury and damage to the drawer.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the drawer as well as in the “IMPORTANT
SAFETY INSTRUCTIONS”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating and installation instructions in a safe place
and pass them on to any future owner.

IMPORTANT SAFETY INSTRUCTIONS
5
Appropriate use
 This drawer is intended for domestic use and use in other similar
environments.
 The drawer is not intended for outdoor use.
 The warming drawer is intended for domestic use only as de-
scribed in these instructions. All other use is at the owner's own risk
and could be dangerous.
 Persons who lack physical, sensory or mental abilities, or experi-
ence with the appliance should not use it without supervision or in-
struction by a responsible person.

IMPORTANT SAFETY INSTRUCTIONS
6
Safety with children
 As with any appliance, close supervision is necessary when used
by children.
 Do not leave children unattended: Children should not be alone or
unsupervised in the area where the appliance is installed. Do not al-
low them to sit or stand on the appliance.
 Be sure to supervise any children in the vicinity of the drawer, and
do not let them play with it.
 The drawer gets hot when in use and remains hot for quite a
while after being switched off. Keep children away from the drawer
until it has cooled down and there is no danger of burning.
 Danger of suffocation. While playing, children may become entan-
gled in packaging material (such as plastic wrapping) or pull it over
their head, presenting the risk of suffocation. Keep packaging mate-
rial away from children.

IMPORTANT SAFETY INSTRUCTIONS
7
Technical safety
 Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and re-
pairs must only be carried out by a Miele authorized technician.
 A damaged drawer can be dangerous. Always check for visible
signs of damage. Never use a damaged appliance.
 Temporary or permanent operation on an autonomous power sup-
ply system or a power supply system that is not synchronized with
the grid power supply (e.g., island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply sys-
tem complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
 Be certain the drawer is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this appli-
ance, continuity must exist between the appliance and an effective
grounding system. It is imperative that this basic safety requirement
be met. If there is any doubt, have the electrical system of the house
checked by a qualified electrician.
 The connection data (voltage and frequency) on the data plate of
the drawer must match the domestic electrical supply in order to
avoid the risk of damage to the drawer.
Compare this data before connecting the appliance. If in any doubt,
consult a qualified electrician.
 Do not connect the drawer to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
 For safety reasons, the drawer may only be used when it has been
fully installed.

IMPORTANT SAFETY INSTRUCTIONS
8
 This drawer may not be used in non-stationary locations (e.g. on a
ship).
 Any contact with live connections or tampering with the electrical
or mechanical components of the drawer will endanger your safety
and may lead to appliance malfunctions.
Do not open the casing of the drawer under any circumstances.
 Any repairs not performed by a Miele authorized service techni-
cian will void the warranty.
 Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
 If the plug has been removed or the power cord is not supplied
with a plug, the drawer must be connected to the power supply by a
suitably qualified electrician.
 If the power cord is damaged, it must be replaced with a special
power cord (see “Electrical connection” under “Installation”).
 The drawer must be completely disconnected from the power
supply during installation, maintenance and repair work. This can be
ensured as follows:
- The circuit breaker has tripped, or
- The fuse of the electrical installation is completely removed, or
- The plug (if present) is removed from the outlet. In the process,
pull the plug not the cord.
 If the drawer is installed behind a cabinet door, do not close the
door while the drawer is in operation. Heat and moisture can build up
behind the closed door and cause damage to the range and to the
surrounding cabinets and flooring. Do not close the door until the
drawer has completely cooled down.

IMPORTANT SAFETY INSTRUCTIONS
9
Correct use
 You could burn yourself on the hot drawer or hot dishware. Pro-
tect your hands with heat-resistant pot holders or gloves when han-
dling hot items. Do not let them get wet or damp. Heat transfers
through damp and wet material more quickly with the risk of scalding
or burning yourself.
 Risk of fire. Do not store any plastic containers or combustible ob-
jects in the drawer. They can melt or catch fire when the appliance is
switched on.
 Due to the high temperatures radiated, objects left near the drawer
could catch fire. Do not use the drawer to heat up the room.
 Never use paper towels or other similar objects in place of the
non-slip liner supplied with the appliance.
 The maximum load capacity of the telescopic drawer rails is
55lbs (25kg). If you overload the drawer or lean/stand on it when it
is open, you will damage the rails.
 The underside of the drawer gets hot when it is in use. Be careful
not to touch it when the drawer is open.
 The non-slip liner is heat-resistant up to 395°F (200°C).
It is possible for the bottom of cookware to exceed this temperature,
especially after they have been used to sear food. Allow cookware to
cool down for a minute or two before placing them in the drawer.
 Cookware made of plastic or aluminum foil will melt at high tem-
peratures. When keeping food warm, use only heat-resistant cook-
ware made of porcelain, glass, etc.
 Liquids that get inside the warming drawer can cause the appli-
ance to short-circuit. Open and close a loaded drawer carefully to
prevent liquids from spilling.

IMPORTANT SAFETY INSTRUCTIONS
10
 Keeping Warm mode is to be used for keeping hot dishes
warm, not for heating up cold food. Make sure that any food placed
in the drawer is at a high enough temperature.
 In some foods, bacterial growth may occur if the temperature is
too low. Set the appliance to an adequate warming temperature.
 Loose fitting or hanging garments present a fire hazard. Wear
proper apparel while operating the appliance.
 Do Not Use Water on Grease Fires–Smother fire or flame or use
dry chemical or foam-type extinguisher.
 Before serving, be sure food is at a safe temperature. This is par-
ticularly important when preparing food for babies and children.
 Never warm undiluted alcohol in the warming drawer, this can
easily ignite.
 Exercise caution when warming food with a high sugar content. If
heated for too long the sugar may caramelize or ignite.
 Never add water to food in a hot drawer. The steam created could
cause serious burns or scalds.
Cleaning and maintenance
 Danger of electric shock. The steam from a steam cleaner could
reach live electrical components and cause a short circuit. Never use
a steam cleaner for cleaning.
SAVE THESE INSTRUCTIONS AND REVIEW THEM PERIODICALLY

Caring for the environment
11
Disposal of the packing mate-
rial
The cardboard box and packing materi-
als protect the appliance during ship-
ping. They have been designed to be
biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Dan-
ger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.

Overview
12
ESW 7010, ESW 7110
aNon-slip liner
bControls and indicators
cDrawer front with Push2open mechanism
The drawer can be opened and closed by lightly pressing the drawer front.

Overview
13
ESW 7570, ESW 7580, ESW 7670, ESW 7680
d
e
c
a
b
aNon-slip liner
bControls and indicators
cDrawer front with Push2open mechanism
The drawer can be opened and closed by lightly pressing the drawer front.
dWire Rack
eAir vents

Overview
14
Controls and indicators
Sensor buttons
aOn/Offsensor control
For switching the drawer on and off
bRemotesensor button
For controlling the drawer via your
mobile device
cMenusensor button
For selecting the operating mode
dTemperaturesensor button
For setting the temperature
eDurationsensor button
For setting a specific duration or re-
verting to continuous operation.
Displays/Indicator lights
fIndicators for the selected duration
1h=1hour
2h=2hours
3h=3hours
4h=4hours
No display=Continuous operation
gSegment bar indicator lights
For displaying the temperature
hindicator light
Indicates that the
Low temperature cooking operating
mode is set.
iindicator light
Indicates that the
Keeping food warm operating mode
is set.
jindicator light
Indicates that the
Warm Dishes/Plates operating mode
is set.
kindicator light
Indicates that the
Warm Cups/Glasses operating mode
is set.
lindicator light
Indicates that the drawer can be
controlled via your mobile device.
mOptical interface
(for Miele Service only)

Overview
15
Included accessories
The accessories supplied with your ap-
pliance, as well as a range of optional
ones, are available to order from Miele
(see “Optional accessories”).
Wire Rack
For increasing the loading area
(ESW 7570, ESW 7580, ESW 7670,
ESW 7680).
Non-slip liner
For keeping dishware secure.

Before first use
16
Remove any protective foil and stick-
ers.
Do not remove stickers carrying
safety or installation information or
the data plate.
This makes it easier to perform servic-
ing and repair work.
Cleaning the drawer for the
first time
Remove the non-slip liner and (if
present) the wire rack from the
drawer. Clean both with warm water
and liquid dish soap, applied with a
soft sponge or microfiber cloth.
Dry the non-slip liner and the wire
rack with a soft cloth.
Wipe the drawer inside and out with a
damp cloth to remove any dust or
left-over packaging.
Dry all surfaces with a soft cloth.
Replace the non-slip liner and the
wire rack (if applicable) in the drawer.
Heating up the drawer for the
first time
Heat the empty drawer for at least
2hours.
Touch the sensor control to switch
the drawer on.
Touch the Menusensor control re-
peatedly until the symbol lights
up.
Touch the Temperaturesensor control
repeatedly until the segment on the
far right-hand side of the temperature
display lights up.
Touch the Durationsensor control re-
peatedly until 2h lights up.
Close the drawer.
The drawer is equipped with a contact
switch. This ensures that the heating
element and fan in the appliance only
work when the drawer is closed.
The drawer will switch itself off auto-
matically after 2hours.
The metal components have a protec-
tive coating. For that reason they will
give off a slight smell temporarily when
the drawer is heated for the first time.
The smell and any vapors given off will
dissipate after a short time and do not
indicate a faulty connection or appli-
ance.
It is important to ensure that the kitchen
is well ventilated when heating the
drawer for the first time.

Before first use
17
Miele@home
Your drawer is equipped with an inte-
grated WiFi module.
To use this feature, you will need:
- a WiFi network
- the Miele app
- a Miele user account You can create
a user account via the Miele app.
The Miele app will guide you as you
connect your drawer to your home WiFi
network.
Once your drawer is connected to your
WiFi network, you can use the app, for
example, to carry the following activi-
ties:
- access information about the operat-
ing status of your drawer
- retrieve information on cooking pro-
cesses that are in progress
- stop cooking programs that are in
progress
The drawer requires max. 2W in net-
worked standby.
Before installing the drawer in its in-
stallation site, ensure that the signal
of your WiFi network is strong
enough.
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can cause sporadic or even
complete connection failures. There-
fore, the availability of featured func-
tions cannot be guaranteed.
Miele@home availability
The ability to use the Miele app de-
pends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store® or from the Google Play Store™.

Before first use
18
Connecting via the app
The Miele@mobile app can be used to
connect to your network.
Install the Miele@mobile app on your
mobile device.
To log in you will need:
1. your WiFi network password
2. your drawer password
Made in Germany
Typ: ESW /XXXX XX XXX
Fabr.- Nr. : 00 / X /XXX XXXXXXXX XXX
M.- Nr. : XX XXX XXX
The password for your drawer consists
of the last nine digits of the serial num-
ber. This can be found on the appli-
ance’s data plate.
Data plate
The data plate is located here:
Start signing the appliance on in the
app. Follow the signing in instruc-
tions.
If requested to activate the WiFi on the
drawer, proceed as follows:
Turn the drawer off.
Press and hold the Durationsensor
control.
At the same time, touch the Re-
motesensor control.
2h will light up constantly, 3h will flash
on and off.
The drawer will be ready for connection
in the next 10minutes.
Follow the instructions in the app.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the Tempera-
turesensor control.
The drawer can now be operated via
the app.

Before first use
19
Connecting via WPS
Your WiFi router must support WPS
(WiFi Protected Setup).
Turn the drawer off.
Press and hold the Durationsensor
control.
At the same time, touch the Re-
motesensor control.
2h will light up constantly, 3h will flash
on and off.
The WPS connection must be started
on the drawer at the same time as on
the WiFi router.
Touch the Durationsensor control on
the drawer after a few seconds.
After a short while, 2h will light up con-
stantly, and 3h and 4h will flash on
and off.
The drawer will be ready for connection
in the next 10minutes.
Start the WiFi connection on your
WiFi router.
When successfully connected, 2h and
3h will light up constantly.
Quit the connection mode on the
drawer by touching the Tempera-
turesensor control.
The drawer can now be operated via
the app.
If the connection fails, you have proba-
bly not activated WPS on your router
quickly enough. Repeat the steps
above.
Tip: If your WiFi router does not support
WPS, please connect via the
Miele@mobile app.
Signing out of WiFi (resetting factory
defaults)
To set up a new WiFi connection, the
existing WiFi connection must be dis-
connected.
Turn the drawer off.
Press and hold the Temperaturesen-
sor control.
At the same time, touch the Re-
motesensor control.
With an existing WiFi connection, 2h
and 3h will light up constantly.
The drawer will be ready for disconnec-
tion in the next 10minutes.
Touch the Temperaturesensor con-
trol.
2h will light up constantly, 3h will flash
on and off.
After a few seconds, 2h and 3h will
start flashing on and off. The connec-
tion has now been disconnected.
Quit the signing off mode on the
drawer by touching the Durationsen-
sor control.
The WiFi connection has now been dis-
connected. A new connection can now
be set up.
Log off the WiFi if you are disposing of
your drawer, selling it, or putting a used
drawer into operation. This is the only
way to ensure that all personal data has
been removed and the previous owner
will no longer be able to access the
drawer.

Operation
20
Using the appliance
Malfunction can occur due to
dirty and/or covered sensor buttons.
The sensor buttons do not react or
unintentional switching procedures
result, perhaps even the automatic
deactivation of the drawer.
Keep the sensor buttons and indica-
tors clean.
Do not place anything over the sen-
sor buttons or indicators.
Damage caused by liquids.
Liquids that get inside the drawer
can cause a short circuit.
Open and close a loaded drawer
carefully to prevent liquids from
spilling.
Open the drawer.
Touch the sensor control to switch
the drawer on.
Touch the Menusensor control re-
peatedly until the required operating
mode lights up.
Touch the Temperaturesensor control
repeatedly until the segment for the
required temperature lights up in the
temperature display.
Touch the Durationsensor control re-
peatedly until the required number of
hours for the operating time lights up.
Close the drawer.
