Miele ESW 4826 User manual

Operating and Installation
Instructions
Built-in Warming Drawer
ESW 408x-14
ESW 47xx
ESW 48xx
To prevent accidents
and machine damages,
read these instructions
before
installation or use. M.-Nr. 07 342 380
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................3
Guide to the warming drawer ........................................7
ESW 408x-14 ......................................................7
ESW 47xx / ESW 48xx ...............................................8
Control panel ......................................................9
Before the first use ...............................................10
Using the warming drawer .........................................11
Operating modes..................................................11
Temperature settings...............................................12
Duration .........................................................13
Sabbath Mode ....................................................14
Loading the warming drawer .......................................15
Keeping food warm ...............................................16
Warming tableware ...............................................18
Other usages ....................................................19
Cleaning and care ................................................20
Frequently asked questions ........................................21
Technical Service.................................................22
IMPORTANT SAFETY INSTRUCTIONS................................24
ESW 408x-14.....................................................25
ESW 408x-14 BRWS...............................................29
ESW 47xx .......................................................33
ESW 48xx .......................................................35
Installation ......................................................37
Aligning the appliance front..........................................38
Integrated installations..............................................40
Electrical connection..............................................42
Help protect our environment.......................................43
Contents
2

WARNING- When using your
appliance follow basic precautions,
including the following:
Read all instructions before
installation or use to prevent injury
and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hotels and guest houses.
~Do not install outdoors.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Close supervision is necessary
when any appliance is used by or near
children.
~The appliance becomes hot during
use and remains hot for some time after
turning off. Keep children away from
the warming drawer until it has cooled
to a safe temperature.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
IMPORTANT SAFETY INSTRUCTIONS
3

Technical safety
~Before installing the appliance,
check for externally visible damage. Do
not operate a damaged appliance.
~Before installation make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond in order to avoid risk
of damage to the appliance. If in doubt,
consult a qualified technician.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~Do not use the appliance until it has
been properly installed in the cabinetry.
~Never open the outer casing of the
appliance. Tampering with electrical
connections or components and
mechanical parts is dangerous and
could cause machine damage.
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician. Work by
unqualified persons could be
dangerous and may void the warranty.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~Before installation or service,
disconnect the power supply to the
work area by removing the fuse,
"tripping" the circuit breaker, or
unplugging the unit.
~While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
4

Safety
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns.
~Be aware of loose fitting or hanging
clothing while using the warming
drawer. They may present a fire hazard.
~The floor of the drawer becomes hot
during use. Caution, do not touch. Use
the handle for opening and closing the
appliance.
~Do not store anything in the warming
drawer. Forgotten items could melt or
catch fire when the appliance is turned
on. Flammable liquids and materials
should never be stored in or above the
warming drawer.
~Food warmed for a long period of
time will dry out and could ignite. Make
sure food is not forgotten in the
warming drawer.
~It is possible that some bacterial
growth may occur in foods kept for
lengthy period of time at low
temperature levels.
~Do not warm fabrics in the drawer!
~Open and close the drawer carefully
so that items are not spilled. This will
also allow hot air or steam to escape.
~Do not heat unopened food
containers. Pressure can build up
causing an explosion that will damage
the cooking compartment. There is also
a danger of personal injury and
scalding.
~Before serving, be sure food is at a
safe temperature.
This is particularly important when
preparing food for babies and children.
~Never warm undiluted alcohol in the
warming drawer, this can easily ignite.
~Exercise caution when warming
food with a high sugar content. If
heated for too long the sugar may
caramelize or ignite.
~Be sure that the vents are not
covered. Food and tableware may not
warm evenly otherwise.
~Do not leave the warming drawer
unattended while in use.
~Do not use water on grease fires!
A violent steam explosion may result.
Smother the fire with a dry chemical or
foam fire extinguisher.
~Never add water to food in a hot
drawer. The steam created could cause
serious burns or scalds.
~Do not use the plate warmer to heat
the room. Due to the high temperatures
radiated, objects left near the appliance
could be damaged.
~Do not replace the non-slip mat, e.g.
with a kitchen towel.
IMPORTANT SAFETY INSTRUCTIONS
5

~The use of accessories not
recommended by Miele may cause
injury.
~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
~Do not lean, sit or overload the
warming drawer. This will cause
damage. The drawer can hold a
maximum of 55 lbs (25 kg).
~Do not use plastic containers,
plastic wrap or aluminum foil in the
warming drawer. These items may melt
and cause damage to the warming
drawer or injury.
~Do not use a steam cleaner to clean
the drawer. Steam could penetrate
electrical components and cause a
short circuit.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
6

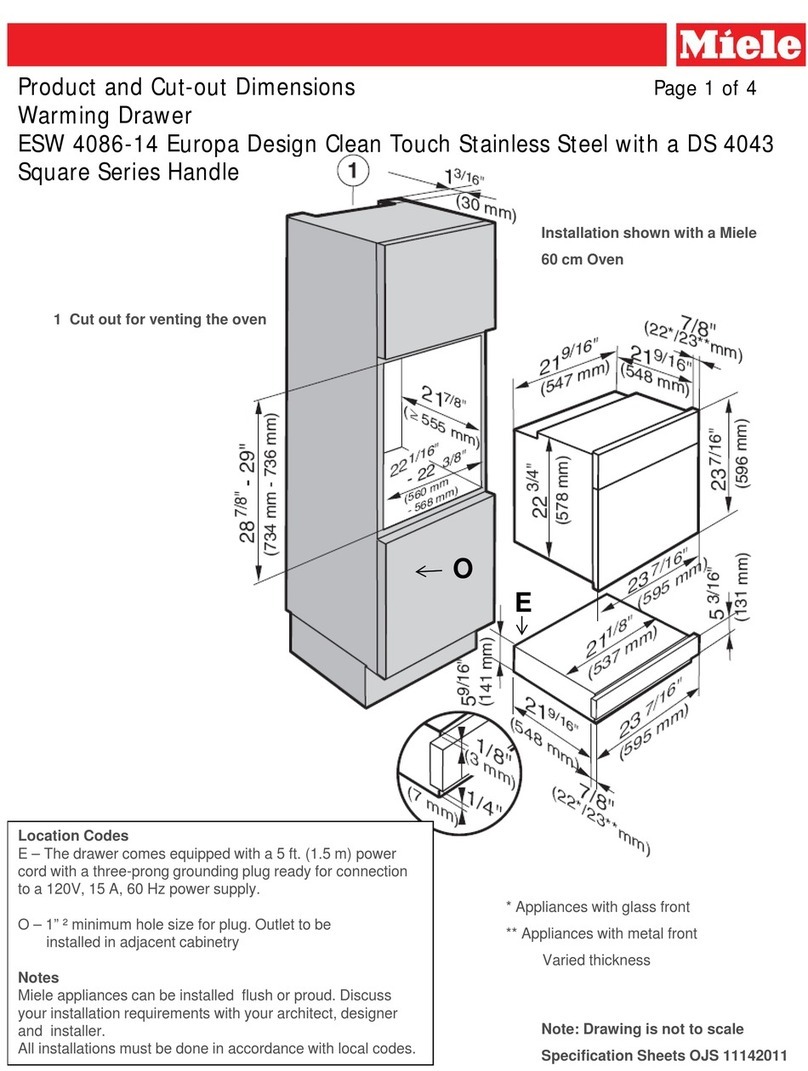

ESW 408x-14
aControl panel
bNon-slip mat
Guide to the warming drawer
7

ESW 47xx / ESW 48xx
aControl panel
bNon-slip mat
cVent
dRack
Guide to the warming drawer
8

Control panel
On/Off
Turns the warming drawer On and Off
Menu
Allows you to select the operating
mode
Operating modes:
/Cups/glasses
HTableware
2Food - warm and hold
Temp.
Allows you to select the desired
temperature.
The display shows:
]^^^^
See "Temperature settings" for more
information.
Timer
Allows you to set the heating time.
The display shows:
1h = 1 hour
2h = 2 hours
3h = 3 hours
4h = 4 hours
Guide to the warming drawer
9

When first connecting the appliance to
the power supply and after a power
failure, the fan will run and a display
test will be carried out for
approx. 10 seconds. The appliance
cannot be used during this time.
Clean the appliance
^Remove any protective wrapping.
^Remove the non-slip mat and clean
with a solution of warm water and
liquid dish soap. Dry with a soft cloth.
^Clean the warming drawer, inside
and out, with a damp cloth and wipe
dry.
^Replace the non/slip mat once has
completely dried.
Heat the appliance
Heat the warming drawer for a
minimum of 2 hours.
^Turn on with the "On/Off" touch
control
^Tap the "Menu" touch control until the
2symbol lights.
^Tap the "Temp." touch control until
the 5th indicator lights.
^Tap the "Timer" touch control until 2h
lights up.
^Close the drawer.
The warming drawer is fitted with a
self-closing device.
The drawer is also fitted with a
contact switch which will only allow
the heating and fan to work if the
drawer is closed.
^Vent the room when heating the
drawer for the first time.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated. The smell will dissipate after a
short time and does not indicate a
faulty connection.
^The warming drawer will turn off
automatically after 2 hours.
Before the first use
10

Operating modes
Tap the "Menu" touch control until the
desired operating mode lights:
–/Cups/Glasses
–HTableware
–2Food - warm and hold
The last operating mode selected
appears in the control panel when the
drawer is turned on.
The warming drawer is equipped with a
fan which distributes warm air
throughout the drawer. During the
operating modes "Cups/Glasses" and
"Tableware" the fan runs continuously.
During "Food - warm and hold" it runs in
intervals.
You can warm meals and tableware at
the same time. In this instance use the
operating mode "Food - warm and
hold".
Use caution : The tableware may be
hot.
Using the warming drawer
11

Temperature settings
Each operating mode has an assigned temperature range.
The suggested temperatures are set by default, they are
marked in bold in the table below. Use the "Temp." touch
control to change the setting in increments.
The last selected temperature is shown in the control panel
the next time the warming drawer is turned on.
Temperature
Display
Temperature °F (C°) *
/Hs
] ^ ^ ^ ^ 104 (40) 140 (60) 149 (65)
^ ] ^ ^ ^ 113 (45) 149 (65) 158 (70)
^ ^ ] ^ ^ 122 (50) 158 (70) 167 (75)
^ ^ ^ ] ^ 131 (55) 167 (75) 176 (80)
^ ^ ^ ^ ] 140 (60) 176 (80) 185 (85)
* The temperatures are approximate.
Using the warming drawer
12

Duration
The warming drawer is set for
continuous operation by default. By
selecting the "Timer" touch control a
warming time can be set. With each tap
of the "Timer" touch control the duration
will increase in one hour increments,
beginning with 1 hour and ending with
4 hours. Selecting "Timer" one more
time (equaling 5 taps) will set
continuous operating mode.
Do not leave the warming drawer in
continuous operation mode for an
extended period of time. Long
heating times will dry out the food
possibly causing it to ignite.
The warming drawer is equipped
with a safety cut-out feature which
turns the warming drawer off after
12 hours of continuous operation
(except during Sabbath mode).
Operation
^Open the drawer.
^Turn the appliance on with the
"On/Off" touch control.
^Select "Menu" until the desired
operating mode lights up.
^If desired select a new temperature.
Select "Temp." until the temperature
is reached.
The warming drawer is in continuous
operating mode.
^To set a warming time, select "Timer"
until the desired number of hours is
set.
^Close the drawer.
Once the desired pre-heating time has
elapsed, load the drawer. If tableware
was loaded during the pre-heating time
use pot holders to unload.
Open and close the drawer carefully
so that items are not spilled.
Turn the appliance off before
unloading.
Using the warming drawer
13

Sabbath Mode
For religious observance, the appliance
can be set for the duration of the
Sabbath. In Sabbath mode the timer is
deactivated and the sensors have to be
touched longer than ususal. If Sabbath
mode is activated, the appliance will
turn off after approx. 72 hours, then
automatically reset to normal operation.
Activate
^Press and hold "Timer".
^At the same time press and hold
"On/Off".
^Hold both buttons until all 4 timer
indicators light up at once.
^If desired, set the operating mode
and temperature.
Deactivate
^Press and hold "On/Off" until all
indicators go out.
The appliance is reset for normal
operation.
Using the warming drawer
14

The drawer load will depend on the type and size of your
dishes.
The maximum load is 55 lbs (25 kg).
Do not overload the drawer.
To increase the load space use the supplied rack.
Two racks will fit in the drawer at one time. Additional racks
are available from Miele.
ESW 408x-14
ESW 47xx / ESW 48xx
Loading the warming drawer
15

Tips
The warming drawer is intended for
keeping food warm directly after
preparation. It is not intended to
re-warm cold meals.
–To ensure that the minimum
temperature of 150°F (65°C) required
to keep food warm is met, select 2.
–Preheat the warming drawer for
approx. 15 minutes to guarantee that
the interior has risen to the desired
temperature.
–Place food into preheated tableware
before placing into the warming
drawer. Tip: Put tableware into the
warming drawer while it is
preheating.
– Do not cover foods which you would
like to keep crisp.
– Cover foods with a high moisture
content to avoid a "skin" from
forming.
–To avoid spillages do not over fill
tableware.
–Do not warm food for too long. Food
may be overcooked.
–Allow extra time for the temperature
to adjust after adding or checking on
food or dishes.
Keeping food warm
16

Settings
Food Type of
container
Lid on
container
Temperature for
2setting
Position in
drawer
Floor Rack*
Bacon Plate no ^ ^ ] ^ ^ xx
Beef**
Rare / Medium / Well
Pan yes ] ^ ^ ^ ^ xx
Bread hard rolls Plate no ^ ^ ^ ^ ] xx
Bread soft rolls Plate yes ^ ^ ^ ^ ] x
Casserole, crisp top Plate /
Casserole dish
no ^ ^ ] ^ ^ xx
Casserole, moist Pot / Dish yes ^ ^ ^ ^ ] xx
Eggs, hard boiled Plate no ^ ] ^ ^ ^ xx
Scrambled eggs Pan / Plate yes ^ ^ ] ^ ^ xx
Fish / Seafood Plate yes ^ ^ ] ^ ^ xx
Fruit Dish yes ^ ^ ] ^ ^ x
Gravy, cream sauces Pot yes ^ ^ ] ^ ^ xx
Ham Plate yes ^ ^ ] ^ ^ x
Lamb Plate no ] ^ ^ ^ ^ xx
Oatmeal** Pot no ^ ^ ] ^ ^ xx
Pancakes Plate yes ^ ^ ^ ^ ] xx
Pies - Single Crust Baking Dish no ^ ^ ] ^ ^ xx
Pies - Double Crust Baking Dish no ^ ^ ] ^ ^ x
Pizza Plate / Pizza pan no ^ ^ ^ ^ ] x
Fillet of Pork (whole) Pan yes ^ ^ ] ^ ^ xx
Fillet of Pork (slices) Pan yes ^ ^ ] ^ ^ xx
Potatoes - baked Dish / Pot yes ^ ^ ] ^ ^ xx
Potatoes - mashed** Pot yes ^ ^ ] ^ ^ x
Poultry Pan / Plate no ^ ^ ^ ^ ] xx
Rice Pot yes ^ ^ ^ ^ ] x
Vegetables Dish no ^ ^ ] ^ ^ xx
Fish sticks** Pan / Plate no ^ ^ ^ ^ ] x
* depending on model
** maximum recommended warming time is 30 minutes
Keeping food warm
17

Tips
–Distribute tableware throughout the
entire drawer. Stacked plated will
heat up more slowly than individual
pieces. If stacking is unavoidable
please them in the front of the
drawer. Use the rack (depending on
model).
–Do not place platters right up against
the vents. They may cover the warm
air outlets, causing the tableware to
not heat evenly.
–For cups and glasses select on the /
function, this will ensure that the
max. temperature of 140°F (60°C) is
not exceeded.
– Heated tableware cools very quickly.
Remove it from the drawer right
before you need it.
Warming times
Various factors will affect the warming
times of tableware:
–type and thickness of the dishes,
–quantity,
–how the dishes are arranged, and
–the temperature setting.
As you use the drawer you will learn
which settings suit your needs best.
The following can be used as a
guideline:
When using the Hsetting, it will take
approx.
– 30 - 35 minutes for 6 place settings
to heat evenly.
– 40 - 45 minutes for 12 place settings
to heat up evenly.
Warming tableware
18

The warming drawer can also be used
to proof yeast dough or to warm or
crisp bread.
Proofing dough
^Open the drawer.
^Turn the appliance on "On/Off".
^Touch "Menu" to select the " /
Cups/Glasses" setting.
^Touch "Temp." to select the
] ^ ^ ^ ^ temperature setting.
^Put the dough in a bowl and cover
with a plate.
^Place bowl on either the floor or rack
of the warming drawer.
^Allow dough to proof for approx. 30
minutes or until it has doubled in size.
Warming/Crisping bread
^Open the drawer.
^Turn the appliance on "On/Off".
^Touch "Menu" to select the " 2Food
- warm and hold" setting.
^Touch "Temp." to select the
^ ^ ^ ^ ] temperature setting.
^Put the bread on a plate and place in
on the floor or rack of the warming
drawer.
^Allow bread to crisp for approx. 30
minutes.
Other usages
19

Allow the appliance to cool before
cleaning.
Do not use a steam cleaner to clean
this appliance. Pressurized steam
could penetrate electrical
components and cause a short
circuit.
Do not use commercial cleaning
agents. Only use agents
recommended for domestic use.
Appliance front / interior
Remove spills as soon as possible.
Otherwise the soiling may become
hard to remove.
If spills are allowed to sit for an
extended period of time or if
unsuitable cleaning agents are used
the surfaces may discolor or
change.
^Clean the appliance with a solution of
warm water and liquid soap applied
with a soft sponge. Dry with a soft
cloth.
All surfaces of the appliance are
susceptible to scratching.
Breakages can occur on glass
surfaces.
Glass cleaners may be used to
clean the exterior. However do not
allow them to sit or "puddle", this can
cause damage to the surface.
Remove the cleaner promptly.
To better maintain your appliance
avoid the following:
–cleaners containing soda, ammonia,
thinners, or chlorides
–cleaners containing descaling
agents or lime removers,
– abrasive cleaners,
– stainless steel cleaners,
– dishwasher soap (powder),
– caustic (oven) cleaners,
– scouring pads, steel wool, hard
brushes,
– metal scrapers.
Non-slip mat
The mat can be removed to clean the
bottom of the drawer.
^Clean the mat by hand with warm
water and liquid dish soap.
^Dry thoroughly. Do not return the mat
until it is completely dry.
Never clean in the washing
machine.
Cleaning and care
20
