Miele ESW 6114 User manual

Operating and installation instructions
Gourmet warming drawer
To avoid the risk of accidents or damage to the appliance, it is essential
to read these instructions before it is installed and used for the first time.
M.-Nr. 09 656 730en - AU, NZ
All manuals and user guides at all-guides.com
all-guides.com

Description of the appliance.........................................3
ESW 6114 / ESW 6214...............................................3
ESW 6129 / ESW 6229...............................................4
Control panel ......................................................5
Accessories supplied ...............................................6
Warning and Safety instructions .....................................7

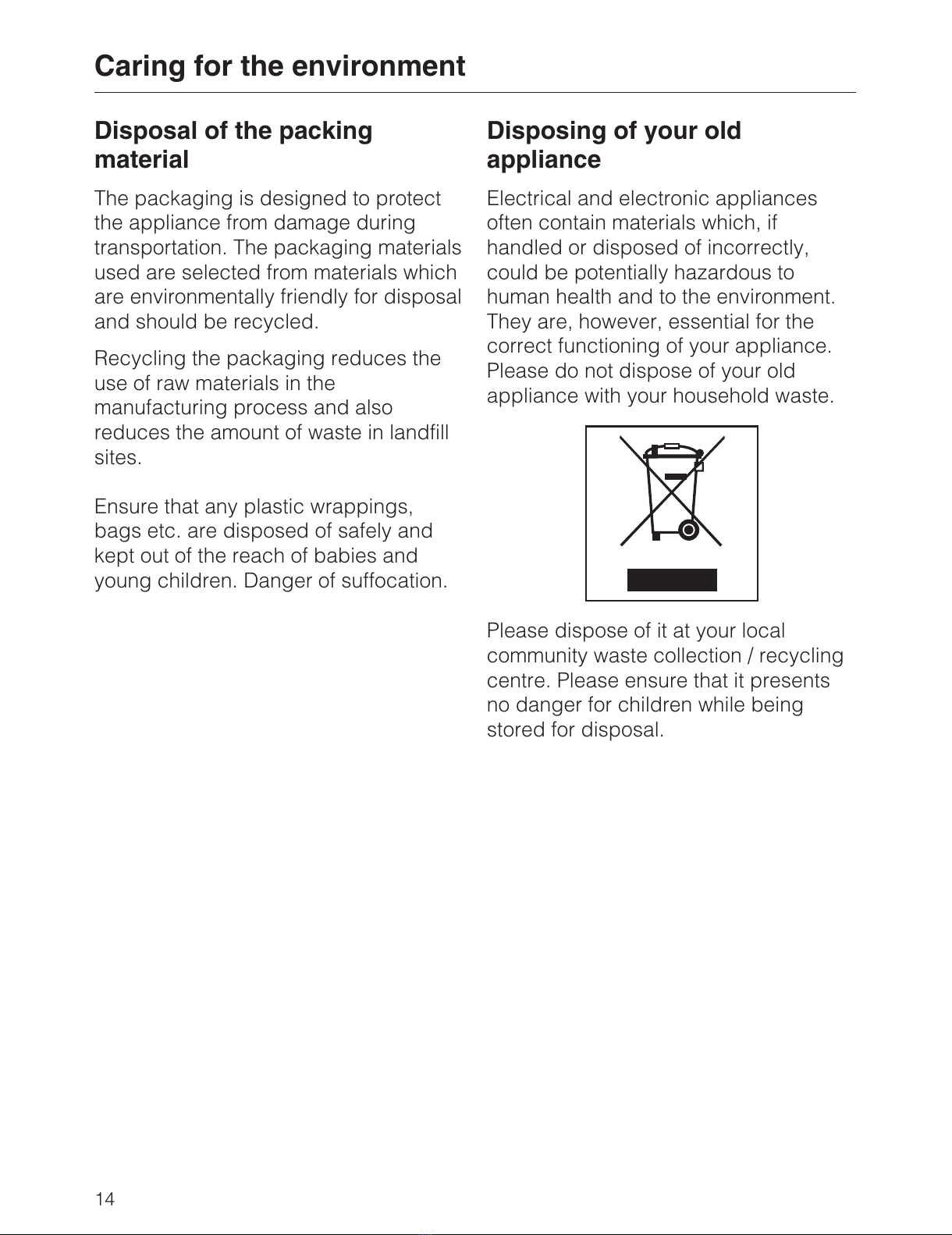

Caring for the environment.........................................14
Before using for the first time.......................................15
Operation .......................................................17
Functions ........................................................17

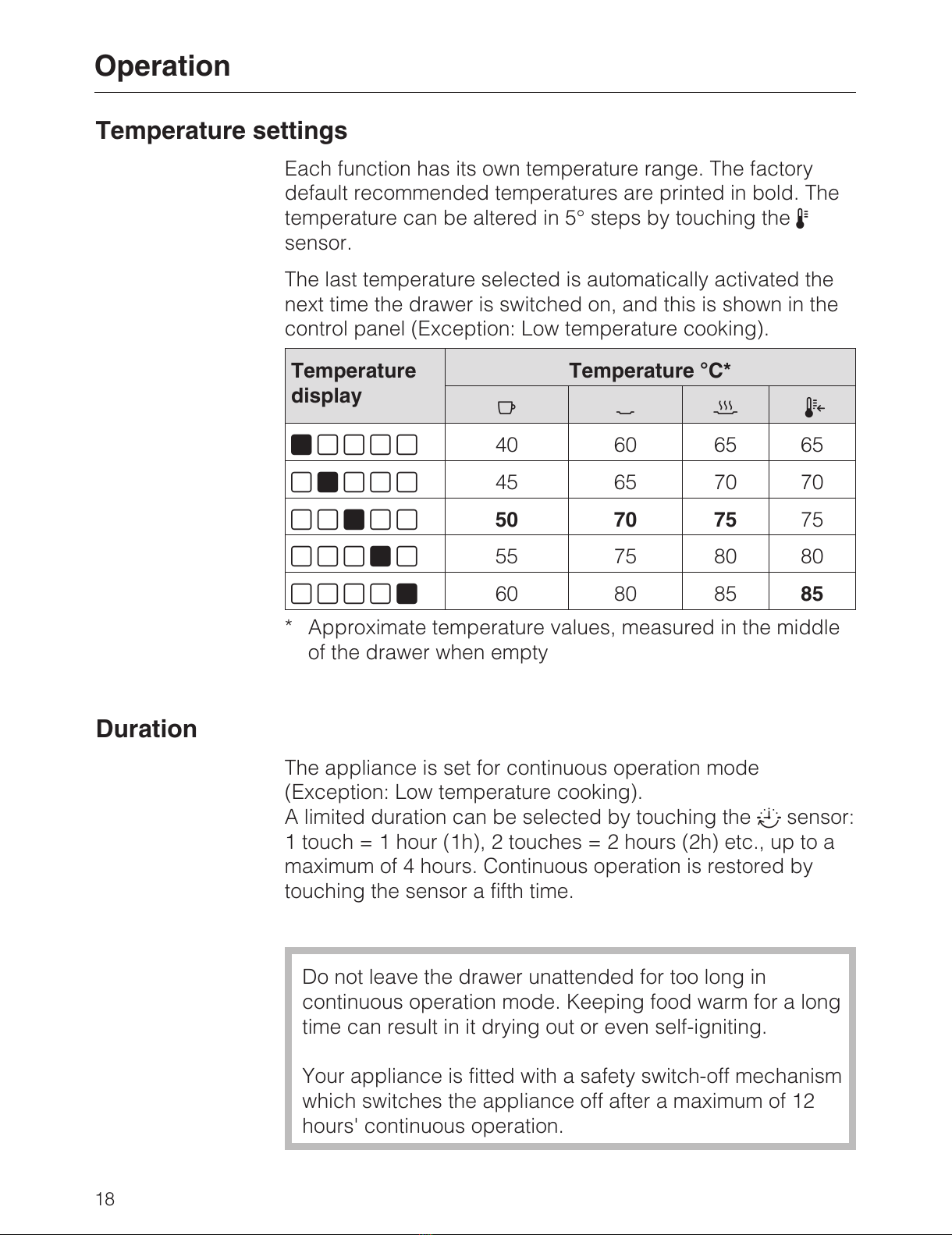

Temperature settings...............................................18
Duration .........................................................18
Keeping food warm ...............................................20
Warming crockery ................................................23
Capacity.........................................................24
ESW 6114 / ESW 6214 ...........................................24
ESW 6129 / ESW 6229 ...........................................25
Low temperature cooking .........................................26
Cooking chart ....................................................28
Other uses ......................................................31
Combination with CVA ............................................32
Cleaning and care ................................................33
Appliance front and interior ..........................................33
Anti-slip mat ......................................................34
Problem solving guide ............................................35
Optional accessories..............................................37
Safety instructions for installation...................................38
Building-in dimensions ...........................................39
ESW 6114 / ESW 6214..............................................39
ESW 6129 / ESW 6229..............................................43
Installing the appliance ............................................47
Electrical connection..............................................48
After sales service, data plate, warranty ..............................50
Contents
2
All manuals and user guides at all-guides.com

ESW 6114 / ESW 6214
aAnti-slip mat
bControl panel
cDrawer with push mechanism to open and close.
Press lightly in the middle of the drawer front to open and close it.
Description of the appliance
3
All manuals and user guides at all-guides.com

ESW 6129 / ESW 6229
aAnti-slip mat
bControl panel
cAir vents
dRack
Description of the appliance
4
All manuals and user guides at all-guides.com

Control panel
Sensors
sOn/Off sensor for the appliance
XFor selecting the function
6For setting the temperature
TFor setting the duration
Displays
Functions:
HFor warming cups and glasses
HFor warming plates and dishes
2For keeping food warm
¯For low temperature cooking
Temperature:
]^^^^
Duration:
1h 1 hour
2h 2 hours
3h 3 hours
4h 4 hours
Description of the appliance
5
All manuals and user guides at all-guides.com

Accessories supplied
The accessories supplied with your appliance, as well as a
range of optional ones, are available to order from Miele (see
"Optional accessories").
Rack
For increasing the loading area (ESW 6*29)
Anti-slip mat
For keeping crockery secure
Miele cookbook "Cooking with low temperatures"
A selection of the best recipes from the Miele test kitchen.
Description of the appliance
6
All manuals and user guides at all-guides.com
all-guides.com

This Gourmet warming drawer complies with all relevant local and
national safety requirements. Inappropriate use can, however,
lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time.
They contain important notes on installation, safety, use and
maintenance. Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
7
All manuals and user guides at all-guides.com

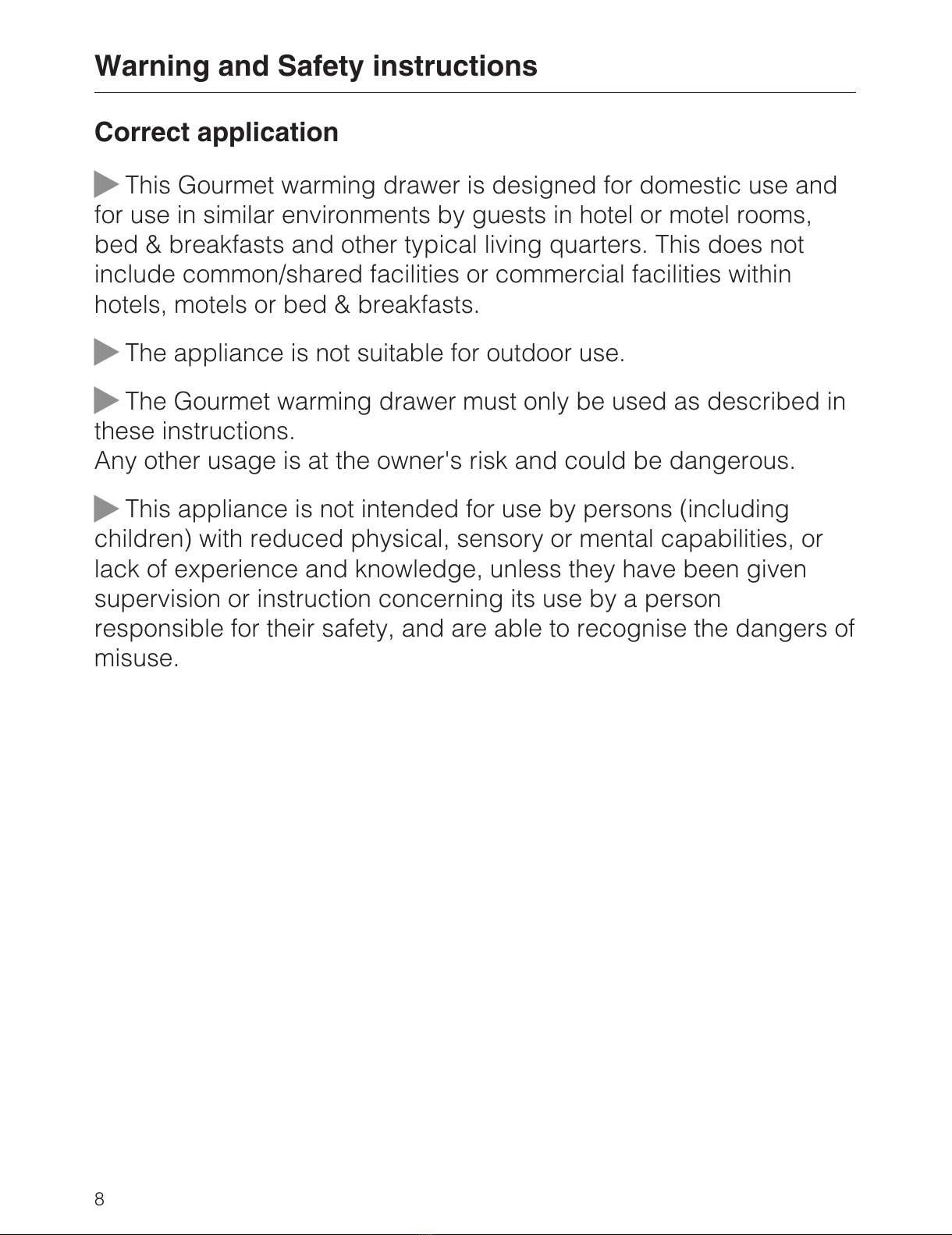

Correct application
~This Gourmet warming drawer is designed for domestic use and
for use in similar environments by guests in hotel or motel rooms,
bed & breakfasts and other typical living quarters. This does not
include common/shared facilities or commercial facilities within
hotels, motels or bed & breakfasts.
~The appliance is not suitable for outdoor use.
~The Gourmet warming drawer must only be used as described in
these instructions.
Any other usage is at the owner's risk and could be dangerous.
~This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning its use by a person
responsible for their safety, and are able to recognise the dangers of
misuse.
Warning and Safety instructions
8
All manuals and user guides at all-guides.com

Safety with children
~Young children must not be allowed to use this appliance.
~Older children may only use the Gourmet warming drawer when
its operation has been clearly explained to them and they are able to
use it safely, recognising the dangers of misuse.
~Cleaning may only be carried out by older children under the
supervision of an adult.
~Children should be supervised to ensure that they do not play
with the appliance. Keep small children away from the appliance at
all times to avoid the risk of injury.
~The Gourmet warming drawer gets hot when in use and remains
hot for quite a while after being switched off. To safeguard against
burning, keep children well away from the appliance until it has
cooled down.
~Danger of suffocation!
Children may be able to wrap themselves in packing material or pull
it over their heads with the risk of suffocation.
Keep children away from any packing material.
Warning and Safety instructions
9
All manuals and user guides at all-guides.com

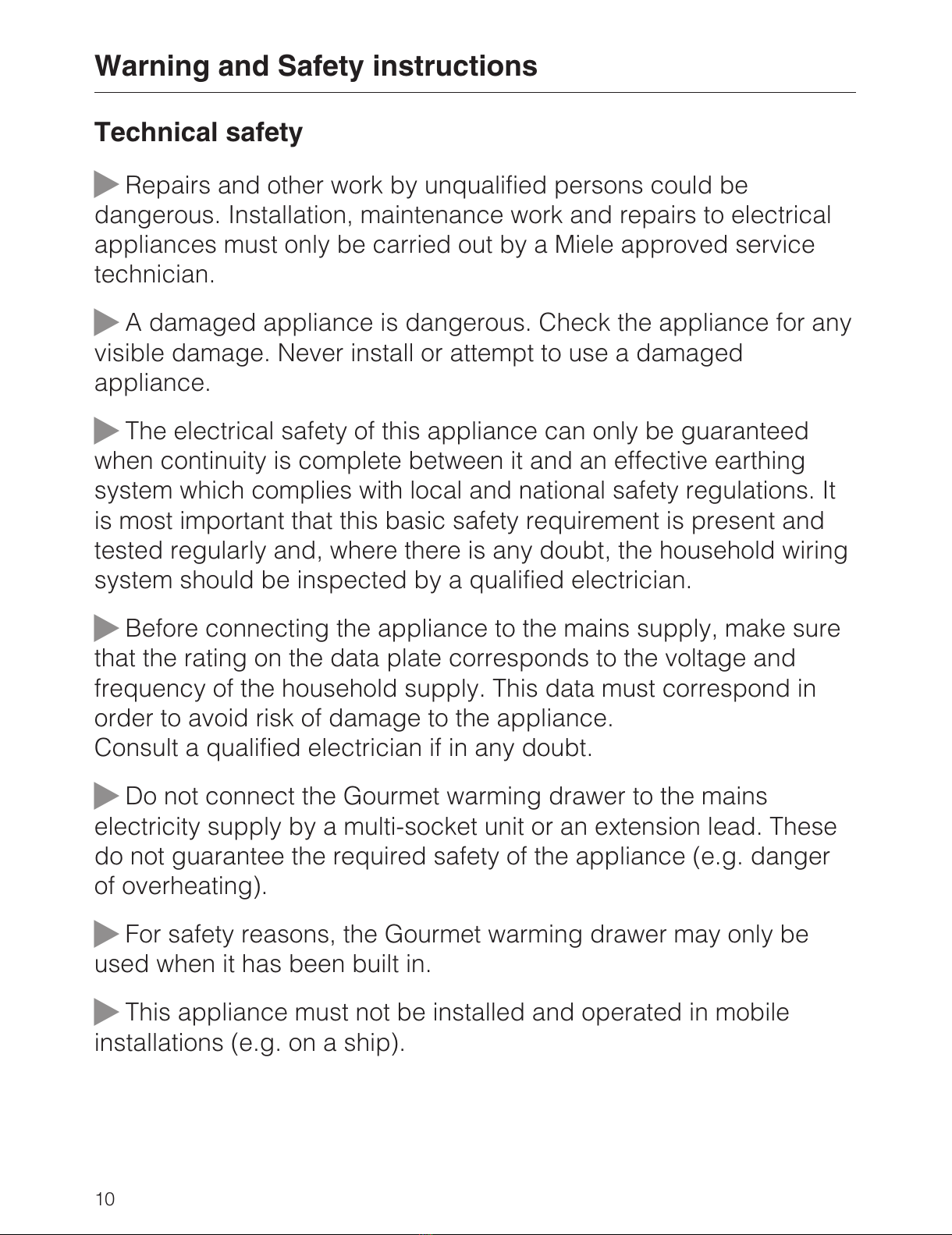

Technical safety
~Repairs and other work by unqualified persons could be
dangerous. Installation, maintenance work and repairs to electrical
appliances must only be carried out by a Miele approved service
technician.
~A damaged appliance is dangerous. Check the appliance for any
visible damage. Never install or attempt to use a damaged
appliance.
~The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
~Before connecting the appliance to the mains supply, make sure
that the rating on the data plate corresponds to the voltage and
frequency of the household supply. This data must correspond in
order to avoid risk of damage to the appliance.
Consult a qualified electrician if in any doubt.
~Do not connect the Gourmet warming drawer to the mains
electricity supply by a multi-socket unit or an extension lead. These
do not guarantee the required safety of the appliance (e.g. danger
of overheating).
~For safety reasons, the Gourmet warming drawer may only be
used when it has been built in.
~This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
10
All manuals and user guides at all-guides.com

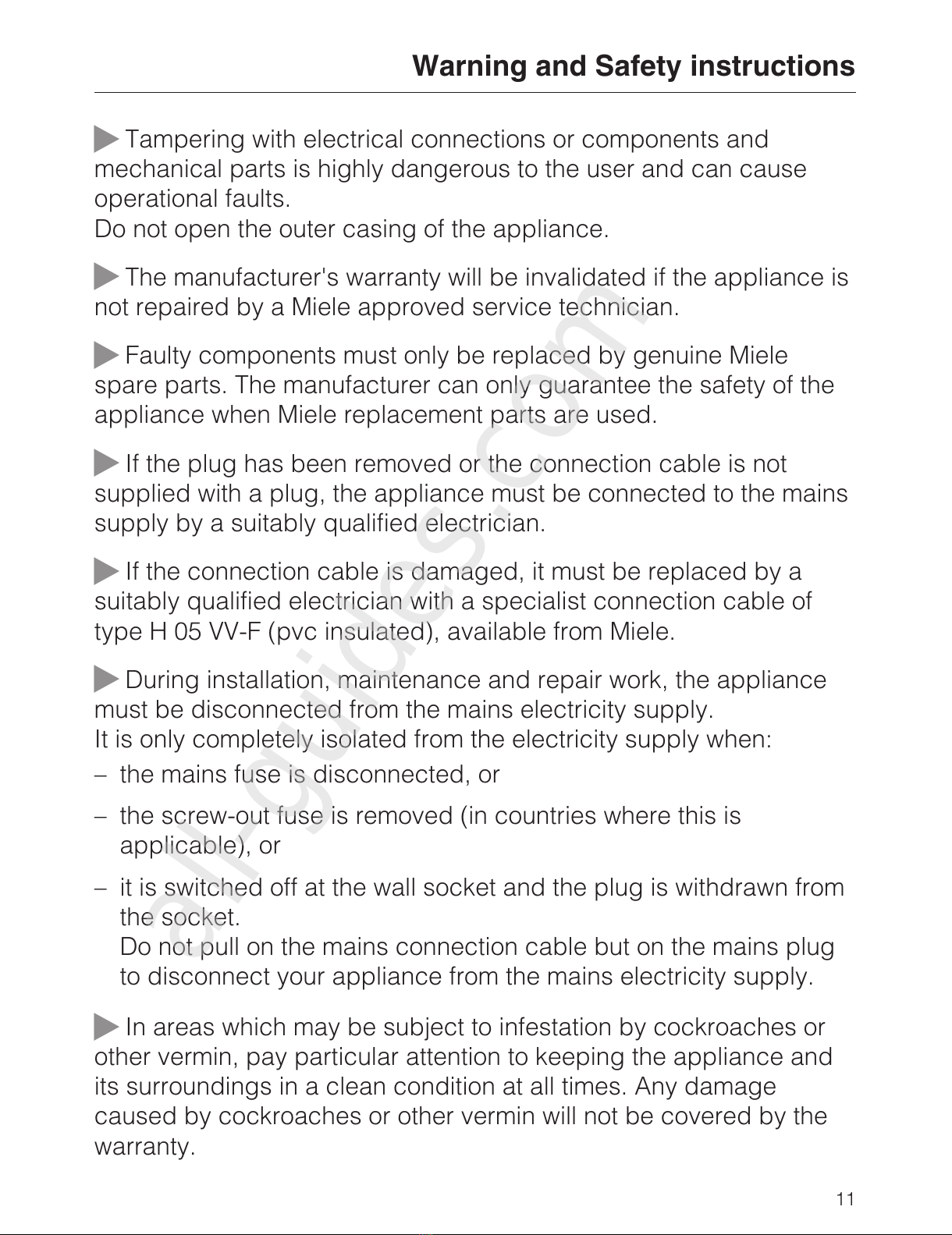

~Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Do not open the outer casing of the appliance.
~The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
~Faulty components must only be replaced by genuine Miele
spare parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
~If the plug has been removed or the connection cable is not
supplied with a plug, the appliance must be connected to the mains
supply by a suitably qualified electrician.
~If the connection cable is damaged, it must be replaced by a
suitably qualified electrician with a specialist connection cable of
type H 05 VV-F (pvc insulated), available from Miele.
~During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
It is only completely isolated from the electricity supply when:
–the mains fuse is disconnected, or
–the screw-out fuse is removed (in countries where this is
applicable), or
–it is switched off at the wall socket and the plug is withdrawn from
the socket.
Do not pull on the mains connection cable but on the mains plug
to disconnect your appliance from the mains electricity supply.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage
caused by cockroaches or other vermin will not be covered by the
warranty.
Warning and Safety instructions
11
All manuals and user guides at all-guides.com
all-guides.com

Correct use
~You can hurt yourself on the hot drawer or hot crockery.
It is advisable to use heat-resistant pot holders or gloves when using
the appliance. Take care not to let the gloves get damp or wet, as
this causes heat to transfer through the material more quickly with
the risk of scalding or burning yourself.
~Do not store any plastic containers or inflammable objects in the
warming drawer. They could melt or catch fire when the appliance is
switched on, causing a fire hazard.
~Do not use the appliance to heat up the room. Due to the high
temperatures radiated, objects near the appliance could catch fire.
~Never replace the anti-slip mat supplied with the appliance with
paper kitchen towels or similar.
~Overloading or sitting on the opened warming drawer will
damage the telescopic runners. The warming drawer has a
maximum load capacity of 25 kg.
~If the warming drawer is built-in behind a furniture door, it must
only be operated when the door is open.
Close the furniture door only once the appliance has been switched
off and the residual heat indicators have gone out.
~Do not heat up unopened tins of food in the warming drawer as
pressure will build up in the tin, causing it to explode. This could
result in injury and scalding or damage.
~The underside of the drawer gets hot when switched on. Be
careful not to touch it when the drawer is open.
Warning and Safety instructions
12
All manuals and user guides at all-guides.com

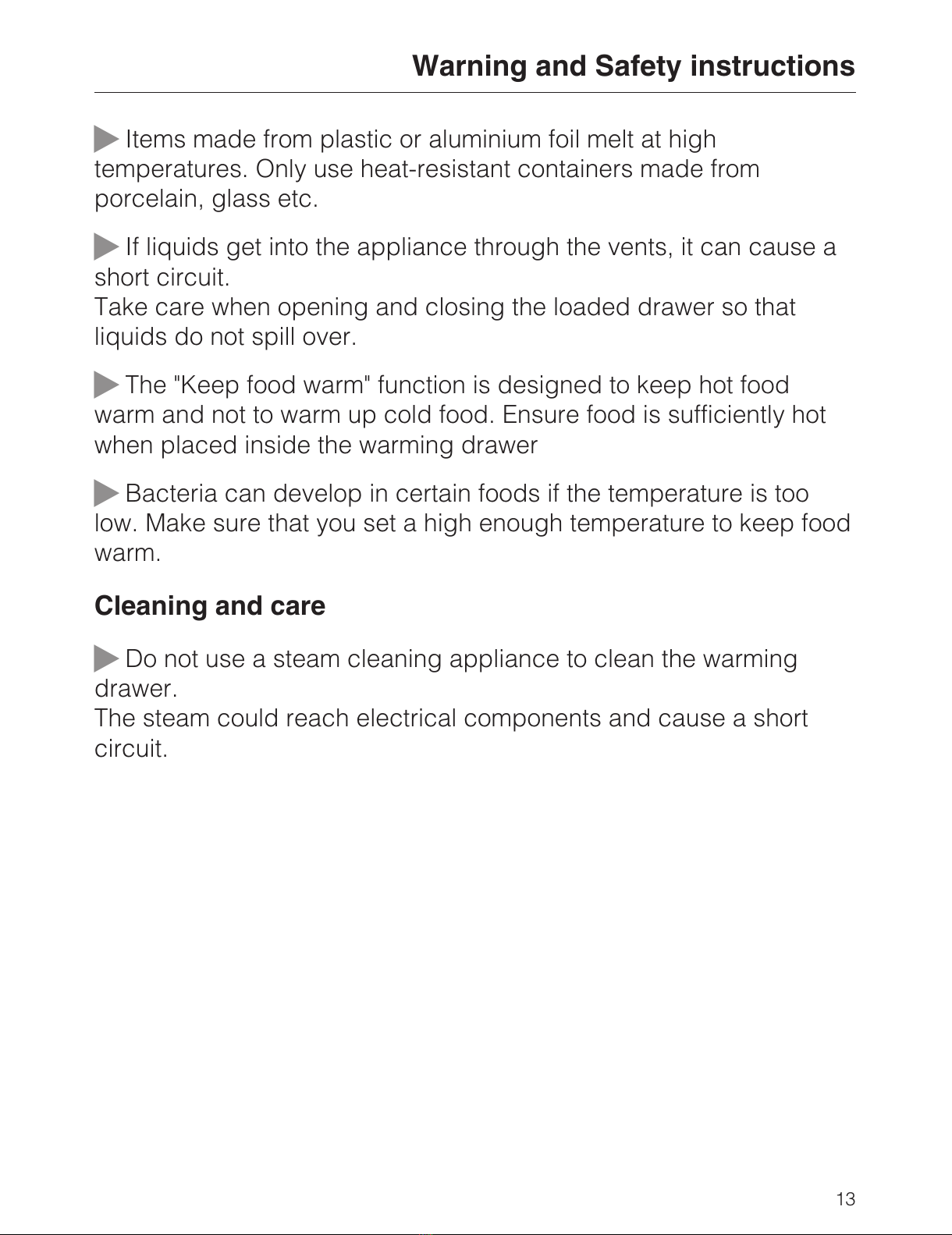

~Items made from plastic or aluminium foil melt at high
temperatures. Only use heat-resistant containers made from
porcelain, glass etc.
~If liquids get into the appliance through the vents, it can cause a
short circuit.
Take care when opening and closing the loaded drawer so that
liquids do not spill over.
~The "Keep food warm" function is designed to keep hot food
warm and not to warm up cold food. Ensure food is sufficiently hot
when placed inside the warming drawer
~Bacteria can develop in certain foods if the temperature is too
low. Make sure that you set a high enough temperature to keep food
warm.
Cleaning and care
~Do not use a steam cleaning appliance to clean the warming
drawer.
The steam could reach electrical components and cause a short
circuit.
Warning and Safety instructions
13
All manuals and user guides at all-guides.com

Disposal of the packing
material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not dispose of your old
appliance with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre. Please ensure that it presents
no danger for children while being
stored for disposal.
Caring for the environment
14
All manuals and user guides at all-guides.com

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning and heating up for the first time
^Remove any protective foil and sticky labels.
^Remove the anti-slip mat and, if applicable, the rack from
the drawer, and clean both with a sponge, warm water and
a little washing-up liquid. Dry using a soft cloth.
^Wipe the appliance inside and out with a damp cloth only,
and then dry with a soft cloth.
^Replace the anti-slip mat and the rack (if applicable) in the
drawer.
Then heat the empty drawer for at least two hours.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor repeatedly until the ssymbol lights
up in the display.
^Touch the 6sensor repeatedly until the LED on the far right
lights up.
^Touch the Tsensor repeatedly until 2h lights up.
^Close the drawer.
The warming drawer is fitted with a contact switch which
ensures that the heating element and the fan in the
appliance only operate when the drawer is closed.
Before using for the first time
15
All manuals and user guides at all-guides.com

The appliance switches itself off automatically after 2 hours.
The metal components have a protective coating which may
give off a slight smell when heated up for the first time. The
smell and any vapours will dissipate after a short time, and do
not indicate a faulty connection or appliance.
Please ensure the room is well ventilated during this time.
Before using for the first time
16
All manuals and user guides at all-guides.com
all-guides.com

Functions
Use the Xsensor to select the function you want. The
applicable symbol lights up as follows:
–H
For warming cups and glasses
–H
For warming plates and dishes
–2
For keeping food warm
–¯
For low temperature cooking
The last function selected is automatically activated the next
time the drawer is switched on, and this is shown in the
control panel.
The appliance has a fan which distributes the warm air evenly
throughout the drawer. The fan runs continuously when the
drawer is operating on the cups/glasses or plates/dishes
functions. It runs at intervals on the "Keep food warm" and
"Low temperature cooking" functions.
The appliance can be used to keep food warm at the same
time as warming plates and dishes.
Use the "Keep food warm" function for this.
Take care. The plates and dishes will take longer to warm
up, but can get very hot on this function.
Operation
17
All manuals and user guides at all-guides.com

Temperature settings
Each function has its own temperature range. The factory
default recommended temperatures are printed in bold. The
temperature can be altered in 5° steps by touching the 6
sensor.
The last temperature selected is automatically activated the
next time the drawer is switched on, and this is shown in the
control panel (Exception: Low temperature cooking).
Temperature
display
Temperature °C*
HH2¯
] ^ ^ ^ ^ 40 60 65 65
^ ] ^ ^ ^ 45 65 70 70
^ ^ ] ^ ^ 50 70 75 75
^ ^ ^ ] ^ 55 75 80 80
^ ^ ^ ^ ] 60 80 85 85
* Approximate temperature values, measured in the middle
of the drawer when empty
Duration
The appliance is set for continuous operation mode
(Exception: Low temperature cooking).
A limited duration can be selected by touching the Tsensor:
1 touch = 1 hour (1h), 2 touches = 2 hours (2h) etc., up to a
maximum of 4 hours. Continuous operation is restored by
touching the sensor a fifth time.
Do not leave the drawer unattended for too long in
continuous operation mode. Keeping food warm for a long
time can result in it drying out or even self-igniting.
Your appliance is fitted with a safety switch-off mechanism
which switches the appliance off after a maximum of 12
hours' continuous operation.
Operation
18
All manuals and user guides at all-guides.com

How to operate the Gourmet warming drawer
^Open the drawer.
^Switch the appliance on by touching the On/Off ssensor.
^Touch the Xsensor until the function required lights up in
the control panel.
^If you wish to alter the temperature, touch the 6sensor until
the LED for the temperature required lights up.
^Touch the Tsensor until the duration (in hours) required
lights up.
^Close the drawer.
The On/Off sensor smust be kept free of soiling or liquids.
Otherwise the sensor could fail to react or switch on the
appliance unintentionally.
Operation
19
All manuals and user guides at all-guides.com

In order to ensure that the temperature does not drop
below the minimum required for keeping food warm
(65 °C), select the 2function only.
This function is for keeping food warm that has just been
cooked, i.e. food that is still hot. It is not for reheating food
that has gone cold.
Procedure
^Select the 2function.
^Select the duration required.
^Pre-heat the drawer for 15 minutes to ensure that it has
reached the required temperature. While the appliance is
pre-heating, place the empty dishes in the drawer.
^Remove the pre-heated dishes from the drawer and fill
them with hot food. Make sure you use oven gloves when
removing dishes from the drawer.
^Place the dishes in the drawer and close it carefully so as
not to spill any liquids.
Tips
–Place hot food in pre-heated dishes. To pre-heat the
dishes, place them in the drawer while it is heating up.
–Do not cover roasted or fried food which you want to keep
crisp. These types of food need to be kept warm at a
higher temperature.
–Cover food with a high moisture content, liquids and foods
which can develop a skin, with aluminium foil or a plate.
–To avoid spillages, do not overfill dishes.
Keeping food warm
20
All manuals and user guides at all-guides.com
