Miele Premier Plus User manual

Operating instructions
for washing machine
PREMIER PLUS
It is essential to read these
operating instructions before
Q\
installing or using the machine,
to avoid the risk of accident,
or damage to the machine. M.-Nr. 04 613 440

Contents
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Peparation for use
Help to protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Operating
Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Brief guide to correct washing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the programme sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adding or removing washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fabric conditioners/starch formulations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Programmable functions
Programmable functions - Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Programmable functions - To programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Programmable functions - Check/Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Contents
2

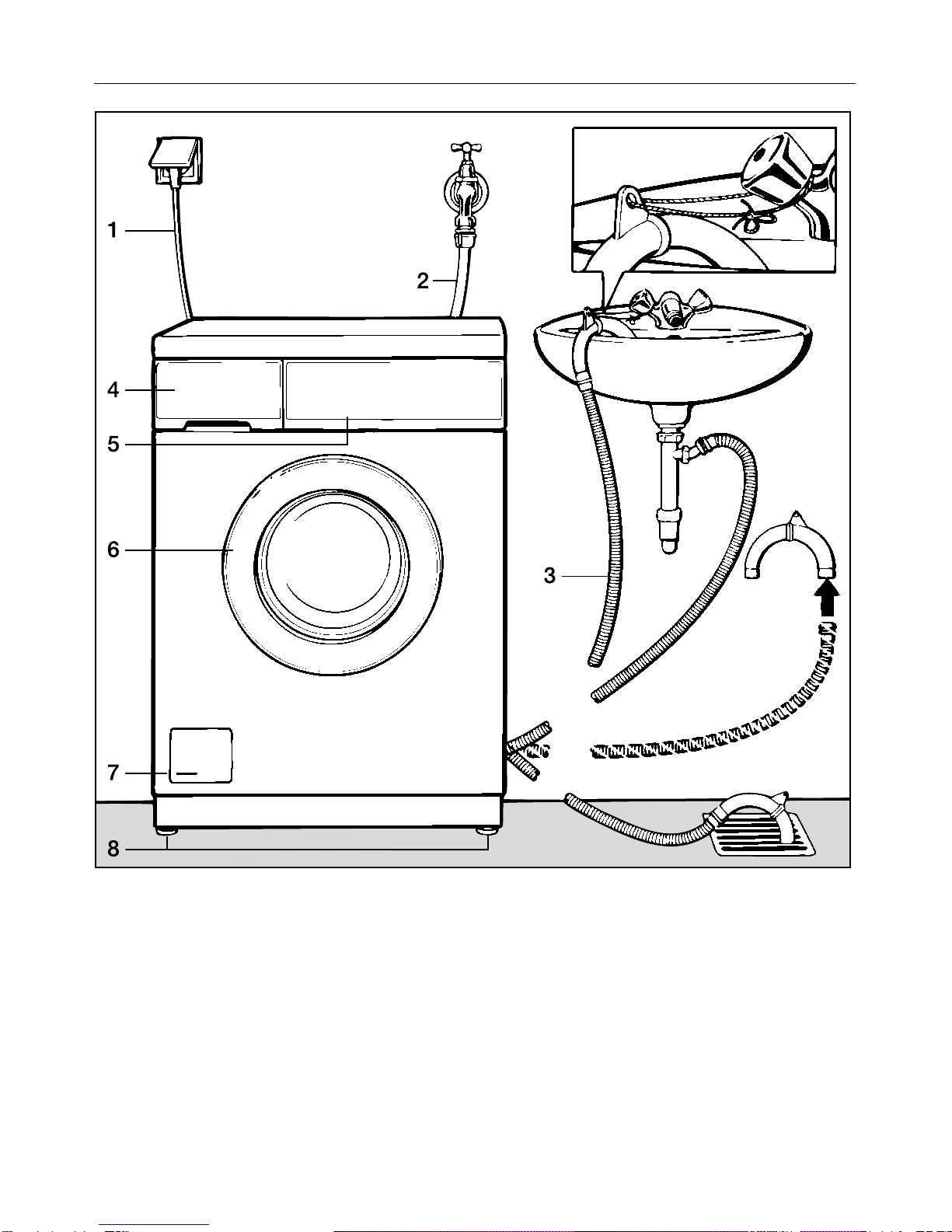

Guide to the machine
1Electric supply cable
2Inlet hose (able to withstand
pressures up to 70 bar)
3Flexible drain hose (with detachable
swivel elbow)
4Detergent dispenser drawer
5Facia panel with controls
6Drum door
7Panel for access to fluff filter, drain
pump and emergency door release
8Four height adjustable feet
Guide to the machine
3

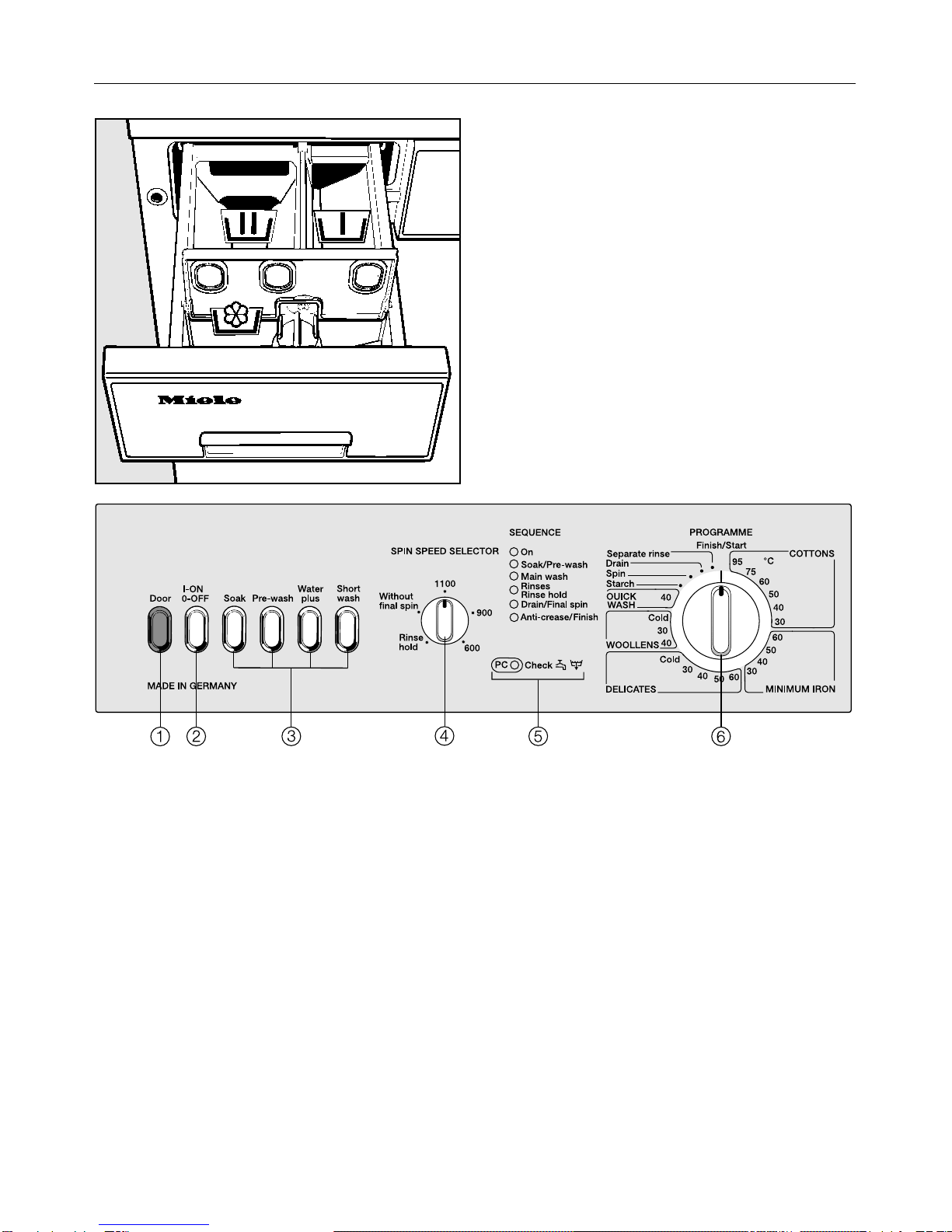

b“Door" pushbutton
opens the drum door
c“I - ON / O - OFF” pushbutton
switches the machine on or off
or interrupts a programme
dPushbuttons for additional
options
Detergent dispenser drawer
Compartment i- Pre-wash
Compartment j- Main wash
Compartment
p(with lid) -Conditioner
eSpin speed selector
fProgramme sequence
indicator and control lights
gProgramme selector
Guide to the machine
4

Warning and Safety Instructions
Read the operating instructions be-
fore using this machine for the first
time. They contain important infor-
mation about the safety, use and
maintenance of the machine. This
will avoid the risk of accidents and
damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner of
the machine.
Correct usage
Only use the washing machine to
wash items which are declared by
the manufacturer to be machine-wash-
able on the wash-care label.
Any other applications may be dan-
gerous. The manufacturer is not liable
for damage resulting from improper
use or operation.
This appliance should not be oper-
ated by children. Supervise its use
by the elderly or infirm.
Technical safety
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a dam-
aged machine.
Before connecting the machine, en-
sure that the connection data on
the data plate (fusing, voltage and fre-
quency) matches the mains electricity
supply. If in any doubt, consult a quali-
fied electrician.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
regularly tested by a qualified electri-
cian.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system.
For safety reasons do not operate
this appliance on an extension
cable. Danger of overheating.
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in un-
foreseen dangers for the user, for
which the manufacturer cannot accept
responsibility. Repairs should only be
undertaken by a Miele approved engin-
eer.
The machine is only completely iso-
lated from the electricity supply
when:
– it is switched off at the wall socket
and the plug is withdrawn, or
– it is switched off at the mains, or
– the mains fuse is withdrawn.
Warning and Safety Instructions
5

The best materials are used in the
manufacture of this machine, and
every care is taken to check all parts.
However, with time, deterioration of
parts can occur, especially with such
components as hoses, giving rise to
leaks. This should be borne in mind if
operating the machine without supervi-
sion. Check the hose regularly for signs
of wear, and change in good time, to
avoid leaks and subsequent damage.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the ma-
chine be guaranteed.
Use
Do not install your washing ma-
chine in rooms where tempera-
tures below freezing may occur.
Frozen hoses may burst under press-
ure. The reliability of the electronic con-
trol system may be impaired at tem-
peratures below freezing point.
In countries where there are areas
which may be subject to infesta-
tion by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any dam-
age which may be caused by cock-
roaches or other vermin will not be
covered by the appliance guarantee.
Before using the machine for the
first time, check that the transit fit-
ting at the rear of the machine has
been removed (see section on “Installa-
tion”). During spinning, a transit fitting
which is still in place may result in dam-
age to both the machine and adjacent
furniture or appliances.
Turn off the stopcock if the ma-
chine will be left for any length of
time (e.g. holiday), especially if there is
no floor drain (gully) in the immediate vi-
cinity.
Flooding danger.
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it. Other-
wise this will result in flooding.
Take care to ensure that foreign ob-
jects (e.g. nails, needles, coins,
paper clips, etc.) do not find their way
into the machine with the washing (e.g.
in pockets). Foreign objects can dam-
age components of the machine, which
in turn can result in damage to the
washing.
Warning and Safety Instructions
6

If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive de-
scaling agents and strictly observe the
instructions. Consult the Miele Cus-
tomer Service Department.
Textiles which have been pre-
treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.
Never use solvent based cleaning
agents in this machine, as this may
result in damage to component parts
and create toxic fumes. Such deter-
gents also pose a fire and explosion ha-
zard.
Only use dyes specified by the
manufacturer as being suitable for
use in a washing machine. Always ob-
serve the manufacturer’s instructions
carefully.
Dye removers may contain sulphur
compounds which cause damage
such as corrosion to the machines. Do
not use dye removers in this machine.
For machines with a ’porthole’
door, remember that the porthole
glass will be hot when washing at very
high temperatures. Do not let children
touch it during a hot wash programme.
Always make sure the drum is sta-
tionary before reaching in to
remove washing. Reaching into a mov-
ing drum is extremely dangerous.
Accessories
Accessory parts may only be fitted
when expressly approved by
Miele. If other parts are used, guaran-
tee, performance and product liability
claims may be invalidated.
Disposal of your old machine
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse.
Warning and Safety Instructions
7

Help to protect our environment
Disposal of the packing
material
The transport and protective packing is
mostly manufactured from the following
recycled or re-useable materials:
– corrugated paper/card
– polystyrene - CFC-free
– untreated surplus wood
– chipboard, contains no phenolic
resins
– polyethylene foil (PE)
– packaging straps: polyropylene (PP)
Rather than just throwing these ma-
terials away, please take them to the
nearest local authority collection point
for specific waste.
Disposal of your old machine
Old machines may contain material
which can be reclaimed or recycled.
Please contact your dealer, your local
waste collection centre or scrap mer-
chant about potential recycling
schemes.
Ensure that the machine presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
Help to protect our environment
8

Washing environmentally and economically
Caring for the environment means sav-
ing water, energy and detergent when
washing but without compromising on
results.
The key to a good wash result is finding
the best combination of amount of
detergent, temperature, length of pro-
gramme and the machine’s technology.
If necessary, some programmes take
longer to achieve this effect. With the
"Hydromatic" system, the drum can re-
volve at different speeds. Longer and
slower action together with pauses for
steeping, work towards a good result.
The automatic load control facility en-
sures the correct water level for the
type of fabric and laundry load being
washed. Sometimes it even appears
that there is no water in the drum.
Normally, main wash is sufficient for a
clean result, so a pre-wash is not auto-
matically included in the programmes.
If it is wanted, a simple press on the
pre-wash selector includes it.
Economy tips
To help you wash most economically,
remember the following tips:
– The automatic load control facility
allows you to wash individual loads
of between 1 and 5 kg. Ideally wash
with the maximum load specified for
each programme. This uses the en-
ergy to the best advantage.
– Only use the correct amount of deter-
gent required for the water hardness
level in your area, according to the
detergent manufacturer’s recommen-
dations.
– If washing is not heavily stained, se-
lect a lower temperature setting than
indicated on the wash care label but
do not additionally select "Short".
– Use the "Short wash" option for wash-
ing that is only very lightly soiled, but
do not additionally reduce the tem-
perature.
– Using the additional "Soak" option
allows you to reduce the tempera-
ture used in the main wash.
Washing environmentally and economically
9

Before using for the first time
Flush out any residual test
water still in the machine as
follows:
Do not load the machine.
Add a little detergent to compart-
ment j.
Switch on the machine.
Press the “Short wash” selector.
Select the “COTTONS 60°C” pro-
gramme.
This operation will flush out any
residues.
Water hardness reminder
The amount of detergent will depend
on various factors including the
water hardness level in your area.
The dial located in the detergent dis-
penser box can be turned to the rele-
vant setting as a water hardness re-
minder, (using 1 = soft, 4 = very
hard).
Use the spatula supplied with the
machine. It is located at the rear of
the dispenser drawer.
If you do not know how hard the water
is in your catchment area, please con-
tact your local water authority.
Before using for the first time
10
