Miele W 1113 Manual

© 2004 Miele
TECHNICAL INFORMATION
Touchtronic Clothes Washers
Includes: W1113, W1119, W1203, W1213, W1215

This page intentionally left blank.

Touchtronic Washers – Table of Contents
A WARNING and SAFETY INSTRUCTIONS
B MODIFICATION HISTORY
C TECHNICAL DATA
D LAYOUT OF ELECTRICAL COMPONENTS
010 CASING, FRONT PANEL and LID
1 Technical Data 11
2 Function 11
3 Fault Repair 11
4 Service 12
4.1 Lid Removal 12
4.2PlinthRemoval 12
4.3 Front Panel Removal 12
4.4 Side Panel Removal 13
020 DOOR AND DOOR LOCK
1TechnicalData 17
2 Function 17
2.1 Electro-Mechanical Door Lock 17
3 Fault Repair 17
4 Service 17
030 SUDS CONTAINER, DRUM, BEARING and HEATER ELEMENT
1TechnicalData 21
2 Function 22
2.1 Heating Overheating Protection 22
2.2 Temperature Sensor NTC 22
2.3 Foam Sensing 23
2.3.1 Excess Foam When Heating During Main Wash 23
2.3.2 During Rinsing Excess Foam in the Drum Vent or Order Trap 23
2.3.3 During Spinning Excess Foam in the Drum 23

030 SUDS CONTAINER, DRUM, BEARING and HEATER ELEMENT (continued)
2.4 Imbalance Sensor 23
3 Fault Repair 24
4Service 24
4.1 Temperature Sensor Removal 24
4.2 Heater Element Replacement 25
4.3 Door Seal Removal 26
4.4 Imbalance Sensor Removal 26
040 WATER INTAKE
1TechnicalData 29
2 Function 29
2.1 Water Path Control System 29
3 Fault Repair 30
3.1 Spin Before First Water Intake Not Possible 30
4 Service 30
4.1 Detergent Dispenser Removal 30
4.2 Water Path Control System Removal 31
050 DRAINAGE
1TechnicalData 34
2 Function 34
2.1 Increasing Drain Pump Head Height to 1.8 M 34
3 Fault Repair 34
4 Service 35
4.1 Drain Pump Removal 35
4.2 Non-Return Valve Removal 36
060 DRIVES
1TechnicalData 39
2 Function 39
2.1 Motor Control 39
3 Fault Repair 40
4 Service 40
4.1 Main Motor Removal 40
4.2 Motor Module Removal 40
4.3 Motor Brush Exchange 41

070 FASCIA PANEL and CONTROLS
1TechnicalData 45
2 Function 45
2.1 Fault Dialogue 45
3 Fault Repair 45
3.1 Fault Indication Quick Reference 45
3.2 Check Inlet and Drain LED’s Flash Together 47
3.3 Digital Display Shows - - - 47
3.4 Fault Code F1 NTC Sensor Short Circuited 48
3.5 Fault Code F2 NTC Sensor Open Circuited 48
3.6 Fault Code F10 Water Intake 49
3.7 Fault code F11 Water Drainage 50
3.8 Fault Code F15 Hot Water Intake 51
3.9 Fault Code F16 Excess Foam 52
3.10 Fault Code F20 Heating 52
3.11 Fault Code F41 Faulty EEPROM / Data Fault 53
3.12 Fault Code F43 Control / Power Electronic incompatible 53
3.13 Fault Code F47 Control / Power Module Interface Fault 53
3.14 Fault Code F51 Pressure Sensor 54
3.15 Fault Code F53 Tachogenerator 54
3.16 Fault Code F63 Water Path Control Unit 55
3.17 Locked LED Lights Up 55
3.18 Locked LED Flashes 56
4 Service 57
4.1 Programming Mode 57
4.2 Demonstration Mode Activation/Deactivation 65
4.3 Service Mode 67
090 ELECTRICAL SYSTEM, POWER MODULE AND HEATER RELAY
1TechnicalData 77
2 Function 77
2.1 Heater Relay Switching 77
3 Fault Repair 77
4 Service 78
4.1 Power Electronic – Removal l 78
4.2 Heater Relay - Removal 79
4.3 Interference Suppression Filter – Removal 79

Touchtronic Clothes Washers - List of Figures
D-1 Layout of Electrical Components 7
010-1 Layout of Components 11
030-1 Imbalance Sensor 23
030-2 Heater Element Replacement 26
040-1 Water Path Control System (Close-Up) 29
040-2 Water Path Control System 31
050-1 Drain Pump Removal 35
060-1 Pulse Width Modulation Motor Speed Control 39
060-2 Main Motor Assembly 40
060-3 Motor Brush Replacement 41
070-1 Drum Lamp Assembly 55
090-1 Power Electronic Removal 78
Touchtronic Clothes Washers - List of Tables
C-1 Technical Data (1 of 2) 5
C-2 Technical Data (2 of 2) 6
C-3 Overview of Model Numbers 6
C-4 Electrical Information 6
030-1 Technical Data 21
030-2 Temperature Sensor Values 22
040-1 Water Path Control System 29
050-1 Drain Pump Specifications 34
070-1 Fault Indication Quick Reference 45
070-2 Fault Indication Quick Reference Continued 46
070-3 Programmable Functions 58
070-4 Programmable Functions Continued 59
070-5 Programmable Functions Continued 60
070-6 Programmable Functions Continued 61
070-7 Programmable Functions Continued 62
070-8 Programmable Functions Continued 63
070-9 Service Mode 71
070-11 Service Mode 72
070-12 Service Mode 73

Technical Information
1
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
A Warning and Safety Instructions
1 General Information
Service of this appliance should only be performed by qualified
personnel; in accordance with local and national codes.
Power should be disconnected from the appliance during service
procedures. Unplug the appliance or shut off the appropriate circuit
breaker.

Technical Information
2
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
This page intentionally left blank.

Technical Information
3
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
B Modification History
04/2004 Miele USA Preliminary Information

Technical Information
4
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
This page intentionally left blank.

Technical Information
5
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
C Technical Data
Frontloader
Version
Spaceframe construction
Fascia panel version Light-touch buttons
Door lock Electromagnetic release
Drum Honeycomb drum
Casing
Drum diameter 480 mm (18.9 in.)
Maximum load, dry
laundry
5 Kg (11.02 lbs) – W1113 and W1119
6 Kg (13.23 lbs)– W1203, W1213 and
W1215
Suds
container
Drum opening
dimensions 300 mm (11.81 in)
Cold water connection: Water Path
Control Unit and single solenoid valve
Water intake
Hot water connection: Single solenoid
valve
Water path
Drainage 240VAC Drain Pump
Belt drive
Ribbed drive belt, motor spindle
diameter: 27.5 mm (1.08 in.), axis-
center difference: 366 mm (14.41 in.),
gearing (no. of motor rotations for one
drum rotation): 10.6
Electric motor DC series-wound motor
Control Pulse-width modulated (PWM) DC
Drive
Speed monitoring Tachogenerator
Table C-1: Technical Data (continued on Table C-2)

Technical Information
6
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
Control panel/display
module
Control panel/display module with
light-touch buttons
Control
technology
Control/Power module Novotronic IV Midi. Software update
feature via serial optical PC interface
Process technology /
Drum rhythm
Hydromatic IV D, program update
feature available
Load monitoring Displacement sensor (inductive)
(optional)
Level monitoring
Analog Pressure Sensor (ADS)
integrated on the control/power
module (SLT)
Suds temperature
sensor NTC (R30)
Rinse sensor The suds temperature sensor also
functions as the rinse sensor
Speed-imbalance recognition
Wash
technology
Imbalance monitoring Imbalance sensor. Present only on
models with spin > 1400 rpm.
Table C-2: Technical Data (continued from Table C-1)
Overview of Models
Table C-3: Overview of model numbers
Electrical Information
Electrical Requirements Electrical Connection
120/240 (208) VAC
(4 wire connection)
60 Hz, 15amp Circuit
NEMA 14-30 Molded Plug
(Do not remove)
Table C-4: Electrical information
Model Number Capacity Lbs. Additional Information
W1113 5 Kg 11.02 Angled Controls
W1119 5 Kg 11.02 Flat Controls Full Décor Panel
W1203 6 Kg 13.23 Flat (No delay)
W1213 6 Kg 13.23 Angled Controls
W1215 6 Kg 13.23 Angled Controls, Stainless Steel

Technical Information
7
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
1. (Y14) Inlet Valve - Cold
2. (M24) Motor - Water Path Control Unit
3. (Y12) Inlet Valve – Hot
4. (Z1) Interference Suppressor
5. (1n1) Control/Power Electronic
6. (K1/1) Heating Relay
7. (2n1) Control Panel/Display Module
8. (S2) Switch – On/Off
9. (S4) Switch – Door/Lid
10. Imbalance Sensor
11. (M5) Motor - Drum Drive
12. (B8) Float Switch
13. (M8) Drain Pump
14. (R30) NTC Temperature Sensor
15. (R1) Heater Element
16. (A2) Door Lock
D Layout of Electrical Components
Figure D-1: Layout of Components

Technical Information
8
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
This page intentionally left blank.

Technical Information
9
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
010 Casing, Front Panel and Lid

Technical Information
10
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
This page intentionally left blank.

Technical Information
11
W1113, W1119, W1203, W1213 & W1215 Clothes Washers

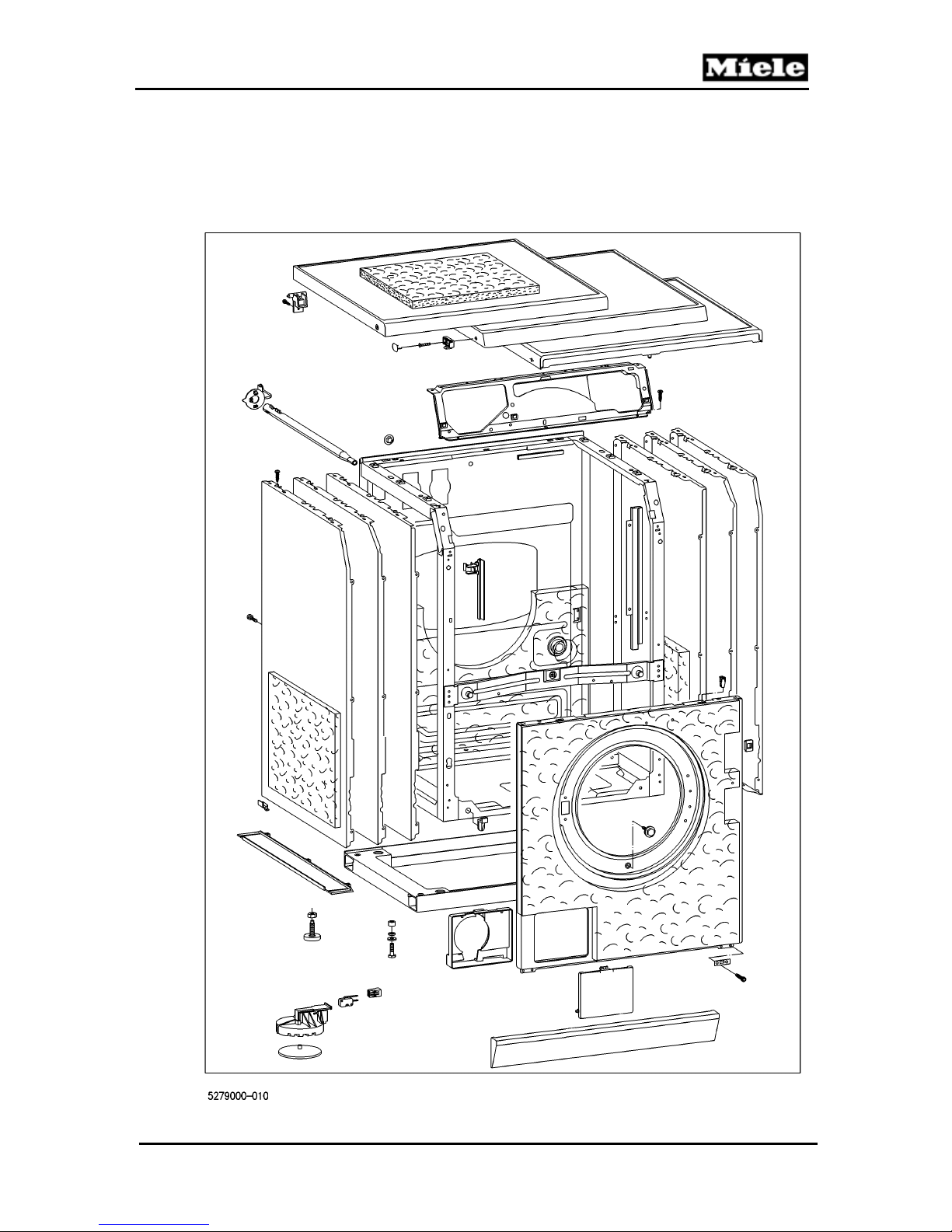

Figure 010-1: Layout of Components
1 Technical Data
n/a
2 Function
n/a
3 Fault Repair
n/a

Technical Information
12
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
4 Service
4.1 Lid - Removal
1. Remove the screw caps from the lid side edges.
2. Loosen the lid screws about 4 to 5 turns – max. Do not
completely remove the screws.
3. Press the screws in to release the retaining tabs. Lift the lid at
the front, slide it to the rear and lift from appliance to remove.
4.2 Plinth (Toekick) - Removal
1. From the bottom of the toekick, apply pressure upward
2. Pull the toekick away from the appliance.
4.3 Front Panel - Removal
1. Remove the Plinth (010 4.2)
2. Open the door.
3. Remove the clamping ring, that secures the sealing to the front
cover.
4. Unfasten the sealing ring and fold it back towards the drum.
5. Remove the Door Lock screws.
6. Remove the 10mm Bolt.
7. Close the door.
8. Remove the two screws from the bottom corners of the front
panel.
9. Hold the sides of the front panel, tilt the bottom edge forwards
and pull gently to release it from the plastic lugs on the Control
Panel Frame.
10.Lift the panel away from the front of the appliance.

Technical Information
13
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
4.4 Side Panel - Removal
1. Remove the Lid (010 4.1).
2. Remove the Front Panel (010 4.3).
3. Remove the three screws from the rear edges of each panel,
Figure 010-1.
Warning!
The 2 middle screws / washers provide the grounding for the
side panels – ensure the screws are secured during re-
assembly.
4. Remove the three screws from the top edge of each panel.
5. Remove the three screws from the front edge of each panel.
6. Pull out the top of the side panel slightly.
7. Push down the panel to unclip it from the bottom of the frame.
Note
To refit the side panel, support the panel while holding against
the underside of the bottom frame at an angle. Lift the panel into
position and align the top edge of the panel to the frame.

Technical Information
14
W1113, W1119, W1203, W1213 & W1215 Clothes Washers
