Miele W 1901 WPS User manual

Operating instructions
for Washing machine
W 1901 WPS
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 330 410
en-GB

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Disposal of your old machine
Electrical and electronic machines
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your machine.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your Dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for our environment
2

Caring for our environment .........................................2
Warning and Safety instructions .....................................6
Operating the washing machine.....................................13
Control panel .....................................................13
Display ..........................................................14
Optional programme packages.......................................15
Before using for the first time.......................................16
Washing environmentally and economically ..........................18
How to wash correctly.............................................19
Extra options ....................................................25
Stains 4........................................................25
Short............................................................25
Further extras 4..................................................25
The following extra options can be selected in addition to the programme:.....27
Spin ............................................................28
Final spin speed ..................................................28
Rinse and interim spin ...........................................28
To omit the final spin (Rinse hold) ..................................28
To omit rinse and interim spin and the final spin (No spin) ...............28
Programme chart .................................................29
Garment care label symbols ........................................33
Programme sequence .............................................34
Changing the programme sequence .................................36
Cancelling a programme ............................................36
Interrupting a programme ...........................................36
Making changes to a programme .....................................36
Contents
3

Adding or removing laundry after a programme has started ................37
Safety lock .......................................................37
Detergent .......................................................38
The correct detergent ..............................................38
Water softeners ...................................................40
Washing with several components ....................................40
Fabric conditioners and liquid starch ..................................41
Automatic dispensing of fabric conditioner or liquid starch to laundry at the end
of a programme ................................................41
Adding fabric conditioner or starch separately ........................41
Colour run and dye removers/dyes ....................................41
Cleaning and care ................................................42
Cleaning the drum (Hygiene info) .....................................42
External casing and fascia panel .....................................42
Cleaning the detergent dispenser drawer...............................42
Cleaning the filter in the water inlet ....................................44
Problem solving guide ............................................45
The programme does not start .......................................45
One of the following fault messages appears in the display.................46
The following fault messages appear in the display at the end of the programme47
General problems .................................................48
An unsatisfactory wash result ........................................49
The door will not open ..............................................50
Opening the drum door in the event of a blocked drain outlet and/or power failure
................................................................51
Blocked drain outlet .............................................51
After sales service ................................................53
Future updates (PC) .............................................53
Guarantee .....................................................53
Optional spare parts and accessories ...............................53
Installation and connection ........................................54
Front view........................................................54
Rear view ........................................................55
Installation surface.................................................56
Contents
4

Transporting the washing machine to its installation site .................56
Removing the transit bars ...........................................56
Re-fitting the transit bars ............................................58
Levelling the machine ..............................................59
Screwing out and adjusting the feet .................................59
Building under a worktop .........................................60
Washer-dryer stack..............................................60
The Miele Waterproof system ........................................61
Connection to the water supply .......................................62
Connection to the drainage system....................................64
Electrical connection U.K. ...........................................65
Consumption data ................................................66
Notes for test institutes: ..........................................66
Technical data ...................................................67
Settings menu ...................................................68
To open the Settings menu........................................68
To select a setting...............................................68
To close the Settings menu .......................................68
Language !......................................................68
Buzzer ..........................................................68
Time ............................................................69
Gentle action .....................................................69
Longer pre-wash Cottons ...........................................69
Suds cooling .....................................................69
Lock code .......................................................70
Temperature unit ..................................................70
Keypad tone .....................................................70
Brightness .......................................................70
Contrast .........................................................70
Standby display ...................................................71
Memory .........................................................71
Anti-crease.......................................................71
Optional accessories..............................................72
CareCollection ....................................................72
Contents
5

This washing machine conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the washing
machine, please read these instructions carefully before using it
for the first time. They contain important information on its
installation, safety, use and maintenance.
Keep these instructions in a safe place and ensure that new users
are familiar with the content. Pass them on to any future owner.
Correct application
~This washing machine is not designed for commercial use. It is
intended for use in domestic households and in similar working and
residential environments.
~The washing machine is not intended for outdoor use.
~It must only be used as a domestic appliance to wash items
which are specified by the manufacturer as being washable on the
care label.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation of the washing machine.
~The washing machine can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it or have been shown
how to use it in a safe way and understand the hazards involved.
Warning and Safety instructions
6

Safety with children
~Children 8 years and older may use, clean or maintain the
washing machine without supervision only if they have been shown
how to do so in a safe way and understand the hazards involved.
~Children under 8 years of age must be kept away from the
machine unless they are constantly supervised.
~The washing machine is not a toy! To prevent the risk of injury, do
not allow children to play with it or near it, or to play with the
controls.
~For machines with a 'porthole' door, remember that the porthole
glass will be hot when washing at high temperatures
Do not let children touch it.
Warning and Safety instructions
7

Technical safety
~Before setting up the washing machine, check it for any externally
visible damage.
Do not install or use a damaged washing machine.
~Before connecting the washing machine, ensure that the
connection data on the data plate (voltage and frequency) match
the mains electricity supply. If in any doubt, consult a qualified
electrician.
~The electrical safety of this washing machine can only be
guaranteed when correctly earthed. It is most important that this
basic safety requirement is observed and regularly tested, and
where there is any doubt the household wiring system should be
inspected by a qualified electrician. The manufacturer cannot be
held liable for the consequences of an inadequate earthing system
(e.g. electric shock).
~Do not connect the washing machine to the mains electricity
supply by an extension lead. Extension leads do not guarantee the
required safety of the machine (e.g. danger of overheating).
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
Warning and Safety instructions
8

~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician.
~If the connection cable is faulty it must only be replaced by a
Miele approved service technician to protect the user from danger.
~The machine must be isolated from the electricity supply in the
event of a fault and during installation, maintenance and repair work.
~The Miele "Water protection system" protects from water damage
provided the following conditions have been met:
– the machine is correctly plumbed in and connected to the
electricity supply.
– if a fault has been identified, the machine must be examined by a
competent person before further use, and repaired if necessary.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
~This machine must not be used in a non-stationary location (e.g.
on a ship).
~Do not make any alterations to the washing machine, unless
authorised to do so by Miele.
Warning and Safety instructions
9

Correct use
~Do not install your washing machine in rooms where temperatures
below freezing may occur. Frozen hoses may burst or split. The
reliability of the electronic control unit may be impaired at
temperatures below freezing point.
~Before using the washing machine for the first time, check that
the transit bars at the rear of the machine have been removed (see
section on "Installation and connection"). During spinning, a transit
bar which is still in place may result in damage to both the machine
and adjacent furniture or appliances.
~Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~Flooding danger.
If hooking the drain hose into a wash basin, check that the water can
drain off quickly enough to prevent the sink from overflowing. Make
sure the drain hose is secure, so that the force of the water flowing
out of the hose does not dislodge it.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
10

~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from the Miele Spare Parts
Department or via the internet on www.miele-shop.com.
~Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~Do not use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~Do not use solvent based cleaning agents, e.g. those containing
benzine, to clean the outside surfaces of this machine. They can
cause damage to plastic surfaces.
~Only use dyes specified by the manufacturer as being suitable for
use in a domestic washing machine. Always observe the
manufacturer's instructions carefully.
~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
~If detergent comes into contact with the eyes, rinse them
thoroughly with lukewarm water immediately. If swallowed, seek
medical assistance immediately and retain the packaging or label
for reference. Those with skin problems or sensitive skin should
avoid their skin coming into contact with detergent.
Warning and Safety instructions
11

Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
Miele cannot be held liable for damage caused by non-
compliance with these Warning and Safety instructions.
Warning and Safety instructions
12

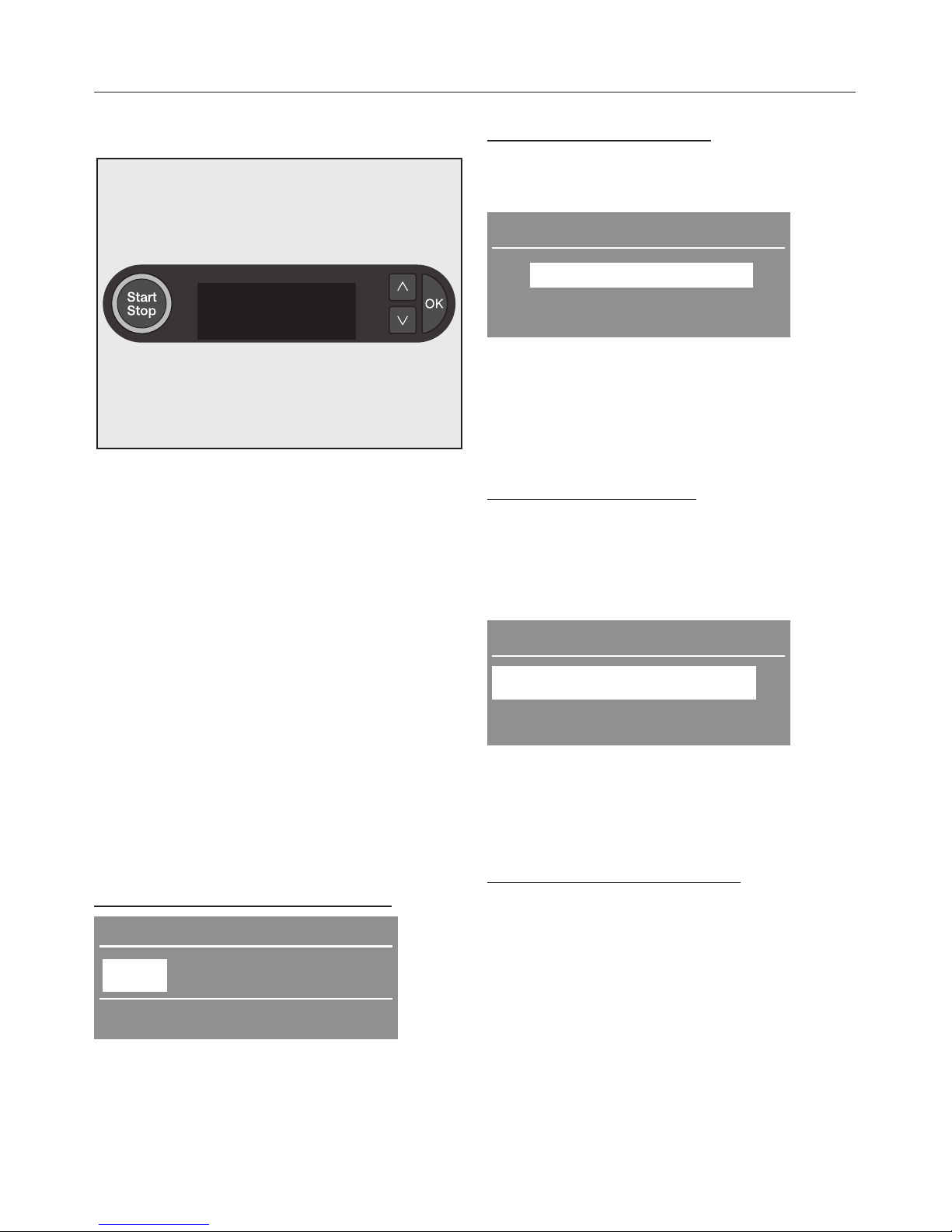

Control panel
aPC / Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
bStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
cDisplay with Y,Xand OK buttons
See the following page for more
information.
dDelay start button
For delaying the start time of a
programme.
eExtra option buttons
Various extra options can be added
to the washing programmes.
fProgramme selector
For selecting a programme. The
indicator light next to the selected
programme will come on. The
programme selector can be turned
clockwise or anti-clockwise.
gDoor button
Opens the machine door.
hKButton
For switching the washing machine
on and off.
To save energy, the washing
machine will switch itself off
automatically 15 minutes after the
end of the programme/anti-crease
phase or after being switched on, if
no other selection is made.
Operating the washing machine
13

Display
The display is operated using the Y,X
and OK buttons.
– Press the Ybutton
to move up to the next line of text or
to increase the value highlighted in
the display.
– Press the Xbutton
to move down to the next line of text
or to decrease the value highlighted
in the display.
–Press the OK button
to confirm the value highlighted in
the display.
Programme selection examples
To decrease or increase a value
Cottons
60°C NNNNNNEEM 1400 rpm
Duration: 2:59 h.
Press the Xbutton to decrease the
temperature and the Ybutton to
increase the temperature.
Multiple option selection
If a value is selected there will be a
tick 9next to it.
Further extras
9Water plus ;
8Extra quiet ,
Press the Xor Ybutton to scroll down
or up the options in the display. Press
the OK button to select the highlighted
value. You can now select the next
value, if you wish.
Single option selection
Here one of the values is always
selected. A tick (will appear next to
the one currently selected. The other
values are deselected automatically.
Gentle action
Off (;
On ,
Press the Xor Ybutton to scroll down
or up the options in the display. Press
the OK button to select the highlighted
value.
To come out of a sub-menu
Select Back #to come out of the sub-
menu or wait for approx. 15 seconds
and the display will return to the
programme menu automatically.
Operating the washing machine
14

The following are selected via the
display
–wash temperature
–final spin speed
–the soak time
–delay start
–cancellation of a programme
–safety lock
The following are selected via
Further programmes/Settings 4
– Maintenance programme
– Dark garments
– Down filled items
– Outerwear
– Proofing
– Separate rinse
– Starch
Optional programme packages
Additional programme packages
(containing a number of individual
programmes) are available for
downloading into your machine.
These have to be downloaded by a
Miele service engineer.
The following programme packages
can be downloaded into your machine
if they were not supplied with your
machine ex-works (depending on
model):
–Eco
– Home
– Home XL
– Hygiene & kids
– Medic
– Nursery
– Sport & leisure
The new programmes can then be
selected by turning the programme
selector to Further programmes/
Settings 4.
Operating the washing machine
15

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of leaks
during use.
This washing machine has undergone
a complete functional test at the factory
and there will be some residual water
in the drum from this process.
For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
^Press the Kbutton.
If the washing machine is being
switched on for the first time, the
welcome screen will appear briefly.
The welcome screen will appear in the
display every time the machine is
switched on until a programme lasting
longer than 1 hour has been
completed.
The display for setting the language will
then appear.
Set the language
You will be asked to select the
language you require for the display. It
is possible to select another language
at any time via Further programmes/
Settings 4in the Settings sub-menu.
Sprache
deutsch ;
english ,
^Use the Xand Ybuttons to scroll
through the options until the
language that you want is
highlighted. Press the OK button to
confirm your selection.
Set the time (of day) (if necessary)
The display for setting the time will then
appear.
Time
12:00
^Press the Xbutton to decrease or the
Ybutton to increase the hour.
^Confirm the hour selected with the
OK button. Then do the same to set
the minutes.
Before using for the first time
16

Reminder to remove transport bars
,To avoid the risk of damage, the
transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.
^After removing the transport bars (if
this has not already been done by
your fitter) press the OK button.
Run your first programme
Your machine is now ready for the first
wash programme to be run.
Cottons
60°C 1400 rpm
Duration: 2:59 h.
The Cottons programme will be
selected automatically.
^Open the stopcock.
^Press the Start/Stop button.
^At the end of the programme switch
the machine off.
The washing machine is now ready for
use.
Before using for the first time
17

Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
–When smaller amounts of laundry are
washed, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.
– Use the Express 20 programme for
small loads.
– Modern detergents make it possible
to wash at lower temperatures (e.g
20°C). Washing using lower
temperature settings will save
energy.
– To keep your machine clean we
recommend running the
Maintenance programme from time
to time. This should be always be run
if the Hygiene Info message
appears in the display.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–Adjust the dosage to the degree of
soiling of the laundry.
–Reduce the amount of detergent with
smaller loads (approx. 1/3less than
the amount recommended can be
used when washing a half load).
Choosing the correct Extra option
(Short, Soak, Pre-wash)
Select:
– A wash programme together with the
Short extra option for light soiling
where there are no obvious marks.
– A wash programme without any extra
options for normal to heavy soiling
with visible staining.
– A wash programme together with the
Soak extra option for very heavily
soiled laundry.
–The Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Washing environmentally and economically
18

Brief instructions
The headings numbered A,B,C,...
show the operating sequence and can
be used as brief instructions.
ASort the laundry

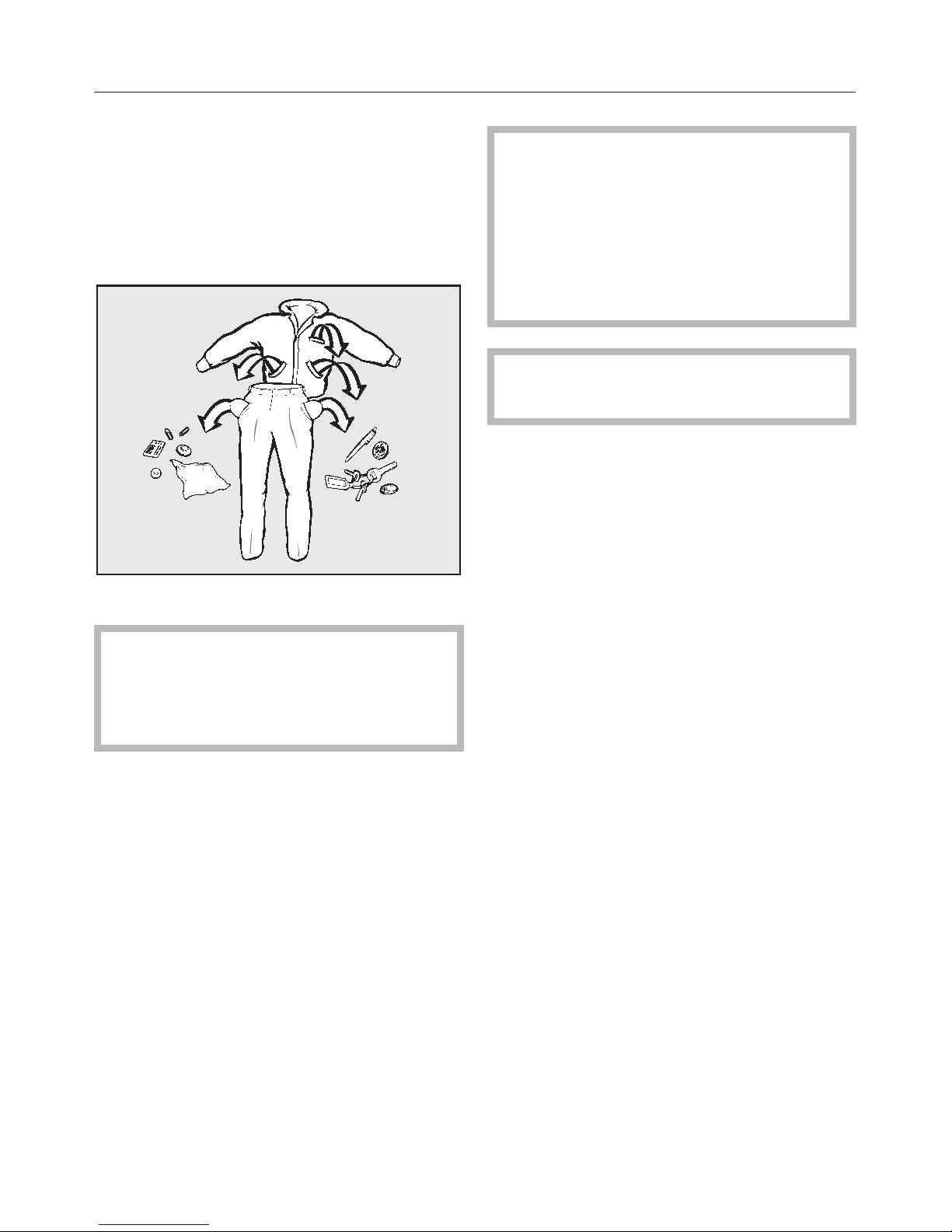

^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,If you use a solvent-based
cleaning agent (e.g. one containing
benzene) to pre-treat a stain, make
sure that any plastic parts (e.g.
buttons) are protected, and that the
cleaning agent is rinsed off before
washing the garment in the machine.
,Do not use solvent-based
cleaning agents in or on this machine.
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
– Curtains: Remove lead weights first
or place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
–Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (hsymbol)
How to wash correctly
19

BSwitch on the washing machine
CLoad the drum
^Press the Door button to open the
drum door.
^Unfold the laundry and load loosely
into the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
Make sure that items do not get
caught between the drum door and
the seal.
^Shut the door with a gentle swing.
DSelect a programme
Using the programme selector:
^Turn the programme selector
clockwise or anti-clockwise to the
required programme. The
programme indicator light for the
programme selected will come on.
How to wash correctly
20
