Miele W 2839I WPM User manual

Operating instructions
for Washing machine
W 2839i WPM
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.
G
M.-Nr. 06 750 570

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Caring for our environment
2

Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance or machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the washing machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

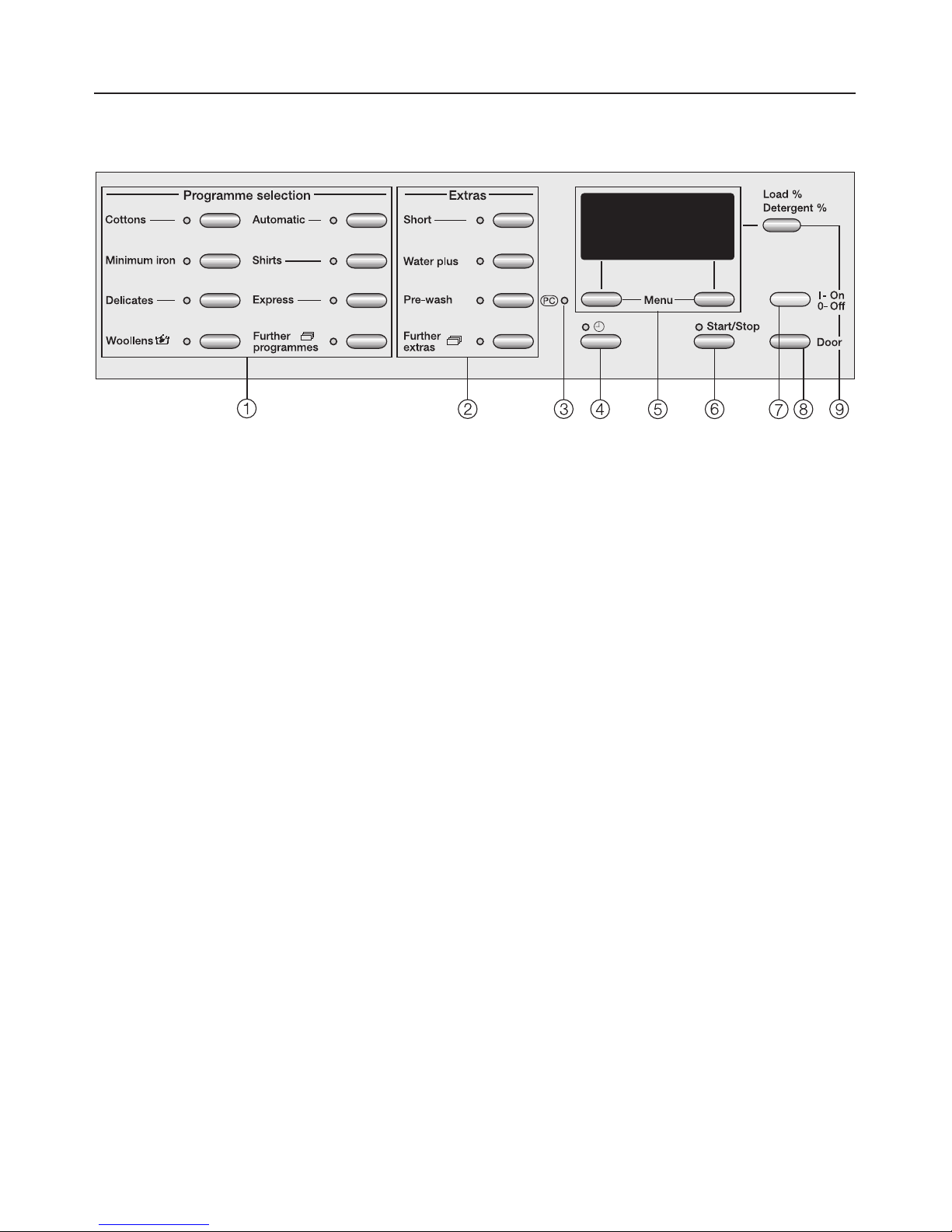

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Energy and water consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Short. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Water plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Pre-wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Further extras. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Rinse hold. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Extra rinse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Spinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Final spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Rinse and interim spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To omit the final spin (Rinse hold). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To omit rinse and interim spin and the final spin (No spin). . . . . . . . . . . . . . . . 23
Delay start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Changing the programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cancelling a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 34
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contents
3

Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
The correct detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fabric conditioners and liquid starch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Colour run and dye removers/dyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
External casing and fascia panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Extra cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning the filter in the water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
The programme does not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Fault messages in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Problems with the load size indicator or calibrating to zero . . . . . . . . . . . . . . . . . 43
General problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
An unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
The door will not open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Opening the drum door in the event of a blocked drain outlet and/
or power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Drain the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Opening the drum door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cleaning the drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Appliance guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Installing the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Removing the transit fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Contents
4

Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Washer-dryer stack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Building under a continous worktop / in a kitchen run . . . . . . . . . . . . . . . . . . . . . 57
Matching the fascia panel to the height of adjacent drawer fronts . . . . . . . . . . . . 58
Spacer bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Removing the spacer bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fitting the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Front panel dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fitting the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fitting a door front panel made by another manufacturer. . . . . . . . . . . . . . . . . . . 60
Preparing the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Preparing the fixing points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Fitting a plinth facing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
The Miele water protection system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Notes for test institutes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
To open the Settings menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Language F. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Time (of day) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Longer pre-wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Suds cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lock code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Temperature unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Keypad tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Standby display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Contents
5

To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
Correct usage
Only use the washing machine to
wash items which are specified by
the manufacturer to be
machine-washable on the wash-care
label, and textiles composed of
hand-washable wool or wool blend
fabrics as well as satin, lace, silk and
other hand-washable garments. Any
other applications may be dangerous.
The manufacturer is not liable for
damage resulting from improper use or
operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage.
Do not install or use a damaged
machine.
Before connecting the machine,
ensure that the connection data on
the data plate match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is any doubt
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the machine to the
mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
machine (e.g. danger of overheating).
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
Warning and Safety instructions
6

The machine is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is disconnected, or
–the screw-out fuse is removed (in
countries where this is applicable).
The Miele "Water protection
system" protects from water
damage provided the following
conditions have been met:
– the machine is correctly plumbed in
and connected to the electricity
supply.
– if a fault has been identified, the
machine must be examined by a
competent person before further use,
and repaired if necessary.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches and other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the guarantee.
Use
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Do not install your washing
machine in rooms where
temperatures below freezing may
occur. Frozen hoses may burst or split.
The reliability of the electronic control
unit may be impaired at temperatures
below freezing point.
Before using the machine for the
first time, check that the transit
fittings at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Warning and Safety instructions
7

Turn off the stopcock if the
machine is to be left for any length
of time (e.g. holiday), especially if there
is no floor drain (gully) in the immediate
vicinity.
Flooding danger.
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing. Make sure the
drain hose is secure, so that the force
of the water flowing out of the hose
does not dislodge it.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the laundry. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the laundry.
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt contact the Miele Customer
Service Dept. or your Miele Dealer.
Textiles which have been
pre-treated in solvent based
cleaning agents must be thoroughly
rinsed in clean water before being
washed in the machine.
Never use solvent based cleaning
agents, e.g. those containing
benzene, in this machine, as this may
result in damage to component parts
and create toxic fumes. Such agents
also pose a fire and explosion hazard.
Never use solvent based cleaning
agents, e.g. those containing
benzene, to clean the outside surfaces
of this machine. They can cause
damage to plastic surfaces.
Only use dyes specified by the
manufacturer as being suitable for
use in a domestic washing machine.
Always observe the manufacturer's
instructions carefully.
Colour run and dye removers
contain sulphur compounds which
can cause damage such as corrosion.
Do not use these products in this
machine.
Always make sure the drum is
stationary before reaching into it to
remove laundry. Reaching into a
moving drum is extremely dangerous.
Warning and Safety instructions
8

Safety with children
This machine is not a toy! To avoid
the risk of injury do not allow
children to play on or near it or to play
with the controls. Supervise its use by
the elderly or infirm, and supervise
children whilst you are operating the
machine.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless. Cut
off the cable directly behind the
machine to prevent misuse. This should
be done by a competent person.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Control panel
aProgramme buttons with indicator
lights
For selecting a washing programme.
bExtra option buttons with indicator
lights
Various extra options can be added
to the washing programmes.
cPC / Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
dmbutton
For selecting delay start.
eDisplay with Menu buttons
See the next pages for more
information.
fStart/Stop button
For starting the programme selected
and cancelling a programme once it
has started.
gI-On/0-Off button
For switching the washing machine
on or off.
hDoor button
Opens the machine door.
iLoad/Detergent button
For calling up the load size or the
recommended amount of detergent,
and for calibrating the load size
sensor to zero.
Operating the washing machine
10

Display
The display is used for the following:
Selecting and displaying settings
–Temperature
–Spin speed
–Soak duration
–Delay start
–Cancelling a programme
–Safety lock
–Estimated programme duration
Selecting programmes via the
display
By pressing the
Further programmes
button, you can select one of the
following programmes:
–Denim
–Hygiene
–Dark garments
–Curtains
–Pillows
–Silks /
– Sportswear
– Outerwear
– Proofing
– Drain / Spin
– Separate rinse
– Starch
Selecting extra options via the
display
By pressing the
Further extras button,
you can select (depending on the
programme) the following extra options:
–Soak
–Rinse hold
–Extra rinse
Operating the washing machine
11

Menu buttons
Various settings are made via the
Menu
buttons.
They are used to alter or confirm the
value displayed above the vertical line.
To alter a setting:
Cottons
Duration: 1:49 h
60°C 1600 rpm
Pressing the left hand Menu button
under 60°C alters the temperature and
pressing the right hand
Menu button
under 1600 rpm alters the spin speed.
To confirm a setting:
Further programmes
Denim
Continue OK
Pressing the left hand Menu button
under Continue calls up further
programmes, and you can then confirm
your selection of the highlighted
programme by pressing the right hand
Menu button under OK.
Operating the washing machine
12

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of water
leaks during use.
The washing machine has a sensor
which measures the amount of laundry
in the drum. This determines the
amount of detergent required. To allow
the load size indicator to function
correctly, you must first run a wash
programme without any laundry and
without detergent.
^Open the stopcock.
^Press the
I-On/0-Off button in.
If the washing machine is being
switched on for the first time, the
welcome screen will appear.
The welcome screen will appear in the
display every time the machine is
switched on until a programme lasting
longer than 1 hour has been
completed.
The display for setting the language will
appear.
Setting the language
You will be asked to select the
language you require for the display. It
is possible to change the language at
any time via the
Settings menu.
Sprache
deutsch
)OK
^If the language shown is not the one
you want, select the language you do
want by pressing the left hand
Menu
button under ). Confirm by pressing
the right hand
Menu button under
OK.
Setting the time of day
The display for setting the time will
appear.
12:00
Change OK
^Select the hours you want by
pressing the left hand
Menu button
under Change, and confirm this with
the right hand
Menu button under
OK.
^Then set and confirm the minutes.
Before using for the first time
13

Reminder to remove transport struts
To avoid the risk of damage, the
transport struts must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.
^After removing the transport struts (if
this has not already been done by
your fitter) press the right hand
Menu
button under OK.
Running your first programme
Your machine is now ready for the first
programme to be run.
15:00
Select programme
^Press the
Cottons programme button.
^Press the
Start/Stop button.
^At the end of the programme switch
the machine off.
Before you can use the washing
machine, the load sensor has to be
calibrated to zero as you would with
bathroom scales.
Calibrating the load sensor to zero
^Switch on the washing machine.
^Open the drum door.
^Press the
Cottons programme button.
^Press and hold the
Load/Detergent
button pressed in until the following
message appears in the display:
iZero setting
OK
^Switch off the washing machine.
The machine is now ready for use.
Before using for the first time
14

Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
–Use the
Automatic and Express
programmes for small loads.
–When smaller amounts of laundry are
washed using the
Cottons
programme, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the time
left shown in the display is adjusted
during the course of the wash
programme.
– Using the
Cottons 60°C programme
instead of the
Cottons 95°C
programme will give energy savings
of between 35% and 45%. This is
sufficient for most levels of soiling.
For stubborn or old stains, use the
Soak extra option.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–Adjust the dosage to the degree of
soiling of the laundry.
–Reduce the amount of detergent for
smaller loads. Use the
Load/
Detergent
button.
Choosing the correct Extra option
(Short, Soak, Pre-wash)
Select:
– A wash programme together with the
Short extra option for light to normal
soiling where there are no obvious
marks.
– A wash programme without any extra
options for normal to heavy soiling
with visible staining.
– A wash programme together with the
Soak extra option for heavily soiled
laundry.
–The
Pre-wash extra option for laundry
with large amounts of dirt (e.g. dust,
sand).
When drying with a tumble dryer
–Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Washing environmentally and economically
15

Brief instructions
The headings numbered A,B,C, . . .
show the operating sequence and can
be used as brief instructions.
ASort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^Badly soiled areas, stains etc. should
be cleaned as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft colourfast cloth. Do not rub!
Badly soiled areas can be pre-treated
with liquid detergent, stain removers
etc. first, following the manufacturer's
instructions. With particularly stubborn
stains ask your dry cleaner for advice.
,If you use a solvent-based clean-
ing agent (e.g. one containing ben-
zene) to pre-treat a stain, make sure
that any plastic parts (e.g. buttons)
are protected, and that the cleaning
agent is rinsed off before washing the
garment in the machine.
,Do not use solvent-based
cleaning agents in this machine.
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
– Curtains: Remove lead weights first
or place in a laundry bag.
–Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–Knitted garments, trousers and
jeans, T-shirts and sweat shirts: Turn
inside out, if recommended by the
manufacturer.
–Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers etc. to prevent
small items from being rolled up
inside them.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (hsymbol)
How to wash correctly
16

BSwitch on the washing machine
The interior drum lighting will come on.
All the programme indicator lights will
come on, and the display will ask you to
select a programme.
CSelect a programme
^Press the button for the programme
you wish to run.
Now only the indicator light for the
selected programme will be lit up,
and this will be highlighted in the
display.
DSelect a temperature / spin speed
The suggested temperature and/or spin
speed can be changed if required.
Cottons
Duration: 1:49 h
60°C 1600 rpm
^By pressing the left hand
Menu
button under 60°C you can alter the
temperature, and by pressing the
right hand
Menu button under
1600 rpm you can alter the spin
speed or deselect it.
Pressing the
Further programmes
button calls up a list of additional
programmes.
Further programmes
Denim
Continue OK
^Pressing the left hand
Menu button
under Continue calls up the further
programmes, and you can then
confirm your selection of the
highlighted programme by pressing
the right hand
Menu button under
OK.
Denim
Duration: 1:00 h
40°C 900 rpm
^The suggested temperature and/or
spin speed can now be changed if
required.
How to wash correctly
17

^Select any extra options by pressing
the appropriate button. The relevant
indicator light will come on to show
which extra option has been
selected.
^Press the
Further extras button to
select the following extra options
(depending on the programme
selected):
Soak , Rinse hold and Extra
rinse
.
Not all the extra options are suitable for
use with every programme.
You can only select extra options which
are compatible with the basic
programme being used.
ELoad the drum
^Press the
Door button to open the
drum door.
The load size indicator display will
appear.
Load <25%
BContinue
The display shows the amount of
laundry loaded in the drum as a % (in
25% steps) of the maximum load
permissible for the programme
selected.
^Unfold the laundry and load loosely
in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
Make sure that no garments are
caught between the drum door and
seal.
^Shut the door with a gentle swing.
How to wash correctly
18

FAdd detergent
When the door is closed, the load size
indicator will be replaced with the
detergent percentage display.
Detergent 75%
ABack A
The percentage shown relates to the
amount of detergent recommended by
the manufacturer on the packaging.
40% = Add slightly less than half
the amount recommended
50% = Add half the amount
recommended
60% = Add slightly more than half
the amount recommended
75% = Add three quarters of
the amount recommended
100% = the full amount of detergent
recommended
You also need to take the level of
soiling and water hardness into
account.
It is important to dispense the correct
amount because . . .
. . . too little detergent results in:
–Laundry not getting properly clean
and with time it may become grey
and hard to the touch.
–Greasy particles clinging to the
laundry.
–Limescale deposits on the heater
elements.
. . . too much detergent results in:
–Excessive foam which causes a low
level of agitation and poor wash,
rinse and spin results.
– High water consumption (an
additional rinse cycle will
automatically switch in).
– A burden to the environment.
How to wash correctly
19

^Pull out the detergent drawer and
add detergent to the compartments
as follows:
i
Detergent for the pre-wash (divide
the total recommended amount as
follows: add 1/3to compartment i
and 2/3to compartment j)
j
Detergent for the main wash,
including Soak if selected
§
Fabric conditioner or liquid starch
^Close the detergent drawer.
See "Detergent" for further information.
GSelect Delay start (if required)
^Press the mbutton to set the time
you wish to programme to end at.
See "Delay start" for more information.
HStart the programme
^Press the flashing
Start/Stop button.
If a delay start time has been set, then
this will count down in the display. At
the end of the delay start time or
immediately after the programme has
started (if no delay start time has been
selected) the estimated programme
duration will appear in the display.
During the first 8 minutes the machine
measures how much water is being
absorbed by the laundry. The
programme duration may be longer or
shorter depending on this absorbency
rate.
The programme sequence is also
shown in the display. The machine lets
you know which section of the
programme has been reached.
The drum lighting switches off once the
programme has started.
How to wash correctly
20
