Miele W 504 Plus User manual

Operating instructions
for Washing machine
W 504 Plus
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time.
G
M.-Nr. 06 107 290

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Please do
not therefore dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. The plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Caring for our environment
2

Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Disposal of your old appliance or machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Special programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Delicates and Silks /programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Future updates (PC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Important control panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programme selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Additional option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
"Spin" button with indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Washing environmentally and economically. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Energy and water consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Additional options
(Short, Soak, Pre-wash) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
When drying with a tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Brief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Garment care label symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
How to wash correctly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Before washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Additional options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
At the end of a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Contents
3

Adding or removing laundry after a programme has started . . . . . . . . . . . . . . . . 25
Interrupting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Altering a programme once selected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Skipping a programme stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To cancel or select a different programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Water softeners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Washing with several components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fabric conditioners and liquid starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Automatic dispensing of fabric conditioner or liquid starch to laundry
at the end of a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adding fabric conditioner separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Adding starch separately . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Colour run and dye removers/dyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
External casing and fascia panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Extra cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the water inlet filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
To clean the filter in the union in the open end of the inlet hose: . . . . . . . . . . . 33
To clean the filter in the water inlet valve: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
The programme does not start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
The wash programme stops and a fault indicator light comes on. . . . . . . . . . . . . 35
A fault indicator light comes on but the wash programme continues as normal. . 36
General problems or an unsatisfactory wash result . . . . . . . . . . . . . . . . . . . . . . . 37
The drum door does not open when you press the Door button. . . . . . . . . . . . . . 39
Opening the drum door in the event of a blocked drain outlet and/
or power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Blocked drain outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Customer contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Contents
4

Installation and connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installation surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installing the washing machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Removing the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Re-fitting the transit bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Levelling the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Screwing out and adjusting the feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Building under a continuous worktop/in a kitchen run . . . . . . . . . . . . . . . . . . . 49
Washer and Dryer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
The Miele water protection system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Connection to the water supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Connection to the drainage system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Consumption data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Programmable functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Water plus system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Gentle action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Top-up rinse for Cottons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Soak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Contents
5

To avoid the risk of accidents and
damage to the machine please read
these instructions carefully before
using it for the first time. They
contain important information on its
safety, use and maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner of the
machine.
Correct usage
Only use the washing machine to
wash items which are specified by
the manufacturer to be machine-wash-
able on the wash-care label, and tex-
tiles composed of hand-washable wool
or wool blend fabrics as well as satin,
lace, silk and other hand-washable
garments.
Any other applications may be danger-
ous. The manufacturer is not liable for
damage resulting from improper use or
operation.
Technical safety
Before setting up the machine,
check it for any externally visible
damage. Do not install and use a
damaged machine.
Before connecting the machine,
ensure that the connection data on
the data plate match the mains
electricity supply. If in any doubt,
consult a qualified electrician.
The electrical safety of this
machine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national regulations. It is most important
that this basic safety requirement is
present and regularly tested and where
there is any doubt the household wiring
system should be inspected by a
qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the machine to the
mains electricity supply by an
extension lead. Extension leads do not
guarantee the required safety of the
machine (e.g. danger of overheating).
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in
unforeseen dangers for the user, for
which the manufacturer cannot accept
liability. Repairs should only be
undertaken by a Miele approved
technician.
Ensure current is not supplied to the
machine until after maintenance or
repair work has been carried out.
The machine is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
and the plug is withdrawn, or
–it is switched off at the mains, or
–the mains fuse is withdrawn.
–the screw-out fuse is removed (in
countries where this is applicable).
Warning and safety instructions
6

This machine must only be
connected to the on-site water
supply using a new hose kit. Old hoses
must not be re-used. Check the hose
regularly for signs of wear and tear.
Change in good time to avoid the risk of
leaks and subsequent damage.
Faulty components must only be
replaced by genuine Miele original
spare parts. Only when these parts are
fitted can the safety standards of the
machine be guaranteed.
If the connection cable is faulty it
must only be replaced by a Miele
approved service technician to protect
the user from danger.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
machine and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the machine guarantee.
Use
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Do not install your washing
machine in rooms where
temperatures below freezing may
occur. Frozen hoses may burst under
pressure. The reliability of the electronic
control unit may be impaired at
temperatures below freezing point.
Before using the machine for the
first time, check that the transit
fittings at the rear of the machine have
been removed (see section on
"Installation"). During spinning, a transit
fitting which is still in place may result in
damage to both the machine and
adjacent furniture or appliances.
Turn off the stopcock if the
machine is to be left for any length
of time (e.g. holiday), especially if there
is no floor drain (gully) in the immediate
vicinity.
Flooding danger.
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it.
Take care to ensure that foreign
objects (e.g. nails, pins, coins,
paper clips) do not find their way into
the machine with the laundry. These
may damage components of the
machine (e.g. suds container, drum),
which in turn can result in damage to
the laundry.
Warning and safety instructions
7

If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If, however,
you do wish to descale the machine
only use proprietary non-corrosive
descaling agents and strictly observe
the instructions on the packaging. If in
doubt, contact the Miele Customer
Service Dept. or your Miele Dealer.
Textiles which have been pre-
treated in solvent based cleaning
agents must be thoroughly rinsed in
clean water before being washed in the
machine.
Never use solvent based cleaning
agents, e.g. those containing
benzene, in this machine, as this may
result in damage to component parts
and create toxic fumes. Such agents
also pose a fire and explosion hazard.
Only use dyes specified by the
manufacturer as being suitable for
use in a domestic washing machine.
Always observe the manufacturer's
instructions carefully.
Colour run and dye removers
contain sulphur compounds which
can cause damage such as corrosion.
Do not use these products in this
machine.
Always make sure the drum is
stationary before reaching in to
remove washing. Reaching into a
moving drum is extremely dangerous.
Safety with children
This machine is not a toy! To avoid
the risk of injury do not allow
children to play on or near it or to play
with the controls. Supervise its use by
the elderly or infirm, and supervise
children whilst you are operating the
machine.
For machines with a ‘porthole’
door, remember that the porthole
glass will be hot when washing at very
high temperatures. Do not let children
touch it.
Accessories
Accessory parts may only be fitted
when expressly approved by Miele.
If other parts are used, guarantee,
performance and product liability
claims will be invalidated.
Disposal of your old machine
Before discarding an old machine,
switch it off at the wall socket and
unplug it. Render the plug useless. Cut
off the cable directly behind the
appliance to prevent misuse. This
should be done by a competent
person.
The manufacturer cannot be held
liable for damage caused by non-
compliance with these Warning and
Safety instructions.
Warning and safety instructions
8

Your machine has the following special
programmes in addition to the standard
Cottons and Minimum iron
programmes.
Special programmes
–Silks /
Hand-washable fabrics which crease
easily and do not contain wool can
be washed in the
Silks /
programme (30°C temperature only).
–Woollens /
Hand-washable or machine-
washable wool or wool blend fabrics
can be washed in the
Woollens /
programme. If the garment care label
does not specify a temperature,
wash using the cold setting.
– Quick wash
This is a Cottons programme for
small loads of very lightly soiled
fabrics.
–Automatic
Suitable for small loads of garments
made from man-made fibres and
cotton garments which can be
washed together. Sort according to
colour.
–Separate rinse
Suitable for rinsing and spinning
articles which have been hand
washed.
Delicates and Silks /programmes
In these programmes, the laundry is
washed and spun very gently to reduce
creasing and the amount of ironing
required, thus providing "Easy care" for
your laundry.
Water plus system
The water level for washing and/or
rinsing is increased. For
Cottons and
Minimum iron programmes an
additional rinse can also be selected.
Description of the machine
9

Future updates (PC)
The indicator or check light marked PC
is the interface used by Miele service
technicians during servicing work for
testing purposes and for updating the
machine's programme data.
Description of the machine
10

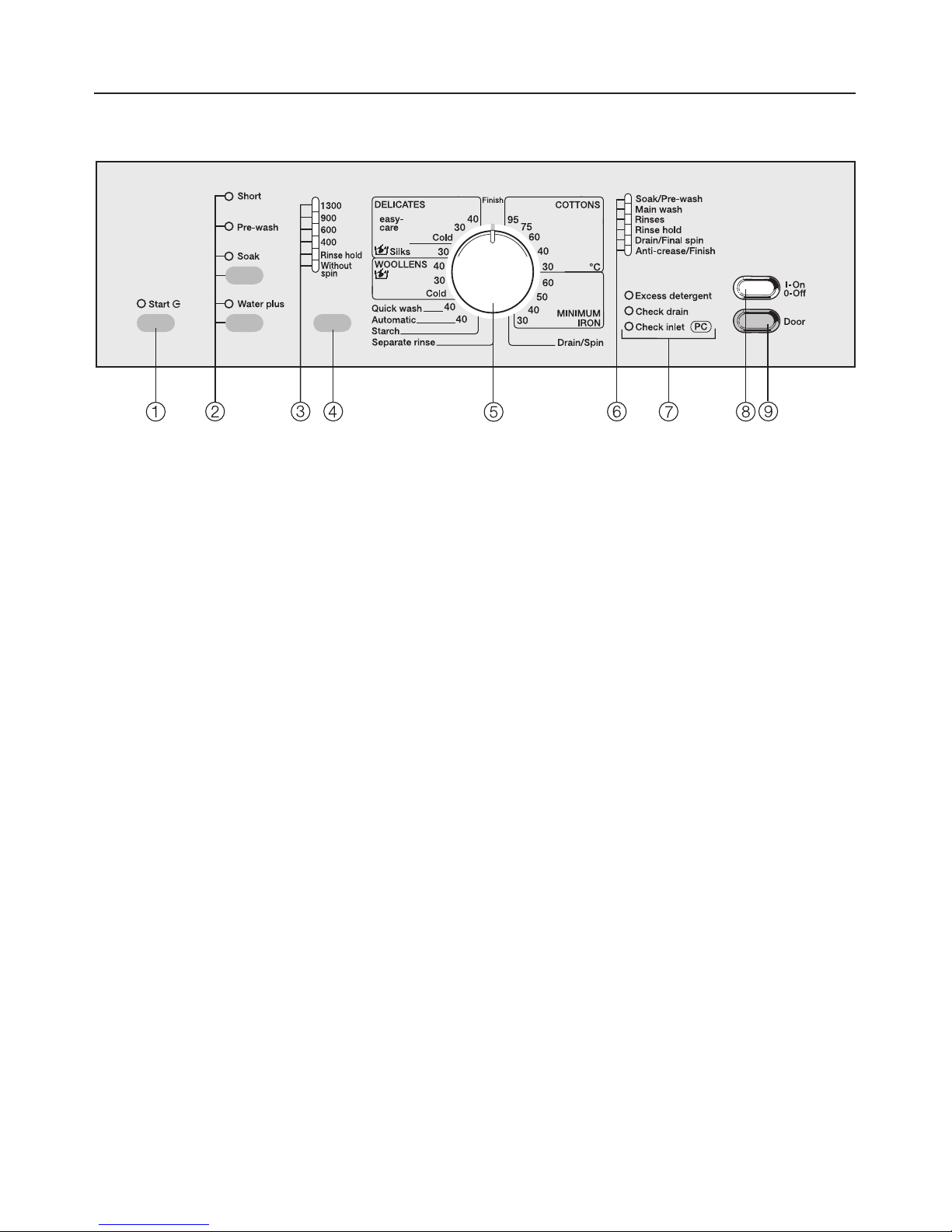

Control panel
aStart button
Starts the wash programme
bAdditional option buttons
Additional options can be added to
the basic programme.
Use the top button to select either
the
Short , the Pre-wash or the Soak
option. Use the lower button to select
the
Water plus option.
Indicator light on = option selected
Indicator light off = option not
selected
cIndicator lights
For spin speeds, Rinse hold or
Without spin
dSpin button
For selecting the final spin speed,
Rinse hold or Without spin
eProgramme selector
For selecting the wash programme
and temperature for that programme.
The programme selector can be
turned clockwise or anti-clockwise.
fProgramme sequence indicator
lights
Show which section of the wash
programme has been reached.
gCheck lights
hI-On/0-Off button
For switching the machine on or off
or interrupting a programme
iDoor button
Opens the machine door
Description of the machine
11

Important control panel
features
Programme selector
The programme selector is used to set
the basic wash programme and the
temperature for that programme.
Additional option buttons
Additional options can be added to the
basic programme.
Use the top button to select either the
Short , the Pre-wash or the Soak option.
Use the lower button to select the Water
plus option.
The indicator light will come on to show
that the additional option has been
selected. If an additional option is
chosen, which is incompatible with the
basic programme, it cannot be
selected.
"Spin" button with indicator lights
Select the spin speed.
Press the "Spin" button to select a
different spin speed. However, you
cannot select a spin speed higher than
the maximum allowed for the basic
wash programme chosen.
The indicator lights show the speed
selected.
Wash programme rpm
Cottons 1300
Minimum iron 900
Delicates 600
Silks 400
Woollens 1200
Quick wash 1300
Automatic 900
Separate rinse 1200
Starch 1300
Drain/spin 1300
You can also omit the final spin
^Press the "Spin" button to reach:
– Rinse hold
The laundry is not spun and remains
suspended in the final rinse water.
This reduces creasing if the laundry
is not going to be removed from the
drum immediately after the end of
the programme.
To continue the programme select a
spin speed. When the programme is
finished the
Anti-crease/Finish light
will come on. Turn the programme
selector to the
Finish position and
press the
door button to open the
door and remove the laundry.
–Without spin
The laundry is not spun. After the
water has been drained away the
machine goes straight into the anti-
crease stage. Spinning between the
rinses is also omitted in this setting.
Description of the machine
12

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened. Otherwise there is a risk
of water leakage during use.
For safety reasons spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry
and without detergent.
Using detergent could result in an
excessive build-up of foam.
This also activates the ball valve. The
ball valve prevents detergent escaping
from the suds container into the sump
during a wash programme, thus making
maximum use of the detergent.
^Open the stopcock.
^Press the
I-On/0-Off button in.
^Turn the programme selector to
Cottons 60°C .
^Press
Start .
When this programme has finished turn
the programme selector to
Finish . Your
washing machine is ready for using for
the first time.
Before using for the first time
13

Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine, load the maximum dry load
for the programme you are using.
–Use the
Automatic or the Quick wash
programmes for small loads.
–When smaller amounts of laundry are
washed using the
Cottons
programmes, the automatic load
recognition system will reduce the
amount of water, time and energy
used. This may mean that the
programme duration is adjusted
during the course of the wash
programme.
– Instead of using the
Cottons 95°C
programme, use the Cottons 60°C
programme. This will give an energy
saving of between 35% and 45%.
This combination is sufficient for
most levels of soiling. For stubborn
or old stains, use the
Soak option.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
–Reduce the amount of detergent with
smaller loads (approx. 1/3less than
the amount recommended can be
used when washing a half load).
Additional options
(Short, Soak, Pre-wash)
Select:
A wash programme together with the
Short option for light to normal soiling
where there are no obvious marks.
A wash programme without any
additional options for normal to
heavy soiling with visible staining.
A wash programme together with the
Soak option for heavily soiled
laundry.
– Use the additional option
Soak
instead of Pre-wash . If Soak is
followed immediately by a main wash
the same suds are used.
When drying with a tumble dryer
–Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Washing environmentally and economically
14

Brief instructions
Please note:
To help familiarise yourself with how to
use your washing machine please read
the sections "Before washing",
"Selecting a programme" and "At the
end of a programme" in detail.
ASort the laundry into colours and
fabric types
Selecting a programme:
BSwitch on the washing machine
COpen the drum door
DLoad the drum
EClose the drum door
FSelect a programme
GSelect a spin speed
HSelect any additional option required
IAdd detergent
JPress the
Start button
At the end of a programme:
KOpen the drum door
LRemove the laundry
MSwitch off the washing machine
NTurn the programme selector to the
Finish position
OClose the drum door
See the "Programme chart" in the next
section for information on which
programmes to use for different fabric
types.
How to wash correctly
15

Programme chart
Cottons 30°C to 95°C 9ö876
Fabric Cottons and linen fabrics, e.g. bed linen, table linen,
towelling, jeans, underwear, T-shirts, nappies.
Additional options Short, Pre-wash, Soak, Water plus
Notes –Only use the
Cottons 95°C programme for heavily soiled
laundry.
–For heavily soiled laundry and/or soiling which has been
left unwashed for some time, select the
Soak additional
option.
–For laundry with large amounts of dirt (e.g. dust, sand)
use the
Pre-wash additional option.
–For lightly soiled laundry select the
Short additional
option.
–For dark coloured fabrics use a detergent for coloured
fabrics, or liquid detergent.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent, tablet detergent and liquid tab detergent.
Max. load 5 kg
Note for test institutes:
Programme setting for testing according to EN 60456 standard: Cottons 60°C
Minimum iron 30°C to 60°C 4321 876
Fabric For garments made of synthetic fibres, mixed fibres and for
easy care cotton shirts and blouses.
Additional options Short, Pre-wash, Soak, Water plus
Notes –For heavily soiled laundry and/or soiling which has been
left unwashed for some time, select the
Soak additional
option.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent, detergent for delicates, tablet detergent and liquid
tab detergent.
Max. load 2.5 kg
How to wash correctly
16

Delicates cold to 40°C 21ac
Fabric For delicate garments made of synthetic fibres, mixed fibres
and for easy care cotton shirts and blouses.
Curtains, including net curtains, specified as machine-
washable by the manufacturer.
Additional options Short, Pre-wash, Soak
Notes –Laundry remains relatively crease-free for easier ironing.
–Dust in curtains usually makes using a programme with
Pre-wash advisable.
–For curtains made from delicate fabrics reduce the spin
speed or select Without spin.
Detergent Liquid detergent for delicates.
Max. load 1 kg
Silks 30°C /c
Fabric Hand-washable fabrics with no wool content, e.g. satin, lace
and silk.
Additional option Water plus
Notes –Laundry remains relatively crease-free for easier ironing.
–Place socks, tights, bras etc. in a washing bag.
Detergent Liquid detergent for delicates.
Max. load 1 kg
Woollens*) cold to 40°C /ac
Fabric Machine-washable or hand-washable wool or wool blend
fabrics. If the care label does not specify a temperature,
wash using the cold setting. Please note hand-washable
garments will not shrink, stretch, matt or felt beyond the
accepted tolerance of the item.
Detergent Liquid detergent for machine washable woollens.
Max. load 2 kg
How to wash correctly
17

Quick wash 40°C 7
Fabric Very lightly soiled fabrics, which can be washed in the
Cottons programme.
Notes –Use less detergent (as for a half load).
–If fabrics have a high proportion of man-made fibres it is
advisable to programme the machine for "Gentle Action".
See "Programmable functions". Note that this programme
is not suitable for delicate items.
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Max. load 2.5 kg
Automatic 40°C 72
Fabric Small loads of garments made from man-made fibres and
cotton garments which can be washed together. Sort
according to colour.
Additional options Short, Pre-wash, Soak
Detergent Powder detergent, detergent for coloured fabrics, liquid
detergent.
Max. load 3 kg
Starch
Fabric Table cloths, napkins, overalls, aprons.
Notes –The laundry should be washed but not treated with fabric
conditioner.
Max. load 5 kg
Separate rinse*)
Fabric Articles which have been washed by hand and only need to
be rinsed and spun in the machine.
Max. load 5 kg
Drain/Spin
Notes –Drain only: Select
Without spin . Do not use for Woollens.
Max. load 5 kg
*) During the final spin the 1300 rpm indicator light will come on. However, to
protect the laundry, the machine will only spin at 1200 rpm during this spin.
How to wash correctly
18

/Hand wash (If no temperature
is specified use the lowest
temperature or cold)
hDo not wash
apf Dry clean
DDo not dry clean
wClean professionally
xSuitable for chlorine
bleaching
zDo not use chlorine bleach
Tumble dry
qAt normal temperature
rAt low temperature
sDo not tumble dry
Ironing
IHot iron
HMedium hot iron
GCool iron
JDo not iron
Garment care label symbols
19

Before washing
ASort the laundry
^Empty all pockets.
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to garments and
components in the machine.
^Badly soiled areas, e.g. collars and
cuffs, and water soluble stains can
be pre-treated with bar soap, liquid
detergent or detergent mixed into a
solution or paste.
With particularly stubborn stains ask
your dry cleaner for advice.
,Do not use solvent-based
cleaning agents in this machine.
^Sort the laundry by colour and by
care label symbol. Most garments
have a textile care label in the collar
or side seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being washed
together with other garments. Always
wash whites and coloureds separately.
Delicate textiles should be washed
separately in a delicates programme
(use a washing bag where
appropriate).
– Curtains:
Remove lead weights and strips or
place in a laundry bag.
– Underwiring and collar stiffeners:
Any loose wiring in bras, shirt collar
stiffeners, etc. should be removed or
sewn in.
–Knitted garments, trousers and
jeans, T-shirts and sweat shirts:
Turn inside out, if recommended by
the manufacturer.
–Close any zips, fasten hooks and
eyes etc before washing.
–Fasten duvet covers to prevent
smaller items rolling up inside them.
,Do not wash any items in this
machine which are specified by the
manufacturer as not washable on
the care label. (hsymbol)
How to wash correctly
20
