Miele WWD 660 User manual

Operating instructions
Washing machine
To avoid the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 11 625 472

Contents
2
Caring for the environment .............................................................................. 6
Warning and Safety instructions ..................................................................... 7
Operating the washing machine ...................................................................... 14

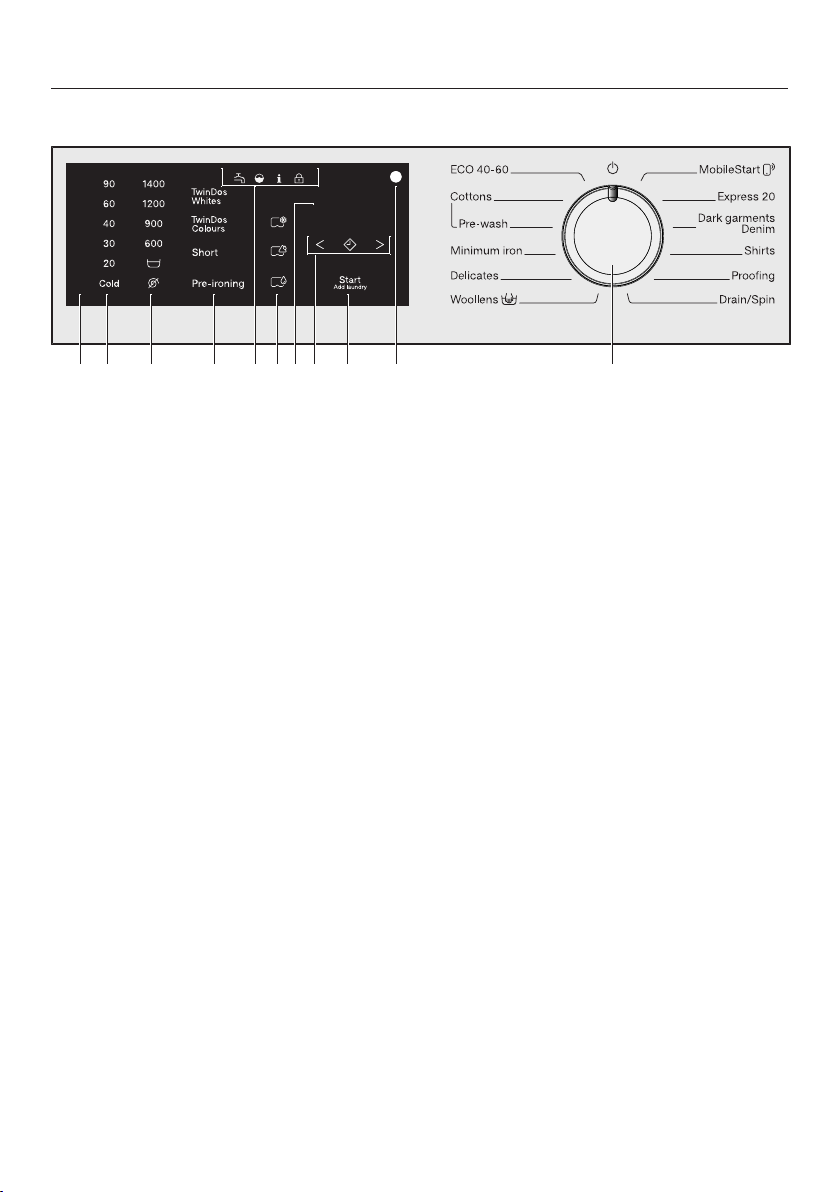

Control panel....................................................................................................... 14
How the control panel works .............................................................................. 15
Before using for the first time .......................................................................... 16
Miele@home ........................................................................................................ 17
1. Removing the transit bars ............................................................................... 18
2. Setting up Miele@home .................................................................................. 18
3. Commissioning TwinDos ................................................................................. 19
4. Starting the calibration programme................................................................. 20
Washing environmentally and economically .................................................. 21
1. Preparing the laundry.................................................................................... 22
2. Selecting a programme ................................................................................ 23
3. Loading the washing machine ..................................................................... 24
4. Selecting programme settings..................................................................... 25
5. Adding detergent........................................................................................... 26
TwinDos............................................................................................................... 26
Activating TwinDos dispensing ...................................................................... 26
Changing TwinDos dispensing ....................................................................... 26
Deactivating TwinDos dispensing .................................................................. 26
Degree of soiling of the laundry .......................................................................... 27
Detergent dispenser drawer ................................................................................ 28
CapDosing........................................................................................................... 30
6. Starting the programme ............................................................................... 32
Adding or removing laundry during a programme sequence (AddLoad) ............ 32
7. At the end of the programme ....................................................................... 33
Spinning.............................................................................................................. 34
 Delay start/SmartStart................................................................................. 35
Programme chart .............................................................................................. 37

Contents
3
Extras.................................................................................................................. 40
Short.................................................................................................................... 40
Pre-ironing........................................................................................................... 40
The following Extras can be selected in addition to the programme .................. 40
Garment care label symbols............................................................................. 41
Programme sequence....................................................................................... 42
Changing the programme sequence............................................................... 44
Changing the programme (safety lock) ............................................................... 44
Cancelling a programme ..................................................................................... 44
Detergent ........................................................................................................... 45
The correct detergent.......................................................................................... 45
Detergent dispensing aids................................................................................... 45
Fabric softeners and liquid starch ....................................................................... 45
Miele detergents.................................................................................................. 46
Replacing the TwinDos cartridge..................................................................... 48
Cleaning and care ............................................................................................. 49
External casing and fascia panel......................................................................... 49
Cleaning the detergent dispenser drawer ........................................................... 49
Hygiene info (Cleaning the drum) ........................................................................ 51
Cleaning the water inlet filter............................................................................... 51
TwinDos maintenance ......................................................................................... 52
Problem solving guide ...................................................................................... 53
The programme does not start............................................................................ 53
The programme is cancelled and a fault indicator light lights up in the control
panel.................................................................................................................... 54
During the programme, a symbol appears in the time display ........................... 55
At the end of the programme, an indicator light lights up in the control panel ... 56
Messages or faults with the TwinDos system ..................................................... 57
General problems with the washing machine ..................................................... 58
An unsatisfactory wash result ............................................................................. 60
The door will not open......................................................................................... 61
Opening the door in the event of a blocked drain outlet and/or power cut ........ 62
Service................................................................................................................ 64
Contact in case of fault ....................................................................................... 64
Optional accessories........................................................................................... 64
Warranty .............................................................................................................. 64

Contents
4
Installation.......................................................................................................... 65
Front view ............................................................................................................ 65
Rear view............................................................................................................. 66
Installation surface .............................................................................................. 67
Transporting the washing machine to its installation site.................................... 67
Removing the transit bars ................................................................................... 68
Fitting the transit bars ......................................................................................... 70
Levelling the machine.......................................................................................... 71
Screwing out and adjusting the feet............................................................... 71
Installing under a continuous worktop ........................................................... 72
Washer and dryer stack ................................................................................. 72
The Miele water protection system ..................................................................... 73
Connection to the water supply .......................................................................... 73
Connecting the water inlet ............................................................................. 73
Drainage .............................................................................................................. 75
Using the elbow.............................................................................................. 75
Direct connection to a sink drain outlet.......................................................... 76
Electrical connection .......................................................................................... 77
Technical data.................................................................................................... 78
Consumption data............................................................................................. 79
Programmable functions .................................................................................. 80
Opening the programming level .......................................................................... 80
Choosing and selecting programmable functions .............................................. 80
Editing and saving the programmable function .................................................. 81
Exiting the programming level............................................................................. 81
 Keypad tone................................................................................................... 81
 PIN Code....................................................................................................... 82
 Control panel standby status ....................................................................... 82
 Memory ........................................................................................................ 83
 Longer pre-wash Cottons ............................................................................ 83
 Gentle action ................................................................................................ 83
 Reduce temperature..................................................................................... 83
 Maximum rinse level..................................................................................... 84
 Suds cooling ................................................................................................. 84
 Anti-crease ................................................................................................... 84
 Low water pressure...................................................................................... 84
 Backlight brightness dimmed ...................................................................... 85
 TwinDos........................................................................................................ 85
 UltraPhase1 dispensing quantity ................................................................ 85
 UltraPhase2 dispensing quantity................................................................. 85

Contents
5
 TwinDos maintenance .................................................................................. 86
 Degree of soiling .......................................................................................... 86
Network ............................................................................................................... 87
Remote control ............................................................................................. 87
SmartGrid (only functional in selected countries) ........................................ 87
 RemoteUpdate............................................................................................. 88
Switching off Wi-Fi .............................................................................................. 89
Copyright and licences for the communication module ..................................... 89
Detergents and care products ......................................................................... 90
Detergent............................................................................................................. 90
Sensitive Skin (powder detergent).................................................................. 90
Specialist detergents .................................................................................... 91
Fabric care .................................................................................................... 92
Additive ........................................................................................................ 92
Machine care products........................................................................................ 92

Caring for the environment
6
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.

Warning and Safety instructions
7
This washing machine complies with all current local and national
safety requirements. However, inappropriate use can lead to
personal injury and damage to property.
Read the operating instructions carefully before using the washing
machine. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the washing machine.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these operating instructions in a safe place and pass them
on to any future owner.
Correct application
 This washing machine is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
 The washing machine is not suitable for outdoor use.
 It must only be used to wash garments which have been declared
suitable for washing by the manufacturer indicated on the garment
care label. Any other use is not permitted. Miele cannot be held
liable for damage resulting from incorrect or improper use or
operation.
 This washing machine is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning its use by a person
responsible for their safety.

Warning and Safety instructions
8
Safety with children
 Young children must not be allowed to use this appliance.
 Older children may only use the appliance when its operation has
been clearly explained to them and they are able to use it safely,
recognising the dangers of misuse.
 Cleaning work may only be carried out by older children under the
supervision of an adult.
 Please supervise children in the vicinity of the washing machine
and do not let them play with it.
Technical safety
 Please observe the instructions in “Installation” and “Technical
data”.
 Before setting up the washing machine, check it for any externally
visible damage. Do not install or use a damaged machine.
 Before connecting the washing machine, ensure that the
connection data on the data plate (fuse rating, voltage and
frequency) matches the mains electricity supply. If in any doubt,
consult a qualified electrician.
 Temporary or permanent operation with a self-sufficient or non-
mains synchronous energy supply system (e.g. isolated networks,
back-up systems) is possible. A requirement for the operation is that
the energy supply system complies with all current local and national
requirements that apply to stand-alone, solar and/or battery
systems.
The protective measures provided in the installation and in this Miele
product must also be assured in their function and operation in
isolated operation or in non-mains synchronous operation, or
replaced with equivalent measures in the installation.

Warning and Safety instructions
9
 Reliable and safe operation of this washing machine can only be
assured if it has been connected to the mains electricity supply.
 The electrical safety of this washing machine can only be
guaranteed when continuity is complete between it and an effective
earthing system which complies with current local and national
safety regulations. It is most important that this basic safety
requirement is present and regularly tested and, where there is any
doubt, the household wiring system should be inspected by a
qualified electrician. Miele cannot be held liable for the
consequences of an inadequate earthing system (e.g. electric
shock).
 Do not connect the washing machine to the mains electricity
supply by a multi-socket adapter, extension lead or similar. These do
not guarantee the required safety of the machine (fire hazard due to
the risk of overheating).
 Faulty components must only be replaced by genuine Miele spare
parts. Miele can only guarantee the safety of the appliance when
Miele replacement parts are used.
 The electrical socket must be easily accessible after installation so
that the machine can be disconnected from the electricity supply if
necessary.
 Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele authorised service technician, otherwise any
subsequent damage will not be covered by the warranty.
 The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele approved service technician.
 If the connection cable is faulty, it must only be replaced by a
Miele approved service technician to protect the user from danger.

Warning and Safety instructions
10
 In the event of a fault or for cleaning purposes, the washing
machine is only completely isolated from the electricity supply when:
- it is switched off at the wall socket and the plug is withdrawn, or
- it is switched off at the mains circuit breaker.
 The machine must only be connected to the on-site water supply
using a new hose kit. Old hose kits must not be re-used. Check the
condition of the hoses regularly so that you can replace them in
good time and avoid the risk of any water damage.
 The water flow pressure must be at least 100kPa and must not
exceed 1000kPa.
 This washing machine must not be installed and operated in
mobile installations (e.g. on a ship).
 Do not make any alterations to the machine, unless authorised to
do so by Miele.
 In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the machine warranty.
