Miele KWL 4912 S ed Specification sheet

Operating and installation instructions
Wine storage unit
KWL 4712 S ed
KWL 4912 S ed
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time.
G
M.-Nr. 06 813 570

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Miele{home. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Optional accessory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching off for longer periods of time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
The optimum temperature and humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperature display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Temperature display brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Humidity level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Constant humidity (Dynamic cooling) button m. . . . . . . . . . . . . . . . . . . . . . . 15
Air filtering with the active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Storing wine bottles. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Wooden shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Descriptive labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Maximum capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Temperature alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Door alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Activating the alarm system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Switching the alarm off early . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning the outer casing, the interior and accessories . . . . . . . . . . . . . . . . . . . . 20
Ventilation gaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Metal grille at the back of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Contents

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
How to save energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical connection U.K. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Climate range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Aligning the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Changing the door hinging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents

aSafety lock indicator light
bOn/Off button
cTemperature display
dTemperature selector buttons
(+ for warmer; – for colder)
eConstant humidity (Dynamic cooling)
button with indicator light
fAlarm off button
Description of the appliance
4

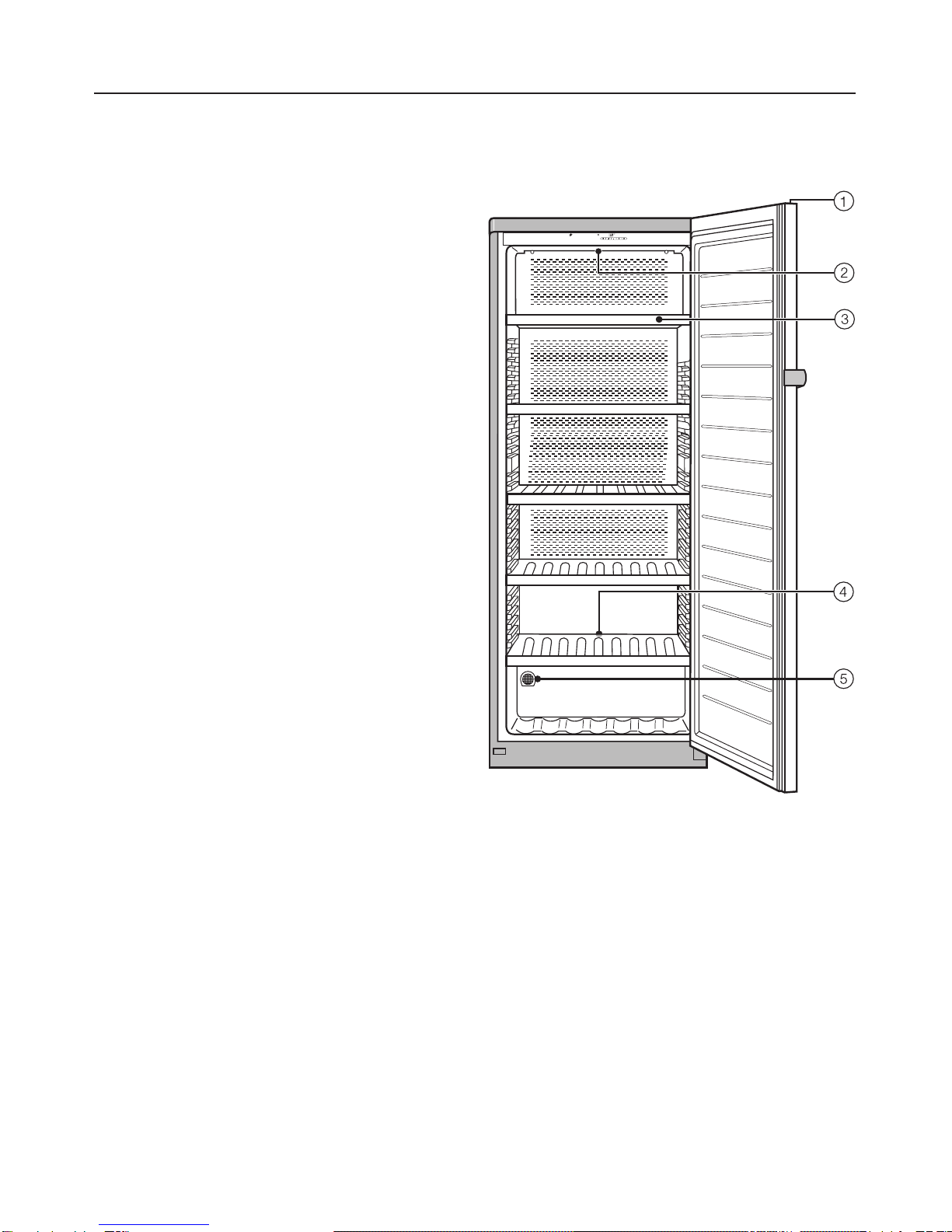

aDoor lock
bInterior lighting
cWooden shelf with shelf edge trim for
descriptive labels
dCondensate channel and
drain hole
eActive charcoal filter
Description of the appliance
5

Optional accessory
The Miele|home system enables you
to check information about your wine
storage unit at any time.
For example, if a temperature alarm,
power cut or other fault message
occurs, this information will be relayed
directly to the Miele|home system.
You will need a Miele|home master
appliance (e.g. the Miele|home
InfoControl) and your appliance must
be fitted with Communication module
(XKM 2000 KF) to benefit from this
feature.
Please refer to the leaflet supplied with
the Miele|home Communication
module for details on how to install it
and on how to sign it on to your
Miele|home system.
The Miele|home master appliance is
supplied with its own operating
instructions.
Miele{home
6

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and can normally be
recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure that they
are recycled.
Disposal of your old appliance
Please ensure that the appliance
presents no danger to children while
being stored for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person. The
plug must be rendered useless and the
cable cut off directly behind the
appliance to prevent misuse. See the
"Warning and Safety" section of this
booklet for further details.
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please dispose of your old appliance at
your local community waste collection /
recycling centre and not with your
household waste.
Take care not to damage the pipework
at the back of it before or during
transportation to an authorised
collection depot.
In this way, refrigerant in the pipework
and oil in the compressor will be
contained, and will not leak out into the
environment.
Caring for the environment
7

This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material
damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on the installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
This appliance is intended for
domestic use only for storing wine.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting from
incorrect or improper use or operation.
Technical safety
This appliance contains the coolant
Isobutane (R600a), a natural gas
which is environmentally friendly. It is,
however, flammable and care must be
taken during transportation and setting
up of the appliance that no parts of the
cooling system are damaged. Leaking
coolant can damage the eyes.
In the event of any damage:
- avoid open fires and anything which
creates a spark,
- disconnect from the mains,
- air the room in which the appliance is
located for several minutes and
- contact the Service Department for
advice.
The more coolant there is in an
appliance, the larger the room it
should be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every 8 g of coolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
Before connecting the appliance to
the mains supply, make sure that
the rating on the data plate
corresponds to the voltage and
frequency of the household supply.
This data must correspond in order to
avoid the risk of damage to the
appliance. If in any doubt, consult a
qualified electrician.
Warning and Safety instructions
8

The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and tested
regularly and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for damage or injury caused by the lack
of or inadequacy of an effective
earthing system (e.g. electric shock).
Safe operation of the appliance is
only assured if it has been installed
and connected in accordance with
these operating and installation
instructions.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons in accordance with national
and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
Ensure current is not supplied to the
appliance until after maintenance or
repair work has been carried out.
The appliance is only completely
isolated from the electricity supply
when:
–it has been switched off at the wall
socket and the plug has been
withdrawn, or
–the fuse from the fused spur
connection unit is withdrawn, or
–the mains fuse is withdrawn, or
–the screw-out fuse is removed (in
countries where this is applicable).
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use
Never store explosive materials in
the appliance. Thermostats
switching on may produce sparks
which could present a fire hazard.
Flammable compounds could explode.
Do not use any electrical
equipment in this appliance.
Danger of sparking and explosion!
Do not use any oils or grease on
the door seal, as these will cause
the seal to deteriorate and become
porous with time.
Do not block the ventilation gaps in
the appliance as this would impair
the efficiency of the appliance, increase
the electricity consumption and could
cause damage to the appliance.
Warning and Safety instructions
9

The appliance is designed for use
within certain climate ranges
(ambient temperatures), and should not
be used outside this range. The climate
range for your appliance is stated on
the data plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
can lead to the appliance switching off
for longer periods so that it cannot
maintain the required temperature.
Do not use a steam-cleaning
appliance to clean this appliance.
Pressurised steam could reach the
electrical components and cause a
short circuit.
To avoid the danger of children
accidentally locking themselves in
the appliance, do not store the key for
the door lock near the appliance and
keep it out of the reach of children.
In countries where there are areas
which may be subject to infestation
by cockroaches or other vermin, pay
particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any
damage which may be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Disposal of your old appliance
Before disposing of an old
appliance, first make the door latch
or lock unusable.
This way you will prevent children from
accidentally locking themselves in and
endangering their lives.
Before disposing of an old
appliance, unplug it and render the
plug useless. Cut off the cable directly
behind the appliance and at the plug to
prevent misuse.
Be careful not to damage any part
of the pipework whilst awaiting
disposal, e.g. by
– puncturing the refrigerant channels
in the evaporator.
– bending any pipework.
– scratching the surface coating.
Splashes of refrigerant can damage the
eyes.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

Before using for the first time
The stainless steel surfaces have a
layer of protective foil to prevent
scratching during transportation.
^Do not remove this foil until the
appliance has been installed or built
in. Start at one of the upper corners.
^Treat stainless steel surfaces with a
conditioning agent for stainless steel,
such as Neoblank (available from the
Miele UK Spare Parts Department).
Follow the manufacturer’s instructions
on the label.
^Clean the inside of the appliance and
the accessories with warm water and
a little washing-up liquid, and then
dry with a soft cloth.
Important:
To ensure the correct functioning of
the appliance, let it stand for
between 1½ and 2 hours after
transporting it to its final location
before connecting it to the mains.
Switching on
^Press the On/Off button briefly until
the temperature display lights up or
flashes.
The appliance will start to cool, and the
interior lighting will come on when the
door is opened.
Switching off
^Press the On/Off button briefly until
the temperature display becomes
dark.
The temperature display will go out and
the cooling process will be switched off.
(If this does not happen, the safety lock
is still activated).
Safety lock
The safety lock can be activated to
prevent the appliance being switched
off inadvertently.
Activating or de-activating the safety
lock
^Press and hold the constant humidity
button for approx. 5 seconds.
The constant humidity button indicator
light will start flashing and a ;will flash
in the temperature display.
^Press the constant humidity button
again.
;will light up constantly in the display.
^You can now choose between ;0
and ;1by pressing the temperature
selector buttons:
0: the safety lock is de-activated,
1: the safety lock is activated.
Switching on and off
11

^Press the constant humidity button to
save the setting.
The safety lock indicator light Xwill
light up when the safety lock has been
activated.
^Press the On/Off button to come out
of setting mode.
If you do not do this, the electronics
will revert to normal operation after 2
minutes.
Switching off for longer
periods of time
If the appliance is not going to be used
for a longer period of time, e.g. whilst
on holiday,
^switch the appliance off,
^switch off at the wall socket and
withdraw the plug,
^clean the appliance out and
^leave the door ajar to air the
appliance.
If, during a long absence, the
appliance is switched off but not
cleaned out and the door is left shut
there is a danger of mould and
odours building up inside the
appliance.
Switching on and off
12

Wine keeps on maturing depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine storage unit with its constant
ideal temperature, increased air
humidity and odour free atmosphere
offers the perfect conditions for storing
your wine.
Temperature
Wine can be stored at a temperature
between 5 °C and 18 °C. The optimum
temperature is around 10-12 °C. Red
and white wine can be stored together
at this temperature and most white
wines can be consumed at this
temperature. It is best to take red wine
out of the wine storage unit about two
hours before drinking. Open the wine to
allow it to breathe and to develop its
aroma. After two hours, red wine will be
at the correct temperature for drinking.
If wine is stored at a temperature above
22 °C it will mature too quickly. Wine
should not be stored below 5 °C for a
long period of time as it will not mature
fully at this low temperature.
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important to
maintain a constant temperature.
A constant temperature will be
maintained in the appliance at an
ambient room temperature of 8 to
43 °C. (This is a wider temperature
range than the climate range quoted on
the data plate).
Safety features
A thermostat prevents the temperature
in the wine storage unit falling below
2 °C. If the external temperature should
drop below this level, a heater element
in the appliance switches on
automatically to keep the temperature
inside as constant as possible.
Setting the temperature
The temperature is set using the two
buttons under the temperature display.
Press the
+ button : to increase the temperature
(it gets warmer)
– button: to reduce the temperature (it
gets colder)
The temperature being set will flash in
the display.
When pressing the buttons, the
following information shows in the
display:
–When first pressed, the last
temperature selected flashes.
–Each subsequent press of the button
adjusts the temperature shown in
1 °C steps.
The optimum temperature and humidity
13

–Keeping the button pressed in
adjusts the temperature continually.
Approx. 5 seconds after letting go of
the button, the current temperature
inside the appliance is automatically
shown.
Temperature range
The temperature can be adjusted from
5 °C to 22 °C.
Temperature display
During normal operation, the
temperature display on the control
panel shows the temperature inside the
appliance.
If the temperature in the appliance is
not within the range that the appliance
is able to display, only bars will light up
in the temperature display.
Depending on the ambient temperature
and the setting, it can take the
appliance up to 8 hours to reach the
temperature required and for this
temperature to then be shown as a
constant temperature in the display.
The temperature display will flash if
–a different temperature is being set,
–the temperature in the wine storage
unit is too high or too low.
Temperature display brightness
The appliance is supplied with the
brightness of the temperature display
set as low as possible.
The level of brightness can be
adjusted:
^Press and hold the constant humidity
button for approx. 5 seconds.
The constant humidity button indicator
light will start flashing and a ;will flash
in the temperature display.
^Press one of the temperature selector
buttons repeatedly until ^appears in
the display.
^Press the constant humidity button
again.
^will light up constantly in the display.
^You can now adjust the level of
brightness by pressing the
temperature selector buttons. You
can choose from settings 1to 5:
1: lowest setting,
5: brightest setting.
^Press the constant humidity button to
save the setting.
The optimum temperature and humidity
14

^Press the On/Off button to come out
of setting mode.
If you do not do this, the electronics
will revert automatically to normal
operation after 2 minutes.
Humidity level
It is very important to store wine in an
atmosphere with a high humidity level
so that the corks remain moist on the
outside. A refrigerator with its low
humidity level is therefore not the best
place to store wine. Low humidity
causes corks to dry out from the
outside, and so do not seal the bottles
as tightly. Wine should be stored lying
down to keep the corks moist from the
inside too. Air entering the bottle will
inevitably spoil the wine.
An ideal humidity level of up to 70 %
will be maintained inside the appliance
as long as the ambient room
temperature is between 15°C and 35°C.
Useful tip: Before serving, stand the
wine upright for at least two hours, or
the entire day if possible, to allow any
sediment to settle at the bottom of the
bottle.
Constant humidity (Dynamic cooling)
button m
Dynamic cooling raises the relative
humidity inside the wine storage unit
and distributes the humidity and the
temperature evenly around the interior
so that you can store all your wine
under the exactly the same excellent
conditions.
Switching on Dynamic cooling
If you would like to use the wine storage
unit to store wine long term, we
recommend that you keep the Dynamic
cooling function switched on. This will
create a continuous climate in the
cabinet which imitates that of a wine
cellar.
^Press the constant humidity button
m. The indicator light will come on.
Even if Dynamic cooling has not
been switched on, the fan in the
appliance will come on automatically
when the cooling system switches
on to ensure your wine is kept in the
optimum climate.
The fan automatically switches off
when the door is open.
The optimum temperature and humidity
15

Switching off Dynamic cooling
The appliance uses slightly more
energy and is a little noisier when the
Dynamic cooling function is switched
on. If you are storing your wine for the
long term and so have Dynamic cooling
switched on constantly, you can switch
it off now and then if you like.
To switch it off, press the constant
humidity button m. The indicator light
will go out.
Air filtering with the active
charcoal filter
The active charcoal filter achieves
optimum air quality by filtering the
incoming air.
Fresh air from the outside enters the
appliance via the active charcoal filter.
The dynamic cooling system then
distributes the air evenly throughout the
cabinet.
Filtering the incoming air through the
active charcoal filter ensures that all the
air entering the appliance is fresh and
free from dust and smells.
This in turn ensures your wine does not
absorb any unwanted odours.
Replace the active charcoal filter
with a new one once a year (see
"Cleaning and care"). These are
available from your Miele Dealer or
the Miele Spare Parts Department.
The optimum temperature and humidity
16

Wooden shelves
Any vibration or movement of the bottle
can affect the wine by interrupting the
natural respiration process and so
impair the taste.
As far as possible, store bottles of the
same type of wine beside each other
on the same shelf. Removing a bottle of
one type will then leave the other types
undisturbed and will avoid the need to
move different bottles around.
The wooden shelves are removable
and height-adjustable and can be
arranged to suit your individual
requirements.
Descriptive labels
Use the labels supplied to identify your
wine quickly and easily.
^Insert the labels from above into the
front of the shelves.
Additional labels can be purchased
from your Miele Dealer or the Miele
Spare Parts Department.
Maximum capacity
The following data was obtained using
standard Bordeaux wine bottles (0.75 l)
and the number of shelves supplied
with the appliance.
– KWL 4712 S ed: up to 162 bottles
– KWL 4912 S ed: up to 187 bottles
Door lock
You can lock the door of the wine
storage unit to prevent it being opened
without your knowledge.
^Insert the key in the door lock.
^Press it down and turn it 90° until the
door lock engages.
^Remove the key by pulling it
upwards.
To unlock the appliance, carry out the
procedure in the reverse order but turn
the key in the opposite direction.
Storing wine bottles
17

Your appliance is fitted with a warning
system which ensures that the
temperature cannot rise or fall
unnoticed and impair the wine.
Temperature alarm
The alarm will sound if the temperature
in the appliance rises approx. 4 °C
above or falls approx. 4 °C below the
set temperature. The temperature
display will flash at the same time.
The alarm will sound and the
temperature display will flash:
– when you switch the appliance on,
and for as long as the temperature
differs as described above from the
temperature set.
– if the door has been left open for a
while in order to re-arrange or take
wine bottles out and warm air has
entered the appliance.
– if a large number of wine bottles are
put into the storage unit at once.
–if there has been a lengthy
interruption to the power supply.
Door alarm
The alarm will sound if the door is left
open for more than approx. 3 minutes.
Activating the alarm system
The alarm system is always active. It
does not have to be switched on
manually.
Switching the alarm off early
Once the set temperature has been
reached in the appliance, the alarm
stops and the temperature display
lights up constantly. However, if the
noise disturbs you, you can switch the
alarm off before this if you wish.
^Press the Alarm off button.
The alarm will stop. The temperature
display will continue to flash until the
set temperature has been reached or
the door has been shut again. The
display then lights up constantly.
Alarm
18

Condensate and frost can build up on
the back wall of the appliance whilst it
is in use. These are automatically
removed and defrosted by the
appliance.
The condensate is drained away via a
channel and drain hole into an
evaporation system at the back of the
appliance.
Ensure that the condensate channel
and drain hole are never blocked so
that condensate can flow away
without hindrance.
Defrosting
19

Never use cleaning agents
containing abrasive substances
such as sand, soda, acids or
chemical solvents.
"Non-abrasive" cleaning agents are
also unsuitable as they can cause
matt areas to appear.
Stainless steel surfaces can be
treated using a conditioning agent
for stainless steel such as Neoblank
(available for the Miele UK Spare
Parts Department). Follow the
manufacturer’s instructions on the
label.
Make sure that no water can
penetrate into the electronic unit or
into the lighting.
Do not let water get into the
drainage channel and drain hole
when cleaning.
Do not use steam cleaning
apparatus to clean the appliance.
Steam could reach the electrical
components and cause a short
circuit.
The data plate located inside the
appliance must not be removed. It
contains information which is
required in the event of a service
call.
Before cleaning
^Switch the appliance off at the wall
socket and remove the plug.
^Take out any removable parts, e.g.
shelves, for cleaning.
Cleaning the outer casing, the
interior and accessories
Use warm water with a little washing up
liquid. Accessories and shelves should
all be hand-washed only.
^Clean the condensate channel and
drain hole frequently, so that
condensate can drain away
unhindered. Use a straw or similar to
clear the drain if necessary.
^Clean stainless steel surfaces with a
suitable cleaning agent following the
manufacturer’s instructions on the
packaging.
^After cleaning, wipe the interior and
accessories with a damp cloth, and
dry with a soft cloth. Leave the door
open to air the appliance for a short
while.
E-Cloth
^A microfibre "E-Cloth" is available
from the Miele UK Spare Parts
Department which is suitable for
cleaning surfaces such as stainless
steel, glass, plastic and chrome
without the use of chemicals.
Cleaning and care
20
