Miele KWT 6322 UG User manual

Installation Instructions
KWT 6322 UG en - CA
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation instructions.

,Failure to follow these
instructions can result in death, fire,
or electrical shock.
Improper connection of the
equipment grounding conductor
may result in electric shock.
If you are in any doubt as to whether
the appliance has been properly
grounded, have the appliance
checked by a qualified electrician or
service technician.
Installation, repairs and other work
by unqualified persons could be
dangerous. The manufacturer will
not be held responsible for damage
or injury arising from unauthorized
work.
Before installing the appliance,
verify that the voltage, load and
circuit rating information found on
the data plate match the household
electrical supply.
,To guarantee the electrical
safety of this appliance, continuity
must exist between the appliance
and an effective grounding system.
It is imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of
the house checked by a qualified
electrician.
,This appliance is equipped with
a three-prong grounding plug to
prevent shock hazards. It should be
plugged directly into a properly
grounded outlet. Do not cut or
remove the grounding prong from
the plug. If the plug does not fit the
outlet, have the proper outlet
installed by a licensed electrician.
Do not use extension cords or
ungrounded (two prong) adapters.
Connect this appliance to a 110 –
120 VAC, 60 Hz and 15 amp (20 amp
for side-by-side) circuit with a circuit
breaker or fuse.
This appliance must be grounded
according to local or national codes.
Electrical connection
51

The appliance must be connected to an
electrical outlet that is properly
grounded. The electrical installation
must comply with the applicable
electrical code.
The plug must be easily accessible and
not concealed behind the appliance so
that the appliance can quickly be
disconnected from the electricity
supply in an emergency. In addition, no
other appliances should be plugged
into a socket located directly behind
this appliance.
The power cord must not come into
contact with the back of the appliance,
as they could be damaged by
vibrations from the appliance. This may
result in a short circuit.
Do not use an extension cord to
connect the appliance to the power
supply. Extension cords do not
guarantee the required safety of the
appliance (e.g. they pose a danger of
overheating).
Do not connect the appliance to
stand-alone inverters, such as those
used with an autonomous energy
source, e.g. solar power systems.
Otherwise, when the appliance is
switched on, peak loads in the system
can cause the safety shutdown
mechanism to be triggered. This can
damage electronic units.
In addition, the appliance must not be
used with energy-saving devices,
which reduce the amount of energy
supplied to the appliance and cause it
to overheat.
If the power cord needs to be replaced,
this work must only be performed by a
qualified electrician.
Electrical connection
52

To avoid tipping over, the appliance
must be properly installed and
secured.
WARNING!
Danger of tilting! To avoid a hazard
due to instability of the appliance, it
must be secured in accordance with
the instructions.
Side-by-side installation
To avoid a build-up of condensation
and resultant damage, refrigerators and
freezers should not generally be
installed directly next to other such
appliances.
However, this wine storage unit can be
installed side-by-side with certain
models.
Please contact Miele for specific
information about which
combinations will work with your
appliance.
Location
This appliance should not be installed
where it is exposed to direct sunlight or
directly adjacent to a heat-producing
appliance such as an oven or a
radiator. The room temperature should
not go above or below the climate
range for which the appliance is
designed. The higher the ambient
temperature of the room, the more
energy the appliance requires to
operate.
The appliance should be installed in a
dry, well-ventilated room.
The following should also be taken into
consideration:
– The plug must be easily accessible
and not concealed behind the
appliance so that the appliance can
quickly be disconnected from the
electricity supply in an emergency. In
addition, no other appliances should
be plugged into a socket located
directly behind this appliance.
– The power cord must not come into
contact with the back of the
appliance, as they could be
damaged by vibrations from the
appliance. This may result in a short
circuit.
Installation
53

Climate class
The appliance is designed for use
within a certain climate range (ambient
temperatures) and should not be used
outside this range. The climate range of
the appliance is stated on the data
plate inside the appliance.
Climate class Room temperature
SN
N
ST
T
+50°F to +90°F
(+10°C to +32°C)
+60°F to +90°F
(+16°C to +32°C)
+60°F to +100°F
(+16°C to +38°C)
+100°F to 110°F
(+16°C to +43°C)
Operating in a room which is too cold
will cause the compressor to turn off for
too long, causing the internal
temperature in the appliance to rise
resulting in damage.
,Caution:
At altitudes above 4921 ft. (1500 m)
there is a risk of the glass door
shattering!
Shards of glass can cause injury!
Ventilation
WARNING! Danger of damage from
overheating. May restrict operation.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
The ventilation gaps given must be
observed, otherwise the compressor
will run more frequently and for
longer periods. This will result in
increased energy consumption and
a higher operating temperature for
the compressor. This may, in turn,
cause the compressor to be
damaged.
The appliance is ventilated via the
grill in the plinth.
This must not be covered over or
blocked.
Clean the plinth regularly to remove
any dust.
Installation
54

The cut-out in the plinth facing must
be aligned centrally with the
appliance.
Before installation
^Before installation, take any
accessories out of the appliance
and/or from the back of the
appliance.
^Remove any cable clips from the
back of the appliance.
^Check that all parts at the back of the
appliance are unhindered. Carefully
remove any hindrance.
Door opening angle limiter
The door opening angle limiter restricts
the opening angle to 90°. This may be
necessary if the appliance door hits an
adjacent wall when opened, for
example.
Installation
55

Installation dimensions
Before installation, ensure the building-in niche is the correct size. The specified
ventilation cross-sections must be adhered to and the cut-out in the plinth must
be aligned centrally with the appliance in order to ensure the correct functioning
of the appliance.
The ventilation grill and foam block supplied must be installed and used
together.
Installation
56

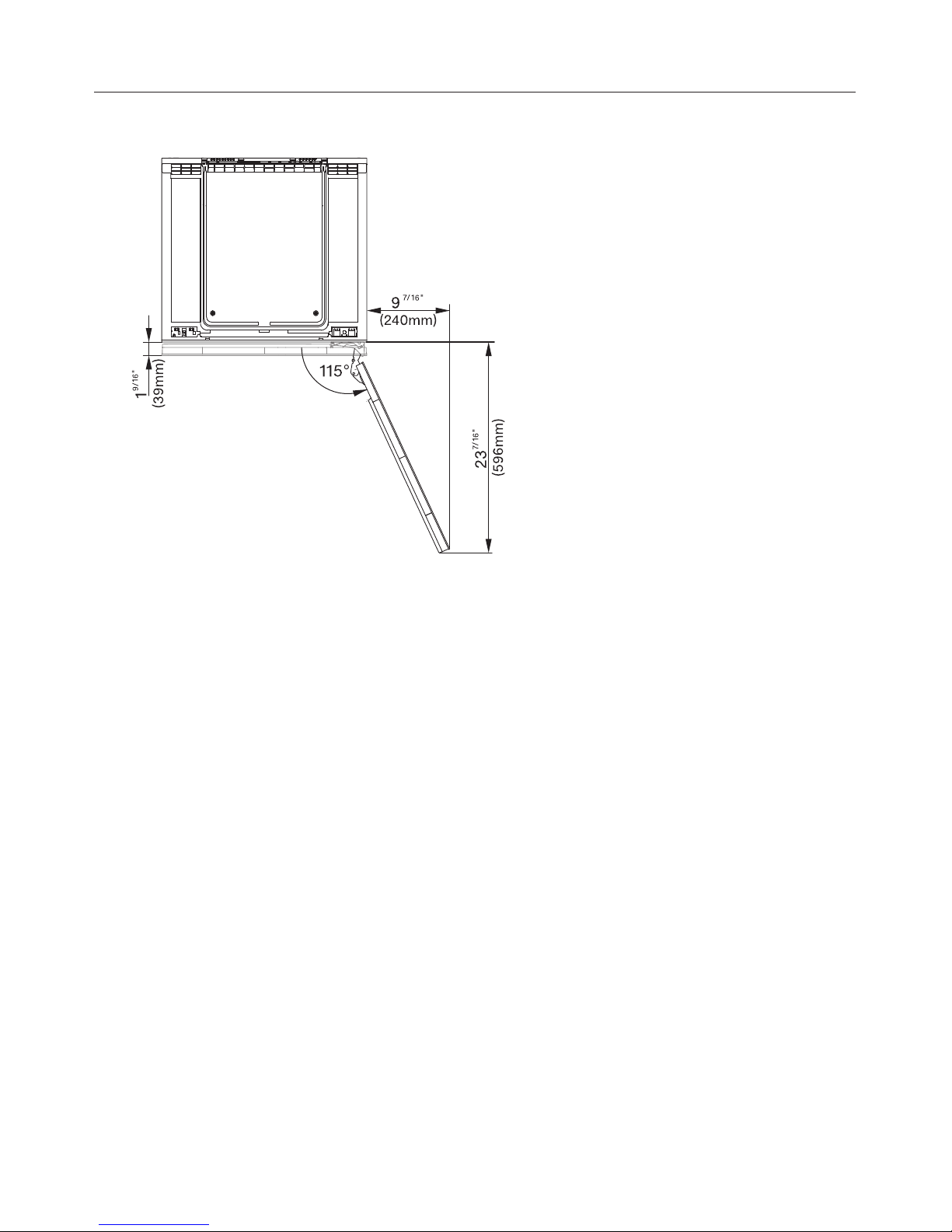

View from above
Installation
57

The door hinging should be changed
by authorized service personnel only.
Two people are needed for changing
the door hinging.
The appliance is supplied right-hand
hinged. If left-hand hinging is required,
the hinges must be changed.
Spread a towel or blanket on the
floor in front of the appliance to
protect the glass door.

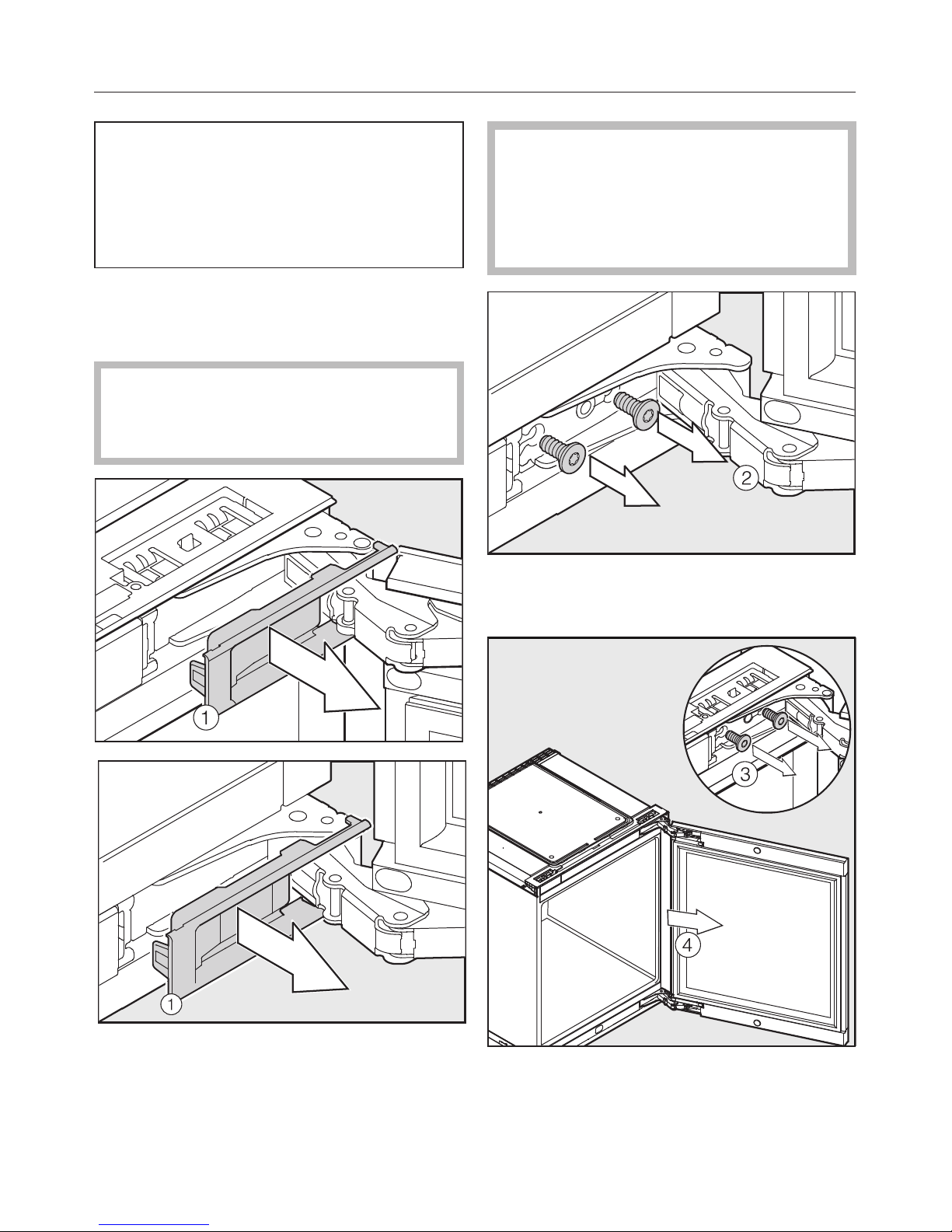

^Remove covers a.
,The second person must
support the door.
Caution. When the hinge is
released, the door is no longer
secure.
^Remove screws bfirst from the
lower hinge.
^Remove screws cfrom the upper
hinge.
^Remove appliance door d.
Adjusting the door hinge
58

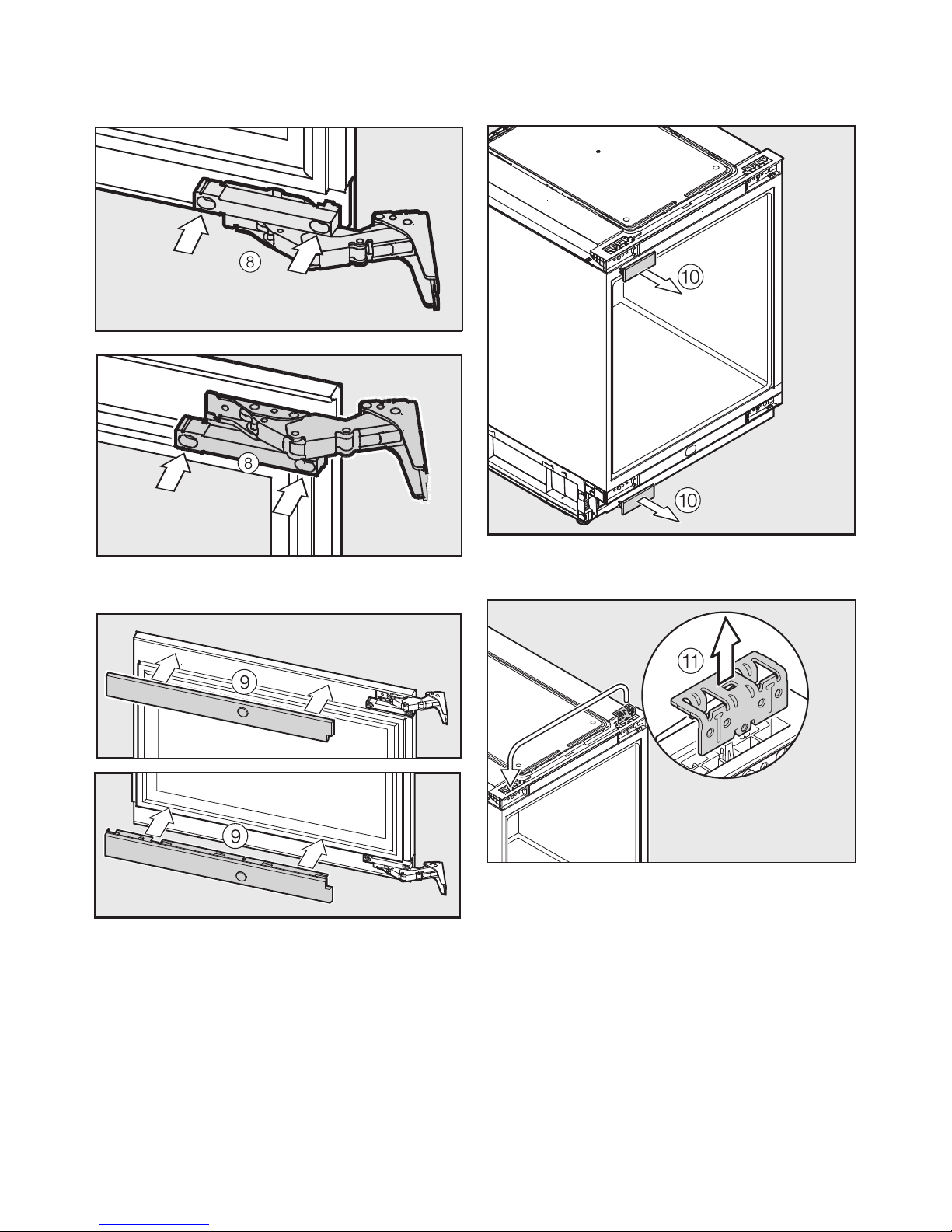

^Unclip upper and lower covers e.
^Place the door with the outer side
upwards on a stable surface.
Do not close the hinges. Danger of
injury.
^Remove the screws e.
^Place each hinge in the corner
diagonally opposite from its original
position g.
Adjusting the door hinge
59

^Replace screws hagain.
^Clip covers iback on. Note the
position of the notches on the hinges.
^Remove covers j.
^Take off upper retaining bracket k
and replace it on the opposite side.
Adjusting the door hinge
60

^Take off lower retaining bracket l
and replace it on the opposite side.
^Refit door m.
,The second person must hold
the door firmly.
^Tighten the screws in upper hinge n.
^Tighten the screws in lower hinge o.
^The appliance can now be built
under.
Adjusting the door hinge
61

Two people are required to install the
appliance.
^The appliance must be installed in a
stable and correctly aligned niche on
a level surface.
^The niche must be horizontally and
vertically aligned.
^The required ventilation
cross-sections must be ensured (see
"Installation - Ventilation" and
"Installation dimensions").
To install the appliance you will need
the following tools:
– A selection of screwdrivers
– Level
– Tape measure
The following installation parts are
required:
– Ventilation grill
– Air filter
– Foam block for air filtration in the
appliance plinth
– Screws to secure the appliance in
the niche
– Wrench to adjust height in the niche
Preparing the appliance

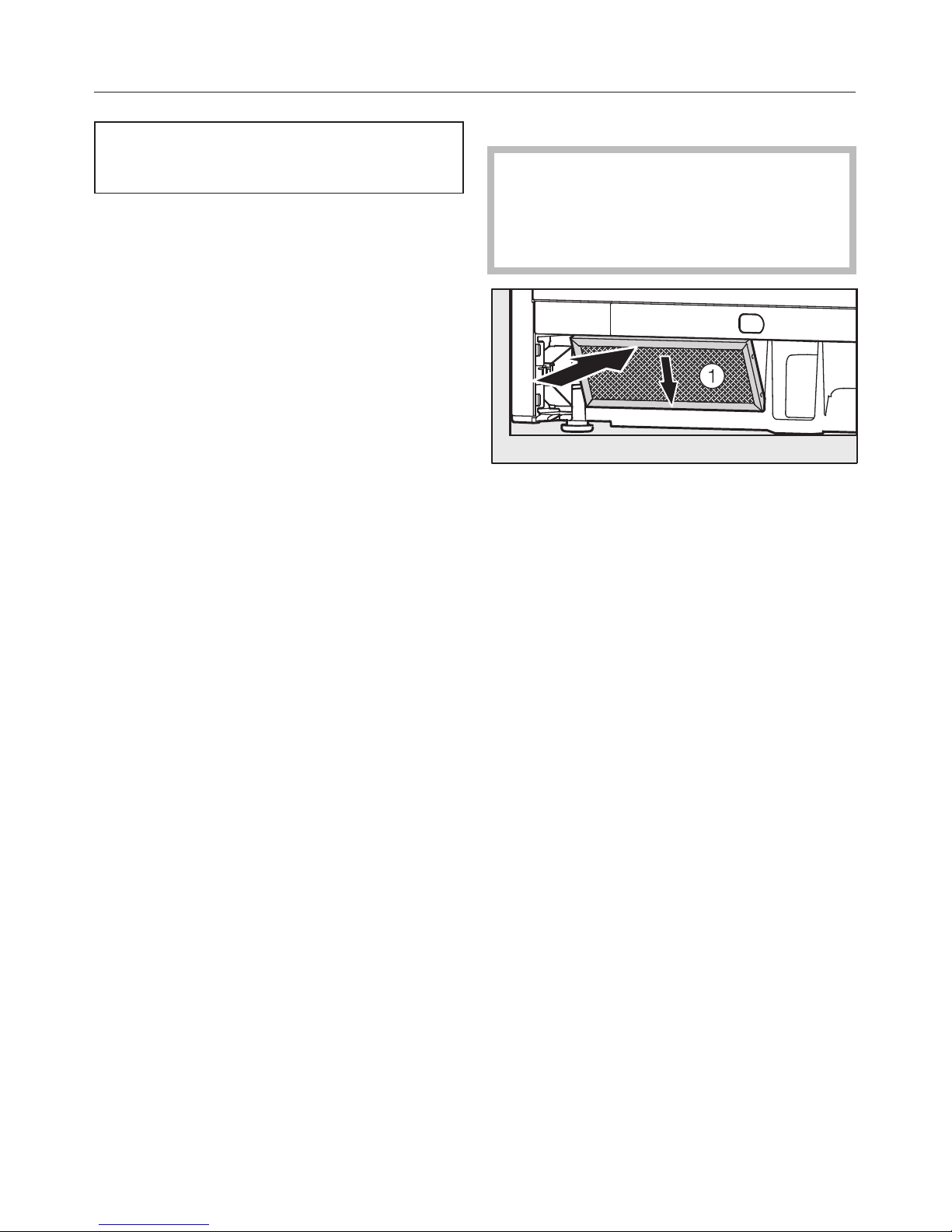

The air filter prevents soiling of the
compressor compartment to ensure
efficient functioning of the
appliance.
^Carefully remove the protective foil
from air filter a.
^Insert the air filter into the bottom left
of the appliance plinth.
^Connect the appliance to the
electrical supply (see "Electrical
connection").
Under-counter installation
62

^Position the appliance in front of the
niche.
^Screw adjusting feet bto 3/16"
(4 mm) less than the height of the
niche.
The adjusting feet can be adjusted with
the wrench supplied cor with a socket
wrench d.
Under-counter installation
63

Align the appliance horizontally and
vertically.
If it is not level, the appliance can
distort.
^Check the alignment of adjacent
furniture housing doors.
If adjacent doors vary in height from
the wine conditioning unit, see
"Aligning the appliance to taller
furniture doors".
If adjacent furniture doors are the
same height as the appliance:
^Open the door by pushing on the
front of the door.
The door catch ewill be protruding.
^Deactivate the emergency door
opener by pulling out the door catch.
Under-counter installation
64

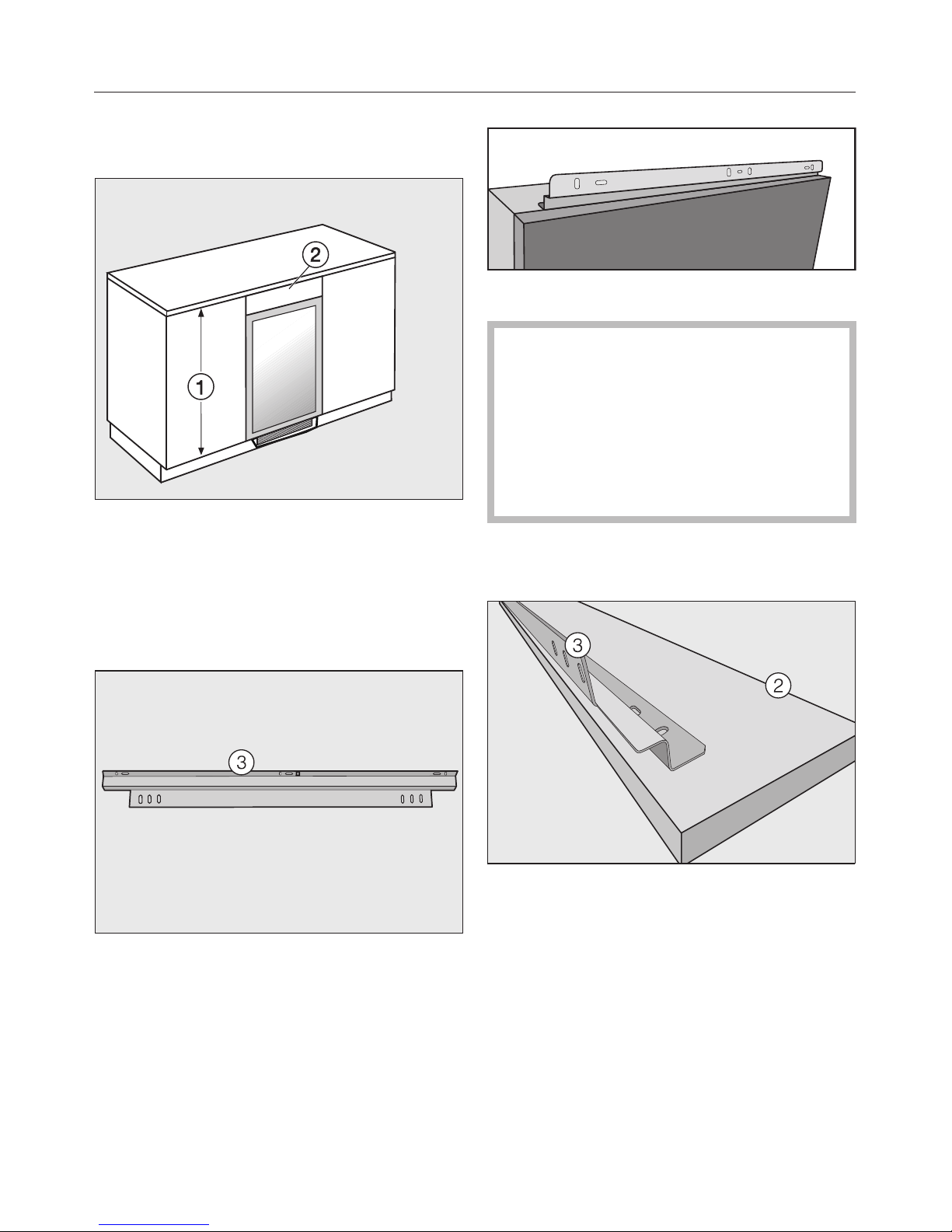

Aligning the appliance to taller
furniture doors
If adjacent furniture housing doors a
are taller than the wine storage unit
door, the wine storage unit can be
aligned to the unit doors using a filler
panel b.
A bracket cis required to secure the
filler panel, which is available from
Miele or from your dealer.
The filler panel can be fitted above or
below the appliance as required.

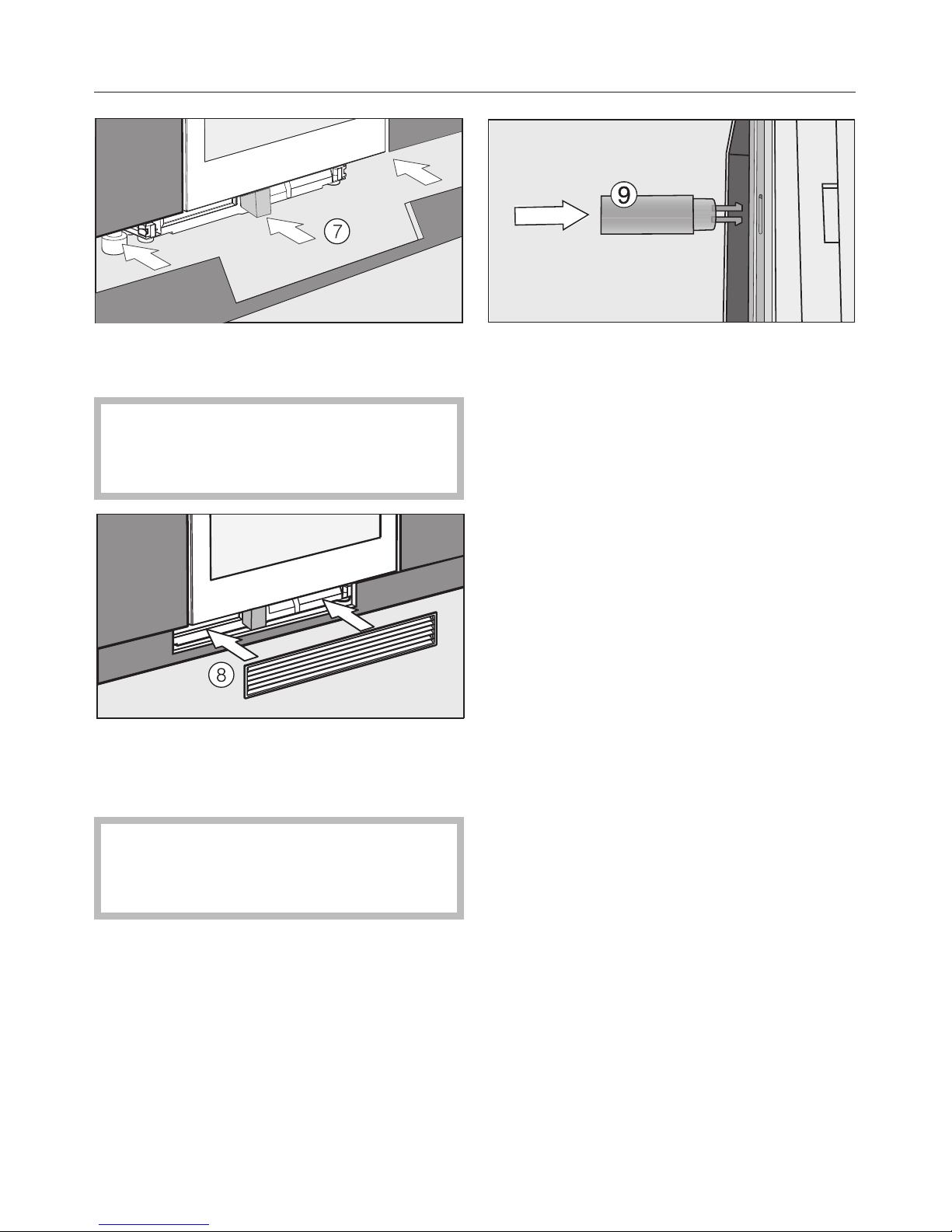

To avoid damaging the appliance,
the ventilation grill must be
positioned precisely in front of the
vent outlet. If you wish to secure a
plinth facing across the front of the
appliance, make sure it provides
adequate ventilation.
The filler panel must be made exactly to
measure.
^Secure bracket cto the back of filler
panel b.
^Pull the appliance as far as you need
to out of the niche so that you can tilt
it towards you.
Under-counter installation
65

^Loosely hand-screw the bracket with
the filler panel to the appliance.
^Align the filler panel to the door of the
wine conditioning unit over the long
slots to give a flush finish.
^Now tighten the screws.
^Push the appliance into the niche.
Pushing the appliance into the
niche
Make sure that the power cord does
not become trapped or damaged as
you push the appliance into its
niche.
To avoid damaging the surface of
flooring which is susceptible to
scratching, take great care when
pushing the appliance into its niche.

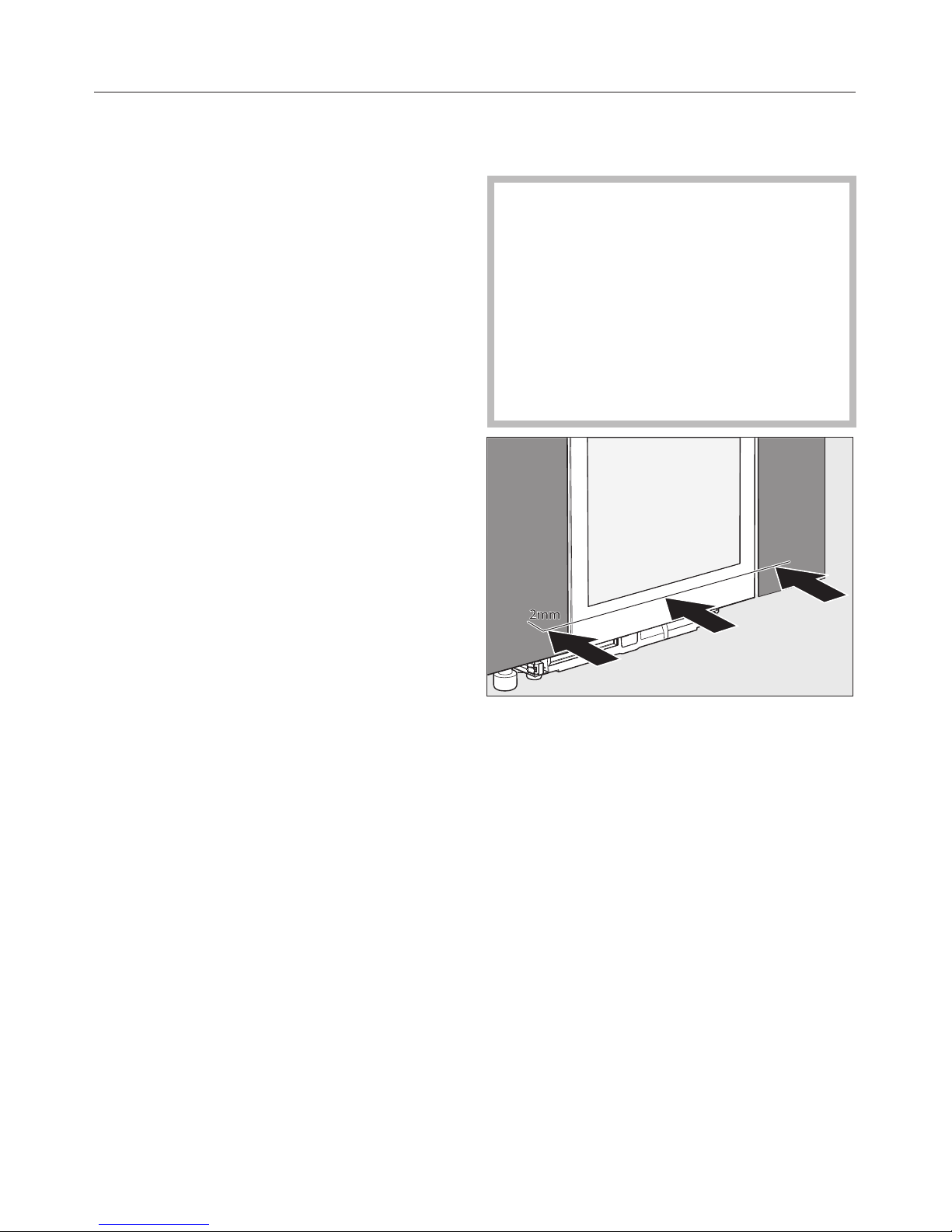

^Push the appliance into the niche
until the front of the appliance door is
flush with surrounding furniture
doors.
^Pull the appliance forward so that it
stands forward of the furniture doors
evenly by 1/16" (2 mm).
Under-counter installation
66

Securing the appliance in the
niche
^The appliance stands forward of the
furniture doors evenly by 1/16"
(2 mm).
^Open the appliance door.
^Remove cover aand first screw the
appliance to the adjacent furniture
unit at the top left b.
The appliance will be slightly
aligned to the left in the niche.
The front of the appliance door is
flush with the furniture front.
^Put the cover back ainto place.
^Screw the appliance at the bottom
left and right to the adjacent furniture
units.
^The appliance can be secured with a
fourth screw at the top right if
required.
This will require the door to be
removed in order to secure the
additional screw.
Under-counter installation
67

^Close the door and check that the
side edges of the door are aligned
with the side walls of the appliance.
Adjusting the lateral alignment of the
appliance door
If the appliance door is not aligned with
the housing side walls, the appliance
door can be adjusted using the screws
underneath the hinges.
^Loosen the screws dand align the
door.
^Tighten the screws dagain.
^Secure the covers.
^Insert foam block fsupplied into the
appliance plinth.
If the foam block is not inserted, the
appliance will not achieve optimum
cooling and can suffer damage.
Under-counter installation
68

^Secure the plinth facing gin
position.
The cut-out in the plinth facing must
be aligned centrally with the
appliance.
^Secure plinth ventilation grill h.
As you do, so the foam block will be
pushed back.
The foam block must be resting
against the ventilation grill in order
to separate the airflow.
^Replace door catch ito activate the
emergency door opener.
Under-counter installation
69
