Miele KWT6322 User manual

Operating and Installation Instructions
Wine Storage Unit
To prevent accidents and damage to the appliance, you must read all
instructions supplied before installing for using the appliance.
M.-Nr. 10 036 280en-US

IMPORTANT SAFETY INSTRUCTIONS.................................4

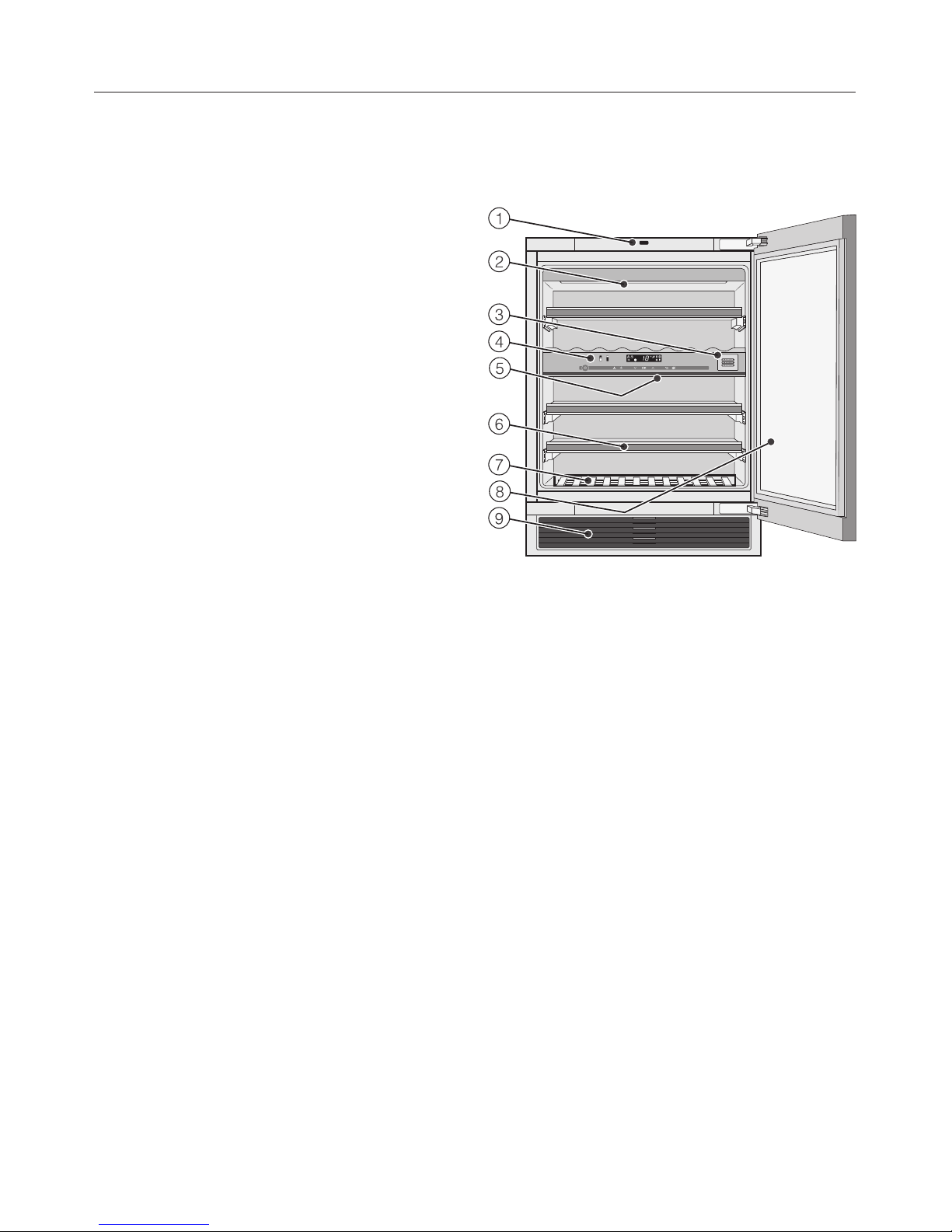

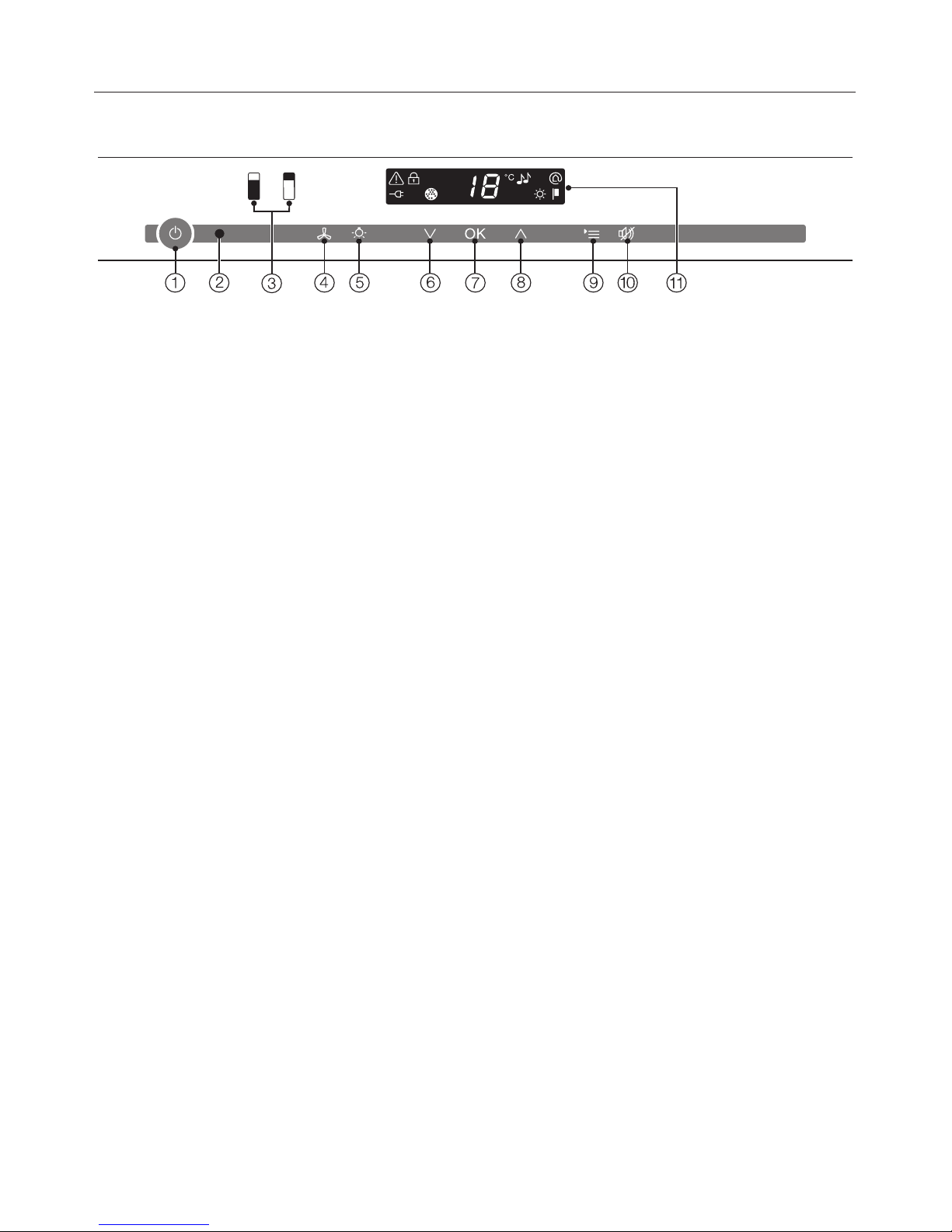

Guide to the appliance .............................................9
Accessories .....................................................12
Emergency door opener ...........................................13
Opening the door ...............................................13
Closing the door ................................................13
How to save energy ...............................................14
Turning the appliance on and off ....................................15
Before first use....................................................15
Operating the appliance ............................................15
Turning the appliance on............................................15
Turning the appliance off............................................16
Turning off for longer periods of time ..................................16
Selecting additional settings .......................................17
Safety lock 0.....................................................17
Acoustic signals )................................................18
Display brightness s...............................................19
Temperature and air quality ........................................20
Temperature .....................................................20
Setting the temperature ..........................................21
Possible setting values for the temperature ...........................22
Temperature display ...............................................22
Air quality and humidity .............................................23
DynaCool (constant humidity) m..................................23
Air filtering with the active charcoal filter .............................24
Temperature and door alarm .......................................25
Feature lighting ..................................................27
Turning the feature lighting on and off. .................................27
Setting the brightness of the feature lighting ..........................27
Lighting duration of the feature lighting ..............................28
Storing wine bottles...............................................29
Wooden shelves ..................................................29
Moving the wooden shelves .......................................30
Adjusting the wooden shelves .....................................31
Labeling wooden shelves .........................................31
Decorative shelf ................................................32
Contents

Maximum capacity.................................................32
Automatic defrosting..............................................33
Cleaning and care ................................................34
Interior, appliance door and accessories ...............................35
Ventilation slits ....................................................36
Door seal ........................................................36
Air filter..........................................................36
Active charcoal filter ..............................................37
Changing the active charcoal filter ....................................37
Frequently asked questions ........................................39
Noises ..........................................................44
After sales service ................................................45
Warranty ......................................................45
Information for dealers ............................................46
Demo mode r.....................................................46
Caring for the environment.........................................50
Electrical connection..............................................51
Installation ......................................................53
Side-by-side installation.............................................53
Location .........................................................53
Climate class ..................................................54
Ventilation .......................................................54
Before installation .................................................55
Door opening angle limiter ..........................................55
Installation dimensions .............................................56
Adjusting the door hinge ..........................................58
Under-counter installation .........................................62
Preparing the appliance ............................................62
Aligning the appliance to taller furniture doors ...........................65
Pushing the appliance into the niche ..................................66
Securing the appliance in the niche ...................................67
Adjusting the lateral alignment of the appliance door ...................68
Contact details ..................................................71
Contents

When using the appliance, follow
basic safety precautions, including
the following:
Read all instructions before
installation and use to prevent
accidents and machine damage.
,This appliance conforms to
current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important notes on
installation, safety, use and
maintenance. Miele cannot be held
liable for non-compliance with these
instructions.
Keep these instructions in a safe
place and pass them on to any
future owner.
,Danger of injury!
At altitudes above 4921 ft. (1500 m)
there is a risk of the glass door
shattering!
Shards of glass can cause injury!
Correct use
~This appliance is intended for use in
domestic households and similar
working and residential environments.
It is not intended for outdoor use.
~This appliance is intended for only
for storing wine.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage resulting
from incorrect or improper use or
operation.
~This appliance is not suitable for
storing and keeping cool medicines,
blood plasma, laboratory preparations
or other such materials or products.
Incorrect use of the appliance for such
purposes can cause deterioration of the
items stored. The appliance is not
suitable for use in areas where there is
a risk of explosion.
Miele cannot be held liable for damage
resulting from improper or incorrect use
of the appliance.
~The appliance can only be used by
people with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge,
if they are supervised while using it, or
have been shown how to use it in a safe
way and recognize and understand the
consequences of incorrect operation.
IMPORTANT SAFETY INSTRUCTIONS
4

Safety with children
~Children should be supervised in
the vicinity of the appliance.
~Children ages eight and up may
only use the appliance oven without
supervision if they have been shown
how to use it in a safe manner, and if
they are able to recognize and
understand the potential risks of
improper use.
~Children must not clean or service
the appliance unless they are under
supervision.
~Children should be supervised when
they are near the appliance. This
appliance is not a toy! To avoid the risk
of injury, do not allow children to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Ensure that any packing material is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
~The coolant system is tested for
leaks.
~This appliance contains the coolant
isobutane (R600a), a natural gas which
is environmentally friendly. Although it
is flammable, it does not damage the
ozone layer and does not increase the
greenhouse effect.
The use of this coolant has, however,
led to a slight increase in the noise level
of the appliance. In addition to the
noise of the compressor, you might be
able to hear the coolant flowing around
the system. This is unavoidable, and
does not have any adverse effect on
the performance of the appliance.
Care must be taken during the
transportation and setting up of the
appliance that no parts of the cooling
system are damaged. Leaking
refrigerant can damage the eyes.
In the event of any damage:
–avoid open flames and anything that
creates a spark,
–disconnect the appliance from the
electrical power supply,
–air the room in which the appliance is
located for several minutes and
–contact Miele Technical Service.
IMPORTANT SAFETY INSTRUCTIONS
5

~The more coolant there is in an
appliance, the larger the room it should
be installed in. In the event of a
leakage, if the appliance is in a small
room, there is the danger of
combustible gases building up.
For every8gofcoolant at least 1 m3of
room space is required. The amount of
coolant in the appliance is stated on the
data plate inside the appliance.
~To avoid the risk of damage to the
appliance, make sure that the
connection data (fuse rating, frequency
and voltage) on the data plate
corresponds to the household supply.
Check that this is the case before
connecting the appliance. Consult a
qualified electrician if in any doubt.
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance,
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician.
~If the power cord is damaged, it
must be replaced by a Miele authorized
technician in order to protect the user
from harm.
~Do not connect the appliance to the
electrical supply with a power bar or
extension cord. These are a fire hazard
and do not guarantee the required
safety of the appliance.
~Do not use the appliance in areas
where there may be moisture or
splashing water (e.g. garages, laundry
rooms, etc.).
Moisture can reach the electrical
components and cause a short circuit.
~This appliance is not to be used in
non-stationary locations, such as
ships.
~Do not use a damaged appliance. It
could be dangerous. Check the
appliance for visible signs of damage.
~To ensure safe operation, use the
appliance only when it is installed.
~The appliance must be isolated from
the electricity supply during installation,
maintenance and repair work.
– the respective fuse has been
removed,
– the circuit breaker has been
tripped,or
– the power cord has been unplugged.
Pull on the plug and not on the cord
when removing it from the outlet.
~Repairs should only be carried out
by a qualified and trained person in
strict accordance with local and
national safety regulations.
Unauthorized repairs could cause
personal injury or machine damage and
may void the warranty.
~Repairs and other work performed
by unauthorized persons could be
dangerous and may void the warranty.
IMPORTANT SAFETY INSTRUCTIONS
6

~Defective components should only
be replaced by Miele original parts.
Only with these parts can the
manufacturer guarantee the safety of
the appliance.
Proper use
~The appliance is designed for use
within a certain climate range (ambient
temperatures), and should not be used
outside this range. The climate range
for your appliance is stated on the data
plate inside the appliance.
Installing it in a room with too low an
ambient temperature, e.g. a garage,
will lead to the appliance turning off for
longer periods so that it cannot
maintain the required temperature.
~Do not cover or block the air vents.
This can impair the efficiency of the
appliance, increase the electricity
consumption and cause damage to the
appliance.
~WARNING! Danger of damage from
overheating. May restirct operation.
Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
~If you store fatty or greasy foods in
the appliance or the appliance door,
make sure that no oil or grease leaks
onto the plastic parts of the appliance.
This can cause the plastic to crack and
break.
~Do not store explosive materials in
the appliance or any products
containing propellants (e.g. spray
cans). Electrical components could
cause flammable vapors to ignite.
Danger of fire and explosion.
~Do not operate any electrical
equipment (e.g. an electric ice cream
maker) inside the appliance.
Danger of sparking and explosion!
~Use only genuine original Miele
parts. If parts or accessories from other
manufacturers are used, the warranty
may become invalid.
Cleaning and care
~Do not use any oil or grease on the
door seals.
They can cause the seals to deteriorate
over time.
~WARNING! Risk of injury and
damage. Do not use mechanical
devices or other means to accelerate
the defrosting process, other than those
recommended by the manufacturer.
~Never use a steam cleaner to clean
the appliance.
The steam can reach the electrical
components and cause a short circuit.
~Never use a pointed or sharp-edged
object to
–remove frost or ice,
–separate frozen foods or remove ice
trays.
This will damage the evaporators,
causing damage to the appliance.
~Do not place electric heaters or
candles in the appliance to defrost it.
These can damage the plastic parts.
IMPORTANT SAFETY INSTRUCTIONS
7

~Do not use defrosting sprays or
de-icers, as they could contain
substances which could damage the
plastic parts or which might cause the
build-up of gases and pose a danger to
health.
Transport
~Always transport the appliance in an
upright position and in its original
transport packaging to avoid damage
in transit.
~The appliance is very heavy and
must be transported by two people.
Danger of injury and damage!
Disposal of your old appliance
~There is a risk of suffocation.
Children playing can shut themselves in
and suffocate.
– Take the door(s) off.
– Remove the drawers.
–Leave the storage shelves in the
appliance so that children cannot
easily climb into the appliance.
~Danger of electric shock.
–Cut off the plug from the power cord
and discard.
–Cut off the power cord from the
discarded appliance. Dispose of
separately from the appliance.
~Ensure during and after disposal
that the appliance isn't stored in the
vicinity of gasoline or other flammable
vapors and liquids.
~When disposing of the appliance,
ensure that the refrigeration circuit is
not damaged to prevent uncontrolled
escape of the refrigerant it contains
(data on type plate) and oil.
~Take care not to damage any part of
the cooling system, for example by
–puncturing the coolant channels in
the evaporator,
– kinking any pipework,
– scratching the surface coating.
Caution: Spraying coolant can damage
the eyes.
SAVE THESE
INSTRUCTIONS AND
PASS THEM ON TO ANY
FUTURE USER
IMPORTANT SAFETY INSTRUCTIONS
8

aFor turning
the entire appliance on and off.
bOptical interface
(for Service use only)
cSelection of the upper or lower wine
conditioning zone
dActivation/deactivation of the
DynaCool function (constant
humidity)
eActivation/deactivation of the feature
lighting
fXTo set a colder temperature
gFor confirming a selection (OK
button)
hYTo set a warmer temperature
iFor accessing or leaving
settings mode
jFor turning the temperature and door
alarms off
kDisplay with temperature and
symbols (symbols only visible in
settings mode; see table for
explanation of symbols)
Guide to the appliance
9

Symbols in settings mode:
Symbol Meaning Function
0Safety lock Prevention of the inadvertent turning off or
changing of settings
)Acoustic Signals Activation/Deactivation of the button tone
and the door alarm if it has been
activated
rDemo mode
(only visible when Demo
mode is active)
For turning off Demo mode
sDisplay brightness For adjusting the brightness of the display
Active charcoal filter Lights up when the active charcoal filter
needs changing
tPower supply
(only visible when
appliance is turned off or
in case of a power failure)
Confirms that the appliance is connected
to the electrical supply; flashes in the
case of a power failure
;Alarm
(only visible when the
temperature or door
alarm is sounding)
Indicates a door or temperature alarm
Guide to the appliance
10

aPush2Open
door catch
bLighting strip
(in both wine conditioning zones)
cActive charcoal filter
dControl panel for the upper and
lower wine conditioning zones /
insulation plate for thermal
separation of the zones
eIsolator strips for thermal
separation of the zones
fWooden shelves with labels
(FlexiFrames with Noteboard)
gDecorative shelf
hSafety glass door with
UV filter
iVentilation grill with air filter
Guide to the appliance
11

Included accessories
Active charcoal filter
The active charcoal filter achieves
optimum air quality by filtering the
incoming air.
Air filter
The air filter behind the ventilation grill
protects the cooling system from dust.
Chalk
Use the chalk to annotate the magnetic
strips on the wooden shelves to identify
your wines quickly and easily.
Optional accessories
Active charcoal filter
(See "Included accessories" for a
description.)
Air filter
(See "Included accessories" for a
description.)
Chalk
(See "Included accessories" for a
description.)
Stainless steel maintenance
–Each application of the Miele
stainless steel conditioner forms a
water and dirt repellent protective
coating. It gently removes water
marks, fingerprints and other dirt for
a uniformly shiny surface.
–The stainless steel cleaning cloth is
soaked with the stainless steel
conditioner.
It has the same cleaning and
protective characteristics as the
stainless steel conditioner.
Optional accessories are available
from Miele, your Miele dealer or
online via the Miele website.
Accessories
12

Emergency door opener
The Push2Open door catch on your
wine storage unit makes it easy to open
the door.
The appliance door is sensitive to
pressure.
Opening the door
^Press briefly against the appliance
door and then release it.
The appliance door opens
automatically by a gap.
^Open the door fully, e.g. to take out a
bottle of wine.
To protect against inadvertent
opening:
if you do not open the door wider, it
will close again by itself after approx.
3 seconds.
Closing the door
^Push the door shut.
To avoid damage to the emergency
door opener:
- Do not obstruct the appliance door
while it is opening.
- Do not push in or hold onto the
door catch while the door is closing.
Emergency door opener
13

Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed,
poorly ventilated room.
Protected from direct
sunlight.
In direct sunlight.
Away from heat sources
(radiator, range/oven).
Near a heat source (radiator,
range/oven).
Where the room temperature
is ideal, i.e. around 68°F
(20°C).
Where the room temperature
is higher.
Do not block the ventilation
openings, and keep them
free of dust.
Where the ventilation
openings are blocked and
full of dust.
Remove and clean the air
filter with a vacuum cleaner
at least once a year.
If dust has accumulated on
the air filter.
Temperature
setting
50°F to 54°F (10°C to 12°C) The lower the temperature in
the appliance, the higher the
energy consumption.
Use Wooden shelves arranged
as they were when the
appliance was delivered.
Only open the door when
necessary and for as short a
time as possible.
Store wine bottles in an
organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance works harder
to cool down and the
compressor runs for longer
periods.
Do not overfill the appliance
in order to allow the air to
circulate.
How to save energy
14

Before first use
Packaging material
^Remove all packaging material from
the inside of the appliance.
Protective film
Stainless steel surfaces have a layer of
protective foil to prevent scratching
during transportation.
^Do not remove the foil until the
appliance has been positioned in its
final location. Start at one of the top
corners.
Cleaning and care
It is essential to follow the relevant
instructions in "Cleaning and care."
^Clean the inside of the appliance and
the accessories with lukewarm water
and a little washing-up liquid, and
then dry with a soft cloth.
Operating the appliance
The appliance is operated with the use
of touch keys activated by a finger.
A tone will sound each time a button is
touched. You can deactivate this, if you
wish (see "Selecting additional settings
- Acoustic signals").
Turning the appliance on
The power supply symbol twill
appear in the display as soon as the
appliance has been turned on at the
main power supply.
^Touch the On/Off button.
The power supply symbol twill then
go out and the appliance will start to
cool.
The sensor buttons for the upper and
lower wine conditioning zones will then
appear in the control panel. The
selected zone will be highlighted yellow
and the temperature of the selected
zone will show in the display.
The first time the appliance is turned
on, the sensor buttons for the wine
conditioning zones and the alarm
symbol ;will flash until the selected
temperature has been reached in the
zones.
Turning the appliance on and off
15

As soon as the set temperature has
been reached, the sensor button for the
respective wine conditioning zone will
light up constantly. The alarm symbol
;will go out as soon as the set
temperatures have been reached in
each zone.
The interior lighting will come on when
the door is opened.
A different setting can be set for each
conditioning zone.
^Tap the sensor button for the wine
conditioning zone for which you want
to adjust the settings.
The selected sensor button is
highlighted in yellow. You can now:
– Set the temperature
– Turn on the DynaCool function
Please refer to the relevant section in
the manual for more information.
If you then select the other wine
conditioning zone, the settings for the
previously selected zone will remain
unchanged.
Turning the appliance off
^Touch the On/Off button.
If this does not work, the safety lock
0is activated.
The sensor buttons for the two wine
conditioning zones will then go out.
The temperature display will go out and
the power supply symbol twill
appear.
The interior lighting goes out and the
cooling is turned off.
Turning off for longer periods
of time
If the appliance is not going to be used
for a longer period of time:
^turn off the appliance,
^unplug the appliance or trip the
circuit breaker,
^clean the appliance,
^leave the door slightly ajar to air the
appliance.
If, during a long absence, the
appliance is turned off but not
cleaned out and the door is left shut,
there is a danger of bacteria and
odors building up inside the
appliance.
Turning the appliance on and off
16

Certain appliance settings can only be
selected in the settings mode.
The door alarm is automatically
disabled when the appliance is in
settings mode.
Safety lock 0
The safety lock can be activated to
prevent:
–the appliance being turned off by
mistake,
–the temperature being changed by
mistake,
– DynaCool being turned on by
mistake,
– the feature lighting being turned on
by mistake.
Activating and deactivating the
safety lock

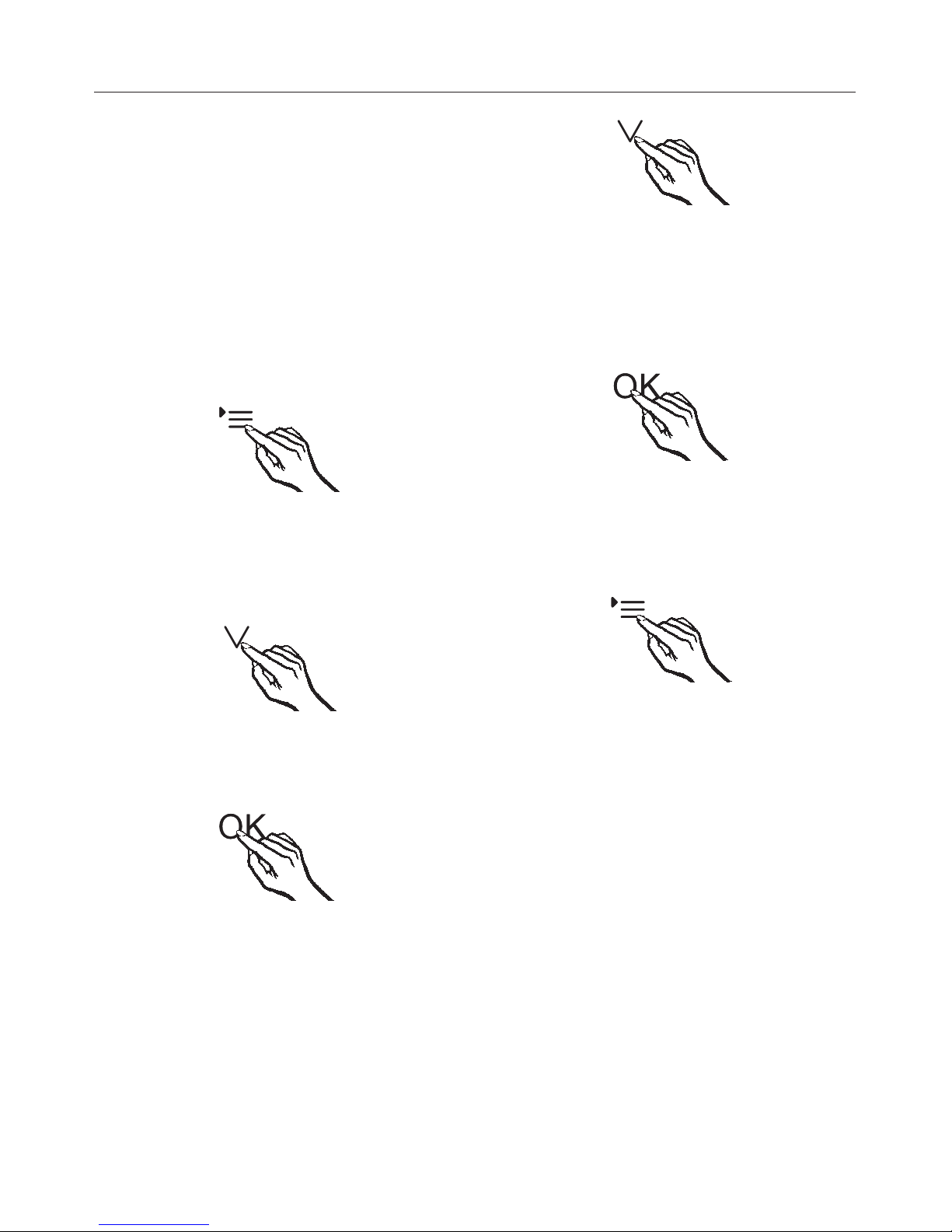

^Touch the settings button.
All symbols available for selection will
appear in the display and the 0symbol
flashes.
^Touch the OK button to confirm your
selection.
The last selected setting flashes in the
display and the 0lights up.
^By tapping the Xor Ybutton, you
can now select whether the safety
lock is activated or deactivated:
0: the safety lock is deactivated
1: the safety lock is activated.
^Touch the OK button to confirm your
selection.
The selected setting will be adopted
and the 0symbol will flash.
^Touch the settings button to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after
approximately one minute.
The 0symbol will appear in the
display when the lock is activated.
Selecting additional settings
17

Acoustic signals )
The appliance features acoustic signals
such as a keypad tone and acoustic
alarm for the door and temperature
alarm.
You can turn the button tone or the door
alarm acoustic alarm on or off, but you
cannot deactivate the temperature
alarm.
There are four settings to choose from.
Option 3is set the factory, i.e. the
button tone and the door alarm are
turned on.
Turning acoustic signals On/Off
^Touch the settings button.
All symbols available for selection will
appear in the display and the 0symbol
flashes.
^Touch the buttons for setting the
temperature (Xor Y) repeatedly until
the )symbol flashes in the display.
^Touch the OK button to confirm your
selection.
The last selected setting flashes in the
display and the )lights up.
^By touching the Xor Ybutton you
can now select:
0: button tone off; door alarm off
1: button tone off; door alarm on
(after 4 minutes)
2: button tone off; door alarm on
(after 2 minutes)
3: button tone on; door alarm on
(after 2 minutes)
^Touch the OK button to confirm your
selection.
The selected setting will be adopted
and the )symbol will flash.
^Touch the settings button to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after
approximately one minute.
Selecting additional settings
18

Display brightness s
You can adjust the brightness of the
display to suit the light conditions in the
room.
The display brightness can be adjusted
in steps from 1to 3. The factory default
setting is 3(maximum brightness).
Changing the brightness of the
display
^Touch the settings button.
All symbols available for selection will
appear in the display and the 0symbol
flashes.
^Touch the buttons for setting the
temperature (Xor Y) repeatedly until
the )symbol flashes in the display.
^Touch the OK button to confirm your
selection.
The last selected setting flashes in the
display and the slights up.
^By touching the Xor Ybutton, you
can now alter the brightness of the
display:
1: dimmest setting
2: medium setting
3: brightest setting.
^Touch the OK button to confirm your
selection.
The selected setting will be adopted
and the ssymbol will flash.
^Touch the settings button to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after
approximately one minute.
Selecting additional settings
19

Wine keeps on maturing depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine storage unit with its constant
ideal temperature, increased air
humidity and odor-free atmosphere
offers the perfect conditions for storing
your wine.
It also guarantees a vibration-free
environment so that the maturing
process is not disturbed.
Temperature
Wine can be stored at a temperature
between 43°F and 64°F (6°C and
18°C). If you are storing white and red
wines together, select a temperature
between 54°F and 57°F (12°C and
14°C). This is suitable for both red and
white wines.
At too high a temperature (over 72°F
(22°C)), wine matures too quickly,
which prevents the aromas from
developing further. Wine cannot mature
fully at too low a temperature (below
41°F (5°C)).
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important to
maintain a constant temperature.
Type of wine Recommended
drinking
temperature
Light, fruity red
wines:
+57°F to 61°F
(14°C to +16°C)
Full-bodied
red wines:
+64°F (18°C)
Rosé wines: +46°F to 50°F
(8°C to +10°C)
Delicate,
aromatic white
wines:
+46°F to 54°F
(8°C to +12°C)
Full-bodied or
sweet white
wines:
+46°F to 57°F
(12°C to +14°C)
Champagne,
sparkling white
wines:
+43°F to 50°F
(6°C to +10°C)
Tip: Store the wine 3°F to 5°F (1°C or
2°C) degrees cooler than the
recommended drinking temperature as
it warms up a little when poured into the
glass.
A full-bodied red should be opened for
2-3 hours before drinking to allow it to
breathe and develop its aroma.
Temperature and air quality
20
