MiLAN MIL-S3580 User manual

1
M
MI IL L- -S S3 35 58 80 0

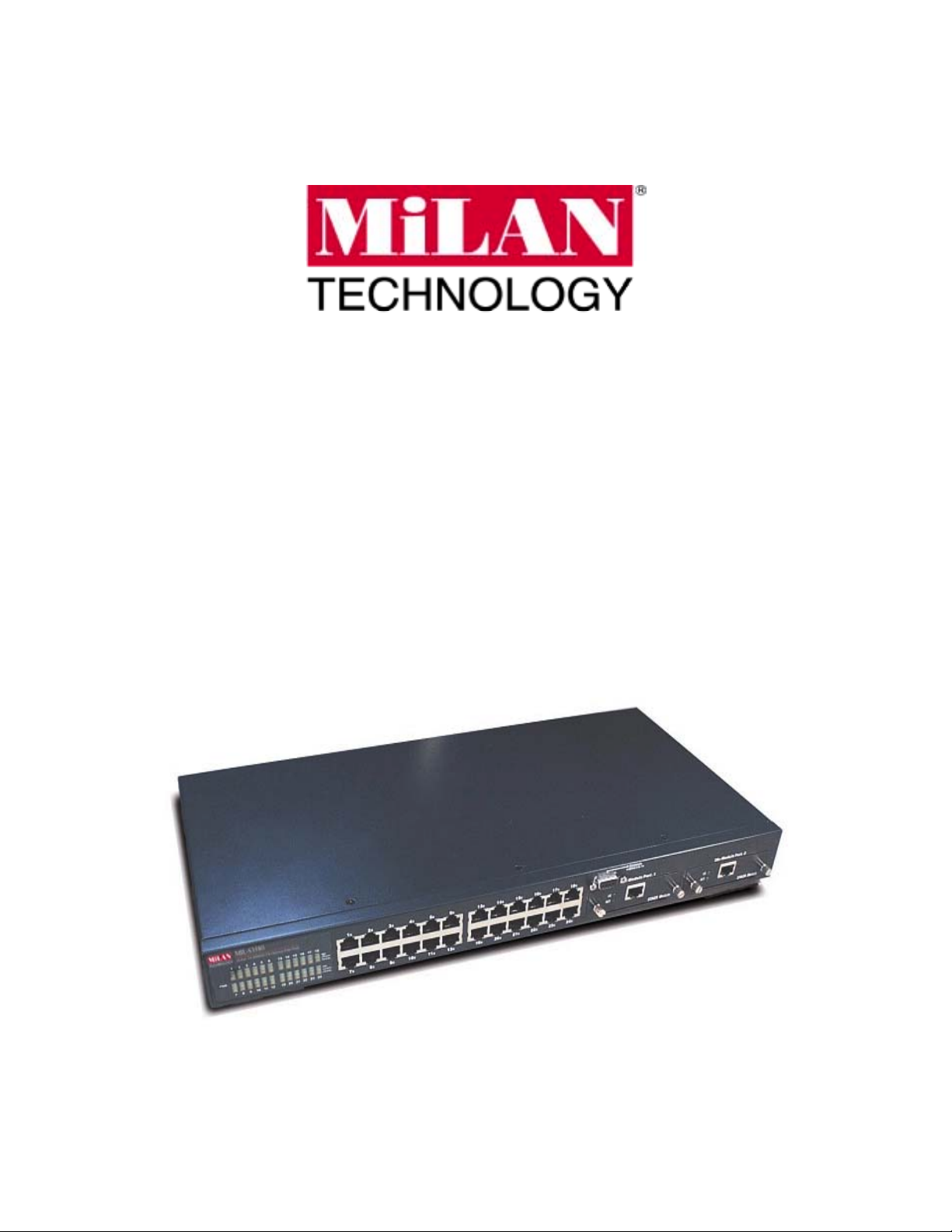

24 Port Managed Switch
with 2 Optional Gigabit/Fiber ports

2

3
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 Number 950
- EN60950
- CE
EN55022 Class A
EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel
brouilleur du Canada.
European Notice
Products with the CE marking comply with both the EMC Directive (89/336EEC) and the Low Voltage
Directive (73/23EEC) issued by the commisions of the European Community. Compliance with these
directives implies conformity to the following European norms:
- EN55022 (CISPR 22) - Radio Frequency Interference
- EN61000-X - Electromagnetic Immunity
- EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of its product and component thereof, will
be free from defects in material and/or workmanship for a period of five years from the original factory shipment date.
Any warranty hereunder is extended to the original consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any implied warranty of
merchantability or fitness for a particular purpose, except as expressly set forth in this warranty. In no event shall
MiLAN Technology be liable for incidental or consequential damages, costs, or expenses arising out of or in connection
with the performance of the product delivered hereunder. MiLAN Technology will in no case cover damages arising out
of the product being used in a negligent fashion or manner.
Trademarks
© 2002 MiLAN, the MiLAN logo and MiLAN Technology are either trademarks or registered
trademarks of Communications Systems, Inc. in the United States and/or other countries. All other
trademarks are the property of their respective holders.
To Contact MiLAN Technolog y
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
- E-mail: [email protected]
- Telephone: [phone]
- Fax: [phone]
MiLAN Technology
1329 Moffett Park Drive
Sunnyvale, CA 94089-1138
United States of America
Telephone: [phone]
Fax: [phone]
http://www.milan.com
[email protected]
P/N 90000397_A (062102)

4
1. Introduction
The MIL-S3580 Managed Switch is designed to provide your network with
Ethernet, Fast Ethernet, Gigabit Ethernet connectivity over twisted pair and fiber
optic cabling. Two expansion slots on the front further add to the flexibility of the
systems.

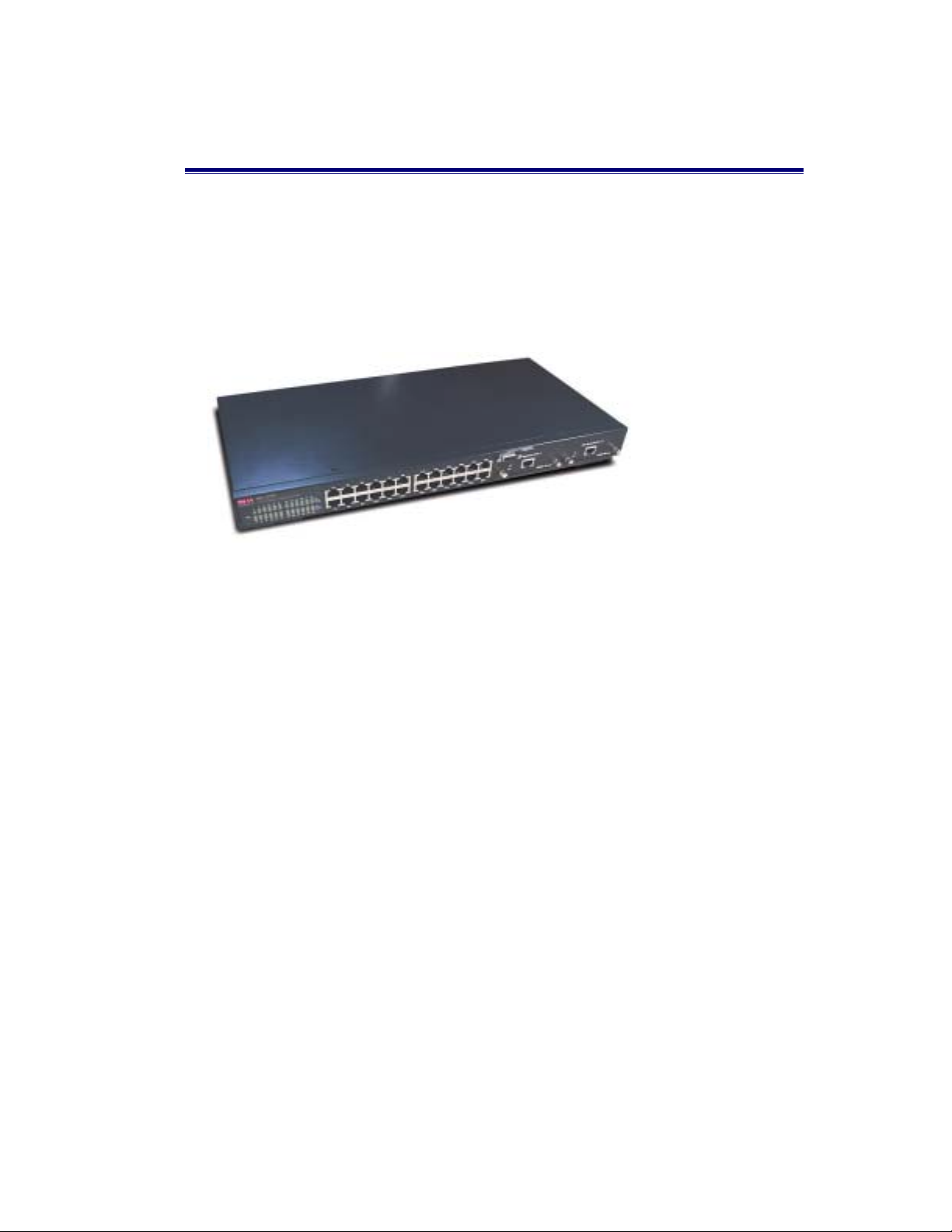

Figure 1-1. The MIL-S3580 Switch
Features
 Conforms to IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.1p,
IEEE802.3ac, IEEE802.1D, IEEE802.1Q
 24 Auto-sensing 10/100Mbps Ethernet RJ-45 ports
 2 Expansion slots for optional modules: 1-port Duplex SC Gigabit (SX/LX),
100Mbps Fiber (SC/MT-RJ/VF-45), 1 RJ-45 for UTP or STP Gigabit 1000T
Module with Automatic MDI/MDIX support.
 One console-connecting port for configuration
 Auto-negotiation & Full-duplex/Half-duplex support
 Store-and-Forward error free packet forwarding scheme
 9.6 GB Backplane Bandwidth
 8K-entry MAC address table
 6Mbits share memory
 Full wire speed forwarding rate
 LED status indicators

5
Management Features
 Console and Telnet Configuration
 Web-based management
 SNMP network management
 IEEE 802.1Q Tagging VLAN and Port-Based VLAN support
 IEEE802.3x Flow Control Mechanism for Full-duplex mode and Backpressure
for Half-duplex
 IEEE 802.1D Blocking, Learning, and Forwarding states support for Spanning
Tree Protocol
 IEEE 802.3ac extends the maximum Ethernet Length to 1522 to add the 4-Byte
VLAN Tag
 IEEE802.1p provides four levels of priority per port. Packets are prioritized
according to the source port or the 802.1p priority tag
 Security functions
 IGMP Snooping and GMRP protocol support
 Link Aggregation function support
 Port Priority - 802.1p & TOS (Type of Service) support
 TFTP support for system upgrade
 Port Mirroring

6
Package Contents
MIL-S3580 Rubber Feet
Rack-mounted Kit RS-232 cable User Guide
Power Cord

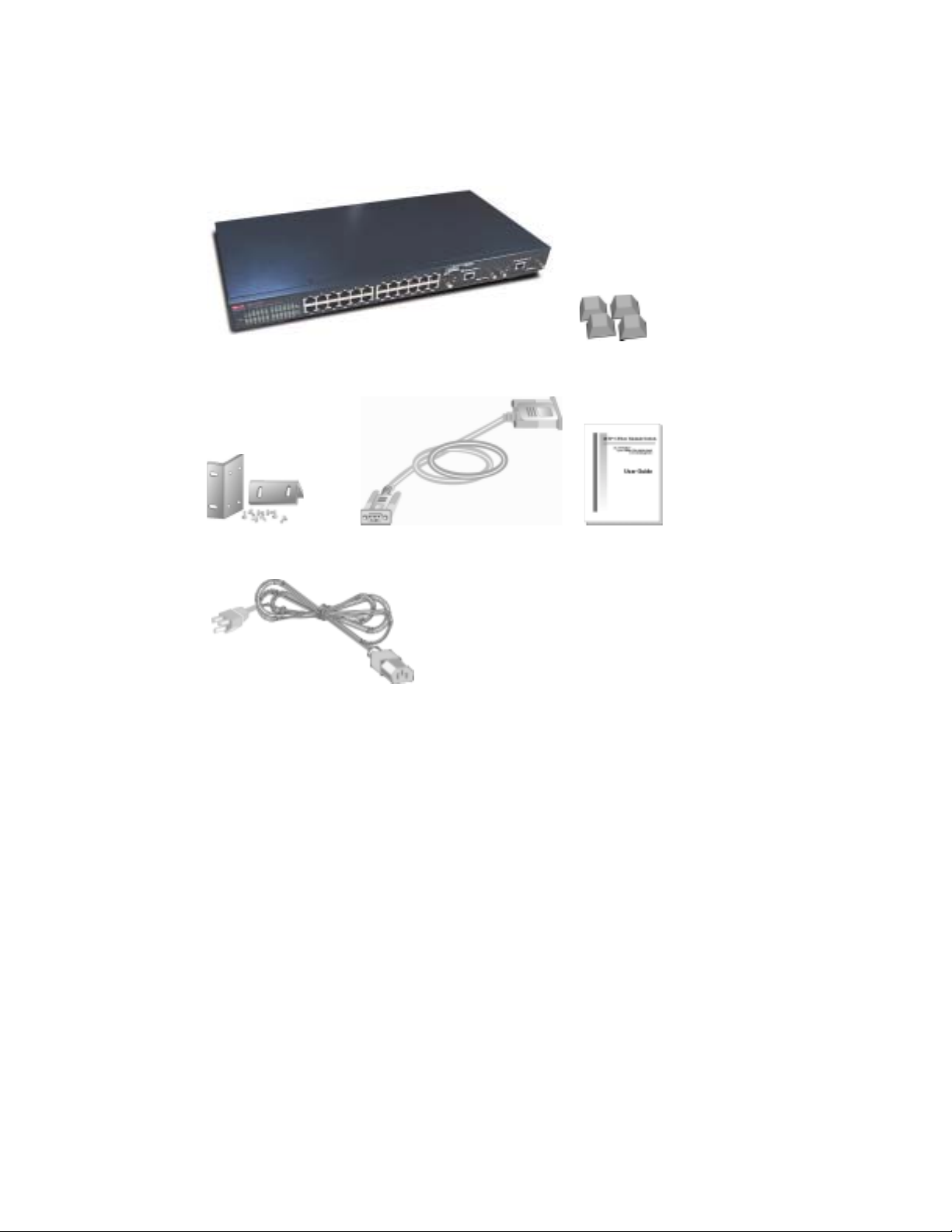

Figure 1-2. Package Contents
Compare the contents of your MIL-S3580 package with the standard checklist
above. If any item is missing or damaged, please contact your local dealer for
service.
Management Methods
The MIL-S3580 supports the following management methods:
 Console and Telnet Management
 Web-based Management
 SNMP Network Management

7
Console and Telnet Management
Console Management is done through the RS-232 Console Port. Managing the
MIL-S3580 in this method requires a direct connection between a PC and the
MIL-S3580. Telnet management is done over the network. Once the MIL-S3580
has an IP and is on the network, you can use Telnet to log in and change or view
the configuration.
SNMP Network Management
SNMP (Simple Network Management Protocol) provides a means to monitor and
control network devices, and to manage configurations, statistic collection,
performance, and security.
Data is passed from SNMP agents. SNMP agents are hardware & software
processes reporting activity in each network device to the workstation console.
The agent return information is contained in a MIB (Management Information
Base), which is a data structure that defines what is obtainable from the device and
what can be controlled.

8
2. Hardware Description
The Front Panel
The front panel of the MIL-S3580 consists of 24 auto-sensing 10/100Mbps
Ethernet RJ-45 Ports, two optional expansion slots, and a console port. The LED
Indicators are located on the front left panel of the Switch.

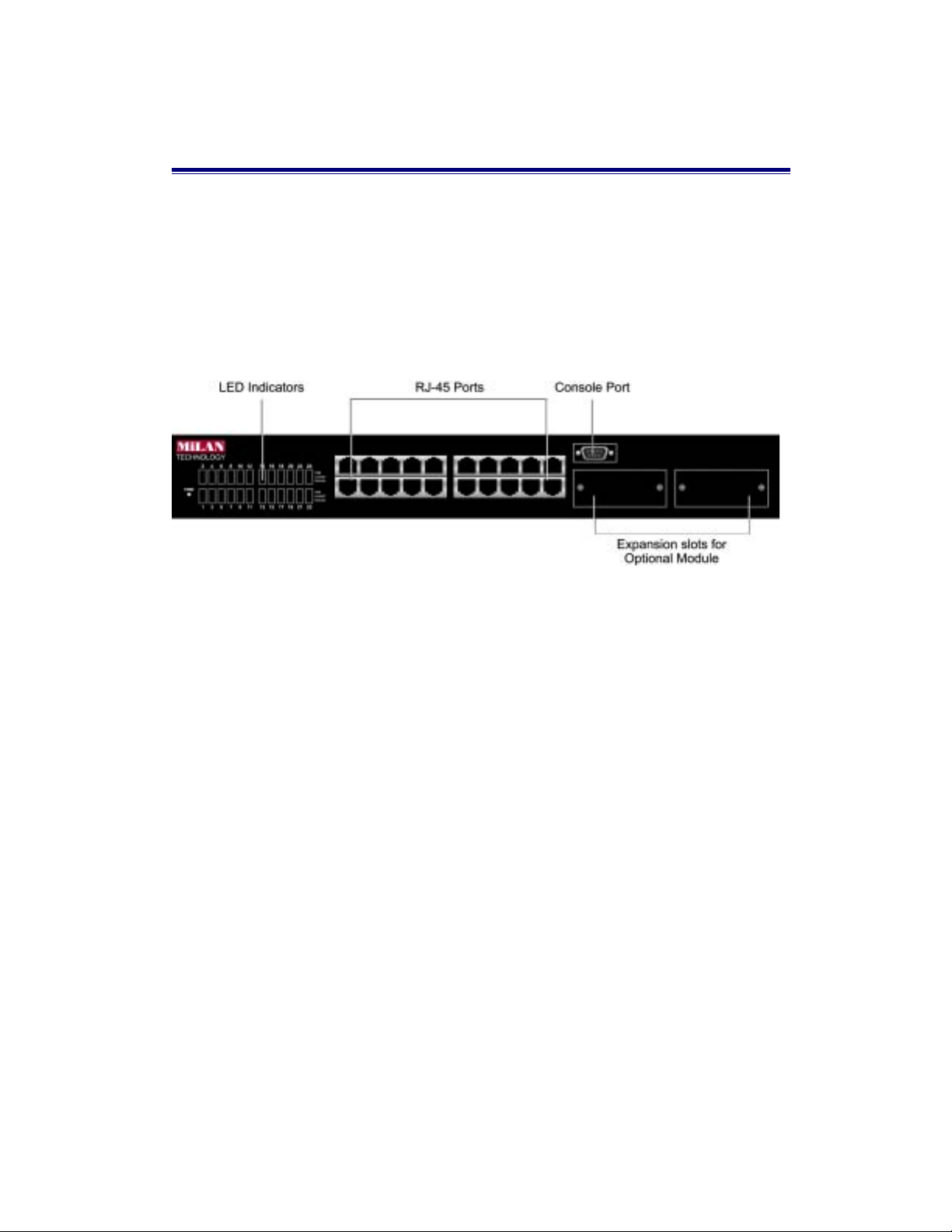

Figure 2-1. Front Panel of the MIL-S3580
24 10/100BASE-TX RJ-45 Ports (Auto MDI/MDIX):
10/100Mbps auto-sensing port for 10Base-T or 100Base-TX device connection.
Auto-MDI/MDIX allows you to connect to another switch or workstation without
changing straight-through or crossover cabling.
2 Expansion Slots :
For the following optional modules:
1 Port Gigabit 1000BASE-T Switch Modules,
1 Port Gigabit 1000BASE-SX/LX Fiber Modules.
1 Port 100BASE-FX Fiber Modules
Console Port :
Console Management can be done through the Console Port. It requires a direct
connection between the MIL-S3580 and an end station via an RS-232 cable.

9
LED Indicators:

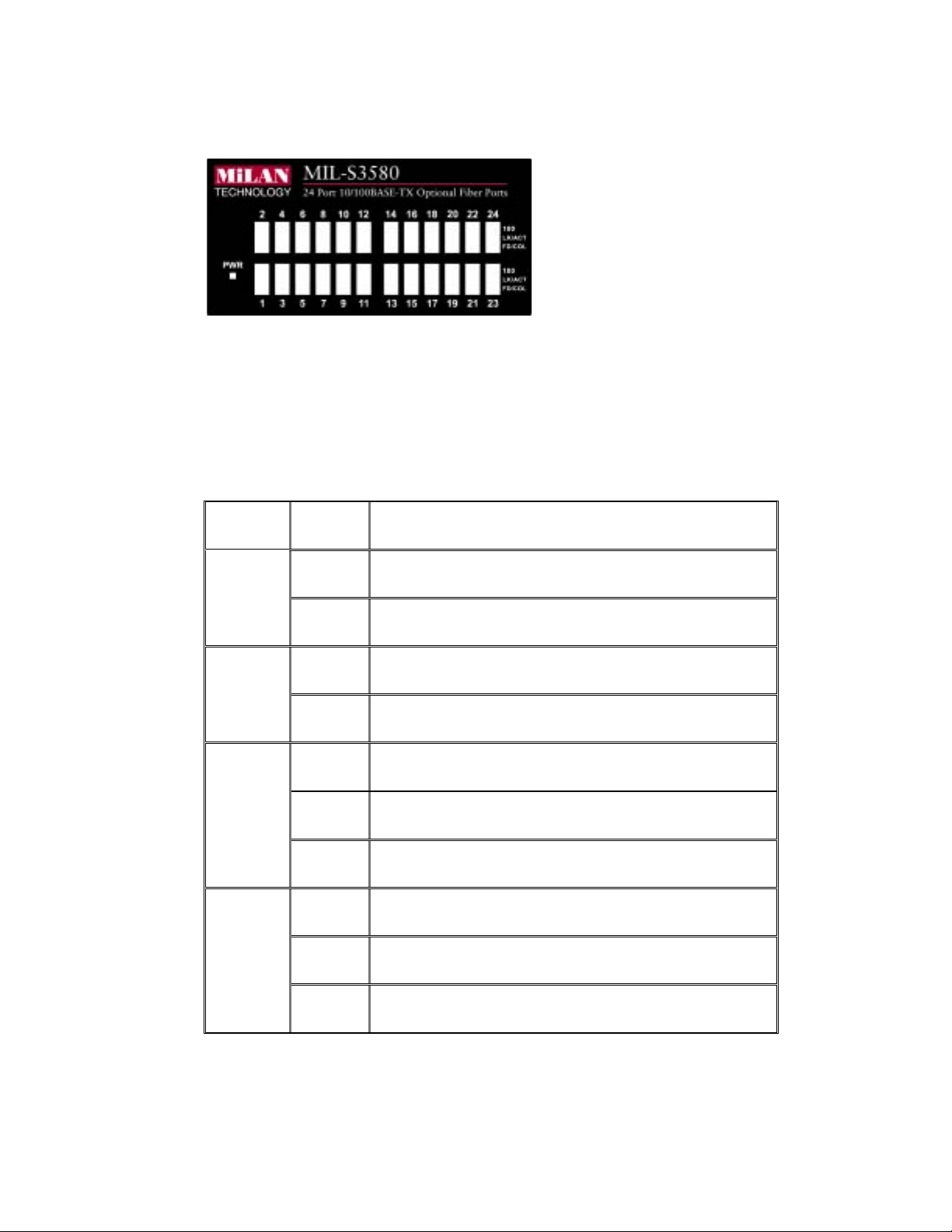

Figure 2-2. LED Indicators
All LED indicators are located on the front left panel of the MIL-S3580. They
provide a real-time indication of system and operational status. The following table
gives descriptions of the LED status and their meanings.
LED Status Description
Green Power is on.
PWR
Off Power is off.
Green The port is operating at the speed of 100Mbps.
100
Off No device attached or port is in 10Mbps mode.
Green The port is connecting with the device.
Blinks The port is receiving or transmitting data.
LK/ACT
Off No device attached.
Yellow The port is operating in Full-duplex mode.
Blinks Collision of packets occurs in the port.
FD/COL
Off No device attached or port is in half-duplex mode.
Table 2-1. Description of LED Indicators

10
Rear Panel
The 3-pronged power plug and ON/OFF switch are located on the rear panel of the
MIL-S3580. The switch works in the range 100-240VAC, 50-60Hz.

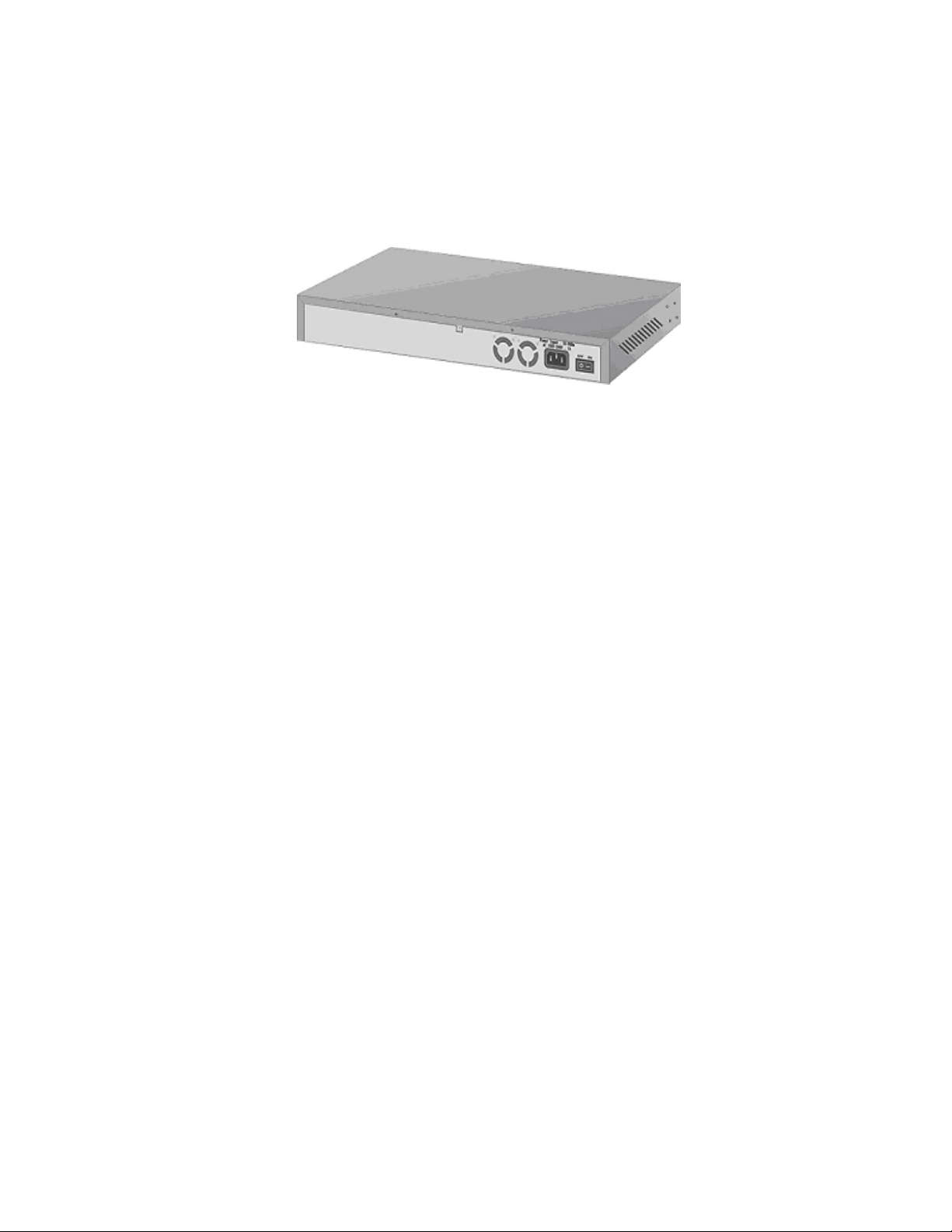

Figure 2-3. Rear Panel of the MIL-S3580
Power On
After all network cables are connected, plug the power cord into the power socket
on the back panel and the other end into a power outlet. Turn on the power using
the power switch on the back panel.
Check the front panel power indicator to see if power is properly supplied. The
switch uses a universal power supply that requires no additional adjustment.
Diagnostic Test
After the installation is completed and AC power is applied to the switch, the
system will automatically perform a diagnostic test. The PWR LED will come on.
Within 5 seconds, all LEDs will flash for a split second.
When the switch passes the self-test, the LEDs come on within 15 seconds on
ports that are populated and connected.

11
3. Connecting to the Network
This section provides the installation procedure and instructions for assigning an IP
address.
Pre-Installation Requirements
Before you start hardware installation, make sure you have the items listed below.
zPCs with 10/100Mbps Ethernet NICs or 100Mbps Fiber NICs: Your PC
must have a standard Ethernet interface to connect to the switch.
zUTP cable with RJ-45 connectors or Fiber cable connectors: Check if the
cable and connectors work properly.
zA power outlet with range 100 to 240VAC at 50 to 60 Hz: Make sure that
the power switch is accessible and cables can be connected easily.
zDedicated power supply: Use dedicated power circuits or power
conditioners to supply reliable electrical power to the network devices.
zA dry cool place: Keep the switch away from moisture. Avoid direct sunlight,
heat source, and high amount of electromagnetic interference around.
zMounting tools: If you intend to mount the switch on a rack, make sure you
have all the tools, mounting brackets, screws etc.
C
C
CA
A
AU
U
UT
T
TI
I
IO
O
ON
N
N:
:
:
cCabling must be away from sources of electrical noise such as radio, computers,
transmitters, broadband amplifiers, power lines and keep away from TVs,
hair dryers, and microwave.
cAirflow around the switch and through its vents on the rear cannot be restricted.
Mounting the Switch
The MIL-S3580 is suitable for use in an office environment where it can be
rack-mounted in standard EIA 19-inch racks or as a standalone device.

12
Desktop Mounting
1. Set the switch on a sufficiently large flat space with a power outlet nearby.
2. Make sure surface is clean, and dust free.
3. Remove adhesive backing from the rubber feet.
4. Apply the rubber feet to each corner on the bottom of the switch.
Figure 3-1. Attaching rubber feet on the bottom of the switch
C
C
CA
A
AU
U
UT
T
TI
I
IO
O
ON
N
N:
:
:Do not place objects on top of the switch.
Rack-mounted Installation
The MIL-S3580 comes with a rack-mount kit and can be mounted in an EIA
standard sized, 19-inch rack. The switch can be placed in a wiring closet with other
equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining bracket to
the other side of the switch.
Figure 3-2. Attach mounting brackets with screws

13
B. After both mounting brackets are attached, position the switch in the rack by
lining up the holes in the brackets with the appropriate holes on the rack.
Secure the switch to the rack with a screwdriver and the rack-mounting screws.
Figure 3-3. Mount the MIL-S3580 in an EIA Standard 19-inch Rack
N
N
NO
O
OT
T
TE
E
E:
:
:For proper ventilation, allow at least 4 inches (10 cm) of clearance on the
front and 3.4 inches (8 cm) on the back of the switch. This is especially important
for enclosed rack installation.
Connecting to the Switch
The console port is a male DB-9 connector that enables a connection to a PC or
terminal for monitoring and configuring the MIL-S3580. Use the supplied RS-232
cable with a female DB-9 connector to connect a terminal or PC to the console port.
The console configuration (out-of-band management) allows you to set your switch
to enable a user at a remote console terminal to communicate with the MIL-S3580
as if the console terminal were directly connected to it.

14
Figure 3-4. Connecting the MIL-S3580 to a Terminal via RS-232 Cable
Login in the Console Interface
When the physical connection between the switch and the PC is established, turn
on the PC and run a terminal emulation program or Hyper Terminal and configure
its communication parameters to match the following default characteristics of
the console port:
Baud Rate: 9600 bps
Data Bits: 8
Parity: None
Stop Bit: 1
Control flow: None
Figure 3-5. Settings of Communication Parameters

15
Telnet
You can access the console using a Telnet connection once an IP address is
assigned. The switch offers password protection for this interface. When the telnet
session opens, select Terminal>Properties. In the Terminal Preferences dialog,
verify the following settings. Under Terminal Options select VT100 Arrows and
set buffer Size to 25. Under Emulation, select the VT-100/ANSI radio button.
User Interface
The switch offers a menu-driven console interface. Use <Tab> key or the <arrow>
keys to move within menus and sub-screens. To select a menu, press the
appropriate <arrow> key to highlight the menu, and then press <Enter>. The
following list describes common key commands:
x <Esc> Return to previous menu or screen, or abort editing
x <Tab> Scroll highlight bar through the screen
x <m>, <n>, <o>, <p> Navigation keys to move around menu screen and
editable fields
x <Spacebar> Toggle between possible settings for field
x <Enter> Select a menu item, edit a field or accept a value after editing a field
The bottom of every screen displays action commands available for that particular
screen such as Submit, Save,Refresh,Exit and sometimes other helpful
information.
Note that you can choose to leave a menu screen without applying any changes
made at any time by pressing the <Esc> key and then confirming with the <Enter>
key.
N
N
NO
O
OT
T
TI
I
IC
C
CE
E
E: When clicking on Submit button, you are applying the changes to the
current session only. To save the changes into NVRAM, you need to go to the
System Restart submenu and reset the system by either a Cold Start or Warm
Start.

16
First Screen
Figure 3-6. First Screen Display in Console Interface
Once you have configured your system terminal and started the switch, you can
login to the console interface. The default username is admin. There is no
password required. You can change both the user name and password in the
User Authentication Menu option, which appears on the Main Menu.
Main Menu
Figure 3-7. Main Menu

17
After login, you will see the Main Menu screen as illustrated in the picture. The
Main Menu displays all the submenus and pages that are available in the console
interface.
1. System Information
Figure 3-8. System Information Menu
The system information screen displays information such as hardware, software
versions, and system up time. You can also enter specific information about you
and your organization. This information about the switch is available through any
SNMP manager. In each field, 48 characters can be entered.
.
2. Management Setup
Figure 3-8. Management Setup Menu

18
The management setup menu contains 6 submenus and is discussed in the
following sections.
2.1. Network Configuration
Figure 3-9. Network Configuration Menu
This menu allows the setting of your IP address of the switch according to your
network's unique configuration. The factory defaults for all three addresses are
0.0.0.0. After changing any of the settings, you need to save the information and
reset the switch in order for the changes to take effect. Also note that the value
under Current column will not reflect the changes you made until the next time you
login after resetting the switch.
2.2. Serial Port Configuration
Figure 3-10. Serial Port Configuration Menu

19
You can change the serial port setting through this screen to suit you environment,
however, it is recommended to keep the default setting.
2.3. SNMP Community Setup

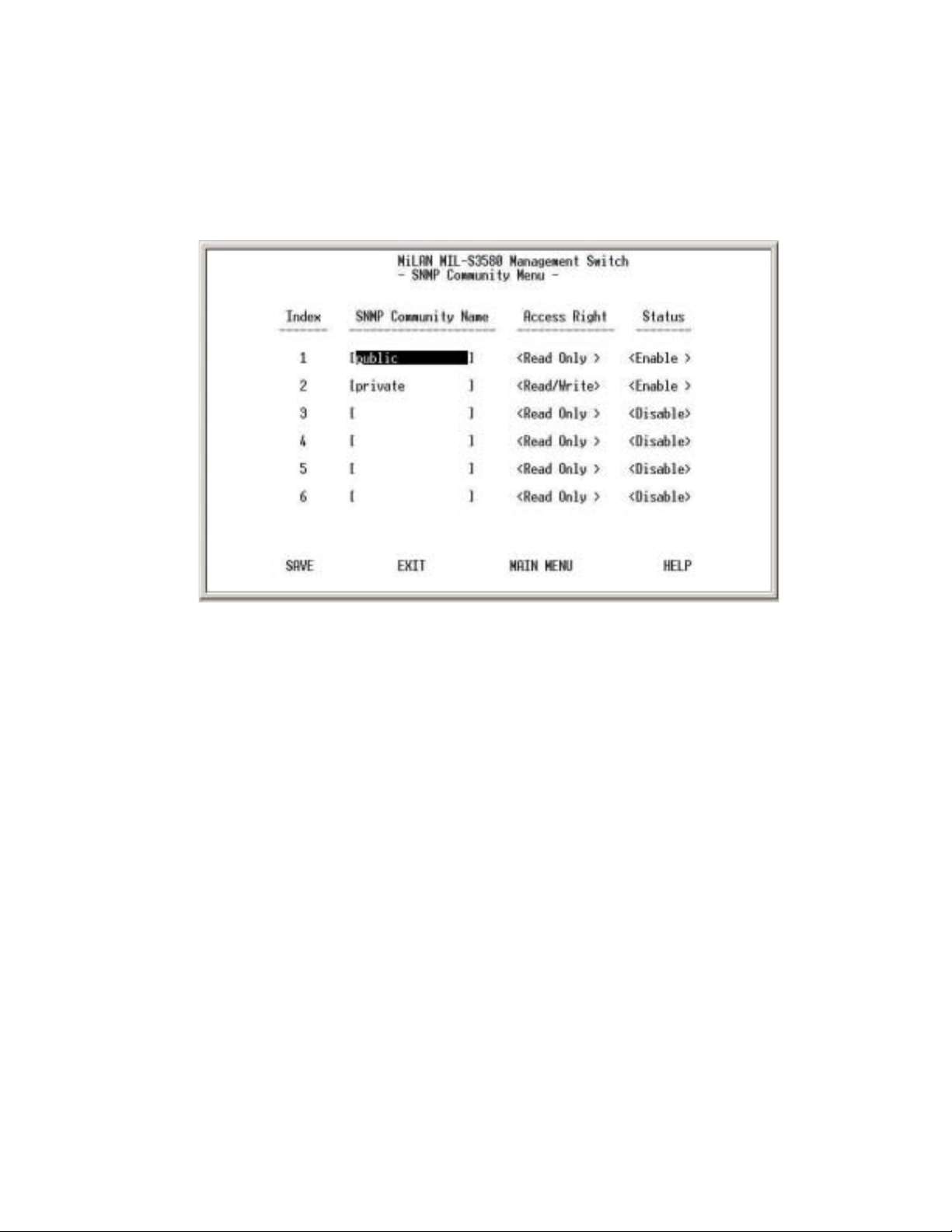

Figure 3-11. SNMP Community Menu
Use the SNMP communities to restrict access to the switch by SNMP management
stations by adding editing or disabling SNMP communities. You can configure up
to 6 SNMP communities, each with either a restricted read-only or unrestricted
read/write access.
Public Community (Read-only access right) allows the member of community to
view the information but not to make changes to the configuration.
Private Community (Read/Write access right) allows the member of the
community to view and make changes to the configuration.
To set the "Public" and "Private" community names, you can type the desired text
string in the corresponding edit box.

20
2.4. Trap Receiver
Figure 3-12. Trap Receiver Menu
A trap receiver is a management station designated by the switch to receive
SNMP traps sent from the switch. Use Trap Receiver screen to designate certain
community to receive trap(s) generated by the system. In the default
configuration, no trap receivers are configured and the authentication trap is
disabled. The trap's Host IP address is the IP address required.
2.5. Management Capability Setup
Figure 3-13. Management Capability Setup Menu
