Milestone pro MP-DA16UHD-4K User manual

MP-DA16UHD-4K
HDMI V2.0 1x16 Splitter with Downscaling
and AOC Supported
All Rights Reserved
Version: MP-DA16UHD-4K_2023V1.0
User Manual

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List ......................................................................................................1
2. Specification ...............................................................................................................2
3. Panel Description........................................................................................................4
3.1 Front Panel ........................................................................................................4
3.2 Rear Panel.........................................................................................................4
4. System Connection.....................................................................................................5
5. DIP Switch Operation..................................................................................................6
6. RS232 Control ............................................................................................................7
6.1 System Commands ...........................................................................................7
6.2 Setting Commands ............................................................................................8
7. Firmware Upgrade ......................................................................................................9

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
1
1. Product Introduction
Thank you for choosing the MP-DA16UHD-4K HDMI V2.0 1x16 Splitter, which can
distribute one HDMI input to sixteen HDMI outputs. The splitter supports 4K signals up
to 4K@60Hz 4:4:4, HDR 10, Dolby Vision and features advanced EDID management
option using 4-pin DIP switch on the front panel of the unit. It also supports downscaling
so a 4K video input can automatically be down scaled to a 1080p output when
connecting a display that only supports resolution up to 1080p. Stereo analog L/R
audio output is provided for audio de-embedding from HDMI input and the splitter
supports CEC and RS232 control.
1.1 Features
⚫HDMI V2.0, 4K@60Hz 4:4:4 8bit, HDR 10, Dolby Vision.
⚫HDCP 2.2 compliant.
⚫Compatible with HDMI AOC cable, provides up to 5V100mA power on each output.
⚫Auto 4K to 1080p downscaling.
⚫Stereo analog L/R audio output for audio de-embedding from HDMI input.
⚫Smart EDID management and HDCP management.
⚫CEC and RS232 control.
1.2 Package List
⚫1x MP-DA16UHD-4K 1x16 Splitter
⚫2x Mounting Ears with 4 Screws
⚫4x Plastic Cushions
⚫1x RS232 Cable (Female DB9 to Male DB9)
⚫1x Power Adapter (24V DC, 1.25A)
⚫1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
2
2. Specification
Video
Input
(1) HDMI
Input Connector
(1) Type-A female HDMI
Input Video Resolution
Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision
Output
(16) HDMI
Output Connector
(16) Type-A female HDMI
Output Video
Resolution
Up to 4K@60Hz 4:4:4 8bit, HDR10, Dolby Vision, supports 4K to 1080p
down-scaling.
HDMI Output
Supports up to 5V100mA power for AOC cable.
HDMI Standard
V2.0
HDCP Version
2.2
HDMI Audio Signal
LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus,
DTS:X™, and DTS-HD® Master Audio™pass-through.
Analog Audio Output
Output
(1) AUDIO
Output Connector
(1) RCA (L+R)
Frequency Response
20Hz~20kHz, ±1dB
Max output level
2.0Vrms ±0.5dB. 2V=16dB headroom above-10dBV (316mV) nominal
consumer line level signal
THD+N
< 0.05%, 20Hz~20kHz bandwidth, 1kHz sine at 0dBFS level (or max
level)
SNR
> 80dB, 20Hz~20kHz bandwidth
Crosstalk isolation
< -80dB, 10kHz sine at 0dBFS level (or max level before clipping)
L-R level deviation
< 0.05dB, 1kHz sine at 0dBFS level (or max level before clipping)
Output load capability
1Kohm and higher (supports 10x paralleled 10Kohm loads)
Noise Level
- 80dB
Control Part
Control Port
(1) EDID Switch, (1) FW, (1) RS232
Control Connector
(1) 4-pin DIP switch, (1) Micro-USB, (1) Female DB9
General
Bandwidth
18Gbps
Operation Temperature
-5℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humidity
10%-90%
External Power Supply
Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A
Power Consumption
26W (Max)
Dimension (W*H*D)
268mm x 40mm x 125mm
Net Weight
1.14KG

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
3
Video Resolution Down-scaling:
The splitter supports video resolution downscaling, the 4K input can be automatically
degraded to 1080p output for compatibility with 1080p display, shown in the below
chart.
Input
Output
#
Resolution
Refresh
Color
Space
Downscale
1080p Specs
1
3840x2160
60Hz
4:4:4
Support
1080p@60Hz 4:4:4
2
3840x2160
50Hz
4:4:4
Support
1080p@50Hz 4:4:4
3
3840x2160
30Hz
4:4:4
Support
1080p@30Hz 4:4:4
4
3840x2160
25Hz
4:4:4
Support
1080p@25Hz 4:4:4
5
3840x2160
24Hz
4:4:4
Support
1080p@24Hz 4:4:4
6
3840x2160
23Hz
4:4:4
Support
1080p@23Hz 4:4:4
7
3840x2160
60Hz
4:2:0
Support
1080p@60Hz 4:4:4
8
3840x2160
50Hz
4:2:0
Support
1080p@50Hz 4:4:4
9
3840x2160
30Hz
4:2:0
Support
1080p@30Hz 4:4:4
10
3840x2160
25Hz
4:2:0
Support
1080p@25Hz 4:4:4
11
3840x2160
24Hz
4:2:0
Support
1080p@24Hz 4:4:4
12
3840x2160
23Hz
4:2:0
Support
1080p@23Hz 4:4:4

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
4
3. Panel Description

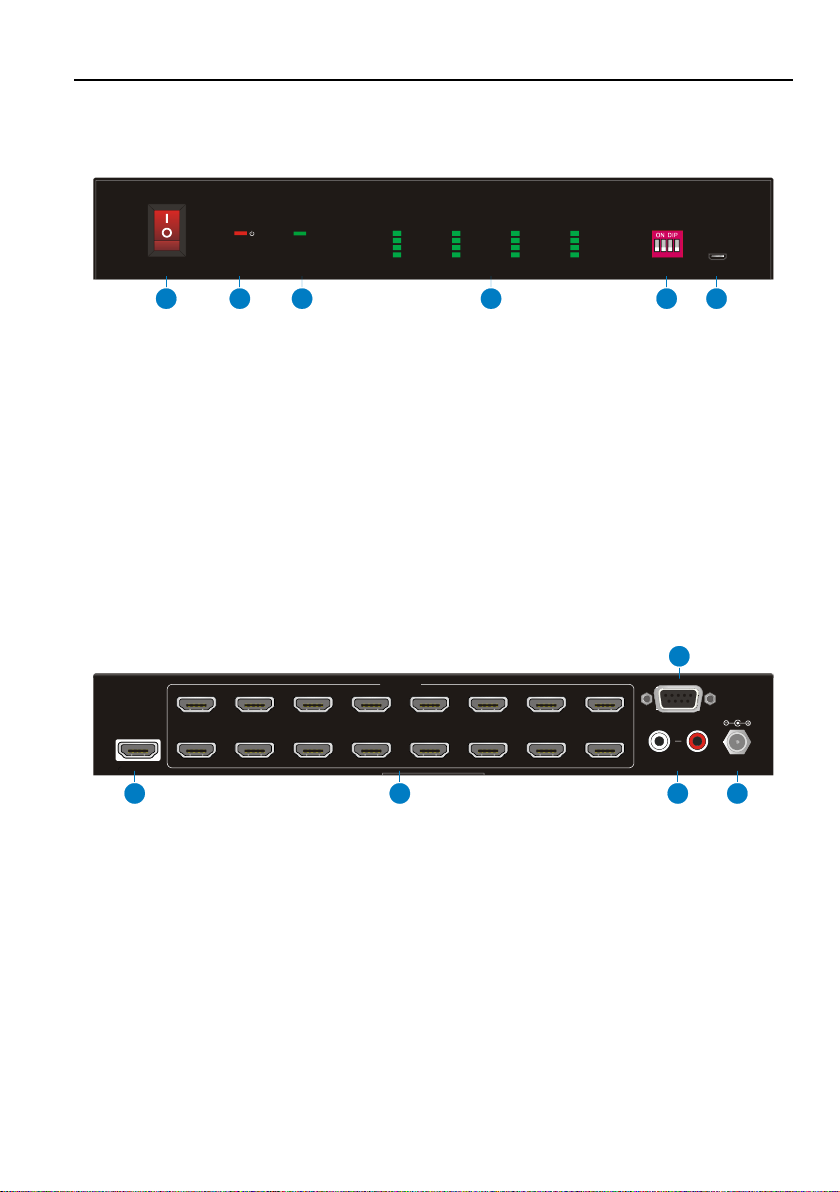

3.1 Front Panel
①POWER SWITCH: Power on/off the splitter.
②POWER LED: Illuminates red when the device is powered on.
③INPUT LED: Illuminates green when there is HDMI input.
④OUTPUT LEDs (1~16): Illuminates green when there is HDMI output on the
corresponding channel.
⑤EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer to
the chapter DIP Switch Operation for more details.
⑥FW: Micro-USB port for firmware upgrade.
3.2 Rear Panel
①INPUT: Connect HDMI source.
②OUTPUTS: Total sixteen HDMI outputs to connect HDMI displays.
③AUDIO OUT: Connect audio device (e.g. Amplifier) for audio de-embedding from
HDMI input.
④RS232: Connect control device (e.g. PC) to control the splitter by sending RS232
commands.
⑤DC 24V: DC connector for the power adapter connection.
INPUT 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 1 2 3 4
EDID
1
0ON
OFF
FW
ON
OFF
123456
INPUT AUDIO OUT
RS232
DC 24V
13 14 15 16
1 52 63 7
4 8
910 11 12
OUTPUTS
123
4
5

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
5
4. System Connection

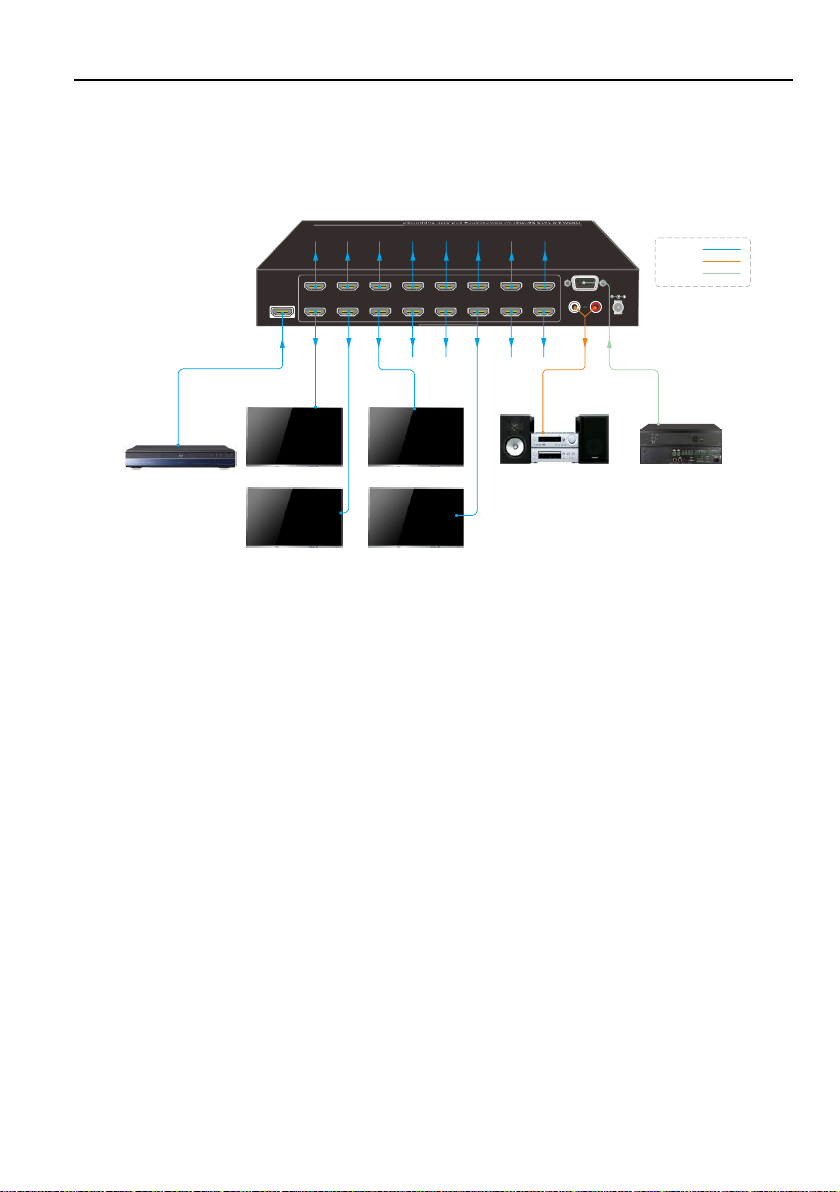

The following diagram illustrates the typical input and output connection of the splitter:
Amplifier
4K TV
4K
1080p TV
1080p
4K TV
4K
1080p TV
1080p
INPUT AUDIO OUT
RS232
DC 24V
13 14 15 16
1 52 63 7
4 8
910 11 12
OUTPUTS
HDMI:
RS232:
Audio:
Blue-Ray Central Control System

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
6

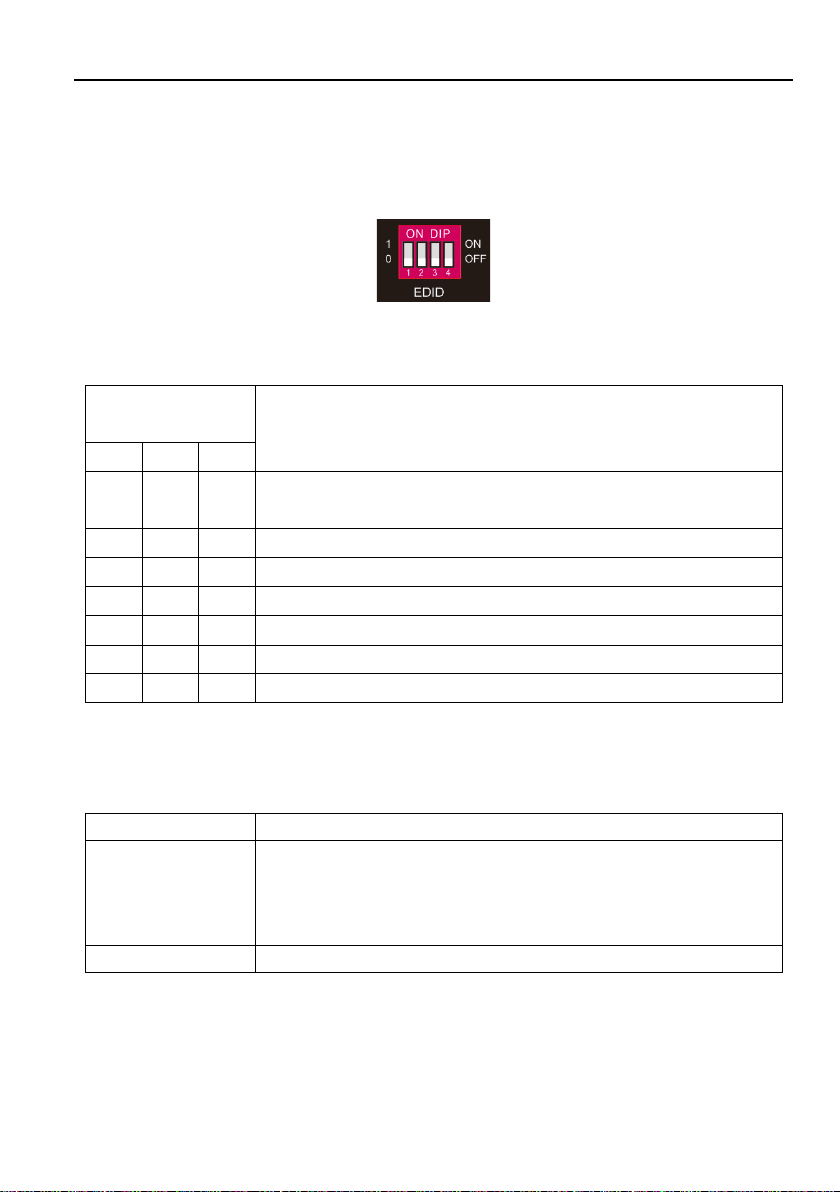

5. DIP Switch Operation
The 4-pin DIP switch on the front panel of the unit is used for EDID management and
HDCP management. It represents “0” when in the lower (OFF) position, and it
represents “1” while putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The switch status and its corresponding setting
are shown at the below chart.
Switch Status
(PIN 1~3)
EDID Value
1
2
3
0
0
0
Obtains EDID from the first detected display starting at HDMI
OUT1>OUT2>.........>OUT16.
0
0
1
1920x1080@60Hz 8bit Stereo
0
1
0
1920x1080@60Hz 8bit High Definition Audio
0
1
1
3840x2160@30Hz 8bit Stereo Audio
1
0
0
3840x2160@30Hz Deep Color High Definition Audio
1
0
1
3840x2160@60Hz Deep Color Stereo
1
1
0
3840x2160@60Hz Deep Color HDR LPCM 6CH
Switch 4 is used for HDCP setting. The switch status and its corresponding setting are
shown at the below chart.
Switch 4 Status
HDCP
OFF (0)
Automatically follows the HDCP version of display device.
When display device has no HDCP, if source device have no
HDCP content, the video output has no HDCP content; if
source device has HDCP content, there are no video output.
ON (1)
Automatically follows the HDCP version of source device.
Note: The factory default switch status is “0000”, and it needs to be set to “1111” when
enable RS232 control to set EDID and HDCP.

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
7
6. RS232 Control
Connect the RS232 port to control device (e.g. PC) with RS232 cable. The splitter can
be controlled by sending RS232 commands.
RS232 Commands
The command lists are used to control the splitter. The RS232 control software (e.g.
docklight) needs to be installed on the control PC to send RS232 commands.
After installing the RS232 control software, please set the parameters of COM number,
bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send
command in command sending area.
Baud rate: 9600
Data bit: 8
Stop bit: 1
Parity bit: none
Note:
⚫All commands need to be ended with “<CR><LF>”.
⚫In the commands, “[”and “]” are symbols for easy reading and do not need to be
typed in actual operation.
⚫Type the command carefully, it is case-sensitive.
6.1 System Commands
Command
Description
Command Example and
Feedback
>GetFirewareVersion
Get firmware version.
<V1.0.0
>SetFactoryReset
Reset to factory default.
<FactoryReset_True
>SetReboot
System reboot.
<Reboot_EN
>SetHelp [Param]
Get the command details.
[Param]= Any command.
>SetHelp
SetHdcpActiveMode
<Set the HDCP bypass from
SRC or SINK
>SetHdcpActiveMode
Param
Param = Src,Sink
Src - Active by src
Sink - Active by Sink

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
8
6.2 Setting Commands
Command
Description
Command Example and
Feedback
>SetUpdateEdid
Upload user-defined EDID. The EDID
DIP switch must be set as “1111”.
<User edid ready,Please
send edid data in 10s.
<SetUpdateEdid_True/False
/
<Time out to send edid
>SetInPortEdid [Param]
Set the EDID to [Param].
[Param]=0~7.
0 - BYPASS
1 - 1920x1080@60 8bit Stereo
2 - 1920x1080@60 8bit High Definition
Audio
3 - 3840x2160@30Hz 8bit Stereo Audio
4 - 3840x2160@30Hz Deep Color High
Definition Audio
5 - 3840x2160@60Hz Deep Color
Stereo Audio
6 - 3840x2160@60Hz Deep Color HDR
LPCM 6CH
7 - USER EDID
The EDID DIP switch should be set as
“1111”.
>SetInPortEdid 0
<InPortEdid 0
>GetInPortEdid
Get the EDID.
<InPortEdid 0
>SetHdcpActiveMode
[Param]
Set the HDCP active mode.
[Param]= Src, Sink
Src - Active by Src. Follow source.
Sink - Active by Sink. Follow display.
Note: The EDID switch must be
switched to “1111” before sending the
command.
>SetHdcpActiveMode Src
<HdcpActiveMode Src
>GetHdcpActiveMode
Get the HDCP active mode.
<HdcpActiveMode Src
>SetVideoOutput
[Param1],[Param2]
Enable or disable video output.
[Param1]=1~16. Output port.
[Param2]= EN, Dis
Dis - Disable
En - Enable
>SetVideoOutput 1,EN
<VideoOutput 1 True
>GetVideoOutput
Get video output status.
>GetVideoOutput 1

HDMI V2.0 1x16 Splitter with Downscaling and AOC Supported
9
[Param]
[Param]=1~16.Output port.
<VideoOutput 1 True
>SetAutoDownScaler
[Param]
Enable/disable 4K to 1080p down-
scaling function.
[Param]= EN, Dis
Dis - Disable
En - Enable
>SetAutoDownScaler EN
<AutoDownScaler True
>GetAutoDownScaler
Get the on-off status of down-scaling
function.
<AutoDownScaler True
>SetRS232Baudrate
[Param]
Set the baud rate to [Param].
[Param]=1~7
1 - 115200
2 - 57600
3 - 38400
4 - 19200
5 - 9600
6 - 4800
7 - 2400
>SetRS232Baudrate 1
<RS232Baudrate 1
>GetRS232Baudrate
Get the RS232 baud rate.
<RS232Baudrate 1
7. Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC.
2) Power off the splitter and connect the Micro-USB (FW) port of splitter to the PC with
USB cable.
3) Power on the splitter and then the PC will automatically detect a U-disk named of
“BOOTDISK”.
4) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
5) Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
6) Reopen the U-disk to check whether there is a filename “SUCCESS.TXT”, if yes,
the firmware was updated successfully, otherwise, the firmware updating is fail, the
name of upgrade file (.bin) should be confirmed again, and then follow the above
steps to update again.
7) Remove the USB cable and reboot the splitter after firmware upgrade.
