MILL Steel & Glass WiFi Series User guide

Assembly and instruction manual
Series:
Steel & Glass WiFi
Please read the instructions carefully before use.
Take good care of this manual for later use.

Thanks for buying Mill
@
Our company was founded in Norway in 1992 by Cato Bryn, specializing in distribution
of oil filled radiators and other types of heaters. From 1992 to 2009, we had gained
significant knowledge and expertise of dierent type of heaters, thus enabling us to
sell to many of the largest retailers in the Nordic countries.
In 2010, Cato’s son, Phillip joined the company. Philip looked at the heating industry
with fresh new eyes and wondered why there had been so little change with the
appearance of portable heaters in the last 20 years, especially since interior design in
general had changed dramatically over the years. Philip thought consumers should
have more styles to choose from other than the typical old-fashioned, traditional
heaters.
Since heaters are part of so many homes, Philip and Cato decided to use their
extensive knowledge to re-invent the design of heaters. They wanted to create
beautiful, modern and minimalistic heaters, using the most advanced technology, that
would complement people’s homes. They launched the brand “Mill” in 2012.
Mill oers revolutionary, innovative Norwegian designs. We are continuously innovating
to complement our line of products to meet consumers’ demand.
Prospering on our success in the Nordics we decided to promote Mill at some of the
world’s largest electronic fairs and home shows, and the feedback from
retailers and distributors all over the world were amazing. We are proud to say that
consumers in over 25 countries can now keep warm with style!
Follow us on social media:
[email protected]
.com/millheat
@millheat
millheat.com

1
millheat.com
EN
Content
P. 2-3
P. 4
P. 4
P. 4
P. 4
P. 5
P. 5
P. 5
P. 5
P. 6
P. 6
P. 6
P. 6
P. 7
P. 7
P. 8
P. 9
P. 9
P. 9
P. 9
P. 10
P. 10
P. 10
Important safety information
First use
Minimum distances
Description of heater
Assembly
Power indicator
Temperature calibration
Resetting the heater
Memory function
“Open Window” function
Instructions
Usage without WiFi connection
Usage with WiFi connection
Color codes (WiFi control light)
Activating WiFi
Deactivating WiFi
Reconnecting to WiFi
Delete WiFi settings
Maintenance
Warranty
Waste disposal
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IN ORDER TO AVOID OVERHEATING,
DO NOT COVER THE HEATER.
STORE THIS INSTRUCTION
MANUAL FOR FUTURE USE!
NEVER TOUCH YOUR HEATER OR ITS
CASING WITH WET HANDS!

2
EN
You must obey common safety guidelines when using electrical
products, especially in the presence of children.
WARNING! To avoid electric shock or damage due to the
heat, always make sure the plug is pulled out before the
heater is moved or cleaned.
READ THE INSTRUCTIONS CAREFULLY
•The product is intended for home use only.
• Make sure the heater is connected to the house's regular mains
as indicated on the heater.
•
• Check for any pieces of packing foam or cardboard that may
have fallen into the heating elements of the heater. These pieces
must be removed to avoid unpleasant odors.
• Prevent the heater from overheating – do not cover.
•
long period of time.
• Pay special attention if the heater is used in rooms where
children, the handicapped or elderly reside.
• The heater should not be set up directly beneath an electrical
socket outlet.
• The cord must not be laid under any kind of carpet. Make sure the
cord is laid in such a way that nobody can trip on it.
• The heater must not be used if either the cord or plug is
damaged. The heater must not be used if it has been dropped
malfunction.
• The cord must be repaired by the manufacturer or by an expert if it
has been damaged, to avoid dangerous situations.
• Avoid using extension cords, which may overheat and could
•
hazards by making sure the air intakes are not blocked or
Important safety information

3
millheat.com
EN
• The heater should not be installed in close proximity to
• The heater must never be used in rooms where gasoline, paint or
• Never touch an electric heater with wet hands. The heater
should be installed so a person showering or taking a bath
cannot come into direct contact with it.
•Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and
vulnerable people are present.
•
heater must cool down before it is moved.
• Avoid overloading the mains (the circuit) where the heater is
connected. The heater may overload the electrical circuit if
other electrical devices are plugged into the same socket outlet.
• Do not use this heater in small rooms when they are occupied
by persons not capable to leaving the room on their own, unless
constant supervision is provided.
• The product cannot be used by children under 8 years of age
and persons with reduced physical or mental abilities or lack
of experience and knowledge unless they have been given
supervision or instruction in the safe use of the product and
understand the hazards involved.
• Children should not play with the product. Cleaning and
maintenance should not be done by unsupervised children.
• Children under the age of 3 should be kept away from the
product, unless they are under constant supervision.
• Children aged 3 to 8 years are only permitted to turn the
product ON/OFF, assuming the heater is mounted according
to the assembly instructions and the children have received
instruction or supervision in the safe use of the product and
understand the hazards involved.
• Do not use this heater in the immediate surroundings of a bath,
a shower or a swimming pool.
WARNING! The heater must not be used if the glass panels are
damaged (this applies to the products with model names starting
with AV).

4
EN
Model Thermostat Color Height Width Amperage Power (W) IP WiFi
NE600WIFI WiFi White 40,0 cm 65,0 cm 220-240V~, 50-60Hz 600 IPx4 802.11b/g/n
NE900WIFI WiFi White 40,0 cm 85,0 cm 220-240V~, 50-60Hz 900 IPx4 802.11b/g/n
NE1200WIFI WiFi White 40,0 cm 105,0 cm 220-240V~, 50-60Hz 1200 IPx4 802.11b/g/n
NE1500WIFI WiFi White 40,0 cm 220-240V~, 50-60Hz 1500 IPx4 802.11b/g/n
NE800LWIFI WiFi White 25,0 cm 105,0 cm 220-240V~, 50-60Hz 800 IPx4 802.11b/g/n
NE1000LWIFI WiFi White 25,0 cm 121,5 cm 220-240V~, 50-60Hz 1000 IPx4 802.11b/g/n
AV600WIFI WiFi White 40,0 cm 66,5 cm 220-240V~, 50-60Hz 600 IPx4 802.11b/g/n
AV900WIFI WiFi White 40,0 cm 86,5 cm
85,0 cm
220-240V~, 50-60Hz 900 IPx4 802.11b/g/n
AV1200WIFI WiFi White 40,0 cm 106,5 cm 220-240V~, 50-60Hz 1200 IPx4 802.11b/g/n
AV800LWIFI WiFi White 25,0 cm 106,5 cm 220-240V~, 50-60Hz 800 IPx4 802.11b/g/n
AV1000LWIFI WiFi White 25,0 cm 123,0 cm 220-240V~, 50-60Hz 1000 IPx4 802.11b/g/n
The heaters are approved for use in zone 2 in wet rooms (IPx4 approved)
ATTENTION! The heaters will be connected directly to your WiFi router and it is
of active devices connected at the same time.
≥100 mm
≥50 mm≥50 mm
≥100 mm
≥100 mm in front
of heater
First use
Minimum Distances
transport. Contact the retailer or importer if you discover any visible damages to the product.
Keep the outer packaging to transport the heater in the future. If you want to dispose
the packaging, make sure it is done properly. Keep plastic bags away from children.
d period without use,
the heater can produce a burnt odor for a short time. This is normal.
Please read all the instructions carefully before use. Save the instruction manual for future use.
It is also normal for the heater to make “sounds” when it warms up or cools down.
Maximum transmitting power: ≤20dBm
Frequency range: 2400-2483.5MHz

5
millheat.com
EN
See figure 1 on separate illustration sheet
See figure 2 on separate illustration sheet
Resetting the heater
Assembly
See figure 3 on separate illustration sheet
Power indicator
A. Drill holes in the wall for holes 1 & 2. Then drill holes in the wall for the topmost holes
(holes 3 & 4 by using 6)
B. Insert the wall plugs into the drilled holes and attach the bracket with 4 screws
C. Place the heater on the lower lugs on the bracket, then hang the heater on the
upper lugs (li the heater slightly to align the heater with for the upper lugs). Screw
in the locking screws on the top of the bracket (clockwise)
If the heater uses power (for example, when it heats up), the power indicator is on.
(Can be done even if you are connected to WiFi)
See figure 4 on separate illustration sheet
Temperature calibration
It may occur deviation between the temperature registered by the heater and the
actual temperature in the room. This can be caused by several reasons, however, the
most common is that the heater is placed in a fair distance from where you usually
reside. When you set the temperature to for example 22 degrees, it is only natural that
you expect the same temperature where your sofa is placed for instance. However,
the temperature sensor is placed on the product itself, and therefore a deviation in
temperature may occur. To adjust this, all Mill heaters are equipped with a calibration
function, which enables you to adjust the temperature registered by the heater. N.B! The
room must have achieved a stable temperature before any calibration.
MILL STEEL MILL GLASS
A B
1. On/O
2. Wall bracket
3 Temperature sensor
4. Heat emission
5. Thermostat
6. Steel front
1. On/O
2. Wall bracket
3. Temperature sensor
4. Heat emission
5 Thermostat
6. Glass front
Press 2 times and use the wheel (+ or –) to set the actual temperature observed
in the room. Confirm with or wait 15 seconds for automatic confirmation.
ATTENTION! Horizontal placement only.

6
EN
Instructions
“Open window” function
The heater has an “open window” function that is activated instantly when it registers a
sudden drop in temperature with more than 2 degrees Celsius in 2 minutes. The heater
will automatically stop heating and FO will be visible in the display of the heater.
from FO to desired room temperature).
Resetting the heater
main switch.
Memory function
The heater remembers all the temperature settings and will automatically return to
the desired temperature aer a power failure. If your heater is connected to WiFi it will
automatically reconnect with WiFi (where all temperatures are saved) aer a power cut.
TIPS! The thermostat can be used as a regular electronic thermostat (i.e. the
heater will maintain a constant temperature 24 hours a day). Please see the section
explaining usage without WiFi connection for further information
Control Panel
1. Display (shows the desired room temperature by default)
2. WiFi indicator
3. Power indicator — Shows whether the heater is using power or not
4. Control button (+) (increase temperature)
5. Control button (–) (reduce temperature)
6. WiFi button
7. Function button (F)
ATTENTION! In the event of a power cut, the thermostat will reconnect with WiFi
where all the temperatures are saved.
WARNING! BEFORE THE HEATER IS TURNED ON, IT MUST BE ATTACHED TO A WALL. IF
THE HEATER IS NOT INSTALLED CORRECTLY OR IS INSTALLED ASKEW, THIS MAY CAUSE
THE HEATER TO MALFUNCTION OR IN THE WORST CASE, BE DAMAGED.
If the temperature sensor is not functioning properly, you will see this
symbol on the display. Please contact the dealer or importer.

7
millheat.com
EN
Usage without WiFi connection
Set desired temperature without WiFi connection
Press the arrow buttons to set the desired temperature. The heater keeps an even
temperature the whole day and night.
ATTENTION! Can only be done when WiFi is deactivated (see page 9 for deactivating
WiFi).
Usage with WiFi connection
A free app is available for downloading for iOS and Android.
By connecting your heaters with the iOS/Android device you can do the following:
• Control all your heaters situated in multiple locations . Everything is controlled with
the Millheat-app (with same user)
• Set up weekly programs (or use the standard program already available in the
app) by using the modes: Comfort, Sleep,
•
•
There is no need to edit your program if you get home earlier than normal one day
• Enable vacation mode for saving energy while you are away. The app will
automatically increase the temperature in your house before you get back home
• Share your house with other family members, making control easy
•
manually, so that the heaters keep an even temperature throughout the whole day
and night.
• + many other things
To download the app search for “millheat” in Appstore or Google Play and
install the app on your device.
Before use:
Be aware that the Millheat-app must be installed before you can connect your
heaters to your WiFi network. You can then simply follow the instructions given in the
app when connecting your heaters. The heaters will connect directly to your router via
WiFi with 2,4 Ghz mode b/g/n. Minimum OS requirement: iOS 8.0 and Android 4.0.

8
EN
Color codes (WiFi control light)
The heater has not been connected to WiFi. The heater keeps an even
temperature throughout the whole day and night.
The heater is online in the Millheat cloud
1. The heater’s WiFi is deactivated by the user
2. When installing/connecting the Millheat-app and cloud, the light will flash
in various speed. This is normal.
The heater has a problem connecting to or finding the WiFi signal. Please do
the following:
1. Please turn the heater OFF and ON again
2. Please restart the WiFi router
3. Please check the WiFI router to make sure the capacity is sucient for the
number of active devices connected at the same time
4. Please make sure 2,4 Ghz is activated. If the problem persists we
recommend you to deactivate 5 Ghz during the installation. Aer the
installation 5 Ghz can be activated again.
The heaters are oine and have no contact with the Millheat cloud
Go to our help desk at www.millheat.com for more information or if you have
any questions regarding the Millheat-app, connecting to WiFi or other relating
questions.
ATTENTION! The heaters will be connected directly to your WiFi router and it
number of active devices connected at the same time.

9
millheat.com
EN
Reconnecting WiFi
Press the WiFi button 1 time. Relevant only if WiFi is already installed.
Deactivating WiFi
Press 1 time on the WiFi button. The heater can now be used as described on page 7
(usage without WiFi connection). Relevant only if WiFi is already installed.
Activating WiFi
Press «add heater» on the home screen in the Millheat-app. Follow the instructions in
the app.
Delete WiFi setting
Delete WiFi-settings: Press and hold WiFi button for 3 seconds.
heater’s main switch. Press and hold while you switch on the heater’s main switch.

10
EN
Maintenance
Warranty
Waste disposal
1. For cleaning, always unplug the heater and leave it to cool.
2. Wipe the heater regularly with a damp cloth and dry the surface before turning on
the heater again.
3. The heater must be cleaned at least once a month during the heating season.
CAUTION! The heater should never be immersed in water.
Avoid using detergents to clean the heater.
Never let any water get inside the heater; this can be hazardous.
4.
5. The heater can be stored in a dry and clean place.
6. If the heater stops working, do not attempt to repair it yourself because it can
The warranty is valid for 2 years. The heater will be repaired or replaced during
this time should any malfunction occur. The warranty applies if the heater is used
according to these instructions and the customer can present a purchase receipt. If
the heater malfunctions in any way, please contact the store where it was purchased
or the importer.
The symbol indicates that this product is not to be disposed of together with
household waste. This product must be delivered to a recycling service or container
for electrical appliances and electronic equipment. This is done to avoid health risks
and prevent harm to the environment. Local businesses (or the environmental station
in your neighborhood) are required by law to accept and recycle such products, as a
means of environmentally sound disposal.
Mill International B.V. - www.millheat.com
Designed by Mill in Norway ®All Rights Reserved.
Made and assembled in China.
Exclusively distributed and imported by BML L24 9WD UK ©2017
www.millheat.co.uk
[email protected]

11
millheat.com
EN
Seasonal energy eciency
Information requirement for the electric local space heaters
Model identifier(s): AV600WIFI, NE600WIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 0,60 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 0,60 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 0,60 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor

EN
12
Model identifier(s): AV800LWIFI, NE800LWIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 0,80 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 0,80 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 0,80 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
Seasonal energy eciency
Information requirement for the electric local space heaters

13
millheat.com
EN
Seasonal energy eciency
Information requirement for the electric local space heaters
Model identifier(s): AV900WIFI, NE900WIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 0,90 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 0,90 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 0,90 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor

EN
14
Model identifier(s):AV1000LWIFI NE1000LWIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 1,00 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 1,00 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 1,00 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
Seasonal energy eciency
Information requirement for the electric local space heaters

15
millheat.com
EN
Seasonal energy eciency
Information requirement for the electric local space heaters
Model identifier(s): AV1200WIFI NE1200WIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 1,20 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 1,20 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 1,20 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor

Ylläpito ja huolto
Takuu
EN
16
Model identifier(s): NE1500WIFI
Item Symbol Value Unit Item Unit
Head Output
Auxiliary electricity consumption
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat output Pnom 1,50 kW No
manual heat charge control,
with integrated thermostat
Contact details Mill International AS
Grini Næringspark 10, 1361 Østerås, Norway
At nominal heat
output
At minimum heat
output
In standby mode
elmax
elmin
elSB
N/A kW
N/A kW
N/A kW
No
Type of heat output/room
temperature control (select one)
No
single stage heat output and
no room temperature control
No
Two or more manual stages,
no room temperature control
No
with mechanic thermostat
room temperature control
No
No
with electronic room
temperature control
electronic room temperature
control plus day timer
Yes
No
Yes
electronic room temperature
control plus week timer
room temperature control,
with presence detection
room temperature control,
with open window detection
Other control options (multiple
selections possible)
ηs 39 %
Seasonal space heating
energy eciency
Minimum heat output
(indicative) Pmin 1,50 kW No
manual heat charge control
with room and/or outdoor
temperature feedback
Maximum continuous
heat output Pmax,c 1,50 kW No
electronic heat charge control
with room and/or outdoor
temperature feedback
No
Yes
fan assisted heat output
with distance control option
No
with adaptive start control
No
with working time limitation
No
with black bulb sensor
Seasonal energy eciency
Information requirement for the electric local space heaters

17
millheat.com

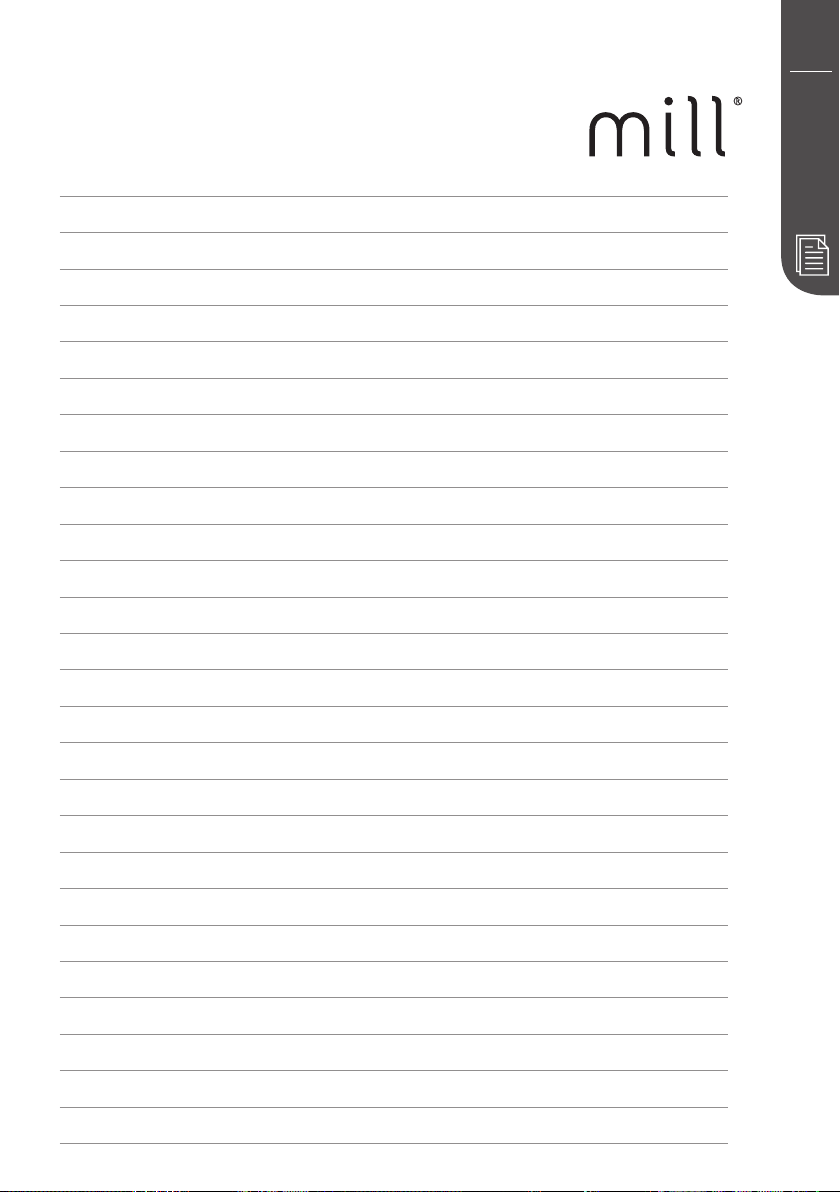

Notes

Mill International B.V. - www.millheat.com
Designed by Mill in Norway ®All Rights Reserved.
Made and assembled in China.
Exclusively distributed and imported by BML L24 9WD UK ©2017
www.millheat.co.uk
[email protected]
