Milltronics miniranger plus User manual

MiniRanger Plus
Technology based. Customer driven.
October 1997
Instruction Manual
PL-447
33454470
Rev 2.0
mA

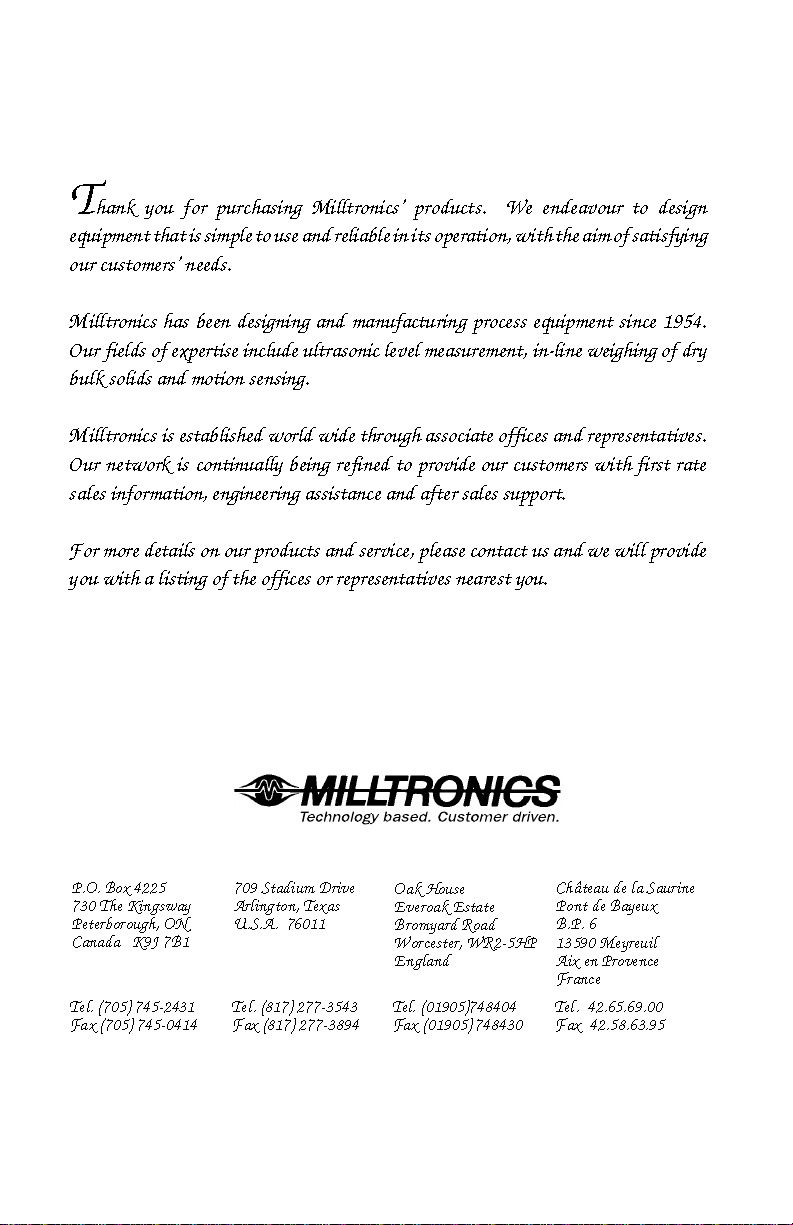

T hank you for purchasing Milltronics products. We endeavour to design
equipmentthatissimpletouse andreliableinitsoperation,withtheaimofsatisfying
our customers needs.
Milltronics has been designing and manufacturing process equipment since 1954.
Our fields of expertise include ultrasonic level measurement, in-line weighing of dry
bulk solids and motion sensing.
Milltronics is established world wide through associate offices and representatives.
Our network is continually being refined to provide our customers with first rate
sales information, engineering assistance and after sales support.
For more details on our products and service,please contact us and we will provide
you with a listing of the offices or representatives nearest you.
P.O. Box 4225
730 The Kingsway
Peterborough, ON
Canada K9J 7B1
709 Stadium Drive
Arlington, Texas
U.S.A. 76011
Oak House
Everoak Estate
Bromyard Road
Worcester, WR2-5HP
England
Château de la Saurine
Pont de Bayeux
B.P. 6
13590 Meyreuil
Aix en Provence
France
Tel. [phone]
Fax [phone] Tel. [phone] Fax [phone] Tel. [phone] Fax [phone] Tel. [phone] Fax [phone]

Table of Contents
General Information
About This Manual 5
About MiniRanger Plus 6
Specifications
MiniRanger Plus 7
Transducer 7
Installation
Dimensions 9
Interconnection Transducer 10
Synchronization 10
Current Output 11
Relay Output 11
Power 12
ComVerter 12
Start Up
General 15
Display & Keypad Run Mode 16
Program Mode 17
Setting Up 18
Display Messages 21
PL-447 3

Functional
Transceiver 23
Transducer 23
Temperature 23
Sound Velocity 24
Blanking 24
Loss of Echo 25
Relays General 25
Functions Alarm 25
Pump 26
Setpoints 26
Status 27
Programming 27
Run 28
Analog Output 29
Run/Program 30
Applications 33
Simple Level Application 34
Pump Control Application 36
High Level Switch 38
Applications with Standpipe 40
Parameter Description
Parameters 43
Troubleshooting 53
Appendices
Alphabetical Parameter Listing 57
Programming Chart 58
■
PL-447 4

GENERAL INFORMATION
ABOUT THIS MANUAL
It is essential that this manual be referred to for proper installation and operation
of your MiniRanger Plus. As MiniRanger Plus requires an STH or Echomax ultrasonic
transducer to make a working system, refer to the associated transducer manual
as well.
Installation gives you step by step direction for the installation and
interconnection of your MiniRanger Plus.
Start Up instructs you how to operate the keypad, program and
read the display.
Functional describes the functionality of the MiniRanger Plus, detailing the
interoperation of the salient features, and highlights transceiver,
relay and mA operation.
Applications looks at the MiniRanger Plus from a practical point of view, using
examples of the applications it is likely to encounter.
Parameters lists the parameters available to you, with a description of their
function and use. You are urged to read this section; to familiarize
yourself with the parameters available to you, and get your
MiniRanger Plus working to its fullest.
Troubleshooting tabulates symptoms, causes and actions to common installation and
application problems that you might encounter. Hopefully you will
never have to read this section, but know it’s there to help you.
Appendices what manual would be complete without one! Ours is an
alphabetical cross reference of the parameters and their numbers,
and a record sheet for jotting down parameter values. Handy indeed!
GENERAL INFO.
PL-447 5

ABOUT MINIRANGER PLUS
MiniRanger Plus is a versatile material level monitoring instrument. Material level
measurement is achieved using advanced sonic echo ranging techniques. The unit is
complete with an integral multifunction liquid crystal display, a four button keypad and
an integral junction box.
Remotely coupled to an appropriate transducer, MiniRanger Plus is well suited for
short to medium range measurements of liquids or solids, in open or closed vessels.
MiniRanger Plus is at home in a wide variety of industries: food, pharmaceutical,
chemical, water, waste water - to name a few.
The MiniRanger Plus emits a series of ultrasonic pulses from the associated
transducer. Each pulse is reflected as an echo from the material and sensed by the
transducer. The echo is processed by the MiniRanger using Milltronics’ proven ‘Sonic
Intelligence’ techniques. Filtering is applied to help discriminate between the true echo
from the material, and false echoes from acoustical and electrical noise and agitator
blades in motion. The time for the pulse to travel to the material and back is
temperature compensated and then converted into distance for display, mA output
and relay actuation.
MiniRanger Plus is equipped with a two-way infrared link for compatibility with
Milltronics Dolphin communication system.
MiniRanger Plus features:
✓multi-field LCD for: parameter, reading and bar graph display, and relay
and fail-safe status.
✓two alarm / pump control relays
✓quick connect wiring terminals
✓high level switch operation
✓lead / lag pump operation
✓Dolphin compatibility
✓isolated mA output
✓sonic intelligence
✓integral keypad
■
GENERAL INFO.
PL-447 6

SPECIFICATIONS
MINIRANGER PLUS
Power: » 100 / 115 / 200 / 230 V ±15%, switch selectable
» 50 / 60 Hz, 15 VA
Range: » solids applications: 5 m (transducer dependent)
» liquid applications: 10 m (transducer dependent)
Accuracy: » 0.25% of range or 6 mm (0.24"), whichever is greater
Resolution: » 2 mm
Memory: » program stored in non-volatile FLASH memory, for
software upgrades via optional Dolphin interface
» parameters stored in non-volatile EEPROM
Display: » 38 x 100 mm (1.5 x 4") multi-field liquid crystal display
Ambient Temperature: » – 20 to 50 °C (– 5 to 122 °F)
Outputs: » transducer drive: » 43.5 kHz, 400 V peak pulses of 1 msec
max duration at max repetition rate
of 300 msec
» mA: » optically isolated 0 / 4 - 20 mA
» max loading: 750 Ω
» resolution: 0.1% of 20 mA
» relays: » 2 alarm / pump control relays
» 1 form ‘C’ SPDT contact per relay,
rated 5 A at 230 V ac non-inductive
» communication: » Dolphin Compatible via optional
Milltronics ComVerter
Enclosure: » Type 4X / NEMA 4X / IP 65
» polypropylene alloy
Weight: » 1 kg ( 2.2 lb )
Approvals: » CE (EMC performance available on request.)
TRANSDUCER
Compatible models: » ST - 25 Ultrason ®, STH and Echomax models XPS-10,
XPS-15, XCT-8 and XCT-12.
Refer to the associated transducer manual.
97\08\12
SPECIFICATIONS
PL-447 7

⊗
SPECIFICATIONS
■
PL-447 8

INSTALLATION
This product is susceptible to electrostatic shock.
Follow proper grounding procedures.
DIMENSIONS
138 mm
(5.4")
sealed enclosure
270 mm
(10.6")
74 mm
(2.9")
254 mm
(10")
integral junction box
(cover removed)
with terminal block and
voltage selection switch
69 mm
(2.7")
mounting hole
6.4 mm (1/4") Ø
5 mm
(0.2")
Conduit entry location. Recommend drilling the enclosure with a hole saw
and the use of suitable cable glands to maintain ingress rating.
97\08\12
terminal
block
layout
INSTALLATION
PL-447 9

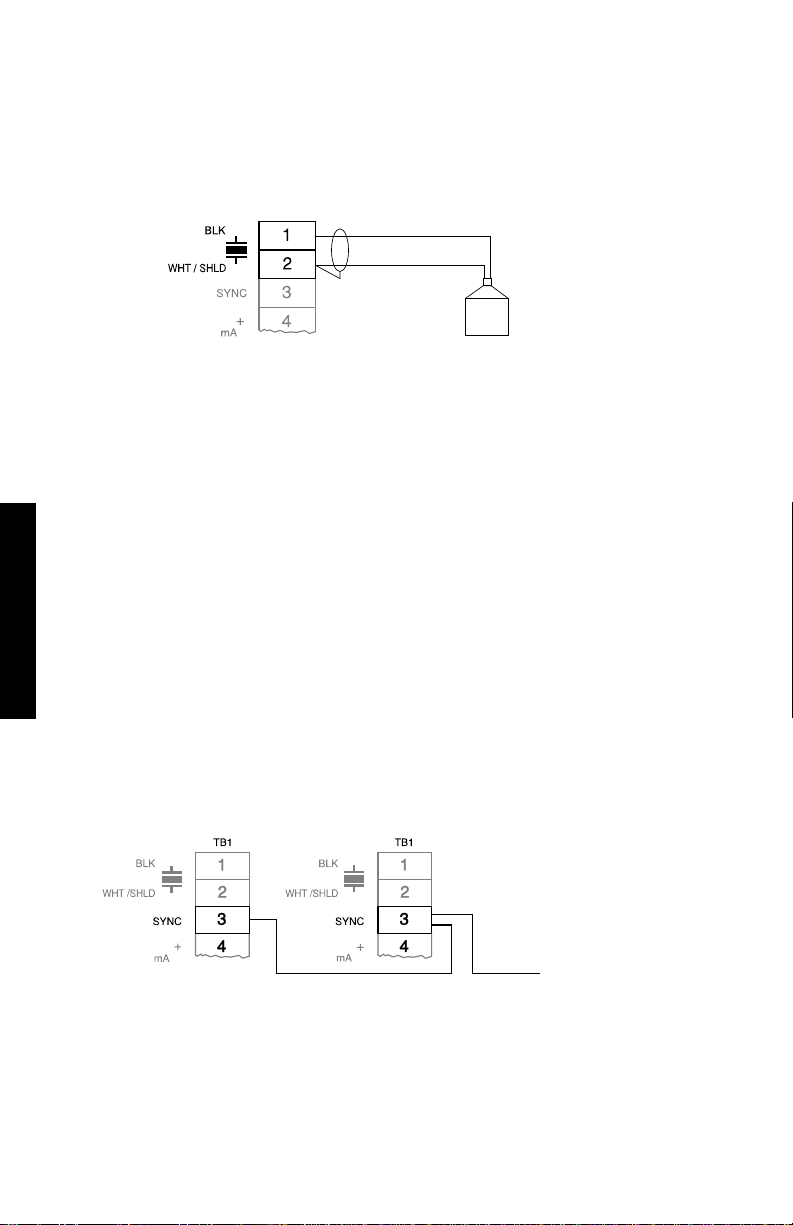

INTERCONNECTION
TRANSDUCER
SYNCHRONIZATION
In applications where more than one MiniRanger Plus, to a maximum of 8, are going
to be used or where their transducers are sharing a common conduit, synchronization
is required. When synchronized, no device transmits within 180 ms of the prior one(s).
To synchronize, interconnect the SYNC terminals of all devices and ensure that there
is a common electrical ground interconnecting all units.
To synchronize MiniRanger Plus with other Milltronics products, consult Milltronics or
your distributor.
transducer
Refer to transducer instruction manual
for location and mounting details.
MiniRanger Plus
#1 MiniRanger Plus #2
to next
device
INSTALLATION
PL-447 10

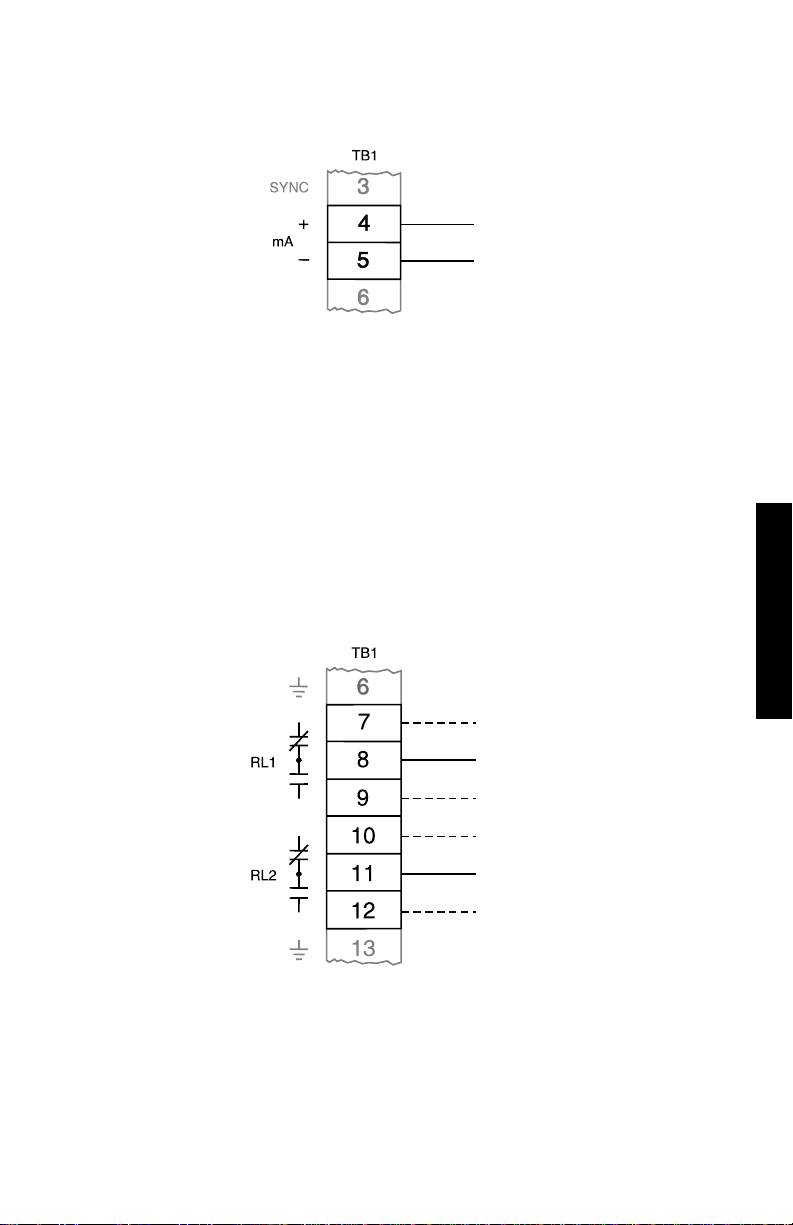

CURRENT OUTPUT
RELAY OUTPUT
to customer
instrumentation
isolated mA output,
750 Ωmax load
All relays are certified for use in equipment where the short circuit
capacity of the circuits in which they are connected is limited by
fuses having ratings not exceeding the rating of the relays.
com
relays shown in
de-energized state,
contacts rated 5 A at
230 V non-inductive
n.o.
n.c.
n.c.
com
n.o.
INSTALLATION
PL-447 11

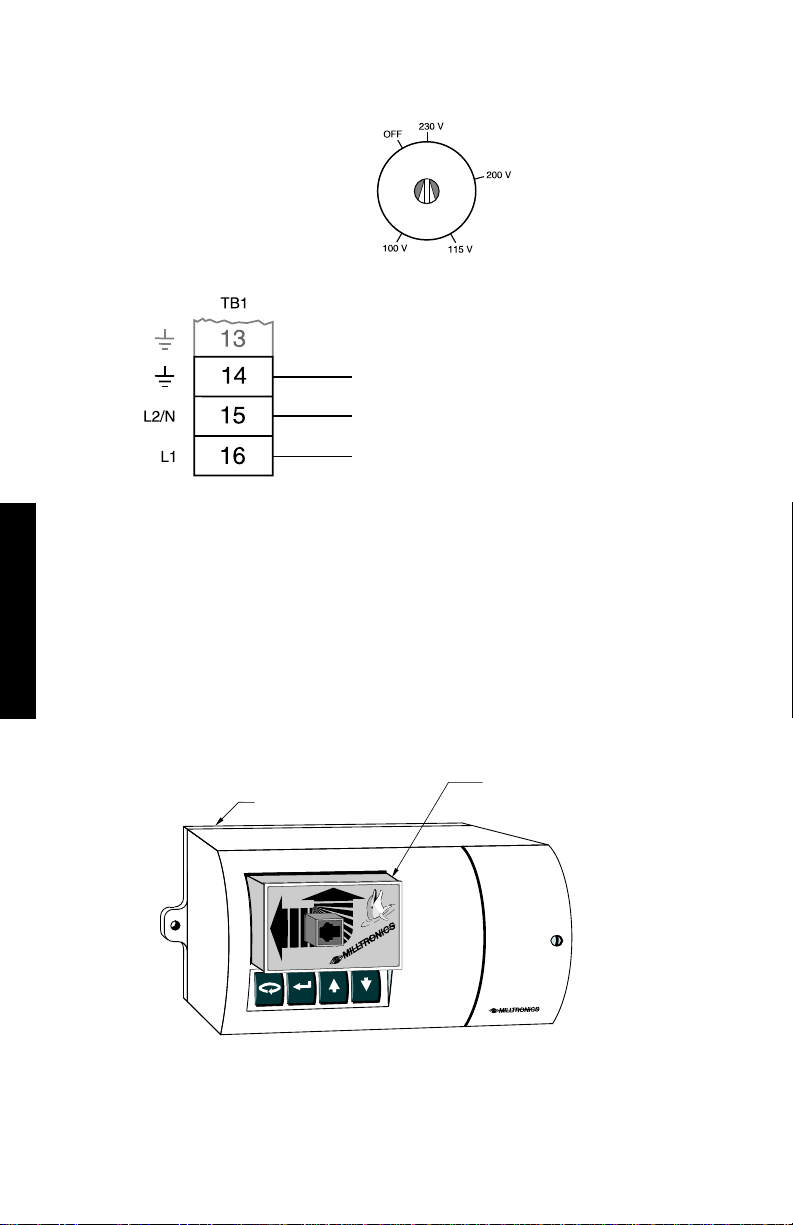

POWER
COMVERTER
Optional Dolphin Interface
Refer to Dolphin instruction manual for interconnection details.
MiniRanger Plus ComVerter
customer
voltage
supply
VOLTAGE
SELECT
INSTALLATION
PL-447 12

⊗
INSTALLATION
PL-447 13

⊗
INSTALLATION
PL-447 14

START UP
GENERAL
The MiniRanger Plus has two modes of operation: run and program . When the unit
is powered, after installation procedures have been completed, it is programmed to
start up in the run mode, to detect the distance from the transducer face to the target
in meters.
The unit can be placed into the program mode at any time; to alter a number of
program parameters in order to better suit the application or user’s preferences.
Programming can be carried out via the local keypad or the optional Dolphin
infrared interface.
The first step when programming is to reset all parameters to their factory setting by
using the master reset P-999. This must be done via the local keypad.
For a Quick Start, P001 to P007 are the key parameters requiring entry.
They set: - mode of measurement
- process material
- transducer type
- measurement response
- units
- empty distance
- span
There are a number of other program parameters, especially relay and mA output,
that can be changed subsequently or during another programming session. Refer to
Parameter List for a description of the parameters available.
When programming has been completed, the MiniRanger Plus can be put into normal
operation by pressing .
typical display
START UP
PL-447 15

DISPLAY and KEYPAD
Run Mode
LCD
➀reading
➁units
➂high alarm indicators : = high, = high - high
➃process material level rising or falling
➄bar graph representation of material level, 0 to 100% of span
➅low alarm indicators : = low, = low - low
➆reading questionable, appears during fail-safe operation
➇auxiliary reading
➈relay status
➉= normal operation = fail-safe operation
Keypad
LCD
Keypad
toggle
% and
units
display
temperature
(auxiliary)
access
program
mode
display mA
(auxiliary)
▲▲
▲
▼▼
▼
START UP
PL-447 16

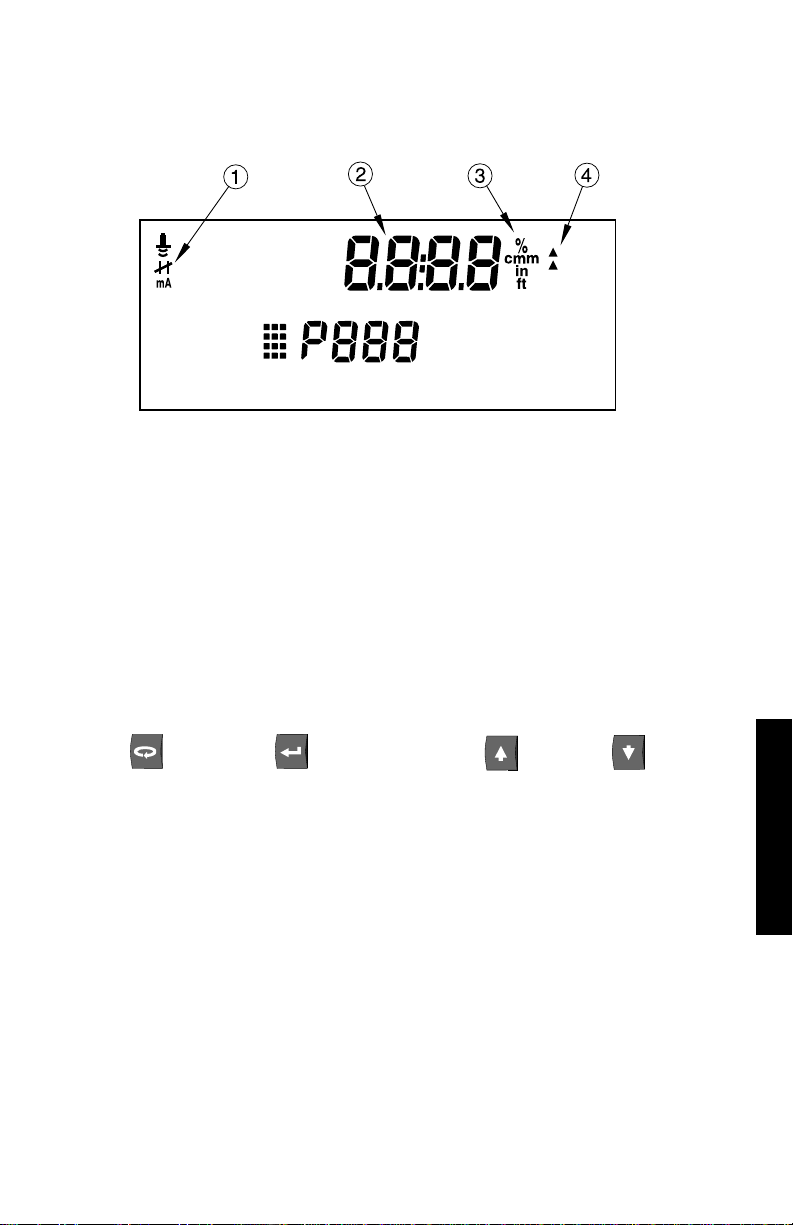

Program Mode
LCD
➀parameter type ( transducer, relay, or mA output )
➁reading
➂units
➃‘change value’ accessed
Keypad
scroll
down
scroll
up
access
run
mode
alternates program
mode between
‘select parameter’
and ‘change value’
functions
START UP
PL-447 17

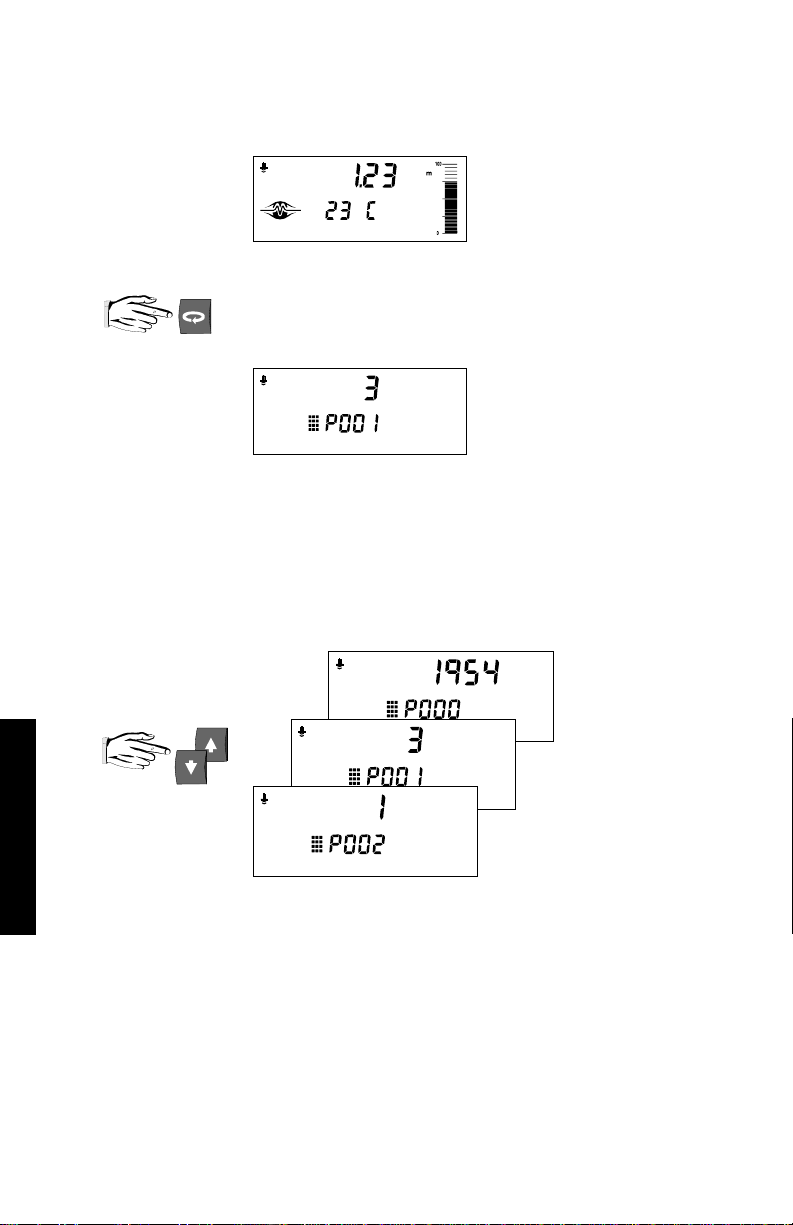

SETTING UP
To Access Program:
To Select a Parameter :
program starts at
P001
run display
START UP
PL-447 18

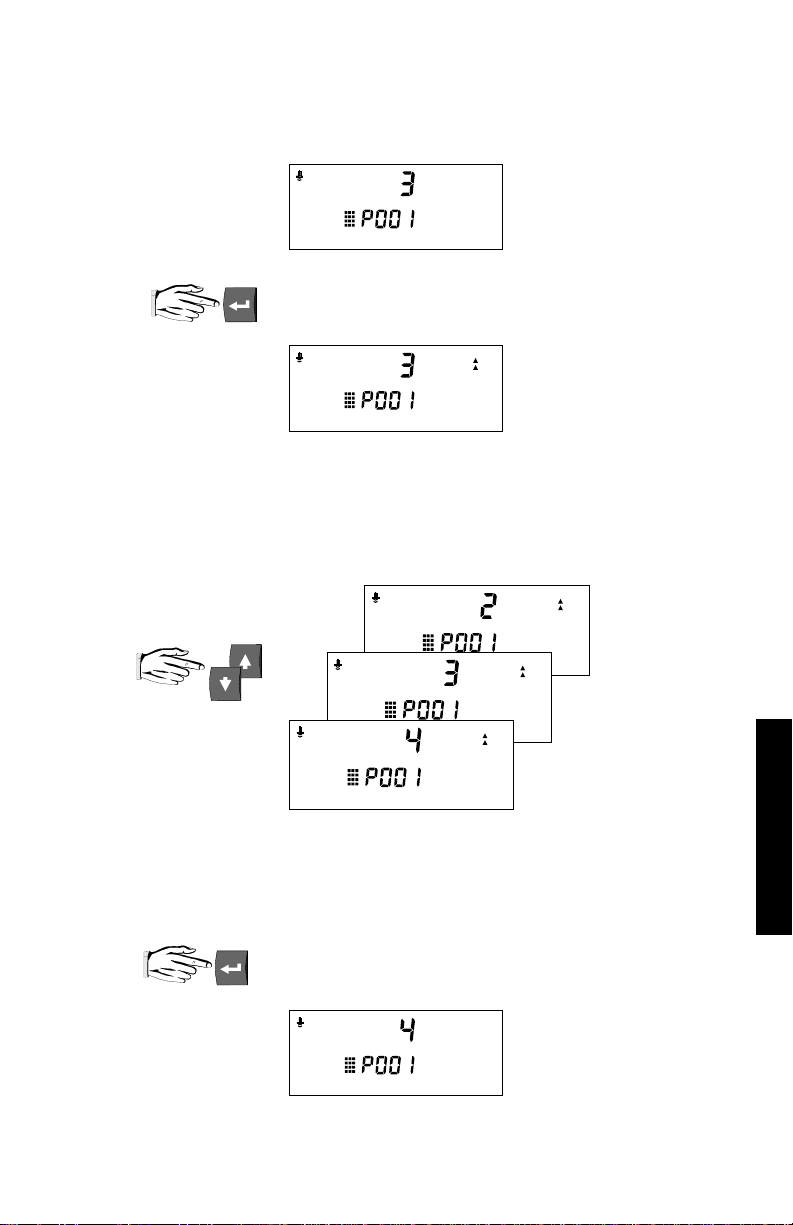

To Change a Parameter Value :
increase or
decrease to the
desired value.
if no response,
security not
disabled!
save and return to ‘select
parameter’ function,
e.g. P001 = 4
Must Be Pressed to
Save Change!
select parameter,
e.g. P001 = 3
initiate change function
Security Must Be Disabled!
START UP
PL-447 19

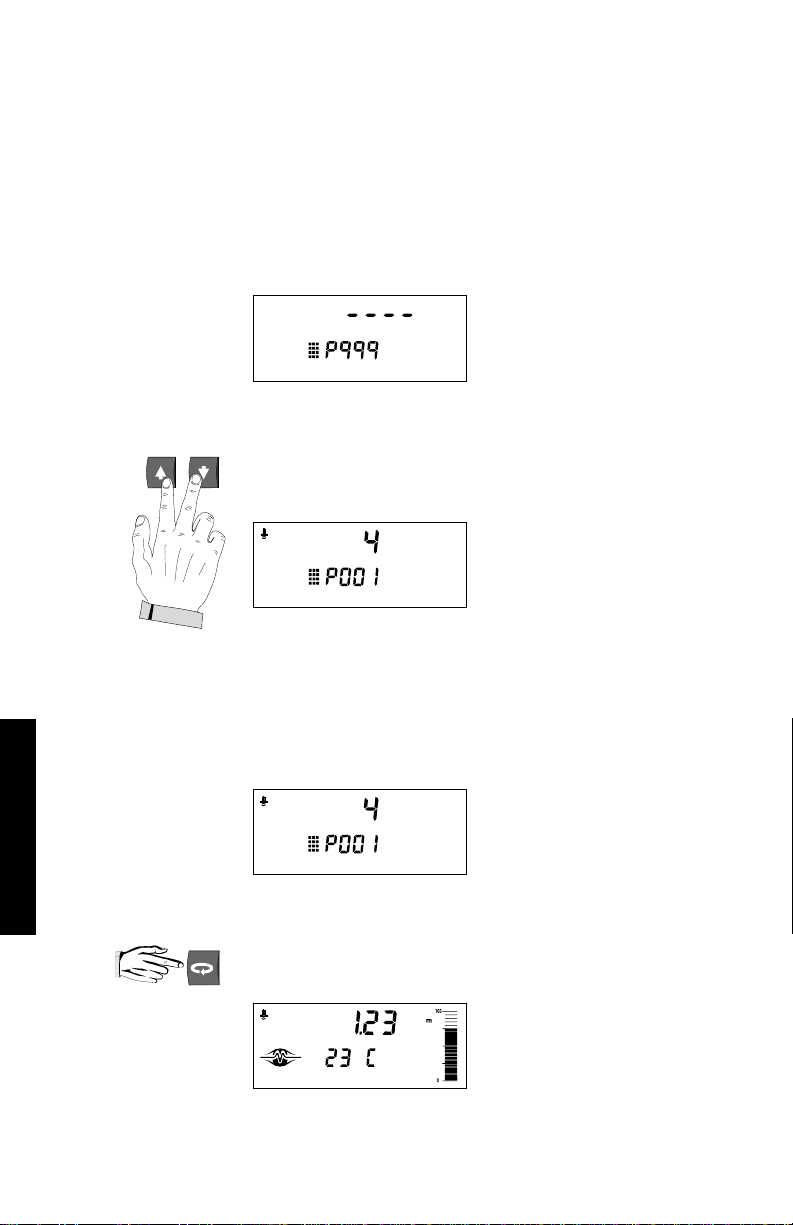

Express :
to jump back to P001
or
to jump to the factory setting
To Return to Run Mode
e.g. P999
Parameter
Value
jump back to P001
from the program mode
e.g. P001
exit and return to
run mode
START UP
PL-447 20
