Milwaukee M18 FUEL FAC User manual

OPERATOR'S MANUAL
Cat. No.
M18 FAC

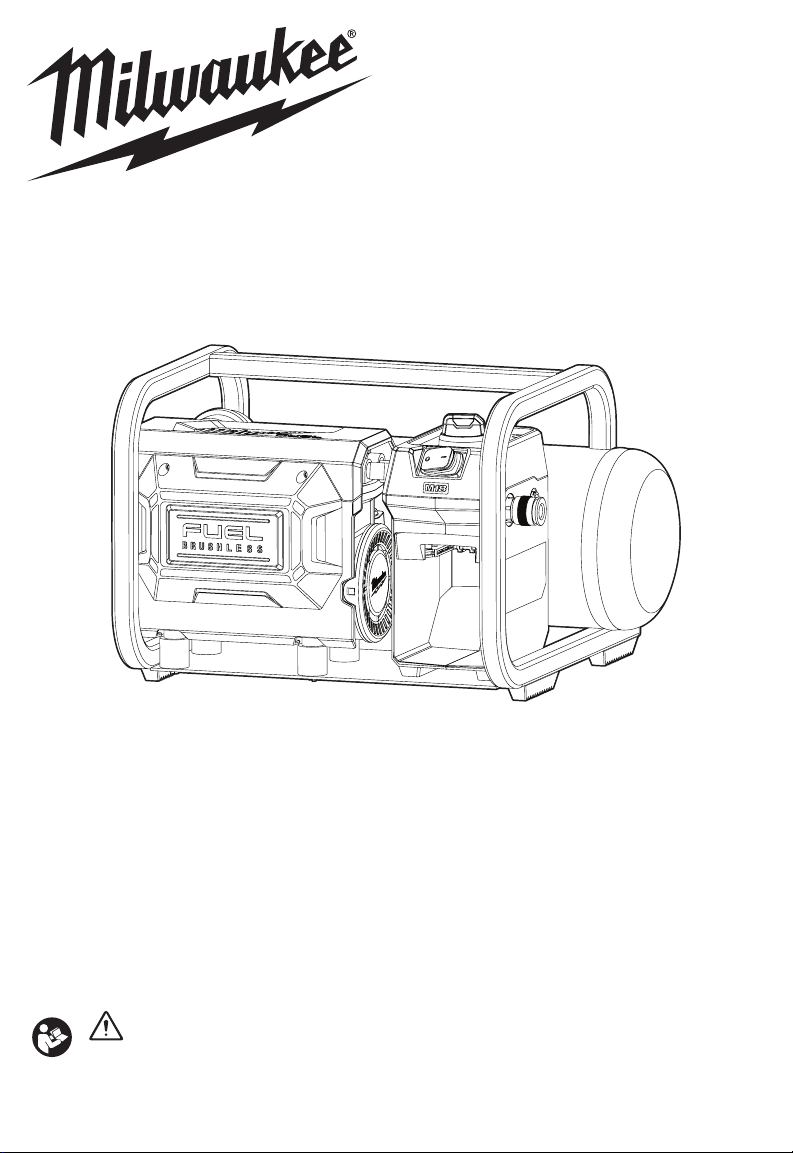

M18 FUEL™ AIR COMPRESSOR
WARNING
To reduce the risk of injury, user must read and understand operator's manual.

2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings, instruc-
-
•
•Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
•
tions provided with this power tool. Failure to
follow all instructions listed below may result in
Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
WORK AREA SAFETY
ELECTRICAL SAFETY
Do not operate power tools in explosive atmo-
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
PERSONAL SAFETY
•Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
reduce risk of electric shock.
•Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
•
•Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
A
moment of inattention while operating power tools
may result in serious personal injury.
•Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch
source and/or battery, picking up or carrying
the tool.
the switch or energising power tools that have the
switch on invites accidents.
POWER TOOL USE AND CARE
•Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
•Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
•
•If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
•Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
BATTERY TOOL USE AND CARE
manufacturer. A charger that is suitable for one
with another battery.
battery. Use of any other battery may create a risk
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
•Do not use the power tool if the switch does not
Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source
and/or remove the battery, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
•Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
•Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
If operating a power tool in a damp location is
unavoidable, use a residual current device
(RCD) protected supply. Use of a RCD reduces
the risk of electric shock.
Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

3
SERVICE
SPECIFIC SAFETY RULES FOR
AIR COMPRESSOR
WARNING
Risk of Fire or Explosion. Do not
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
•Never service damaged battery. Service of battery
should only be performed by the manufacturer or
authorised service providers.
stream at body.
WARNING
Risk of injury . Do not direct air
-
Do not smoke while spraying or spray where
far from spraying area as possible.
WARNING
doors.
CAUTION
Do not expose to rain. Store in-
CAUTION
Risk of Bursting. Do not adjust
•When battery is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that
can make a connection from one terminal to
another. Shorting the battery terminals together
•Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac-
cidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
•Follow all charging instructions and do not charge
the battery or tool outside the temperature range
Charging improperly
regulator to result in output pres-
sure greater than marked maximum pressure of
attachment. Do not use at pressure greater than
135 psi.
•Know your air compressor. Read operator’s manual
carefully. Learn its applications and limitations, as
product. Do not alter or modify the unit from the
original design or function. Misuse and improper
handling can cause injury.
•Always follow all safety rules recommended by
the manufacturer of air tools and accessories.
•Never direct a jet of compressed air toward
yourself, others, or animals. Dust and debris
can cause eye and lung injuries.
•Do not use compressed air for breathing as-
sistance.
•
•
•
•
Before making adjustments, servicing, trans-
porting, or storing: always turn OFF the air
compressor, remove the battery pack, release
all pressure, disconnect air hose and air tools,
allow unit to cool to the touch, and drain the tank.
Never adjust, service, transport, or store an air
tool with air connected. Unexpected starting and
possible serious personal injury could occur.
•Do not exceed the pressure rating of any com-
ponent in the system.
•
all manufacturer's instructions for the item being
•Check air hose and couplers for wear or damage
before each use. Ensure connections are secure.
Do not use if air leaks. Keep hose away from sharp
Do not pull or carry the air compressor by the hose.
Replace or repair all damaged parts before use.
•Make sure the hose is free of obstructions or
snags. Entangled or snarled hoses can cause loss
of balance or footing and may become damaged.
•Never attempt to block or plug the air outlet
during operation.
•Never leave the air compressor unattended with
the air hose attached.
WARNING
Air tanks are under high pressure.
•
•
Air powered tools may require more air con-
sumption than this air compressor is capable
of providing. Check the tool manual to avoid
damage to the tool or risk of personal injury.
WARNING
Keep face and other body parts
away from outlet when relieving pressure or drain-
ing the tank.
•
Follow proper procedures for relieving pressure and
draining the tank. Release all pressures within the
system slowly.
Drain tanks of moisture after each day’s use.When
storing, leave drain valve open to allow moisture to
completely drain out and help prevent corrosion on
the inside of tank.
•Inspect tank yearly for rust, pin holes, or other
imperfections that could cause it to become unsafe.
Never weld or drill holes in the air tank.
•
•
•Do not use a battery or tool that is damaged or
modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire,
explosion or risk of injury.
•Do not expose a battery or tool to fire or
excessive temperature. Exposure to fire or
temperature above 130°C (265°F) may cause
explosion.
Use a minimum of 7.5 m (25 ft) of
hose when connecting a spray
gun to the compressor.
Always wear proper eye protection marked to
comply with AS/NZS 1337.1.
To reduce the risk of injury,
when working in dusty
situations, wear appropriate respiratory
protection or use a dust extraction solution.
Avoid using in an environment that is dusty or
otherwise contaminated. Using the air
compressor in this type of environment may
cause damage to the unit.
Always use common sense and be cautious
when using tools. It is not possible to anticipate
every situation that could result in a dangerous
outcome. Do not use this tool if you do not
understand these operating instructions or you feel
the work is beyond your capability; contact
MILWAUKEE®Tool or a trained professional for
additional information or training.
Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE®service facility for a
replacement.

4

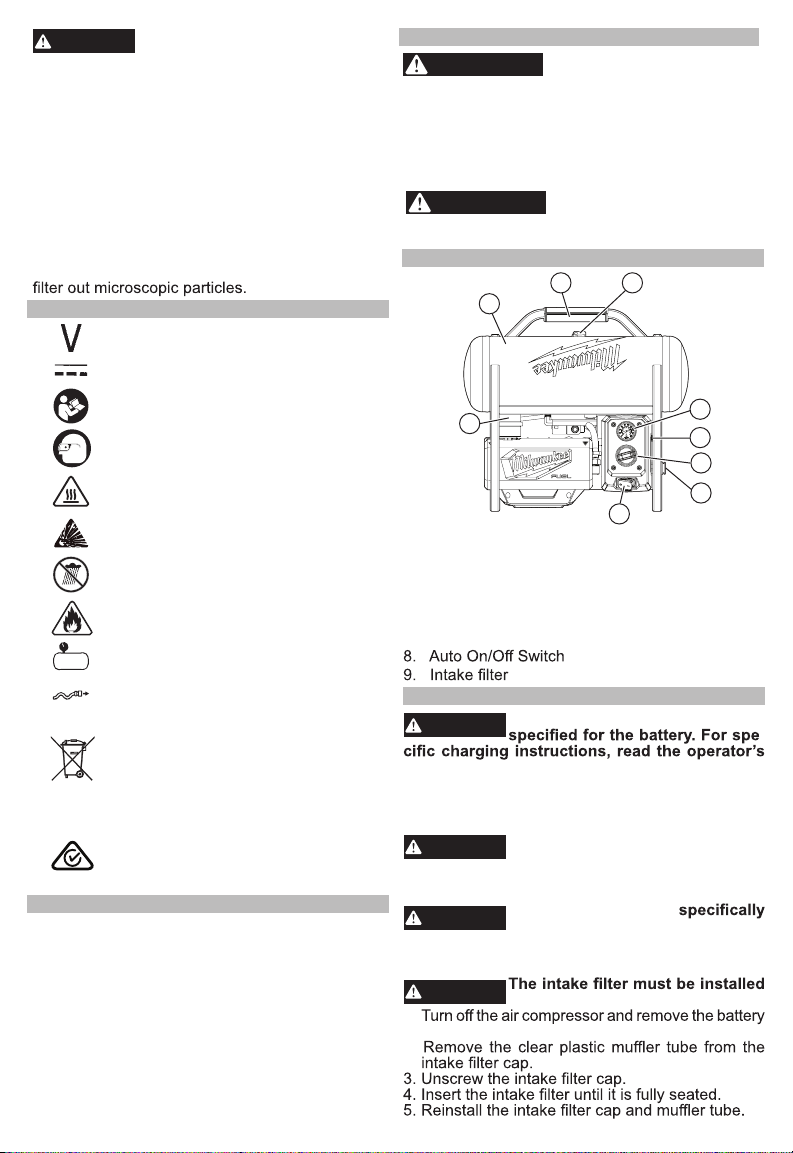

FUNCTIONAL DESCRIPTION
1. Tank
2. Carry handle
3. Drain valve
4. Tank pressure gauge
5. Release valve
6. Regulator knob
7. Quick-connect coupler
1
5
2 3
4
6
7
8
9
ASSEMBLY
-
WARNING
Recharge only with the charger
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery away from the tool.
changing or removing accessories.
WARNING
Always remove battery before
for optimal performance.
1.
WARNING
2.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
WARNING
reco
Only use
mmended
accessorie
for thi
s
s tool. Others
may be hazardous.
Installing the Intake Filter
pack.
WARNING
Some dust created by power sand-
ing, sawing, grinding, drilling, and
other construction activities contains chemicals
known to cause cancer, birth defects or other repro-
ductive harm. Some examples of these chemicals
are:
SYMBOLOGY
•lead from lead-based paint
•crystalline silica from bricks and cement and other
masonry products, and
•arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
Cat. No.................................................... M18 FAC
Volts........................................................... 18V DC
Volts
Direct Current
Read Operator's Manual
Wear Eye Protection
Hot Surface - To reduce the risk of
burns, do not touch
Risk of Bursting
Do not expose to rain
Risk of Fire or Explosion
Tank pressure
Outlet pressure
SPECIFICATIONS
Battery Type .................................................M18™
Recommended Ambient
Charger Type................................................M18™
Operating Temperature................... -17°C to 51°C
Air Tank Capacity........................................... 7.6 L
Air Pressure........................................ 135 psi max.
90 psi @ 34 l/min
Air Delivery .............................40 psi @ 48.14 l/min
Noise level................................................ 68 dB(A)
Quick connect type........................................... 1/4"
Do not dispose of electric tools
together with household waste
material. Electric tools and electronic
equipment that have reached the end
of their life must be collected
separately and returned to an
environmentally compatible recycling
facility.
Regulatory Compliance Mark (RCM).
This product meets applicable
regulatory requirements.
To reduce the risk of fire,
ADDITIONAL BATTERY SAFETY RULES
WAR NING
personal injury , and product damage due to a
short circuit, never immerse your tool, battery
pack or charger in fluid or allow a fluid to flow
inside them. Corrosive or conductive fluids,
such as seawater , certain industrial chemicals,
and bleach or bleach-containing products, etc.,
can cause a short circuit.
WAR NING
Do not charge
non-rechargeable batteries.

5
OPERATION
WARNING
Using the Air Compressor
WARNING
Risk of Bursting. Do not adjust
1. Connect the hose and accessories to the air com-
pressor.
2. Install the battery pack.
switch to the AUTO ON (I) position.
When in the AUTO ON (I) position, the air com-
pressor will automatically turn back on when the
designated tank air pressure drops below the
OFF (O) position. Release pres-
sure from the tank before
making adjustments,
servicing, transporting, or storing.
regulator to result in output pres-
sure greater than marked maximum pressure of
attachment. Do not use at pressure greater than
135 psi.
Air powered tools may require more air consump-
tion than this air compressor is capable of provid-
ing. Check the tool manual to avoid damage to
the tool or risk of personal injury.
Releasing Tank Pressure
WARNING
Air tanks are under high pressure.
Keep face and other body parts
Connecting an Air Hose
(Hose Not Provided)
pack.
2. Pull the ring on the release valve to release air
until tank pressure gauge reads less than 20 psi.
3. Release the ring.
WARNING
Never exceed the air hose or air
1. Run the daily check of the release valve (see
"Checking the Release Valve").
-
tery pack.
3. Attach a properly rated air hose to the air compres-
sor (see "Connecting an Air Hose").
accessory to the hose.
5. Install the battery pack.
AUTO ON
(I) position.
7. Set the air pressure using regulator knob. Turn the
knob clockwise to increase or counterclockwise to
decrease the air pressure.
8. Following all safety precautions in this manual
and the manufacturer’s instructions in the air tool
manual, begin using the air tool or accessory.
NOTE
electrical overload. To reset the internal overload
unit to cool. Remove and then reinstall the battery
before resuming operation.
OFF (O) position, remove the battery, release all
pressure, disconnect air hose and air tools, allow
unit to cool to the touch, and drain the tank. Never
leave the unit on and/or running unattended.
tool's pressure rating as recom-
mended by the manufacturer. When using this
pack.
2. Rotate pressure regulator knob fully in the counter-
clockwise direction so that the outlet pressure is
at zero (0) psi.
3.
Disconnecting an Air Hose or Air Tool
WARNING
pressor and
Always turn OFF
ensure the regulator
(O) the air com-
pressure gauge reads zero before changing air
tools or disconnecting the hose from the air
outlet. Failure to do so could result in possible
serious personal injury.
psi.
2. To remove the air hose from the air compressor,
grasp the release end of the hose securely and
pull back on the release sleeve on the 1/4" quick
away from the coupler.
3.
•Operating light-to-medium duty air-powered tools
•
APPLICATIONS
away from outlet when relieving pressure.
Always wear proper eye protection marked to
comply with AS/NZS 1337.1.
WARNING
Just because the air compressor
is not running does not mean there is no
pressure in the tank.
WARNING
Just because the air compressor
is not running does not mean there is no
pressure in the tank.
Air compressors are utilised in a variety of air
system applications. Match hoses, connectors, air
tools, and accessories to the capabilities of the air
compressor. You may use this product for purposes
listed below:
Operating air accessories such as air nozzles and
automotive tyre chucks
To reduce the risk of injury,
always wear proper eye
protection marked to comply with AS/NZS
1337.1.
When working in dusty situations, wear
appropriate respiratory protection or use a dust
extraction solution.
Attach a properly rated air hose with quick
connect air fitting to 1/4" quick coupler on the air
compressor. Push the hose adaptor onto the
coupler until the sleeve springs forward to lock it
in place.
To remove an air tool from the air hose, do so
according to the manufacturer's instructions.

6
Draining the Tank
WARNING
Air tanks are under high pressure.
Keep face and other body parts
To help prevent tank corrosion and keep moisture
out of the air used, the air tank of the compressor
should be drained daily.
To drain:
Checking the Release Valve
DANGER
The release valve should be checked before each
day of use by pulling the ring by hand.
pack.
2. Pull the ring on the release valve to release air
until tank pressure gauge reads less than 20 psi.
3. Release the ring.
4. Turn the drain valve 90° counterclockwise to the
ON (open) position.
5. Tilt tank to drain moisture from tank into a suitable
container. NOTE: Condensate is a polluting mate-
rial and should be disposed of in compliance with
local regulations.
6. If a drain valve is clogged, release all air pressure,
remove and clean valve, then reinstall.
7. When storing, leave drain valve open to allow
moisture to completely drain out and help prevent
corrosion on the inside of tank.
8. Turn the drain valve 90° clockwise to the OFF
(closed) position.
MAINTENANCE
WARNING
1. Install the battery pack.
2.
3. Turn the air compressor OFF (O).
4.
5.
WARNING
To reduce the risk of personal in-
WARNING
Use only recommended accesso-
ries. Others may be hazardous.
Maintaining Tool
jury and damage, never immerse
your tool, battery or charger in liquid or allow a
Cleaning
Storage
A lways turn OFF the air compressor, remove the
battery pack, release all pressure, disconnect air
hose and air tools, allow unit to cool to the touch,
and drain the tankbefore storing. Leave drain valve
open to allow moisture to completely drain out and
help prevent corrosion on the inside of tank.
Repairs
For repairs, return the tool, battery and charger to
the nearest authorised service centre.
ACCESSORIES
away from outlet when relieving pressure.
Always wear proper eye protection marked to
comply with AS/NZS 1337.1.
Do not tamper with the release
valve. The release valve will
automatically release air if the air tank pressure
exceeds the cut-out pressure. The release valve
must work properly when operating the air
compressor. If the release valve is stuck open,
or does not open when the ring is pulled, do not
use the product and contact a MILWAUKEE®
service facility for repairs.
If air continues to escape once the release valve
is closed, contact a MILWAUKEE®service
facility for repairs.
Pull the ring on the release valve to release air
pressure for three to five seconds. Release the
ring. The release valve must reset and hold
pressure before all compressed air is exhausted
from the tank/pressure vessel.
Turn the air compressor to AUTO ON (I) and
allow the tank to fill. The compressor will shut off
when the pressure reaches the cut-out pressure.
To reduce the risk of injury,
always unplug the charger and
remove the battery from the charger or tool
before performing any maintenance. Never
disassemble the tool, battery or charger.
Contact a MILWAUKEE®service facility for ALL
repairs.
Always turn OFF (O) the air compressor, remove
the battery pack, release all pressure,
disconnect air hose and air tools, allow unit to
cool to the touch, and drain the tank before
cleaning or making repairs on the air
compressor.
Keep your tool, battery and charger in good repair
by adopting a regular maintenance program.
Inspect your tool for issues such as undue noise,
misalignment or binding of moving parts, breakage
of parts, or any other condition that may affect the
tool operation. Return the tool, battery, and charger
to a MILWAUKEE®service facility for repair. After
six months to one year, depending on use, return
the tool, battery and charger to a MILWAUKEE®
service facility for inspection.
If the tool does not start or operate at full power with
a fully charged battery, clean the contacts on the
battery. If the tool still does not work properly, return
the tool, charger and battery, to a MILWAUKEE®
service facility for repairs.
For a complete listing of accessories, go online to
www.milwaukeetool.com.au/
www.milwaukeetool.co.nz or contact a distributor.
Clean dust and debris from vents. Keep handles
clean, dry and free of oil or grease. Use only mild
soap and a damp cloth to clean, since certain
cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents
around tools.

WARRANTY - AUSTRALIA and NEW ZEALAND
SERVICE - AUSTRALIA and NEW ZEALAND
21 Kelletts Road, Rowville, VIC 3178
Please refer to Australian and New Zealand warranty supplied with tool. This warranty applies only to
product sold in Australia and New Zealand.
Milwaukee Electric Tool Corporation
13135 West Lisbon Road, Brookfield, Wisconsin U.S.A. 53005
Milwaukee Tool (Australia)
Melbourne, Australia
Milwaukee Tool (New Zealand)
274 Church Street, Penrose,
Auckland, 1061, New Zealand
MILWAUKEE®prides itself in producing a premium quality product that is Nothing But Heavy DutyTM.
Your satisfaction with our products is very important to us! If you encounter any problems with the
operation of this tool, please contact your authorised MILWAUKEE®dealer.
For a list of MILWAUKEE®dealers, guarantee or service agents please contact MILWAUKEE®
Customer Service or visit our website.
(Australia Toll Free Telephone Number 1300 645 928)
(New Zealand Toll Free Telephone Number 0800 645 928)
or visit milwaukeetool.com.au/milwaukeetool.co.nz.
DESIGNED BY MILWAUKEE ELECTRIC TOOL CORP.
PROFESSIONALLY MADE IN MEXICO
PRINTED IN MEXICO
All trade marks are owned by Techtronic Cordless GP unless otherwise stated.
© 2020 Milwaukee Electric Tool Corporation.
