Milwaukee MW102 User manual

USER MANUAL
MW102
PRO pH/Temperature
Meter
milwaukeeinstruments.com (USA & CAN)
milwaukeeinst.com
OPTIONAL ACCESSORIES
MA9004 pH 4.01 buer solution, 230 mL bottle
MA9007 pH 7.01 buer solution, 230 mL bottle
MA9010 pH10.01 buer solution, 230 mL bottle
MA9015
Electrode storage solution,
230 mL bottle
MA9016 General cleaning solution,
230 mL bottle
M10000B Rinse solution, 20 mL sachet (25 pcs.)
SE-220
pH electrode with BNC connector and
1 m cable
MA830R Temperature probe
SPECIFICATIONS
RANGE -2.00 to 16.00 pH
-5.0 to 105.0°C
RESOLUTION 0.01 pH / 0.1°C
ACCURACY (@25°C) ±0.02 pH / ±0.5°C
TYPICAL EMC DEV. ±0.02 pH / ±0.5°C
TEMPERATURE
COMPENSATION
Automatic,
-5.0 to 105.0°C
CALIBRATION Automatic, at 1 or 2 points
pH ELECTRODE SE-220 (included)
TEMPERATURE
PROBE MA830R (included)
ENVIRONMENT 0 to 50°C; RH 95% max.
BATTERY TYPE 1 x 9V alkaline (included)
BATTERY LIFE approx. 750 hours of use
AUTO-OFF after 8 minutes of non-use
DIMENSIONS 143 x 80 x 32 mm
WEIGHT 220 g (with battery)
CERTIFICATION
Milwaukee Instruments conform to the
CEEuropean Directives.
Disposal of Electrical & Electronic
Equipment. Do not treat this product as
household waste. Hand it over to the
appropriate collection point for the recycling of
electrical and electronic equipment.
Disposal of waste batteries. This product
contains batteries. Do not dispose of them
with other household waste. Hand them
over to the appropriate collection point for recycling.
Please note: proper product and battery disposal
prevents potential negative consequences for human
health and the environment. For detailed information,
contact your local household waste disposal service
or go to www.milwaukeeinstruments.com (USA &
CAN) or www.milwaukeeinst.com.
RECOMMENDATION
Before using this product, make sure it is entirely
suitable for your specific application and for the
environment in which it is used. Any modification
introduced by the user to the supplied equipment
may compromise the meter’s performance. For your
and the meter’s safety do not use or store the meter in
hazardous environment. To avoid damage or burn, do
not perform any measurement in microwave ovens.
WARRANTY
This instrument is warranted against defects in
materials and manufacturing for a period of 2 years
from the date of purchase. Probe is warranted for
6 months. This warranty is limited to repair or free
of charge replacement if the instrument cannot be
repaired. Damage due to accidents, misuse, tampering
or lack of prescribed maintenance is not covered by
warranty. If service is required, contact your local
Milwaukee Instruments Technical Service. If the repair
is not covered by the warranty, you will be notified of the
charges incurred. When shipping any meter, make sure
it is properly packaged for complete protection.
Milwaukee Instruments reserves the right to make
improvements in design, construction and appearance
of its products without advance notice.
SATISFACTION
GUARANTEED
ISTMW102 07/20

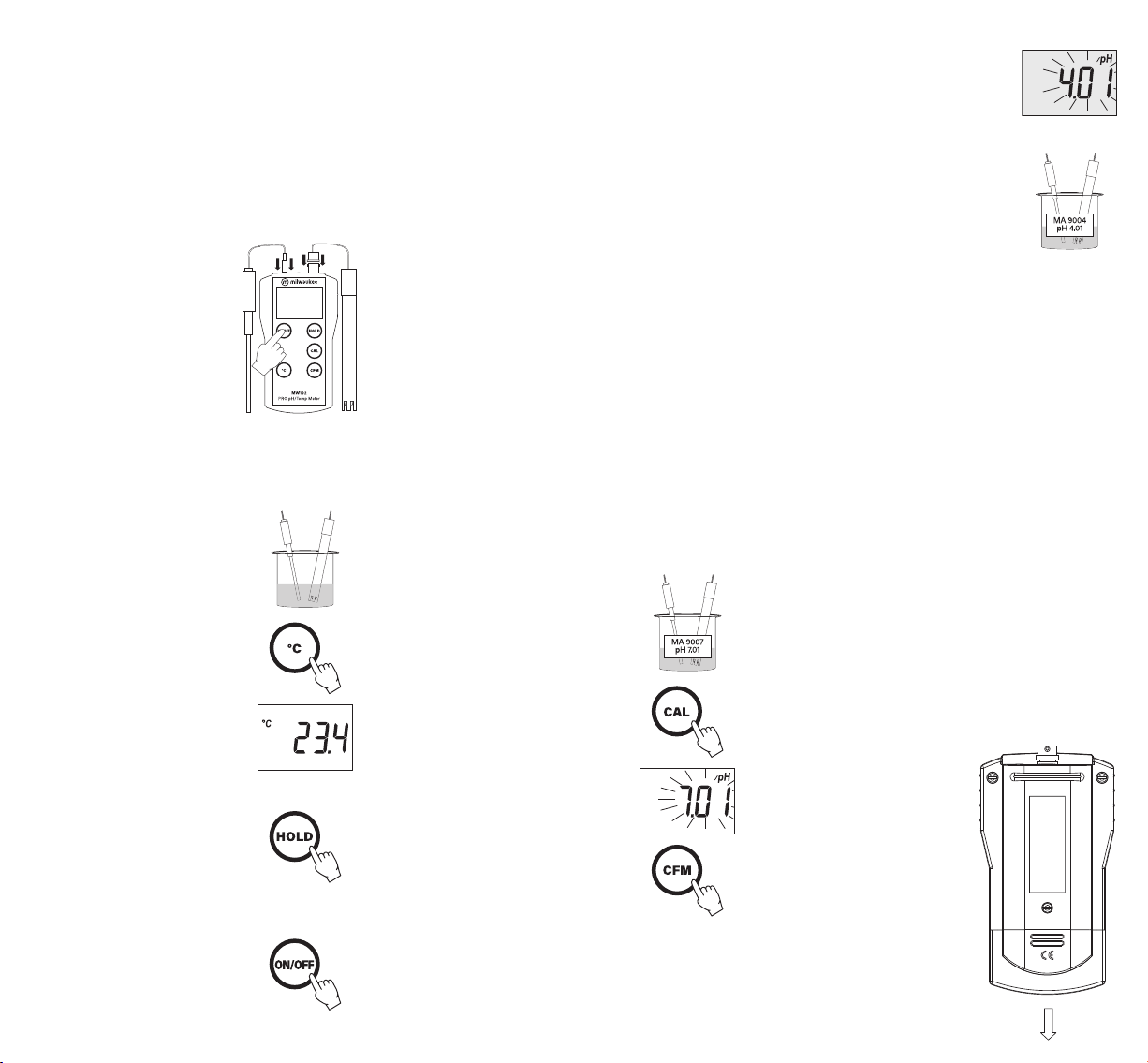

OPERATION
yThe meter is supplied complete with a 9V battery.
Slide o the battery compartment cover on the back
of the meter and install the battery into battery clip
connector while observing polarity.
yAlways remove the electrode protective cap before
taking any measurement. If the electrode has been
left dry, soak the tip (bottom 2.5 cm) in rinse solution
(M10000B) for a few minutes to reactivate it.
yConnect the pH electrode and
the temperature probe to the
sockets on the meter’s top.
The temperature probe can
be used independently to take
temperature measurements,
orit can be used in conjunction
with the pH electrode to utilize
the meter’s ATC capability.
yTurn the instrument on by pressing the ON/OFF key.
yBefore taking any measurements, make sure that the
meter has already been calibrated.
yImmerse the tip (2.5 cm) of the
pHelectrode into the sample and
stir gently.
yThe pH measurement is ready when
the hourglass symbol turns o.
yTo display the measured temper-
ature, press and hold the °Ckey.
When the key is released,
the display will return to the
pHreading.
yThe HOLD function is activated
by pressing the HOLD key. The
measured value is frozen on the
display and the “HOLD” tag lights
up. Release “HOLD” by pressing
HOLD key again.
yAfter completing measurements,
switch the meter o and store
the electrode with a few drops
of storage solution in the
protective cap.
Error message on display:
yBlinking full scale value: reading is out of range;
y“Eb”: battery low voltage indication;
y“Ec”: wrong buer solution;
y“Ec” together with “ °C ” blinking: the temperature of
the calibration is out of accepted range.
y“Clr”: the calibration data have been lost and
recalibration is needed.
CALIBRATION PROCEDURE
A) Preparation:
Select two pH calibration buers: pH 7.01 and a second
to bracket your measurement range.
1. pH7.01 (MA9007)
2. pH4.01 (MA9004) for measuring in the acid range
(pH lower than 7) or pH 10.01 (MA9010) for measuring
in the alkaline range (pH higher than 7).
Use two beakers for each reference solution.
One beaker for rinsing the electrode, the other for
calibration. This way contamination between solutions
during calibration is minimized.
B) Procedure:
Oset calibration
yRemove the electrode protective
cap and rinse the tip with some
pH7.01 solution, then immerse the
electrode tip and the temperature
probe into a pH7.01 buer solution.
yPress the CAL key to enter the
Calibration mode.
yThe display flashes “pH 7.01” and
the hourglass lights up.
yWait till the hourglass symbol
on the display turns o and the
“pH”tag stops blinking, then press
the CFM key to confirm the oset
calibration.
Note: Pressing the CAL key again will change the
buer value, allowing a single point calibration at
pH4.01 or pH10.01.
Slope calibration
yAfter completing the pH 7.01
calibration the next buer pH 4.01
will flash on the display.
yPress CAL key to display pH 10.01 if desired.
yRinse the pH electrode and the
temperature probe in the rinse
buer beaker, then immerse them
into the second buer beaker.
yWait till the hourglass symbol on the LCD turns
o, then press the CFM key to confirm the slope
calibration.
Notes: To exit the calibration mode, turn the meter o
by pressing the ON/OFF key.
To perform a single point calibration (oset) at
pH7.01, press the ON/OFF key when the second buer
is displayed.
BATTERY REPLACEMENT
When the batteries become weak, the battery symbol
on the LCD starts blinking to advise that only a few
hours of working time is remaining.
The meter is also provided with BEPS (Battery Error
Prevention System), which avoids any erroneous
reading due to low battery level. The instrument will
display “Eb” for a while and then turn o.
Prompt battery replacement is required.
Battery replacement must only take place in a non-
hazardous area using a 9V alkaline battery.
Turn the meter o, slide the
battery compartment cover
located at the rear of the
meter o and replace the
9V battery with a new one.
Make sure the battery
contacts are fully engaged
in the connector, seat the
battery in its compartment
and replace the cover .
