M12™ RIVET TOOL
OPERATOR'S MANUAL
WARNING To reduce the risk of injury, user must read and understand operator's manual.
Cat. No.

2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings, instruc-
tions, illustrations and specica-
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
WORK AREA SAFETY
•Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
•Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
•If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of an GFCI reduces
the risk of electric shock.
PERSONAL SAFETY
•Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch
is in the o󰀨-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
•Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
•If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
•Do not use the power tool if the switch does not
turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
•Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If damaged,
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
• Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.

3
• When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause burns or a re.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac-
cidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
• Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 265°F (130°C) may cause explosion.
•Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
SERVICE
• Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPECIFIC SAFETY RULES FOR
RIVET TOOL
• Hold power tool by insulated gripping surfaces
when performing an operation where the fastener
may contact hidden wiring. Fasteners contacting
"live" wire may make exposed metal parts of the
power tool "live" and could dive the operator an
electric shock.
•Always wear eye protection, hearing protection,
and protective clothing and footwear. Wear heavy,
long pants, long sleeves, boots, and gloves. Contain
long hair. Do not wear loose clothing or jewelry. Do
not wear short pants, sandals, or go barefoot.
•
Always use mandrel box. Spent mandrels can
be ejected from the tool, causing injury.
•Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
•
WARNING
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•lead from lead-based paint
•crystalline silica from bricks and cement and other
masonry products, and
•arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
lter out microscopic particles.
SYMBOLOGY
Volts
Direct Current
Read operator's manual
Always wear eye protection
CUS UL Listing for Canada and U.S.
SPECIFICATIONS
Cat. No...................................................... 2550-20
Volts.............................................................. 12 DC
Battery Type .................................................M12™
Charger Type................................................M12™
Blind Rivet Sizes................ 3/32", 1/8", 5/32", 3/16"
Recommended Ambient
Operating Temperature ......................0°F to 125°F
FUNCTIONAL DESCRIPTION
1. Nose piece
2. Nose housing
3. Trigger
4. LED
5. Wrench
6. Nose piece storage
7. Belt hook
8. Handle
9. Mandrel box
7
8
96
345
2
1

4

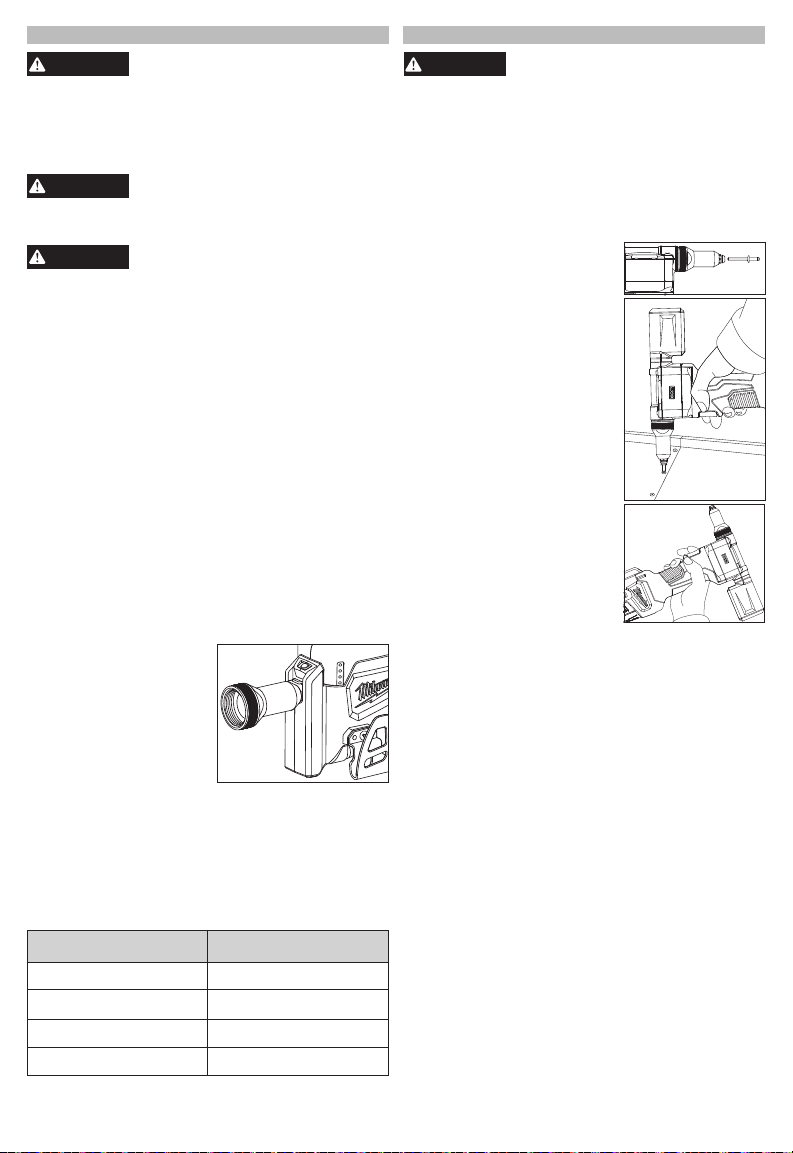

OPERATION
WARNING
To reduce the risk of injury, always
wear safety goggles or glasses
with side shields.
Always remove battery pack before changing
or removing accessories. Only use accessories
specically recommended for this tool. Others
may be hazardous.
Always hold tool securely and anticipate a sud-
den reaction.
Using the Rivet Tool
1. Prepare the workpiece. If necessary, drill a pilot
hole.
2. Place the blind rivet mandrel
into the nose piece.
3. Insert the rivet end into the
workpiece. Hold the tool
securely and pull and hold
the trigger until the rivet is
fully set and the motor stops.
Release the trigger. The tool
will reset.
NOTE: Releasing the trigger
before the rivet is fully set will
cause the tool to return to its
starting position.
4. Tip the tool back to clear the
mandrel. It will slide into the
mandrel box.
5. Empty the mandrel box after
setting 100-150 rivets, de-
pending on size.
ASSEMBLY
WARNING
Recharge only with the charger
specied for the battery. For spe-
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
WARNING
Always remove battery pack before
changing or removing accessories.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
WARNING
Only use accessories specically
recommended for this tool. Others
may be hazardous.
Always use mandrel box. Spent mandrels can be
ejected from the tool, causing injury.
Installing/Emptying Mandrel Box
Once the rivet is set, the mandrel collects in the box.
Empty the mandrel box often to avoid jamming the tool.
WARNING! Never use the tool without the mandrel
box installed. Loose mandrels could cause a hazard.
1. To install the mandrel box, line up the box with
the detents in the tool. Slide the box onto the tool,
and rotate to lock in place.
2. To empty the mandrel box, rotate the box and pull
away from the tool. Empty the box and reinstall
before use.
Installing the Nose Piece
The rivet tool comes with 4 nose pieces for 3/32",
1/8", 5/32", and 3/16" blind rivet sizes.
1. Remove battery pack.
2. Remove the nose housing from the tool (recom-
mended). NOTE: Due to the spring, it can be dif-
cult to install the nose piece into the nose housing
without rst removing the nose housing.
3. Remove the nose piece
from the nose housing.
For ease of use, the
wrench does not need to
be removed from the
tool for use. Insert the
nose housing into the
onboard wrench storage
and turn counterclock-
wise.
4. Select the correct nose piece for the rivet to be
installed. To remove the nose piece from the
on-tool storage, use your thumb to pull down on
needed nose piece.
5. Insert the new nose piece into the nose housing.
Use the onboard wrench to hand-tighten securely.
6. Screw the nose housing onto the tool and hand-
tighten securely.
Nose Piece Ring Color
3/32" (2.4 mm) Green
1/8" (3.2 mm) Red
5/32" (4.0 mm) Brown
3/16" (4.8 mm) Black

MAINTENANCE
WARNING
To reduce the risk of injury, always
unplug the charger and remove the
battery pack from the charger or tool before
performing any maintenance. Never disassemble
the tool, battery pack or charger. Contact a
MILWAUKEE service facility for ALL repairs.
Maintaining Tool
Keep your tool, battery pack and charger in good
repair by adopting a regular maintenance program.
Inspect your tool for issues such as undue noise,
misalignment or binding of moving parts, breakage of
parts, or any other condition that may a󰀨ect the tool
operation. Return the tool, battery pack, and charger
to a MILWAUKEE service facility for repair. After six
months to one year, depending on use, return the
tool, battery pack and charger to a MILWAUKEE
service facility for inspection.
If the tool does not start or operate at full power with
a fully charged battery pack, clean the contacts on
the battery pack. If the tool still does not work prop-
erly, return the tool, charger and battery pack, to a
MILWAUKEE service facility for repairs.
Cleaning/Lubricating
Clean and lubricate the nose of the tool after heavy
use (5000 rivets) or if tool becomes contaminated
with dust and debris.
Nose
housing
Nose
piece
Guide
Jaws
Pusher
tube
Spring
1. Remove battery pack.
2. Remove the nose housing from the
tool and the nose piece from the
housing.
3. Remove the guide (with jaws), push-
er tube, and spring from the tool.
4. Clean all pieces with a dry cloth and
inspect for damage. If damaged,
return to a MILWAUKEE service
facility for repairs.
5. Apply a small amount of 51-08-4290
oil to the pieces and reassemble, as
shown. Ensure the jaws are properly
seated in the guide.
WARNING
To reduce the risk of
personal injury and
damage, never immerse your tool,
battery pack or charger in liquid or
allow a liquid to ow inside them.
Cleaning
Clean dust and debris from vents. Keep
handles clean, dry and free of oil or
grease. Use only mild soap and a damp
cloth to clean, since certain cleaning agents and
solvents are harmful to plastics and other insulated
parts. Some of these include gasoline, turpentine,
lacquer thinner, paint thinner, chlorinated cleaning
solvents, ammonia and household detergents con-
taining ammonia. Never use ammable or combus-
tible solvents around tools.
Repairs
For repairs, return the tool, battery pack and charger
to the nearest service center.
ACCESSORIES
WARNING
Use only recommended accesso-
ries. Others may be hazardous.
Rely on premium power tools by Milwaukee if you’re looking for quality and efficiency.
