Milwaukee M12 BPRT User manual

Original instructions
M12 BPRT

II
I
Algupäranekasutusjuhend
Оригинальное руководство
по эксплуатации
Оригинално ръковод ство за
iunide folosire originale
Оригинален прирачник за
Оригінал інструкц ії з

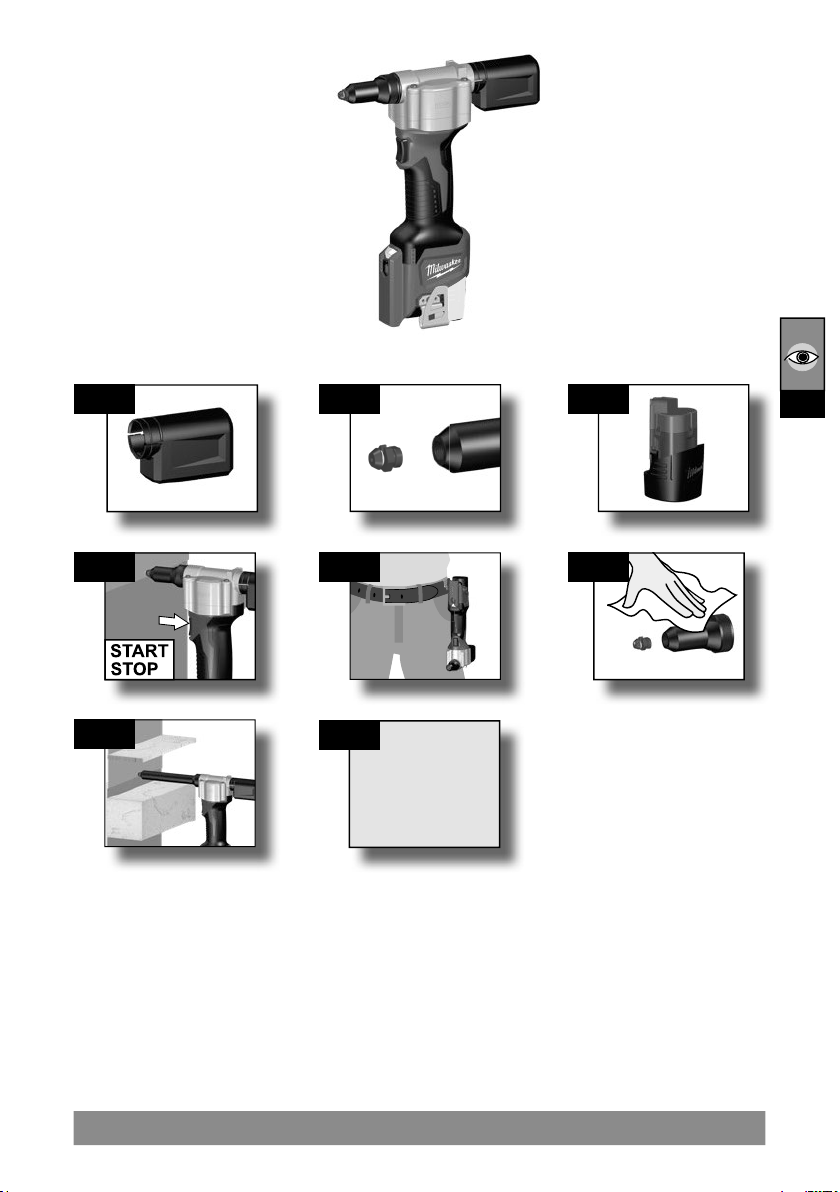

II
VII
IV VI
IIII
V
Technical Data,Safety
Instructions, Specied
Conditions of Use,
Declaration of Conformity,
Batteries, Maintenance,
Symbols
Please read and save
these instructions!
VIII

2

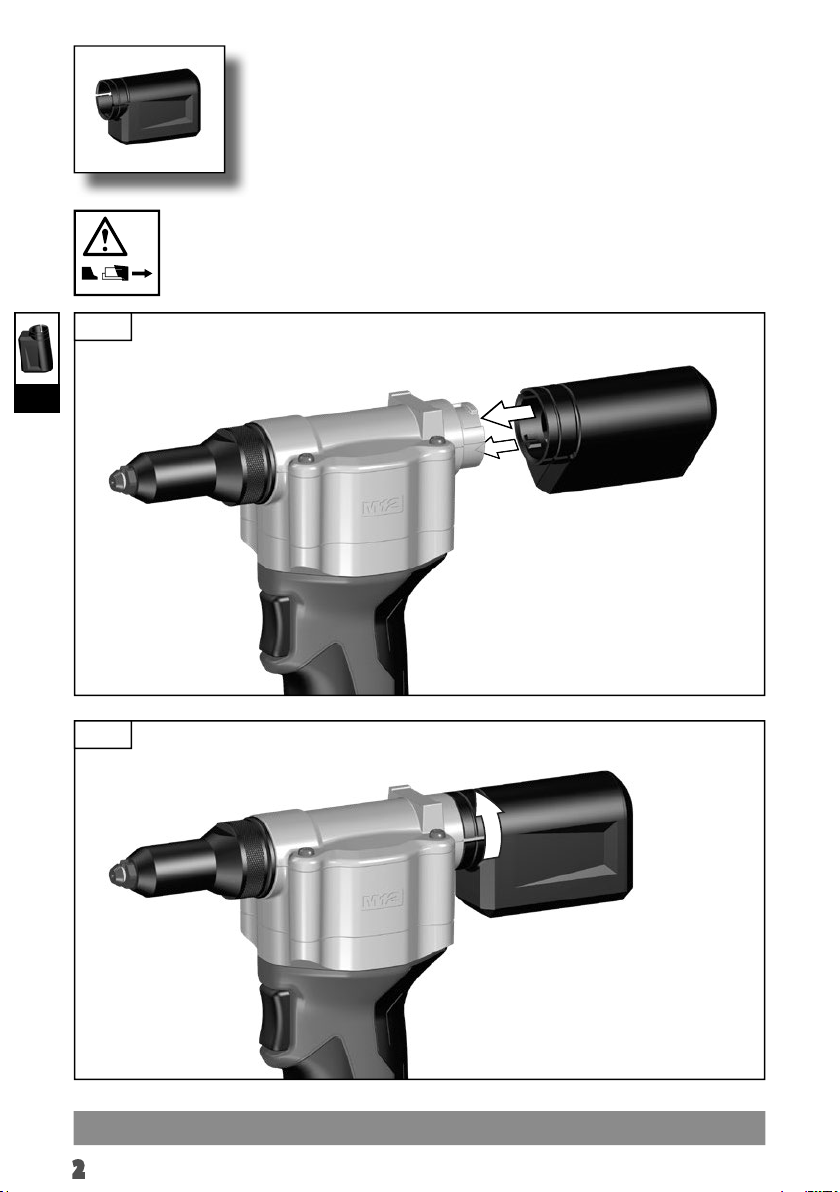

I
1.
2.

3
II
4.
2.1.
3.
Ø 3,2 mm
Ø 2,4 mm
Ø 4,0 mm
Ø 4,8 mm

4
II
8.
7.
5. 6.

5
III
1. 2.
1. 2.
~ 7 sec

6
III
100 %
50 %
75 %
25 %
2-3 sec

7
2.1.
3.
Auto-Stop
IV
Insulated gripping surface
Start

8
IV
4.
5.
100-150

9
V
AB
1. 2.

10
V
5000 x Start
1.
2.
3.
3x

11
VII
Accessory

12
VIII
English
TECHNICAL DATA
RIVET TOOL
M12 BPRT
Production code 4670 73 02...
... 000001-999999
Battery voltage 12 V
Jaw diameter max. 4,8 mm
Tool stroke length 20,3 mm
Pull force 9000 N
Rivet size Ø
Black
Brown
Red
Green
4,8 mm
4,0 mm
3,2 mm
2,4 mm
Rivet material Aluminium
Copper
Steel
Stainless steel
Weight according EPTA-Procedure 01/2014
(Li-Ion 2,0 Ah) 2,1 kg
Recommended Ambient Operating
Temperature -18°C ... +50°C
Recommended battery types M12B...
Recommended charger C12C
M12C4
M12-18 ...
Noise information
Measured values determined according to EN 62841. Typically, the
A-weighted noise levels of the tool are:
Sound pressure level (Uncertainty K=3dB(A)) 53,1 dB(A)
Sound power level (Uncertainty K=3dB(A)) 64,1 dB(A)
Wear ear protectors!
Vibration information
Vibration total values (triaxial vector sum) determined according
to EN 62841
Vibration emission valueah0,1 m/s2
Uncertainty K= 1,5 m/s2
WARNING!
The vibration emission level given in this information sheet has been
measured in accordance with a standardised test given in EN 62841
and may be used to compare one tool with another. It may be used
for a preliminary assessment of exposure.
The declared vibration emission level represents the main
applications of the tool. However if the tool is used for dierent
applications, with dierent accessories or poorly maintained, the
vibration emission may dier.This may signicantly increase the
exposure level over the total working period.
An estimation of the level of exposure to vibration should also take
into account the times when the tool is switched o or when it is
running but not actually doing the job.This may signicantly reduce
the exposure level over the total working period.
Identify additional safety measures to protect the operator from
the eects of vibration such as: maintain the tool and the acces-
sories, keep the hands warm, organisation of work patterns.
WARNING Read all safety warnings, instructions,
illustrations and specications provided with this power
tool. Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
RIVET TOOL SAFETY WARNINGS
Hold the power tool by insulated gripping surfaces only,
when performing an operation where the cutting accessory
may contact hidden wiring. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
Use protective equipment. The use of protective clothing is
recommended, such as dust mask, protective gloves, sturdy non-
slip footwear, helmet and ear defenders.
Have damage repared immediately by an authorised workshop.
Remove the battery pack before starting any work on the
appliance.
To avoid injury and damage, never immerse the tool, removable
battery or charger in liquid or allow liquid to penetrate them.
Use only System M12 chargers for charging System M12 battery
packs. Do not use battery packs from other systems.
Never break open battery packs and chargers and store only in dry
rooms. Keep dry at all times.
To reduce the risk of re, personal injury, and product damage due
to a short circuit, never immerse your tool, battery pack or charger
in uid or al-low a uid to ow inside them. Corrosive or conductive
uids, such as seawater, certain industrial chemicals, and bleach or
bleach containing products, etc., Can cause a short circuit.
SPECIFIED CONDITIONS OF USE
This blind riveting power tool is designed for professional blind
rivet setting applications.
RESIDUAL RISK
In spite of the application of the relevant safety regulations and the
implementation of safety devices, certain residual risks cannot be
avoided. These are:
• Impairment of hearing.
• Risk of personal injury due ying particles
MAINTENANCE
Remove the battery pack before starting any work on the
appliance.
To avoid injury and damage, never immerse the tool, removable
battery or charger in liquid or allow liquid to penetrate them.
The ventilation slots of the machine must be kept clear at all times.
Service and repair work may only be carried out by authorised
specialist workshops.
Use only Milwaukee accessories and Milwaukee spare parts. Should
components need to be replaced which have not been described,
please contact one of our Milwaukee service agents (see our list of
guarantee/service addresses).
If needed, an exploded view of the tool can be ordered. Please
state the Article No. as well as the machine type printed on the
label and order the drawing at your local service agents or directly
at: Techtronic Industries GmbH, Max-Eyth-Straße10, 71364Win-
nenden, Germany.
BATTERIES
Temperatures in excess of 50°C (122°F) reduce the performance of
the battery pack. Avoid extended exposure to heat or sunshine (risk
of overheating).
The contacts of chargers and battery packs must be kept clean.

13
VIII
English
For an optimum life-time, the battery packs have to be fully char-
ged, after use. Battery packs which have not been used for some
time should be recharged before use.
To obtain the longest possible battery life remove the battery pack
from the charger once it is fully charged.
For battery pack storage longer than 30 days:, Store the battery
pack where the temperature is below 27°C and away from
moisture, Store the battery packs in a 30% - 50% charged condi-
tion, Every six months of storage, charge the pack as normal.
Do not dispose of used battery packs in the household refuse or by
burning them. Milwaukee Distributors oer to retrieve old batteries
to protect our environment.
Do not store the battery pack together with metal objects (short
circuit risk).
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legisla-
tion requirements.
Transportation of those batteries has to be done in accordance with
local, national and international provisions and regulations.
The user can transport the batteries by road without further
requirements.
Commercial transport of Lithium-Ion batteries by third parties is
subject to Dangerous Goods regulations. Transport preparation and
transport are exclusively to be carried out by appropriately trained
persons and the process has to be accompanied by corresponding
experts.
When transporting batteries:
Ensure that battery contact terminals are protected and insulated
to prevent short circuit. Ensure that battery pack is secured against
movement within packaging. Do not transport batteries that are
cracked or leak. Check with forwarding company for further advice
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product described
under “Technical Data” fullls all the relevant provisions of the
directives
2011/65/EU RoHS
2006/42/EC
2014/30/EU
and the following harmonized standards have been used.
EN 62841-1:2015
EN 55014-1:2017+A11:2020
EN 55014-2:2015
EN IEC 63000:2018
Winnenden, 2020-11-10
Alexander Krug / Managing Director
Authorized to compile the technical le
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
GB-DECLARATION OF CONFORMITY
We declare as the manufacturer under our sole responsibility that
the product described under „Technical Data“ fullls all the relevant
provisions of the following Regulations
S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended),
S.I. 2016/1091 (as amended) and that the following designated
standards have been used:
BS EN 62841-1:2015
BS EN 55014-1:2017+A11:2020
BS EN 55014-2:2015
BS EN IEC 63000:2018
Winnenden, 2020-11-10
Alexander Krug / Managing Director
Authorized to compile the technical le
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

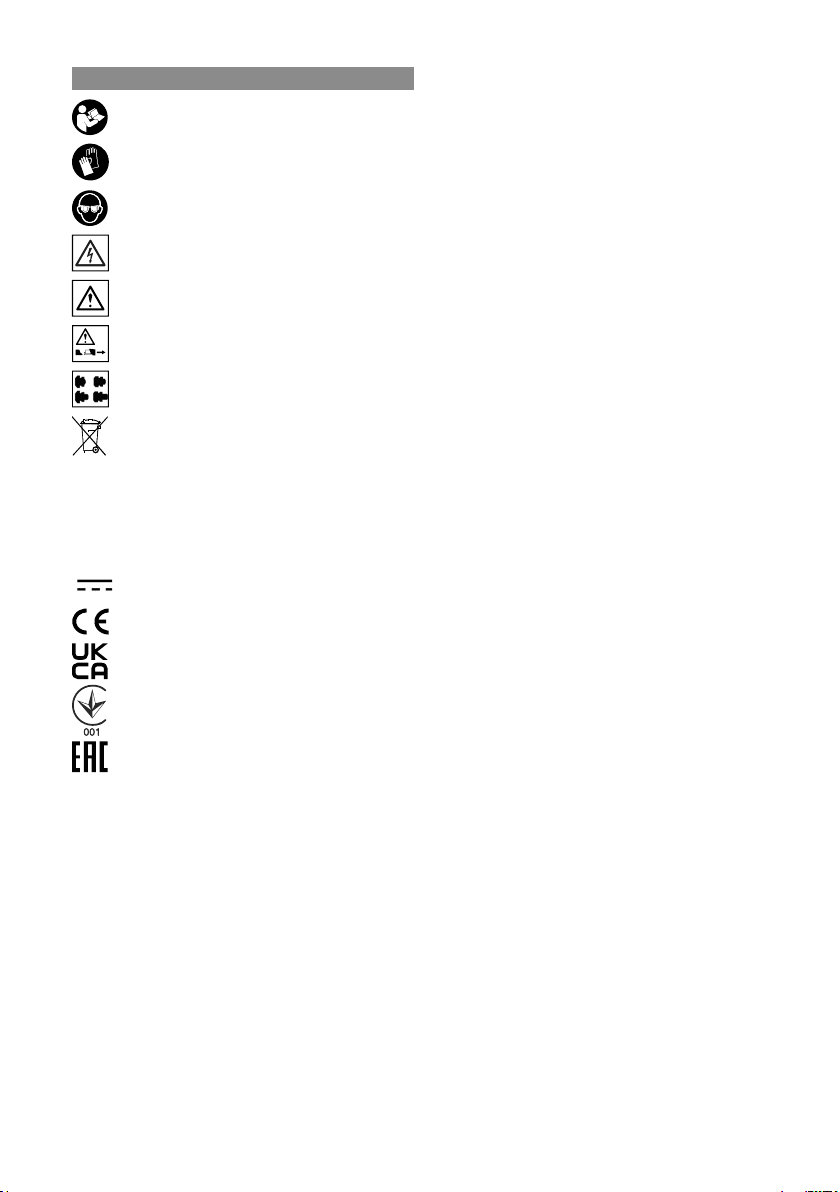

SYMBOLS
Please read the instructions carefully before starting the
machine.
Wear gloves!
Always wear goggles when using the machine.
Danger of electric shock
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on the
appliance.
Accessory - Not included in standard equipment, available
as an accessory.
Do not dispose electric tools, batteries/rechargeable
batteries together with household waste material.
Electric tools and batteries that have reached the end of
their life must be collected separately and returned to an
environmentally compatible recycling facility. Check with
your local authority or retailer for recycling advice and
collection point.
VVolts
Direct Current
European Conformity Mark
British Conformity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark

Copyright
Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
[phone]
www.milwaukeetool.eu
Techtronic Industries (UK) Ltd
Fieldhouse Lane
Marlow Bucks SL7 1HZ
UK
(11.20)
4100 4258 74
2020
