ASSEMBLY INSTRUCTIONS
CAYMEN 3x3M WOODEN
CANTILEVER UMBRELLA
100% FSC Certified Timber
®
3x3 metre diameter canopy
FSC Eucalyptus wood frame - 8 ribs: teak matt finish
210g Olefin fabric - grey
wind up crank operation
360 degree rotation system with cross base
UPF50+

Note:
1 Please carefully read all instructions before assembly and use
2.PIease separate and identify all parts, ensuring that you have all parts listed
3.To avoid damaging your umbrella, it is recommended that you assemble it on a
clean, protected surface
4.Washers must be used when indicated during the assembly process
5.Loosely tighten the nuts and then securely tighten when all are in position. Be careful
not to over tighten the nuts during assembly.
IMPORTANT: Please read these instructions before using the product and retain
for future use.
Parts List
Part No. Description Quantity
Pictures Part No. Description Quantity
Pictures
A
B
C
D
E
Frame &
canopy
Upper
Beam
Upright
pole
Cross
base
Cross
base
L-Shape
base
Base support
Connecting
elbow
Square tube
hook
Crank box
Protection box
F
G
H
I
J
K
1
1
1
1
1
4
1
1
1
1
1
WARNING:
Not for children under 3 yrs.
CAUTION! Functional sharp points and edges. Use with care.
To be used under the direct supervision of an adult.
Hardware List
aa
bb
cc
Bolt & nut
(M I0*120mm)
Spanner
Crank Handle4 set
2
1
Include bolts and nuts
Include bolts and nuts
Include bolts and nuts

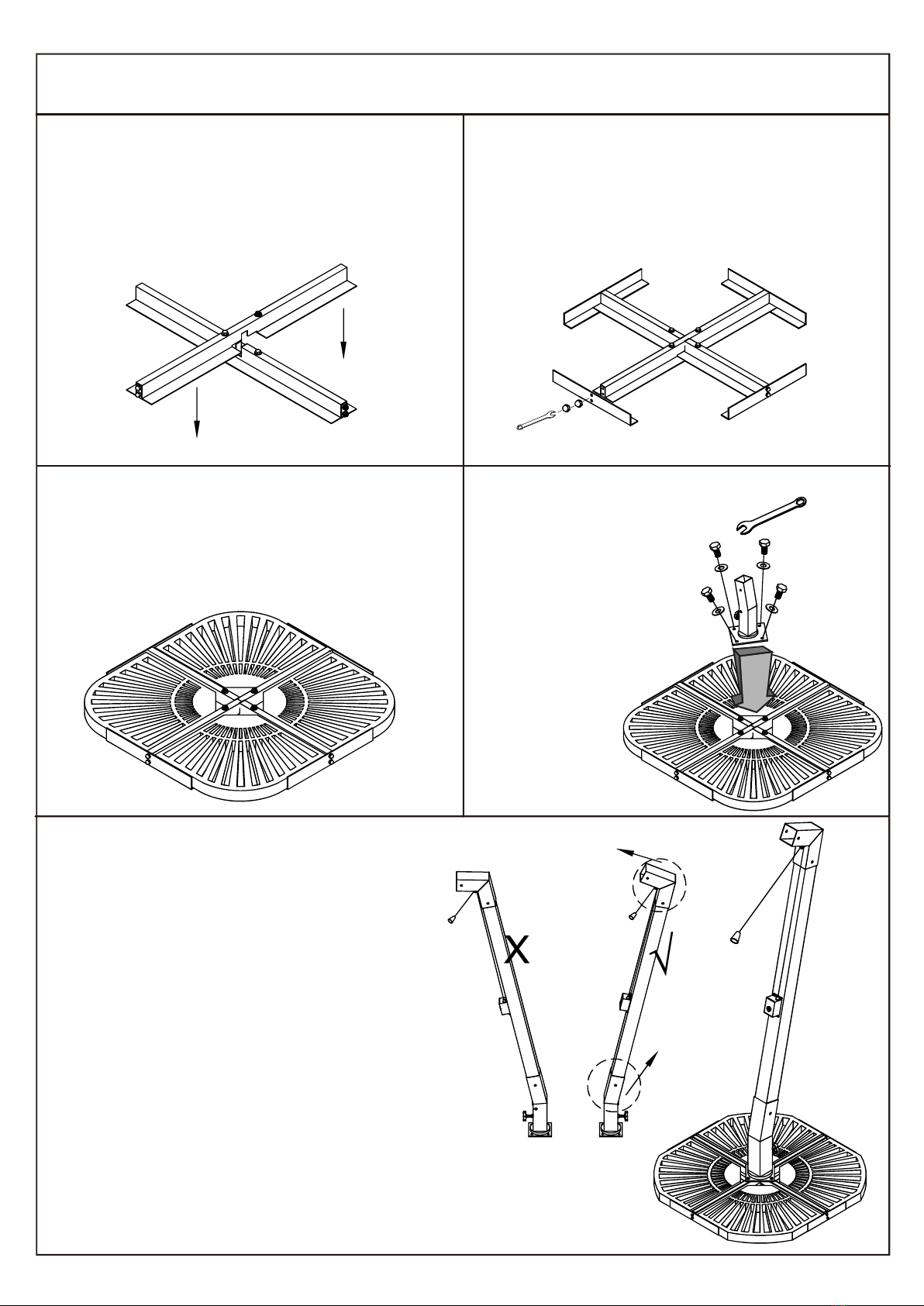

Step 1 Step 2
ASSEMBLY INSTRUCTION
Put cross base (D) onto the cross base (E). Unscrew the screws in the side of base
frames (D&E). Use these screws to connect
the L-shaped base (F) to the cross bases
(D&E). Tighten securely using spanner (bb).
#E #D
Place the cross base in the desired location
and secure using appropriate weights or
pavers. Each base weight must be
atleast 40kgs.
Base weights are
sold separately
#E #D
Take off the bolts & nuts
and gasket from the
cross base (D&E),
then attach the base
support (G) to the cross
base (D&E), and then
using the bolts & nuts
& gasket and
spanner (bb)
to tighten it.
Insert the upright pole (C) into the base
support (G). Then add the connecting
elbow (H) to the top of the pole (C).
Refer to image for correct direction - the
base support should angle to the right
and the connection elbow to the left.
#H
#C
#G
#E #D
#G
Step 3 Step 4
Step 5
#F
#bb
#bb

#C
#G
#aa
#bb
#aa
#bb
ASSEMBLY INSTRUCTION
Secure the pole (C) to the base support (G),
using bolts and nuts (aa) and spanner (bb).
Secure the connecting elbow (H) to the
pole (C), using bolts and nuts (aa) and
spanner (bb).
Secure the connecting elbow (H) to upper
beam (B), using bolts and nuts (aa) and
spanner (bb).
Secure the upper beam (B) to the square
tube hook (I), using bolts and nuts (aa)
and spanner (bb).
Step 6 Step 7
Step 8 Step 9
#H
#C
#aa
#aa
#H
#B
#I #B
#aa
#bb
#bb
#aa
#bb
#aa
#bb
#bb
#bb

Step 10
ASSEMBLY INSTRUCTION
Connect the crank wire together as illustrated.
Once securely tightened, screw together the
protection box (K). This will conceal the wire
connection for added safety.
Insert the frame and canopy (A) into the
square tube hook (I) and secure by tightening
the pre installed nuts.
Insert the crank handle (cc) into the
crank box (J).
Your cantilever umbrella is now ready for use.
#J
#C
#I #B
#A
Step 11
Step 12 Step 13
#cc
#A
#J
#K

Step 1
OPERATING INSTRUCTION
Rotate the crank handle (Part cc)
clockwise to open the umbrella.
Rotate the crank handle (Part cc)
counter clockwise to close umbrella.
To rotate your umbrella, loosen the stop
bolt (refer to image) and then insert
the crank handle. Turn the crank handle
to rotate your umbrella to the desired position.
When you are happy with the position,
tighten the stop bolt securely.
Step 2
Step 3
