Mini Gadgets OmniInverter User manual

1 Version 1.1
OmniEye Inverter Manual
SKU: OmniInverter

2 Version 1.1
THANK YOU FOR PURCHASING THE
OMNIINVERTER HIDDEN CAMERA
Please read this manual before operating the
camera and keep it handy.
Your purchase should include:
1 x OmniInverter
1 x AC Wall Adapter
1 x Manual
1 x A/V Cable
1 x 3.5mm to USB Cable
1 x Remote
1 x 16GB MicroSD Card
1 x MicroSD Card Reader

3 Version 1.1
GET FAMILIAR WITH YOUR OMNIINVERTER HIDDEN
CAMERA

4 Version 1.1

5 Version 1.1
OPERATING THE CAMERA
IMPORTANT NOTES:
Due to this camera being powered by your car’s
power socket, you MUST stop recording prior
to turning your car’s engine off. If you do not,
the video file will be corrupted and
unrecoverable.
If you stop your vehicle’s engine, the unit will
power off. You will need to power it on and
initiate recording again the next time you start
your car.
If your car’s power socket is permanently
powered and the camera is recording, your
vehicle’s battery will drain in order to continue
recording.
HOW TO TURN ON THE CAMERA
1. Plug the device into your car’s power socket.
2. Using the provided remote, power on the
device (see page 4).

6 Version 1.1
3. The camera will power on and immediately
enter motion detection recording mode.
4. If you wish to stop recording and enter standby
mode, press the “Motion Detection” button on
the remote (see page 4).
5. The indicator light will turn on indicating the
unit is in standby mode.
HOW TO RECORD VIDEO
1. When the camera is in Standby Mode, press the
“Continuous Recording Mode” button (see
page 4). The Indicator LED will flash two times.
2. Once the Indicator LED turns off, the camera is
now recording video.
HOW TO STOP RECORDING VIDEO
1. While the camera is recording video press the
“Continuous Recording Mode” button once
more. (The Indicator LED will turn on.)
2. The camera has now stopped recording and is
now in Standby Mode.

7 Version 1.1
HOW TO TAKE PICTURES
1. When the camera is in Standby Mode, press the
“Photo Button” (see page 4). The green light
will turn red while the photo is being taken.
2. Once the photo is taken, the light will turn back
to green and once again be in standby mode.
HOW TO RECORD MOTION DETECTION
1. When the camera is in Standby Mode, press the
“Motion Detection Button” (see page 4).
2. If motion is detected, the light will flash 2 times
and turn off.
3. If there is no motion after 1 minute, the device
will return to detection standby mode until
motion is detected again. While waiting, the
Green light will be on.
NOTE: If you activate motion detection and there is no
motion currently in front of the camera, there will be no
indication you have entered into motion mode. The green
light will simply remain on. If you wish to confirm that

8 Version 1.1
you have entered into motion detection mode, wave your
hand in front of the camera lens. The unit will flash the
red light 2 times, then the light will turn off confirming
that the device detected your motion and is now
recording video.
HOW TO STOP RECORDING MOTION DETECTION
1. While the camera is recording motion
detection, press the “Motion Detection Button”
once more. (The Indicator LED will turn on.)
2. The camera has stopped recording motion
detection and is now in Standby Mode.
HOW TO USE PIR SENSOR
Note: The “Motion Detection” mode and “PIR” mode
work similarly in that they detect motion. The “Motion
Detection” mode relies on the camera itself to detect
motion, while the “PIR” mode relies on the PIR sensors
to detect motion. “PIR” represents “passive infrared
sensor”, which relies on measures of infrared light to
detect motion.

9 Version 1.1
Note: Only OmniX products come with a PIR sensor
installed. OmniEye products do not have this feature.
1. While the camera is in Standby Mode, press the
“PIR Sensor” button (see page 4).
2. If motion is detected, the indicator light will
flash, then turn off.
3. The device is now in PIR sensor mode.
4. If you wish to turn it off PIR sensor mode, press
the “PIR Sensor” button once more. The
indicator light will flash, and the camera is now
in standby mode.
CHANGING YOUR DEVICE SETTINGS (INCLUDING THE
DATE/TIME STAMP)
Your OmniInverter comes with an A/V cable that is
used to connect the device to a monitor/TV so that you
can adjust various settings. See page 3 to locate the AV
port on your device.
1. Connect your device to a monitor/TV using the
provided A/V Cable.
2. Power on the device.

10 Version 1.1
3. Press the motion detection button to stop
recording.
4. Press the “MENU” button on the remote.
5. A menu will display on the screen with various
options (Use OK, UP, Down, and Menu on the
remote to navigate the menu system):
a. Resolution –Select from different
resolutions.
b. Time Stamp –Use this option to enable
or disable the date/time stamp on
videos.
c. Loop Record –Choose whether you
want the device to automatically
overwrite the oldest file on the memory
card if the memory becomes full.
d. Video Time –When in continuous
recording mode, this setting determines
how long video files will be before the
current recording is stopped and a new
recording is started.
e. Audio Record (if applicable) –If you
purchased your device with audio

11 Version 1.1
recording capabilities, you can turn
audio recording ON or OFF here.
f. Motion Detection –Adjust motion
detection sensitivity here.
g. Setup –Enter this menu for additional
settings.
h. Setup -> Format –Use this to format
your MicroSD card. All data on the disk
will be permanently erased.
i. Setup -> Language –Choose your
language.
j. Setup -> TV Output –Select between
NTSC or PAL for video output. We
recommend you do not adjust this
setting.
k. Setup -> Light Freq –Select different
light frequencies. We recommend that
you do not adjust this setting.
l. Setup -> Date Format –Choose from
various date/time formats
(MM/DD/YYYY, DD/MM,YYYY, Etc.)

12 Version 1.1
m. Setup -> Date Input –Set the current
date.
n. Setup -> Time Input –Set the current
time in military format.
o. Setup -> System Reset –Use this to
factory reset the device.
p. Setup -> FW Upgrade –This is not active
on this device.
q. Setup -> FW Version –Displays the
firmware version of the device.
MICROSD CARD SLOT
See page 3 to locate the MicroSD card slot on your
device.
1. Gently push the MicroSD Card into the slot. The
gold contacts on the card will be inserted first,
and they should face the main circuit board.
You will feel some spring resistance before the
card clicks in to place.
a. Never force the card into the Card Slot
under any circumstances. Otherwise,

13 Version 1.1
the unit or the MicroSD card itself will
be damaged.
2. To remove the SD card, gently push the card in
so that it clicks. The internal spring tension will
eject the card.
MicroSD cards 65GB and above will require special
formatting to work. The device will not function with
these cards if they are not properly formatted
beforehand.
Visit www.mgidownloads.com/Software and download
the “guiformat.zip” file. Extract the files and follow the
instructions in the “64GB SD Card Formatting.pdf”
document.
IMPORTANT NOTICE: Ensure that the device is off
before inserting the MicroSD card. Otherwise potential
corruption of the card file(s) may occur.
RETRIEVE THE FILES TO YOUR PC

14 Version 1.1
1. Remove the MicroSD Card from the device and
plug it into your computer using the supplied
card reader. See page 3 to locate the MicroSD
card port on your device.
2. Locate “Removable Disk” inside the (My)
Computer folder.

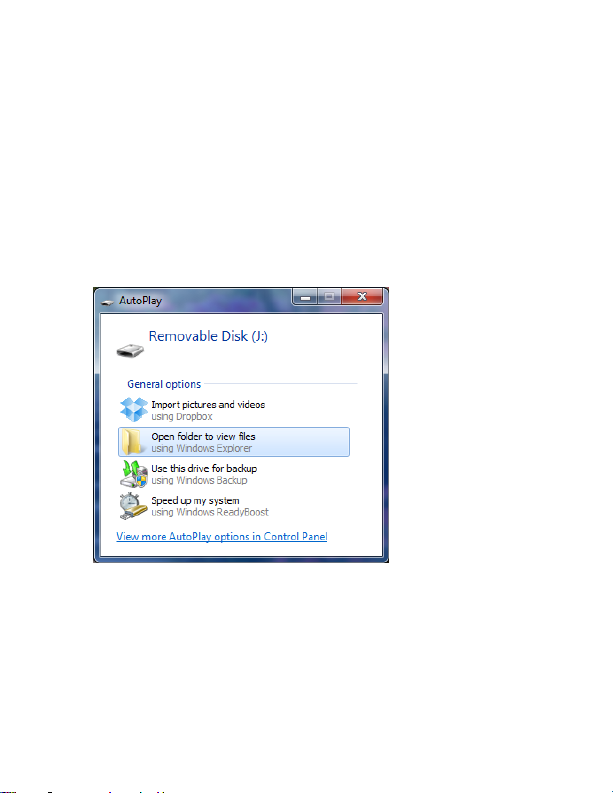

AutoPlay Removable Disk > Open folder
to view files
Or…

15 Version 1.1
Go to Start > Computer > Removable Disk
3. Open the Removable Disk drive.
4. Open the [folder name] folder.
5. Double click the file you want to view.
VLC Player is recommended for
watching videos
If you are having video playback issues, such as a
completely black video recording or “squiggly lines”, we
recommend you use VLC media player to play back the
videos. It can be downloaded for free from
www.videolan.org
COPYING AND DELETING YOUR FILES

16 Version 1.1
The video files created are just like any other file on
your computer, and can be managed in the exact same
manner.
To save a file, you want to select the
file, right click your mouse on the file
name, and then choose “Copy” from the
menu. Next, go the location you want
the save the file to. Right click your
mouse, and then chose “Paste.” This will
copy the file to your computer.
To delete a file, right click your mouse
on the file name and choose “Delete”
from the menu. You can quickly select
all of the files by pressing “CTRL+A” on
your keyboard.
If you are using MAC OS X, you must
empty the trashcan after you delete a
file. If this is not done, the SD card will
fill with hidden files, and the device will
no longer record new files.

17 Version 1.1
TROUBLESHOOTING
THE DEVICE WON’T TURN ON
Make sure the unit is securely plugged into a
functioning car outlet.
DEVICE CONTINUALLY RECORDS IN MOTION MODE
Motion detection is measured by changing
pixels during recording. Any kind of motion
including shifting shadows or changing lighting
conditions can set off motion detection. Try
adjusting the motion detection sensitivity via
the setup menu.
OTHER PROBLEMS
Call our technical support at 770–694–6923

18 Version 1.1
SPECIFICATIONS
Video
Resolution
1920x1080
Video Format
.MP4
Frames per
Second
30FPS
Vision Angle
65°
Battery Life
Plug-in
Motion
Detection
8 meters for straight-line
distance
Resolution
2560x1920
Photo Format
.JPG
Type of Memory
External MicroSD Card
Memory
Capacity
Up to 128GB with special
formatting. See
http://mgidownloads.com. Go to
Product Manuals -> 64GB SD
Card Formatting.zip
Recording Usage
10mins per 1GB
USB Interface
2.0 USB

19 Version 1.1
Player Software
VLC recommended
Video
Compression
H.264

20 Version 1.1
QUALITY CONTROL CHECKLIST
☐Remote
☐Wall AC Adapter
☐A/V Cable
☐3.5mm to USB Cable
☐MicroSD Card Reader
☐16GB MicroSD Card
☐OmniInverter
☐Manual
QC Tech:____________________________________
Date: ______________________________
