MINIPURE MIN-6 User manual

1
Extensive Product Information Available at:
ultraviolet.com
buyultraviolet.com
Document No. 98-1505D2 • June 2017 • ©2017 Atlantic Ultraviolet Corporation® • ASSEMBLED IN THE USA
Installation,
Operation
& Maintenance
Read and Follow All Safety Instructions. Save These Instructions.
Models Ballast
120v 50/60 Hz
Ballast
230v 50/60Hz
MIN-6 10-0508B 10-0504B
MIN-9 10-0508B 10-0504B
Owner’
s Manual
Owner’
s Manual
ULTRAVIOLET WATER PURIFIERS
®

2
TABLE OF CONTENTS
These instructions generally describe the installation, operation and maintenance of the MINIPURE®Model MIN-6 and MIN-9
(using ballast 10-0508B and ballast 10-0504B). Questions that are not specifically answered by these instructions should be
directed to the Factory.
Atlantic Ultraviolet Corporation®takes all possible precautions when packaging equipment to prevent damage. Carefully
inspect and report all damage upon receipt of product. Do not install damaged equipment.
Follow all instructions on all labels and tags. Carefully inspect all packing materials before discarding to prevent the loss of
accessories, mounting hardware, spare parts or instructions.
The information and recommendations contained in this publication are based upon data
collected by the Atlantic Ultraviolet Corporation®and are believed to be correct. However, no
guarantee or warranty of any kind, expressed or implied, is made with respect to the information
contained herein. Specications and information are subject to change without notice.
SAFETY WARNINGS .......................................................................................................................................................................3
SAFETY INSTRUCTIONS ..............................................................................................................................................................3
SAFETY LABELING........................................................................................................................................................................3
CAUTION...........................................................................................................................................................................................3
PRODUCT APPLICATION .............................................................................................................................................................4
ConstruCtion .................................................................................................................................................................................................... 4
PrinCiPle of oPeration .................................................................................................................................................................................... 4
limitation of use.............................................................................................................................................................................................. 4
Water Quality ................................................................................................................................................................................................. 4
INSTALLATION ...............................................................................................................................................................................5
loCation .........................................................................................................................................................................................5
reCommended installation ............................................................................................................................................................5
dimensional data...........................................................................................................................................................................6
installation: 120v50/60Hz(ballast no.10-0508b)................................................................................................................ 7-8
installation: 230v50/60Hz(ballast no.10-0504b)................................................................................................................ 7-8
reCommended oPtions...........................................................................................................................................................8
MAINTENANCE...............................................................................................................................................................................9
insPeCtion .......................................................................................................................................................................................9
Quartz Breakage ........................................................................................................................................................................... 9
lamP installation or rePlaCement: 120v50/60Hz(ballast no.10-0508b) .............................................................................10
lamP installation or rePlaCement: 230v50/60Hz(ballast no.10-0504b) .............................................................................10
Quartz sleeve installation, Cleaning or rePlaCement ............................................................................................................11
rePlaCement of Broken Quartz sleeve......................................................................................................................................12
disPosal of merCury added lamP ..............................................................................................................................................12
TROUBLESHOOTING ..................................................................................................................................................................13
TECHNICAL SPECIFICATIONS.................................................................................................................................................14
REPLACEMENT PARTS...............................................................................................................................................................15
USER ASSISTANCE .......................................................................................................................................................................16
PRODUCT REGISTRATION ........................................................................................................................................................16
WARRANTY ....................................................................................................................................................................................16
Patent notiCe...............................................................................................................................................................................16

3
Danger Label: Hazardous Voltage
and Ultraviolet Radiation (00-0199A1)
It is the user’s responsibility to determine and validate the
suitability of this equipment for use in the user’s system or process.
No warranty or representation is made by the manufacturer with
respect to suitability or performance of this equipment or to the
results that may be expected from its use.
The user should periodically inspect, clean as necessary and
confirm the presence and good legibility of the product safety
labels. Contact the factory for replacement labels in the event that
any of the labels are missing or illegible.
Location of Danger Label
(00-0199A1)
SAFETY WARNINGS
• All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit.
• The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to
observe precautions could result in injury to people or damage to property.
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
This symbol/pictorial is used to identify the need
to wear protective gloves.
Caution indicates a POTENTIALLY
hazardous situation, which, if not avoided,
MAY result in minor or moderate injury.
Caution used without the safety alert
symbol indicates a potentially hazardous
situation, which, if not avoided, may result
in property damage.
This symbol/pictorial is used to identify an
ULTRAVIOLET LIGHT hazard.
This symbol/pictorial is used to identify an ELECTRICAL
SHOCK or ELECTROCUTION hazard.
Warning indicates a POTENTIALLY
hazardous situation, which, if not avoided,
COULD result in death or serious injury.
This symbol/pictorial is used to identify the need
to wear approved ultraviolet blocking eyewear. This symbol/pictorial is used to identify the need to wear
approved ultraviolet blocking face shield.
This symbol/pictorial is used to identify components
which must not be disposed of in trash
Danger indicates an IMMINENTLY
hazardous situation, which, if not avoided,
WILL result in death or serious injury.
SAFETY INSTRUCTIONS
To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow ALL safety instructions.
2. Do not use this water purifier for other than its intended purpose as described in this manual.
3. Do not alter design or construction.
4. Do not remove any labels or devices.
5. To prevent the risk of severe or fatal electrical shock, special precautions must be taken since
water is present near electrical equipment. Always disconnect power before performing any service or maintenance.
6. Avoid exposure to direct or reflected germicidal ultraviolet rays. Germicidal ultraviolet rays are
harmful to the eyes and skin.
7. Intended for indoor use only. The water purifier should be protected from the elements and from temperatures below freezing.
8. Do not operate water purifier if lamp cable, lamp connection, power cord and/or plug are damaged, or if any other damage to
the water purifier is visible or suspected
9. Electrical power supplied, to the water purifier, MUST match power requirements listed on the water purifier.
10. Plug the water purifier only into an approved ground fault circuit interrupt (GFCI) receptacle.
11. Do not operate without proper electrical ground.
12. Do not exceed water purifier’s maximum rated flow capacity.
13. Do not exceed maximum operating pressure of 100 PSI.
14. Read and follow all notices and warnings on the water purifier.
15. SAVE THESE INSTRUCTIONS.
SAFETY LABELS CAUTION

4
PRODUCT APPLICATION
ConstruCtion
• The water purifier is designed to mount horizontally.
• The water purifier’s chamber is passivated and electropolished type 304 Stainless Steel.
• EASY-OFFTM End Caps enable quick and easy lamp change, without disconnecting from the water supply or draining the
purifier. No tools are required. Always disconnect electrical power when changing lamp.
PrinCiPle of oPeration
The MINIPURE® design has been carefully conceived to provide adequate germicidal dosage throughout the disinfection
chamber. The dosage, as it applies to ultraviolet disinfection, is a function of time and the intensity of ultraviolet radiation to
which the water is exposed. The exposure time, in seconds, is the total time it takes the water to flow through the disinfection
chamber exposing it to the germicidal lamp. Exposure time is related to the flow rate; the higher the flow rate, the lower the
exposure time or the lower the flow rate, the higher the exposure time. The ultraviolet intensity is the amount of energy, per unit
time, emitted by the germicidal lamp. The dosage is the product of ultraviolet intensity and the exposure time. The operation of
the MINIPURE®is as follows:
• Water enters the purifier and flows into the annular space between the quartz sleeve and the chamber wall.
• Suspended microorganisms are exposed to the ultraviolet rays emitted by the germicidal lamp.
• The LED indicator light, located on the ballast, provides visual indication of germicidal lamp operation.
• Water leaving the purifier is instantly ready for use, no further contact time is required.
limitation of use
The water purifier is intended for the use with visually clear water, not colored, cloudy or turbid. See “Water Quality” section
below. The water purifier is NOT intended for the treatment of water that has an obvious contamination or intentional source,
such as raw sewage; nor is the unit intended to convert wastewater to microbiologically safe drinking water.
Water Quality
Water quality plays a major role in the transmission of germicidal ultraviolet rays. It is recommended that the water does not
exceed the following maximum concentration levels:
Table 1 - Maximum Concentration Levels
Turbidity < 1 NTU
Manganese 0.05 mg/1
Total Suspended Solids 10 mg /1
pH: 6.5 - 9.5
Color: None
Hardness 6 GPG or 102.6 PPM
Iron 0.3 mg/1
Tannins: < 0.1 ppm (0.1 mg/l)
UV Transmission >85% per cm*
* Contact Factory for recommendations on applications where UV transmission is < 85%
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added
measures to improve water quality to treatable levels. If, for any reason, it is believed the ultraviolet transmission is not
satisfactory, contact the factory.

5
INSTALLATION
loCation
1. The water purifier is intended for indoor use only. The water purifier is designed to mount horizontally. The water purifier
should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area
surrounding the water purifier, should be between 35oF and 100oF.
2. Electrical power supplied to the water purifier MUST match power requirements listed on the water purifier. Use of a voltage
surge protector is recommended.
3. Install water purifier within 48” of a known good ground. Water Purifier will need to be installed
into approved ground fault circuit interrupt (GFCI) receptacle. Where a 2-prong or unprotected 3-prong receptacle is
encountered, it must be replaced by a properly grounded Ground Fault Circuit Interrupt (GFCI) receptacle. Installation must
be in accordance with the National Electrical Code and any local codes and ordinances by a qualified electrician.
4. The water purifier should be located in a dry, well-lit area, which provides enough room to perform routine maintenance.
This includes a minimum distance of one chamber length from the chamber end, to allow for cleaning and/or the
changing of the lamp and quartz sleeve as well as a minimum of 6” on the opposite end of the water purifier. Minimum
clearance to floor 18’’.
5. The water purifier should always be located closest to the point of use. This reduces the chance of the purified water being
re-contaminated by bacteria in the water distribution system after the water purifier.
6. As with any water handling device, the water purifier should be located in an area where any possible
condensation or leakage from the water purifier, any purifier accessory and/or plumbing will not result in damage to the area
surrounding the water purifier. For added protection, it is recommended that a suitable drain pan be installed under
the purifier. The drain pan must be plumbed to an adequate, free flowing drain to prevent water damage in event of
a leak. There are numerous leak detection/flood stop devices, available on the market today, designed to stop flow
of water, reducing the chance of water damage due to leakage. For more details regarding leak prevention and/or
limiting damages due to leaks please contact factory.
7. The water purifier should be located after all other water devices, such as De-ionizers, Water Softeners, Carbon Filters,
Pre-Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This elimates the possibility of the purified water being re-
contaminated by bacteria in any of these units.
reCommended installation
Figure 1 - Recommended Installation

Incoming
Water
Supply
COMMON
PRE-TREATMENT or
PUMPING DEVICES
1. Deionizer
2. Water Softener
3. Carbon Filters (GAC)
4. Pressure Tank
5. Pump
6. Reverse Osmosis
7. Prefilters
Cold Water Line
Ultraviolet Water Purifiers
should be installed closest
to the point of use. (POU)
5 Micron
Filter
Valve
Union
Elbow
Elbow
OPTIONAL EQUIPMENT
Flow Control Valve
POINT OF USE (POU)
Ultraviolet Water Purifiers
should be installed closest
to the point of use.
Ultraviolet
Water Purifier
Outlet Line to point of use
to be as short as possible
Recommended Minimum
Clearance for Lamp or
Quartz Sleeve Removal




Union








Valve
OPTIONAL EQUIPMENT
Mounting Kit


Model DIM. "X"
MIN 1 10
3
/ 8 "
MIN 1.5 14
15
/ 16 "
MIN 3 12
7
/ 8 "
MIN 6 22"
MIN 9 29"
Use of Metal Pipe is
recommended for 12"
past elbow to the inlet
or from the outlet.
(avoids ultraviolet degradation
of exposed plastic pipe)
22"
120v 50/60Hz using ballast no. 10-0508B has a
ground wire attached.
230v 50/60Hz using ballast no. 10-0504B has a
ground wire attached.
Note: Drain Pan
Recommended. Water
purifier should be installed at
minimum of 18” above floor
Note: Use of metal pipe is recommended for
connection to both the purifier inlet and outlet 12”
past the first elbow. (avoids ultraviolet degradation
of exposed plastic pipe)

6
dimensional data
Figure 2 - MIN-6 and MIN-9 Dimensional Drawing
Table 2 -MIN-6 and MIN-9 Dimensional Data
Model A B C D E F Inlet/Outlet
MIN- 6 14-3/4” 22-17/32” 5-3/4” 4-1/4” 22” 5-3/8” 3/4”m NPT
MIN-9 21-7/8” 29-17/32” 5-3/4” 4-1/4” 29” 5-3/8” 3/4”m NPT
All specifications, dimensional data, etc. are approximate and subject to change without notice.

7
installation: min-6 and min-9 120v50/60Hzusing ballast no.10-0508b /
230v50/60Hzusing ballast no.10-0504b
1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there
is any damage to the purifier, power cord or plug. All models, of the MINIPURE®line of water purifiers, are shipped with the
lamps packed separately. Keep the lamp aside for installation once the purifier has been properly installed.
2. Units occasionally experience damage in shipment due to the fragility of the quartz sleeve. It is therefore recommended to
inspect the water purifier for damage to the quartz sleeve after it has been removed from the shipping carton. Each end of the
unit as well as the inlet and outlet should be viewed to see if the quartz sleeve has experienced damage. If the quartz sleeve
shows signs of damage it should be replaced before the purifier is pressurized. See “Quartz Sleeve Installation, Cleaning
or Replacement” in the “Maintenance” section for the proper method of replacing the quartz sleeve in your water purifier.
3. The water purifier should be mounted horizontally on a flat dry surface. The purifier should not be solely supported by its
plumbing connections. Securing the water purifier using the optional wall bracket kit is recommended.
4. The water purifier must be connected to the cold water line only. Inlet water temperature should not exceed 100o F.
5. Installation requires a 5-micron sediment filter be installed, in line, prior to the water purifier. The sediment filter will stop
or trap large particulates from entering the water purifier. Particulates may cause damage to the quartz sleeve, as well as
interfere with the purifier’s ability to disinfect the water. The sediment filter may also help to reduce the amount of routine
cleanings of the quartz sleeve.
6. Shut off valves should be installed on both the inlet and outlet sides of the water purifier. The use of bypass valves is not
recommended. The shut off valves allow the purifier to be isolated from the water supply, which is required when removing
the quartz sleeve.
7. Unions should be installed on both the inlet and outlet of the water purifier; this will allow easy removal of the water purifier
from the plumbing, if required. Apply Teflon®tape to threads of inlet and outlet ports to ensure a tight seal.
8. When all plumbing connections are complete, allow water to enter the water purifier at a low flow rate, until the purifier is
full. NOTE: Close the purifier outlet valve to pressurize the chamber. With the purifier pressurized, it should be checked
for leaks. Once it is determined that there are no leaks, the inlet valve can be fully opened.

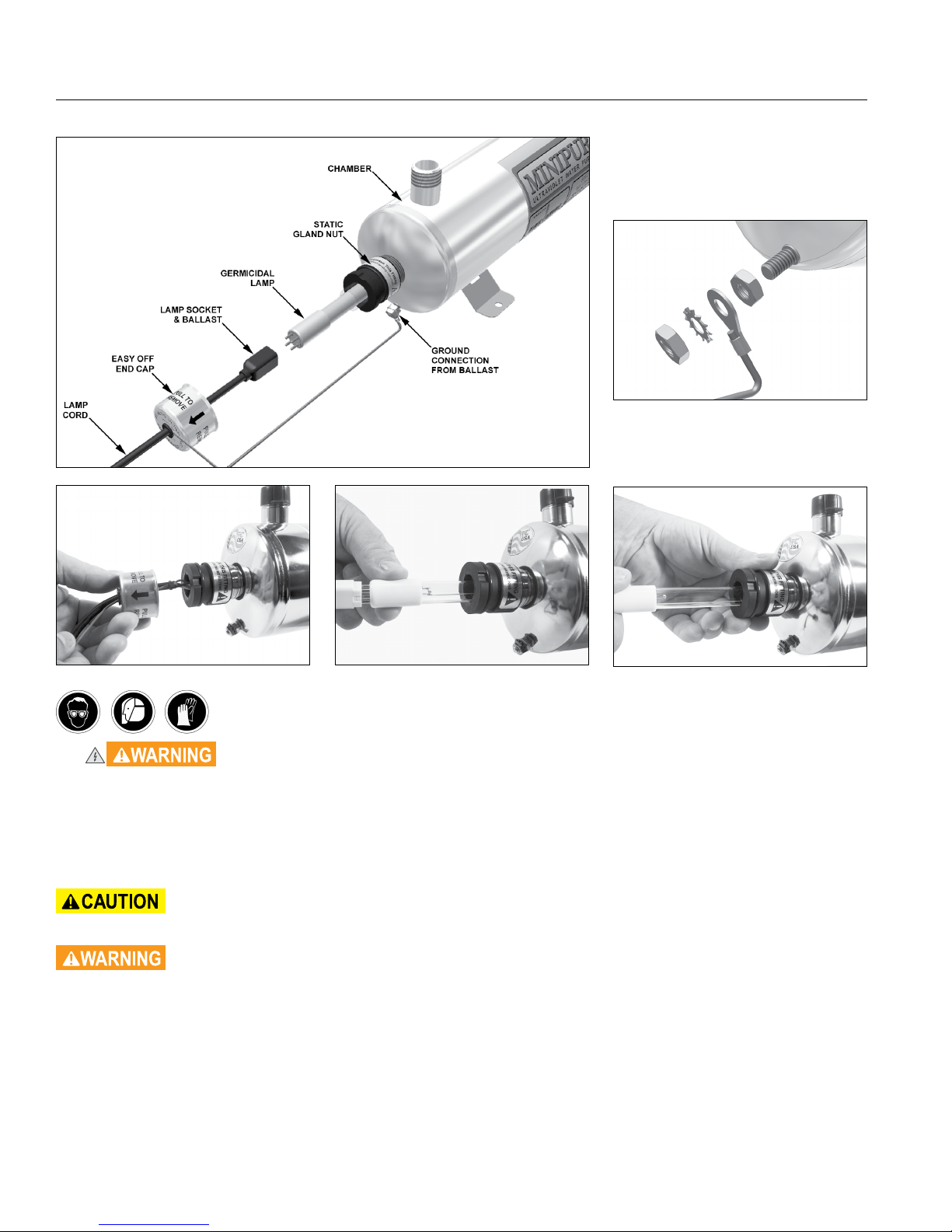

Figure 3 - 120v and 220v 50/60Hz (ballast no. 10-0508B and 10-0504B)
9. Unpack the lamp and ballast. While holding lamp end, carefully push lamp socket on. Carefully slide lamp straight into the
quartz sleeve, without angling. Push the End Cap on, over the static gland nut. Attach the ground connector to the grounding
stud of the chamber, with included hardware (see steps 1, 2, and 3 on Page 8)
To ensure proper operation and safety of your water purifier, your unit must be grounded
to a known good ground.
Lamp and quartz sleeve are easily damaged. Exercise care when handling.
IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY
EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES.

8
10. Plug ballast into an approved Ground Fault Circuit Interrupt (GFCI) receptacle. Where a 2-prong or
unprotected 3-prong receptacle is encountered, it must be replaced by a properly grounded Ground Fault Circuit Interrupt
(GFCI) receptacle. Installation must be in accordance with the National Electrical Code and any local codes and ordinances
by a qualified Electrician.
11. Once the plumbing hook ups are made, it is a good practice to disinfect the “downstream” plumbing between the purifier and
point of use. This is done by introducing chlorine or other disinfectant solution directly into the purifier chamber, a 100-
ppm of chlorine is suggested. With the disinfectant solution in the purifier chamber, turn the ultraviolet purifier on. Open the
“downstream” outlet until a chlorine or disinfectant solution odor is noticed. Close the outlet and allow the disinfectant to
remain in the plumbing for at least three (3) hours. Flush the plumbing with ultraviolet purified water; allow the water to run
for a minimum of 5 minutes before use (to ensure no chlorine or disinfectant solution smell can be detected), this will allow
the chlorine or disinfectant solution to be flushed through the pipes.
12. For added protection, a suitable drain pan must be installed under the purifier. The drain pan must
be plumbed to an adequate, free flowing drain to prevent water damage in the event of a leak. There are numerous leak
detection/flood stop devices, available on the market today, designed to stop the flow of water, reducing the chance of water
damage due to leakage. For more details regarding leak prevention and/or limiting damages due to leaks, please contact
the factory.
reCommended oPtions
1. SENTRYTM Safety Sensor: Indicators provide constant visual monitoring of normal operation. In the event of ballast or lamp
failure the safety sensor indicates an alarm condition. The safety sensor is capable of operating an optional audio alarm and/
or solenoid valve.
2. PromateTMAudio Alarm: Activated by the Ultraviolet Monitor or Safety Sensor, alerts the user to any malfunction detected.
3. PromateTM Time Delay Mechanism: Provides a 2-minute warm up period during which the ultraviolet lamp achieves its
full germicidal output before the water is allowed to flow through the water purifier. The time delay mechanism is used in
conjunction with, and is electrically connected to the Solenoid Valve.
4. PromateTM Solenoid Valve: Operated in conjunction with the Ultraviolet Monitor, Safety Sensor or Time DelayMechanism,
this valve prevents water flow through the water purifier when an abnormal condition is detected or in the event of
power failure.
5. SureFLOTM Flow Control Valve: Limits water flow to the rated capacity of the purifier. The flow control valve is located
in line prior to the water purifier, and should be protected from ultraviolet exposure by the use of a 90-degree elbow fitting
between the flow control valve and the water purifier. Unless otherwise specified PVC flow control valves are supplied.
Stainless Steel Flow Control Valves are available for certain models. All PVC and Stainless Steel flow control valves are male
NPT. Consult Factory for other flow control valves
6. PromateTM Elapsed Time Indicator: A non-resettable display of the water purifier operating hours. Useful for scheduling
and recording maintenance and lamp replacement.
7. PromateTM Safety Goggles: Safety eyewear should be used as general-purpose safety protection and for additional shielding
from ultraviolet rays
8. PromateTM Stainless Steel Wall Mounting Kit: Provides professional finish. Pre-drilled and ready for quick and easy
mounting of water purifier. Suitable for wall or surface mounting.
9. PromateTM Face Shield: Adjustable headgear and light weight visor provides eye and face protection from ultraviolet rays.
NOTE: The recommended options above are available from Atlantic Ultraviolet Corporation®or a distributor of their
products. For the other devices that may be required for your application, please contact your local water treatment
dealer, plumber or plumbing supplier.
Step 3 - Install Nut on Stud against
Washer & Tighten with 7/16” Wrench
Step 2 - Slide Ring Terminal Wire
Assembly onto Stud & Lock Washer
over Ring
Step 1 - Install Nut on Stud

9
MAINTENANCE
The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed
maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary maintenance consists of;
• Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service.
• Cleaning of the quartz sleeve, when conditions warrant. It is recommended that the inspection of quartz sleeve be performed
after one month of use. If quartz sleeve is found to be coated (not clear), then frequency of cleaning must be done more often.
Deposits or discoloration on the surface of quartz sleeve are caused by excessive levels of the subject contaminant within
the water that is in contact with the quartz sleeve. Most deposits on the quartz sleeve are caused by an excess of calcium
(hardness), iron or manganese. Table 1 on Page 4 lists the maximum recommended concentration of these minerals in the water
that passes through the ultraviolet purifier. If you encounter difficulty due to deposits on the quartz sleeve, your dealer will be
able to recommend suitable pretreatment to reduce or eliminate the offending contaminant. If quartz sleeve is clean (clear) then
frequency of cleaning may be extended.
• Always disconnect the water supply and completely drain the water purifier if it will be subjected to temperatures
below freezing.
• Contact factory with questions.
insPeCtion
1. Regularly inspect the water purifier to ensure that the germicidal lamp is still in operation.
• An LED indicator light, located on the ballast, provides visual indication of germicidal lamp operation. This provides an
indication of lamp operation and does not indicate the level of ultraviolet intensity or transmission through the water.
• Ballasts have a built-in audio alarm which will indicate lamp failure.
• On purifiers so equipped, the SENTRYTM Safety Sensor provides visual indication of ballast and ultraviolet lamp operation
2. To ensure proper operation of the water purifier, regular biological testing of the purifier outlet water should be performed on a
schedule recommended by local public health authorities, or at minimum; at installation, quarterly for the first year of service
and annually, at lamp replacement, for the life of the water purifier.
3. Additional testing should be performed whenever modifications, change or additions are made to plumbing system, pumps,
well source water etc. to ensure adequate disinfection under new condition.
4. As with any water purifier installation, routine maintenance is necessary to ensure your equipment is operating correctly.
Regular inspection must also include the inspection of the ground to ensure grounding wires are secure to both the water
purifier and grounding point as originally installed. Regular inspection must also include confirmation that approved ground
fault circuit interrupt (GFCI) receptacle is still operational and that water purifier is plugged into this GFCI. Any components
which are damaged, or broken should be replaced.
breakage
Broken Quartz is SHARP. It is recommended that Protective Goggles or Face Shield and Gloves be worn.
Wear protective gloves when handling broken ultraviolet lamps and/or quartz sleeves. In the event of breakage,
DO NOT use a household vacuum cleaner to pick up fragments of quartz. Sweep up debris into a plastic bag and
dispose of properly.

10
lamP installation or rePlaCement min-6 and min-9 120v50/60Hzusing ballast
no.10-0508b / 230v50/60Hzusing ballast no.10-0504b
1. Disconnect power to water purifier, and remove ground connector from the chamber.
2. Remove EASY-OFFTM End Cap by pulling cap off static gland nut.
3. Pull lamp cord and carefully withdraw lamp approximately 2 inches from chamber. While holding lamp end, remove lamp
socket from exposed lamp end.
4. Carefully withdraw lamp from chamber. Be sure to withdraw lamp straight out without angling until completely
clear of quartz sleeve.
Lamp and quartz sleeve are easily damaged. Exercise care when handling.
5. Reinstall lamp in reverse order.
Germicidal ultraviolet rays are harmful to eyes and skin. Do not restore power to water purifier until
lamp and both EASY-OFFTM End Caps have been properly reinstalled.
Step 1 - Disconnect Power to Water
Purifier and Remove Ground Connector
Step 4 - Remove LampStep 3 - Remove SocketStep 2 - Remove End-Cap
Figure 4 - Lamp Replacement
IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY
EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES.

11
Quartz sleeve installation Cleaning or rePlaCement for min-6 and min-9
Step 6 - Remove Quartz SleeveStep 5 - Remove Washer & O-RingsStep 4 - Remove Gland Nuts
Figure 5 - Quartz Sleeve Installation, Cleaning or Replacement
120v 50/60Hz (ballast no. 10-0508B) or 230v 50/60Hz (ballast no. 10-0504B)
1. Disconnect power to water purifier.
• For 120v 50/60Hz version using ballast no. 10-0508B or 230v 50/60Hz version using ballast no. 10-0504B, remove
the ground connector from the chamber and go to the next step.
2. Shut off water supply to water purifier via inlet and outlet shut off valves and drain chamber.
3. Follow the steps in “Lamp Installation or Replacement” to remove lamp.
Lamp and quartz sleeve are easily damaged. Exercise care when handling.
4. Unscrew static gland nuts from each end of the chamber. Avoid striking quartz sleeve with static gland nut.
5. Remove Teflon®washer and O-Ring from both ends of quartz sleeve. Teflon®washer will sometimes remain within the static
gland nut. If so, remove Teflon®washer from static gland nut before proceeding.
6. Carefully remove quartz sleeve from chamber. NOTE: It is advisable to support the quartz sleeve on the opposite end
with your finger so that it does not drop to the bottom of the chamber as it slides into the chamber.
7. Once the quartz sleeve is removed, clean with alcohol or a mild, non-abrasive detergent. Stubborn stains usually can be
removed with a dilute hydrochloric acid.
NOTE: Follow all manufacturer’s instructions and precautions when handling chemicals.
8. Reassemble in reverse order. Make sure the quartz sleeve protrudes an equal distance past each threaded nipple. Be sure
O-Rings are placed on quartz sleeve before Teflon®washer.
9. Tighten static gland nuts firmly by hand only, DO NOT USE HAND TOOLS. Tightening with hand tools is likely to cause
quartz sleeve to break.
10. Slowly restore water supply to water purifier and check for leaks.
11. If no leaks occur, reinstall lamp, following the steps in “Lamp Installation or Replacement” section.
Germicidal ultraviolet rays are harmful to eyes and skin. Do not restore power to water purifier
until lamp and both EASY-OFFTM End Caps have been properly reinstalled.
120v (shown) 120v (shown) 120v (shown)
IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY
EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES.

12
rePlaCement of broken Quartz sleeve
Broken Quartz is SHARP. It is recommended that protective goggles and gloves are
worn when handling.
1. Disconnect power to water purifier.
• For 120v 50/60Hz version using ballast no. 10-0508B or 230v 50/60Hz version using ballast no. 10-0504B, remove
the ground connector from the chamber and go to the next step.
2. Shut off water supply to water purifier via inlet and outlet shut off valves and drain chamber, if possible.
3. Follow the steps in “Quartz Sleeve Installation, Cleaning or Replacement” to remove lamp and quartz sleeve.
4. Unscrew static gland nuts from each end of the chamber. Avoid striking quartz sleeve with static gland nut.
5. Remove Teflon®washer and O-Ring from both ends of quartz sleeve. Teflon®washer will some times remain within the static
gland nut. If so, remove Teflon®washer from static gland nut before proceeding.
6. Carefully remove as much of the broken quartz sleeve as possible, from each end of the chamber.
7. To remove fragments of quartz sleeve, hold the purifier vertically and shake. The quartz fragments will break and drop out
of the purifier through the gland fitting. Flush water through chamber being careful to remove all quartz fragments from the
interior of the chamber.
8. Carefully discard all pieces of the broken quartz sleeve.
9. Align the end of the quartz sleeve with the gland fitting of the chamber.
10. Carefully slide the quartz sleeve into the chamber, guiding it through the gland fitting. NOTE: Use care to keep the quartz
sleeve parallel to the chamber, angling the quartz sleeve in any direction could result in the breakage of the quartz sleeve.
11. As the quartz sleeve nears the far end of the chamber, support the quartz sleeve by inserting your finger through the far end
gland fitting and into the quartz sleeve. This will minimize the possibility of breaking the quartz sleeve as it passes through
the gland fitting.
12. Center the quartz sleeve in the chamber, making sure the quartz sleeve protrudes an equal distance past each threaded gland
fitting, of the chamber.
13. Re-install O-Rings, Teflon®washers, and static gland nuts. Be sure O-Rings are placed on quartz sleeve before Teflon®
washer. Tighten static gland nuts firmly by hand only, DO NOT USE HAND TOOLS. Tightening with hand tools is likely
to cause quartz sleeve to break.
14. When all connections are complete allow water to enter the water purifier at a low flow rate until the purifier is pressurized.
With the purifier pressurized, it should be checked for leaks.
15. If no leaks occur, reinstall lamp, following the steps in “Lamp Installation or Replacement” section.
disPosal of merCury added lamPs
Germicidal ultraviolet lamps, like standard fluorescent lamps contain small amounts of mercury. Mercury added
lamps should not be placed in the trash. Dispose of properly. For further information regarding the disposal and
recycling of lamps containing mercury, along with Federal and State requirements visit www.lamprecycle.org. For
more information on germicidal ultraviolet lamps, visit Ultraviolet.com or BuyUltraviolet.com.
IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY
EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES.

13
TROUBLESHOOTING
Always disconnect power to the water purifier before performing any service or maintenance.
IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel.
Table 3 - Troubleshooting
Problem Possible Cause Corrective Action
Purifier not operating No electrical power Verify that the purifier is connected to a live
power source.
Water leaking from purifier
Cracked or broken quartz sleeve
Shut down purifier, drain, and replace quartz sleeve.
See “Replacement of Broken Quartz Sleeve” in the
“Maintenance” section.
Quartz sleeve sealing O-Ring(s)
worn, damaged
Shut down purifier, drain, and remove static gland
nut, replace sealing O-Ring. See “Quartz Sleeve
Installation, Cleaning or Replacement” in the
“Maintenance” section.
Poor, or loose, connections
or fittings
Tighten suspect connection or fitting; or shut down
purifier, drain, and remove fitting or connection. Clean
threads; reapply thread sealing tape and reinstall.
Poor purifier disinfection
performance
Quartz sleeve fouled Clean quartz sleeve, see “Quartz Sleeve Installation,
Cleaning or Replacement” Section.
Germicidal lamp output
depreciating
Replace lamp, as it nears its end of life (EOL).
See “Lamp Installation or Replacement” in the
“Maintenance” section.
Germicidal lamp not functioning Replace lamp. See “Lamp Installation or
Replacement” in the “Maintenance” section.
Low input voltage Verify input voltage to purifier.
Change in water quality
Have water tested to confirm that it does not exceed
maximum recommended concentration levels for use
with this purifier.
ballast no. 10-0508b and 10-0504b Have lamP-out ProteCtion
If power is applied to the ballast without a lamp connected to the circuit or if the lamp fails, the ballast’s lamp-out protection
will prevent the ballast from operating, and a red LED light will illuminate and audio alarm will sound. To reset: disconnect the
ballast from power and reconnect or replace the lamp. The ballast must remain disconnected from power for (2) minutes to
reset. After 2 minutes restore input power, ballast should resume proper operation.
The equipment that this ballast is used with requires connection to a known good ground. It is the User’s
responsibility to ensure that their equipment is properly grounded in compliance with the National Electrical Code and any
applicable local codes. Equipment wiring and hook up should be performed by a qualified, licensed electrician. Failure to comply
with this requirement could result in serious injury or death.

14
TECHNICAL SPECIFICATIONS
Table 4 - Technical Specifications
Model: MIN-6 MIN-9
Flow Rate (GPM): 6 9
Inlet\Outlet Size: 3/4”m NPT 3/4”m NPT
Number of Lamps: 1 1
Lamp Model No.: 05-1370-R 05-0097A
Length: 22-17/32” 29-17/32”
Width: 4-1/4” 4-1/4”
Height: 5-3/8” 5-3/8”
Chamber Diameter: 4-1/4” 4-1/4”
Shipping Weight: 14 Lbs. 18 Lbs.
Voltage: j120V 50/60Hz 120V 50/60Hz
Power Consumption: k21 Watts 32 Watts
Max Operating Pressure: 100 PSI 100 PSI
Ambient Temperature: 35° F - 100° F 35° F - 100° F
Quartz Sleeve: 1 1
SentryTM Safety Sensor Optional Optional
Audio Alarm: Optional Optional
Time Delay Mechanism: Optional Optional
Elapsed Time Indicator, Universal Input Optional Optional
Solenoid Valve: Optional Optional
Flow Control: Optional Optional
WARNINGS
12volt and 24volt Direct Current (DC) ballasts and units.
Many Individuals regard ballasts and units powered by 12volt and 24volt Direct Current (DC) to be relatively benign
from a safety standpoint. However, a DC ballast, in order to operate an ultraviolet discharge lamp, must produce an
output as high as 600volts. This voltage is high enough to produce a very serious or even lethal electric shock.
IT IS IMPERATIVE that all DC ballasts and DC ultraviolet units be wired and grounded appropriately.
Failure to ground all Direct Current (DC) ballasts and/or the equipment it is employed in, can
result in serious injury or death.
j220V 50Hz, 220V 60Hz, 12V, or 24V DC units are also available. Consult Factory for specific voltage requirements.
kTotal power consumption, including ballast loss (based on 120V unit).
All specifications, dimensional data, etc are approximate and subject to change without notice.

15
REPLACEMENT PARTS
Figure 6 - Exploded View MIN-6 an MIN-9 120v 50/60Hz using ballast no. 10-0508B (shown)
Table 5 - Replacement Parts
MIN-6 and MIN-9 120v 50/60Hz (ballast no.10-0508B) & MIN-6 230v 50/60Hz (ballast no.10-0504B)
Item No. Description Quantity MIN-6 Part No. MIN-9 Part No.
1A SteadfastTM Lamp Socket & SureliteTM Ballast, 120v 50/60Hz 1 10-0508B 10-0508B
1B SteadfastTM Lamp Socket & SureliteTM Ballast, 230v 50/60Hz 1 10-0504B 10-0504B
2 Rubber O-Ring, Static Gland 2 00-1108B 00-1108B
3STER-L-RAY ® Lamp 1 05-1370-R 05-0097A
4 Static Gland Nut 2 25-1492D 25-1492D
5Teflon®Washer 2 25-1235A 25-1235A
6 Rubber O-Ring, Quartz Sleeve 2 00-1238A 00-1238A
7CRYSTAL CLEARTM Quartz Sleeve 1 15-1112A 15-1006A3
8EASY-OFF TM End Cap (no hole) 1 25-1493A 25-1493A
9 Chamber 1 25-0448 25-0449
All specifications, dimensional data, etc. are approximate and subject to change without notice.

16
USER ASSISTANCE
Atlantic Ultraviolet Corporation®
makes every effort to ensure that the
MINIPURE®Ultraviolet Water Purifier
is a product of superior quality and
workmanship. This manual describes
the installation, operation and
maintenance of the MINIPURE®
Ultraviolet Water Purifier.
Please read and become familiar with the
contents of this manual before installing
or using this unit. If after reading the
manual you still have questions, or
concerns, regarding the installation or
use of this unit, contact our offices,
weekdays between 8:30 am and 5:00 pm
Eastern Time, at:
Atlantic Ultraviolet Corporation®
375 Marcus Boulevard
Hauppauge, New York, 11788
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.ultraviolet.com
www.buyultraviolet.com
PRODUCT REGISTRATION
Please REGISTER your product immediately - you can do this in a number of ways. Go online to Ultraviolet.com and on the
bottom left of each page either click on “Fill out Warranty Reg. Form on-line!” complete and hit submit or click on “Download a
PDF of the Warranty Reg. card” which you can print, fill out and mail in. If you prefer to register over the telephone please call
631-273-0500.
Atlantic Ultraviolet Corporation®takes all possible precautions when packaging equipment to prevent damage. Carefully inspect
and report all damage. Do not install damaged equipment. Follow all instructions on any labels or tags. Carefully inspect all
packing materials before discarding to prevent the loss of accessories, mounting hardware, spare parts or instructions.
For your convenience, record the following information below. The model and serial number can be found on a label located on
the MINIPURE®Ultraviolet Water Purifier. Keep this manual, along with proof of purchase, handy when contacting our offices.
Purchased From: Date:
Model: Serial No.:
WARRANTY
We warrant that this product will be free from defects in material and workmanship for a period of one year from the date of
shipment thereof or the product’s total rated life, whichever first occurs. Within the warranty period we shall repair or replace
such products, which are returned to us with shipping charges prepaid, and which are determined by us to be defective. This
warranty will not apply to any product, which has been subjected to misuse, negligence, or accident; or misapplied; or modified;
or repaired by unauthorized persons; or improperly installed.
The Buyer shall inspect the product promptly after receipt and shall notify us at our main office in writing of claims, including
claims of breach of warranty, within thirty (30) days after the Buyer discovers or should have discovered the facts upon which
the claim is based. Failure of the Buyer to give written notice of a claim within the time period shall be deemed to be a waiver
of such claim.
The provisions of the above warranty are our sole obligation and exclude all other remedies or warranties, expressed or implied,
including warranties of merchantability and fitness for a particular purpose, whether or not purposes or specifications are
described herein. We further disclaim any responsibility whatsoever to the customer, or to any person, for injury to person,
damage to, or loss of property or value caused by any product which has been subjected to misuse, negligence, accident; or
modified or repaired by unauthorized persons; or improperly installed.
Under no circumstances shall the Atlantic Ultraviolet Corporation®be liable for any incidental, consequential or special damages,
losses or expenses arising from the contract for this product, or in connection with the use of, or inability to use, our product for
any purpose whatsoever.
Patent notiCe
No attempt has been made to determine the patent status of applications illustrated or described in this publication. Inclusion
in this publication of any design or method of use, which may be patented, is not to be construed as promoting or sanctioning
unauthorized use.
