MiniSolar MT-150 User manual
www.minisolarworld.com
Have the basic idea of the
wind power generation.
DIY Educational Kit for Green Energy
Mini Wind Turbine Kit MT-150
- A Wind Power Generator with 14V, 6mA
- Well Designed Kit for Easy Assembling
You can make it work
with folding fan!
Assembling Guide
2
MT-150 Assembling Guide
◉

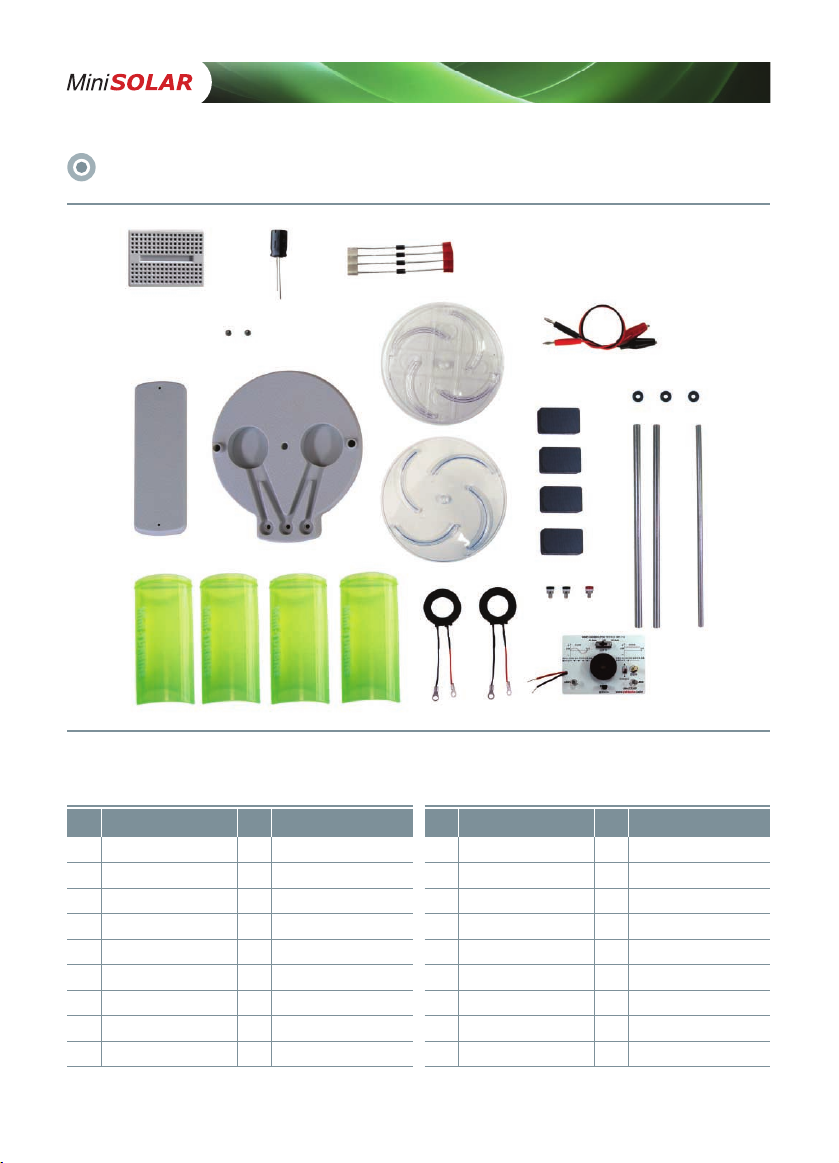

MT-150 Components
Num.
Q’ty Remarks Name
Num.
Q’ty Remarks Name
Components of Mini-Turbine MT-150
3
MT-150 Assembling Guide

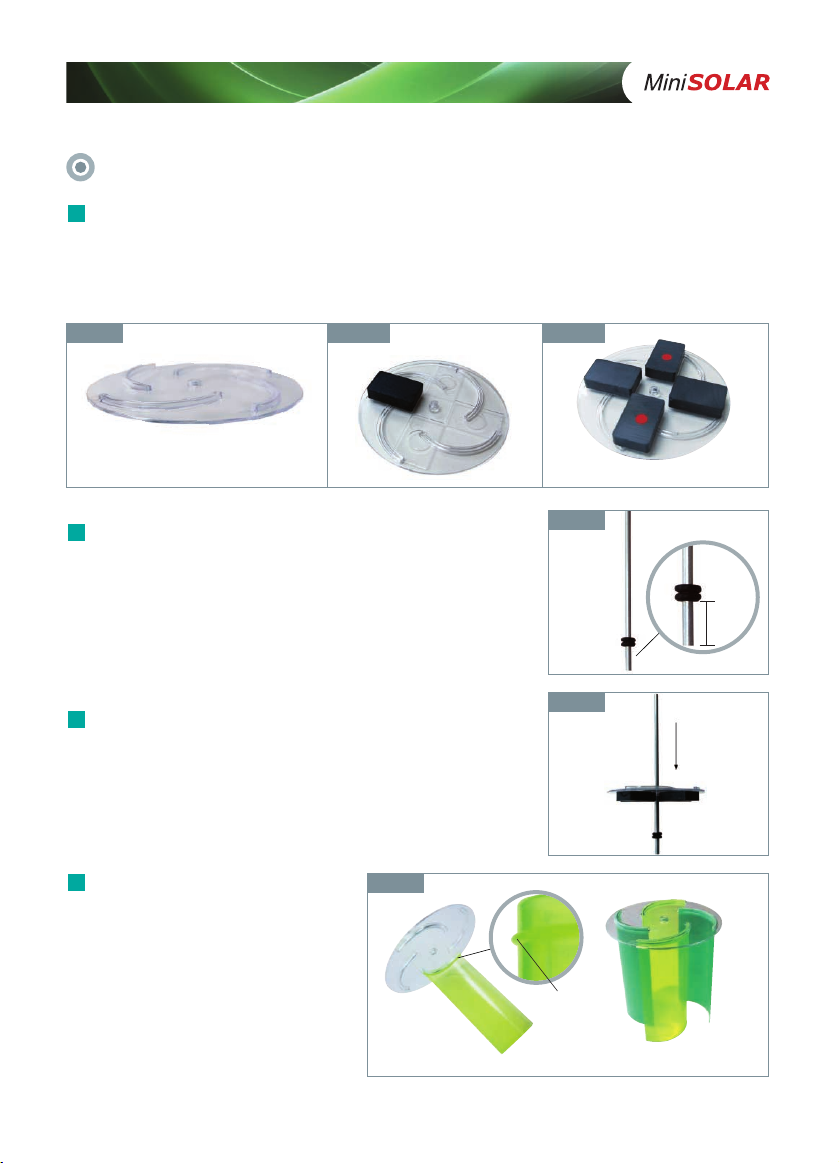

Assembling and Experiment steps
Put the rubber rings on the aluminum pipe (pivot)
※ The distance from the bottom can affect the performance
of generator.
2
N
N
S
S
<Fig. 2>
Insert the pipe thru the hole in the center of lower plate
till the rings.
3
<Fig. 3>
Fix the wings to upper plate
(component #4).
※
Be careful not to fix the wings
with wrong side, refer to <Fig. 1-a>
to see the difference between
upper plate and lower plate.
4
<Fig. 4>
<Fig. 1-1> <Fig. 1-2> <Fig. 1-3>
Fix the magnets to lower plate.
1
4
MT-150 Assembling Guide
Assemble the upper plate to the pivot (aluminum pipe,
component #10)
5
<Fig. 5>
Assemble the upper plate and lower plate to make a
rotating body.
※ Fix the wings firmly one by one not to fall out from the plate.
6
<Fig. 6>
Put a ring on the top of the pivot.
7
<Fig. 7>
5
MT-150 Assembling Guide

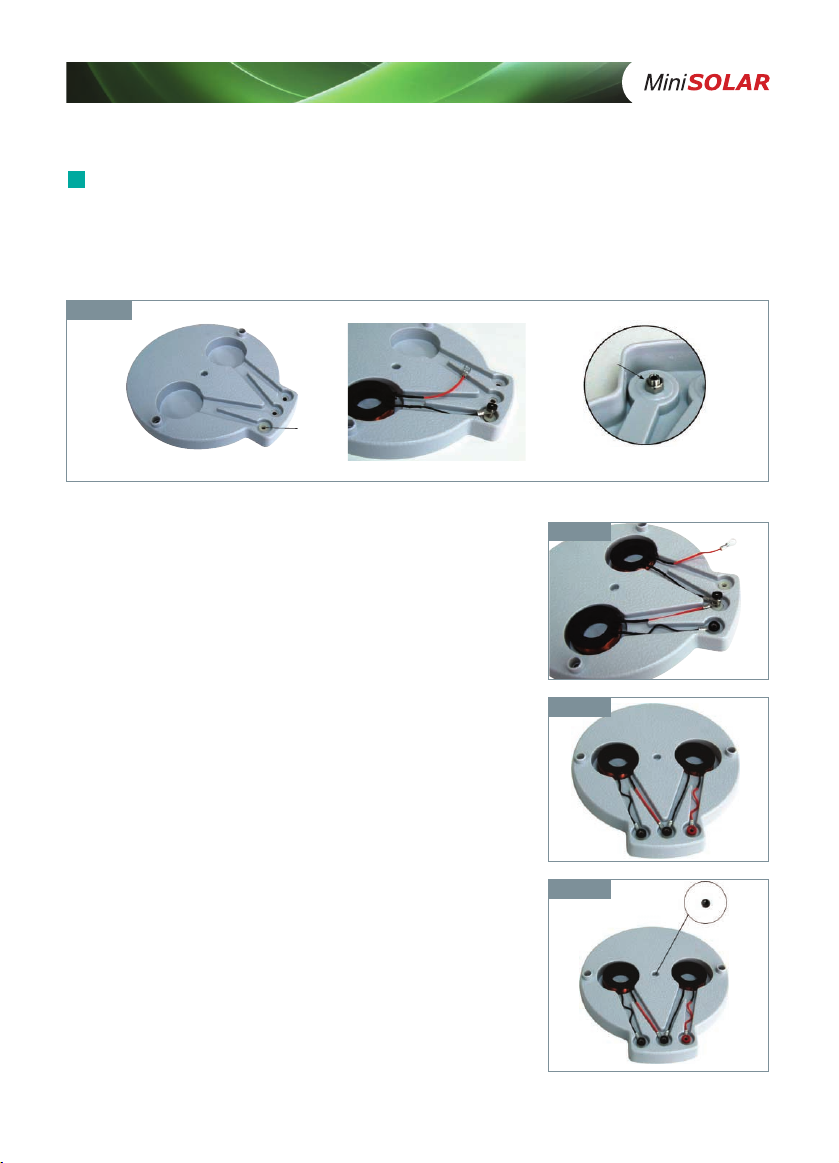

Set the coil windings to the base body of Mini-Turbine.
8.1. Connect the coil(A, left) to the terminal hole.
8
8.2 Connect the coil(B, right) to the terminal holes on the
base body.
8.3 Place the coils to the prepared place in the base body.
8.4 Put the iron ball in the hole for pivot in the center
of the body.
※ Be careful not to miss the ball.
B
A
<Fig. 8-1>
<Fig. 8-2>
<Fig. 8-3>
<Fig. 8-4>
<Fig. 10>
6
MT-150 Assembling Guide
Mount the rotating body of Mini-Turbine on the
base body.
9
<Fig. 9>
<Fig. 12>
Joint two aluminum pipes (pillars,
7mm diameter, component #9).
10
<Fig. 11> <Fig. 11-1>
Joint the complex of the roof and
the pillars to the base body.
※ Slap slightly the top of the roof
to fix well.
11
Check the turbine rotates easily.
12
7
MT-150 Assembling Guide
<Fig. 13>
Make winds blow with the folding fan to rotate the turbine.
※ What is the difference in the loudness of melody or the
brightness of LED, while you are blowing.
14
<Fig. 14>
The gauge (WT-01)
15-1. LED
15-2. Melody
※ You can make this generator to work as a motor connecting dry cells in the place of the gauge.
15
<Fig. 15>
Attach the gauge. (WT-01)
※ Check the difference of output, inserting the black banana
jack to terminal#1 and terminal #2.
13
www.minisolarworld.com
