INSTRUCTION MANUAL WARRANTY CERTIFICATE
U.S. Patents: D833,596; D837,363
LUN-AIRE
BY

This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including
Patents, Trademark, and/or Copyright Laws.

The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer.
This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs
excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling
fan (excluding wall controls and electrical components), to the original purchaser or user.
* The warranty is voided with the use of any non- Minka-Aire®electrical devices, E.g., wall controls or electrical dimmer switches, etc…
* The warranty is void once the original purchaser or user ceases to own the fan or the fan is moved from its original point of installation.
* The warranty is void with the use of any hanger bracket (non-Minka Aire or non-fan specific) other than the hanger bracket supplied & installed
with this specific fan.

Date Purchased Store Purchased Model Number Serial Number
F534L
Warranty Service Information
To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of
purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty
claim. Replacement is subject to availability of the same model. If the model is unavailable it will be replaced by one of equal value. This is a
limited warranty; the original purchaser or user is responsible for the cost of removal and reinstallation of repaired or replacement product.
To obtain the name of the Minka-Aire® authorized dealer nearest you call the Minka-Aire® customer care department at 1-800-307-3267, or
contact Minka-Aire® through www.minkagroup.net and select FAQ to answer any questions or if you require additional assistance submit the
question form found there.

CONTENTS
SAFETY RULES...................................................................................
PACKAGE CONTENTS....................................................................
INSTALLING THE FAN....................................................................
HANGING THE FAN........................................................................
ELECTRICAL CONNECTIONS......................................................
FINISHING THE INSTALLATION................................................
ATTACHING THE FAN BLADES..................................................
INSTALLING THE MOUNTING PLATE ............................................
LIGHT KIT INSTALLATION...................................................................
OPERATING YOUR FAN......................................................................
CARE OF YOUR FAN..............................................................................
TROUBLESHOOTING...........................................................................
SPECIFICATIONS....................................................................................
1
2
3
4
5
6
7
8
9
10
11
12
13
1151 W. Bradford Court, Corona, CA 92882 For Customer Assistance Call: 1-800-307-3267
UL
LISTED
E75795
R

1
SAFETY RULES
1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box.
2. Be cautious!
Be cautious!
Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams.
3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
4. Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet from the
floor and 18 inches from the tip of the blades to the wall.
5. If you are mounting the fan to a ceiling fan outlet box, use a U.L. Listed metal octagonal outlet box marked "Acceptable for Fan Support". Secure
the box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 50
pounds) Do not use a plastic box.
6. Caution:
Caution:
To reduce the risk of injury use only the screws provided with the outlet box in conjunction with the lock washers provided with the fan.
7. If you are mounting the fan to a joist, make sure it is able to support the moving weight of the fan (at least 50 pounds).
8. After you install the fan, make sure that all mounting components are secured to prevent the fan from falling.
9. Do not insert anything into the fan blades while the fan is operating.
10. Turn the fan off and wait for the blades to stop completely before proceeding with maintenance or cleaning.

NOTE:
NOTE:
The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be
supplied by the person(s) installing, caring for and operating the unit.
NOTE:
NOTE:
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR OTHER PERSONAL INJURY, MOUNT FAN ONLY TO A U.L. LISTED OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX IN
CONJUCTION WITH THE LOCK WASHERS PROVIDED WITH THE FAN. MOST OUTLET BOXES COMMONLY USED FOR FAN SUPPORT OF
LIGHTING FIXTURES ARE NOT ACCEPTABLE FOR FAN SUPPORT AND NEED TO BE REPLACED. CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE HOLDERS WHILE INSTALLING, BALANCING THE BLADES OR CLEANING
THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE OR ELECTRONIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

2
1. Fan blades (5)
2. Hanger bracket, canopy and canopy
cover assembly
3. Downrod assembly
4. Coupling cover
5. Fan motor/housing assembly
6. Blade holders (5)
7. Light kit mounting plate
8. 17 Watt LED light kit
9. Glass shade
10. Balancing kit
A. Mounting hardware:
#10 x 1.5" Wood screws (2 PCs.)
#8 x 3/4" Machine screws (2PCs.)
Lock washers (2 PCs.)
4mm star washers (2 PCs.)
Wire nuts (3 PCs. )
Washers (2 PCs.)
B. Blade attachment hardware:
3/16" x 7.5mm screws (16 PCs.)
Fiber washers (16 PCs.)
C. Blade holder hardware:
1/4" x 15mm Screws with lock
washers (11 PCs.)
D. Switch cup hardware:
Pull chain fob (2 PCs.)

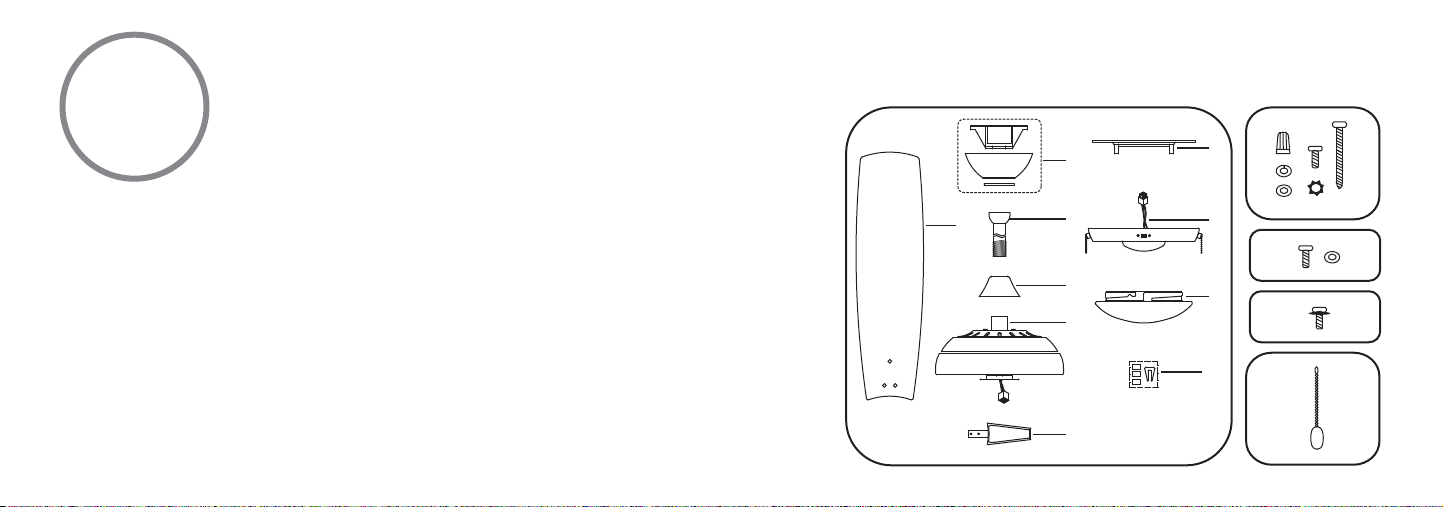

PACKAGE CONTENTS
1
6
27
8
9
10
4
5
3
B
A
C
D
Unpack your fan and check the contents. You should have the following items:

3
Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape.
INSTALLING THE FAN
MOUNTING OPTIONS
If there isn't an existing mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate fasteners and building
materials. The outlet box and its support must be able to fully support the moving weight of
the fan (at least 50 lbs.). Use a UL Listed metal outlet box. Do not use a plastic outlet box.
Figure 1, 2 and 3 are examples of different ways to mount the outlet box.
Note:You may need a longer downrod to maintain proper blade clearance when installing on a
steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer.
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install
a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer).
R
R
FIG. 1
FIG. 3
FIG. 2
FIG. 4
CROSS BRACE
CEILING
JOIST
CEILING
jOIST
CEILING
JOIST
OUTLET BOX
PARALLEL WOOD BRACE
(MIN. 2" THICK)
OUTLET
BOX
OUTLET BOX
CEILING JOIST OR
CROSS BRACE
ANGLED CEILING
MAXIMUM 18 ANGLE PROVIDE
STRONG
SUPPORT
RECESSED
OUTLET BOX
HANGER
OPENING
must be
FACING
UPSIDE
HANGER BAR
(OPTIONAL)
HANGER
BRACKET

4
WARNING:
WARNING:
All of the parts, hardware and components such as the hanger
bracket and hanger ball have been provided for your safety and the proper
installation of your new ceiling fan. The use of other parts, hardware or
components not supplied by Minka Aire®with the fan will void the Minka
Aire®Warranty.
REMEMBER
REMEMBER
to turn off the power. Follow the steps below to hang your fan
properly:
Step 1. Secure the Hanger Bracket to the ceiling outlet box using the screws
provided with your outlet box in conjunction with the lock-washers provided
with the fan. (Fig. 5)
Step 2. Loosen the two Set Screws and remove the Hitch Pin and Lock Pin
from the coupling located on the top of the Motor Assembly. (Fig. 6)
Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening
the Set Screw and removing the Cross Pin. (Fig. 7)
Step 4. Carefully feed fan wires up through the downrod. (Fig. 8) Thread
Downrod into the Coupling until the holes are lined up and secure with
the Lock Pin and Hitch Pin previously removed, tighten Set Screws. (Fig. 9)
Step 5. Slip Coupling Cover and Canopy onto Downrod. Carefully re-install
the Hanger Ball onto the Downrod being sure that it's properly positioned
over the Cross Pin and the wires are not twisted, tighten Set Screw. (Fig. 9)
Step 6. Lift the Motor Assembly and place the Hanger Ball into the Hanger
Bracket. Rotate the Motor Assembly as needed until the check groove from
the Hanger Ball rests firmly over the registration tab from the Hanger
Bracket. Motor Assembly should not rotate if this is done correctly. (Fig. 10)
HANGING THE FAN

OUTLET BOX
HANGER BRACKET
DOWNROD
SUPPLY
WIRES
Fig. 5 Fig. 7 Fig. 8Fig. 6
Fig. 10
REGISTRATION
SLOT
CROSS PIN
HANGER
BALL
DOWNROD
HITCH
PIN
LOCK PIN
SET SCREWS
SET SCREW
Fig. 9
DOWNROD
CANOPY COVER
SET SCREWS
HITCH PIN LOCK PIN
COUPLING
COVER
CANOPY

5
ELECTRICAL CONNECTIONS
REMEMBER
REMEMBER
to shut the power off at the circuit breaker or fuse box.
Follow the steps below to connect the fan to your house supply wires. Use the
wire nuts supplied with your fan. Secure the wire nuts by wrapping the
connection with electrical tape.
Step 1. Connect the black (hot) wire from the ceiling to the black and the blue
wires from the fan. Connect the white (Neutral) wire from the ceiling to the white
wire from the fan. (Fig 11)
Step 2. If your outlet has a ground wire (Green or Bare Copper) connect the fan
ground wires (on hanger ball and hanger bracket) to it; otherwise connect the fan
ground wire on hanger ball directly to the hanger bracket (Fig. 11)
Step 3. Figure 12 & 13 Illustrate the wiring connections using optional wall unit.
(Available at your Minka-Aire®Retailer.)
Fig. 11
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)
WHITE (NEUTRAL)
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN.
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)

Fig. 12 Fig. 13
FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH.
WIRING
OPTION 1
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT) WHITE (NEUTRAL)
LIGHT SWITCH
BLACK (MOTOR)
FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH.
WIRING
OPTION 2
BLACK (HOT)
WALL
WHITE (NEUTRAL) GREEN (GROUND)
CEILING
HOUSE WIRE SUPPLY
BLUE (OPTIONAL LIGHT)
BLACK (MOTOR)
WHITE (NEUTRAL)
LIGHT SWITCH
FAN WALL CONTROL
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
GROUND
(CONNECT TO GROUND
WIRE ON HANGER
BRACKET IF NO HOUSE
GROUND WIRE EXISTS.)
NOTE: SOME WALL UNITS
INCORPORATE BOTH LIGHT
SWITCH AND FAN WALL
CONTROL IN ONE HOUSING.

6
Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the
other one half a turn from the screw head.
Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of
the key holes. (Fig. 14)
Step 3. Align the circular hole on canopy with the remaining hole on the hanger bracket, secure
by tightening the two set screws.
Note:
Note:
Adjust the canopy screws as necessary until the canopy and canopy cover are snug.
FINISHING THE INSTALLATION
Fig. 14
Outlet Box
Hanger
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cover

7
ATTACHING THE FAN BLADES
Step 1. Attach the fan blade to the blade holder using the
screws and fiber washers provided. Tighten screws
securely. Repeat process for remaining blades. (Fig. 15)
Step 2. Rotate the motor so that the screw holes in motor
are aligned with the holes in blade holder and secure with
proper screws. Repeat process for the other blade holders.
(Fig. 16)
Fig. 15 Fig. 16
FAN BLADE
BLADE HOLDER
SCREWS
FIBER
WASHERS
SCREWS WITH
LOCK WASHERS
BLADE HOLDER

8
Step 1. Remove 1 of the 3 screws from the mounting ring and loosen the other 2 screws. (Do not
remove)
Step 2. Place the key holes from the mounting plate over the 2 screws previously loosened from the
mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 17)

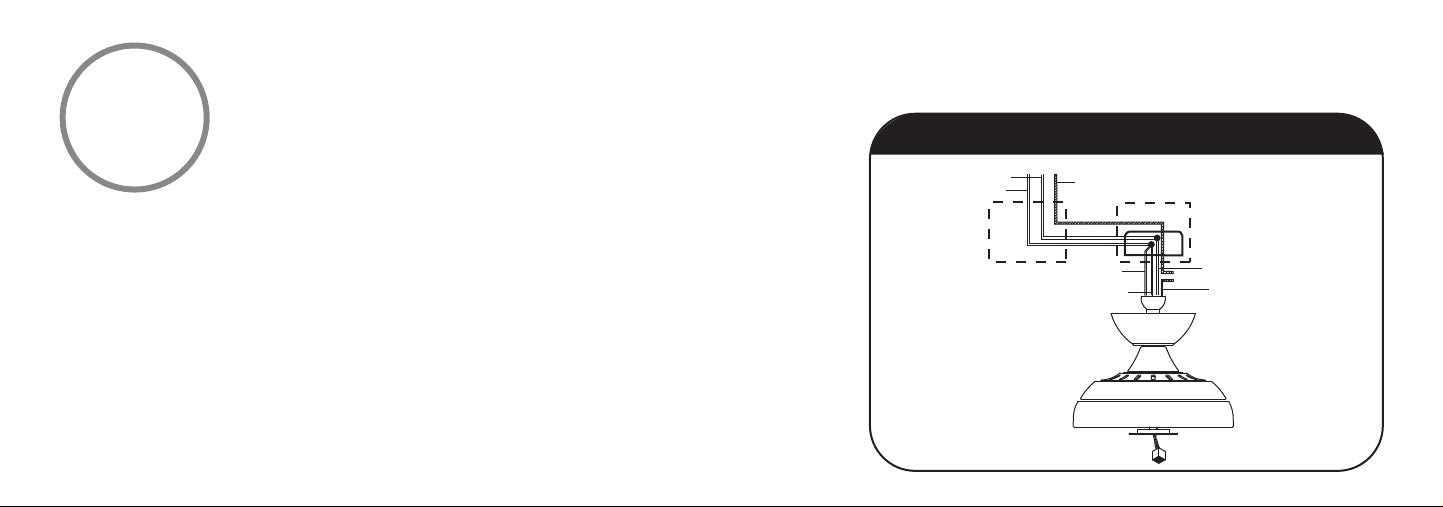

INSTALLING THE MOUNTING PLATE
Fig 17
MOUNTING
RING
SCREWS
MOUNTING
PLATE

NOTE:
NOTE:
Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box.
Step 1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not remove)
Step 2. While holding the light kit, firmly snap the wire molexes together. (Fig. 18)
Step 3. Place the key holes from the LED light kit over the 2 screws previously loosened from the mounting plate, turn LED light kit until it locks in
place at the narrow section of the key holes. Secure by tightening the 2 screws previously loosened and the one previously removed. (Fig. 18)
Step 4. Raise the glass shade cover up against the LED light kit and secure it to the fan by turning glass shade clockwise untilsnug. DO NOT
OVERTIGHTEN. (Fig. 19)

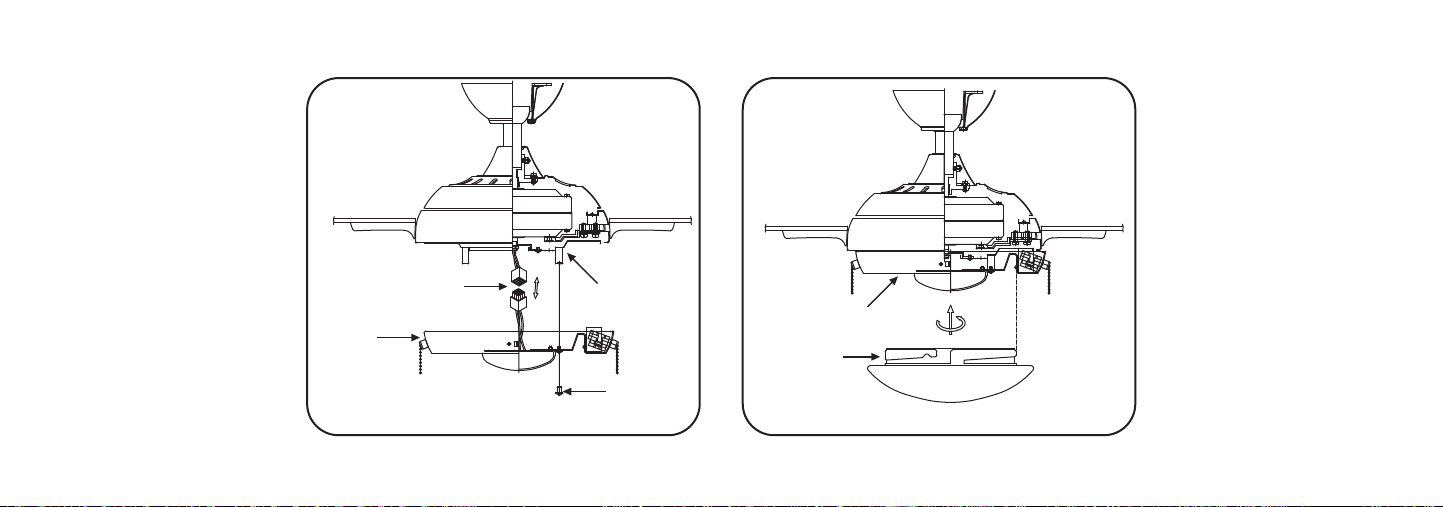

LIGHT KIT INSTALLATION
9

Fig. 19
LIGHT KIT
GLASS SHADE
Fig. 18
LIGHT KIT
SCREWS
LIGHT KIT
MOUNTING PLATE
CONNECTOR

10
Restore power to ceiling fan and test for proper operation.
Install two pull chain fobs onto the pull chains located on the light kit assembly.
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc.
The Reverse switch is located on the light kit assembly. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for
cool weather operation. (Fig. 20)
NOTE:
NOTE:
Wait for fan to stop before changing the setting of the slide switch.
Warm weather - (Forward)
A downward airflow creates a cooling effect as shown in Fig. 21. This allows you to set your air conditioner on a warmer setting without affecting
your comfort.
Cool weather - (Reverse)
An upward airflow moves warm air off the ceiling area as shown in Fig. 22. This allows you to set your heating unit on a cooler setting without
affecting your comfort.
The pull chain controls the fan speed as follows: 1st pull - High , 2nd pulls - Med, 3rd pulls - Low and 4th pulls - Off.
OPERATING YOUR FAN

FIG. 21 FIG. 22
FIG. 20
WINTER OPERATION
(CLOCKWISE DIRECTION)
SUMMER OPERATION
(COUNTERCLOCKWISE DIRECTION)
REVERSE SWITCH
