MINN KOTA Ultrex 1368800 User manual

ULTREX™
BOW-MOUNT TROLLING MOTOR
OWNER'S MANUAL

INTRODUCTION
Made by Minn Kota
Johnson Outdoors ULTREX 80/US2/IP-45"_BT
MODEL 1368800
SER NO R365 MK12345
NOTE: The serial number on your Ultrex is located
under the foot pedal. EXAMPLE
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat.
That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling
motor is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you
the Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we
are never done helping you catch more fish.
REGISTRATION
Remember to keep your receipt and immediately register
your trolling motor. A registration card is included with your
motor or you can complete registration on our website.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very
important. It helps to determine the specific model and
yearof manufacture. When contacting Consumer Service
or registering your product, you will need to know your
product’s serial number. We recommend that you write the
serial number down so that you have it available for future
reference.

SAFETY CONSIDERATIONS
WARNING
You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an
accurate and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve
you from the responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a
permanent watch so you can respond to situations as they develop. You must always be prepared to regain manual control of
your boat. Learn to operate your Minn Kota product in an area free from hazards and obstacles.
WARNING
Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected
from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the
battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them.
Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions
may result in electric shorts of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking
the propeller. Avoid submerging the complete motor as water may enter the lower unit through control head and shaft. If the
motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not be
covered by warranty.
WARNING
Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects.
The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming
and for floating objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication,
or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise
pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.
Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is
only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult
supervision.
WARNING
When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of
unexpected operation, remove power leads from the battery.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved
accessories including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use
the product and approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected
motor operation. Keep all factory installed parts in place including motor and accessory covers, enclosures and guards.

KNOW YOUR BOAT
Keel
Bow
Hull
Bow
Stern
Stern
Port
Port Starboard
Starboard
Gunwale
Gunwale
Transom
Inboard
Outboard

FEATURES
NOTE: Specifications subject to change without notice. This diagram is for reference only and may differ from
your actual motor.
Steering Module
i-Pilot/
i-Pilot Link Control
Mono-Arm
Lifetime Warranty
Flexible Composite Shaft
Propeller
Power Switch
Heel Block
Speed Control
Spot-Lock
AutoPilot
Cool Quiet
Power Motor
Momentary
On Button
Constant
On Button
Lift-Assist
Depth Collar Knob
High-Impact
Composite Material
Pull Grip and Cable
Spot-Lock
Constant On
Power
AutoPilot
Indicator Panel

INSTALLATION
INSTALLING THE ULTREX
Your new Ultrex comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the
boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release
bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting bracket. To
install the motor directlyto the boat, please follow the instructions provided in this manual. Please review the parts list,
mountingconsiderations and tools needed for installation prior to getting started. For additional product support and to locate
your nearestdealer.
12
3
4
5
6
10
11
13
14
15
12
9
8
7
Item /
Assembly Part # Description Qty.
12994075 tREMOTE ASSEMBLY, IPILOT 1
22994076 tREMOTE ASSEMBLY LINK TOUCHSCREEN 1
3✖MOTOR SEMBLY 1
A2994887 INALTION HARDWARE BAG SEMBLY 1
42263468 1/4 - 20 X 2.5" SS PPH SCREW 6
52263103 1/4 - 20 SS NYLOCK NUT 6
62261713 1/4 FT 18-8 SS WHER 6
AA 1378132 80# THRUST PROP KIT 1
BB 1378160 112# THRU PROP KIT 1
72341160 PROP-WW2 (4.5)W/ADP.RING 1
82091701 WASHER-PROP (LARGE) 1
92093101 NUT-PROP NYLOC,LG, MX101 3/8 SS 1
10 2262658 PIN-DRIVE 1" 3/16" S/S 1
C2991925 BRACK ABLZR ARM Y (SUB) 1
11 22655100 BUMPER ABILIZER 1
12 2263624 ABILIZER ROD 1
13 2263107 NYLON HEX NUT 3/4 - 10 UNC 1
14 2281829 BRACK 1
15 2260221 VINYL P 1
16 2223100 NUT 5/16-18 NYLO SS 2
17 2263422 BOLT 5/16-18 X 1" SS P SCREW 2
18 2281700 5/16 "ID X .457 OD HIGH COLR LOCK
WHER 2
19 2390800 LANYARD, REMOTE W/ CARABEENER 1
20 2773806 STRAP, HOLD DOWN 1
21 2373241 tCABLE, USB REMOTE CHARGER LINK 1
22 2375901 tADAPTER, USB DC POWER LINK 1
23 2996400 HEADING SENSOR SEMBLY 1
24 490389-1 tCABLE, ETH (M12-M-M12-F, 30' 1
D2994912 BAG ASSY, FORTREX MOUNT HDW 1
25 2283410 SCREW-1/4-20 X .500" PFH 2
26 2281710 SPACER, G SPRING, FORTREX 2
27 2282610 PIN, UPPER SHOCK 1
28 2397101 tMANUAL, QUICK REF., iPILOT 1.6 1
29 2397103 tMANUAL-QUICK REF., iPILOT 3.0 1
30 2997161 INALTION GUIDE, ULTREX 1
E2991733 MOUNT M ULTREX FW 112# 45" 1
F2991734 MOUNT M ULTREX FW 80# 45" 1
G2991735 MOUNT M ULTREX FW 80# 52/60" 1
H2991736 MOUNT M ULTREX FW 112# 52/60" 1
32 2211415 CABLE-EXTENSION, PD/AP 110" 1
A

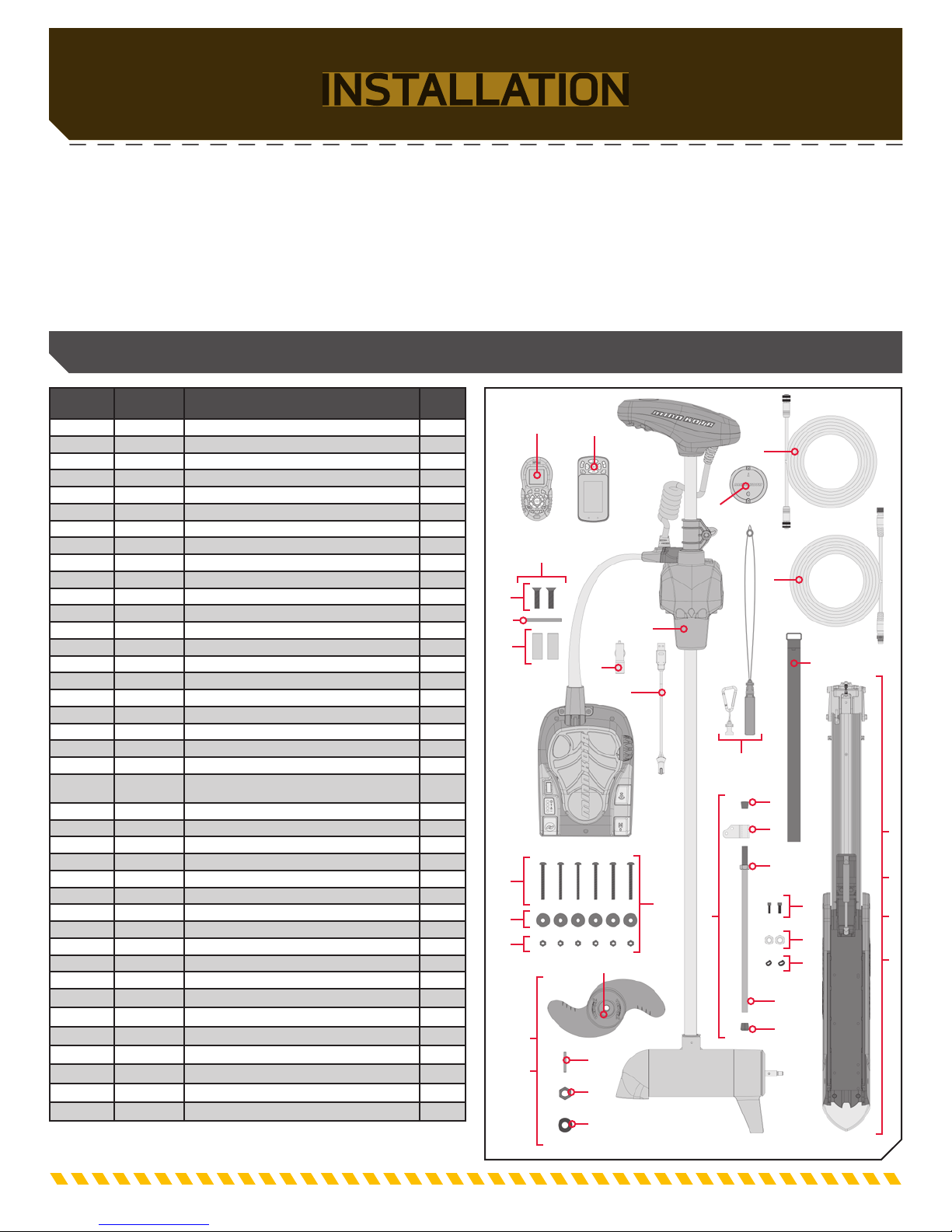

INSTALLATION PARTS LIST
BB
AA
C
E
F
G
H
17
25
16
27
18
26
19
20
21
22
23
24
32
D
✖This part is included in an assembly and cannot be ordered individually.
pNot shown on Parts Diagram.
tSpecific to i-Pilot or i-Pilot Link.

ASSEMBLY OF MOTOR TO MOUNT
• #2 Phillips Screwdriver
• (2) #3 Phillips Screwdriver
• 1/4" Allen Wrench
• Drill
• 9/32" Drill Bit
• 7/16" Box End Wrench
• A person to help with
installation
• Torque Wrench
• File or Sandpaper
• Hack Saw
• Marker or Pencil
• 1/8" Flat Screwdriver
• 1/8" Allen Wrench
• Loctite
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
a. Place the Mount on an elevated, level surface
such as a workbench or the tailgate of a pickup.
The Mount, as removed from the box, should be
in the deployed position.
b. Remove the 5/16" Allen Screw and Lock Washer
from the Mount using the 1/4" Allen Wrench. The
5/16" Allen Screw is located on the opposite
end of the mount from the hinge that opens and
closes when the mount is stowed and deployed.
It is recommended that the motor be mounted as close to the keel or centerline of
the boat as possible. Make sure the area under the mounting location is clear to drill
holes and install nuts and washers. Make sure the motor rest is positioned far enough
beyond the edge of the boat. The motor must not encounter any obstructions as it is
lowered into thewater or raised into the boat when stowed and deployed. Consider
a quick release or adapter bracket with the installation of your motor.
c. Align the Keyways on the inside of the Steering
Module with the End Links on the Mount. Do this
by positioning the Steering Module above the
End Links on the Mount.
d. Lower the Motor Assembly straight down until
the Steering Module is seated.
1
2
Assembly of Motor to Mount
End Links
Keyways
Steering
Module
Allen Screw with
Lock Washer
Mount
Mount
Deployed
Stowed
WARNING
Carefully lower the Steering Module into place to avoid creating
a pinch point between the Steering Module and Mount.

INSTALLING THE BOW-MOUNT
e. Reinstall the 5/16" Allen Screw and Lock Washer
and tighten to 18 to 20 ft-lbs with a Torque
Wrench.
3
NOTE: The 5/16" Allen Screw must be
tightened when installed and periodically
tightened to 18 to 20 ft-lbs. This will allow
the motor to be stowed properly. Tighten
the Allen Screw when the Mount is in the
deployed position.
Installing the Bow-Mount
a. Review the mounting considerations at the
beginning of the Installation section for proper
placement.
Place the Mount as close to the
centerline or keel of
the boat as possible, with
the motor in the stowed
position, on the deck of
the boat. Check
placement with the motor in the
stowed and deployed positions.
1
NOTE: This motor weighs approximately 55 lbs. We
recommend having a second person help with the
installation.
ITEM(S) NEEDED
#20 x 1
Allen Screw with
Lock Washer
Mount
Deck of Boat
Hold Down Strap
Keel
Mount
UTION
The Gas Spring Cylinder can become damaged in the Mount
while stowing or deploying the motor because it is not yet fully
installed. Damage will prevent the Lift-Assist feature from
operating correctly once fully assembled. Make sure that the
Gas Spring Cylinder does not get damaged by keeping it inside
the Outer Arm of the Mount.
b. Place the Hold-Down Strap (Item #20) under the
base of the Mount Plate so that it is below the
Mount when placed.
During installation, it is recommended to mount the motor to the boat before installing the Gas Spring Pin. The Gas Spring Pin
is installed in the Gas Spring Cylinder. The Gas Spring Cylinder is located on the inside of the Outer Arm, which is a part of the
Mount. At this point in the installation, the Gas Spring Cylinder is not fully installed and may move around inside the Mount when
stowing and deploying the motor. The Gas Spring Cylinder can become damaged while deploying the motor and the damage will
prevent the Lift-Assist feature from operating correctly once fully assembled. Make sure that the Gas Spring Cylinder does not get
damaged in the Mount.

INSTALLING THE BOW-MOUNT
3
2
Deck of Boat
Hold Down Strap
Keel
Mount
d. Check the placement with the motor in the
deployed position. When the motor is in the
deployed position, make sure that the Shaft is
1-1/2" out past the Gunwale of the boat. The
lower unit, when stowed and deployed must not
encounter any obstructions.
e. Check the placement of the Hold-Down Strap
when the motor is in the stowed and deployed
position and adjust if necessary. 1 1/2"
Minimum
Gunwale
Shaft
c. The Mount can be installed on either the Port
or Starboard side of the boat based on personal
preference. Test the placement of the Hold-Down
Strap to be sure it can hold the Mount as placed.
The placement of the buckle on the Hold-Down
Strap either inboard or outboard is based on
personal preference. The hook and loop on the
fastener should be face down for the Hold-Down
Strap to function.
f. Once the Mount is in position, determine which
bolt pattern to use. The bolt pattern selected will
depend on the deck space available on your boat.
g. It is recommended to mark at least 4 of the 6
holes in the base of the Mount and to have two
bolts on each side that are located the farthest
apart on the Mount Plate. Ideal installation would
allow for 6 bolts to be used, with a minimum of 4.
h. Drill through the deck of the boat using a 9/32"
Drill Bit on the marked locations.
i. Be sure the Hold-Down Strap under the base
of the Mount Plate sits between the second
and third set of bolts according to the mounting
pattern selected. Double check that it can close
around the Mount when stowed.
4
NOTE: If Pattern 2 is used, the right side plate
must be removed to access the mounting holes in
the base of the Mount.
Hold Down Strap
Pattern 1
Pattern 2
Bow

INSTALLING THE GAS SPRING PIN
j. Put a 1/4-20 x 3 1/2" Screw (Item #4) in each
of the drilled locations. The Screw should pass
through the Mount Plate and the boat deck.
k. Place a Flat Washer (Item #5) and then a Nylock
Nut (Item #6) at the end of each screw as shown
and secure. Make sure all hardware is secure.
5ITEM(S) NEEDED
#4 x 6 #5 x 6 #6 x 6
NOTE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may
help prevent seizing.
Screw
Deck
Flat Washer and
Nylock Nut
Installing the Gas Spring Pin
1a. Position the motor to the stowed position with
the Pull Grip and Cable to disengage the latch bar,
allowing the motor to fold into a flat position.
b. Once in the stowed or flat position, the Gas
Spring Pin and Spacers can be installed.

INDEXING THE MOTOR
Outboard
Deck of Boat
Pedal Control
Sleeve Assembly
Keel
Inboard
Deck of Boat
Pedal Control
Sleeve Assembly
Control Head
Keel
2
c. Locate the upper Gas Spring Pin (Item #27) and
Spacers (Item #26) in the bag assembly. Align the end
of the Gas Spring with the holes in the Outer Arm.
d. Install the Gas Spring Pin through the Outer Arm,
then through a Spacer, the end of the Gas Spring
Cylinder and another Spacer.
e. Install one Phillips Screw (Item #25) on each end
of the Gas Spring Pin and secure with two #3
Phillips screwdrivers.
f. Tighten Phillips Screws until the heads are flush
with the Outer Arm.
NOTE: Spacers are placed on each side of
the Gas Spring on the inside of the Outer
Arm. Phillips Screws have a pre-applied
thread locker. Do not apply additional thread-
locker to them as it may prevent future
removal.
ITEM(S) NEEDED
#25 x 2 #26 x 2 #27 x 1
Phillips Screw
Phillips Screw
Phillips Screw
Spacer
Spacer
Spacer
Spacer
Gas Spring Pin
Gas Spring
Cylinder
Gas Spring
Cylinder
Outer Arm
Outer Arm
Outer Arm
Outer Arm
Gas Spring
Indexing the Motor
It is recommended to have the Pedal Control Sleeve Assembly pointing inboard. If the Pedal Control Sleeve Assembly points
outboard, please see Orientate the Pedal Control Sleeve Assembly for a Starboard Mount. Use the following instructions to index
the motor if the Pedal Control Sleeve Assembly is already mounted inboard.
Once installed, the system is properly indexed when the motor is deployed and the head of the motor and lower unit align with
the centerline or keel of the boat at the same time the top of the Foot Pedal is parallel to the deck of the boat.

INDEXING THE MOTOR
1a. Turn the Power Switch "on" and steer the motor
so that the Control Head is in line with the keel of
the boat. This can be done by steering the motor
with the Foot Pedal, turning the motor with
the remote, or manually turning the head of the
motor.
b. Leave the Control Head in the desired alignment
and turn the power to the Foot Pedal "off". Then
disconnect the power by removing the power
cables from the battery or turning "off" the
breaker if equipped.
Foot Pedal
Power Switch
Deck of
Boat
Pedal Control
Sleeve Assembly
Control Head
Control Head
Alignment
Keel
WARNING
To avoid electric shock, make sure the motor is not
connected to a power source.
2c. Remove the Connector Cover from the Wrap
Drum Cover using a 1/8” wide Flat Screwdriver
to release it. Release it by pressing the flat part of
the screwdriver in the slot closest to the center of
the Connector Cover and prying upwards.
d. Once the Connector Cover is removed,
disconnect the Steering Motor Connection Plug
that is visible.
NOTE: Please note the orientation and routing of
the plug and wires for re-installation.
2c
2d
Connector
Cover Wrap Drum
Cover
Wrap Drum
Cover
Connector
Cover
Flat
Screwdriver
Steering Motor Connection Plug

INDEXING THE MOTOR
5g. Once the Cable Tension Screw is loosened, prying
the Wrap Drum straight up off of the Cable Gear
using a heavy flat-blade screwdriver, until the
Wrap Drum is free of the Cable Gear.
UTION
Care must be taken so that the Steering Cables remain
on the Wrap Drum when it is disengaged from the Cable
Gear. It is important that the Steering Cables follow the
grooves on the Wrap Drum so that they do not become
intertwined or pop off. Be sure that the electric wire is
not damaged as the Wrap Drum is lifted. Cable Gear
Flat
Screwdriver Steering
Cables
Wrap Drum
Cable Anchor
3
UTION
Be careful to not damage the Steering Motor Connection
Plug ends.
e. Remove the two screws that hold the Wrap Drum
Cover in place with a #1 Phillips Screwdriver.
Once removed, lift the Wrap Drum Cover away
from the Steering Module.
Steering
Module
Wrap Drum
Cover
Steering Motor
Connection Plug
Steering Motor
Connection Plug
Screws
4
f. The Cable Tension Screw that holds tension on
the Steering Cables is located under the base of
the Toe End of the Foot Pedal. This screw can be
loosened just enough so that the Steering Cables
can be pinched together between the Cable Anchor
and Wrap Drum. Use a #3 Phillips screwdriver to
loosen this screw. Turning the screw approximately
8 turns counterclockwise should provide enough
slack in the cables to adjust. Keep track of the
number of turns the screw is unscrewed so it can
be re-tightened accordingly later.
NOTE: The cables are fed through the Cable Anchor
and wound around the Wrap Drum. The right cable
is the shorter cable and begins winding on the Wrap
drum from the top down. The left cable is the longer
cable and begins winding on the Wrap drum from the
bottom up.
UTION
Over loosening the Cable Tension Screw may cause the
cables to disengage from the Wrap Drum.
Cable Tension
Screw
Toe End of
Foot Pedal

INDEXING THE MOTOR
6Wrap Drum Steering Motor
Connection Wire
Steering
Cables
Steering
Module
Cable
Anchor
Foot Pedal
h. While holding the Wrap Drum just above the
Cable Gear, and maintaining tension on the
Steering Cables, carefully rotate the Wrap Drum
right or left until the top of the Foot Pedal is
parallel with the deck of the boat. The proper
position of the Wrap Drum will locate the anchors
for each of the Steering Cables equidistant from
the mid-line of the Cable Anchor where it is
secured to the Steering Module.
i. Once the Foot Pedal is at the desired position,
align the Wrap Drum with the nearest tooth on
the splined shaft of the Cable Gear. Press the
Wrap Drum securely down so that it is seated
on top of the Cable Gear. At this point, the head
of the motor should be parallel with the keel of
the boat and the top of the foot pedal should be
parallel with the deck of the boat.
UTION
If the Wrap Drum becomes unintentionally disengaged from
the Cable Gear, the Steering Cables can become unwound
and will need to be reassembled correctly for proper
operation.
7
UTION
Do not over tighten the Cable Tension Screw, as excessive
tension will cause damage to the unit.
Cable
Tension
Screw
Toe End of
Foot Pedal
j. Using a #3 Phillips screwdriver, tighten the Cable
Tension Screw located at the base of the Toe
End of the Foot Pedal to 10 - 12 in-lbs until the
Steering Cables are under tension or re-tighten
the same number of turns as was used in step 4f.
UTION
Do not make this adjustment by applying pressure to the
Foot Pedal. Rotate the Wrap Drum manually and use
the Foot Pedal position as a guide to indicate the proper
position of the Wrap Drum.
NOTE: The top of the Wrap Drum has rounded
and smooth edges. The bottom of the Wrap Drum
is flat and the teeth that engage the Cable Gear
are visible in the center.

INDEXING THE MOTOR
9
Wrap Drum Cover
Wires
Steering
Module
Screws
8
Cable Anchor
Wrap Drum Cover
Steering Motor
Connection Wire
k. Reconfirm that the Steering Cables are tight
and then carefully thread the Steering Motor
Connection Wire through the top of the Wrap
Drum Cover. The male plug comes from the Cable
Anchor through the opening at the bottom of the
Wrap Drum Cover. The wire with the female plug
that runs out the top of the Cable Gear should
also be pulled through the opening at the bottom
of the Wrap Drum Cover.
l. Place the Wrap Drum Cover down on top of the
Cable Anchor and align the screw holes on it with
the screw holes on the Cable Anchor. Make sure
the Wrap Drum Cover is nested securely on top of
the Steering Module and that the wires pass out
the top of the Wrap Drum Housing. Secure the
Wrap Drum Housing in place with the two screws
that were originally removed using a #1 Phillips
screwdriver. Tighten to 6 in-lbs.
UTION
Take care not to pinch the Steering Motor Connection
Wire while the Wrap Drum is set into place.
10
Steering Motor
Connection Plug
m. Reconnect the Steering Motor Connection Plug
and push it into the Wrap Drum Cover.
n. Orientate the wires connecting the Steering
Motor Connection Plug as noted so that the wires
do not touch moving parts.
o. Replace the Connector Cover.
UTION
Wires and plug must not touch moving parts. Wires may
be damaged if caught in moving parts.
Wrap Drum Cover

ORIENTATE THE PEDAL CONTROL SLEEVE ASSEMBLY FOR A STARBOARD MOUNT
Orientate the Pedal Control Sleeve Assembly for a Starboard Mount
1a. Aligning the head of the motor before correcting
the placement of the Pedal Control Sleeve
Assembly will help calibrate alignment once the
assembly is in the recommended position. Turn
the Power Switch "on" and steer the motor so
that the Control Head is in line with the keel of
the boat. This can be done by steering the motor
with the Foot Pedal, turning the motor with
the remote, or manually turning the head of the
motor.
b. Leave the motor in the desired alignment and
turn the power to the Foot Pedal "off". Then
disconnect the power by removing the power
cables from the battery or turning "off" the
breaker if equipped.
By default, the Pedal Control Sleeve Assembly is factory set so that when your Ultrex is installed on the port side of your boat, the
Pedal Control Sleeve Assembly points inboard. Should you choose to install your Ultrex on the Starboard side of your boat, it is
recommended that the default mounting location be changed so that the Pedal Control Sleeve Assembly points inboard.
Once the Mount is installed, the system is properly calibrated when the motor is deployed and the head of the motor and lower
unit align with the centerline or keel of the boat at the same time the top of the Foot Pedal is parallel to the deck of the boat.
Use the following instructions to change the mounting location of the Pedal Control Sleeve Assembly on the Steering Housing
and then properly align the head of the motor. If your motor was installed on the Port side of the boat, please disregard these
instructions and see the Indexing the Motor section of this manual.
Foot Pedal
Power Switch
1b
1a
Deck of Boat
Pedal Control
Sleeve Assembly
Keel
WARNING
To avoid electric shock, make sure the motor is not
connected to a power source.

ORIENTATE THE PEDAL CONTROL SLEEVE ASSEMBLY FOR A STARBOARD MOUNT
3
UTION
Be careful to not damage the Steering Motor Connection
Plug ends and wires.
e. Remove the two screws that hold the Wrap Drum
Cover in place with a #1 Phillips Screwdriver.
Once removed, lift the Wrap Drum Cover away
from the Steering Module.
4
f. The Cable Tension Screw that holds tension on
the Steering Cables is located under the base of
the Toe End of the Foot Pedal. This screw can be
loosened just enough so that the Steering Cables
can be pinched together between the Cable Anchor
and Wrap Drum. Use a #3 Phillips screwdriver to
loosen this screw. Turning the screw approximately
8 turns counterclockwise should provide enough
slack in the cables to adjust. Keep track of the
number of turns the screw is unscrewed so it can be
re-tightened accordingly later.
Steering
Module
Wrap Drum
Cover
Steering Motor
Connection Plug
Steering Motor
Connection Plug
Screws
NOTE: The cables are fed through the Cable Anchor
and wound around the Wrap Drum. The right cable
begins winding on the Wrap drum from the top down.
The left cable begins winding on the Wrap drum from
the bottom up.
UTION
Over loosening the Cable Tension Screw may cause the
cables to disengage from the Wrap Drum.
Cable Tension
Screw
Toe End of
Foot Pedal
2
NOTE: Please note the orientation and routing of
the plug and wires for re-installation.
2d
2e
Connector
Cover Wrap Drum
Cover
Wrap Drum
Cover
Connector
Cover
Flat
Screwdriver
Steering Motor Connection Plug
c. Remove the Connector Cover from the Wrap
Drum Cover using a 1/8” wide Flat Screwdriver
to release it. Release it by pressing the flat part of
the screwdriver in the slot closest to the center of
the Connector Cover and prying upwards.
d. Once the Connector Cover is removed,
disconnect the Steering Motor Connection Plug
that is visible.

ORIENTATE THE PEDAL CONTROL SLEEVE ASSEMBLY FOR A STARBOARD MOUNT
Cable Anchor
Steering
Cables
Screws
Wrap Drum
5
6
g. The Cable Anchor functions to hold the Steering
Cables in place. The cables run from the Cable
Anchor and wrap around the Wrap Drum. The
Cable Anchor is secured to the Steering Module
with two screws. Remove the two #10-32 x 1/2"
screws that hold the Cable Anchor in place using
a #2 Phillips screwdriver.
h. The Wrap Drum is set on the shaft of the Cable
Gear that extends above the Steering Module.
The female end of the electric wire passes out the
top of the Cable Gear. The shaft of the gear that
the Wrap Drum sits on is splined. To rotate the
Pedal Control Sleeve Assembly, the Wrap Drum
needs to be lifted off of the Cable Gear. Before
the Wrap Drum can be lifted or aligned, the
Steering Cables should be loosened.
i. Once the Cable Tension Screw is loosened,
and the screws are removed, carefully pry the
Wrap Drum partially off by prying straight up,
using a heavy flat-blade screwdriver. The Wrap
Drum should only be lifted far enough up on the
Cable Gear to rotate the Pedal Control Sleeve
Assembly to the inboard or desired position. The
Cable Anchor is in the correct position on the
mount when it is mounted towards the inboard
side of the mount.
NOTE: The top of the Wrap Drum has rounded
and smooth edges. The bottom of the Wrap Drum
is flat and the teeth that engage the Cable Gear
are visible in the center.
UTION
Only pry the Wrap Drum high enough on the Cable Gear
to rotate the Cable Anchor and Pedal Control Sleeve
Assembly to the correct position. If the Wrap Drum
becomes unintentionally disengaged from the Cable
Gear, the Steering Cables can become unwound and will
need to be reassembled correctly for proper operation.
Cable Gear
Flat
Screwdriver
Steering
Cables
Wrap Drum
Cable Anchor

ORIENTATE THE PEDAL CONTROL SLEEVE ASSEMBLY FOR A STARBOARD MOUNT
8
Wrap Drum
Steering Motor
Connection Wire
Cable Gear
Steering
Cables
Steering
Module
Cable
Anchor
7j. Secure the Cable Anchor to the inboard side
of the Steering Module by loosely securing the
screws in place using a #2 Phillips screwdriver.
k. Once the Cable Anchor is secured, finish prying
the Wrap Drum straight up, off of the Cable Gear
until the Wrap Drum is free of the Cable Gear.
UTION
Care must be taken so that the Steering Cables remain
on the Wrap Drum when it is disengaged from the Cable
Gear. It is important that the Steering Cables follow the
grooves on the Wrap Drum so that they do not become
intertwined or pop off. Be sure that the electric wire is
not damaged as the Wrap Drum is lifted.
Cable Gear
Flat
Screwdriver
Steering
Cables
Wrap Drum
Cable Anchor
Screws Steering
Module
7j
7k
Cable Anchor
l. While holding the Wrap Drum just above the
Cable Gear, and maintaining tension on the
Steering Cables, carefully rotate the Wrap Drum
right or left until the top of the Foot Pedal is
parallel with the deck of the boat. The proper
position of the Wrap Drum will locate the anchors
for each of the Steering Cables equidistant from
the mid-line of the Cable Anchor where it is
secured to the Steering Module.
m. Once the Foot Pedal is at the desired position,
align the Wrap Drum with the nearest tooth on
the splined shaft of the Cable Gear. Press the
Wrap Drum securely down so that it is seated on
top of the Cable Gear.
Foot Pedal
UTION
Do not make this adjustment by applying pressure to the
Foot Pedal. Rotate the Wrap Drum manually and use
the Foot Pedal position as a guide to indicate the proper
position of the Wrap Drum.

ORIENTATE THE PEDAL CONTROL SLEEVE ASSEMBLY FOR A STARBOARD MOUNT
11
Wrap Drum Cover
Wires
Steering
Module
Screws
9
10
UTION
Do not over tighten the Cable Tension Screw, as excessive
tension will cause damage to the unit.
10q
Cable
Tension
Screw
Toe End of
Foot Pedal
Cable Anchor
Wrap Drum
Cover Steering Motor
Connection Wire
n. Re-tighten the two screws that fasten the Cable
Anchor to the top of the Steering Module using a
#2 Phillips screwdriver. Tighten to 25 in-lbs.
o. Using a #3 Phillips screwdriver, tighten the Cable
Tension Screw located at the base of the Toe
End of the Foot Pedal to 10 - 12 in-lbs until the
Steering Cables are under tension or re-tighten
the same number of turns as was used in step 4f.
p. Reconfirm that the Steering Cables are tight
and then carefully thread the Steering Motor
Connection Wire through the top of the Wrap
Drum Cover. The male plug comes from the Cable
Anchor through the opening at the bottom of the
Wrap Drum Cover. The wire with the female plug
that runs out the top of the Cable Gear should
also be pulled through the opening at the bottom
of the Wrap Drum Cover.
q. Place the Wrap Drum Cover down on top of the
Cable Anchor and align the screw holes on it with
the screw holes on the Cable Anchor. Make sure
the Wrap Drum Cover is nested securely on top of
the Steering Module and that the wires pass out
the top of the Wrap Drum Housing. Secure the
Wrap Drum Housing in place with the two screws
that were originally removed using a #1 Phillips
screwdriver. Tighten to 6 in-lbs.
Cable Anchor
Screws Steering
Module
10p
UTION
Take care not to pinch the Steering Motor Connection Wire
while the Wrap Drum is set into place.
