MINN KOTA POWERDRIVE V2 User manual

POWERDRIVE V2
BOW-MOUNT TROLLING MOTOR
USER MANUAL

Model:_________________________________________________________________________________________________________________________
Serial Number: _______________________________________________________________________________________________________________
Purchase Date: _______________________________________________________________________________________________________________
Store Where Purchased: ____________________________________________________________________________________________________
NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service
by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any
Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of
purchase, serial number and purchase date for warranty service with any of the above options.
Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from
the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are
not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation
of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect
motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through
control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not
be covered by warranty.
CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The
motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for floating objects.
Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use
this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The
overall vibration level does not exceed 2,5m/sec2.
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat.
That’s why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor
is thought out and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the
Minn Kota advantage that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are
never done helping you catch more fish.
REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR.
A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.
LOCATING YOUR SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting
Consumer Service or registering your product, you will need to know your product’s serial number. We recommend that you write the serial number
down in the space provided below so that you have it available for future reference.
CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS)
Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in 2012
PowerDrive V2
MODEL 1358710
SER NO M365 MK12345
EXAMPLE
2 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
The serial number on your PowerDrive V2 is
located inside the mount below the motor rests.

minnkotamotors.com | 3
©2015 Johnson Outdoors Marine Electronics, Inc.
TABLE OF CONTENTS
Two-Year Limited Warranty 4
Features 5
Mount Installation 6
Battery & Wiring Installation 7-8
Boat Rigging & Product Installation 7
Conductor Gauge and Circuit Breaker Sizing Table 7
Push-to-test Battery Meter 7
Selecting the Correct Batteries 8
Connecting the Batteries 8
Motor Wiring Diagram 9
Using The Motor 10-12
Stowing & Deploying 10
AutoPilot Controls 11
Adjusting the Depth of the Motor 11
Installing an External Transducer 12
Using the Foot Pedal 13
Service & Maintenance 14
Troubleshooting 15
Parts Diagram 16
Parts List 17
Environmental Compliance Statement 18
Notes 19

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota freshwater trolling motor will be materially free from defects in materials
and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by
JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive
remedy of the purchaser for breach of this warranty.
MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT
JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in
materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite
shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the
sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to
install, any new composite shaft provided by JOME.
EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty
does not cover normal wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification,
shipping damages, acts of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF
OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY
THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility
of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and
liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute
a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses
incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission.
JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S
ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.
MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented
to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or
shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service,
or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with
proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service
can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].
Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair
or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not
in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at
least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED
WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND
BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,
INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for
loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
4 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
TWO-YEAR LIMITED WARRANTY

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS
Johnson Outdoors Marine Electronics, Inc. (“JOME”) extends the following limited warranty to the original retail purchaser only. Warranty coverage is not
transferable.
MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT
JOME warrants to the original retail purchaser only that the purchaser’s new Minn Kota freshwater trolling motor will be materially free from defects in materials
and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by
JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive
remedy of the purchaser for breach of this warranty.
MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT
JOME warrants to the original retail purchaser only that the composite shaft of the purchaser’s Minn Kota trolling motor will be materially free from defects in
materials and workmanship appearing within the original purchaser’s lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite
shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the
sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to
install, any new composite shaft provided by JOME.
EXCLUSIONS & LIMITATIONS
This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty
does not cover normal wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification,
shipping damages, acts of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF
OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY
THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility
of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and
liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute
a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses
incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME’s prior written permission.
JOME’S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER’S
ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.
MINN KOTA SERVICE INFORMATION
To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented
to a Minn Kota Authorized Service Center or to Minn Kota’s factory service center in Mankato, MN. Any charges incurred for service calls, transportation or
shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service,
or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with
proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service
can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].
Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair
or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not
in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at
least one hour.
NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED
WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND
BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE,
INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for
loss of use of product, loss of time, inconvenience or other damage.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state
to state.
minnkotamotors.com | 5
©2015 Johnson Outdoors Marine Electronics, Inc.
FEATURES
Specifications subject to change without notice.
*This diagram is for reference only and may differ from your actual motor.
Weedless Wedge 2 Propeller
Adjustable Depth Collar
Lifetime
Warranty Flexible
Composite Shaft
Low Profile
Foot Pedal
Cool Quiet
Power Motor
Deploy-Assist
Lever
Tilt Lock Lever

6 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
MOUNT INSTALLATION
TOOLS AND RESOURCES REQUIRED:
• #3 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation
1. Remove the four sideplate screws. Remove the right sideplate and swing the left sideplate out and away from the base
extrusion.
2. Place the motor on the bow of the boat in the deployed position.
a. We recommend that the motor be mounted as close to the centerline of the boat as possible.
b. Make sure that the area under the mounting location is clear and unobstructed
for drilling and accessible for you to attach nuts and washers.
c. Make sure the mount is positioned so that the shaft is out beyond the rub rail of the boat by 1-½”. The lower unit, as it is
lowered into the water or raised into the boat, must not encounter any obstructions.
CAUTION: Make sure the motor is mounted on a level surface and is not connected to
a power source. Use the rubber washers to create a level surface if necessary.
3. Once in position, mark four of the twelve holes (two on each side) provided in the bow mount base for drilling. If possible, use
the four holes that are farthest apart. Drill through the marked holes using the 9/32” drill bit.
4. Mount the plate to the bow using the provided bolts, nuts, and washers.
5. Replace the sideplates and sideplate screws.
Mounting Holes
(6 Per Side)

BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when
rigging your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for
general guidelines only:
CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional
electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are
using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire
extension length is more than 25 feet, we recommend that you contact a qualified marine technician.
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that
each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type
(voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives
recommended guidelines for circuit breaker sizing.
Reference:
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment
ABYC E-11: AC and DC Electrical Systems on Boats
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
Motor Thrust /
Model Max Amp Draw Circuit Breaker Wire Extension Length *
5 feet 10 feet 15 feet 20 feet 25 feet
30 lb. 30 50 Amp @ 12 VDC 10 AWG 10 AWG 8 AWG 6 AWG 4 AWG
40 lb., 45 lb. 42 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG
50 lb., 55 lb. 50 60 Amp @ 12 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
70 lb. 42 50 Amp @ 24 VDC 10 AWG 10 AWG 8 AWG 8 AWG 6 AWG
80 lb. 56 60 Amp @ 24 VDC 8 AWG 8 AWG 8 AWG 6 AWG 6 AWG
101 lb. 46 50 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 101 50 60 Amp @ 36 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
112 lb. 52 60 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 160 116 (2) x 60 Amp @ 24 VDC 2 AWG 2 AWG 2 AWG 2 AWG 2 AWG
E-Drive 40 50 Amp @ 48 VDC 10 AWG 10 AWG 10 AWG 10 AWG 10 AWG
This conductor and circuit breaker sizing table is only valid for the following assumptions:
1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.
*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.
minnkotamotors.com | 7
©2015 Johnson Outdoors Marine Electronics, Inc.
BATTERY WIRING & INSTALLATION
PUSH-TO-TEST BATTERY METER
This motor is equipped with a “push-to-test” battery meter. The LED provides an accurate
display of the remaining charge in the battery. It is only accurate when the motor is off.
The meter reads as:
• One light indicates recharge.
• Two lights indicate low charge.
• Three lights indicate good charge.
• Four lights indicate full charge.

BATTERY WIRING & INSTALLATION
CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)
24 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring
diagram, to provide 24 volts.
a. Connect a connector cable to the positive ( + ) terminal of
battery 1 and to the negative ( – ) terminal of battery 2.
b. Connect positive ( + ) red motor lead to
positive ( + ) terminal on battery 2.
c. Connect negative ( – ) black motor lead to
negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.
CAUTION
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while
the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
To trolling motor negative
24 Volt Connection
Battery #1 (Low Side)
Neg - Neg -Pos + Pos +
Battery #2 (High Side)
+24 Volts to trolling motor
positive (or circuit breaker)
24 Volt Series Connection
SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine
battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power
when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the
leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers
to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate
deep cycle marine battery/batteries for your Minn Kota trolling motor.
Advice Regarding Batteries:
• Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the
battery and short the terminals. This would immediately lead to a short and extreme fire danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit
Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring
a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CONNECTING THE BATTERIES
12 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “OFF” or “0”).
2. Connect positive ( + ) red lead to positive ( + ) battery terminal.
3. Connect negative ( – ) black lead to negative ( – ) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.
CAUTION:
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the
battery/batteries are being charged.
8 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.

CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)
24 VOLT SYSTEMS:
1. Make sure that the motor is switched off (speed selector on “0”).
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring
diagram, to provide 24 volts.
a. Connect a connector cable to the positive ( + ) terminal of
battery 1 and to the negative ( – ) terminal of battery 2.
b. Connect positive ( + ) red motor lead to
positive ( + ) terminal on battery 2.
c. Connect negative ( – ) black motor lead to
negative ( – ) terminal of battery 1.
4. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual. See wiring diagram on following pages.
CAUTION
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while
the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
To trolling motor negative
24 Volt Connection
Battery #1 (Low Side)
Neg - Neg -Pos + Pos +
Battery #2 (High Side)
+24 Volts to trolling motor
positive (or circuit breaker)
24 Volt Series Connection
minnkotamotors.com | 9
©2015 Johnson Outdoors Marine Electronics, Inc.
MOTOR WIRING DIAGRAM
NOTE: This is a universal, multi-voltage diagram. Double check your motor's voltage for proper connections. Over-Current
Protection Devices not shown in this illustration.
B+
B-
M+
M-
12v
24v
COMPASS
SENSOR
BOARD
RED M+
BLACK M-
BROWN
YELLOW
GREEN
RED
BLACK
WHITE
UNIVERSAL SONAR 2
EXTENSION WIRE*
COIL CORD
GREEN
YELLOW
BROWN
RED
BLACK
WHITE
BLACK M-
FUSE*
RED M+
MOTOR
STEERING MOTOR
CONTROL BOARD
RED
BLACK
BATTERY
GAUGE
FOOT PEDAL
CONTROL BOARD*
BATTERY 1
BATTERY 2 BATTERY 3
* ON US2 EQUIPPED MOTORS ONLY
BLACK B-
RED B+
AUTOPILOT EQUIPPED
MOTORS ONLY

10 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR
STOWING AND DEPLOYING THE MOTOR
WARNING:
When raising or lowering the motor, keep fingers clear of all hinge and pivot points and all moving parts.
DEPLOY-ASSIST LEVER OPERATION:
1. Loosen the depth collar screw.
2. Push Deploy-Assist Lever down.
3. Push motor out.
4. Tighten the depth collar screw.
TO DEPLOY THE MOTOR
Loosen the Dept Collar screw, then push firmly down on the Deploy-Assist Lever to release the collar and slide the motor
forward, out from the ramp. Lower the motor to the desired depth. Make sure it clicks into a secure, vertical position.
TO STOW THE MOTOR
Push down on the Tilt Lock Lever and raise the motor by pulling up on the composite shaft or control head. Pull the motor toward
the stern until it rests securely on the ramp and the Deploy-Assist Lever captures the latch collar. Slide the depth collar down and
secure it against the top of the steering housing to secure the motor in place and prevent accidental deployment.
TRANSPORTATION
In conditions where the stowed motor is subject to high levels of shock or vibration, take care to provide a secure stow. Move the
depth collar snug against the steering motor and tighten.
TO ADJUST THE LATCH COLLAR
The latch collar is adjustable. If needed, loosen the Phillips head screw and rotate the collar up or down to re-align the latch and
collar. The ideal adjustment is a slightly loose fit that completely captures the collar.
2
3
Tilt Lock Lever
Depth Collar Deploy-Assist Lever
Latch Collar
Latch Collar

USING & ADJUSTING THE MOTOR
AUTOPILOT™ CONTROLS
(ON AUTOPILOT EQUIPPED MOTORS ONLY)
The Minn Kota AutoPilot™uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction
you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself
back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until
the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until
the boat is moving in the direction you chose.
1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from
turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue
to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the System Ready
indicator will go off.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large,
ferrous metal objects near (within 12” of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to
wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.
ADJUSTING THE DEPTH OF THE MOTOR
When setting the depth be sure the top of the motor is submerged
at least 12” to avoid churning or agitation of surface water. The
propeller must be completely submerged.
1. With the motor deployed, firmly grasp the composite shaft above
the mount.
2. Loosen the adjustable depth collar until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten adjustable depth collar to secure the motor in place.
Adjustable Depth Collar
Motor Mount
Composite Shaft
12” Minimum Depth
Composite Shaft
12” Minimum Depth
Motor Mount
Adjustable Depth Collar
Motor Control Head
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue
to run. Turn off the AutoPilot switch to stop the motor. If the switch is left on, the steering motor will shut off automatically
after 10 seconds. The motor should not be sored in this condition for long periods as power is still being applied to all
eletronics. Always turn the Autopilot switch off and disconnect your motor from the battery when storing your boat.
AUTOPILOT™ CONTROLS
(ON AUTOPILOT EQUIPPED MOTORS ONLY)
The Minn Kota AutoPilot™uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction
you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself
back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until
the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until
the boat is moving in the direction you chose.
1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from
turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue
to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the System Ready
indicator will go off.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large,
ferrous metal objects near (within 12” of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to
wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.
NOTE: Always turn the AutoPilot switch off and disconnect your motor from the battery when storing your boat.
minnkotamotors.com | 11
©2015 Johnson Outdoors Marine Electronics, Inc.

INSTALLING AN EXTERNAL TRANSDUCER
An external sonar transducer can be installed onto the motor as shown.
1. Transducer cables should be routed through the coil cable as
depicted in the illustration to the right.
2. Leave enough slack for proper stow and deploy.
3. Mount transducer according to transducer instructions.
Note: An external transducer is not included with your trolling motor.
Your trolling motor may be pre-installed with a Universal Sonar 2
transducer system. In this case, the transducer is integrated into the
motor unit.
For compatibility and more information on Universal Sonar 2, please
visit minnkotamotors.com/us2.
ACCESSORY RECOMMENDATIONS:
• Minn Kota Transducer Mounting Kit (MKR-15)
Leave slack
Leave slack
Tie wrap cable
Tie wrap cable
Transducer
Transducer
cable
Leave slack
Tie Wrap
Cable
Tie Wrap
Cable
Transducer
Transducer
cable
12 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
USING & ADJUSTING THE MOTOR

All the controls in the foot pedal are easy to operate by either foot or hand. A light touch is all that is necessary.
MOMENTARY
A toe touch on the momentary button turns the propeller
on. Let up and the propeller stops.
MOMENTARY/CONSTANT (MOM/CON) SWITCH
When the switch is in CON position the motor will run
continuously without keeping your foot on the pedal. Slide
the switch to momentary (MOM) to again operate the
motor with toe touch.
RIGHT/LEFT
Place your foot in the center of the steering pedal, rocking
to the right steers right. Rocking to the left steers left.
The heel of your foot can also be placed on the deck of the
boat. Using your heel to pivot on, depress and hold the
center momentary to turn the motor on or depress and hold the left or right side of the pedal to steer left or right.
NOTE: The steering system is designed to turn your motor 360°. Be careful to avoid over-wrapping the coil cord around the
composite shaft.
FORWARD/REVERSE
The propeller always turns in the forward direction. You can reverse the direction of thrust by turning the motor 180˚.
SPEED CONTROL
The speed selector is the calibrated sliding bar located on the right side of the foot pedal. The speed selector provides variable
speed control with the built in pulse modulation system. Use your hand or foot to slide the bar forward to increase speed. Draw
the bar back to decrease speed. The slider also contains a roller to aid in fine speed adjustment. Slide your foot over the roller
with light down pressure to adjust speed. The motor may not start turning until the speed slider reaches speeds 1 or 2. This
depends on manufacturing tolerances and if the CoPilot accessory is installed.
NON-CARPETED BOAT USE
Enclosed with your motor are four (4) rubber bumpers. If the foot pedal is to be used primarily on non-carpeted surfaces, insert
the rubber bumpers into the keyhole slots on the underside of the pedal. Slide the bumpers into the slot until they are locked into
position.
minnkotamotors.com | 13
©2015 Johnson Outdoors Marine Electronics, Inc.
USING THE FOOT PEDAL
Steering
Left
Steering
Right
Momentary/Constant
Switch
Speed
Control
Momentary
On/Off

Propeller
Slot End
Drive Pin
Prop Nut
Washer
PROPELLER REPLACEMENT
TOOLS AND RESOURCES REQUIRED:
• Box End Wrench
- 1/2” for motors with 70 lbs thrust or lower.
- 9/16” for motors with 80 lbs thrust or higher.
• Screwdriver (optional)
CAUTION:
Disconnect the motor from the battery
before beginning any prop work or
maintenance.
NOTE: The propeller on your motor may differ from
the one pictured.
1. Disconnect the motor from all sources of power prior to changing the propeller.
2. Hold the propeller and loosen the prop nut with pliers or a wrench.
3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade
screwdriver pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off. If drive pin falls out, push it back in.
5. Align the new propeller with the drive pin.
6. Install the prop washer and prop nut.
7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.
GENERAL MAINTENANCE
1. After use, the entire motor should be rinsed with freshwater. This series of motors is not equipped for saltwater exposure.
2. The composite shaft requires periodic cleaning and lubrication for proper retraction and deployment. A coating of an aqueous
based silicone spray will improve operation.
3. The propeller must be inspected and cleaned from weeds and fishing line after every use.
Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.
4. Verify the prop nut is secure each time the motor is used.
5. To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water.
For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
6. For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore
battery to full charge prior to use.
7. Keep battery terminals clean with fine sandpaper or emery cloth.
8. The propeller is designed to provide weed free operation with very high efficiency. To maintain this top performance, the
leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine
sandpaper.
14 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
SERVICE & MAINTENANCE

1. Motor fails to run or lacks power:
• Check battery connections for proper polarity.
• Make sure terminals are clean and corrosion free. Use fine sandpaper or emery cloth to clean terminals.
• Check battery water level. Add water if needed.
2. Motor loses power after a short running time:
• Check battery charge. If low, restore to full charge.
3. You experience prop vibration during normal operation:
• Remove and rotate the prop 180°. See removal instructions in the Propeller Replacement Section.
4. Experiencing interference with your fishfinder:
• You may, in some applications, experience interference in your depth finder display. We recommend that you use a separate
deep cycle marine battery for your trolling motor and that you power the depth finder from the starting/cranking battery. If
problems still persist, call our service department at 1-800-227-6433.
NOTE: For any other malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your
area by visiting our Authorized Service page, found online at minnkotamotors.com, or by calling our customer service number at
800-227-6433.
FOR FURTHER TROUBLESHOOTING AND REPAIR
We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.
FREQUENTLY ASKED QUESTIONS
We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on
“Frequently Asked Questions” to find an answer to your question.
CALL US (FOR U.S. AND CANADA)
Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433.
If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit
card information available. This will help expedite your call and allow us to provide you with the best consumer service possible.
You can reference the parts list located in your manual to identify the specific part numbers.
EMAIL US
You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit
minnkotamotors.com and click on “Support”.
AUTHORIZED SERVICE CENTERS
Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your
products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.
minnkotamotors.com | 15
©2015 Johnson Outdoors Marine Electronics, Inc.
TROUBLESHOOTING & REPAIR

16 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
PARTS DIAGRAM
1
2
3
4
5
8
9
10
11
12
13
15
14
16
17
18
19
20
21
25
26
27
6
28
29
7
79
66
65
78
43
41
42
40
39
40
41
118
116
117
114
58
57
44
45
90
60
46
37
59
76
80
82
31
30
32
83
33
34
36
48
49
50
51
52
72
75
73
56
55
54 53
86
35
74
71
69
70
61
61a
67
68
62
64
47
46A
65A
60A
89
112
96
95
103
104
99
99a
92
93
94
108
107
105
113
109
106
110
100
101
102
98
91
77B
77C
77A
81A
81
122
121
77
This page provides Minn Kota® WEEE compliance disassembly
instructions. For more information about where you should
dispose of your waste equipment for recycling and recovery and/
or your European Union member state requirements, please
contact your dealer or distributor from which your product was
purchased.
Tools required, but not limited to: flat head screw driver, Phillips
screw driver, socket set, pliers, wire cutters.
POWERDRIVE 70
70 LBS THRU - 24 VOLT - 54”/60” SHA
2314950 rev AB ECN 36330 3/15

minnkotamotors.com | 17
©2015 Johnson Outdoors Marine Electronics, Inc.

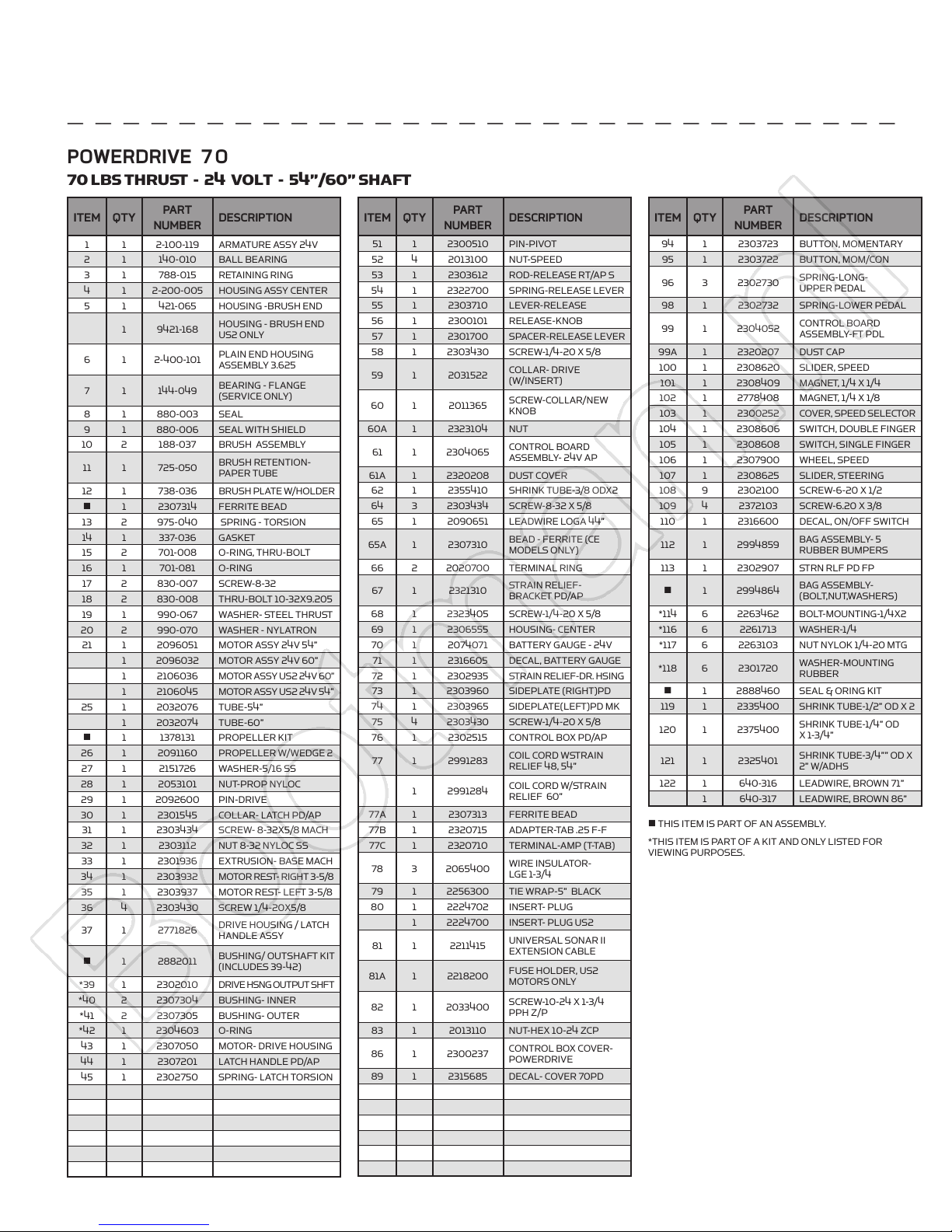

PARTS LIST
POWERDRIVE 70
70 LBS THRU - 24 VOLT - 54”/60” SHA
nTHIS ITEM IS PART OF AN SEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LIED FOR
VIEWING PURPOS.
ITEM QTY PART
NUMBER DESCRIPTION
1 1 2-100-119 ARMATURE SY 24V
2 1 140-010 BALL BEARING
3 1 788-015 RAINING RING
4 1 2-200-005 HOUSING SY CENTER
5 1 421-065 HOUSING -BRUSH END
19421-168 HOUSING - BRUSH END
US2 ONLY
6 1 2-400-101 PIN END HOUSING
SEMBLY 3.625
7 1 144-049 BEARING - FNGE
(SERVICE ONLY)
8 1 880-003 SEAL
9 1 880-006 SEAL WITH SHIELD
10 2188-037 BRUSH SEMBLY
11 1725-050 BRUSH RENTION-
PAPER TUBE
12 1738-036 BRUSH PTE W/HOLDER
n12307314 FERRITE BEAD
13 2975-040 SPRING - TORSION
14 1337-036 GK
15 2701-008 O-RING, THRU-BOLT
16 1701-081 O-RING
17 2830-007 SCREW-8-32
18 2830-008 THRU-BOLT 10-32X9.205
19 1990-067 WHER- EEL THRU
20 2990-070 WHER - NYTRON
21 12096051 MOTOR SY 24V 54”
12096032 MOTOR SY 24V 60”
12106036 MOTOR SY US2 24V 60”
12106045 MOTOR SY US2 24V 54”
25 12032076 TUBE-54”
12032074 TUBE-60”
n11378131 PROPELLER KIT
26 12091160 PROPELLER W/WEDGE 2
27 12151726 WHER-5/16 SS
28 12053101 NUT-PROP NYLOC
29 12092600 PIN-DRIVE
30 12301545 COLR- TCH PD/AP
31 12303434 SCREW- 8-32X5/8 MACH
32 12303112 NUT 8-32 NYLOC SS
33 12301936 EXTRUSION- BE MACH
34 12303932 MOTOR R- RIGHT 3-5/8
35 12303937 MOTOR R- LE 3-5/8
36 42303430 SCREW 1/4-20X5/8
37 12771826 DRIVE HOUSING / TCH
HANDLE SY
n12882011 BUSHING/ OUTSHA KIT
(INCLUD 39-42)
*39 12302010 DRIVE HSNG OUTPUT SHFT
*40 22307304 BUSHING- INNER
*41 22307305 BUSHING- OUTER
*42 12304603 O-RING
43 12307050 MOTOR- DRIVE HOUSING
44 12307201 TCH HANDLE PD/AP
45 12302750 SPRING- TCH TORSION
46 12302627 PIN- ROLL ZINC
46A 62303407 SCREW - DRIVE HOUSING
47 12305564 DEL-OW/DEPLOY
48 42305110 PAD-PIVOT SUPT
49 22305103 PIVOT PAD- NEW MTR’L
50 12300500 PIN-TCH
ITEM QTY PART
NUMBER DESCRIPTION
51 12300510 PIN-PIVOT
52 42013100 NUT-SPEED
53 12303612 ROD-RELEE RT/AP S
54 12322700 SPRING-RELEE LEVER
55 12303710 LEVER-RELEE
56 12300101 RELEE-KNOB
57 12301700 SPACER-RELEE LEVER
58 12303430 SCREW-1/4-20 X 5/8
59 12031522 COLR- DRIVE
(W/INSERT)
60 12011365 SCREW-COLR/NEW
KNOB
60A 12323104 NUT
61 12304065 CONTROL BOARD
SEMBLY- 24V AP
61A 12320208 DU COVER
62 12355410 SHRINK TUBE-3/8 ODX2
64 32303434 SCREW-8-32 X 5/8
65 12090651 LEADWIRE LOGA 44”
65A 12307310 BEAD - FERRITE (CE
MODE ONLY)
66 22020700 TERMINAL RING
67 12321310 RAIN RELIEF-
BRACK PD/AP
68 12323405 SCREW-1/4-20 X 5/8
69 12306555 HOUSING- CENTER
70 12074071 BATTERY GAUGE - 24V
71 12316605 DEL, BATTERY GAUGE
72 12302935 RAIN RELIEF-DR. HSING
73 12303960 SIDEPTE (RIGHT)PD
74 12303965 SIDEPTE(LE)PD MK
75 42303430 SCREW-1/4-20 X 5/8
76 12302515 CONTROL BOX PD/AP
77 12991283 COIL CORD WRAIN
RELIEF 48, 54”
12991284 COIL CORD W/RAIN
RELIEF 60”
77A 12307313 FERRITE BEAD
77B 12320715 ADAPTER-TAB .25 F-F
77C 12320710 TERMINAL-AMP (T-TAB)
78 32065400 WIRE INSUTOR-
LGE 1-3/4
79 12256300 TIE WRAP-5” BCK
80 12224702 INSERT- PLUG
12224700 INSERT- PLUG US2
81 12211415 UNIVERSAL SONAR II
EXTENSION BLE
81A 12218200 FUSE HOLDER, US2
MOTORS ONLY
82 12033400 SCREW-10-24 X 1-3/4
PPH Z/P
83 12013110 NUT-HEX 10-24 ZCP
86 12300237 CONTROL BOX COVER-
POWERDRIVE
89 12315685 DEL- COVER 70PD
12315688 DEL- COVER 70PD US
90 42012100 SCREW-8-18 X 5/8
n12994725 FOOT PEDAL SEMBLY
91 12304505 FOOT PEDAL BE
92 12308501 WEAR PTE FOOT PDL
93 12300255  PDL, CORDED UPPER
ITEM QTY PART
NUMBER DESCRIPTION
94 12303723 BUTTON, MOMENTARY
95 12303722 BUTTON, MOM/CON
96 32302730 SPRING-LONG-
UPPER PEDAL
98 12302732 SPRING-LOWER PEDAL
99 12304052 CONTROL BOARD
SEMBLY- PDL
99A 12320207 DU P
100 12308620 SLIDER, SPEED
101 12308409 MAGN, 1/4 X 1/4
102 12778408 MAGN, 1/4 X 1/8
103 12300252 COVER, SPEED SELEOR
104 12308606 SWITCH, DOUBLE FINGER
105 12308608 SWITCH, SINGLE FINGER
106 12307900 WHEEL, SPEED
107 12308625 SLIDER, EERING
108 92302100 SCREW-6-20 X 1/2
109 42372103 SCREW-6.20 X 3/8
110 12316600 DEL, ON/OFF SWITCH
112 12994859 BAG SEMBLY- 5
RUBBER BUMPERS
113 12302907 RN RLF PD FP
n12994864 BAG SEMBLY-
(BOLT,NUT,WHERS)
*114 62263462 BOLT-MOUNTING-1/4X2
*116 62261713 WHER-1/4
*117 62263103 NUT NYLOK 1/4-20 MTG
*118 62301720 WHER-MOUNTING
RUBBER
n12888460 SEAL & ORING KIT
119 12335400 SHRINK TUBE-1/2” OD X 2
120 12375400 SHRINK TUBE-1/4” OD
X 1-3/4”
121 12325401 SHRINK TUBE-3/4”” OD X
2” W/ADHS
122 1640-316 LEADWIRE, BROWN 71”
1640-317 LEADWIRE, BROWN 86”

ENVIRONMENTAL COMPLIANCE STATEMENT:
It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable
environmental regulations, and a good neighbor in the communities where we make or sell our products.
WEEE DIRECTIVE:
EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers,
and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer
electronics to take responsibility for the management of waste from their products to achieve environmentally responsible
disposal during the product life cycle.
WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required
for EEE designed and intended as fixed or temporary installation in transportation vehicles such as
automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered
outside of the scope of the Directive, and EEE for those applications can be considered excluded from the
WEEE Directive requirement.
This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other
household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson
Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply
in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do
vary within European Union member states. For more information about where you should dispose of your waste equipment for
recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from
which your product was purchased.
DISPOSAL:
Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE
directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local
town council.
Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and
dispose of them at the proper place of collection of your local town council.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
18 | minnkotamotors.com ©2015 Johnson Outdoors Marine Electronics, Inc.
COMPLIANCE STATEMENTS

minnkotamotors.com | 19
©2015 Johnson Outdoors Marine Electronics, Inc.
NOTES

A Johnson Outdoors Company
Minn Kota Consumer & Technical Service
Johnson Outdoors Marine Electronics, Inc.
PO Box 8129
Mankato, MN 56001
121 Power Drive
Mankato, MN 56001
Phone [phone]
Fax [phone]
minnkotamotors.com
©2015 Johnson Outdoors Marine Electronics, Inc.
All rights reserved.
For a complete listing of Minn Kota accessories, visit minnkotamotors.com
• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits
• Extension Handles
• Battery Connectors
• Battery Boxes
• Quick Connect Plugs
RECOMMENDED ACCESSORIES
ON-BOARD & PORTABLE BATTERY CHARGERS
Stop buying new batteries and start taking care of the ones you’ve got. Many chargers can actually damage your battery
over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the
fastest charge that protect and extend battery life.
TALON SHALLOW WATER ANCHOR
Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12’ and bold color
options including camo, it boasts an arsenal of features and innovations that no other anchor can touch:
MINN KOTA ACCESSORIES
We offer a wide variety of trolling motor accessories, including:
MK210DMK345PC MK110P
Follow us:
• Vertical, Multi-Stage Deployment
• User-Selectable Anchoring Modes
• 2x Anchoring Force
• Fast Deploy
• Auto Up/Down
• Triple Debris Shields
• Built-In Wave Absorption
• Noise Dissipation
• Versatile Adjustments
Part #2317112 Rev N 6/15 ECN 36427
