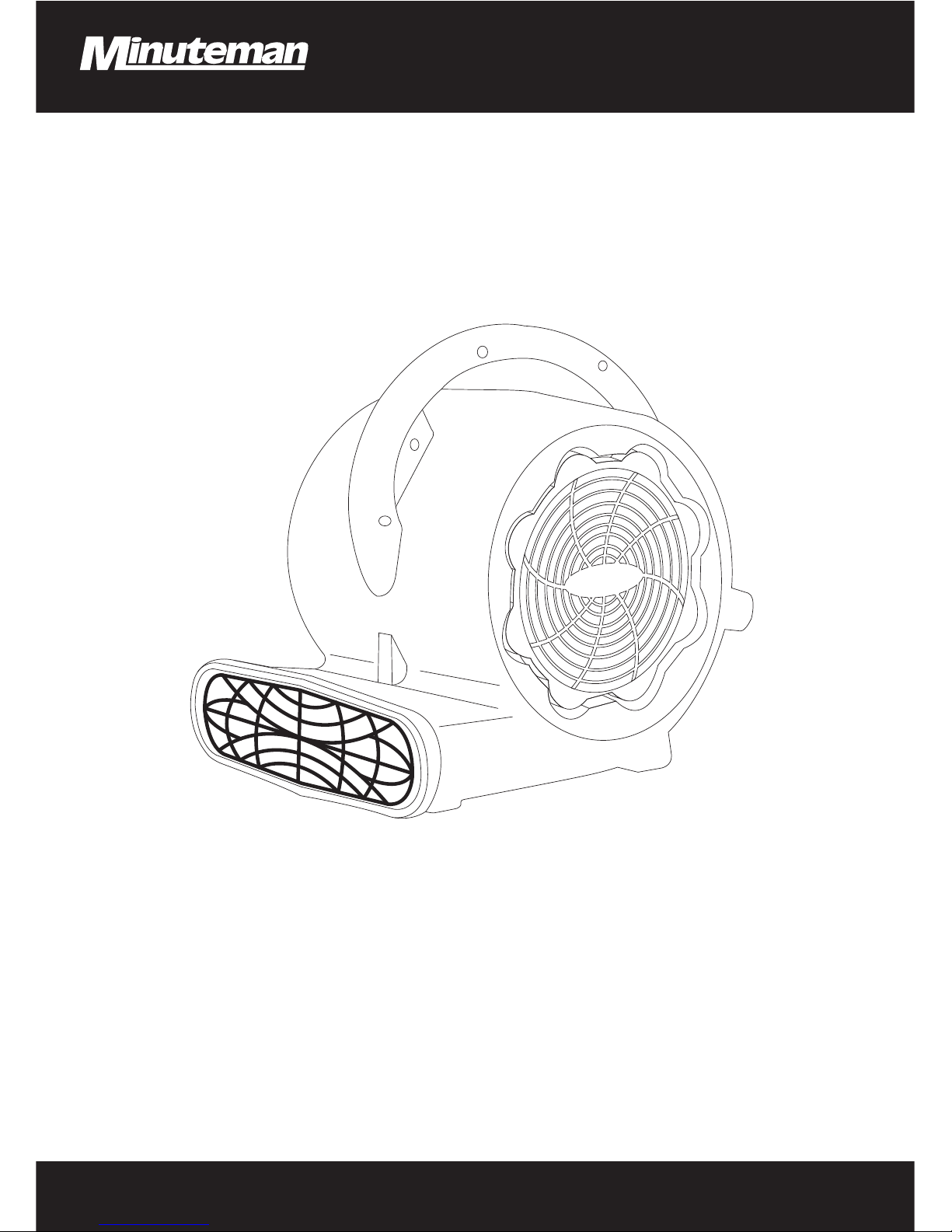

C43000-00 USER MANUAL
MODEL: C43000-00
Minuteman International specializes in innovative design and manufacturing of reliable
air movers, while providing exible and efcient real-world solutions to meet our
customer’s changing needs. Our movers are small and lightweight yet powerful enough
to meet your restoration, drying, and ventilation needs. Our products are made to be
durable and high performing.
The contents of this manual are based on the latest product information available at the time of publication. We reserve
the right to make changes or improvements to the machine without notice.
Minuteman International •14N845 U.S. Route 20 •Pingree Grove, IL 60140
1 (800) 323-9420 •www.minutemanintl.com
ref# ref# ref#
3. APSKNB
4. APSRB
5. APC-25
1. APSFH
cap
strain relief-lq tight
power cord
screw
qty qty
17
qty
1
1
1
1/3 HP Air Mover
6. APNH
8. APMT-B
9. APH300RM
10. APRF
11. APRVT
7. APGA300E
14. APA300WS
15. APGFCI
16. APGA300S
13. APGA300S
12. APF-01
nut,hex
front guard
AC motor
housing - blower
rubber foot
1
1
1
2
4
rivet
blower wheel,cage
6
1
guard,intake
kickstand
1
1
GFCI Breaker 1
Guard, Intake,
switch plate A300 1
descriptiondescription description
11 10
11
5
4
12
119
9
7
8
15
16
3
6
13
11
14
Your Air Mover Provider
®
®
PAGE PB PAGE 1
PREFACE
Thank you for your purchase of the industry standard for industrial equipment.
Minuteman International takes great pride in off ering the most dependable, reliable
and best value in industrial equipment; we set the standard.
Our Customer Service department would like to hear from you. If you see any
errors, omissions or something that needs clarifi cation in this spare parts catalog
please let us know. We are working hard toward perfection in our corner of the
process to bring you the best you can buy. Please copy the form below, fi ll out and
comment on how you found our catalog.
Thank you.
Name_________________________________________
Title: ____________________________________________________
Company Name: __________________________________________
Address: ________________________________________________
Country: _________________________________________________
Type of equipment or model number: __________________________
Comments:
Please return to: Minuteman International, Inc.
14N845 U.S. Route 20
Pingree Grove, Illinois 60140 USA
Phone: (800) 323-9420 E-mail: tech@minutemanintl.com
Your Air Mover Provider
®
®
PAGE 2
NOTES
Your Air Mover Provider
®
®
PAGE 2 PAGE 3
GENERAL SAFETY WARNINGS
• Do not operate your air mover with a cut or frayed cord. Do
not run power cord under carpeting. Do not cover power cord
with rugs, runners, or similar covers. Place power cord away
from trafc area to prevent tripping.
• Do not unplug your unit by pulling on its cord. Firmly grasp the
plug and pull it out of the wall socket or power receptacle.
• The plug has a safety ground pin installed that must not be
removed. If the pin is damaged or missing, replace the power
cord before further use. Visually inspect the power cord before
each use. Ignoring these safety precautions may result in a re
or electrical shock.
• Always use a GFCI outlet. Contact a qualied electrician
for verication and/or installation of a GFCI receptacle
if necessary.
• To reduce the risk of re or electrical shock, do not use this
fan with any after-market or solid-state speed control device.
• To prevent electric shock, do not operate the unit in standing
water. Never plug in or unplug the unit with wet hands or while
standing in water.
• Do not drop the unit. Sudden and severe impact may result in
damage to internal components.
Your Air Mover Provider
®
®
PAGE 4
• Do not operate unit with the safety grills, existing covers,
shields, or housing removed. Personal injury may result.
Do not stick ngers or objects into the safety grills.
• To avoid injury, do not direct air ow at face or body. Do not
allow children to play with or around unit at any time.
• Do not move or carry air mover while unit is operating.
• Drop cloths or other loose fabrics can be drawn against
the unit thereby restricting airow. This may cause the unit
to overheat. Keep area around unit free and clear of any
obstructions.
• Save the shipping carton in case your air mover needs to
be returned.
• This unit should never be serviced or cleaned while it is
plugged into a live electrical power source.
• Keep away from heat, chemicals, and other potentially
hazardous materials.
• Use equipment as instructed and with manufacturer’s
recommended accessories.
• Do not operate this equipment while impaired, distracted, or
under the inuence of alcohol, drugs, or medication.
Your Air Mover Provider
®
®
PAGE 4 PAGE 5
OPERATING INSTRUCTIONS
When operating the unit, please adhere to the following:
• Inspect unit upon receipt for any freight damages. Be sure
to keep all original packaging if return process is required.
If you discover any damages, please contact Minuteman
International.
• Check the machine for any obstructions in the fan or airow
areas before plugging the unit in for operation.
• Set the machine in the desired orientation for operation.
• Ensure the switch is in the (OFF) position.
• Plug the power cord into a GFCI outlet.
• Do not use an extension cord.
• Do not use an adapter.
• Check GFCI protection by pushing “TEST” button. If operating
properly, “RESET” button will pop out. Remember to press
“RESET” button after testing to use machine.
• Do not plug more than a total of 12 amps into the GFCI outlet.
• Turn unit on
Your Air Mover Provider
®
®
PAGE 6
• When ‘daisy-chaining’ the machines, turn one unit on at a
time to prevent excessive current ood from starting multiple
units at one time.
• If red LED begins to ash, the unit has lost GFCI protection
and should be replaced immediately.
SYMPTOM PROBLEM SOLUTION
Unit will not turn on • Not plugged in
• Switch is worn
• Tripped circuit
breaker
• Short in power cord
• Capacitor on motor is
damaged
• Plug unit into proper
outlet
• Replace switch
• Reset breaker
• Replace power cord
or replace cord end
• Replace motor
Air mover will not
operate on all speeds
• Switch is worn
• Capacitor on motor is
worn or damaged
• Replace switch
• Replace motor
Air mover runs or starts
slowly
• Capacitor terminal
may be shorting
• Replace motor
The fan is rubbing • Fan is off-center • Replace fan
• Turn off motor and
unplug unit then
remove foreign object
• Replace motor
• Replace fan
USER SERVICING
Never service or clean this unit while it is plugged into outlet.
Your Air Mover Provider
®
®
PAGE 6 PAGE 7
ref# ref# ref#
APSKNB3.
APSRB4.
5. APC-25
1. APSFH
qty qty
17
qty
1
1
1
1/3 HP Air Mover
APNH6.
APMT-B8.
9. APH300RM
10. APRF
11. APRVT
7. APGA300E
APA300WS14.
15. APGFCI
16. APGA300S
13. APGA300S
12. APF-01
description
screw
cap
strain relief-lq tight
power cord
nut,hex 1
1
1
2
4
front guard
AC motor
housing - blower
rubber foot
rivet
blower wheel,cage
6
1
guard,intake
kickstand
1
1
GFCI Breaker 1
Guard, Intake,
switch plate A300 1
description description
11 10
11
5
4
12
119
9
7
8
15
16
3
6
13
11
14
Your Air Mover Provider
®
®
PAGE 8
Your Air Mover Provider
®
®
PAGE 8 PAGE 9
MINUTEMAN INTERNATIONAL MADE SIMPLE
COMMERCIAL LIMITED WARRANTY
REVISION O
EFFECTIVE 4/1/2016
Minuteman International, Inc. warrants to the original purchaser/user that the
product is free from defects in workmanship and materials under normal use.
Minuteman will, at its option, repair or replace without charge, parts that fail
under normal use and service when operated and maintained in accordance
with the applicable operation and instruction manuals. All warranty claims must
be submitted through and approved by factory authorized repair stations.
This warranty does not apply to normal wear, or to items whose life is dependent
on their use and care, such as belts, cords, switches, hoses, rubber parts,
electrical motor components or adjustments. Parts manufactured by Minuteman
are covered by and subject to the warranties and/or guarantees of their
manufacturers. Please contact Minuteman for procedures in warranty claims
against these manufacturers.
Special warning to purchaser - Use of replacement lters and/or pre-lters not
manufactured by Minuteman or its designated licensees, will void all warranties
expressed or implied. A potential health hazard exists without original equipment
replacement.
All warranted items become the sole property of Minuteman or its original
manufacturer, whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of
merchantability and the warranty of tness for a particular purpose. Minuteman
assumes no responsibility for any special, incidental or consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is
extended only to the original user/purchaser of this product. Customers outside
the U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons
other than those specically authorized by Minuteman. This warranty does not
apply to damage from transportation, alterations by unauthorized persons,
misuse or abuse of the equipment, use of non-compatible chemicals, or damage
to property, or loss of income due to malfunctions of the product.
Your Air Mover Provider
®
®
PAGE 10
Model Parts Labor Poly Travel**
Cord Electric Group 5yrs 3yrs 12yrs 90 days
Battery Operated Group 5yrs 3yrs 12yrs 90 days
Stand-alone Battery Chargers: One year
Replacement Parts: Ninety days
Batteries: 0-3 months full replacement, 4-12 months
pro-rote
Polypropylene Plastic Tanks: 12yr warranty, no additional labor
Model Parts Labor Poly Travel**
Port A Scrub, all models 1yr 6 months 12yrs 90 days
Battery Operated Group 1yr 1yr 0 0
Phenom Dual Motor Upright
Vacums 2yrs 2yrs 0 0
Explosion Proof Vacuum 1yr 1yr 0 90 days
Propane Burnisher 1yr 1yr 0 90 days
Exceptions......
**Travel, 2 hours max
If a difculty develops with this machine, you should contact the dealer from
whom it was purchased.
This warranty gives you specic legal rights, and you may have other rights
which vary from state to state. Some states do not allow the exclusion or
limitation of special, incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the above exclusions and limitations may not
apply to you.
