Minuteman X17 ECO CFS User manual

User Manual
X17 ECO CFS Carpet Extractor
115V/230V with High Pressure
Minuteman®, Minuteman International, Inc.
A Member of the Hako Group #988725UMCFS Rev. C 03/18

2 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Technical Specifi cations
This manual is furnished with each new Minuteman X17 ECO CFS. This provides the necessary operating and
preventive maintenance instructions. Operators must read and understand this manual before operating or servicing
this machine.
This machine was designed to give you excellent performance and effi ciency. For best results and minimal cost,
please follow the general guidelines below:
· Operate the machine with reasonable care.
· Follow the manufacturer’s suggested maintenance instructions as provided in this booklet.
· Use original Minuteman supplied parts.
Technical Specifi cations

3

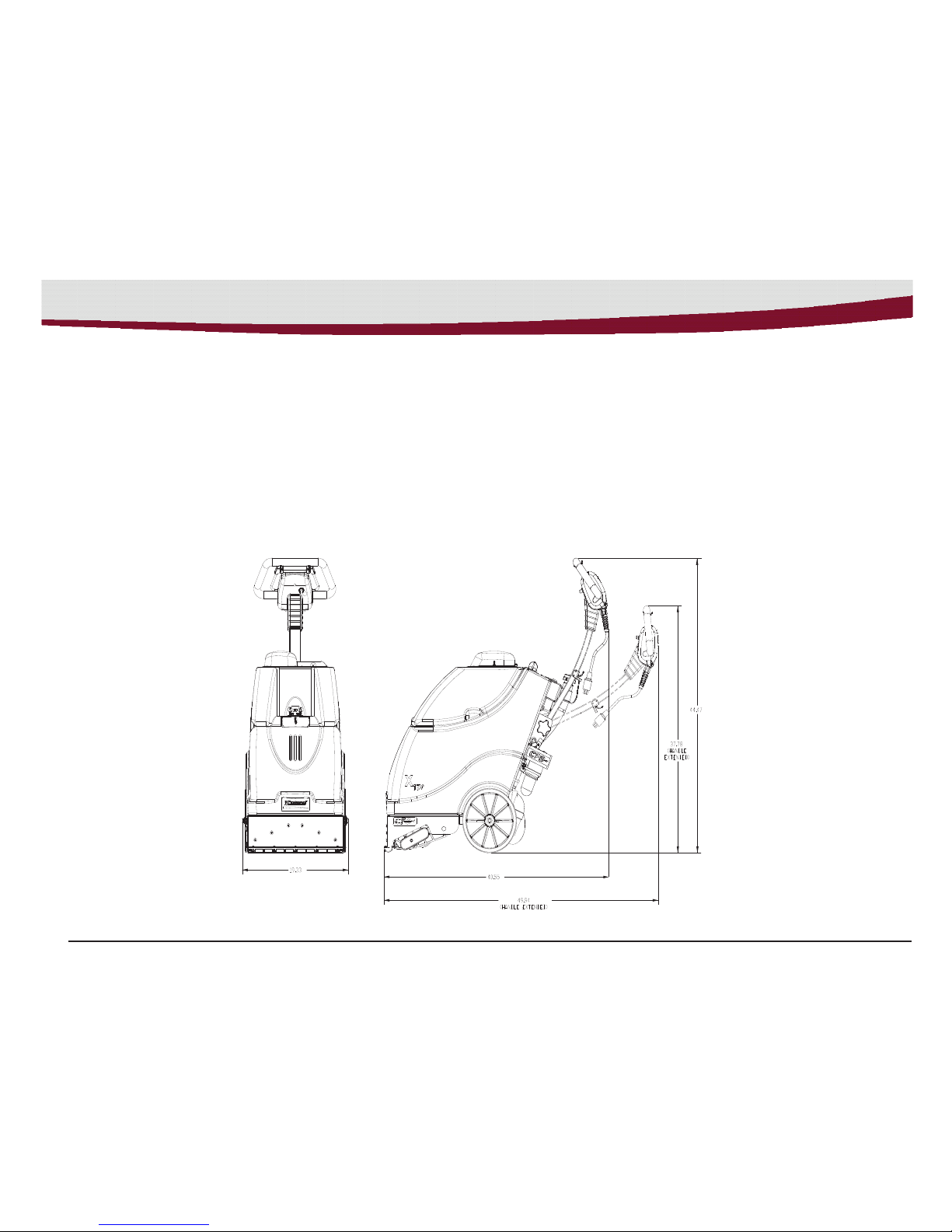

Technical Specifi cations
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Model No. X17115Z / X17115HPZ X17230Z/X17230HPZ
Current Max. 12.5 Amps 7 Amps
Voltage 115V 230V
Vacuum motor power 1250W 1250W
Brush motor power 100W 100W
Pump motor power 50PSI / 100PSI (HP) 50PSI / 100PSI (HP)
Working width 17 in.; 43 cm 17 in., 43cm
Gross Weight 116 lb.; 52.6 kg 116 lb.; 52.6 kg
Solution tank 10 Gallons; 37.8 LITERS 10 Gallon; 37.8 LITERS
Recovery tank 7 Gallons; 26.5 LITERS 7 Gallon; 26.5 LITERS
Power Cord Length 50 ft.; 15.24m 50 ft.; 15.24m
Suction (sealed) 100in. of water 100in. of water
*Vibration < 8.2 ft/s2; <2,5 m/s2
Noise emission
The sound pressure level measured under maximum conditions 83 dB (A)
of use (LwA) according to DIN EN 60335-2-68
The sound pressure level measured (at the ear of the driver) under 72 dB (A)
normal conditions of use (LpA) according to DIN EN 60335-2-68
Measurement inaccuracy (KpA) 1,8 dB (A)
*The frequency weighted acceleration measured according to DIN EN ISO 5349 which have an eff ect upon the upper
limbs (hand-arm-system) amounts under normal working conditions.
Model: X17 ECO CFS (Chemical Free Solution) with HP (High Pressure)

4 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Table of Contents
Table Of Contents
Technical Specifi cations ............................................................................................................................................................ 2
Table Of Contents ....................................................................................................................................................................... 4
Safety Instructions ..................................................................................................................................................................... 6
Unpacking Instructions .............................................................................................................................................................. 7
Assembly..................................................................................................................................................................................... 8
Handle Assembly Instructions ..................................................................................................................................................................8
Machine Overview .................................................................................................................................................................... 13
X17 CFS Front ...........................................................................................................................................................................................13
Vacuum Connection .................................................................................................................................................................................13
X17 CFS Back & Bottom ..........................................................................................................................................................................14

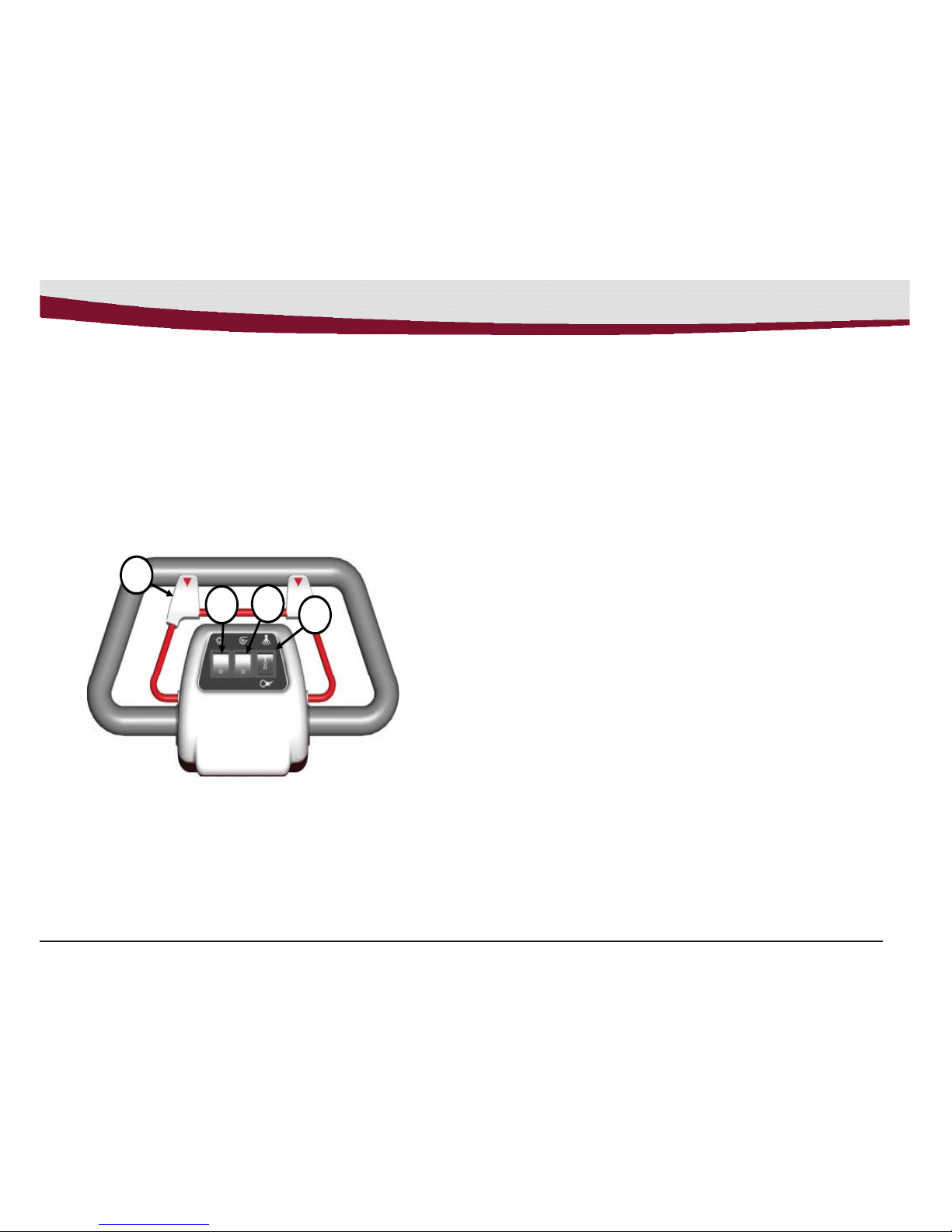

Handle/ Control Panel ..............................................................................................................................................................................15
Circuit Breakers........................................................................................................................................................................................16
Solution Tank In-line Filter ......................................................................................................................................................................17
Vacuum Intake Filter ................................................................................................................................................................................17
Solution Tank Drain Hose ........................................................................................................................................................................18
Solution Level Indicator ...........................................................................................................................................................................18
Brush Removal .........................................................................................................................................................................................19
Brush Pressure Gauge ............................................................................................................................................................................20
Brush Pressure Adjustment Knob ..........................................................................................................................................................20
Removable Recovery Tank ......................................................................................................................................................................21
High Pressure Spray System (HP) ..........................................................................................................................................................21
Handle Adjustment ...................................................................................................................................................................................22
Cord Relief ................................................................................................................................................................................................22
Accessories ..............................................................................................................................................................................................23

5
Table of Contents
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Maintenance .............................................................................................................................................................................. 24
Operating Instructions ............................................................................................................................................................. 27
Chemical Free Solution Unit .................................................................................................................................................... 29
Troubleshooting CFS Unit .......................................................................................................................................................................30
Troubleshooting ....................................................................................................................................................................... 31
Warranty .................................................................................................................................................................................... 34

6 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Safety Instructions
SAVE THESE INSTRUCTIONS
Safety Instructions
FOR COMMERCIAL USE ONLY
IMPORTANT SAFETY INSTRUCTIONS
READALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING - To reduce the risk of fire, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
WARNING - To reduce the risk of electrical shock, do not expose to rain. Store indoors.
• Never allow children or untrained adults to operate this equipment.
• Keeptheareaofoperationclearofallpersons,particularlysmallchildren,
andpets. Keepbystandersatleast25feetawayfromtheareaofoperation.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should,hasbeendropped,damaged,leftoutdoors,ordroppedintowater,
return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners.
• Do not run appliance over cord.
• Keep cord away from heated surfaces.
• Donotunplugbypullingoncord. Tounplug,grasptheplug,notthecord.
• Do not handle plug or appliance with wet hands.
• Donotputanyobjectintoopenings. Donotusewithanyopeningblocked;
keep free of dust, lint, hair, and anything that may reduce air flow.
• Keephair,looseclothing,fingers,andallpartsofbodyawayfromopenings
and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline
or use in areas where they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
• Iffoam/liquidcomesoutofexhaustopeningsturnswitch off immediately.
• Use only chemicals recommended by dealer/manufacturer.
• These machines must be used only with the power supply cord provided
from the manufacturer:
– X17115Z / X17115HPZ: Power Cord #748613
– X17230Z / X17230HPZ: Power Cord #748613CE

7
Unpacking Instructions
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
INSPECTION
Carefully unpack and inspect your machine for shipping damage.
Each unit is tested and thoroughly inspected before shipment, and
any damage is the responsibility of the delivery carrier who should be
notified immediately.
ELECTRICAL
Model Numbers X17115Z / X17115HPZ are designed to operate on a
standard 15 amp. 115 volt, 60 hz,AC circuit. Voltages below 105 volts
AC or above 125 voltsAC could cause serious damage to the motor.
Model Numbers X17230Z / X17230HPZ are designed to operate on a
standard 10 amp. 230 volt, 50 hz,AC circuit. Voltages below 210 volts
AC or above 250 voltsAC could cause serious damage to the motor.
WARNING
Electric motors and components can cause an explosion when
operated near explosive materials or vapors. Do not operate this
machine near flammable materials such as solvents, thinners, fuels,
grain dust, etc. See Warning Decal, #715061, page 23.
GROUNDING INSTRUCTIONS
This floor-finishing machine shall be grounded while in use to protect
the operator from electric shock. The machine is provided with a
three-conductor cord and a three-contact grounding type attachment
plug to fit the proper grounding type receptacle. The green (or green
and yellow) conductor in the cord is the grounding wire. Never
connect this wire to other than the grounding pin of the attachment
plug.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the appliance — if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
Model Numbers X17115Z / X17115HPZ are for use on a nominal 115-volt
circuit and has a grounding plug that looks like the plug illustrated in Figure 1.
Model Numbers X17230Z / X17230HPZ are for use on a nominal 230-volt
circuit and has a grounding plug that looks like the plug illustrated in Figure 2.
Make sure that the appliance is connected to an outlet having the same
configuration as the plug. No adapter should be used with this appliance.
Unpacking Instructions
Figure 1 Figure 2

8 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Assembly
A
C
B
E
D F
Handle Assembly Instructions
The X17 CFS Handle Assembly (D) is not assembled
on the machine when shipped. Follow the instruction on
the next pages to connect the handle assembly to the
machine.
A HANDLE ADJUSTMENT KNOB
B SHOULDER BOLT
C COVER
D HANDLE ASSEMBLY
E SCREW
F CORD RELIEF
Assembly

9
Assembly
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Handle Assembly Instructions

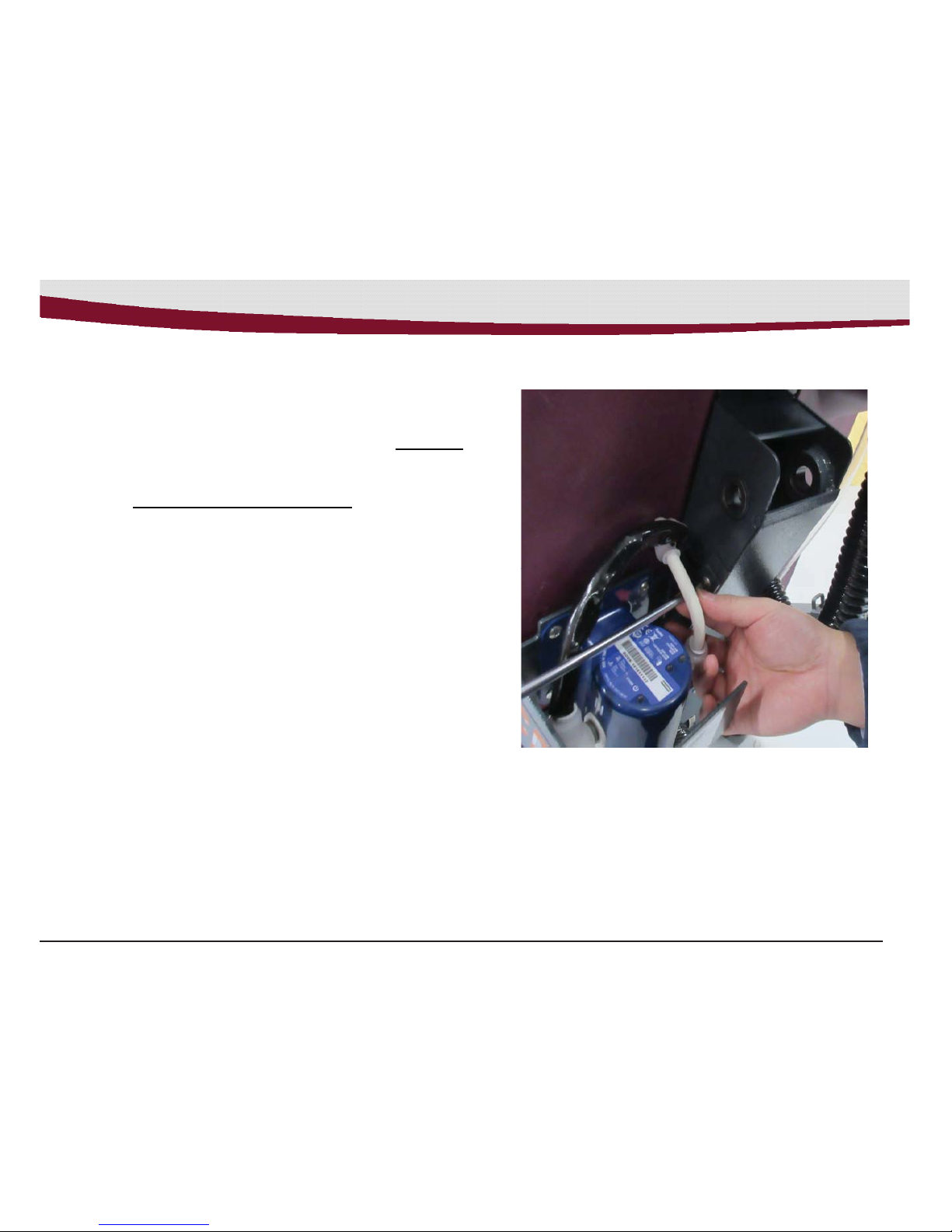

ϭ hŶƉĂĐŬŵĂĐŚŝŶĞ
Ϯ hƐŝŶŐƉŚŝůůŝƉƐ ŚĞĂĚƐĐƌĞǁĚƌŝǀĞƌ>KK^E Ăůů
ĨŽƵƌƐĐƌĞǁƐŚŽůĚŝŶŐŽŶƚŚĞďĂĐŬĐŽǀĞƌƉůĂƚĞ
KEKdZDKs^Zt^

10 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Assembly

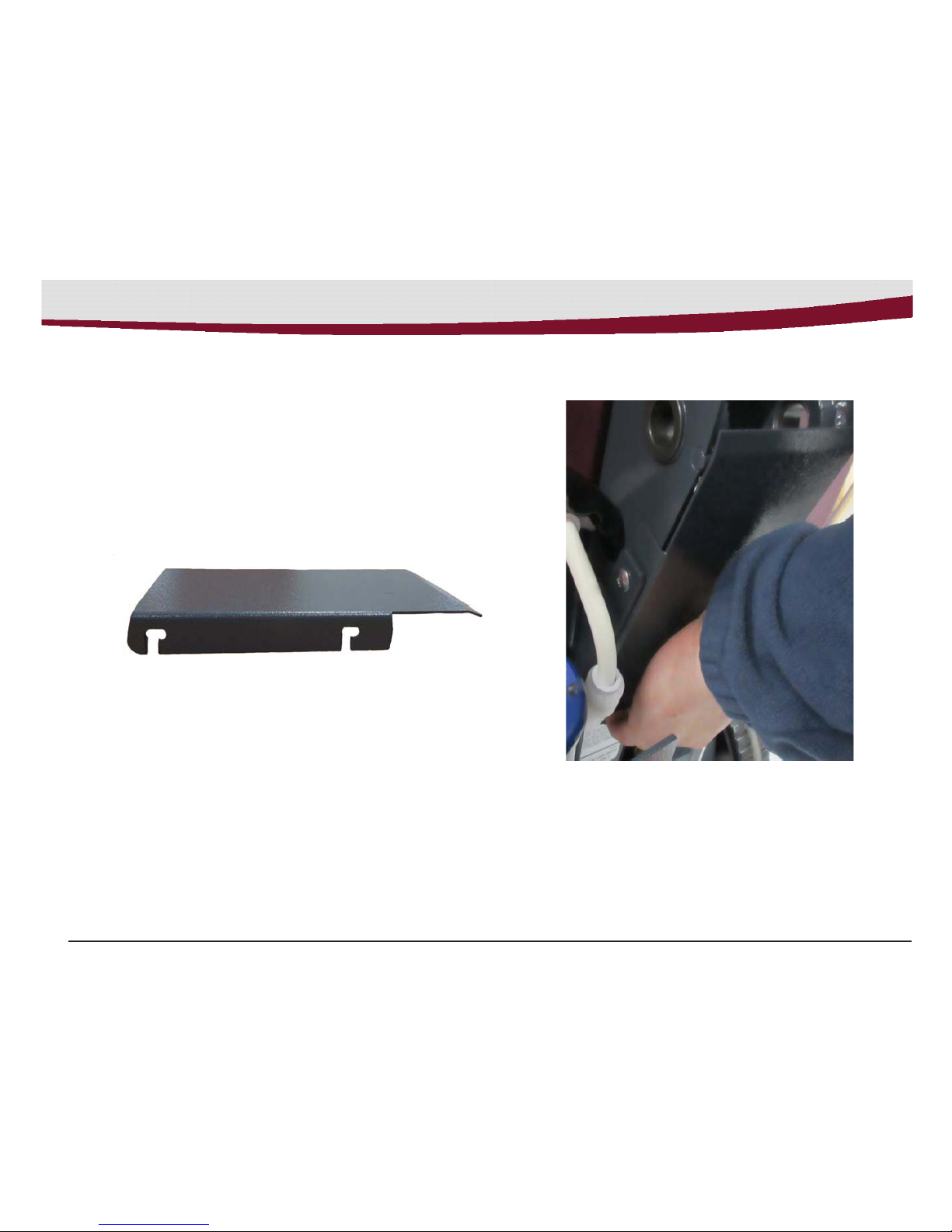

ϯ WƵƐŚƚŚĞƉůĂƚĞƵƉĂŶĚƉƵůůŝƚŐĞŶƚůLJďĂĐŬƚŽ
ƌĞŵŽǀĞ^ĞƚĂƐŝĚĞ

11
Assembly
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
ϯ WƵƐŚƚŚĞƉůĂƚĞƵƉĂŶĚƉƵůůŝƚŐĞŶƚůLJďĂĐŬƚŽ
ƌĞŵŽǀĞ^ĞƚĂƐŝĚĞ

12 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Assembly

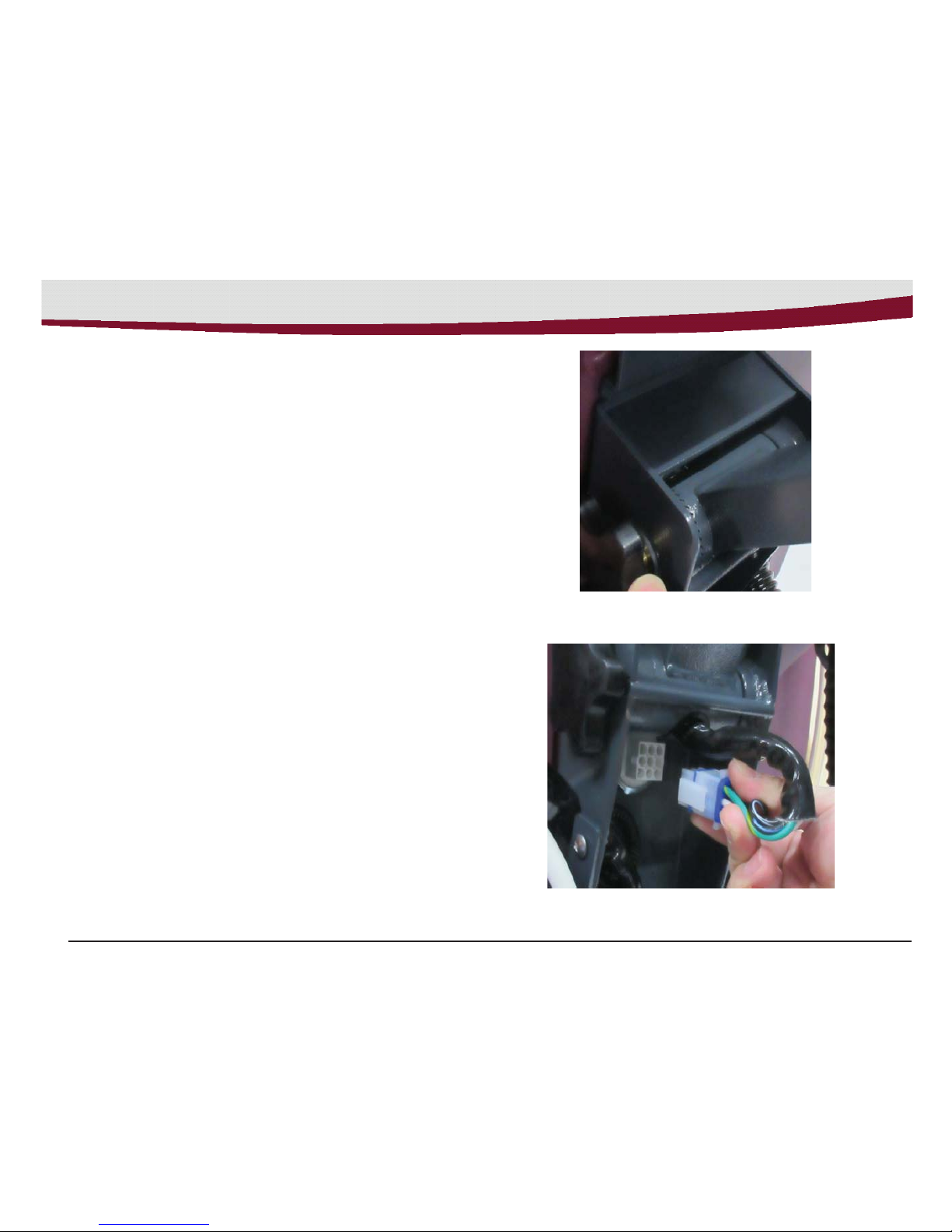

ϱ ůŝŐŶƚŚĞƚĞĞƚŚŽŶƚŚĞďƵƐŚŝŶŐĂŶĚŚĂŶĚůĞĂƐƐĞŵďůLJ
ďĞĨŽƌĞƚŝŐŚƚĞŶŝŶŐƚŚĞĂĚũƵƐƚŵĞŶƚŬŶŽď
ϲ dƵƌŶƚŚĞĂĚũƵƐƚŵĞŶƚŬŶŽďĐůŽĐŬǁŝƐĞƚŽƚŝŐŚƚĞŶ
ϳ ƚƚĂĐŚƚŚĞǁŝƌĞŚĂƌŶĞƐƐƚŽƚŚĞŵĂĐŚŝŶĞ
ŵĂŬŝŶŐƐƵƌĞƚŚĂƚƚŚĞƉĂƚƚĞƌŶƐĂƌĞůŝŶĞĚƵƉ
ĐŽƌƌĞĐƚůLJ
ϴ ^ůŝĚĞƚŚĞĐŽǀĞƌďĂĐŬŽŶƚŽƚŚĞĨŽƵƌƐĐƌĞǁƐƚŚĂƚ
LJŽƵůŽŽƐĞŶĞĚĞĂƌůŝĞƌĂŶĚƚŝŐŚƚĞŶƚŚĞƐĐƌĞǁƐ

13
Machine Overview
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
P
M
Q
N
Machine Overview
L
L
KR
A
G
B
G
C
E
D
F
H
J
Vacuum Connection
K. VACUUM MOTOR INTAKE COVER
L. VACUUM CONNECTION TUBE
M. RECOVERY INLET
N. RECOVERY TANK HANDLE
P. VACUUM FLOAT SHUT-OFF
Q. RECOVERY WINDOW EXTENSION HOSE
R. VACUUM MOTOR GASKET
X17 CFS Front
A. HANDLE
B. RECOVERY DOME LID
C. RECOVERY TANK
D. SOLUTION TANK
E. SOLUTION TANK FILL PORT
F. FAUCET FILL HOSE
G. RECOVERY WINDOW
H. BRUSH MOTOR BELT COVER
J. VAC SHOE

14 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Machine Overview
P
R
G
F
E
D
C
B
A
H
X17 CFS Back & Bottom
A. TWIST LOCK POWER CONNECTOR
B. HANDLE ADJUSTMENT KNOB
C. CFS CONTROL UNIT
D. VACUUM HOSE CONNECTION POINT
E. AUXILIARY POWER OUTLET (FOR MINUTEMAN MOTORIZED TOOL ONLY)
F. IN-LINE SOLUTION FILTER
G. OFF AISLE WAND WATER FEMALE QUICK-CONNECT
H. BRUSH PRESSURE ADJUSTMENT KNOB
J. VAC SHOE
K. BRUSH
L. BRUSH END COVER
M. SPRAY JETS (2)
N. BRUSH MOTOR
P. SOLUTION TANK DRAIN HOSE
R. RECOVERY TANK DUMP HOSE

15
Machine Overview
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
(A) Momentary Handle
When handle is pushed forward the spray jets shut off .
(B) Brush Switch
ON\OFF switch for brush.
Press switch up to (I) position to turn ON the brush motor.
Press switch down to (0) position to shut OFF brush motor.
Warning: While in Auxiliary Mode, keep the Brush Switch in
the off (0) position, or damage may occur to carpet.
(C) Vacuum Switch
ON\OFF switch for vacuum.
Press switch up to (I) position to turn ON vacuum.
Press switch down to (0) position to shut OFF vacuum.
(D) Spray Jet / Auxiliary Switch (Off Aisle Wand)
3-Position switch for spray jet and auxiliary mode function.
(0) position is a neutral OFF position; In the (0) postion the
Spray Jet and Auxiliary Mode are OFF.
Press switch up to (I) position to turn ON the spray jets.
Press switch down to (II) position to turn ON Auxiliary Mode
(Off Aisle Wand - OAW). This will power the auxiliary outlet
and turn the water pump on for the auxiliary connection.
See page 20 for OAW connection details.
Warning: When in Auxiliary Mode, confi rm Brush Switch is
in the OFF position or damage to carpet may occur.
Handle/ Control Panel
A. MOMENTARY SPRAY SHUT-OFF
B. BRUSH SWITCH
C. VACUUM SWITCH
D. SPRAY JET \ AUXILIARY SWITCH
(OFF AISLE WAND)





16 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Machine Overview
Circuit Breakers
The circuit breakers are located on bottom and rear of the
handle assembly.
1. BRUSH MOTOR BREAKER - (X17115) 1.5 amp
(X17230) 1.0 amp
2. VACUUM PUMP BREAKER - (X17115) 12 amp
(X17230) 7.5 amp
3 SPRAY JET PUMP\AUX POWER & PUMP BREAKER -
(X17115) 1.5 amp
(X17230) 1.0 amp
If any of the functions above are not operating, check if the
circuit breaker buttons have tripped. Press to reset.
2
3
1
3
1

17
Machine Overview
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Solution Tank In-line Filter
The In-line Filter protects the water pump from large debris.
This fi lter should be cleaned regularly.
Steps to cleaning Solution Tank In-line Filter (See Figure 1):
1. Close the Shut-off Valve (C) by turning the handle 90O
clockwise. When handle is perpendicular to water line the
valve is closed.
2. Next, twist the Filter Cap (A) counterclockwise.
3. Remove cap and Filter (B), clean with water.
4. Place fi lter back into cap, turn cap clockwise onto fi lter
body, tighten by hand. Note: Using tools to tighten
may damage plastic threads.
5. Open the Shut-off Valve (C) by turning the handle 90O
counterclockwise.
Vacuum Intake Filter
The Vacuum Intake Filter protects the intake vacuum from
large debris. This fi lter should be cleaned regularly.
Steps to cleaning Vacuum Intake Filter:
1. Unplug machine from power source outlet.
2. Drain Solution and Recovery tanks.
3. Filter is located above CFS Power Supply Box on the
underside of the machine. Tilt machine forward on the
vacuum shoe until the fi lter is visible. (See Figure 2)
4. Once the fi lter is visible and the machine is supported in a
stabilize position - remove the fi lter. (See Figure 3)
5. Rinse and clean fi lter with water. Allow fi lter to air dry.
6. Insert fi lter back into original location.
Figure 2 Figure 3
Figure 1

18 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Machine Overview

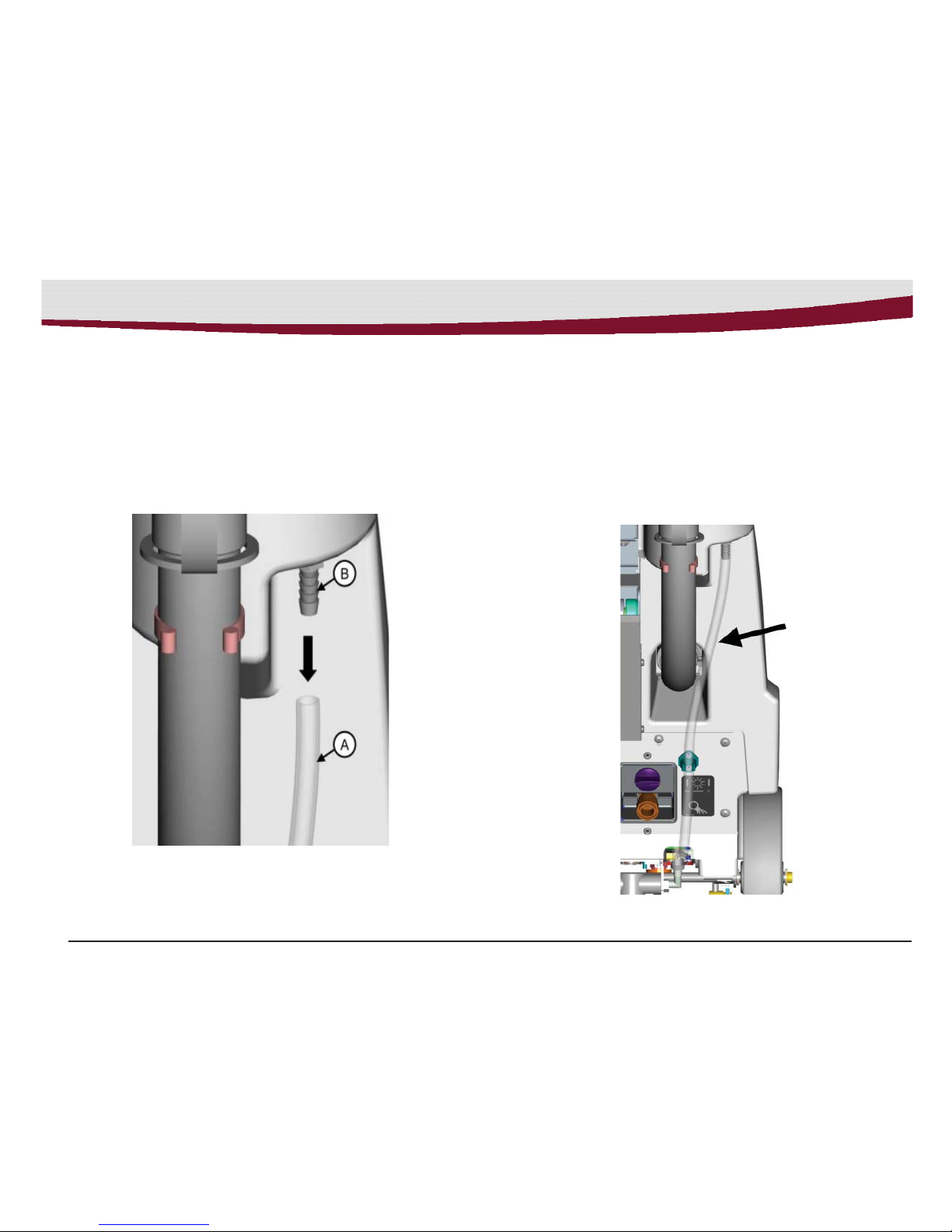

Solution Tank Drain Hose
The solution tank may be drained by removing the Solution
Tank Drain Hose (A) from the Hose Barb (B) and routing
the hose to a fl oor drain. (See Figure 4)
Solution Level Indicator
The solution Tank Drain Hose also serves as a water
level indicator for the solution tank. The amount of water
remaining in the solution tank can be seen through the clear
drain hose. (See Figure 5)
Figure 4
Figure 5

19
Machine Overview
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Brush Removal
Figure 1
Figure 2
1. Use a 4mm or 5/32 Hex Tool to remove the fl at-head
screw on the underside of the right side of the brush
housing.
2. Pry open the brush housing door and swing door out. (See
Figure 1)
3. Pull brush straight out to the side.
To re-install:
1. Confi rm the bristle pattern is in the correct direciton.
a. When brush is inserted, visually inspect the bristle
pattern from underneath the machine, bristle cheveron
pattern will point to back of the machine. (See Figure 2)
b. If bristle cheveron pattern is not pointing towards the
back of the machine, remove brush and insert opposite
brush end in fi rst.
3. To engage the drive hub on the left side with the brush
socket, twist the brush until the drive hub lock in place
with the brush.
4. Close the brush housing door. The bearing in the door will
insert itself into the end of the brush.
5. While holding the housing door closed, re-install fl at-head
screw from the underside of the housing.

20 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988725UMCFS Rev. C 03/18
Machine Overview

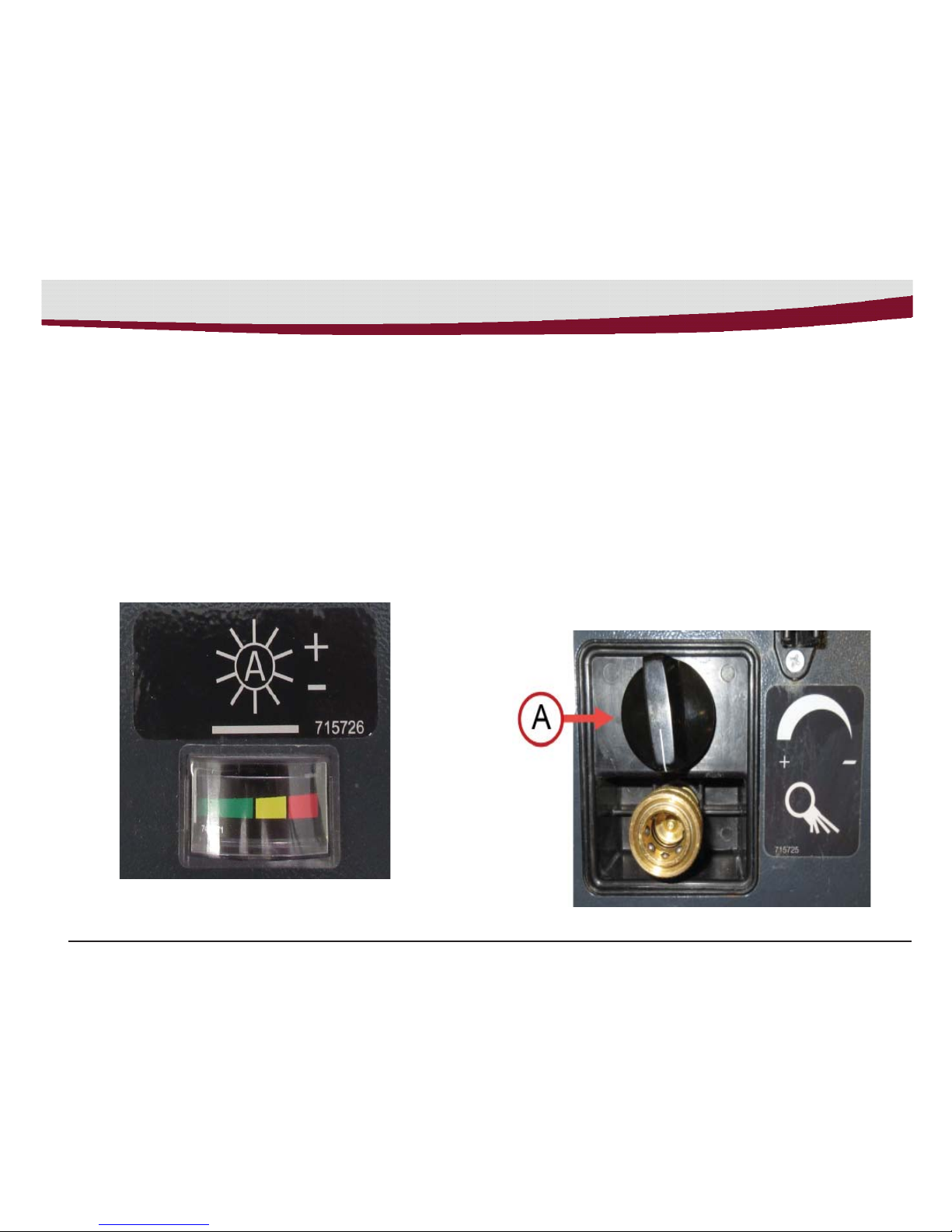

Brush Pressure Gauge
The brush pressure gauge informs the operator if the brush
pressure setting is in optimum range. (See Figure 3) The
machine operates best in the green range. If the machine
reaches the yellow or red range, the brush pressure can
be lowered by using the Brush Pressure Adjustment Knob.
See Brush Pressure Adjustment Knob for brush pressure
adjustments.
Figure 3
Figure 4
Brush Pressure Adjustment Knob
The Brush Pressure Adjustment Knob allows the operator to
decrease or increase the brush pressure. The adjustment
knob (item A, Figure 4) is located on the lower right side of
the back panel of the machine.
To DECREASE brush pressure: Turn the adjustment knob
CLOCKWISE (in the ‘-’ direction) until the desired pressure
range is achieved.
To INCREASE brush pressure: Turn the adjustment knob
COUNTER-CLOCKWISE (in the ‘+’ direction) until the
desired pressure range is achieved.
