Minuteman X17 User manual

User Manual
X17 ECO CFS Carpet Extractor
115V/230V with High Pressure
Minuteman®, Minuteman International, Inc.
A Member of the Hako Group #988751UM Rev. * 04/15

2 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
This manual is furnished with each new Minuteman X17 ECO CFS. This provides the necessary operating and
preventive maintenance instructions. Operators must read and understand this manual before operating or servicing
this machine.
This machine was designed to give you excellent performance and efciency. For best results and minimal cost,
please follow the general guidelines below:
· Operate the machine with reasonable care.
· Follow the manufacturer’s suggested maintenance instructions as provided in this booklet.
· Use original Minuteman supplied parts.
Technical Specications

3
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Technical Specications
Model No. X17115Z / X17115HPZ X17230Z/X17230HPZ
Current Max. 12.5 Amps 7 Amps
Voltage 115V 230V
Vacuum motor power 1250W 1250W
Brush motor power 100W 100W
Pump motor power 50PSI / HP(100PSI) 50PSI / HP(100PSI)
Working width 17 in.; 43 cm 17 in., 43cm
Gross Weight 116 lb.; 52.6 kg 116 lb.; 52.6 kg
Solution tank 10 Gallons; 37.8 LITERS 10 Gallon; 37.8 LITERS
Recovery tank 7 Gallons; 26.5 LITERS 7 Gallon; 26.5 LITERS
Power Cord Length 50 ft.; 15.24m 50 ft.; 15.24m
Suction (sealed) 100in. of water 100in. of water
*Vibration < 8.2 ft/s2; <2,5 m/s2
Noise emission
The sound pressure level measured under maximum conditions 83 dB (A)
of use (LwA) according to DIN EN 60335-2-68
The sound pressure level measured (at the ear of the driver) under 72 dB (A)
normal conditions of use (LpA) according to DIN EN 60335-2-68
Measurement inaccuracy (KpA) 1,8 dB (A)
*The frequency weighted acceleration measured according to DIN EN ISO 5349 which have an effect upon the upper
limbs (hand-arm-system) amounts under normal working conditions.
Model: X17ECOCFS(ChemicalFreeSolution)withHP(HighPressure)

4 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Table Of Contents
Technical Specications ............................................................................................................................................................ 2
Table Of Contents ....................................................................................................................................................................... 4
Safety Instructions ..................................................................................................................................................................... 5
Unpacking Instructions .............................................................................................................................................................. 6
Handle Assembly .......................................................................................................................................................................................7
Assembly..................................................................................................................................................................................... 7
Machine Overview .................................................................................................................................................................... 10
X17 CFS Front ...........................................................................................................................................................................................10
Vacuum Connection .................................................................................................................................................................................10
X17 CFS Back & Bottom ..........................................................................................................................................................................11
Handle/ Control Panel ..............................................................................................................................................................................12
Circuit Breakers........................................................................................................................................................................................13
CFS Control Box .......................................................................................................................................................................................13
Solution Tank In-line Filter ......................................................................................................................................................................14
Vacuum Intake Filter ................................................................................................................................................................................14
Solution Tank Drain Hose ........................................................................................................................................................................15
Solution Level Indicator ...........................................................................................................................................................................15
Brush Removal .........................................................................................................................................................................................16
Brush Pressure Gauge ............................................................................................................................................................................17
Brush Pressure Adjustment Knob ..........................................................................................................................................................17
Removable Recovery Tank ......................................................................................................................................................................18
Handle Adjustment ...................................................................................................................................................................................19
Cord Relief ................................................................................................................................................................................................19
Accessories ..............................................................................................................................................................................................20
Maintenance .............................................................................................................................................................................. 21
Operating Instructions ............................................................................................................................................................. 24
Troubleshooting ....................................................................................................................................................................... 26
Warranty .................................................................................................................................................................................... 28

5
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
SAVE THESE INSTRUCTIONS
Safety Instructions
FOR COMMERCIAL USE ONLY
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING - To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
WARNING - To reduce the risk of electrical shock, do not expose to rain. Store indoors.
• Never allow children or untrained adults to operate this equipment.
• Keep the area of operation clear of all persons, particularly small children,
and pets. Keep bystanders at least 25 feet away from the area of operation.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it
should, has been dropped, damaged, left outdoors, or dropped into water,
return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord,
or pull cord around sharp edges or corners.
• Do not run appliance over cord.
• Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings
and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids such as gasoline
or use in areas where they may be present.
• Connect to a properly grounded outlet only. See grounding instructions.
• If foam/liquid comes out of exhaust openings turn switch off immediately.
• Use only chemicals recommended by dealer/manufacturer.
• These machines must be used only with the power supply cord provided
from the manufacturer:
– X17115Z / X17115HPZ: Power Cord #748613
– X17230Z / X17230HPZ: Power Cord #748613CE

6 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
INSPECTION
Carefully unpack and inspect your machine for shipping damage.
Each unit is tested and thoroughly inspected before shipment, and
any damage is the responsibility of the delivery carrier who should be
notied immediately.
ELECTRICAL
Model Numbers X17115Z / X17115HPZ are designed to operate on
a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105
volts AC or above 125 volts AC could cause serious damage to the
motor.
Model Numbers X17230Z / X17230HPZ are designed to operate on
a standard 10 amp. 230 volt, 50 hz, AC circuit. Voltages below 210
volts AC or above 250 volts AC could cause serious damage to the
motor.
WARNING
Electric motors can cause explosions when operated near explosive
materials or vapors. Do not operate this machine near ammable
materials such as solvents, thinners, fuels, grain dust, etc.
GROUNDING INSTRUCTIONS
This oor-nishing machine shall be grounded while in use to protect
the operator from electric shock. The machine is provided with a
three-conductor cord and a three-contact grounding type attachment
plug to t the proper grounding type receptacle. The green (or green
and yellow) conductor in the cord is the grounding wire. Never
connect this wire to other than the grounding pin of the attachment
plug.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualied electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the appliance — if it will not t the outlet, have a proper outlet
installed by a qualied electrician.

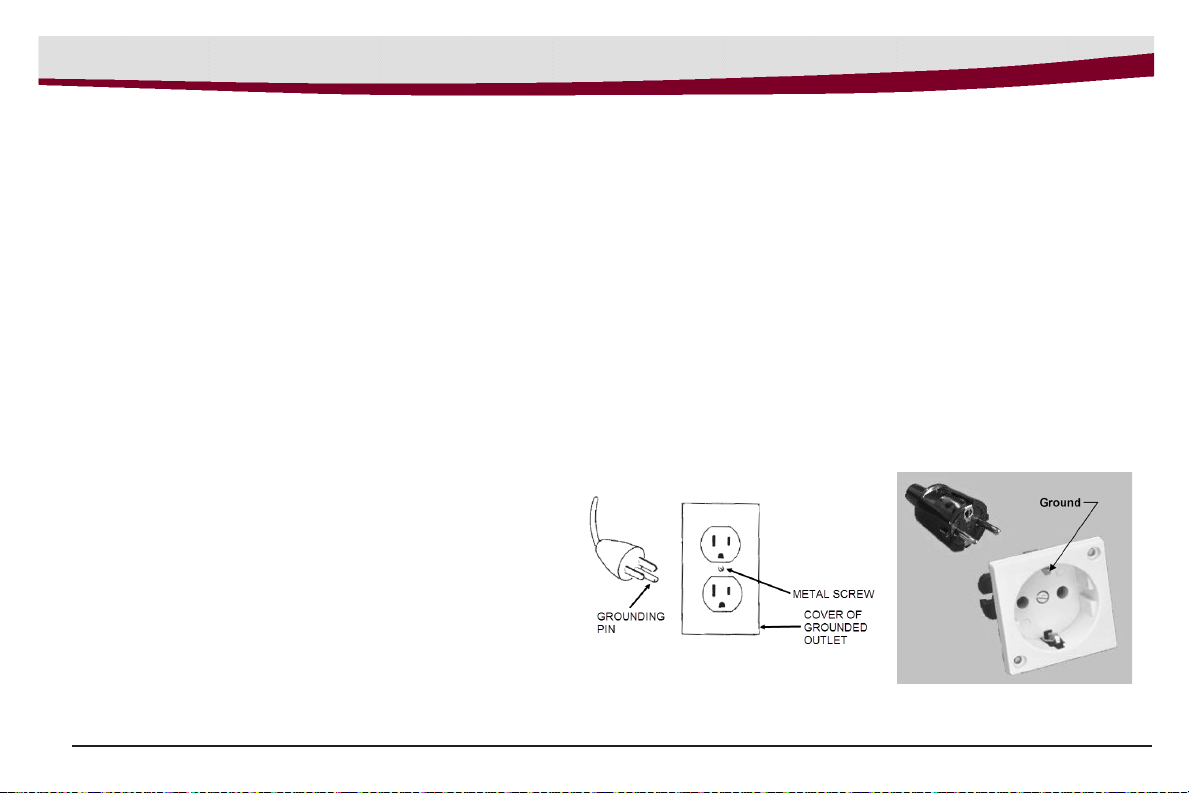

Model Numbers X17115Z / X17115HPZ are for use on a nominal 115-volt
circuit and has a grounding plug that looks like the plug illustrated in Figure 1.
Model Numbers X17230Z / X17230HPZ are for use on a nominal 230-volt
circuit and has a grounding plug that looks like the plug illustrated in Figure 2.
Make sure that the appliance is connected to an outlet having the same
conguration as the plug. No adapter should be used with this appliance.
Unpacking Instructions
Figure 1 Figure 2

7
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
A
C
B
E
D F

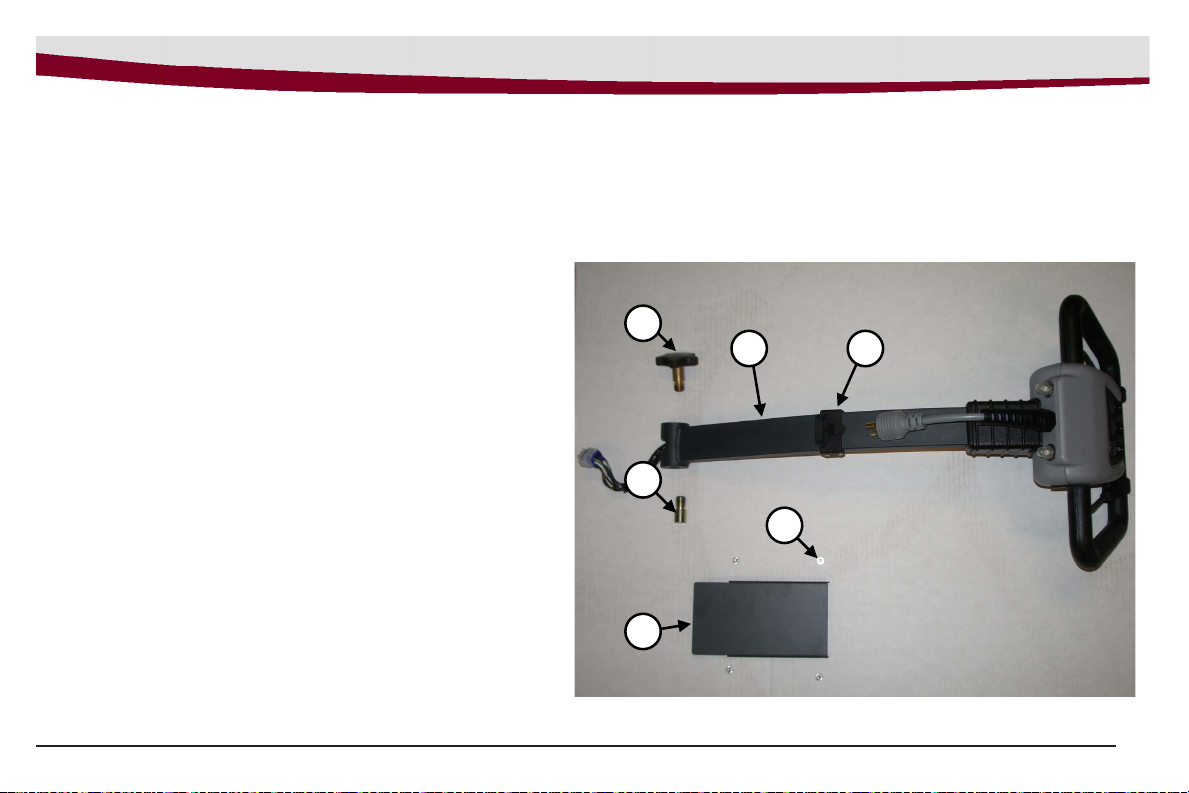

Handle Assembly
The X17 CFS Handle Assembly (D) is not assembled
on the machine when shipped. Follow the instruction
on the next page to connect the handle assembly to the
machine.
A HANDLE ADJUSTMENT KNOB
B SHOULDER BOLT
C COVER
D HANDLE ASSEMBLY
E SCREW
F CORD RELIEF
Assembly

8 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
2. Use philips screwdriver to unscrew 4 screws
and remove cover.
3. Insert handle assembly in between bushings. Insert
the shoulder bolt through the bushing and screw
into the handle assembly using supplied wrench.
4. Align the teeth on the bushing and handle
assembly before tightening the adjustment knob.
1. Unpack machine.
Assembly

9
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

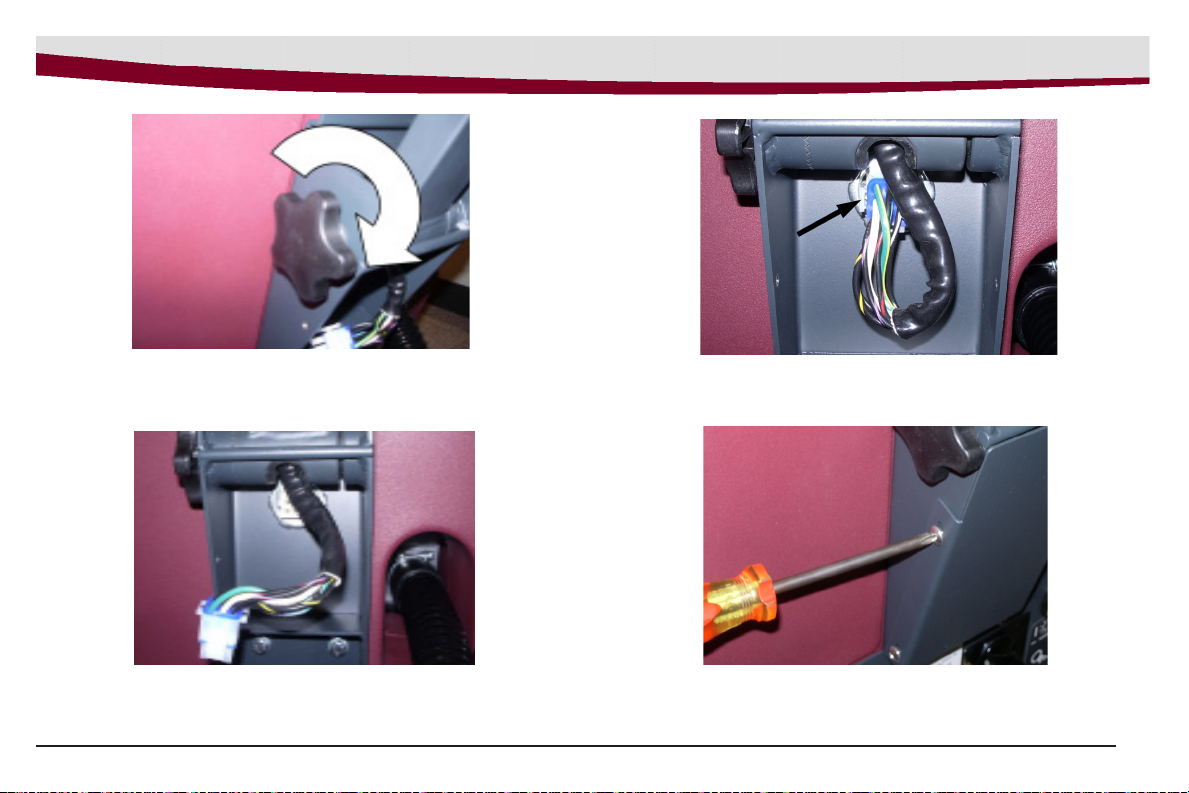

Assembly
6. Attach the wire harness to the machine.
7. The wire harness must be aligned with the
patterns on the connector to t.
8. Screw the cover back with the 4 screws.
5. Spin the adjustment knobclockwise to tighten.

10 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
P
M
Q
N

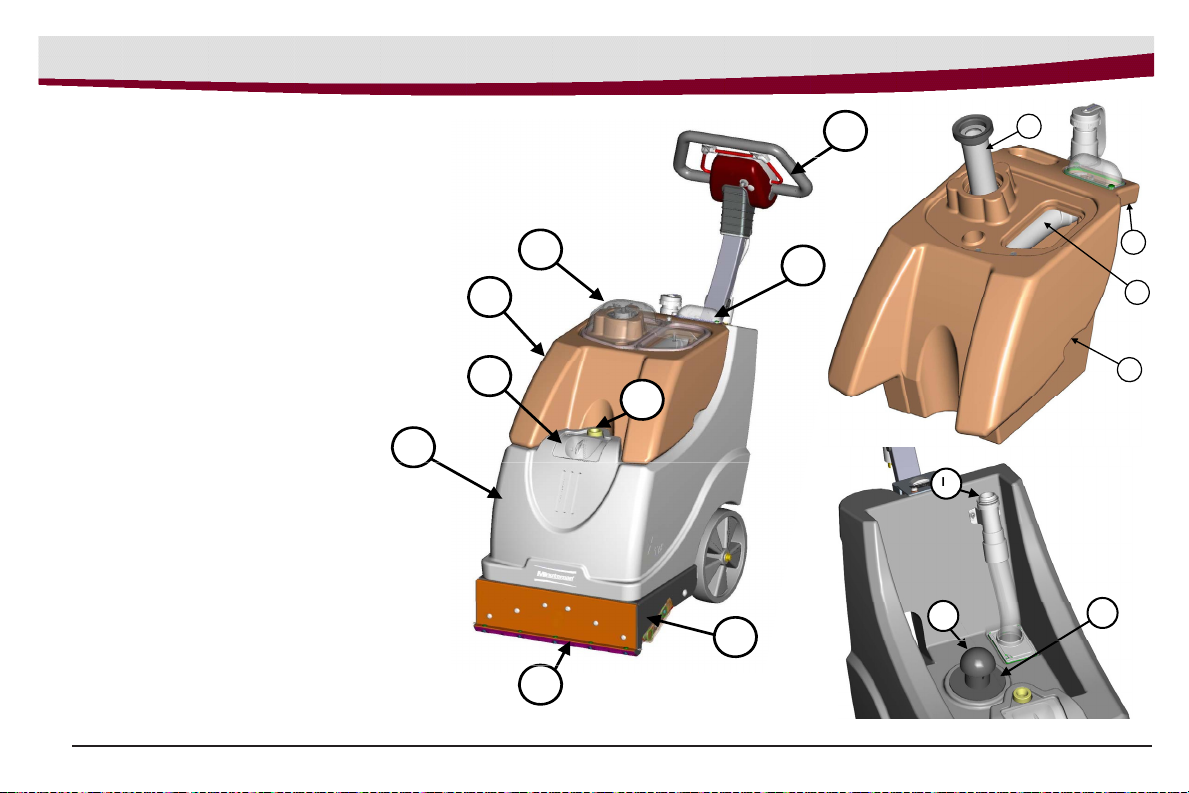

Machine Overview
L
L
KR
A
G
B
G
C
E
D
F
H
J
Vacuum Connection
K. VACUUM MOTOR INTAKE COVER
L. VACUUM CONNECTION TUBE
M. RECOVERY INLET
N. RECOVERY TANK HANDLE
P. VACUUM FLOAT SHUT-OFF
Q. RECOVERY WINDOW EXTENSION HOSE
R. VACUUM MOTOR GASKET
X17 CFS Front
A. HANDLE
B. RECOVERY DOME LID
C. RECOVERY TANK
D. SOLUTION TANK
E. SOLUTION TANK FILL PORT
F. FAUCET FILL HOSE
G. RECOVERY WINDOW
H. BRUSH MOTOR BELT COVER
J. VAC SHOE

11
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
X17 CFS Back & Bottom
A. TWIST LOCK POWER CONNECTOR
B. HANDLE ADJUSTMENT KNOB
C. AUXILIARY POWER OUTLET (FOR MINUTEMAN MOTORIZED TOOL ONLY)
D. RECOVERY TANK DUMP HOSE
E. BRUSH PRESSURE ADJUSTMENT KNOB
F. OFF AISLE WAND WATER FEMALE QUICK-CONNECT
G. VACUUM HOSE CONNECTION POINT
H. IN-LINE SOLUTION FILTER
J. VAC SHOE
K. BRUSH
L. BRUSH END COVER
M. SPRAY JETS (2)
N. BRUSH MOTOR
P. SOLUTION TANK DRAIN HOSE
R. CFS CONTROL BOX (ON/OFF)
Machine Overview

12 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

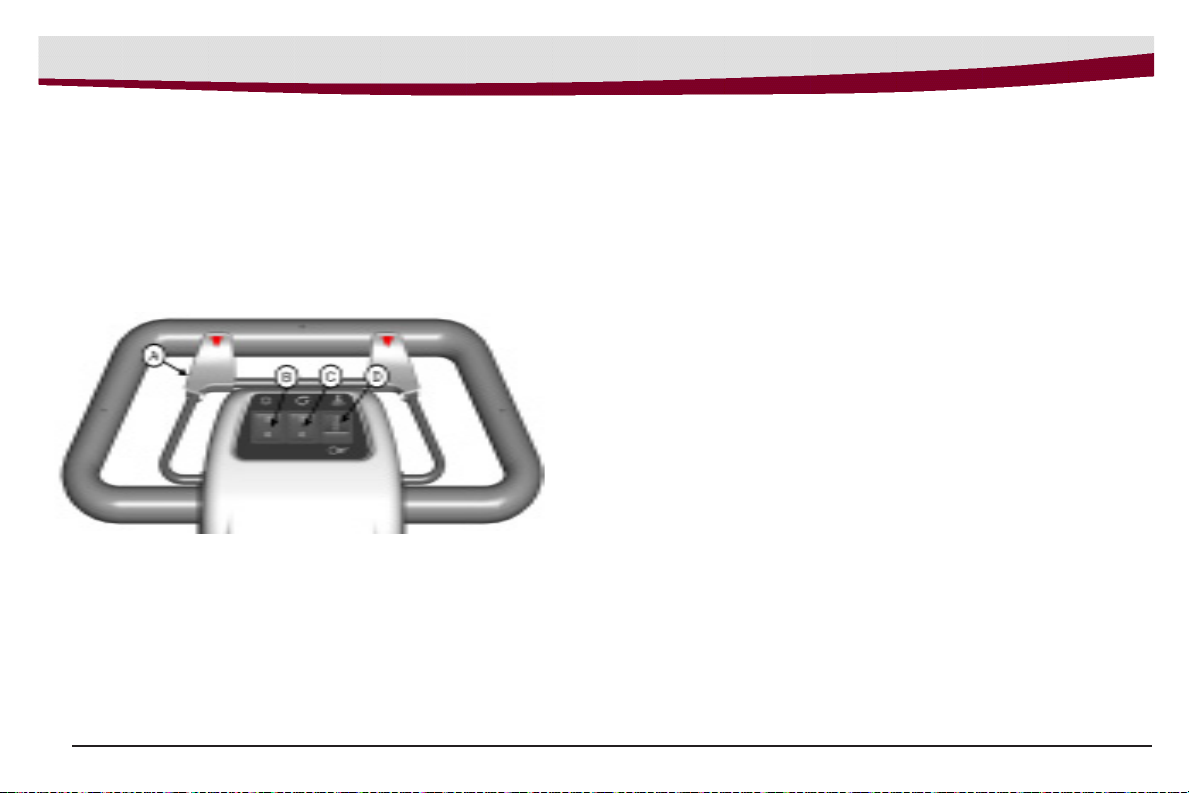

(A) Momentary Handle
When handle is pushed forward the spray jets shut off.
(B) Brush Switch
ON\OFF switch for brush.
Press switch up to (I) position to turn ON the brush motor.
Press switch down to (0) position to shut OFF brush motor.
Warning: While in Auxiliary Mode, keep the Brush Switch in
the off (0) position, or damage may occur to carpet.
(C) Vacuum Switch
ON\OFF switch for vacuum.
Press switch up to (I) position to turn ON vacuum.
Press switch down to (0) position to shut OFF vacuum.
(D) Spray Jet / Auxiliary Switch (Off Aisle Wand)
3-Position switch for spray jet and auxiliary mode function.
(0) position is a neutral OFF position; In the (0) postion the
Spray Jet and Auxiliary Mode are OFF.
Press switch up to (I) position to turn ON the spray jets.
Press switch down to (II) position to turn ON Auxiliary Mode
(Off Aisle Wand - OAW). This will power the auxiliary outlet
and turn the water pump on for the auxiliary connection.
See page 20 for OAW connection details.
Warning: When in Auxiliary Mode, conrm Brush Switch is
in the OFF position or damage to carpet may occur.
Machine Overview
Handle/ Control Panel
A. MOMENTARY SPRAY SHUT-OFF
B. BRUSH SWITCH
C. VACUUM SWITCH
D. SPRAY JET \ AUXILIARY SWITCH
(OFF AISLE WAND)

13
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Machine Overview

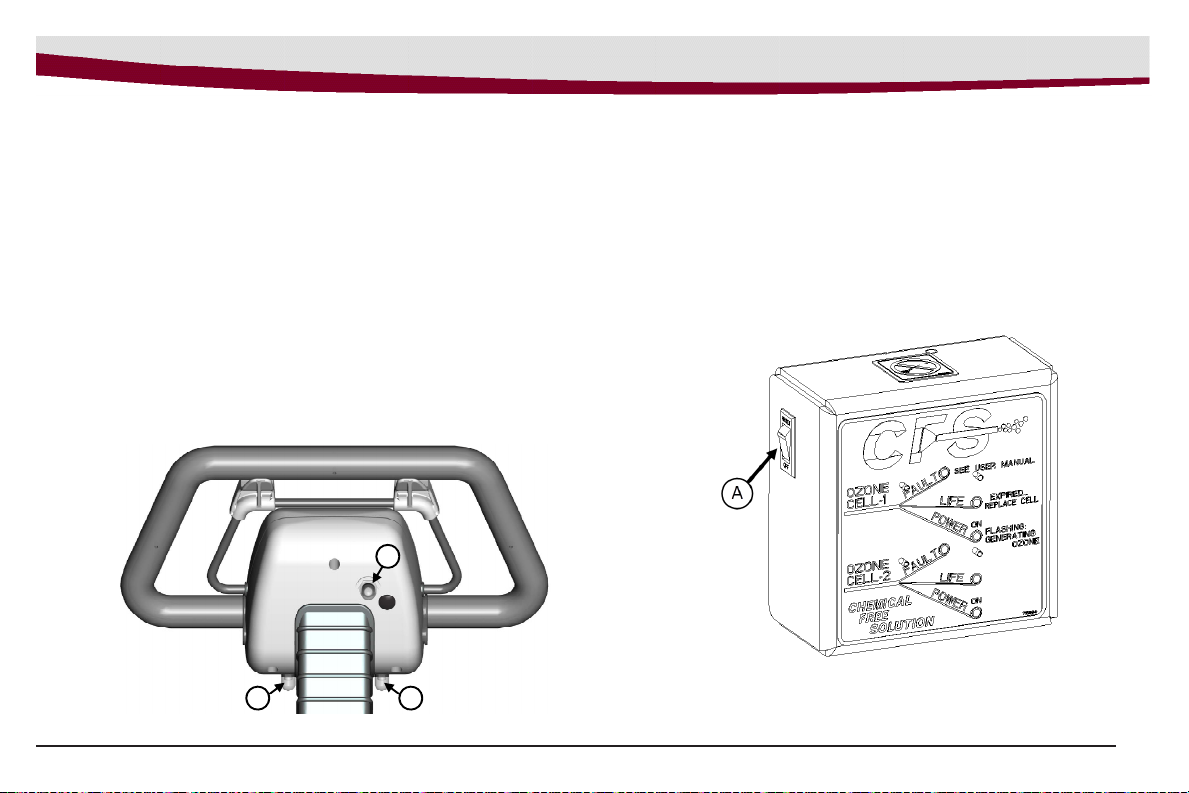

Circuit Breakers
The circuit breakers are located on bottom and rear of the
handle assembly.
1. BRUSH MOTOR BREAKER - (X17115) 1.5 amp
(X17230) 1.0 amp
2. VACUUM PUMP BREAKER - (X17115) 12 amp
(X17230) 7.5 amp
3 SPRAY JET PUMP\AUX POWER & PUMP BREAKER -
(X17115) 1.5 amp
(X17230) 1.0 amp
If any of the functions above are not operating, check if the
circuit breaker buttons have tripped. Press to reset.
2
3
1
3
1
CFS Control Box
The CFS Control Box is located on the back of the
machine to the left side of the handle assembly.
A. ON/OFF (RESET) SWITCH FOR CFS
The ON/OFF (RESET) Switch for the CFS controls the
power ON and power OFF. This switch is also used to
reset the CFS function of the X17 CFS machine.

14 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Machine Overview

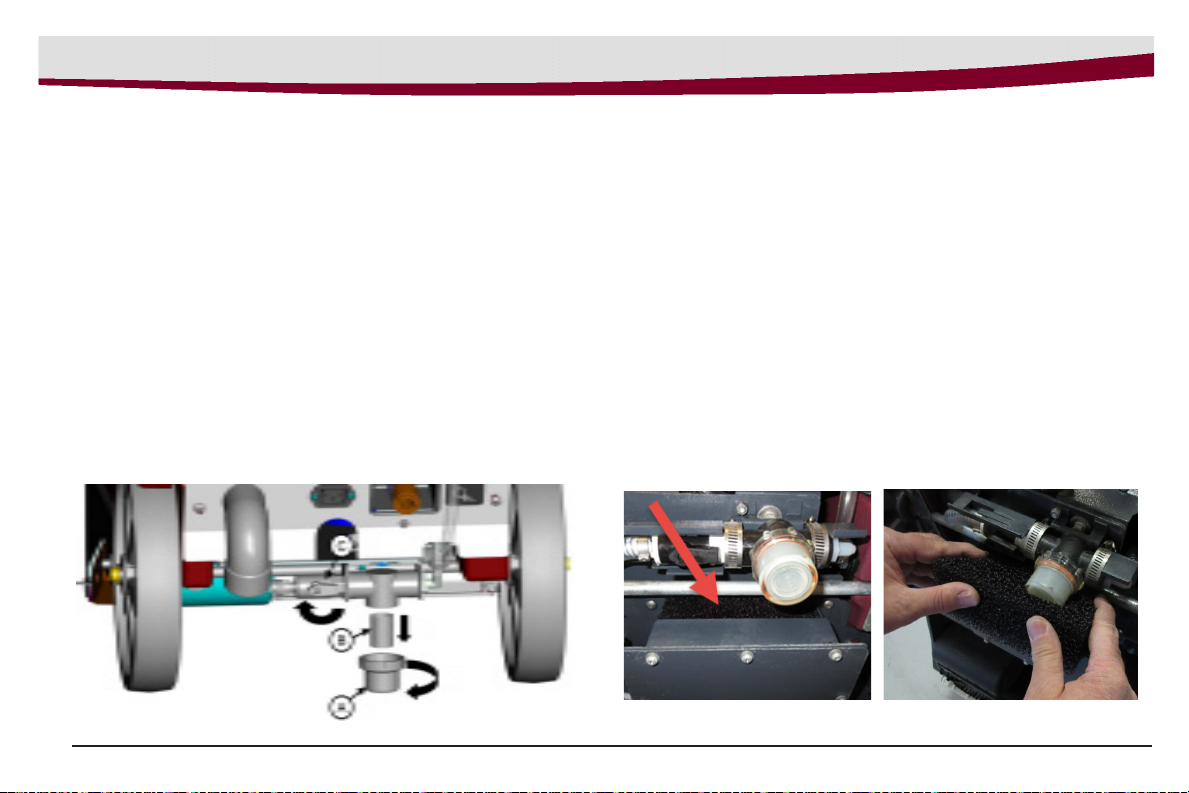

Solution Tank In-line Filter
The In-line Filter protects the water pump from large debris.
This lter should be cleaned regularly.
Steps to cleaning Solution Tank In-line Filter (See Figure 1):
1. Close the Shut-off Valve (C) by turning the handle 90O
clockwise. When handle is perpendicular to water line the
valve is closed.
2. Next, twist the Filter Cap (A) counterclockwise.
3. Remove cap and Filter (B), clean with water.
4. Place lter back into cap, turn cap clockwise onto lter
body, tighten by hand. Note: Using tools to tighten
may damage plastic threads.
5. Open the Shut-off Valve (C) by turning the handle 90O
counterclockwise.
Vacuum Intake Filter
The Vacuum Intake Filter protects the intake vacuum from
large debris. This lter should be cleaned regularly.
Steps to cleaning Vacuum Intake Filter:
1. Unplug machine from power source outlet.
2. Drain Solution and Recovery tanks.
3. Filter is located above CFS Power Supply Box on the
underside of the machine. Tilt machine forward on the
vacuum shoe until the lter is visible. (See Figure 2)
4. Once the lter is visible and the machine is supported in a
stabilize position - remove the lter. (See Figure 3)
5. Rinse and clean lter with water. Allow lter to air dry.
6. Insert lter back into original location.
Figure 2 Figure 3
Figure 1

15
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

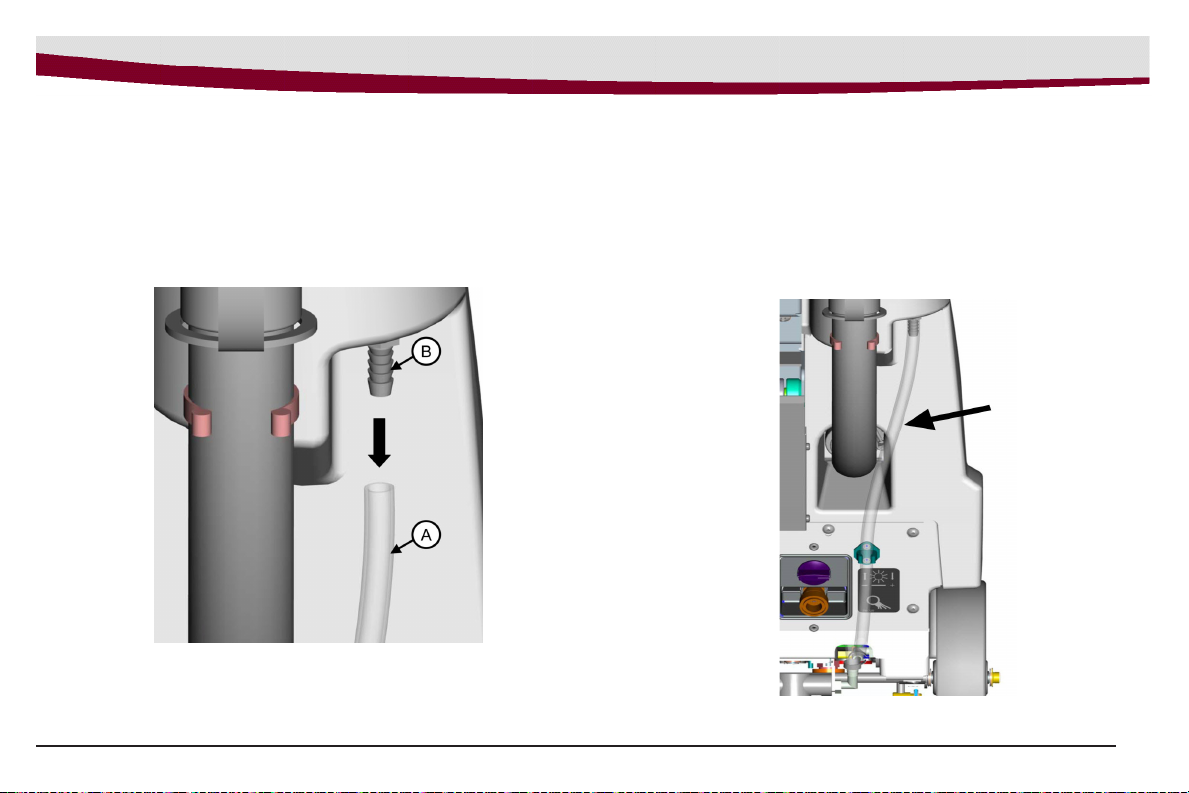

Solution Tank Drain Hose
The solution tank may be drained by removing the Solution
Tank Drain Hose (A) from the Hose Barb (B) and routing
the hose to a oor drain. (See Figure 4)
Solution Level Indicator
The solution Tank Drain Hose also serves as a water
level indicator for the solution tank. The amount of water
remaining in the solution tank can be seen through the clear
drain hose. (See Figure 5)
Machine Overview
Figure 4
Figure 5

16 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

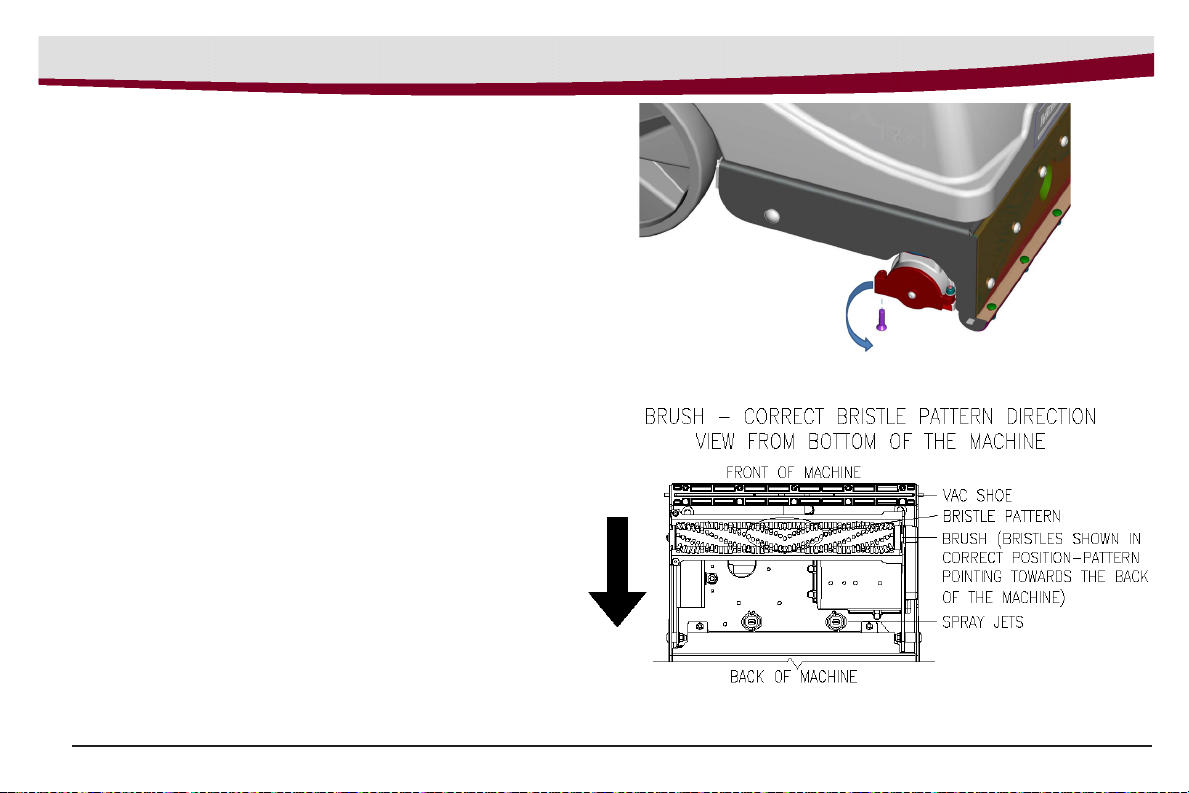

Brush Removal
Machine Overview
Figure 1
Figure 2
1. Use a 4mm or 5/32 Hex Tool to remove the at-head
screw on the underside of the right side of the brush
housing.
2. Pry open the brush housing door and swing door out. (See
Figure 1)
3. Pull brush straight out to the side.
To re-install:
1. Conrm the bristle pattern is in the correct direciton.
a. When brush is inserted, visually inspect the bristle
pattern from underneath the machine, bristle cheveron
pattern will point to back of the machine. (See Figure 2)
b. If bristle cheveron pattern is not pointing towards the
back of the machine, remove brush and insert opposite
brush end in rst.
3. To engage the drive hub on the left side with the brush
socket, twist the brush until the drive hub lock in place
with the brush.
4. Close the brush housing door. The bearing in the door will
insert itself into the end of the brush.
5. While holding the housing door closed, re-install at-head
screw from the underside of the housing.

17
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

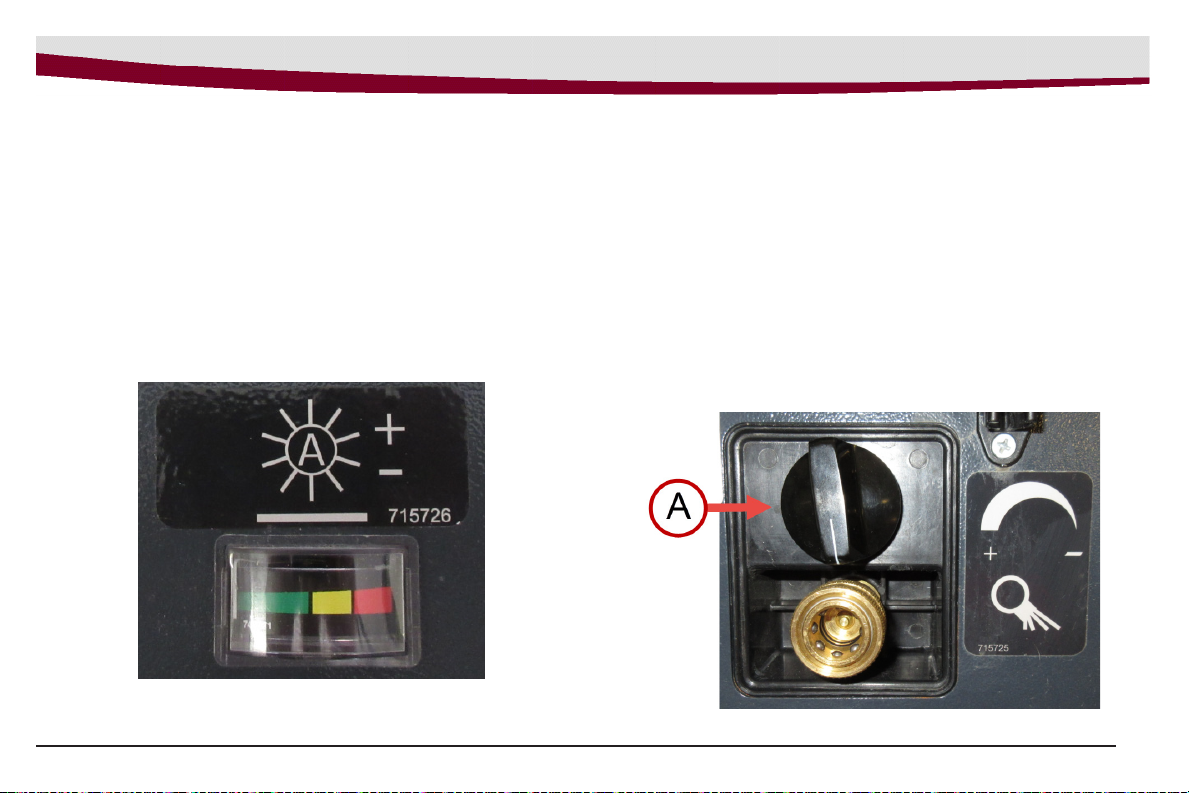

Brush Pressure Gauge
The brush pressure gauge informs the operator if the brush
pressure setting is in optimum range. (See Figure 3) The
machine operates best in the green range. If the machine
reaches the yellow or red range, the brush pressure can
be lowered by using the Brush Pressure Adjustment Knob.
See Brush Pressure Adjustment Knob for brush pressure
adjustments.
Machine Overview
Figure 3
Figure 4
Brush Pressure Adjustment Knob
The Brush Pressure Adjustment Knob allows the operator to
decrease or increase the brush pressure. The adjustment
knob (item A, Figure 4) is located on the lower right side of
the back panel of the machine.
To DECREASE brush pressure: Turn the adjustment knob
CLOCKWISE (in the ‘-’ direction) until the desired pressure
range is achieved.
To INCREASE brush pressure: Turn the adjustment knob
COUNTER-CLOCKWISE (in the ‘+’ direction) until the
desired pressure range is achieved.

18 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
Machine Overview

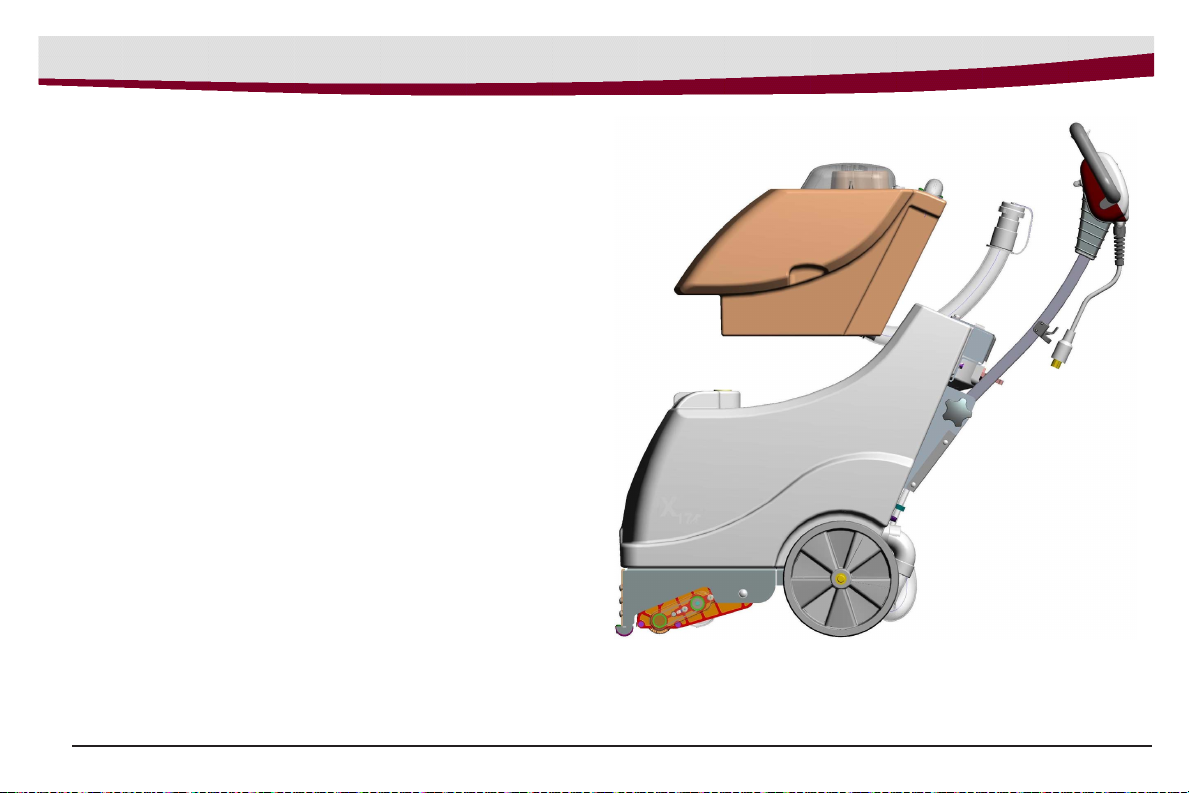

Removable Recovery Tank
To remove tank:
1. Unclip dump hose from solution tank.
2. Pull recovery tank straight up.
To replace tank:
1. Feed dump hose through opening in solution tank
2. Lower tank into place. Recovery vacuum inlet will rest on
vacuum connection tube (See pg 10, items L & M)
3. Clip dump hose to solution tank.

19
© 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15

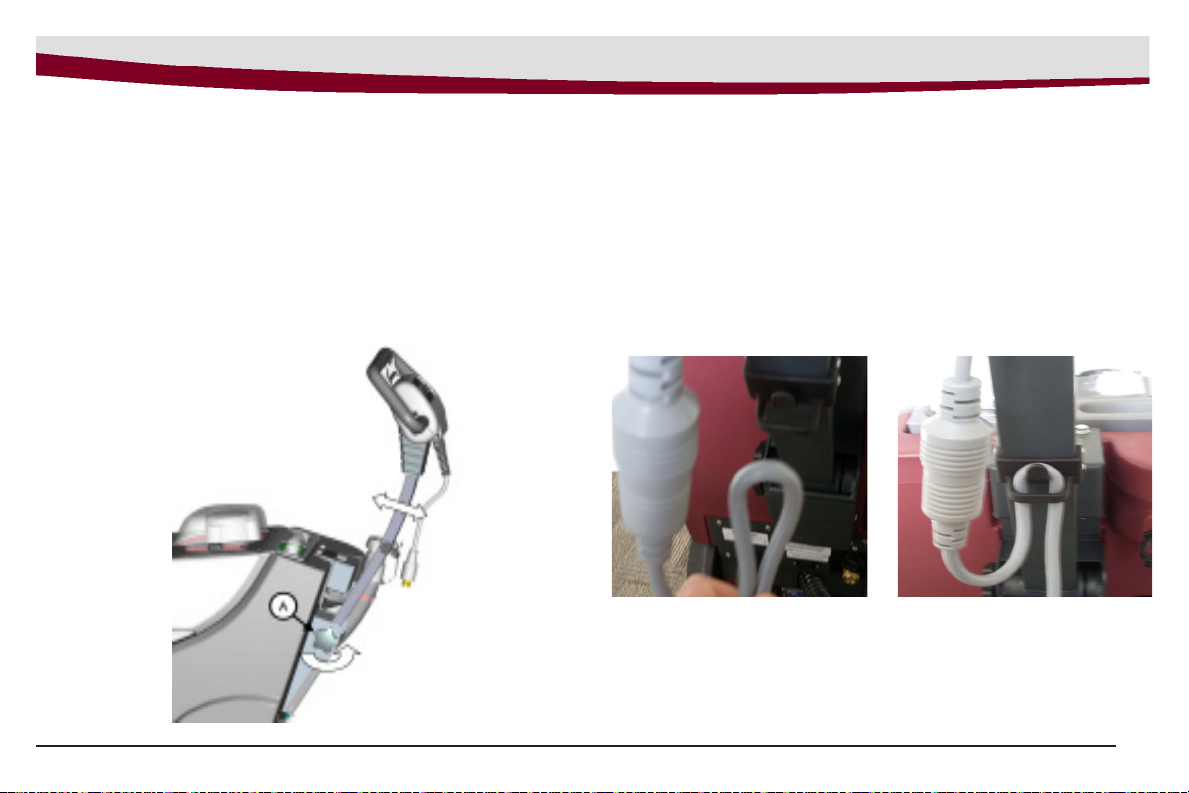

Handle Adjustment
The X17 handle was designed with operator comfort in mind.
The angle position of the handle can be adjusted to suit the
needs of the operator.
Angle Adjustment
The handle can be adjusted without tools by loosening the
Handle Adjustment Knob (A) and rotating the handle to the
desired position.
Machine Overview
Cord Relief
Use cord relief to prevent cables from disconnecting.
Using the Cord Relief
1. Loop the cord as shown in Figure 1.
2. Lock the cord in place by threading the cable through the
relief, then pull the cable down so it locks into place as
shown in gure 2.
Figure 1 Figure 2

20 © 2015 Minuteman International, Inc.
X17 ECO CFS Carpet Extractor #988751UM Rev. * 04/15
• 390070 - Upholstery Tool (Requires Hose Assembly)
• 831255 - Scrub/Vacuum Wand (Requires Hose Assembly)
• 828924 or 830750 - Hose assemblies for non-motorized tools.
Does not require QC coupler (Item G)
• 831019 - Pump-Out Hose
• 17603 - Vac Out Hose
C
B
A
G
D
E
F
Accessories
• X17115, use C46300-00 - Motorized Tool
• X17230, use C46300-02 - Motorized Tool
Only these tools may plug into the Auxiliary
Power (Fig. 1/B).
• The Vacuum Hose (Ref. Item G, pg 11) must be rst disconnected
from the machine back panel. Connect the Suction Hose (Fig. 2/D)
tool to the Vacuum Inlet (Fig. 1/A).
• Connect the accessory Power Cord (Fig. 2/E) to the Auxiliary Power
(Fig. 1/B).
• A Coupler-Quick Connect (Fig. 2/G) (p/n: 450295) is required
to connect the tool Solution Hose (Fig. 2/F) to the quick-connect
Solution Coupling (Fig. 1/C).
• To turn ON the tool, the auxiliary switch in the machine handle must
be in the (II) position as shown on pg 12, (Item D). The vacuum
switch must also be turned on when using the motorized tool.
Machine Overview
Caution! Brush motor must be turned OFF when using
auxiliary function. If the brush motor is ON, damage to carpet
my occur.
Figure 1
Figure 2
