Miovision TrafficLink Assembly instructions
TrafficLink hardware installation manual
Package contents 2
Safety recommendations 4
Before you begin the installation 5
Plan component locations 5
Required tools 6
Install the TrafficLink Antenna 6
Install the SmartLink (travel time only) 7
Install the SmartLink with a TrafficLink Interface 8
Install the SmartLink 8
Install the TrafficLink Interface ABC 9
Install the TrafficLink Interface EF-140 10
Install the SmartLink SDLC 10
Install the SmartLink without a TrafficLink Interface 11
Connect optional components 13
Complete the installation 13
Perform a final review of the cabinet 13
Document the location of the TrafficLink components 14
Miovision Technical support 14
Physical Specifications 14
6.11.19
1
Package contents
All SmartLink packages contain the items below. If you prefer to review these steps in a
video tutorial, see the TrafficLink installation overview.
SmartLink or
SmartLink SDLC
TrafficLink Antenna
Universal
Power Supply
Universal
Wall Cables
(1 x modified)
Serial cables
1.2 m (4 ft) Ethernet cable
0.30 m (1 ft)
Ethernet cable
MioChuck tool
Cabinet clip
●NEMA collar connector screws - for
tight installations that require shorter
screws
●For SDLC installations, Y cable.
For travel time-only installations:
●No TrafficLink Interface is required.
6.11.19
2
For NTCIP controllers:
●If the controller in your cabinet uses NTCIP over Ethernet to connect the
SmartLink, the TrafficLink Interface is not required. However, you will need to
determine the IP settings for your installation. Contact Customer Support for
assistance.
If your application requires TrafficLink Interface EF-140, the package also contains:
TrafficLink Interface EF-140
A, B & D cables
6.11.19
3
If your application requires a TrafficLink Interface ABC device, the package also
contains:
ABC cables
A Cable
B Cable

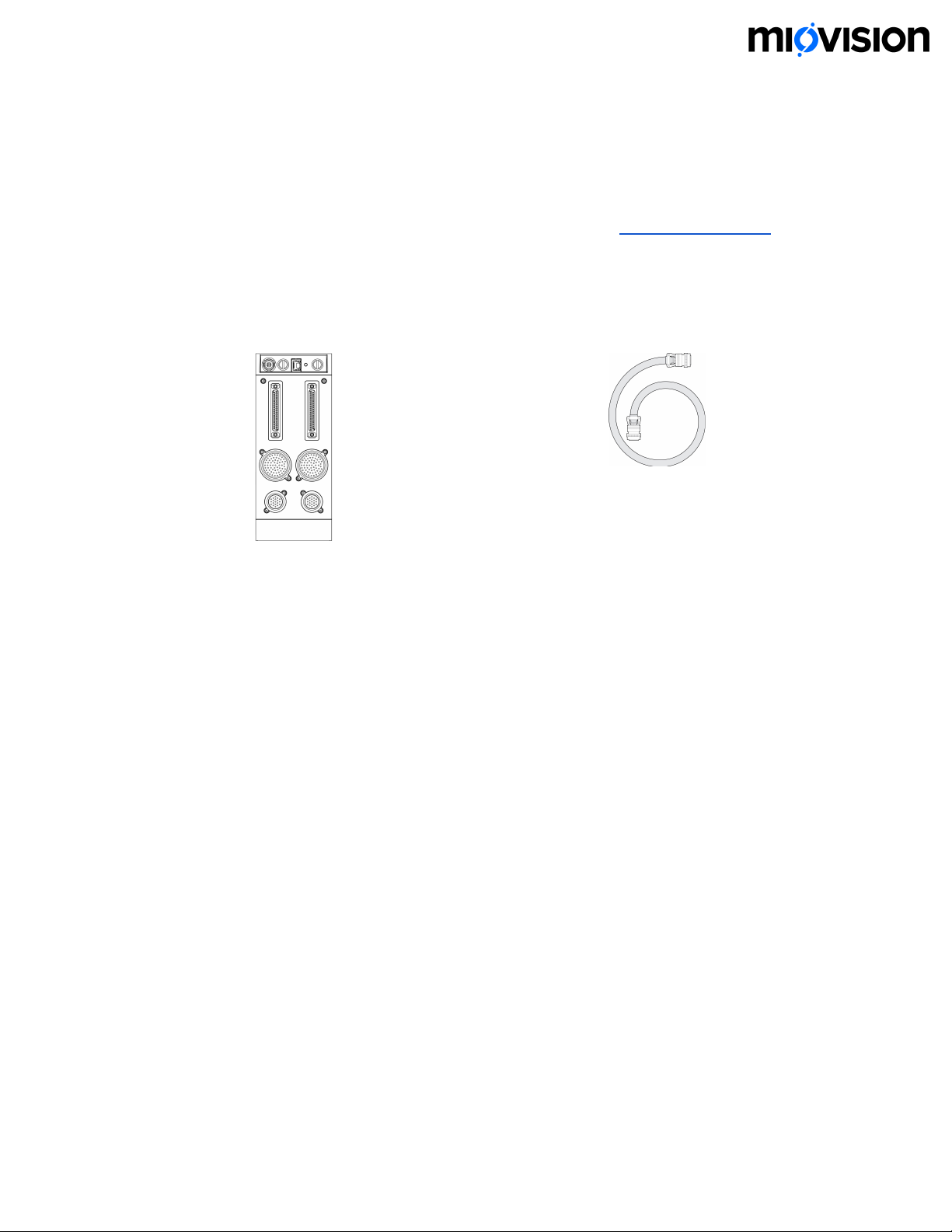

TrafficLink Interface ABC
C Cable
If your application requires a SmartLink SDLC, the package also contains:
●SDLC Y cable
If your application requires a D cable, you can purchase one at an additional cost.
Contact Customer Support with your controller make and model to determine the
compatible D cable.
Safety recommendations
●Make sure that a certified electrician is present for the installation and that you
follow the appropriate safety recommendations when installing the components.
●Do not install components if the conditions are not safe, such as during adverse
weather situations.
●If possible, inspect the wires in the cabinet for any unsafe wear and replace them
if necessary.
6.11.19
4
Before you begin the installation
Plan component locations
Before you begin, determine the best location for the TrafficLink Antenna, SmartLink,
and TrafficLink Interface (if necessary). You might need to move some of the existing
equipment in the cabinet to accommodate the devices.
If you prefer to review these steps in a video tutorial, see Device placement and
TrafficLink antenna installation.
For best ventilation, install the SmartLink and TrafficLink Interface vertically.
Place the components so that there is a minimum of 12.7 mm (1/2 in) around them for
ventilations, for cable connections, so that all cables can reach, and so that you can
access the components during maintenance.
You might have to move some of the existing equipment in the cabinet to
accommodate the SmartLink and TrafficLink Interface.
6.11.19
5
If you cannot install the SmartLink next to the TrafficLink Interface, install them no more
than 1.2 m (4 ft) apart.
Use caution when moving components to avoid disconnecting cables.
Make sure that you have access to terminal block wiring or an 110V-240V uninterrupted
(non-GFCI) power supply for the SmartLink and TrafficLink Interface.
Required tools
●Drill and drill bit
●Small container to catch filings
●Industrial-strength cleaner
●Heat gun if installing in under 5°C (41°F) weather
●Small container or cloth
Please bring a copy of the Installation Checklist to your installation.
Install the TrafficLink Antenna
If you prefer to review these steps in a video tutorial, see Device placement and
TrafficLink antenna installation.
1. Mark a location for the antenna hole on top of the cabinet, at least 152.4 mm (6
in) from any edge. Make sure that you choose a location so that your drill bit or
punch will not drill through or puncture any equipment in the cabinet.
2. To contain sharp steel burrs that can cut wire and cause an electrical short, place
a small container or cloth inside the cabinet below the drill location to catch any
loose debris from drilling.
3. Drill or punch a hole at the marked location.
4. To provide a smooth surface for good adhesion, clean the surface where you are
installing the antenna with industrial strength cleaner. Remove any burrs from
drilling.
Note: Make sure to completely remove any dirt, moisture, frost and steel burrs
from drilling before continuing.
5. Remove the twist ties, nut, and washer from the antenna cables.

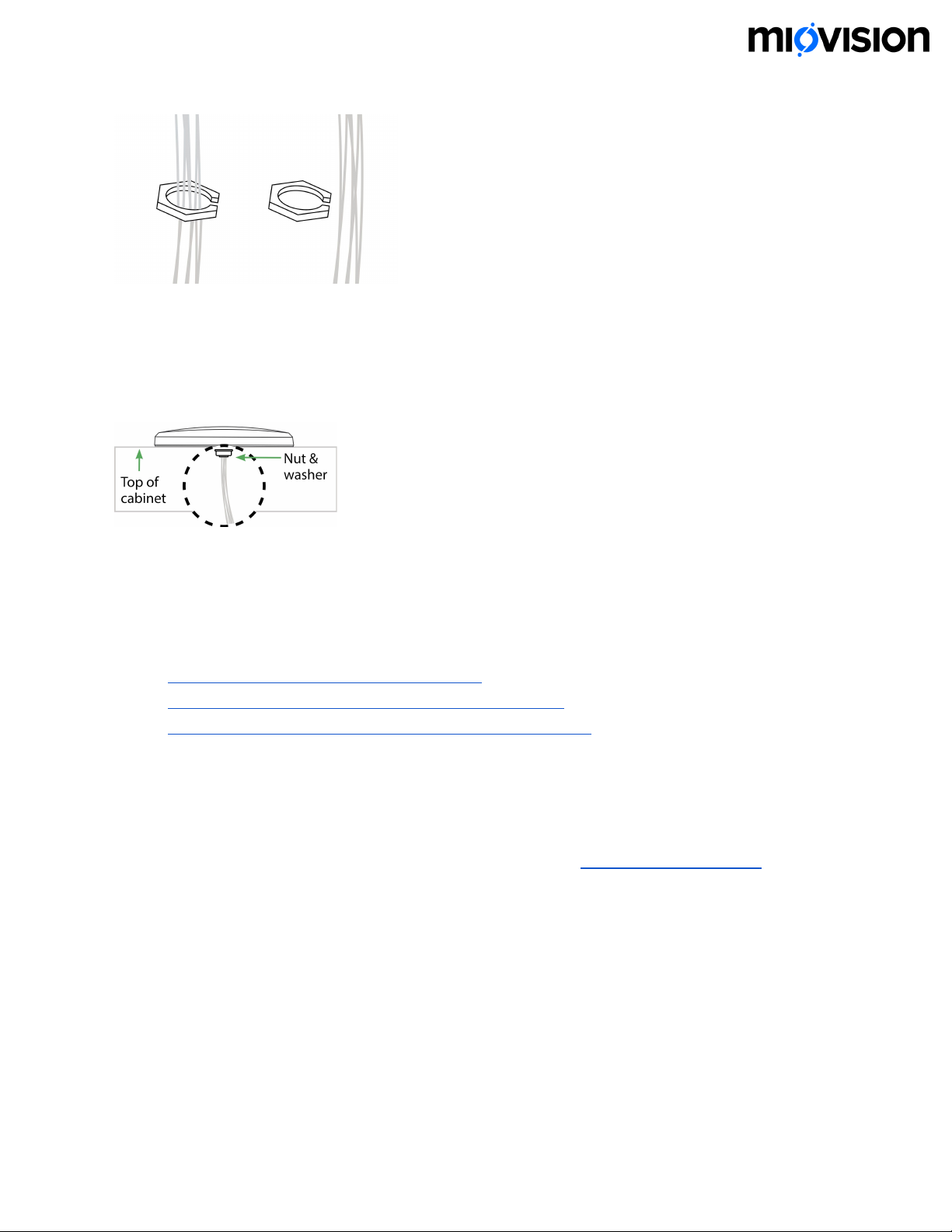

6. Guide the antenna cables through the hole in the cabinet as shown in the
following illustration.
6.11.19
6
7. If the ambient temperature is below 5°C (41°F), use the heat gun to warm the
surface where you are placing the antenna.
8. Remove the protective film from the adhesive pad on the bottom of the antenna
and then firmly press the antenna onto the top of the cabinet.
9. Slide the washer and nut around the antenna cables.
10.Hand tighten the nut.
11.Using the wrench, tighten the nut one full turn.
12.Visually inspect the antenna to make sure that the adhesive forms a tight seal on
top of the cabinet.
Follow the procedure that matches your installation scenario:
●Install the SmartLink (travel time only)
●Install the SmartLink with a TrafficLink Interface
●Install the SmartLink without a TrafficLink Interface
Install the SmartLink (travel time only)
If you prefer to review these steps in a video tutorial, see SmartLink installation.
1. Place the SmartLink in the planned location in the cabinet.
2. Using the label on each antenna cable as a guide, connect each antenna cable to

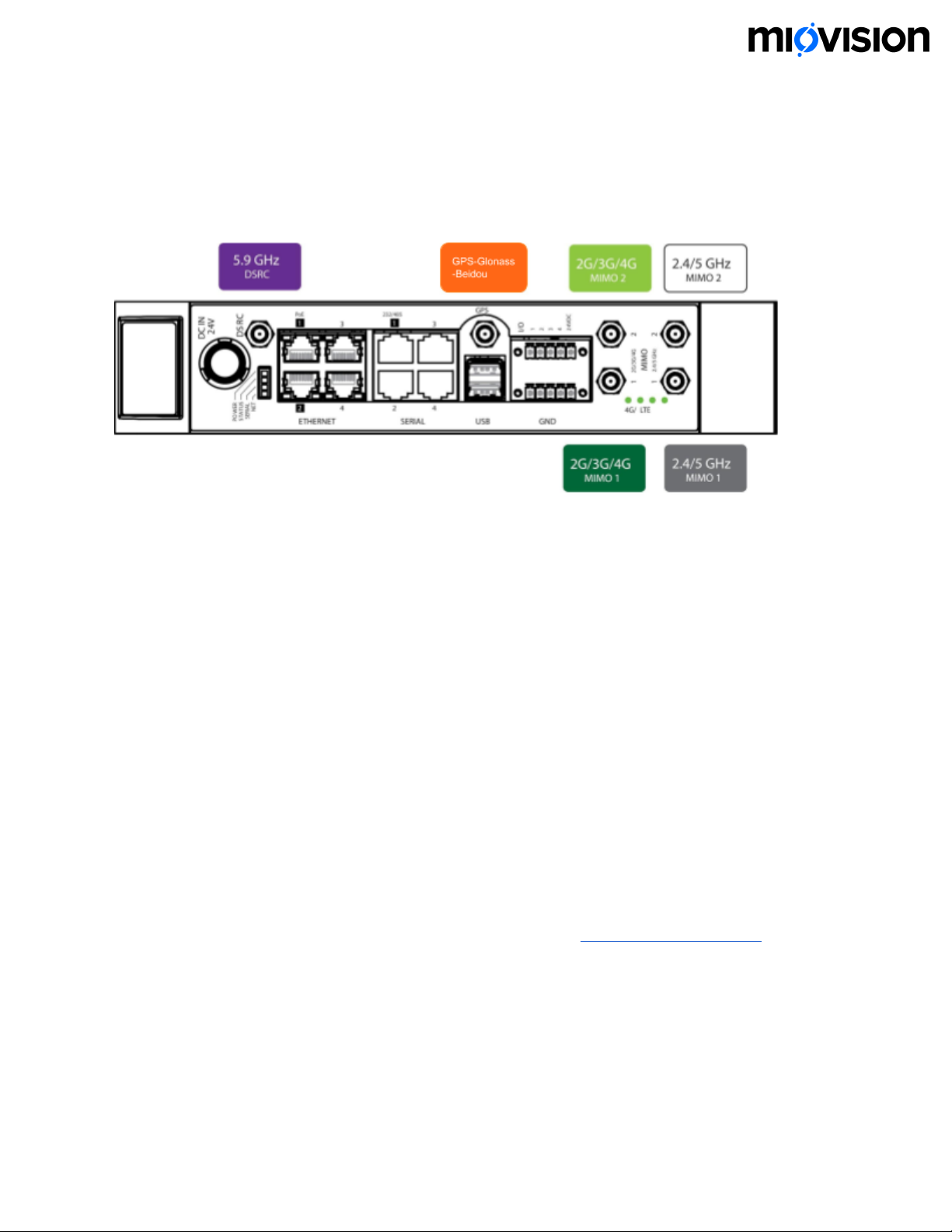

the corresponding connector on the SmartLink. The illustration below shows the
labels next to the corresponding connectors.
6.11.19
7
3. Connect the SmartLink to the power supply (terminal block wiring or 110V-240V
non-GFCI) and then turn on the SmartLink.
4. Verify that the Power LED is solid green.
5. Verify that the NET LED is solid green. The SmartLink might take a few minutes
to connect to TrafficLink.
Install the SmartLink with a TrafficLink Interface
Installing a TrafficLink Interface ABC or TrafficLink Interface EF-140 requires putting the
intersection into flash. If you prefer to review these steps in a video tutorial, see
SmartLink installation.
Install the SmartLink
1. Place the SmartLink in the planned location in the cabinet.
2. Using the label on each antenna cable as a guide, connect each antenna cable to
the corresponding connector on the SmartLink. The illustration below shows the
labels next to the corresponding connectors.
6.11.19
8
3. Connect the Ethernet cable from Ethernet Port 3 on the SmartLink to the Ethernet
Port on the TrafficLink Interface ABC.
4. Connect the SmartLink to the power supply (terminal block wiring or 110V-240V
non-GFCI) and then turn on the SmartLink.
5. Verify that the Power LED is solid green.
6. Verify that the NET LED is solid green. The SmartLink might take a few minutes
to connect to TrafficLink. You can continue installing other components while the
SmartLink is connecting.
Install the TrafficLink Interface ABC
If you prefer to review these steps in a video tutorial, see ABC(D) interface installation.
If you need help attaching the ABCD cables, use the supplied MioChuck to grasp the
cables. (Your installation might not require a D cable.)
1. If you are installing the TrafficLink Interface vertically, as recommended for
optimal ventilation, screw the cabinet clip to the back of the TrafficLink Interface.
Hand tighten the screws.
2. Place the TrafficLink Interface ABC(D) in the planned location in the cabinet.

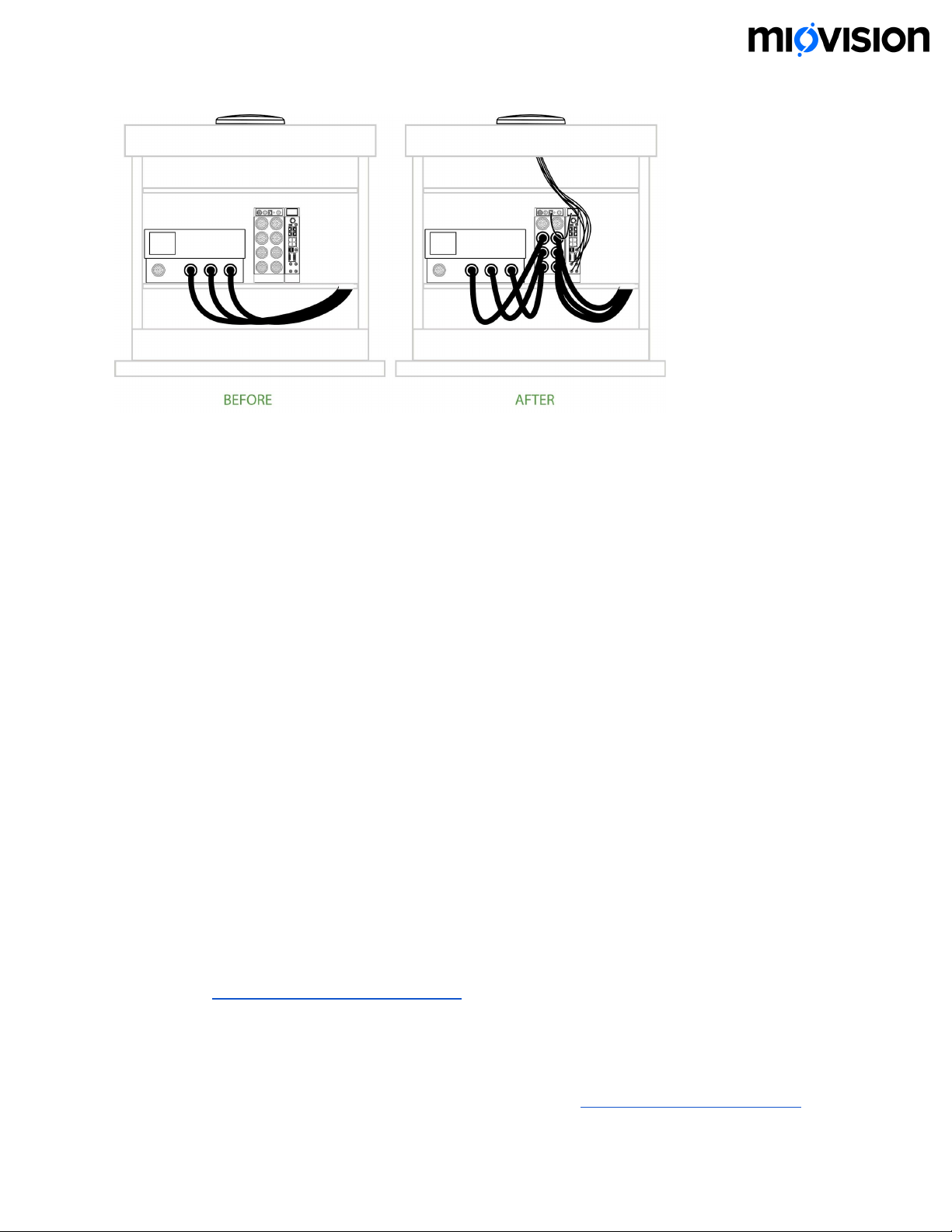

3. Attach the ABC(D) cables to the corresponding color-coded inputs on the
CONTROLLER side of the TrafficLink Interface.
4. When it is safe to do so, manually put the intersection into flash mode.
5. Disconnect the ABC(D) cables from the existing controller.
6. Attach the ABC(D) cables from the cabinet to the corresponding color-coded
inputs on the CABINET side of the TrafficLink Interface.
7. Attach the ABC(D) cables from the CONTROLLER side of the TrafficLink Interface
to the corresponding inputs on the controller.
8. Connect the TrafficLink Interface to the power supply (terminal block wiring or
110V-240V non-GFCI) and then turn on the TrafficLink Interface.
9. Verify that the TrafficLink Interface power LED is solid green. If it is not, check the
cable connections.
10. Return the intersection to its normal operating mode.
6.11.19
9
Install the TrafficLink Interface EF-140
If you need help attaching the ABD cables, use the supplied MioChuck to grasp the
cables.
1. If you are installing the TrafficLink Interface vertically, as recommended for
optimal ventilation, screw the cabinet clip to the back of the TrafficLink Interface.
Hand tighten the screws.
2. Place the TrafficLink Interface EF-140 in the planned location in the cabinet.
3. Attach the ABD cables to the corresponding color-coded inputs on the
CONTROLLER side of the TrafficLink Interface.
4. When it is safe to do so, manually put the intersection into flash mode.
5. Disconnect the ABD cables from the existing controller.
6. Attach the ABD cables from the cabinet to the corresponding color-coded inputs
on the CABINET side of the TrafficLink Interface.
7. Attach the ABD cables to the corresponding inputs on the controller.
8. Connect the TrafficLink Interface EF-140 to the power supply.
9. Verify that the TrafficLink Interface power LED is solid green. If it is not, check the
cable connections.
10. Return the intersection to its normal operating mode.
If you are connecting optional components such as a malfunction monitoring unit
(MMU), see Connect optional components.
Install the SmartLink SDLC
If you prefer to review these steps in a video tutorial, see SDLC interface installation.
6.11.19
10
1. Place the SmartLink in the planned location in the cabinet.
2. Using the label on each antenna cable as a guide, connect each antenna cable to
the corresponding connector on the SmartLink. The illustration below shows the
labels next to the corresponding connectors.
3. Perform the appropriate step based on your controller type:
●If the controller supports Ethernet connections, connect the Ethernet cable
from Ethernet Port 3 on the SmartLink to the Ethernet port on the
controller.
●If the controller supports serial connections, connect the appropriate
Serial Cable from Serial Port 3 on the SmartLink to the serial port on the
controller.
4. Connect the SmartLink SDLC to the power supply (terminal block wiring or
110V-240V non-GFCI) and then turn on the SmartLink.
5. If the controller supports Ethernet connections, obtain and document the IP
address of the controller in the installation checklist.
The SmartLink takes a few minutes to connect to the TrafficLink software. You can
continue installing other components while the SmartLink is connecting.
Install the SmartLink without a TrafficLink Interface
If you prefer to review these steps in a video tutorial, see SmartLink installation.
1. Place the SmartLink in the planned location in the cabinet.
2. Using the label on each antenna cable as a guide, connect each antenna cable to
the corresponding connector on the SmartLink. The illustration below shows the
labels next to the corresponding connectors.
6.11.19
11
3. Follow the appropriate step based on your controller type:
●If the controller supports Ethernet connections, connect the Ethernet cable
from Ethernet Port 3 on the SmartLink to the Ethernet port on the
controller.
●If the controller supports serial connections, connect the appropriate
Serial Cable from Serial Port 3 on the SmartLink to the serial port on the
controller.
●If you are using the SmartLink SDLC, using the provided SDLC cable, connect the
SDLC port on the cabinet device to the SDLC port on the back of the SmartLink SDLC.
4. Connect the SmartLink to the power supply (terminal block wiring or 110V-240V
non-GFCI) and then turn on the SmartLink.
5. If the controller supports Ethernet connections, obtain and document the IP
address of the controller.
The SmartLink takes a few minutes to connect to the TrafficLink software. You
can continue installing other components while the SmartLink is connecting.
6.11.19
12
Connect optional components
If you are installing additional components, such as a Malfunction Management Unit
(MMU), you will connect the components to the SmartLink using either an Ethernet
cable or the appropriate Serial Cable for your device.
1. If the component supports Ethernet connections, connect one end of the cable
into an open Ethernet port on the SmartLink.
2. If the component supports serial connections, connect one end of the cable into
an open Serial port on the SmartLink. If you are connecting an MMU over serial,
connect it to Serial Port 4.
Complete the installation
Perform a final review of the cabinet
1. Before closing the cabinet door, verify that the TrafficLink Antenna is securely
fastened.
2. Confirm that the LEDs on SmartLink appear as follows:
●LED 1 (POWER) is solid indicates that there is power to the SmartLink
●LED 2 (STATUS) blinking indicates ‘heartbeat’
●LED 3 (SERIAL) solid indicates internet connectivity
6.11.19
13
●See SmartLink on-site troubleshooting for more information.
3. Use the SmartLink diagnostic tool to make sure SmartLink is installed
successfully. If any of the tests fail, check that all cables and power supplies are
properly connected. If issues still exist, contact Miovision Support.
Document the location of the TrafficLink components
After you install the TrafficLink components, take the following photos to record the
component locations. The photos will be uploaded to TrafficLink.
1. Take a photo of the inside of the traffic cabinet showing the placement of the
TrafficLink components.
2. Take a photo of the timing plan and wiring diagram. Typically, this diagram is
found in the cabinet pouch.
Miovision technical support
Technical support is available five days a week by phone or email during regular
business hours (Monday-Friday, 7 am-6 pm EST/EDT.) Certain restrictions and
exclusions apply.
Online: support.miovision.com
Phone: 1-855-360-7752
Email:[email protected]
Physical Specifications
Depth
Width
Height
Weight
SmartLink
266 mm
(10.5 in)
49 mm
(1.94 in)
246 mm
(9.69 in)
1.75 kg
(3.85 lb)
SmartLink
SDLC
266 mm
(10.5 in)
49 mm
(1.94 in)
246 mm
(9.69 in)
1.81 kg
(4.00 lb)
TrafficLink
Antenna
93 mm
(3.67 in)
216 mm
(8.51 in)
310 mm
(1.22 in)
0.50 kg
(1.10 lb)
6.11.19
14
TrafficLink
Interface ABC
265 mm
(10.43 in)
100 mm
(3.94 in)
246 mm
(9.69 in)
2.20 kg
(4.85 lb)
TrafficLink
Interface
EF-140
265 mm
(10.43 in)
100 mm
(3.94 in)
246 mm
(9.69 in)
2.02 kg
(4.45 lb)
6.11.19
15
Table of contents
Popular Industrial Electrical manuals by other brands
Murata
Murata GRM1555C1E151JA01 Series Reference sheet
Huayu
Huayu HY-1000-Plus Quick installation guide
Cooper Power Systems
Cooper Power Systems Kyle GV installation instructions
Hawke
Hawke 501/423 Exd IIC Assembly instructions
OEZ
OEZ BZ-BX-X230-A Instructions for use
Leviton
Leviton PCIND installation instructions
